Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#50245) — 223 parça

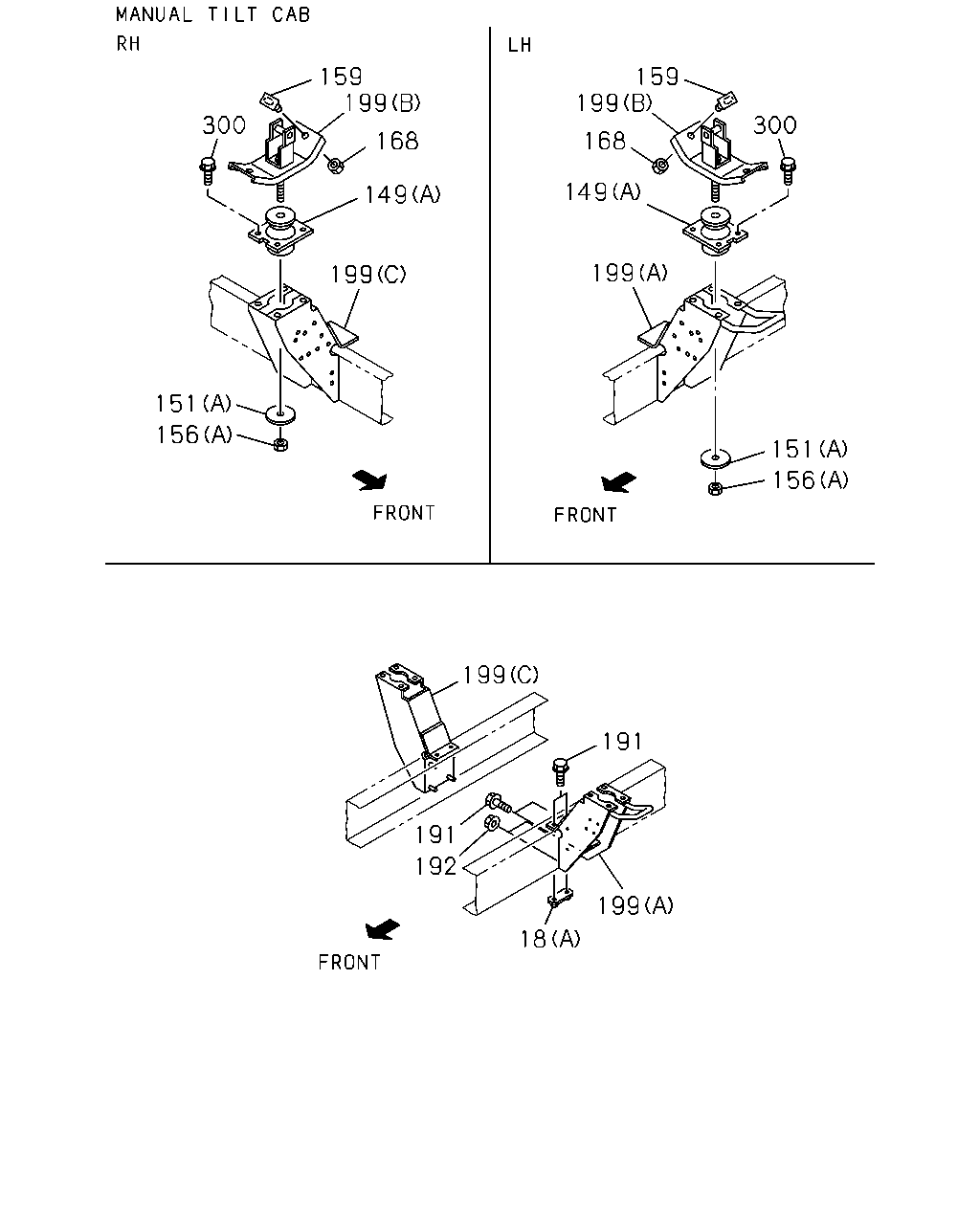

156 151 156 151 300 300 149 149 199 199 191 191 192 199 199 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0911-1108	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	1109-	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	0911-1108	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1109-	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	0911-1108	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	1109-	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	0911-1108	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	1109-	●	●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	0911-1108	●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	1109-	●	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	0911-1108	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	1109-	●	●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 (A) M16	0-91111-516-0	02	1	0911-1108	●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 (A) M16	0-91111-516-0	02	1	1109-	●	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	0911-1108	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	1109-	●	●
191	09.003 BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	04	1	1109-		●
191	09.003 BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	08	1	0911-1507	●
191	09.003 BOLT; BRKT FIX MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28651-240-0	08	1	1508-1510	●
191	09.003 BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	08	1	1511-	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	04	1	1109-1507		●
192	09.003 NUT; BRKT FIX MANUAL TILT CAB<RWZ> 02.042 M12 FLANGE	0-91180-112-0	04	1	1508-		●
192	09.003 NUT; BRKT FIX MANUAL TILT CAB<RWZ> 02.042 M12 FLANGE	0-91180-112-0	04	1	1508-		●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	0911-1108	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	1109-	●	●
199	09.003 BRACKET; CAB RR MTG TAIWAN EQUIPMENT(B04) MANUAL TILT CAB<RWZ> (C)	8-98024-776-4	01	1	1212-	●
199	09.003 BRACKET; CAB RR MTG TAIWAN EQUIPMENT(B04) MANUAL TILT CAB<RWZ> (A)	8-98024-777-4	01	1	1212-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (E)	8-98024-779-1	01	1	1109-		●
199	09.003 BRACKET; CAB RR MTG (F)	8-98024-770-1	01	1	1109-1507		●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (F)	8-98024-770-1	01	1	1508-		●
199	09.003 BRACKET; CAB RR MTG (H)	8-97092-102-5	01	1	1109-1507		●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (H)	8-97092-102-5	01	1	1508-		●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (H)	8-97092-102-5	01	1	1508-		●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (G)	8-98024-771-1	01	1	1109-1507		●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98024-773-1	01	1	0911-1211	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. TAIWAN EQUIPMENT(B04) (A)	8-98024-773-1	01	1	1212-1507	●
199	09.003 BRACKET; CAB RR MTG TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ> (A)	8-98024-773-1	01	1	1508-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98036-883-0	02	1	0911-1108	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98036-883-0	02	1	1109-	●	●
199	09.003 BRACKET; CAB RR MTG (C)	8-98024-772-1	01	1	0911-1101	●
199	09.003 BRACKET; CAB RR MTG (C)	8-98099-144-1	01	1	1102-1211	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. TAIWAN EQUIPMENT(B04) (C)	8-98099-144-1	01	1	1212-1507	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (C)	8-98099-144-1	01	1	1212-1507	●
199	09.003 BRACKET; CAB RR MTG TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ> (C)	8-98099-144-1	01	1	1508-	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-98024-778-1	01	1	0911-1507	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	0911-1108	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	1109-	●	●

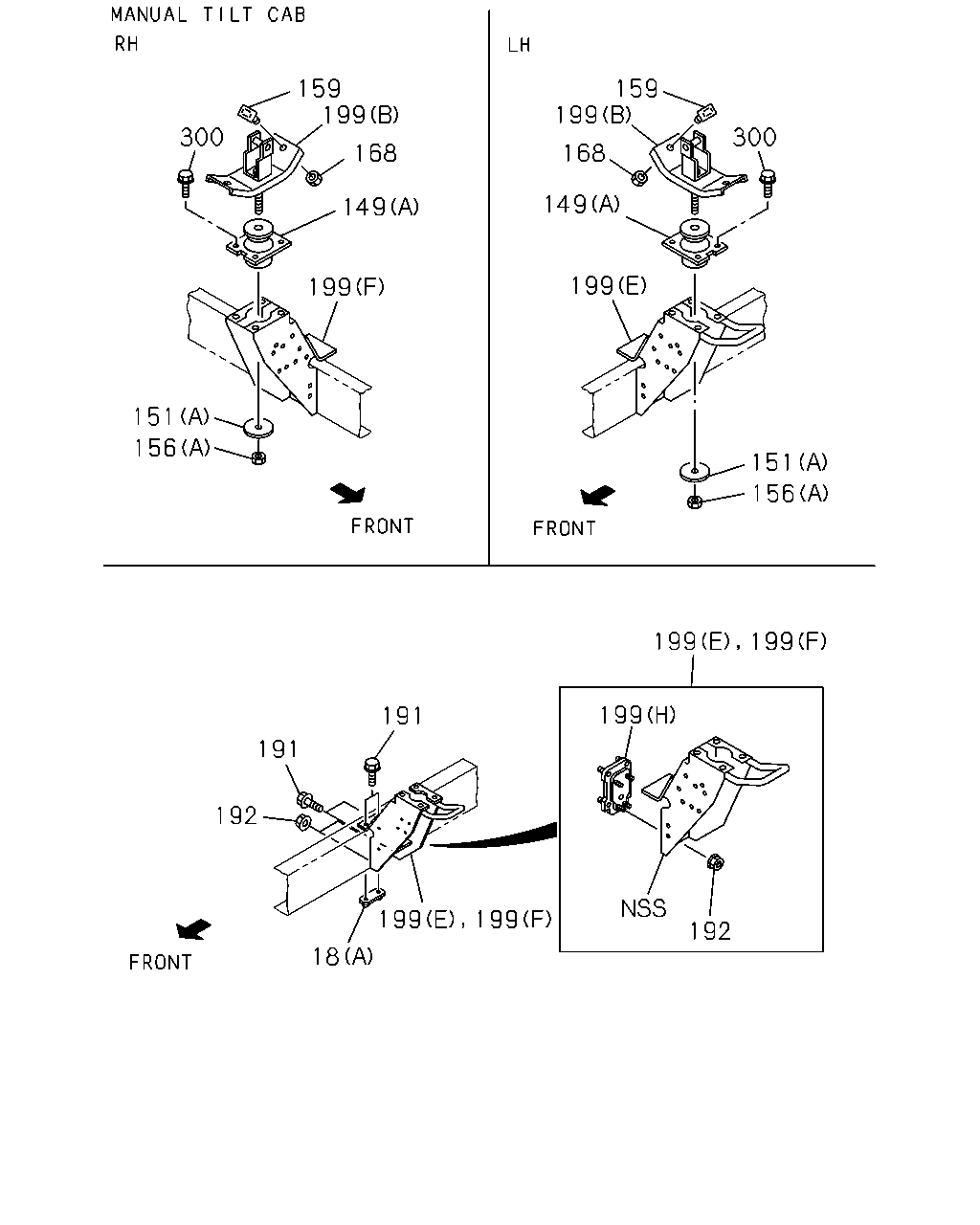

159 199 159 199 300 300 168 168 149 149 199 199 151 156 151 156 199 191 191 192 199 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0911-1108	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	1109-	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	0911-1108	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1109-	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	0911-1108	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	1109-	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	0911-1108	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	1109-	●	●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	0911-1108	●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	1109-	●	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	0911-1108	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	1109-	●	●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 (A) M16	0-91111-516-0	02	1	0911-1108	●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 (A) M16	0-91111-516-0	02	1	1109-	●	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	0911-1108	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	1109-	●	●
159	09.023 RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	0911-1108	●
159	09.023 RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	1109-	●	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0911-1108	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	1109-	●	●
191	09.003 BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	04	1	1109-		●
191	09.003 BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	08	1	0911-1507	●
191	09.003 BOLT; BRKT FIX MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28651-240-0	08	1	1508-1510	●
191	09.003 BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	08	1	1511-	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	04	1	1109-1507		●
192	09.003 NUT; BRKT FIX MANUAL TILT CAB<RWZ> 02.042 M12 FLANGE	0-91180-112-0	04	1	1508-		●
192	09.003 NUT; BRKT FIX MANUAL TILT CAB<RWZ> 02.042 M12 FLANGE	0-91180-112-0	04	1	1508-		●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	0911-1108	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	1109-	●	●
199	09.003 BRACKET; CAB RR MTG TAIWAN EQUIPMENT(B04) MANUAL TILT CAB<RWZ> (C)	8-98024-776-4	01	1	1212-	●
199	09.003 BRACKET; CAB RR MTG TAIWAN EQUIPMENT(B04) MANUAL TILT CAB<RWZ> (A)	8-98024-777-4	01	1	1212-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (E)	8-98024-779-1	01	1	1109-		●
199	09.003 BRACKET; CAB RR MTG (F)	8-98024-770-1	01	1	1109-1507		●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (F)	8-98024-770-1	01	1	1508-		●
199	09.003 BRACKET; CAB RR MTG (H)	8-97092-102-5	01	1	1109-1507		●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (H)	8-97092-102-5	01	1	1508-		●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (H)	8-97092-102-5	01	1	1508-		●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (G)	8-98024-771-1	01	1	1109-1507		●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98024-773-1	01	1	0911-1211	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. TAIWAN EQUIPMENT(B04) (A)	8-98024-773-1	01	1	1212-1507	●
199	09.003 BRACKET; CAB RR MTG TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ> (A)	8-98024-773-1	01	1	1508-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98036-883-0	02	1	0911-1108	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98036-883-0	02	1	1109-	●	●
199	09.003 BRACKET; CAB RR MTG (C)	8-98024-772-1	01	1	0911-1101	●
199	09.003 BRACKET; CAB RR MTG (C)	8-98099-144-1	01	1	1102-1211	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. TAIWAN EQUIPMENT(B04) (C)	8-98099-144-1	01	1	1212-1507	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (C)	8-98099-144-1	01	1	1212-1507	●
199	09.003 BRACKET; CAB RR MTG TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ> (C)	8-98099-144-1	01	1	1508-	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-98024-778-1	01	1	0911-1507	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	0911-1108	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	1109-	●	●

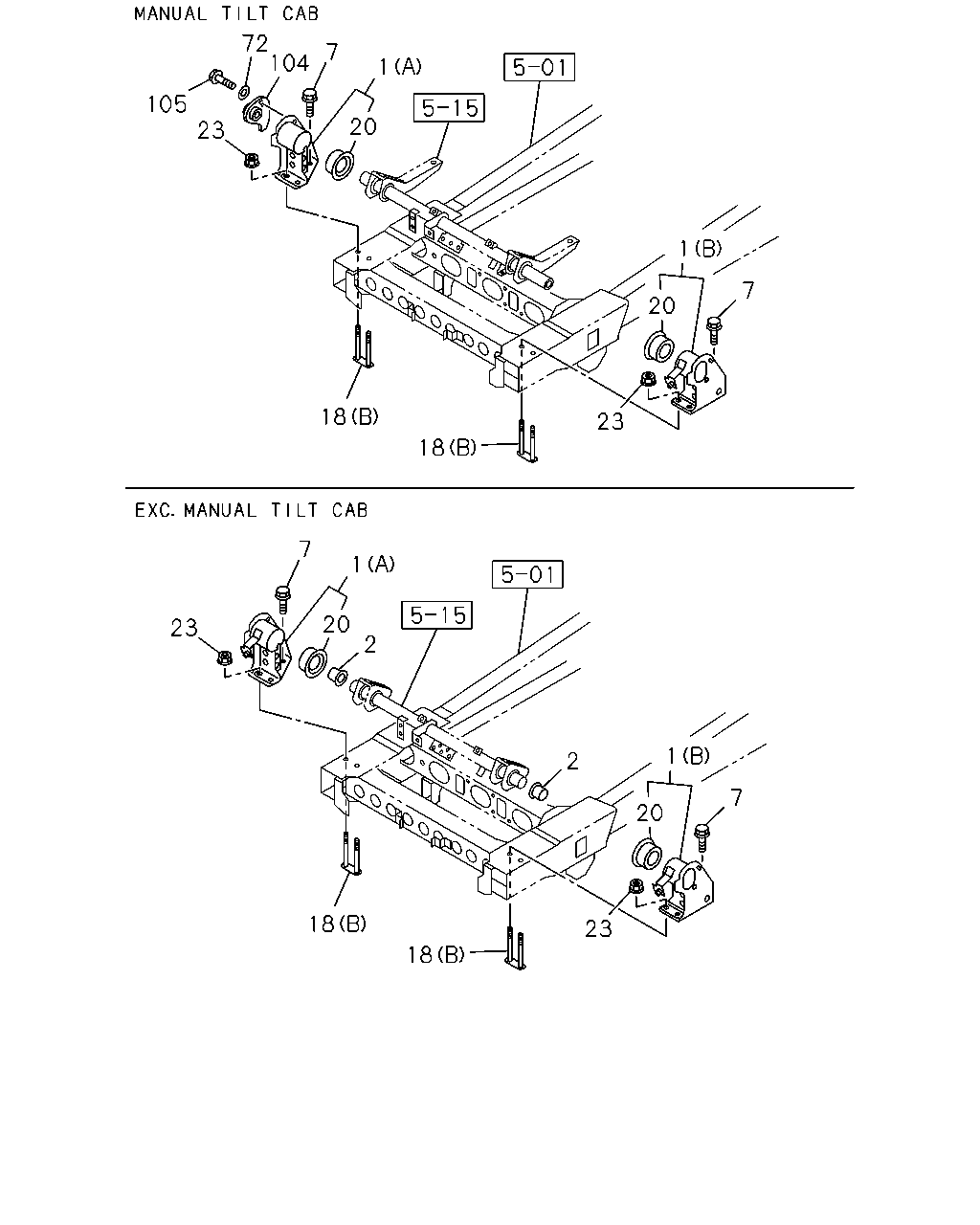

72 104 7 1 105 20 23 1 7 20 18 23 18 7 1 20 23 2 1 2 7 20 18 23 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> 16.545 (A)	8-98074-799-2	01	1	0911-1108	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> 16.545 (A)	8-98074-799-2	01	1	1109-	●	●
1	09.003 BRACKET; CAB MTG 16.545 (B)	8-98074-800-2	01	1	0911-1108	●
1	09.003 BRACKET; CAB MTG 16.545 (B)	8-98074-800-2	01	1	1109-	●	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ> 16.545 (A)	8-98074-798-2	01	1	0911-1108	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ> 16.545 (A)	8-98074-798-2	01	1	1109-	●	●
2	09.009 BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	0911-1108	●
2	09.009 BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	1109-	●	●
7	09.003 BOLT; BRKT,CAB TILT M14X40 FLANGE	0-28661-440-0	02	1	0911-1108	●
7	09.003 BOLT; BRKT,CAB TILT M14X40 FLANGE	0-28661-440-0	02	1	1109-	●	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0911-1108	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	1109-	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	0911-1108	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1109-	●	●
20	09.003 RUBBER; MTG,CAB BRKT	8-98007-037-1	02	1	0911-	●	●
23	09.003 NUT; MTG BRKT M14	8-98039-989-0	04	1	0911-1108	●
23	09.003 NUT; MTG BRKT M14	8-98039-989-0	04	1	1109-	●	●
72	09.003 WASHER; PL,BRKT TO FRAME MANUAL TILT CAB<RWZ> ID=15 OD=36	0-91614-714-0	01	1	0911-1108	●
72	09.003 WASHER; PL,BRKT TO FRAME MANUAL TILT CAB<RWZ> ID=15 OD=36	0-91614-714-0	01	1	1109-	●	●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-98006-455-1	01	1	0911-1108	●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-98006-455-1	01	1	1109-	●	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M14X35 FLANGE	0-28661-435-0	01	1	0911-1108	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M14X35 FLANGE	0-28661-435-0	01	1	1109-	●	●

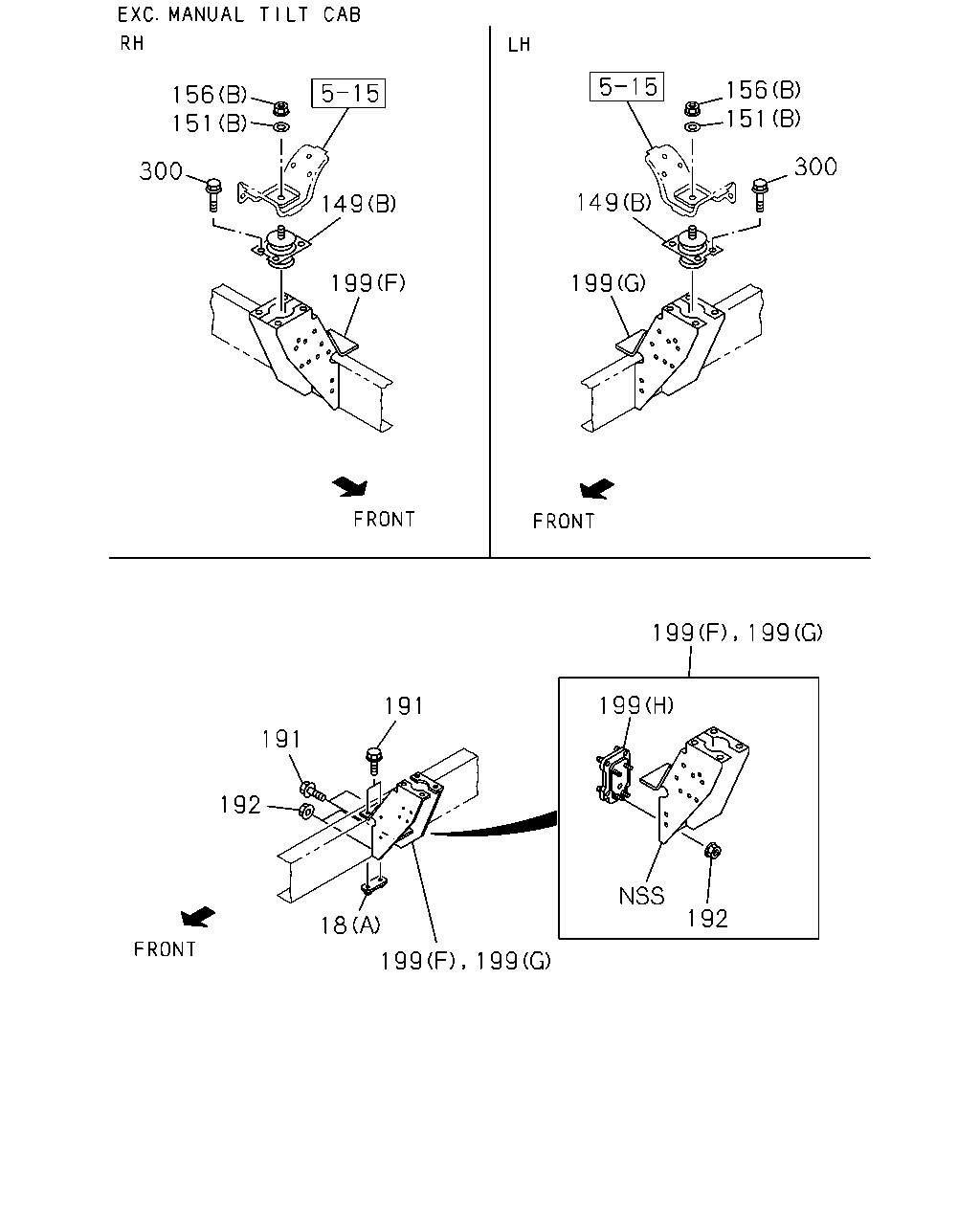

159 199 159 199 300 300 168 168 149 149 199 199 151 156 151 156 199 199 199 191 191 192 199 199 192 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0911-1108	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	1109-	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	0911-1108	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1109-	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	0911-1108	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	1109-	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	0911-1108	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	1109-	●	●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	0911-1108	●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	1109-	●	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	0911-1108	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	1109-	●	●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 (A) M16	0-91111-516-0	02	1	0911-1108	●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 (A) M16	0-91111-516-0	02	1	1109-	●	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	0911-1108	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	1109-	●	●
159	09.023 RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	0911-1108	●
159	09.023 RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	1109-	●	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0911-1108	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	1109-	●	●
191	09.003 BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	04	1	1109-		●
191	09.003 BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	08	1	0911-1507	●
191	09.003 BOLT; BRKT FIX MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28651-240-0	08	1	1508-1510	●
191	09.003 BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	08	1	1511-	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	04	1	1109-1507		●
192	09.003 NUT; BRKT FIX MANUAL TILT CAB<RWZ> 02.042 M12 FLANGE	0-91180-112-0	04	1	1508-		●
192	09.003 NUT; BRKT FIX MANUAL TILT CAB<RWZ> 02.042 M12 FLANGE	0-91180-112-0	04	1	1508-		●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	0911-1108	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	1109-	●	●
199	09.003 BRACKET; CAB RR MTG TAIWAN EQUIPMENT(B04) MANUAL TILT CAB<RWZ> (C)	8-98024-776-4	01	1	1212-	●
199	09.003 BRACKET; CAB RR MTG TAIWAN EQUIPMENT(B04) MANUAL TILT CAB<RWZ> (A)	8-98024-777-4	01	1	1212-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (E)	8-98024-779-1	01	1	1109-		●
199	09.003 BRACKET; CAB RR MTG (F)	8-98024-770-1	01	1	1109-1507		●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (F)	8-98024-770-1	01	1	1508-		●
199	09.003 BRACKET; CAB RR MTG (H)	8-97092-102-5	01	1	1109-1507		●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (H)	8-97092-102-5	01	1	1508-		●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (H)	8-97092-102-5	01	1	1508-		●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (G)	8-98024-771-1	01	1	1109-1507		●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98024-773-1	01	1	0911-1211	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. TAIWAN EQUIPMENT(B04) (A)	8-98024-773-1	01	1	1212-1507	●
199	09.003 BRACKET; CAB RR MTG TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ> (A)	8-98024-773-1	01	1	1508-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98036-883-0	02	1	0911-1108	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98036-883-0	02	1	1109-	●	●
199	09.003 BRACKET; CAB RR MTG (C)	8-98024-772-1	01	1	0911-1101	●
199	09.003 BRACKET; CAB RR MTG (C)	8-98099-144-1	01	1	1102-1211	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. TAIWAN EQUIPMENT(B04) (C)	8-98099-144-1	01	1	1212-1507	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (C)	8-98099-144-1	01	1	1212-1507	●
199	09.003 BRACKET; CAB RR MTG TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ> (C)	8-98099-144-1	01	1	1508-	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-98024-778-1	01	1	0911-1507	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	0911-1108	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	1109-	●	●

156 151 156 151 300 300 149 149 199 199 199 199 199 191 191 192 192 18 199 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0911-1108	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	1109-	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	0911-1108	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1109-	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	0911-1108	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A) H=62	8-98021-561-1	02	1	1109-	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	0911-1108	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B) H=94	8-98038-868-0	02	1	1109-	●	●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	0911-1108	●
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> (A) ID=17 OD=62	8-97359-042-1	02	1	1109-	●	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	0911-1108	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97359-040-1	02	1	1109-	●	●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 (A) M16	0-91111-516-0	02	1	0911-1108	●
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 (A) M16	0-91111-516-0	02	1	1109-	●	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	0911-1108	●
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE	0-91180-114-0	02	1	1109-	●	●
191	09.003 BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	04	1	1109-		●
191	09.003 BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	08	1	0911-1507	●
191	09.003 BOLT; BRKT FIX MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28651-240-0	08	1	1508-1510	●
191	09.003 BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	08	1	1511-	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	04	1	1109-1507		●
192	09.003 NUT; BRKT FIX MANUAL TILT CAB<RWZ> 02.042 M12 FLANGE	0-91180-112-0	04	1	1508-		●
192	09.003 NUT; BRKT FIX MANUAL TILT CAB<RWZ> 02.042 M12 FLANGE	0-91180-112-0	04	1	1508-		●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	0911-1108	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	1109-	●	●
199	09.003 BRACKET; CAB RR MTG TAIWAN EQUIPMENT(B04) MANUAL TILT CAB<RWZ> (C)	8-98024-776-4	01	1	1212-	●
199	09.003 BRACKET; CAB RR MTG TAIWAN EQUIPMENT(B04) MANUAL TILT CAB<RWZ> (A)	8-98024-777-4	01	1	1212-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (E)	8-98024-779-1	01	1	1109-		●
199	09.003 BRACKET; CAB RR MTG (F)	8-98024-770-1	01	1	1109-1507		●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (F)	8-98024-770-1	01	1	1508-		●
199	09.003 BRACKET; CAB RR MTG (H)	8-97092-102-5	01	1	1109-1507		●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (H)	8-97092-102-5	01	1	1508-		●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (H)	8-97092-102-5	01	1	1508-		●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (G)	8-98024-771-1	01	1	1109-1507		●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98024-773-1	01	1	0911-1211	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. TAIWAN EQUIPMENT(B04) (A)	8-98024-773-1	01	1	1212-1507	●
199	09.003 BRACKET; CAB RR MTG TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ> (A)	8-98024-773-1	01	1	1508-	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98036-883-0	02	1	0911-1108	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98036-883-0	02	1	1109-	●	●
199	09.003 BRACKET; CAB RR MTG (C)	8-98024-772-1	01	1	0911-1101	●
199	09.003 BRACKET; CAB RR MTG (C)	8-98099-144-1	01	1	1102-1211	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. TAIWAN EQUIPMENT(B04) (C)	8-98099-144-1	01	1	1212-1507	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (C)	8-98099-144-1	01	1	1212-1507	●
199	09.003 BRACKET; CAB RR MTG TURKEY EQUIPMENT(B11) MANUAL TILT CAB<RWZ> (C)	8-98099-144-1	01	1	1508-	●
199	09.003 BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-98024-778-1	01	1	0911-1507	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	0911-1108	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	1109-	●	●

141 419 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
140	09.003 NUT; BRKT TAIWAN EQUIPMENT(B04) MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	1212-	●
141	09.003 BOLT; BRKT TAIWAN EQUIPMENT(B04) MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1212-	●
419	09.003 BRACKET; HOOK,SEAT BELT ANCHOR TAIWAN EQUIPMENT(B04) MANUAL TILT CAB<RWZ>	8-97857-422-4	01	1	1212-	●
419	09.003 BRACKET; HOOK,SEAT BELT ANCHOR TAIWAN EQUIPMENT(B04) MANUAL TILT CAB<RWZ>	8-97857-423-4	01	1	1212-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
