◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51244 - NPR(LHD) EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#50243) — 36 parça

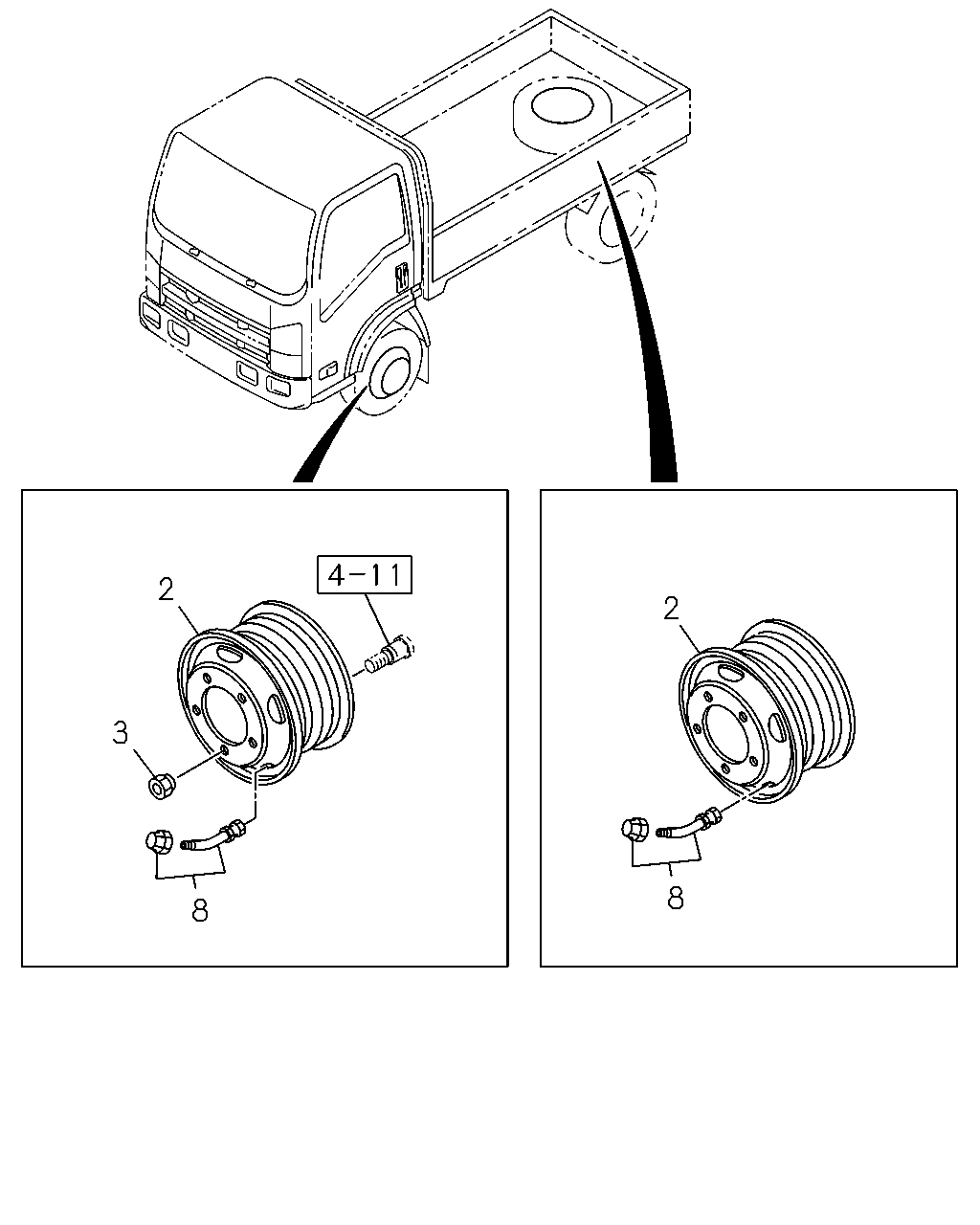

çizim 159344
2 3 8 8 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 05.803 WHEEL; DISC
SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 01 1 0911-1010 ●
2 05.803 WHEEL; DISC
SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1011-1108 ●
2 05.803 WHEEL; DISC
SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1109- ● ●
2 05.803 WHEEL; DISC
FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 02 1 0911-1010 ●
2 05.803 WHEEL; DISC
FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 02 1 1011-1108 ●
2 05.803 WHEEL; DISC
FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 02 1 1109- ● ●
2 05.803 WHEEL; DISC
REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 04 1 0911-1010 ●
2 05.803 WHEEL; DISC
REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 04 1 1011-1108 ●
2 05.803 WHEEL; DISC
REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 04 1 1109- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M20 RH THREAD 		8-97359-807-0 06 1 0911-1108 ●
3 05.813 NUT; WHEEL,FRT AXLE
M20 RH THREAD 		8-97359-807-0 06 1 1109- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M20 LH THREAD 		8-97359-808-0 06 1 0911-1108 ●
3 05.813 NUT; WHEEL,FRT AXLE
M20 LH THREAD 		8-97359-808-0 06 1 1109- ● ●
8 05.875 VALVE; TIRE 8-98221-112-0 01 1 0911- ● ●
8 05.875 VALVE; TIRE 8-98221-112-0 02 1 0911- ● ●
8 05.875 VALVE; TIRE 8-98221-112-0 04 1 0911- ● ●

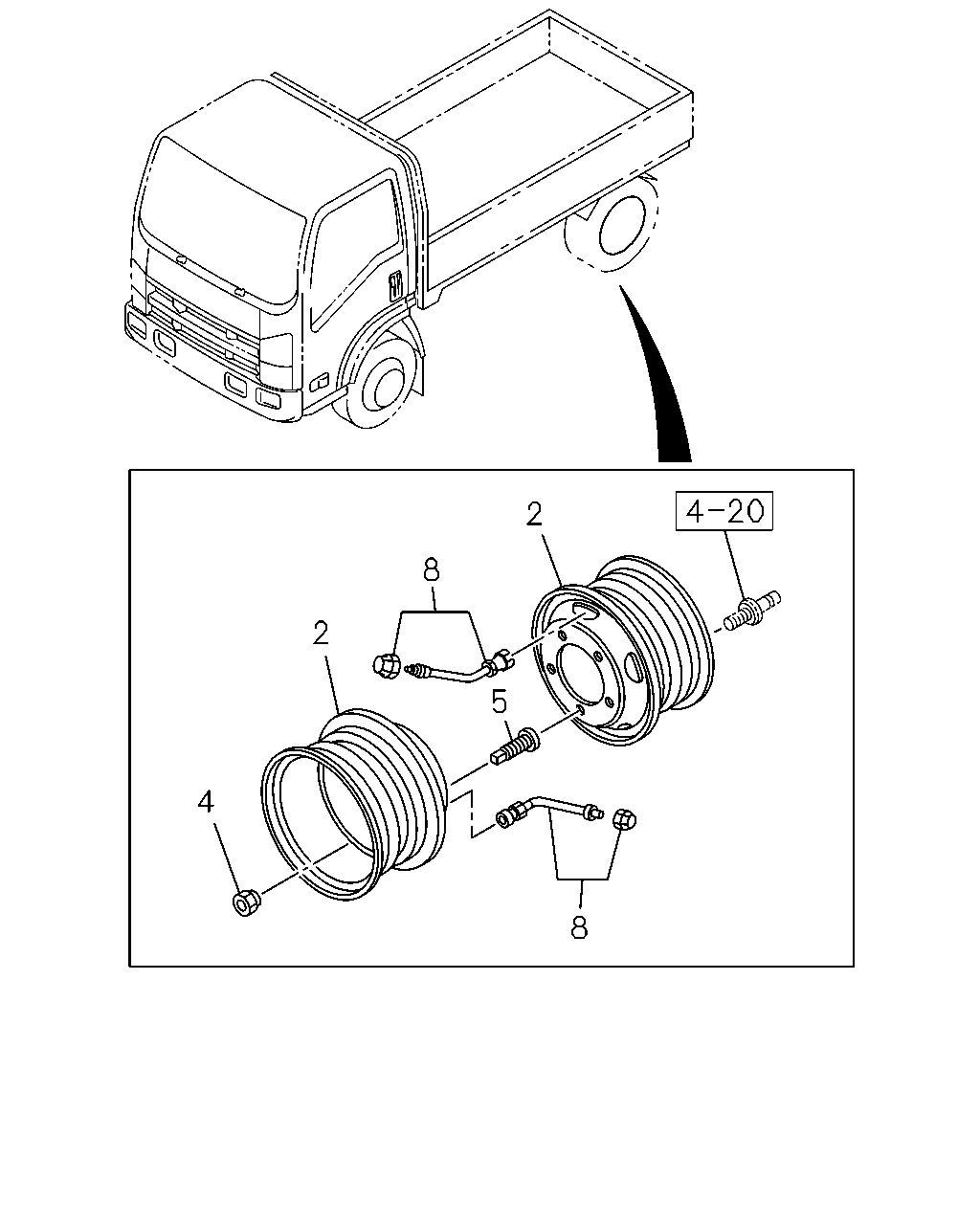

çizim 159353
2 8 2 4 5 8
BalonParca AdiParca NoAdetTipApplied Date A B
2 05.803 WHEEL; DISC
SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 01 1 0911-1010 ●
2 05.803 WHEEL; DISC
SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1011-1108 ●
2 05.803 WHEEL; DISC
SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1109- ● ●
2 05.803 WHEEL; DISC
FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 02 1 0911-1010 ●
2 05.803 WHEEL; DISC
FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 02 1 1011-1108 ●
2 05.803 WHEEL; DISC
FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 02 1 1109- ● ●
2 05.803 WHEEL; DISC
REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 04 1 0911-1010 ●
2 05.803 WHEEL; DISC
REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 04 1 1011-1108 ●
2 05.803 WHEEL; DISC
REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 04 1 1109- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 06 1 0911-1108 ●
4 05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 06 1 1109- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 06 1 0911-1108 ●
4 05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 06 1 1109- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 0911-1108 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 1109- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 0911-1108 ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 1109- ● ●
8 05.875 VALVE; TIRE 8-98221-112-0 01 1 0911- ● ●
8 05.875 VALVE; TIRE 8-98221-112-0 02 1 0911- ● ●
8 05.875 VALVE; TIRE 8-98221-112-0 04 1 0911- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
