4-60 — REAR SUSPENSION (#50239) — 36 parça

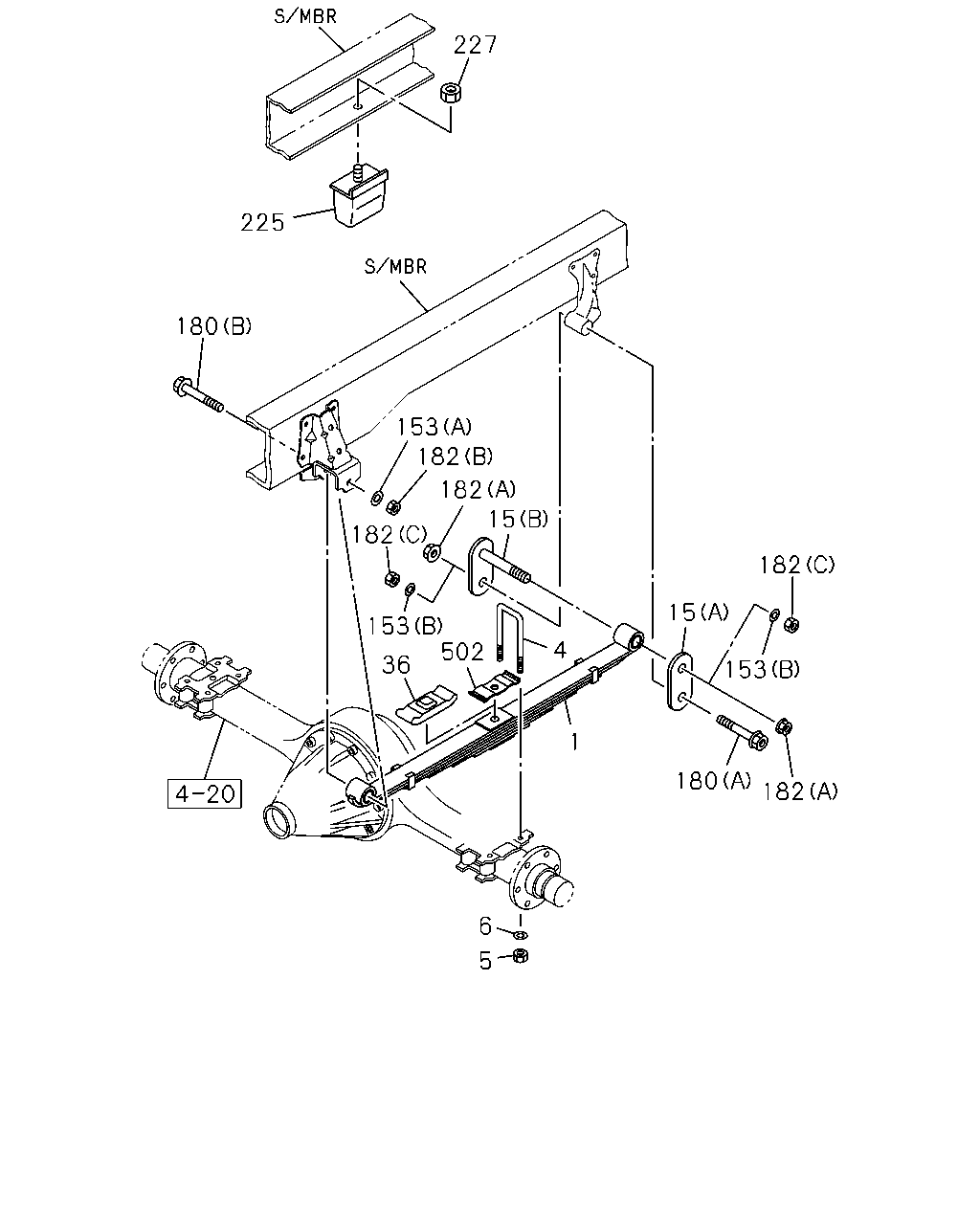

çizim 159361
227 225 180 153 182 182 15 182 182 15 153 502 4 36 153 1 180 182 6 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 16-LEAF 		8-98025-047-0 02 1 1109- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 13-LEAF 		8-98079-902-0 02 1 0911- ●
4 07.516 U-BOLT; RR SPR
L=325 		8-94175-946-1 04 1 1109- ●
4 07.516 U-BOLT; RR SPR
L=345 		1-51371-195-2 04 1 0911- ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 1109- ●
5 07.529 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 0911- ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 1109- ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 0911-1108 ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 1109- ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 0911-1108 ●
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 1109- ● ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
07.518 		1-51372-059-0 02 1 0911- ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5 		8-98011-489-0 04 1 0911-1108 ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5 		8-98011-489-0 04 1 1109- ● ●
153 07.529 WASHER; PL,SPRING PIN
(A) ID=19 		8-97360-119-0 02 1 0911-1108 ●
153 07.529 WASHER; PL,SPRING PIN
(A) ID=19 		8-97360-119-0 02 1 1109- ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 0911-1108 ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 1109- ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 0911-1108 ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 1109- ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 0911-1108 ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 1109- ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 0911-1108 ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 1109- ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (C) M16 		0-91110-516-0 04 1 0911-1108 ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (C) M16 		0-91110-516-0 04 1 1109- ● ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 0911-1108 ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 1109- ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 0911-1108 ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 1109- ● ●
225 07.535 RUBBER; CUSHION,RR SPR 8-94379-470-1 02 1 0911-1103 ●
225 07.535 RUBBER; CUSHION,RR SPR 8-98187-342-0 02 1 1104-1108 ●
225 07.535 RUBBER; CUSHION,RR SPR 8-98187-342-0 02 1 1109- ● ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 0911-1108 ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 1109- ● ●
502 07.506 CLAMP; RR LEAF SPR
07.518 L=140 T=4.5 		8-94118-509-1 02 1 1109- ●
