Sayfa 4-50 - Isuzu EPC

4-50 — FRONT SUSPENSION (#50237) — 215 parça

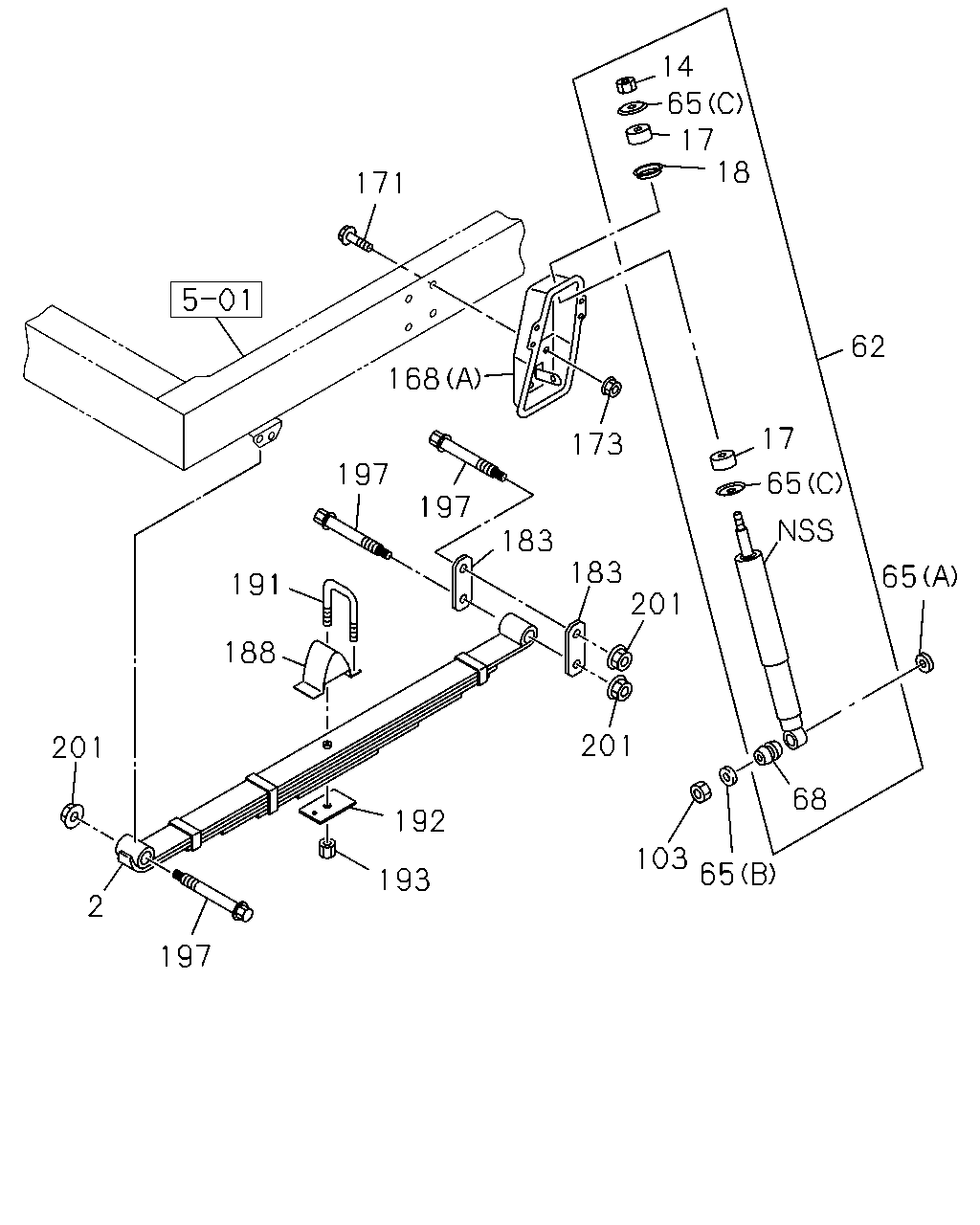

14 65 17 18 171 62 168 17 173 197 65 197 183 183 201 65 191 188 201 201 68 192 103 65 193 2 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98154-915-0	01	1	1212-1410	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04) FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98154-915-0	01	1	1411-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98154-916-0	01	1	1212-1410	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04) FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98154-916-0	01	1	1411-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-920-0	01	1	1212-1410	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04) FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-920-0	01	1	1411-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-922-0	01	1	1212-1410	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04) FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-922-0	01	1	1411-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98154-915-0	01	1	1105-1108	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98154-916-0	01	1	1105-1108	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-920-0	01	1	1105-1108	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-922-0	01	1	1105-1108	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-923-0	01	1	0911-1104	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-923-0	01	1	1105-1108	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-923-0	01	1	1109-1211	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-923-0	01	1	1109-1211		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-923-0	01	1	1212-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-923-0	01	1	1212-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-924-0	01	1	0911-1104	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-924-0	01	1	1105-1108	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-924-0	01	1	1109-1211	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-924-0	01	1	1109-1211		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-924-0	01	1	1212-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-924-0	01	1	1212-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> 6-LEAF	8-98141-456-0	01	1	0911-1104	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-456-0	01	1	1105-1108	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> 6-LEAF	8-98141-456-0	01	1	1109-1211	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-456-0	01	1	1212-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> 6-LEAF	8-98141-457-0	01	1	0911-1104	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-457-0	01	1	1105-1108	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> 6-LEAF	8-98141-457-0	01	1	1109-1211	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-457-0	01	1	1212-	●
14	07.389 NUT; S/ABS,UPR M10 T=8	9-09640-020-0	02	1	1109-	●	●
14	07.389 NUT; S/ABS,UPR M10 T=8	9-09640-020-0	02	1	0911-1108	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	1109-	●	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0911-	●
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	1109-	●	●
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	0911-	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98080-129-0	02	1	1109-1111		●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRONT WIDE TREAD<7GV>	8-98080-129-1	02	1	1112-1211	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98080-129-1	02	1	1112-1211		●
62	07.345 ABSORBER ASM; SHOCK,FRT TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRONT WIDE TREAD<7GV>	8-98080-129-1	02	1	1212-	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98080-129-1	02	1	1212-		●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV>	8-98080-130-0	02	1	0911-1111	●
62	07.345 ABSORBER ASM; SHOCK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV>	8-98080-130-1	02	1	1112-1211	●
62	07.345 ABSORBER ASM; SHOCK,FRT TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV>	8-98080-130-1	02	1	1212-	●
62	07.345 ABSORBER ASM; SHOCK,FRT FRONT WIDE TREAD<7GV>	8-98154-636-0	02	1	0911-1211	●
62	07.345 ABSORBER ASM; SHOCK,FRT TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FRONT WIDE TREAD<7GV>	8-98154-636-0	02	1	1212-	●
62	07.345 ABSORBER ASM; SHOCK,FRT TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRONT WIDE TREAD<7GV> BEST VALUE PARTS	5-87610-153-0	02	1	1304-	●
62	07.345 ABSORBER ASM; SHOCK,FRT BEST VALUE PARTS	5-87610-153-0	02	1	1304-		●
65	07.347 WASHER; S/ABS (C) OD=40	9-51631-614-0	04	1	1109-	●	●
65	07.347 WASHER; S/ABS (C) OD=40	9-51631-614-0	04	1	0911-1108	●
65	07.347 WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	0911-1108	●
65	07.347 WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	1109-	●	●
65	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	0911-1108	●
65	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	1109-	●	●
68	07.388 BUSHING; S/ABS TOKICO	8-94382-149-0	02	1	1109-	●	●
68	07.388 BUSHING; S/ABS TOKICO	8-94382-149-0	02	1	0911-	●
103	07.347 NUT; S/ABS TO LWR LINK 07.833 M14	0-91110-514-0	02	1	0911-1108	●
103	07.347 NUT; S/ABS TO LWR LINK 07.833 M14	0-91110-514-0	02	1	1109-	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98150-406-1	01	1	1112-	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98150-407-1	01	1	1112-	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (B)	8-98139-556-0	01	1	0911-	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (B)	8-98139-557-0	01	1	0911-	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (A)	8-98150-404-1	01	1	0911-1111	●
168	07.380 BRACKET; S/ABS,FRT SUSP 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (A)	8-98150-404-1	01	1	1112-	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (A)	8-98150-405-1	01	1	0911-1111	●
168	07.380 BRACKET; S/ABS,FRT SUSP 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (A)	8-98150-405-1	01	1	1112-	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-001-0	01	1	0911-1108	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-001-0	01	1	1109-	●
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-98015-001-0	01	1	1109-		●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-002-0	01	1	0911-1108	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-002-0	01	1	1109-	●
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-98015-002-0	01	1	1109-		●
171	07.395 BOLT; S/ABS BRKT 09.003 M12X35 FLANGE	0-28651-235-0	08	1	0911-1108	●
171	07.395 BOLT; S/ABS BRKT 09.003 M12X35 FLANGE	0-28651-235-0	08	1	1109-	●	●
173	07.395 NUT; S/ABS M12	8-97360-126-0	08	1	0911-1108	●
173	07.395 NUT; S/ABS M12	8-97360-126-0	08	1	1109-	●	●
183	07.436 SHACKLE; FRT SUSP	8-94110-399-3	04	1	0911-1108	●
183	07.436 SHACKLE; FRT SUSP	8-94110-399-3	04	1	1109-	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0911-1108	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	1109-	●	●
191	07.417 U-BOLT; FRT SPR L=135	5-51171-015-4	04	1	1109-1211		●
191	07.417 U-BOLT; FRT SPR TAIWAN EQUIPMENT(B04) L=135	5-51171-015-4	04	1	1212-	●
191	07.417 U-BOLT; FRT SPR L=135	5-51171-015-4	04	1	1212-		●
191	07.417 U-BOLT; FRT SPR L=165	9-51171-075-1	04	1	0911-1104	●
191	07.417 U-BOLT; FRT SPR EXC. FRONT STABILIZER SHAFT<F59> L=165	9-51171-075-1	04	1	1105-1108	●
191	07.417 U-BOLT; FRT SPR L=165	9-51171-075-1	04	1	1109-1211	●
191	07.417 U-BOLT; FRT SPR TURKEY EQUIPMENT(B11) EXC. FRONT STABILIZER SHAFT<F59> L=165	9-51171-075-1	04	1	1212-	●
192	07.436 PIECE; DIST WHEEL BASE 3300MM(33W)	8-97093-554-1	02	1	1109-		●
193	07.417 NUT; U BOLT 06.174 M14 FLANGE	8-97360-124-0	08	1	1109-1211		●
193	07.417 NUT; U BOLT EXC. TURKEY EQUIPMENT(B11) 06.174 M14 FLANGE	8-97360-124-0	08	1	1212-1510	●
193	07.417 NUT; U BOLT 06.174 M14 FLANGE	8-97360-124-0	08	1	1212-1510		●
193	07.417 NUT; U BOLT TAIWAN EQUIPMENT(B04) 06.174 M14 FLANGE	8-97360-124-0	08	1	1511-	●
193	07.417 NUT; U BOLT TURKEY EQUIPMENT(B11) FRONT STABILIZER SHAFT<F59> 06.174 M14 FLANGE	8-97360-124-0	08	1	1511-	●
193	07.417 NUT; U BOLT 06.174 M14 FLANGE	8-97360-124-0	08	1	1511-		●
193	07.417 NUT; U BOLT M16	8-97360-121-0	08	1	0911-1211	●
193	07.417 NUT; U BOLT TURKEY EQUIPMENT(B11) M16	8-97360-121-0	08	1	1212-1510	●
193	07.417 NUT; U BOLT TURKEY EQUIPMENT(B11) EXC. FRONT STABILIZER SHAFT<F59> M16	8-97360-121-0	08	1	1511-	●
197	07.427 PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	0911-1108	●
197	07.427 PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	1109-	●	●
197	07.427 PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	0911-1108	●
197	07.427 PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	1109-	●	●
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.509 M16	0-91110-516-0	06	1	0911-1108	●
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.509 M16	0-91110-516-0	06	1	1109-	●	●
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	0911-1108	●
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	1109-	●	●

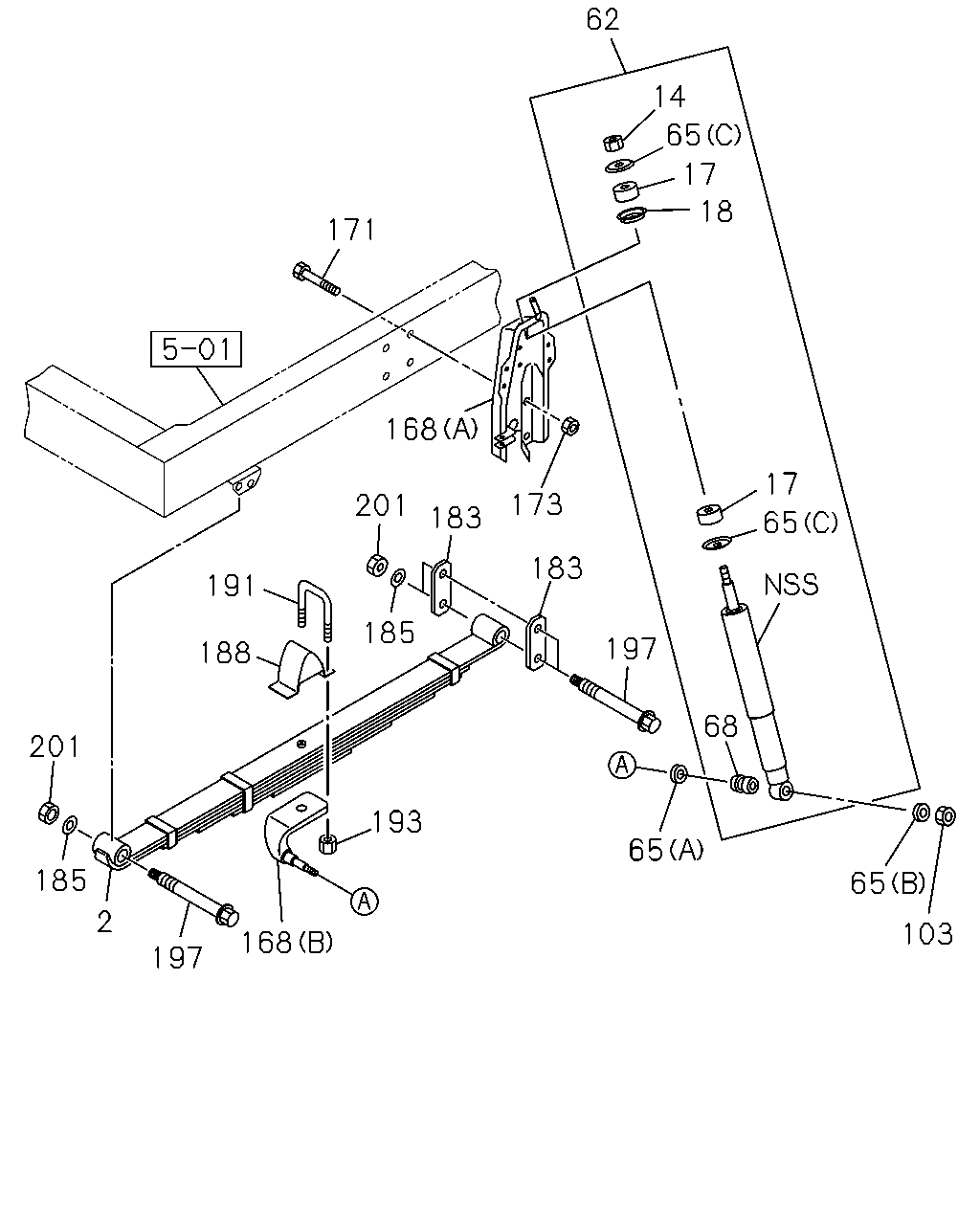

62 14 65 17 18 171 168 17 173 201 183 65 183 191 185 197 188 68 201 193 65 185 65 2 103 168 197

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98154-915-0	01	1	1212-1410	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04) FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98154-915-0	01	1	1411-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98154-916-0	01	1	1212-1410	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04) FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98154-916-0	01	1	1411-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-920-0	01	1	1212-1410	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04) FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-920-0	01	1	1411-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-922-0	01	1	1212-1410	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04) FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-922-0	01	1	1411-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98154-915-0	01	1	1105-1108	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRONT WIDE TREAD<7GV> 6-LEAF	8-98154-916-0	01	1	1105-1108	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-920-0	01	1	1105-1108	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-922-0	01	1	1105-1108	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-923-0	01	1	0911-1104	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-923-0	01	1	1105-1108	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-923-0	01	1	1109-1211	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-923-0	01	1	1109-1211		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-923-0	01	1	1212-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-923-0	01	1	1212-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-924-0	01	1	0911-1104	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-924-0	01	1	1105-1108	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-924-0	01	1	1109-1211	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-924-0	01	1	1109-1211		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) EXC. FRONT STABILIZER SHAFT<F59>,FRONT WIDE TREAD<7GV> 6-LEAF	8-98079-924-0	01	1	1212-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF	8-98079-924-0	01	1	1212-		●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> 6-LEAF	8-98141-456-0	01	1	0911-1104	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-456-0	01	1	1105-1108	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> 6-LEAF	8-98141-456-0	01	1	1109-1211	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-456-0	01	1	1212-	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> 6-LEAF	8-98141-457-0	01	1	0911-1104	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-457-0	01	1	1105-1108	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRONT WIDE TREAD<7GV> 6-LEAF	8-98141-457-0	01	1	1109-1211	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FRONT WIDE TREAD<7GV> EXC. FRONT STABILIZER SHAFT<F59> 6-LEAF	8-98141-457-0	01	1	1212-	●
14	07.389 NUT; S/ABS,UPR M10 T=8	9-09640-020-0	02	1	1109-	●	●
14	07.389 NUT; S/ABS,UPR M10 T=8	9-09640-020-0	02	1	0911-1108	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	1109-	●	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0911-	●
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	1109-	●	●
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	0911-	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98080-129-0	02	1	1109-1111		●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRONT WIDE TREAD<7GV>	8-98080-129-1	02	1	1112-1211	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98080-129-1	02	1	1112-1211		●
62	07.345 ABSORBER ASM; SHOCK,FRT TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRONT WIDE TREAD<7GV>	8-98080-129-1	02	1	1212-	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98080-129-1	02	1	1212-		●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRONT WIDE TREAD<7GV>	8-98080-130-0	02	1	0911-1111	●
62	07.345 ABSORBER ASM; SHOCK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV>	8-98080-130-1	02	1	1112-1211	●
62	07.345 ABSORBER ASM; SHOCK,FRT TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV>	8-98080-130-1	02	1	1212-	●
62	07.345 ABSORBER ASM; SHOCK,FRT FRONT WIDE TREAD<7GV>	8-98154-636-0	02	1	0911-1211	●
62	07.345 ABSORBER ASM; SHOCK,FRT TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FRONT WIDE TREAD<7GV>	8-98154-636-0	02	1	1212-	●
62	07.345 ABSORBER ASM; SHOCK,FRT TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRONT WIDE TREAD<7GV> BEST VALUE PARTS	5-87610-153-0	02	1	1304-	●
62	07.345 ABSORBER ASM; SHOCK,FRT BEST VALUE PARTS	5-87610-153-0	02	1	1304-		●
65	07.347 WASHER; S/ABS (C) OD=40	9-51631-614-0	04	1	1109-	●	●
65	07.347 WASHER; S/ABS (C) OD=40	9-51631-614-0	04	1	0911-1108	●
65	07.347 WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	0911-1108	●
65	07.347 WASHER; S/ABS (A) ID=21 OD=40	0-91614-620-0	02	1	1109-	●	●
65	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	0911-1108	●
65	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	1109-	●	●
68	07.388 BUSHING; S/ABS TOKICO	8-94382-149-0	02	1	1109-	●	●
68	07.388 BUSHING; S/ABS TOKICO	8-94382-149-0	02	1	0911-	●
103	07.347 NUT; S/ABS TO LWR LINK 07.833 M14	0-91110-514-0	02	1	0911-1108	●
103	07.347 NUT; S/ABS TO LWR LINK 07.833 M14	0-91110-514-0	02	1	1109-	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98150-406-1	01	1	1112-	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98150-407-1	01	1	1112-	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (B)	8-98139-556-0	01	1	0911-	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (B)	8-98139-557-0	01	1	0911-	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (A)	8-98150-404-1	01	1	0911-1111	●
168	07.380 BRACKET; S/ABS,FRT SUSP 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (A)	8-98150-404-1	01	1	1112-	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRONT WIDE TREAD<7GV> (A)	8-98150-405-1	01	1	0911-1111	●
168	07.380 BRACKET; S/ABS,FRT SUSP 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (A)	8-98150-405-1	01	1	1112-	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-001-0	01	1	0911-1108	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-001-0	01	1	1109-	●
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-98015-001-0	01	1	1109-		●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-002-0	01	1	0911-1108	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRONT WIDE TREAD<7GV> (A)	8-98015-002-0	01	1	1109-	●
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-98015-002-0	01	1	1109-		●
171	07.395 BOLT; S/ABS BRKT 09.003 M12X35 FLANGE	0-28651-235-0	08	1	0911-1108	●
171	07.395 BOLT; S/ABS BRKT 09.003 M12X35 FLANGE	0-28651-235-0	08	1	1109-	●	●
173	07.395 NUT; S/ABS M12	8-97360-126-0	08	1	0911-1108	●
173	07.395 NUT; S/ABS M12	8-97360-126-0	08	1	1109-	●	●
183	07.436 SHACKLE; FRT SUSP	8-94110-399-3	04	1	0911-1108	●
183	07.436 SHACKLE; FRT SUSP	8-94110-399-3	04	1	1109-	●	●
185	07.427 WASHER; LK,PIN KD PREPARATORY PACK<6HF> ID=16.5	8-98011-489-0	06	1	0911-1108	●
185	07.427 WASHER; LK,PIN KD PREPARATORY PACK<6HF> ID=16.5	8-98011-489-0	06	1	1109-	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	0911-1108	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-516-0	02	1	1109-	●	●
191	07.417 U-BOLT; FRT SPR L=135	5-51171-015-4	04	1	1109-1211		●
191	07.417 U-BOLT; FRT SPR TAIWAN EQUIPMENT(B04) L=135	5-51171-015-4	04	1	1212-	●
191	07.417 U-BOLT; FRT SPR L=135	5-51171-015-4	04	1	1212-		●
191	07.417 U-BOLT; FRT SPR L=165	9-51171-075-1	04	1	0911-1104	●
191	07.417 U-BOLT; FRT SPR EXC. FRONT STABILIZER SHAFT<F59> L=165	9-51171-075-1	04	1	1105-1108	●
191	07.417 U-BOLT; FRT SPR L=165	9-51171-075-1	04	1	1109-1211	●
191	07.417 U-BOLT; FRT SPR TURKEY EQUIPMENT(B11) EXC. FRONT STABILIZER SHAFT<F59> L=165	9-51171-075-1	04	1	1212-	●
193	07.417 NUT; U BOLT 06.174 M14 FLANGE	8-97360-124-0	08	1	1109-1211		●
193	07.417 NUT; U BOLT EXC. TURKEY EQUIPMENT(B11) 06.174 M14 FLANGE	8-97360-124-0	08	1	1212-1510	●
193	07.417 NUT; U BOLT 06.174 M14 FLANGE	8-97360-124-0	08	1	1212-1510		●
193	07.417 NUT; U BOLT TAIWAN EQUIPMENT(B04) 06.174 M14 FLANGE	8-97360-124-0	08	1	1511-	●
193	07.417 NUT; U BOLT TURKEY EQUIPMENT(B11) FRONT STABILIZER SHAFT<F59> 06.174 M14 FLANGE	8-97360-124-0	08	1	1511-	●
193	07.417 NUT; U BOLT 06.174 M14 FLANGE	8-97360-124-0	08	1	1511-		●
193	07.417 NUT; U BOLT M16	8-97360-121-0	08	1	0911-1211	●
193	07.417 NUT; U BOLT TURKEY EQUIPMENT(B11) M16	8-97360-121-0	08	1	1212-1510	●
193	07.417 NUT; U BOLT TURKEY EQUIPMENT(B11) EXC. FRONT STABILIZER SHAFT<F59> M16	8-97360-121-0	08	1	1511-	●
197	07.427 PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	0911-1108	●
197	07.427 PIN; FRT SPR,FRT KD PREPARATORY PACK<6HF> M16X122	8-98011-487-0	06	1	1109-	●	●
197	07.427 PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	0911-1108	●
197	07.427 PIN; FRT SPR,FRT EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE	8-97360-110-0	06	1	1109-	●	●
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.509 M16	0-91110-516-0	06	1	0911-1108	●
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.509 M16	0-91110-516-0	06	1	1109-	●	●
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	0911-1108	●
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> M16 FLANGE	8-97360-125-0	06	1	1109-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
