Sayfa 1-01A - Isuzu EPC

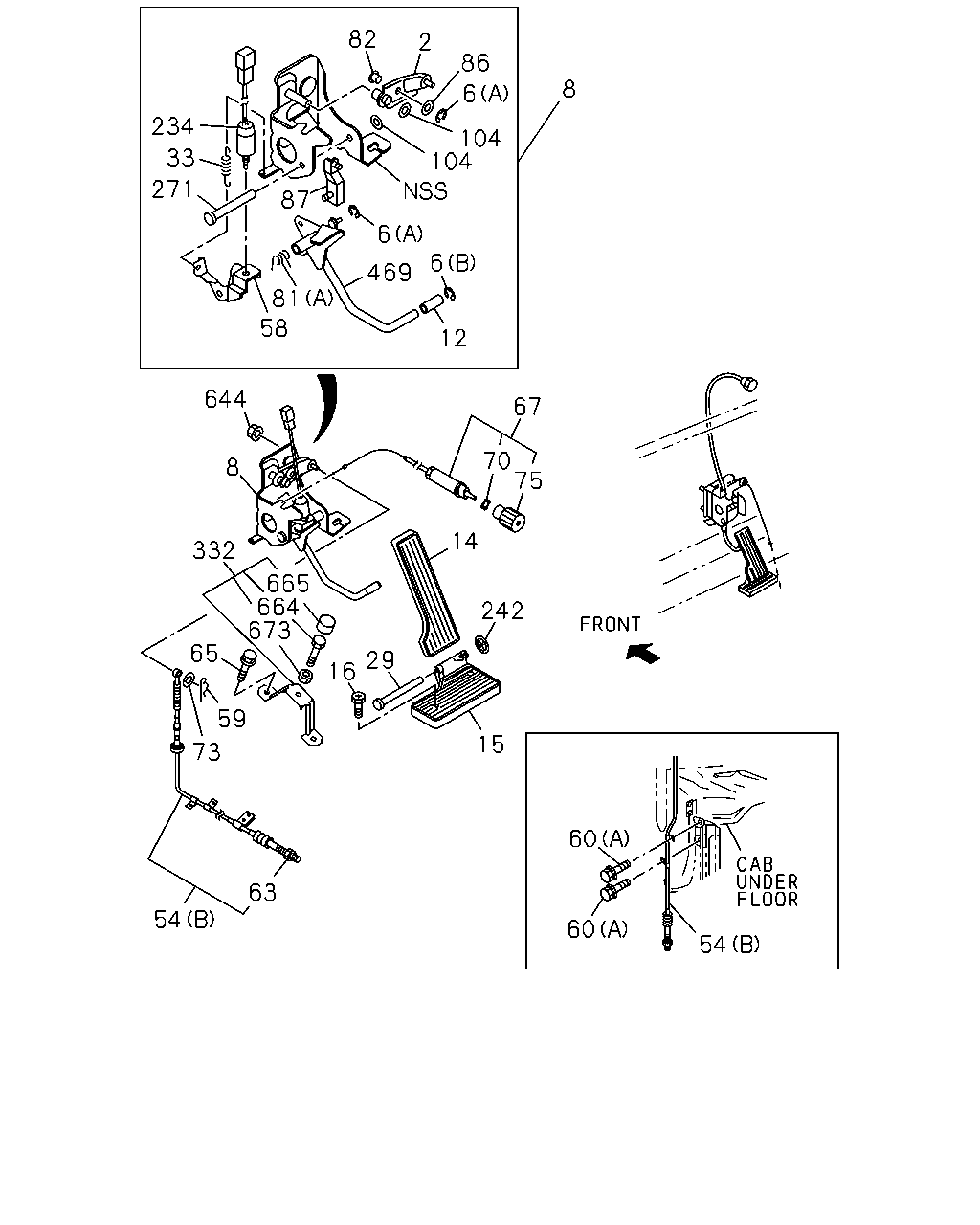

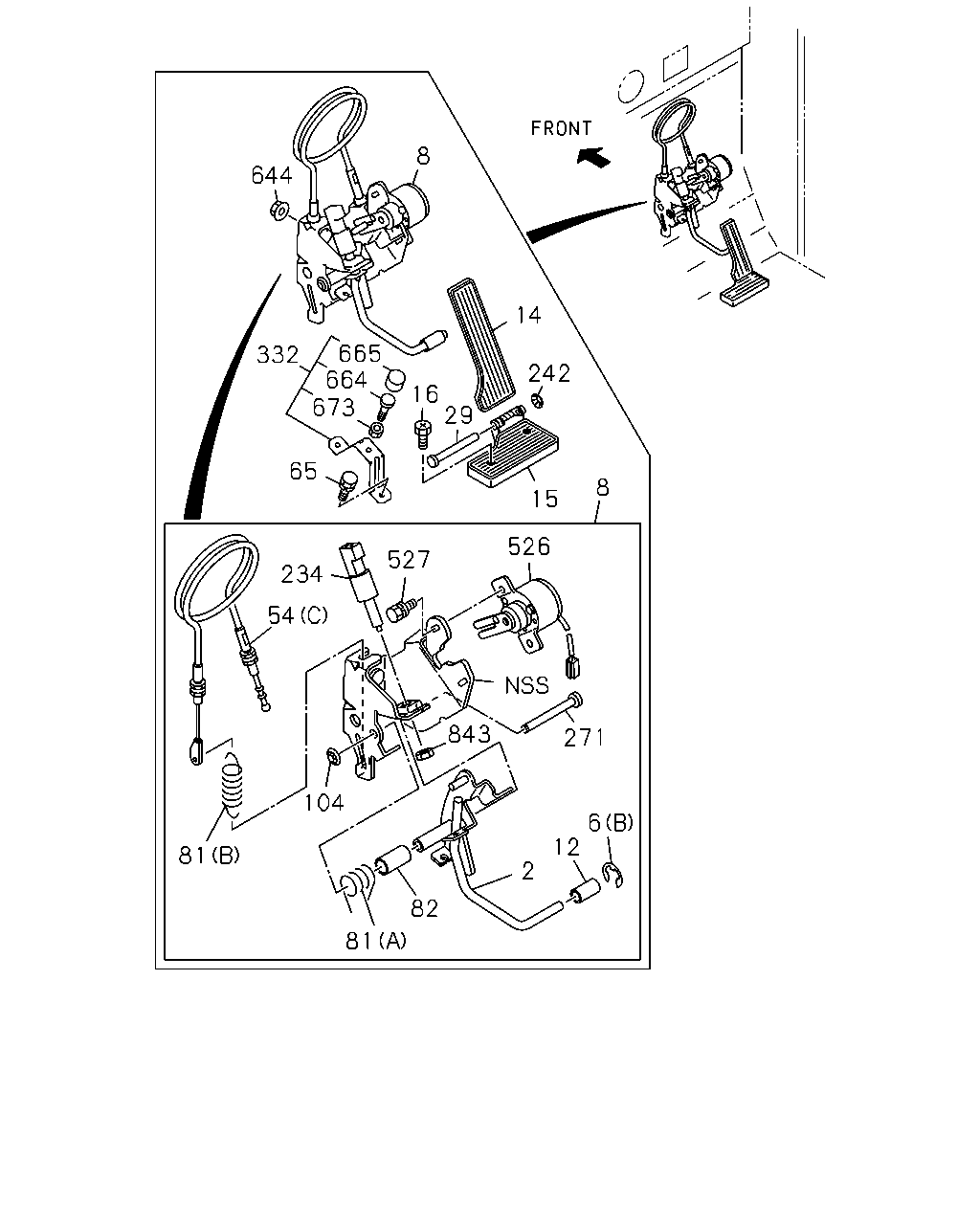

1-01A — ACCELERATOR PEDAL AND CONTROL (#5023) — 528 parça

82 2 86 8 6 234 104 104 33 87 271 6 6 469 81 58 12 644 67 70 75 8 14 332 665 664 673 242 65 29 16 59 15 73 60 63 54 60 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LEVER; ENG CONT	1-71907-210-2	01	1	9606-9609	●
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-210-2	01	1	9610-9905	●
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-210-2	01	1	9906-	●	●
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-191-2	01	1	9610-9701	●
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-500-0	01	1	9702-9905	●
2	LEVER; ENG CONT	1-71907-500-0	01	1	9702-9905			●
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-550-1	01	1	9906-		●		●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9606-9609	●
6	RING; SNAP,LINK TO LINK EXC. ELECTRONIC GOV RED3(KG5) (A) ID=4	9-09185-404-0	02	1	9610-9905	●
6	RING; SNAP,LINK TO LINK EXC. ELECTRONIC GOV RED3(KG5) (A) ID=4	9-09185-404-0	02	1	9906-	●	●
6	RING; SNAP,LINK TO LINK (B) ID=6	9-09185-406-0	01	1	9606-9802	●		●
6	RING; SNAP,LINK TO LINK ELECTRONIC GOV RED3(KG5) (B) ID=6	9-09185-406-0	01	1	9803-9905	●
6	RING; SNAP,LINK TO LINK (B) ID=6	9-09185-406-0	01	1	9803-9905			●
8	LINK ASM; ENG CONT	1-73996-206-5	01	1	9606-9609	●
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73996-206-6	01	1	9610-9905	●
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73996-206-6	01	1	9906-	●	●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-161-6	01	1	9610-9905	●
8	LINK ASM; ENG CONT	1-71907-161-6	01	1	9610-9905			●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-551-3	01	1	9906-		●		●
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	9606-9802	●		●
12	ROLLER; ENG CONT LEVER ELECTRONIC GOV RED3(KG5)	1-09989-007-0	01	1	9803-9905	●
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	9803-9905			●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	9606-9708	●		●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9709-9905	●		●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9906-	●	●		●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9606-9905	●		●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9906-	●	●		●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X20 W/LK&PL WASHER	8-94279-202-0	02	1	9606-9902	●		●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9903-9905	●		●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9906-	●	●		●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9606-9905	●		●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9906-	●	●		●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	9606-9609	●
33	SPRING; IDLING CONT LEVER EXC. ELECTRONIC GOV RED3(KG5)	8-94414-815-0	01	1	9610-9905	●
33	SPRING; IDLING CONT LEVER EXC. ELECTRONIC GOV RED3(KG5)	8-94414-815-0	01	1	9906-	●	●
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	9606-9610	●
54	CABLE; ENG CONT EXC. EURO2 SPECIFICATION<THN> (A) L=1300	1-23230-132-0	01	1	9611-9905	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (A) L=1300	1-23230-132-0	01	1	9906-	●	●
54	CABLE; ENG CONT (B) L=2836	1-73907-404-2	01	1	9606-9609	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (B) L=2836	1-73907-404-2	01	1	9610-9905	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (B) L=2836	1-73907-404-2	01	1	9906-	●	●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	9610-9905	●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	9610-9905			●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	9906-		●		●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	9606-9609	●
58	LEVER; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-242-1	01	1	9610-9905	●
58	LEVER; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-242-1	01	1	9906-	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9606-9609	●
59	PIN; SNAP,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) L=27.7	1-09747-005-0	01	1	9610-9905	●
59	PIN; SNAP,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) L=27.7	1-09747-005-0	01	1	9906-	●	●
60	BOLT; CABLE (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9606-9609	●
60	BOLT; CABLE EXC. ELECTRONIC GOV RED3(KG5) (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9610-9905	●
60	BOLT; CABLE EXC. ELECTRONIC GOV RED3(KG5) (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9906-	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	01	1	9606-9609	●
63	NUT; LOCK,BRKT EXC. ELECTRONIC GOV RED3(KG5) M8	9-09111-408-0	02	1	9610-9905	●
63	NUT; LOCK,BRKT EXC. ELECTRONIC GOV RED3(KG5) M8	9-09111-408-0	02	1	9906-	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9606-9609	●
63	NUT; LOCK,BRKT EXC. ELECTRONIC GOV RED3(KG5) M8	9-09111-408-0	01	1	9610-9905	●
63	NUT; LOCK,BRKT EXC. ELECTRONIC GOV RED3(KG5) M8	9-09111-408-0	01	1	9906-	●	●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9606-9905	●		●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9906-	●	●		●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-2	01	1	9606-9609	●
67	CABLE ASM; IDLE CONT EXC. ELECTRONIC GOV RED3(KG5) L=399	1-73998-912-3	01	1	9610-9905	●
67	CABLE ASM; IDLE CONT EXC. ELECTRONIC GOV RED3(KG5) L=399	1-73998-912-3	01	1	9906-	●	●
70	NUT; CONT CABLE	1-73908-045-0	01	1	9606-9609	●
70	NUT; CONT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-73908-045-1	01	1	9610-9905	●
70	NUT; CONT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-73908-045-1	01	1	9906-	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9606-9609	●
73	WASHER; PL,ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=8.4	9-09160-508-0	01	1	9610-9905	●
73	WASHER; PL,ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=8.4	9-09160-508-0	01	1	9906-	●	●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	9606-9609	●
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	8-97066-797-1	01	1	9610-9905	●
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	8-97066-797-1	01	1	9906-	●	●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	9610-9905	●
81	SPRING; RETURN,ENG CONT LEVER (B)	1-71907-268-0	01	1	9610-9905			●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	9906-		●		●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	9606-	●	●	●	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9606-9609	●
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5)	1-71907-244-1	02	1	9610-9905	●
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5)	1-71907-244-1	02	1	9906-	●	●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	9610-9905	●
82	BUSHING; ENG CONT LVR L=31.5	1-53459-627-0	01	1	9610-9905			●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	9906-		●		●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	9606-9609	●
86	WASHER; PL,ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) ID=6.4	9-09160-506-0	02	1	9610-9905	●
86	WASHER; PL,ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) ID=6.4	9-09160-506-0	02	1	9906-	●	●
87	LINK; ENG CONT	1-71907-211-1	01	1	9606-9609	●
87	LINK; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-211-1	01	1	9610-9905	●
87	LINK; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-211-1	01	1	9906-	●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9606-9609	●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	01	1	9610-9905	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	01	1	9610-9905			●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	01	1	9906-		●		●
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	02	1	9610-9905	●
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	02	1	9906-	●	●
234	SWITCH; ACCEL	1-82380-114-1	01	1	9606-9609	●
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5)	1-82380-114-1	01	1	9610-9905	●
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5)	1-82380-114-2	01	1	9906-	●	●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-1	01	1	9610-9905	●
234	SWITCH; ACCEL	1-82380-131-1	01	1	9610-9905			●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-1	01	1	9906-		●		●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9606-9905	●		●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9906-	●	●		●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9606-9609	●
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) OD=8.0 L=74	1-71907-212-1	01	1	9610-9905	●
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) OD=8.0 L=74	1-71907-212-1	01	1	9906-	●	●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	9610-9905	●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	9610-9905			●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	9906-		●		●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9606-9905	●		●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9906-	●	●		●
469	LEVER ASM	1-71907-209-4	01	1	9606-9609	●
469	LEVER ASM EXC. ELECTRONIC GOV RED3(KG5)	1-71907-209-5	01	1	9610-9905	●
469	LEVER ASM EXC. ELECTRONIC GOV RED3(KG5)	1-71907-209-5	01	1	9906-	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	9606-9905	●		●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	9906-0103	●	●		●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	0104-	●	●		●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9606-9905	●		●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9906-	●	●		●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9606-9905	●		●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9906-	●	●		●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9606-9905	●		●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9906-	●	●		●

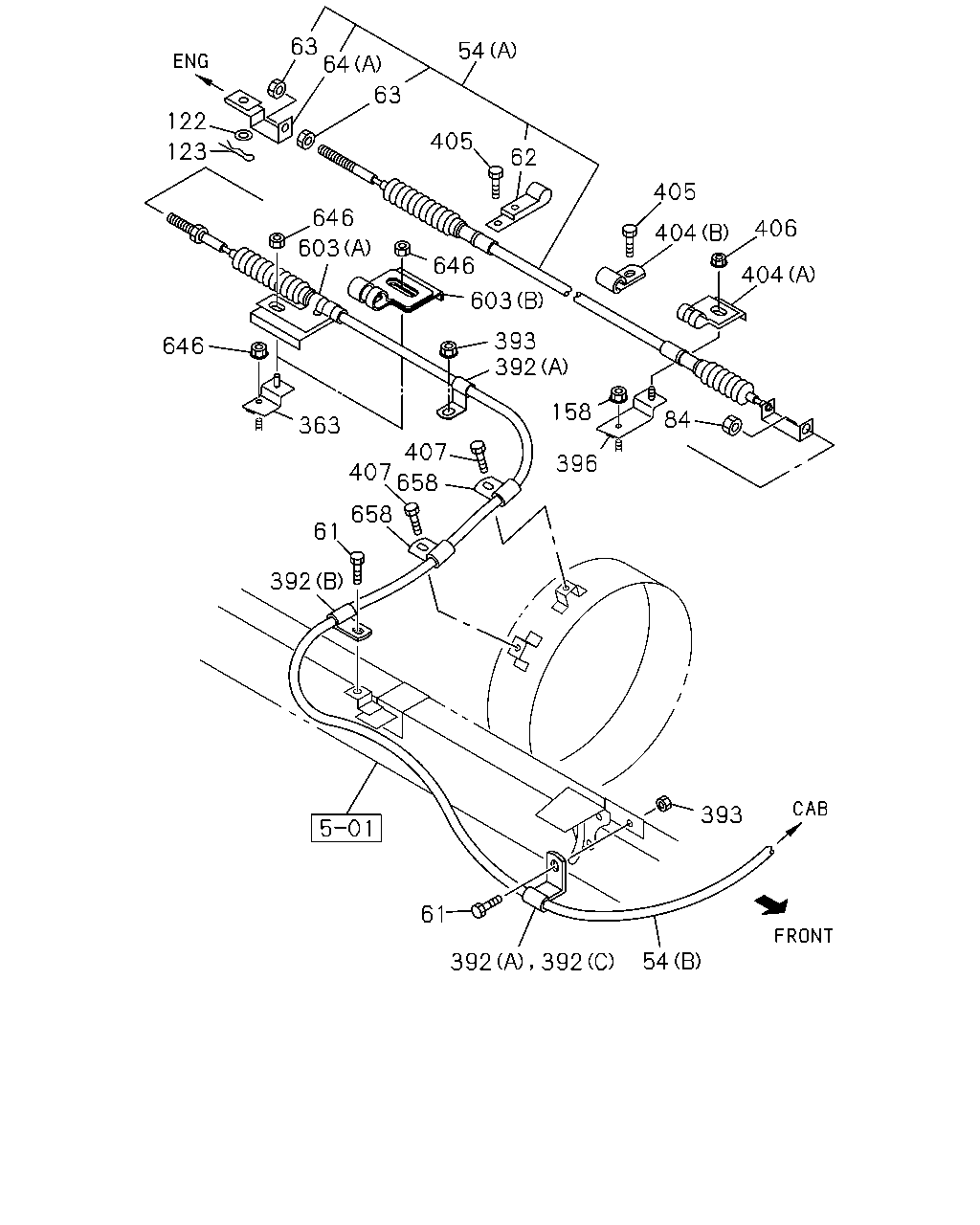

63 64 54 63 122 405 123 62 405 646 406 404 603 646 404 603 393 392 646 158 84 363 407 396 407 658 658 61 392 393 61 54 392 392

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	9606-9610	●
54	CABLE; ENG CONT EXC. EURO2 SPECIFICATION<THN> (A) L=1300	1-23230-132-0	01	1	9611-9905	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (A) L=1300	1-23230-132-0	01	1	9906-	●	●
54	CABLE; ENG CONT (B) L=2836	1-73907-404-2	01	1	9606-9609	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (B) L=2836	1-73907-404-2	01	1	9610-9905	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (B) L=2836	1-73907-404-2	01	1	9906-	●	●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	9610-9905	●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	9610-9905			●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	9906-		●		●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X20 FLANGE	0-28080-820-0	02	1	9606-9606	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X25 FLANGE	0-28680-825-0	02	1	9607-9609	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	9610-9905	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	9906-	●	●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9606-9609	●
62	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) L=30	1-09700-326-0	01	1	9610-9905	●
62	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) L=30	1-09700-326-0	01	1	9906-	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	01	1	9606-9609	●
63	NUT; LOCK,BRKT EXC. ELECTRONIC GOV RED3(KG5) M8	9-09111-408-0	02	1	9610-9905	●
63	NUT; LOCK,BRKT EXC. ELECTRONIC GOV RED3(KG5) M8	9-09111-408-0	02	1	9906-	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9606-9609	●
63	NUT; LOCK,BRKT EXC. ELECTRONIC GOV RED3(KG5) M8	9-09111-408-0	01	1	9610-9905	●
63	NUT; LOCK,BRKT EXC. ELECTRONIC GOV RED3(KG5) M8	9-09111-408-0	01	1	9906-	●	●
64	BRACKET; ENG CONT CABLE (A)	1-23219-105-1	01	1	9606-9609	●
64	BRACKET; ENG CONT CABLE EXC. EURO2 SPECIFICATION<THN> (A)	1-23219-105-1	01	1	9610-9701	●
64	BRACKET; ENG CONT CABLE EXC. EURO2 SPECIFICATION<THN> (A)	1-23219-105-1	01	1	9702-9905	●
64	BRACKET; ENG CONT CABLE (A)	1-23219-105-1	01	1	9906-	●
64	BRACKET; ENG CONT CABLE RLD GOVERNOR(SD7) (A)	1-23219-105-1	01	1	9906-		●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	9610-9905	●
64	BRACKET; ENG CONT CABLE (B)	1-47477-804-3	01	1	9610-9905			●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	9906-		●		●
84	NUT; ENG CONT LEVER M8	9-09110-508-0	01	1	9606-9606	●
84	NUT; ENG CONT LEVER M8 FLANGE	0-91150-108-0	01	1	9607-9609	●
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9610-9905	●
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9906-	●	●
122	WASHER; PL,CABLE ID=8.4	9-09160-508-0	01	1	9606-9610	●
122	WASHER; PL,CABLE EXC. EURO2 SPECIFICATION<THN> ID=8.4	9-09160-508-0	01	1	9611-9905	●
122	WASHER; PL,CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=8.4	9-09160-508-0	01	1	9906-	●	●
122	WASHER; PL,CABLE EURO2 SPECIFICATION<THN> ID=5.3	9-09160-505-0	01	1	9610-9706	●
122	WASHER; PL,CABLE EURO2 SPECIFICATION<THN> ID=5.3	9-09160-505-0	01	1	9707-9905	●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	9707-9905			●
122	WASHER; PL,CABLE EURO2 SPECIFICATION<THN> ID=5.3	9-09160-505-0	01	1	9906-0003		●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	9906-0003				●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	0004-		●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0004-				●
123	PIN; SNAP,CABLE L=27.7	1-09747-005-0	01	1	9606-9610	●
123	PIN; SNAP,CABLE EXC. EURO2 SPECIFICATION<THN> L=27.7	1-09747-005-0	01	1	9611-9905	●
123	PIN; SNAP,CABLE EXC. ELECTRONIC GOV RED3(KG5) L=27.7	1-09747-005-0	01	1	9906-	●	●
123	PIN; SNAP,CABLE EURO2 SPECIFICATION<THN> L=17.9	1-09747-002-0	01	1	9610-9706	●
123	PIN; SNAP,CABLE EURO2 SPECIFICATION<THN> L=17.9	1-09747-002-0	01	1	9707-9905	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	9707-9905			●
123	PIN; SNAP,CABLE EURO2 SPECIFICATION<THN> L=17.9	1-09747-002-0	01	1	9906-0003		●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	9906-0003				●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	0004-		●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0004-				●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9607-9610	●
158	NUT; BRKT EXC. EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	01	1	9611-9612	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9701-9905	●		●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9906-	●	●		●
363	SPACER; BRKT,ENG CONT SHAFT	1-47477-804-1	01	1	9606-9609	●
363	SPACER; BRKT,ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5)	1-47477-804-3	01	1	9610-9905	●
363	SPACER; BRKT,ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5)	1-47477-804-3	01	1	9906-	●	●
392	CLIP; ACCEL CONT CABLE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9606-9606	●
392	CLIP; ACCEL CONT CABLE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9607-9609	●
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9610-9905	●
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9906-	●	●
392	CLIP; ACCEL CONT CABLE (B) ID=9 L=20	9-09524-835-0	01	1	9606-9606	●
392	CLIP; ACCEL CONT CABLE (C) ID=11 H=20 L=20	5-09700-351-0	01	1	9607-9609	●
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	9610-9905	●
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	9906-	●	●
392	CLIP; ACCEL CONT CABLE (B) ID=11 L=20	9-09525-035-0	01	1	9607-9609	●
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=11 L=20	9-09525-035-0	01	1	9610-9905	●
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=11 L=20	9-09525-035-0	01	1	9906-	●	●
393	NUT; CLIP TO FRAME M8 FLANGE	0-91150-208-0	02	1	9606-9606	●
393	NUT; CLIP TO FRAME M8 FLANGE	0-91150-108-0	02	1	9607-9609	●
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9610-9905	●
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9906-0007	●	●
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0008-	●	●
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0008-	●	●
396	BRACKET; CLIP	1-47477-805-0	01	1	9607-9610	●
396	BRACKET; CLIP EXC. EURO2 SPECIFICATION<THN>	1-47477-805-0	01	1	9611-9612	●
396	BRACKET; CLIP	1-47477-805-0	01	1	9701-9710	●
396	BRACKET; CLIP	1-47478-055-0	01	1	9711-9905	●		●
396	BRACKET; CLIP	1-47478-055-0	01	1	9906-	●	●		●
404	CLIP; CABLE (A)	1-14319-082-0	01	1	9606-9610	●
404	CLIP; CABLE EXC. EURO2 SPECIFICATION<THN> (A)	1-14319-082-0	01	1	9611-9612	●
404	CLIP; CABLE (A)	1-14319-113-0	01	1	9701-9710	●
404	CLIP; CABLE (B) ID=11 L=20	9-09525-035-0	02	1	9606-9610	●
404	CLIP; CABLE EXC. EURO2 SPECIFICATION<THN> (B) ID=11 L=20	9-09525-035-0	02	1	9611-9705	●
404	CLIP; CABLE EXC. EURO2 SPECIFICATION<THN> (B) ID=11 L=20	9-09525-035-0	01	1	9706-9905	●
404	CLIP; CABLE EURO2 SPECIFICATION<THN> (C)	1-14319-111-0	02	1	9610-9612	●
404	CLIP; CABLE EURO2 SPECIFICATION<THN> (E)	1-14319-111-0	01	1	9701-9801	●
404	CLIP; CABLE (E)	1-14319-111-0	01	1	9802-9905	●
404	CLIP; CABLE (E)	1-14319-111-0	01	1	9802-9905	●
404	CLIP; CABLE (E)	1-14319-111-0	02	1	9906-				●
404	CLIP; CABLE EURO2 SPECIFICATION<THN> (D) ID=9 L=40	9-09524-875-0	01	1	9610-9705	●
404	CLIP; CABLE (D) ID=9 L=40	9-09524-875-0	01	1	9706-9706	●
404	CLIP; CABLE (D) ID=9 L=40	9-09524-875-0	01	1	9707-9905	●		●
404	CLIP; CABLE (D) ID=9 L=40	9-09524-875-0	01	1	9906-9910	●	●		●
404	CLIP; CABLE (D) ID=9 L=40	9-09524-875-0	01	1	9911-	●	●		●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (D) ID=9 L=40	9-09524-875-0	01	1	9911-	●	●
404	CLIP; CABLE (E)	1-14319-111-0	02	1	9707-9905			●
404	CLIP; CABLE (E)	1-14319-111-0	01	1	9906-	●	●
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28080-616-0	02	1	9606-9610	●
405	BOLT; CABLE CLIP EXC. EURO2 SPECIFICATION<THN> M6X16 FLANGE	0-28080-616-0	02	1	9611-9905	●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5) M6X16 FLANGE	0-28080-616-0	02	1	9906-	●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9606-9706	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9707-9905	●		●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9906-	●	●		●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9606-9706	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9707-9905	●		●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9906-	●	●		●
407	BOLT; CLIP TO ENG M8X20 FLANGE	0-28080-820-0	02	1	9606-9606	●
407	BOLT; CLIP TO ENG M8X25 FLANGE	0-28680-825-0	02	1	9607-9609	●
407	BOLT; CLIP TO ENG EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	9610-9905	●
407	BOLT; CLIP TO ENG EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	9906-	●	●
603	BRACKET; ENG CONT SHAFT (A)	1-14319-082-0	01	1	9606-9609	●
603	BRACKET; ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5) (A)	1-14319-082-0	01	1	9610-9701	●
603	BRACKET; ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5) (B)	1-14319-099-0	01	1	9702-9808	●
603	BRACKET; ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5) (B)	1-14319-140-0	01	1	9809-9905	●
603	BRACKET; ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5) (B)	1-14319-140-0	01	1	9906-	●	●
646	NUT; BRKT,LEVER M8 FLANGE	0-91150-208-0	02	1	9606-9606	●
646	NUT; BRKT,LEVER M8 FLANGE	0-91150-108-0	02	1	9607-9609	●
646	NUT; BRKT,LEVER EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9610-9905	●
646	NUT; BRKT,LEVER EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9906-	●	●
658	CLIP; ENG CONT CABLE ID=7 L=20	9-09524-635-0	02	1	9606-9609	●
658	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=7 L=20	9-09524-635-0	02	1	9610-9905	●
658	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=7 L=20	9-09524-635-0	02	1	9906-	●	●

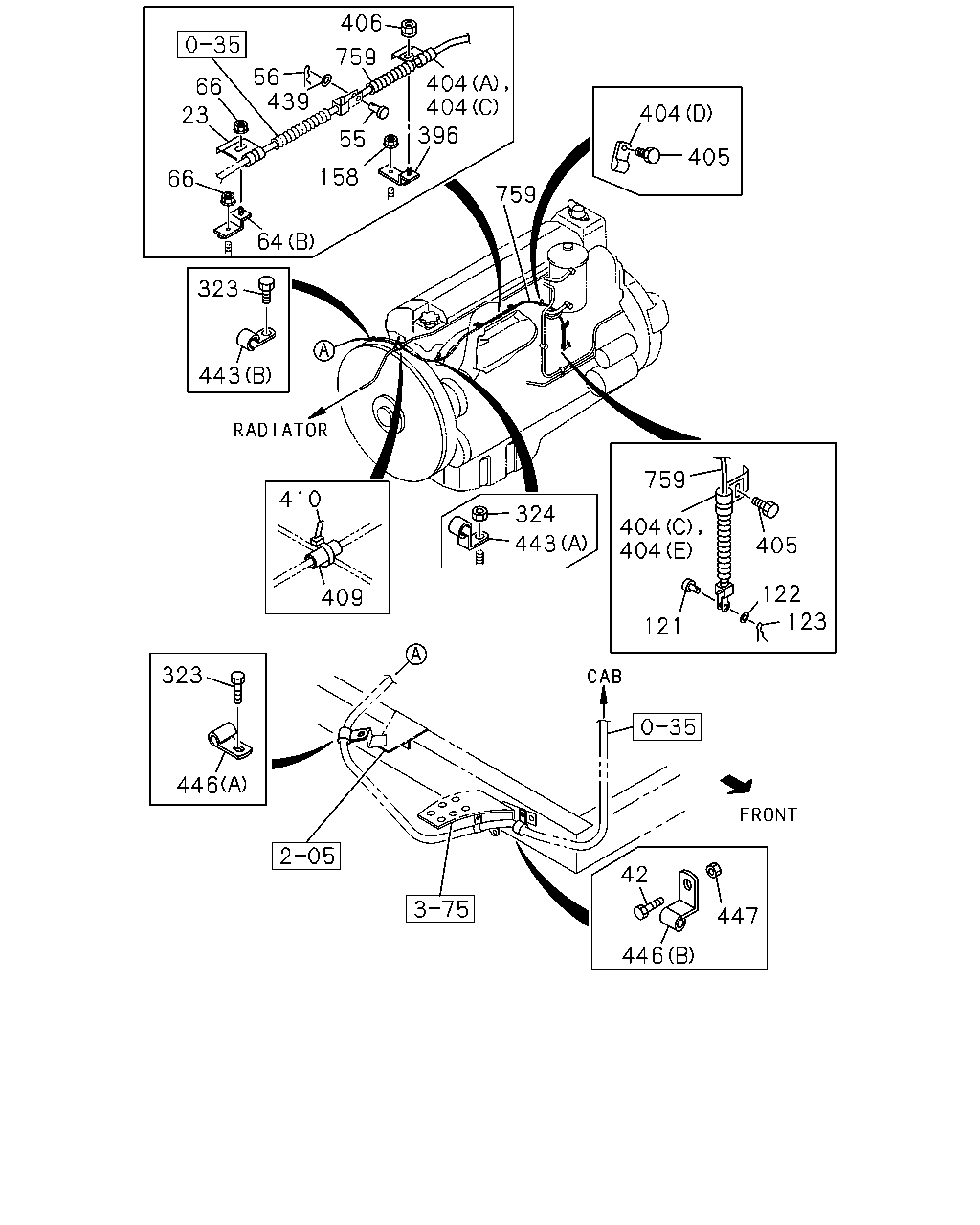

406 759 56 439 404 404 396 66 23 404 55 405 158 66 759 64 323 443 759 410 324 404 404 443 405 409 12 123 121 323 42 447 446 446

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	9606-9802	●		●
12	ROLLER; ENG CONT LEVER ELECTRONIC GOV RED3(KG5)	1-09989-007-0	01	1	9803-9905	●
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	9803-9905			●
23	BRACKET; FUEL CUT CABLE	1-14319-082-0	01	1	9606-9609	●
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-14319-082-0	01	1	9610-9808	●
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-14319-138-0	01	1	9809-9905	●
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-14319-138-0	01	1	9906-	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	9610-9905	●
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	9610-9905			●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	9906-		●		●
42	BOLT; BRKT,ENG CONT CABLE M8X20 FLANGE	0-28080-820-0	04	1	9606-9606	●
42	BOLT; BRKT,ENG CONT CABLE M8X25 FLANGE	0-28680-825-0	04	1	9607-9609	●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	04	1	9610-9905	●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	04	1	9906-	●	●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28080-820-0	02	1	9610-9905	●
42	BOLT; BRKT,ENG CONT CABLE M8X20 FLANGE	0-28080-820-0	02	1	9610-9905			●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28080-820-0	02	1	9906-		●		●
55	PIN; JAW JOINT ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	9610-9905	●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	9610-9905			●
55	PIN; JAW JOINT ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	9906-		●		●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9606-9905	●		●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9906-	●	●		●
64	BRACKET; ENG CONT CABLE (A)	1-23219-105-1	01	1	9606-9609	●
64	BRACKET; ENG CONT CABLE EXC. EURO2 SPECIFICATION<THN> (A)	1-23219-105-1	01	1	9610-9701	●
64	BRACKET; ENG CONT CABLE EXC. EURO2 SPECIFICATION<THN> (A)	1-23219-105-1	01	1	9702-9905	●
64	BRACKET; ENG CONT CABLE (A)	1-23219-105-1	01	1	9906-	●
64	BRACKET; ENG CONT CABLE RLD GOVERNOR(SD7) (A)	1-23219-105-1	01	1	9906-		●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	9610-9905	●
64	BRACKET; ENG CONT CABLE (B)	1-47477-804-3	01	1	9610-9905			●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	9906-		●		●
66	NUT; BRKT M8	9-09110-508-0	01	1	9606-9606	●
66	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9610-9905	●
66	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9610-9905			●
66	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9906-		●		●
121	PIN; JOINT,CABLE EURO2 SPECIFICATION<THN> L=11	1-09744-102-0	01	1	9610-9706	●
121	PIN; JOINT,CABLE EURO2 SPECIFICATION<THN> L=11	1-09744-102-0	01	1	9707-9905	●
121	PIN; JOINT,CABLE L=11	1-09744-102-0	01	1	9707-9905			●
121	PIN; JOINT,CABLE ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	9906-		●
121	PIN; JOINT,CABLE L=11	1-09744-102-0	01	1	9906-				●
123	PIN; SNAP,CABLE L=27.7	1-09747-005-0	01	1	9606-9610	●
123	PIN; SNAP,CABLE EXC. EURO2 SPECIFICATION<THN> L=27.7	1-09747-005-0	01	1	9611-9905	●
123	PIN; SNAP,CABLE EXC. ELECTRONIC GOV RED3(KG5) L=27.7	1-09747-005-0	01	1	9906-	●	●
123	PIN; SNAP,CABLE EURO2 SPECIFICATION<THN> L=17.9	1-09747-002-0	01	1	9610-9706	●
123	PIN; SNAP,CABLE EURO2 SPECIFICATION<THN> L=17.9	1-09747-002-0	01	1	9707-9905	●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	9707-9905			●
123	PIN; SNAP,CABLE EURO2 SPECIFICATION<THN> L=17.9	1-09747-002-0	01	1	9906-0003		●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	9906-0003				●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	0004-		●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0004-				●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9607-9610	●
158	NUT; BRKT EXC. EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	01	1	9611-9612	●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9701-9905	●		●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9906-	●	●		●
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28680-820-0	02	1	9610-9905	●
323	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9610-9905			●
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28680-820-0	02	1	9906-		●		●
324	NUT; CLIP FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9610-9905	●
324	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	9610-9905			●
324	NUT; CLIP FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9906-		●		●
396	BRACKET; CLIP	1-47477-805-0	01	1	9607-9610	●
396	BRACKET; CLIP EXC. EURO2 SPECIFICATION<THN>	1-47477-805-0	01	1	9611-9612	●
396	BRACKET; CLIP	1-47477-805-0	01	1	9701-9710	●
396	BRACKET; CLIP	1-47478-055-0	01	1	9711-9905	●		●
396	BRACKET; CLIP	1-47478-055-0	01	1	9906-	●	●		●
404	CLIP; CABLE (A)	1-14319-082-0	01	1	9606-9610	●
404	CLIP; CABLE EXC. EURO2 SPECIFICATION<THN> (A)	1-14319-082-0	01	1	9611-9612	●
404	CLIP; CABLE (A)	1-14319-113-0	01	1	9701-9710	●
404	CLIP; CABLE (B) ID=11 L=20	9-09525-035-0	02	1	9606-9610	●
404	CLIP; CABLE EXC. EURO2 SPECIFICATION<THN> (B) ID=11 L=20	9-09525-035-0	02	1	9611-9705	●
404	CLIP; CABLE EXC. EURO2 SPECIFICATION<THN> (B) ID=11 L=20	9-09525-035-0	01	1	9706-9905	●
404	CLIP; CABLE EURO2 SPECIFICATION<THN> (C)	1-14319-111-0	02	1	9610-9612	●
404	CLIP; CABLE EURO2 SPECIFICATION<THN> (E)	1-14319-111-0	01	1	9701-9801	●
404	CLIP; CABLE (E)	1-14319-111-0	01	1	9802-9905	●
404	CLIP; CABLE (E)	1-14319-111-0	01	1	9802-9905	●
404	CLIP; CABLE (E)	1-14319-111-0	02	1	9906-				●
404	CLIP; CABLE EURO2 SPECIFICATION<THN> (D) ID=9 L=40	9-09524-875-0	01	1	9610-9705	●
404	CLIP; CABLE (D) ID=9 L=40	9-09524-875-0	01	1	9706-9706	●
404	CLIP; CABLE (D) ID=9 L=40	9-09524-875-0	01	1	9707-9905	●		●
404	CLIP; CABLE (D) ID=9 L=40	9-09524-875-0	01	1	9906-9910	●	●		●
404	CLIP; CABLE (D) ID=9 L=40	9-09524-875-0	01	1	9911-	●	●		●
404	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (D) ID=9 L=40	9-09524-875-0	01	1	9911-	●	●
404	CLIP; CABLE (E)	1-14319-111-0	02	1	9707-9905			●
404	CLIP; CABLE (E)	1-14319-111-0	01	1	9906-	●	●
405	BOLT; CABLE CLIP M6X16 FLANGE	0-28080-616-0	02	1	9606-9610	●
405	BOLT; CABLE CLIP EXC. EURO2 SPECIFICATION<THN> M6X16 FLANGE	0-28080-616-0	02	1	9611-9905	●
405	BOLT; CABLE CLIP EXC. ELECTRONIC GOV RED3(KG5) M6X16 FLANGE	0-28080-616-0	02	1	9906-	●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9606-9706	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9707-9905	●		●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9906-	●	●		●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9606-9706	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9707-9905	●		●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	9906-	●	●		●
409	SLEEVE ELECTRONIC GOV RED3(KG5) ID=6 L=30	5-09360-352-0	01	1	9610-9905	●
409	SLEEVE ID=6 L=30	5-09360-352-0	01	1	9610-9905			●
409	SLEEVE ELECTRONIC GOV RED3(KG5) ID=6 L=30	5-09360-352-0	01	1	9906-		●		●
410	CLIP; BAND ELECTRONIC GOV RED3(KG5) L=140	5-09707-031-1	01	1	9610-9905	●
410	CLIP; BAND L=140	5-09707-031-1	01	1	9610-9905			●
410	CLIP; BAND ELECTRONIC GOV RED3(KG5) L=140	5-09707-031-1	01	1	9906-		●		●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9606-9905	●		●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9906-	●	●		●
443	CLIP; CABLE (C) ID=6-10 & 6-10	1-09709-192-1	01	1	9606-9609	●
443	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=6-10 & 6-10	1-09709-192-1	01	1	9610-9905	●
443	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=6-10 & 6-10	1-09709-192-1	01	1	9906-	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=9 L=20	9-09524-835-0	02	1	9610-9905	●
443	CLIP; CABLE (A) ID=9 L=20	9-09524-835-0	02	1	9610-9905			●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=7 L=20	9-09524-635-0	02	1	9906-		●		●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9906-		●		●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9610-9905	●
443	CLIP; CABLE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9610-9905			●
446	CLIP; ENG CONT (C) ID=7 L=28	9-09524-655-0	04	1	9606-9609	●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (C) ID=7 L=28	9-09524-655-0	04	1	9610-9905	●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (C) ID=7 L=28	9-09524-655-0	04	1	9906-	●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9610-9905	●
446	CLIP; ENG CONT (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9610-9905			●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	9-09525-035-0	01	1	9906-0007		●		●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0008-		●		●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (A) ID=13 L=20	9-09525-235-0	01	1	9610-9905	●
446	CLIP; ENG CONT (A) ID=13 L=20	9-09525-235-0	01	1	9610-9905			●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (B) ID=11 H=20 L=20	9-09527-010-0	01	1	9906-0007		●		●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	9-09525-035-0	01	1	0008-		●		●
447	NUT; BRKT,CONT WIRE M8	9-09110-508-0	04	1	9606-9606	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	04	1	9607-9609	●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9610-9905	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	01	1	9610-9905			●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9906-		●		●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	04	1	9610-9905	●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	04	1	9906-	●	●
759	WIRE; CONT,FUEL CUT EURO2 SPECIFICATION<THN> L=752	1-23230-026-1	01	1	9610-9702	●
759	WIRE; CONT,FUEL CUT EURO2 SPECIFICATION<THN> L=752	1-23230-026-1	01	1	9703-9905	●
759	WIRE; CONT,FUEL CUT L=752	1-23230-026-1	01	1	9703-9905			●
759	WIRE; CONT,FUEL CUT ELECTRONIC GOV RED3(KG5) L=752	1-23230-026-1	01	1	9906-		●
759	WIRE; CONT,FUEL CUT L=752	1-23230-026-1	01	1	9906-				●

8 644 14 665 664 673 332 242 16 29 65 8 15 526 527 234 54 843 271 104 6 12 81 2 82 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LEVER; ENG CONT	1-71907-210-2	01	1	9606-9609	●
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-210-2	01	1	9610-9905	●
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-210-2	01	1	9906-	●	●
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-191-2	01	1	9610-9701	●
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-500-0	01	1	9702-9905	●
2	LEVER; ENG CONT	1-71907-500-0	01	1	9702-9905			●
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-550-1	01	1	9906-		●		●
6	RING; SNAP,LINK TO LINK (A) ID=4	9-09185-404-0	02	1	9606-9609	●
6	RING; SNAP,LINK TO LINK EXC. ELECTRONIC GOV RED3(KG5) (A) ID=4	9-09185-404-0	02	1	9610-9905	●
6	RING; SNAP,LINK TO LINK EXC. ELECTRONIC GOV RED3(KG5) (A) ID=4	9-09185-404-0	02	1	9906-	●	●
6	RING; SNAP,LINK TO LINK (B) ID=6	9-09185-406-0	01	1	9606-9802	●		●
6	RING; SNAP,LINK TO LINK ELECTRONIC GOV RED3(KG5) (B) ID=6	9-09185-406-0	01	1	9803-9905	●
6	RING; SNAP,LINK TO LINK (B) ID=6	9-09185-406-0	01	1	9803-9905			●
8	LINK ASM; ENG CONT	1-73996-206-5	01	1	9606-9609	●
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73996-206-6	01	1	9610-9905	●
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73996-206-6	01	1	9906-	●	●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-161-6	01	1	9610-9905	●
8	LINK ASM; ENG CONT	1-71907-161-6	01	1	9610-9905			●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-551-3	01	1	9906-		●		●
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	9606-9802	●		●
12	ROLLER; ENG CONT LEVER ELECTRONIC GOV RED3(KG5)	1-09989-007-0	01	1	9803-9905	●
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	9803-9905			●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	9606-9708	●		●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9709-9905	●		●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	9906-	●	●		●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9606-9905	●		●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9906-	●	●		●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X20 W/LK&PL WASHER	8-94279-202-0	02	1	9606-9902	●		●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9903-9905	●		●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	9906-	●	●		●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9606-9905	●		●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	9906-	●	●		●
54	CABLE; ENG CONT (A) L=1300	1-23230-132-0	01	1	9606-9610	●
54	CABLE; ENG CONT EXC. EURO2 SPECIFICATION<THN> (A) L=1300	1-23230-132-0	01	1	9611-9905	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (A) L=1300	1-23230-132-0	01	1	9906-	●	●
54	CABLE; ENG CONT (B) L=2836	1-73907-404-2	01	1	9606-9609	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (B) L=2836	1-73907-404-2	01	1	9610-9905	●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (B) L=2836	1-73907-404-2	01	1	9906-	●	●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	9610-9905	●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	9610-9905			●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	9906-		●		●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9606-9905	●		●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9906-	●	●		●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	9610-9905	●
81	SPRING; RETURN,ENG CONT LEVER (B)	1-71907-268-0	01	1	9610-9905			●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	9906-		●		●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	9606-	●	●	●	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	9606-9609	●
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5)	1-71907-244-1	02	1	9610-9905	●
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5)	1-71907-244-1	02	1	9906-	●	●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	9610-9905	●
82	BUSHING; ENG CONT LVR L=31.5	1-53459-627-0	01	1	9610-9905			●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	9906-		●		●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	9606-9609	●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	01	1	9610-9905	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	01	1	9610-9905			●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	01	1	9906-		●		●
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	02	1	9610-9905	●
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	02	1	9906-	●	●
234	SWITCH; ACCEL	1-82380-114-1	01	1	9606-9609	●
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5)	1-82380-114-1	01	1	9610-9905	●
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5)	1-82380-114-2	01	1	9906-	●	●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-1	01	1	9610-9905	●
234	SWITCH; ACCEL	1-82380-131-1	01	1	9610-9905			●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-1	01	1	9906-		●		●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9606-9905	●		●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	9906-	●	●		●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	9606-9609	●
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) OD=8.0 L=74	1-71907-212-1	01	1	9610-9905	●
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) OD=8.0 L=74	1-71907-212-1	01	1	9906-	●	●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	9610-9905	●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	9610-9905			●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	9906-		●		●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9606-9905	●		●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	9906-	●	●		●
526	SENSOR; ACCEL ELECTRONIC GOV RED3(KG5)	1-81534-003-2	01	1	9610-9905	●
526	SENSOR; ACCEL	1-81534-003-2	01	1	9610-9905			●
526	SENSOR; ACCEL ELECTRONIC GOV RED3(KG5)	1-81534-003-2	01	1	9906-		●		●
527	BOLT; ACCEL SENSOR ELECTRONIC GOV RED3(KG5) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9610-9905	●
527	BOLT; ACCEL SENSOR M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9610-9905			●
527	BOLT; ACCEL SENSOR ELECTRONIC GOV RED3(KG5) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9906-		●		●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	9606-9905	●		●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	9906-0103	●	●		●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	0104-	●	●		●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9606-9905	●		●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	9906-	●	●		●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9606-9905	●		●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	9906-	●	●		●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9606-9905	●		●
673	NUT; STOPPER M8	9-09111-408-0	01	1	9906-	●	●		●
843	NUT ELECTRONIC GOV RED3(KG5) M12	9-99111-412-0	01	1	9610-9905	●
843	NUT M12	9-99111-412-0	01	1	9610-9905			●
843	NUT ELECTRONIC GOV RED3(KG5) M12	9-99111-412-0	01	1	9906-		●		●

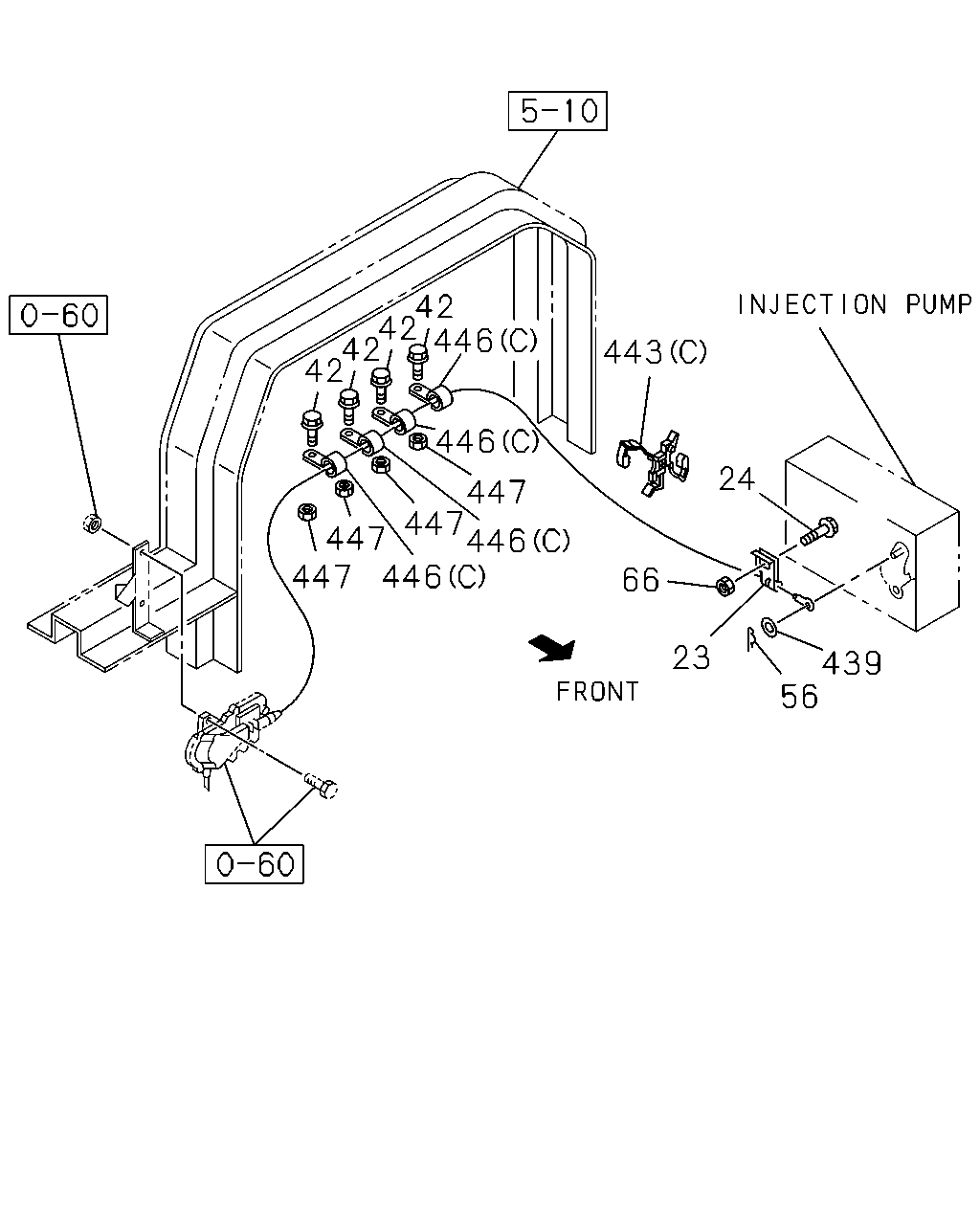

42 42 446 42 42 443 446 24 447 447 447 446 66 23 439 56 447 446

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	BRACKET; FUEL CUT CABLE	1-14319-082-0	01	1	9606-9609	●
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-14319-082-0	01	1	9610-9808	●
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-14319-138-0	01	1	9809-9905	●
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-14319-138-0	01	1	9906-	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	9610-9905	●
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	9610-9905			●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	9906-		●		●
24	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	9606-9606	●
24	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	9607-9609	●
24	BOLT; BRKT EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	01	1	9610-9905	●
24	BOLT; BRKT EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	01	1	9906-	●	●
42	BOLT; BRKT,ENG CONT CABLE M8X20 FLANGE	0-28080-820-0	04	1	9606-9606	●
42	BOLT; BRKT,ENG CONT CABLE M8X25 FLANGE	0-28680-825-0	04	1	9607-9609	●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	04	1	9610-9905	●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	04	1	9906-	●	●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28080-820-0	02	1	9610-9905	●
42	BOLT; BRKT,ENG CONT CABLE M8X20 FLANGE	0-28080-820-0	02	1	9610-9905			●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28080-820-0	02	1	9906-		●		●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9606-9905	●		●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9906-	●	●		●
66	NUT; BRKT M8	9-09110-508-0	01	1	9606-9606	●
66	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9610-9905	●
66	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9610-9905			●
66	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9906-		●		●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9606-9905	●		●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9906-	●	●		●
443	CLIP; CABLE (C) ID=6-10 & 6-10	1-09709-192-1	01	1	9606-9609	●
443	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=6-10 & 6-10	1-09709-192-1	01	1	9610-9905	●
443	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=6-10 & 6-10	1-09709-192-1	01	1	9906-	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=9 L=20	9-09524-835-0	02	1	9610-9905	●
443	CLIP; CABLE (A) ID=9 L=20	9-09524-835-0	02	1	9610-9905			●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=7 L=20	9-09524-635-0	02	1	9906-		●		●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	9906-		●		●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9610-9905	●
443	CLIP; CABLE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9610-9905			●
446	CLIP; ENG CONT (C) ID=7 L=28	9-09524-655-0	04	1	9606-9609	●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (C) ID=7 L=28	9-09524-655-0	04	1	9610-9905	●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (C) ID=7 L=28	9-09524-655-0	04	1	9906-	●	●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9610-9905	●
446	CLIP; ENG CONT (B) ID=12 H=24 L=20	1-09700-605-0	01	1	9610-9905			●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	9-09525-035-0	01	1	9906-0007		●		●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0008-		●		●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (A) ID=13 L=20	9-09525-235-0	01	1	9610-9905	●
446	CLIP; ENG CONT (A) ID=13 L=20	9-09525-235-0	01	1	9610-9905			●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (B) ID=11 H=20 L=20	9-09527-010-0	01	1	9906-0007		●		●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	9-09525-035-0	01	1	0008-		●		●
447	NUT; BRKT,CONT WIRE M8	9-09110-508-0	04	1	9606-9606	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	04	1	9607-9609	●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9610-9905	●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	01	1	9610-9905			●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	9906-		●		●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	04	1	9610-9905	●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	04	1	9906-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
