Sayfa 4-25 - Isuzu EPC

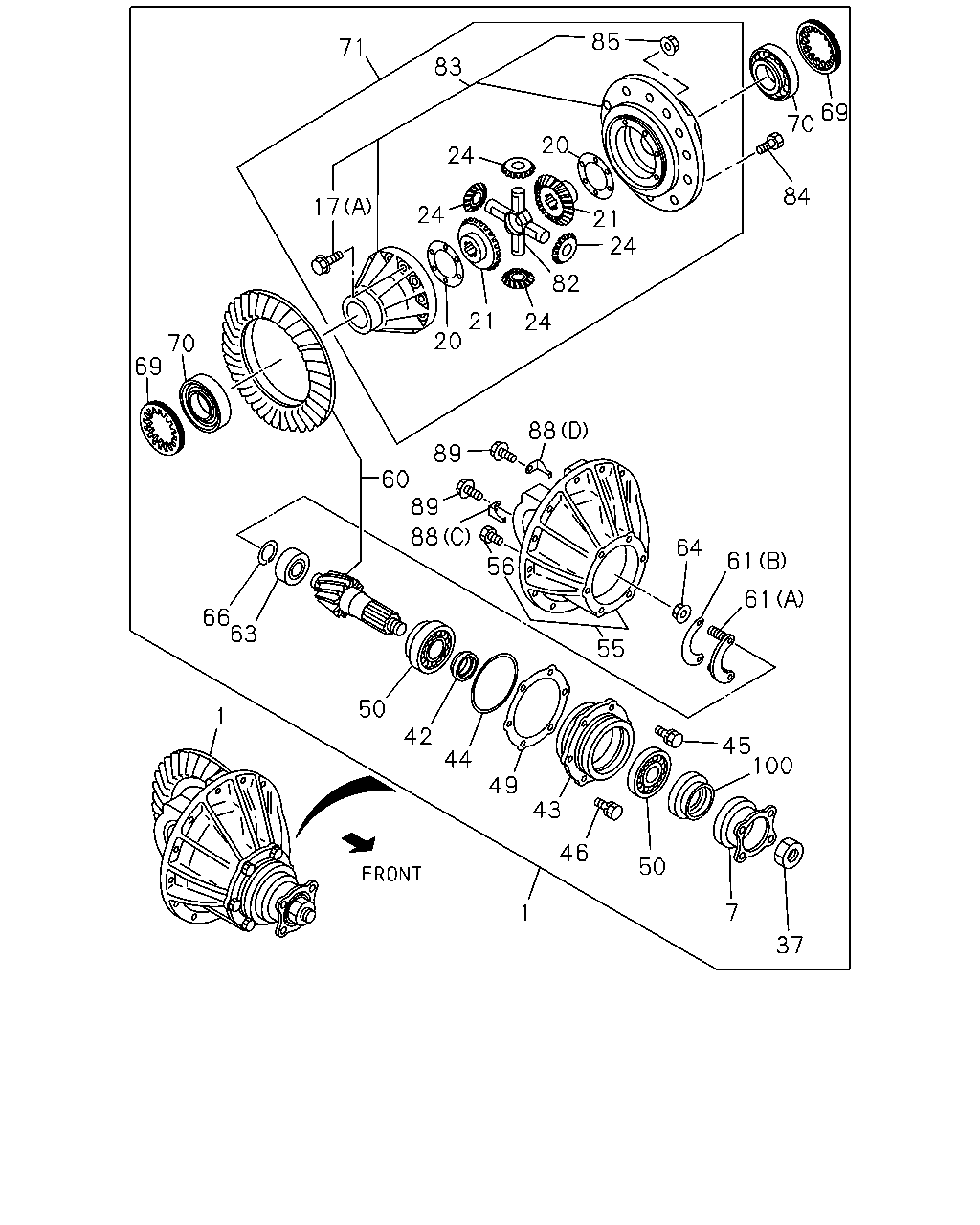

4-25 — REAR FINAL DRIVE (#50229) — 217 parça

1 1 37 7 100 39 43 49 44 42 50 63 66 69 89 56 55 45 61 61 64 88 88 88 88 60 25 24 21 82 24 25 21 20 24 25 24 25 83 71 86 17 17 70 20 86 85 84 70 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97388-704-0	01	1	1212-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97388-701-0	01	1	1212-	●
1	05.505 DRIVE ASM; FINAL,RR 41/10	8-98015-122-0	01	1	1109-		●
1	05.505 DRIVE ASM; FINAL,RR 41/10	8-97388-700-0	01	1	0911-1211	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97388-700-0	01	1	1212-	●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	1109-		●
7	05.545 FLANGE; FINAL	8-97047-095-2	01	1	0911-	●
17	05.510 BOLT; DIFF CAGE SETTING (A) M10X75 FLANGE	8-97232-161-0	12	1	1109-		●
17	05.510 BOLT; DIFF CAGE SETTING (A) M12X90	8-97047-295-0	12	1	0911-1208	●
17	05.510 BOLT; DIFF CAGE SETTING (B) M12X90	8-98219-448-0	12	1	1209-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	1109-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0911-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0911-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0911-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0911-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0911-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0911-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0911-	●
21	05.528 GEAR; SIDE,DIFF Z=20	8-97362-598-1	02	1	1109-		●
21	05.528 GEAR; SIDE,DIFF Z=16	1-41561-093-0	02	1	0911-1004	●
21	05.528 GEAR; SIDE,DIFF Z=16	8-98165-935-0	02	1	1005-	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	1109-		●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0911-1004	●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-	●
25	05.528 WASHER; THRUST,PINION	1-41552-020-0	04	1	0911-	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	1109-		●
37	05.595 NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0911-	●
39	05.484 BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1002-	●
39	05.484 BEARING; FINAL PINION NSK	1-09812-026-0	01	1	0911-1002	●
39	05.484 BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1003-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	1109-		●
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0911-	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	1109-		●
43	05.453 CAGE; FINAL PINION	8-97047-098-0	01	1	0911-	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	1109-		●
44	05.476 GASKET; PINION CAGE	8-97048-053-0	01	1	0911-	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	1109-1311		●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-		●
45	05.453 BOLT; FINAL PINION CAGE 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0911-1209	●
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	1109-		●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	1109-		●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	1109-		●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	1109-		●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	1109-		●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	1109-		●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0911-	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0911-	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0911-	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0911-	●
49	05.458 SHIM; FINAL PINION CAGE 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0911-	●
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	1109-		●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	1109-		●
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	0911-	●
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0911-	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	1109-		●
55	05.505 CARRIER; DIFF	8-97094-637-0	01	1	0911-	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	1109-		●
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0911-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97174-099-0	01	1	1212-1505	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-98092-137-0	01	1	1506-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97047-115-0	01	1	1212-1510	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-98092-149-0	01	1	1511-	●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/10	8-97319-153-0	01	1	1109-1311		●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/10	8-98092-055-0	01	1	1312-		●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/10	8-97061-846-0	01	1	0911-1211	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97061-846-0	01	1	1212-1510	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-98092-152-0	01	1	1511-	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	1109-		●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	1109-		●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0911-	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0911-	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	1109-		●
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	1109-		●
63	05.447 BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0911-	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0911-	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0911-1108	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	1109-	●	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	1109-		●
66	05.476 RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0911-	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	1109-		●
69	05.506 NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0911-	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	1109-		●
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0911-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1)	8-97047-100-4	01	1	1212-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-178-1	01	1	1109-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-97047-099-3	01	1	0911-1211	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C)	8-97047-099-4	01	1	1212-	●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	1109-		●
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	0911-1004	●
82	05.517 SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-1309	●
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	1310-	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1)	8-98219-707-0	01	1	1212-	●
83	05.510 CAGE ASM; DIFF	8-97319-398-1	01	1	1109-		●
83	05.510 CAGE ASM; DIFF	8-97047-101-2	01	1	0911-1208	●
83	05.510 CAGE ASM; DIFF	8-98219-705-0	01	1	1209-1211	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C)	8-98219-705-0	01	1	1212-	●
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	1109-		●
84	05.531 BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0911-	●
85	05.510 NUT; DIFF CAGE SETTING 04.085 M10 FLANGE	0-91180-210-0	12	1	1109-		●
85	05.510 NUT; DIFF CAGE SETTING M12	8-97065-214-0	12	1	0911-	●
86	05.510 WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0911-1208	●
86	05.510 WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-	●
88	05.506 PLATE; LK,ADJ NUT (C)	8-97027-281-0	AR	1	1109-		●
88	05.506 PLATE; LK,ADJ NUT (D)	8-97027-282-0	AR	1	1109-		●
88	05.506 PLATE; LK,ADJ NUT (B) T=2.3	8-97087-821-0	AR	1	0911-	●
88	05.506 PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	AR	1	0911-	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1109-		●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0911-	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	1109-		●
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0911-	●

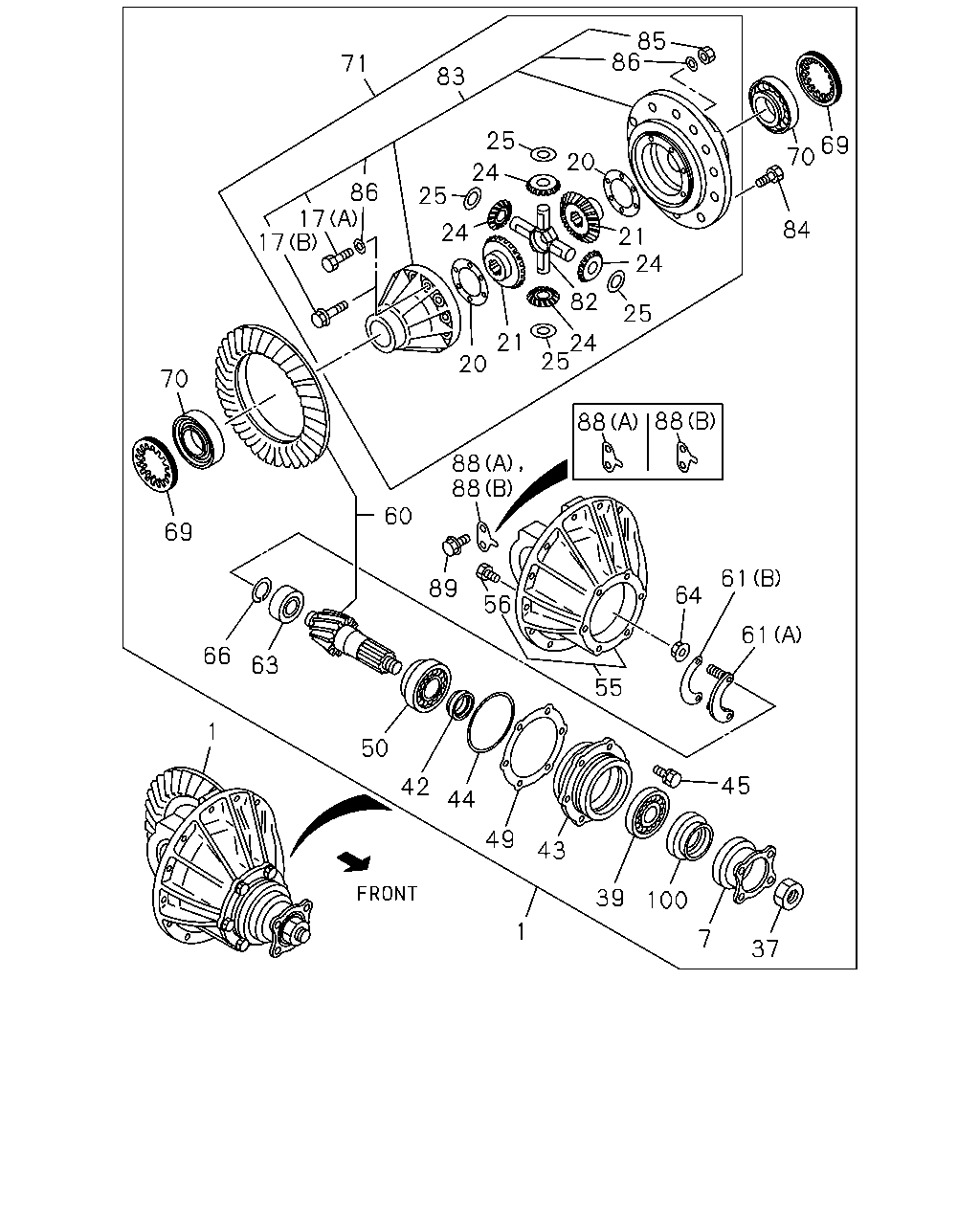

1 1 37 7 50 46 43 49 44 42 50 63 66 100 45 55 61 61 64 88 89 89 88 56 60 70 69 17 20 21 24 82 24 21 84 70 69 85 20 24 24 83 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97388-704-0	01	1	1212-	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97388-701-0	01	1	1212-	●
1	05.505 DRIVE ASM; FINAL,RR 41/10	8-98015-122-0	01	1	1109-		●
1	05.505 DRIVE ASM; FINAL,RR 41/10	8-97388-700-0	01	1	0911-1211	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97388-700-0	01	1	1212-	●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	1109-		●
7	05.545 FLANGE; FINAL	8-97047-095-2	01	1	0911-	●
17	05.510 BOLT; DIFF CAGE SETTING (A) M10X75 FLANGE	8-97232-161-0	12	1	1109-		●
17	05.510 BOLT; DIFF CAGE SETTING (A) M12X90	8-97047-295-0	12	1	0911-1208	●
17	05.510 BOLT; DIFF CAGE SETTING (B) M12X90	8-98219-448-0	12	1	1209-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	1109-		●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0911-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0911-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0911-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0911-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0911-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0911-	●
20	05.543 WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0911-	●
21	05.528 GEAR; SIDE,DIFF Z=20	8-97362-598-1	02	1	1109-		●
21	05.528 GEAR; SIDE,DIFF Z=16	1-41561-093-0	02	1	0911-1004	●
21	05.528 GEAR; SIDE,DIFF Z=16	8-98165-935-0	02	1	1005-	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	1109-		●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0911-1004	●
24	05.526 GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	1109-		●
37	05.595 NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0911-	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	1109-		●
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0911-	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	1109-		●
43	05.453 CAGE; FINAL PINION	8-97047-098-0	01	1	0911-	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	1109-		●
44	05.476 GASKET; PINION CAGE	8-97048-053-0	01	1	0911-	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	1109-1311		●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-		●
45	05.453 BOLT; FINAL PINION CAGE 16.545 M12X40 W/LK WASHER	0-50571-240-0	06	1	0911-1209	●
45	05.453 BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	1109-		●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	1109-		●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	1109-		●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	1109-		●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	1109-		●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	1109-		●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	1109-		●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0911-	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0911-	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0911-	●
49	05.458 SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0911-	●
49	05.458 SHIM; FINAL PINION CAGE 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0911-	●
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	1109-		●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	1109-		●
50	05.447 BEARING; FINAL PINION 05.484 NSK	1-09812-041-2	01	1	0911-	●
50	05.447 BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0911-	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	1109-		●
55	05.505 CARRIER; DIFF	8-97094-637-0	01	1	0911-	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	1109-		●
56	05.506 BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0911-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97174-099-0	01	1	1212-1505	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-98092-137-0	01	1	1506-	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97047-115-0	01	1	1212-1510	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-98092-149-0	01	1	1511-	●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/10	8-97319-153-0	01	1	1109-1311		●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/10	8-98092-055-0	01	1	1312-		●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/10	8-97061-846-0	01	1	0911-1211	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97061-846-0	01	1	1212-1510	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-98092-152-0	01	1	1511-	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	1109-		●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	1109-		●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0911-	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0911-	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	1109-		●
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	1109-		●
63	05.447 BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0911-	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0911-	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0911-1108	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	1109-	●	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	1109-		●
66	05.476 RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0911-	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	1109-		●
69	05.506 NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0911-	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	1109-		●
70	05.536 BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0911-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1)	8-97047-100-4	01	1	1212-	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-178-1	01	1	1109-		●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-97047-099-3	01	1	0911-1211	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C)	8-97047-099-4	01	1	1212-	●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	1109-		●
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	0911-1004	●
82	05.517 SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-1309	●
82	05.517 SPIDER; DIFF PINION 05.520	1-41521-035-2	01	1	1310-	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1)	8-98219-707-0	01	1	1212-	●
83	05.510 CAGE ASM; DIFF	8-97319-398-1	01	1	1109-		●
83	05.510 CAGE ASM; DIFF	8-97047-101-2	01	1	0911-1208	●
83	05.510 CAGE ASM; DIFF	8-98219-705-0	01	1	1209-1211	●
83	05.510 CAGE ASM; DIFF FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(S7C)	8-98219-705-0	01	1	1212-	●
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	1109-		●
84	05.531 BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0911-	●
85	05.510 NUT; DIFF CAGE SETTING 04.085 M10 FLANGE	0-91180-210-0	12	1	1109-		●
85	05.510 NUT; DIFF CAGE SETTING M12	8-97065-214-0	12	1	0911-	●
88	05.506 PLATE; LK,ADJ NUT (C)	8-97027-281-0	AR	1	1109-		●
88	05.506 PLATE; LK,ADJ NUT (D)	8-97027-282-0	AR	1	1109-		●
88	05.506 PLATE; LK,ADJ NUT (B) T=2.3	8-97087-821-0	AR	1	0911-	●
88	05.506 PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	AR	1	0911-	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1109-		●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0911-	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	1109-		●
100	05.469 SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0911-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
