Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#50225) — 309 parça

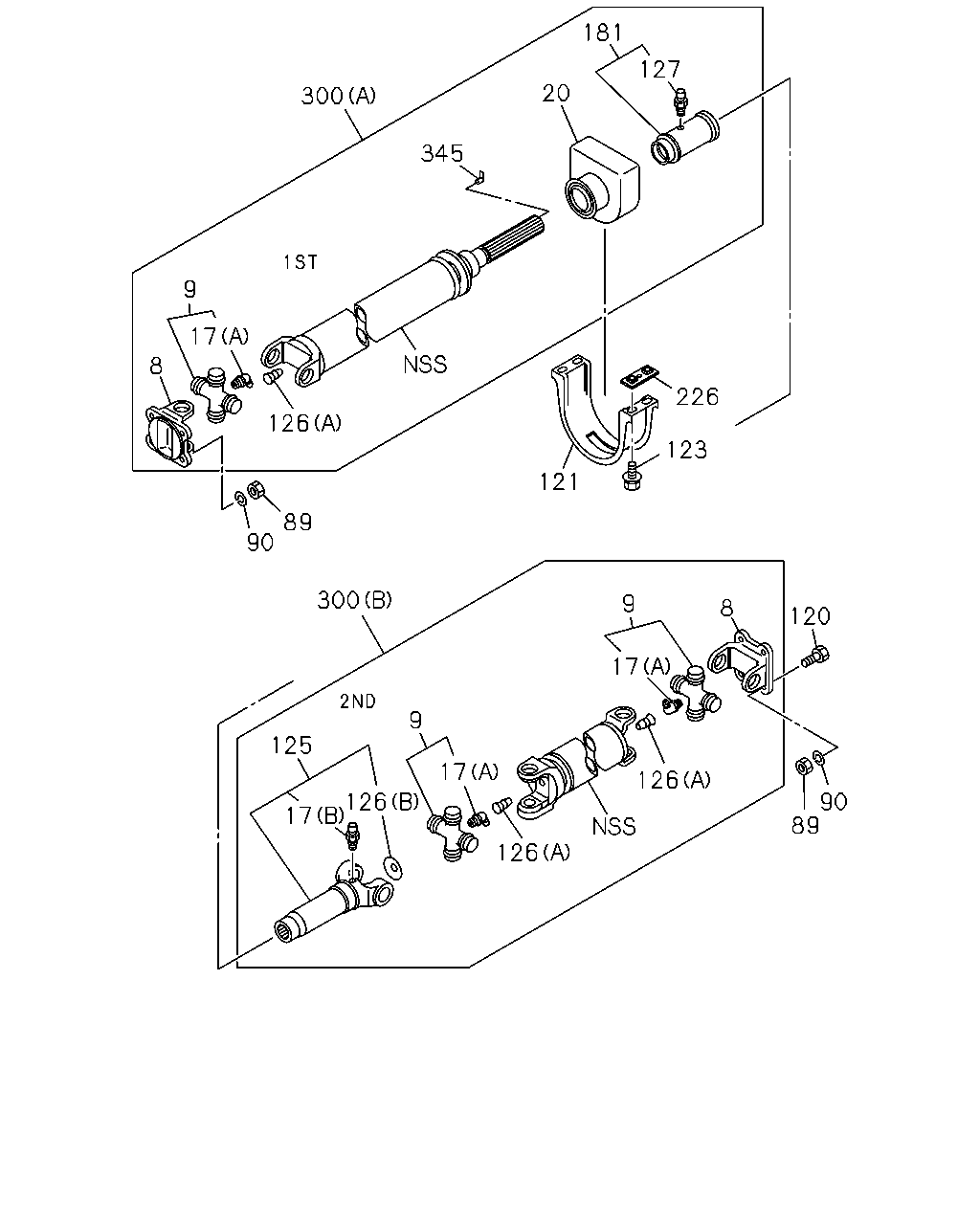

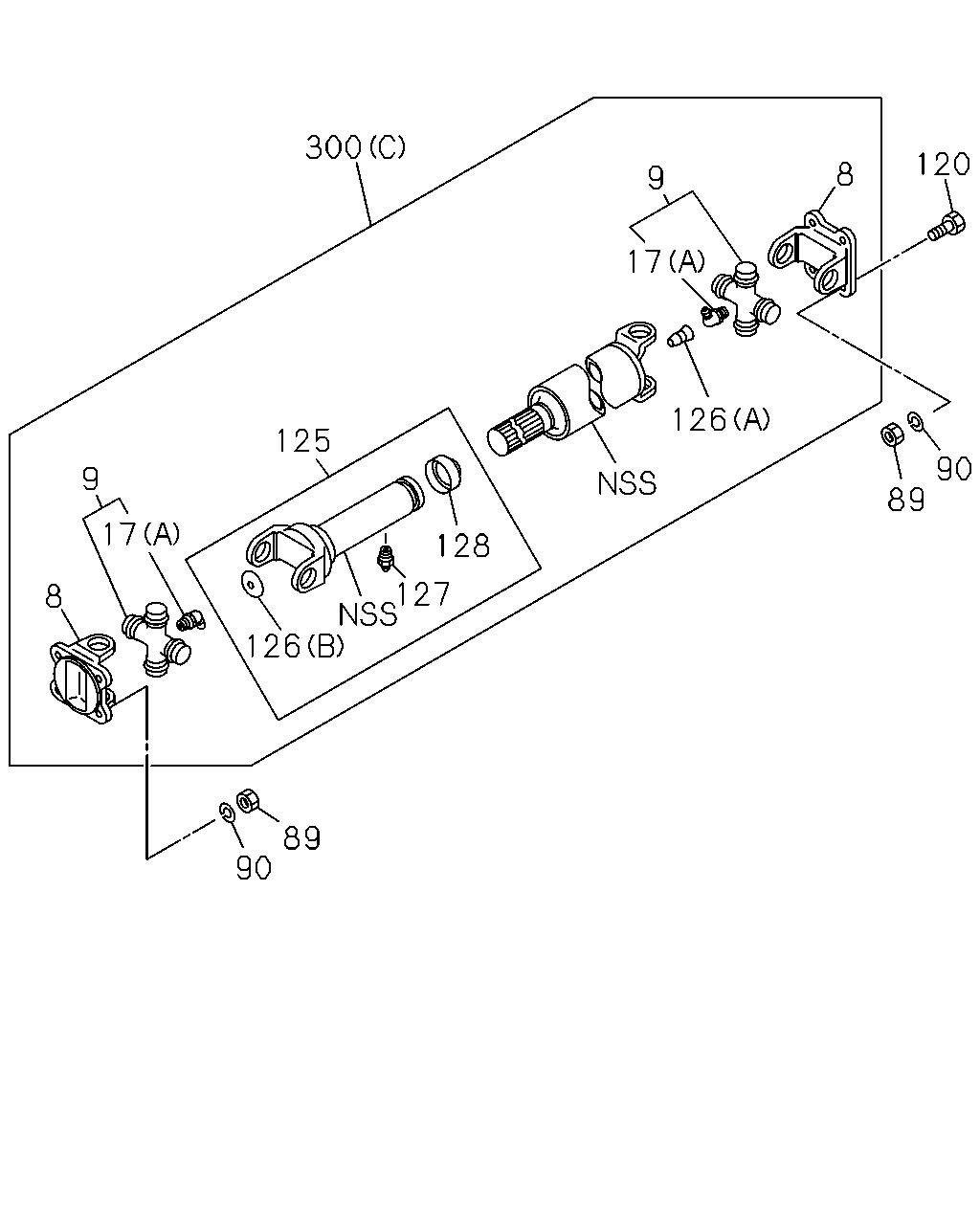

300 120 8 9 17 126 125 90 89 9 17 128 127 126 8 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 2700MM(27W) D=80	8-97322-663-0	02	1	1109-	●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1109-	●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1109-	●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	01	1	0911-1211		●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	02	1	1212-		●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	02	1	0911-1211		●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) D=80	1-37211-037-4	01	1	1212-		●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-1	02	1	1109-	●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W)	8-98033-605-1	01	1	1109-	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98020-789-1	01	1	0911-1108		●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98020-789-1	02	1	1109-		●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98020-789-1	02	1	0911-1108		●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98020-789-1	01	1	1109-1211		●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-98020-789-1	01	1	1212-		●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) (B) M6 STRAIGHT	0-90301-406-0	02	1	1109-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0911-1108		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1109-1211		●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1109-1211	●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1212-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0911-1108		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	1109-	●	●
89	05.586 NUT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) M12	8-97365-450-0	08	1	1105-1108		●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	1109-1211	●
89	05.586 NUT; YOKE TO RR AXLE WHEEL BASE 2700MM(27W) M12	8-97365-450-1	08	1	1212-		●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	1212-	●
89	05.586 NUT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) M12	8-97365-450-1	12	1	0911-1104		●
89	05.586 NUT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 44 00MM(44W) M12	8-97365-450-1	12	1	1105-1108		●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	12	1	1109-		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 07.347 ID=12.2	0-91510-812-0	08	1	1105-1108		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	1109-1211	●
90	05.586 WASHER; LK,YOKE TO RR AXLE WHEEL BASE 2700MM(27W) 07.347 ID=12.2	0-91510-812-0	08	1	1212-		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	1212-	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) 07.347 ID=12.2	0-91510-812-0	12	1	0911-1104		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 44 00MM(44W) 07.347 ID=12.2	0-91510-812-0	12	1	1105-1108		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	12	1	1109-		●
120	05.586 BOLT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) M12X35	8-97365-451-0	04	1	1105-1108		●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	1109-1211	●
120	05.586 BOLT; YOKE TO RR AXLE WHEEL BASE 2700MM(27W) M12X35	8-97365-451-1	04	1	1212-		●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	1212-	●
120	05.586 BOLT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) M12X35	8-97365-451-1	08	1	0911-1104		●
120	05.586 BOLT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 44 00MM(44W) M12X35	8-97365-451-1	08	1	1105-1108		●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	08	1	1109-		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2700MM(27W) L=246	8-98034-338-1	01	1	1109-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 3300MM(33W) L=183	8-98033-647-2	01	1	1109-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=224	8-98044-229-0	01	1	0911-		●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W) (A)	1-09600-023-0	02	1	1109-	●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0911-1108		●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1109-	●	●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A)	1-09600-023-0	01	1	0911-1104		●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A)	1-09600-023-0	01	1	0911-1104		●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 44 00MM(44W) (A)	1-09600-023-0	01	1	1105-1108		●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (A)	1-09600-023-0	01	1	1105-1108		●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	1-09600-023-0	01	1	1109-1211		●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1109-1211	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1212-	●	●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	1-09600-023-0	01	1	1212-		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0911-1108		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1109-1304	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1305-		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE WHEEL BASE 2700MM(27W) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1305-	●
128	05.586 SEAL; SLEEVE	8-97145-746-0	01	1	0911-1108		●
128	05.586 SEAL; SLEEVE	8-97145-746-0	01	1	1109-		●
128	05.586 SEAL; SLEEVE WHEEL BASE 2700MM(27W)	8-97145-746-0	01	1	1109-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=555	8-98024-909-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=995	8-98024-911-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=1021	8-98040-826-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=972	8-98040-827-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=627	8-98006-983-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1062	8-98040-528-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) (C) L=972	8-98040-827-1	01	1	1105-1108		●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 2700MM(27W) (C) L=1254	8-97387-791-3	01	1	1109-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) (A) L=630	8-98024-913-1	01	1	1105-1211		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=630	8-98024-913-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) (B) L=1001	8-98024-923-1	01	1	1105-1108		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) (B) L=1001	8-98024-923-1	01	1	1109-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) (B) L=1001	8-98024-923-1	01	1	1109-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) (B) L=1252	8-98063-805-1	01	1	1105-1108		●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (B) L=1066	8-97387-806-4	01	1	1109-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) (A) L=1367	8-98019-423-1	01	1	1105-1108		●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (A) L=845	8-98039-649-1	01	1	1109-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) (B) L=1302	8-98024-925-1	01	1	1105-1108		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) (A) L=683	8-98006-982-1	01	1	1109-1211		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=683	8-98006-982-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR (B) L=1011	8-98040-477-1	01	1	0911-1108		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) (B) L=1011	8-98040-477-1	01	1	1109-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) (B) L=1011	8-98040-477-1	01	1	1109-		●
300	05.544 SHAFT ASM; PROP,RR (A) L=1127	8-98040-793-1	01	1	0911-1104		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) L=1127	8-98040-793-1	01	1	1105-1108		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) (A) L=1127	8-98040-793-1	01	1	1109-1211		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) (A) L=1127	8-98040-793-1	01	1	1109-1211		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1127	8-98040-793-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1127	8-98040-793-1	01	1	1212-		●

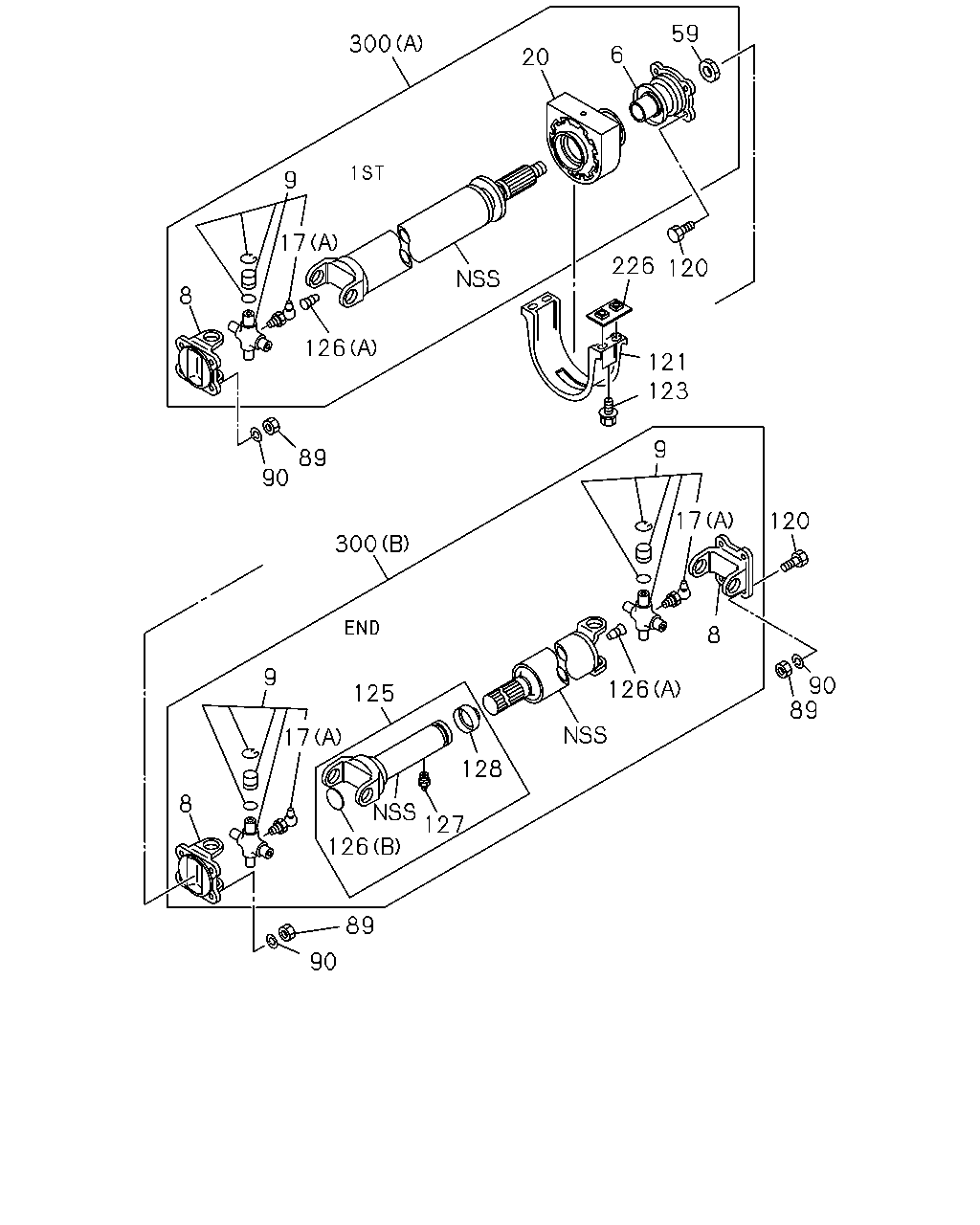

59 300 6 20 9 17 226 120 8 126 121 123 9 89 90 17 120 300 8 9 90 89 126 125 17 128 127 8 126 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT	8-98020-796-0	01	1	0911-1211		●
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-98020-796-0	01	1	1212-		●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 2700MM(27W) D=80	8-97322-663-0	02	1	1109-	●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1109-	●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1109-	●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	01	1	0911-1211		●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	02	1	1212-		●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	02	1	0911-1211		●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) D=80	1-37211-037-4	01	1	1212-		●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-1	02	1	1109-	●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W)	8-98033-605-1	01	1	1109-	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98020-789-1	01	1	0911-1108		●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98020-789-1	02	1	1109-		●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98020-789-1	02	1	0911-1108		●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98020-789-1	01	1	1109-1211		●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-98020-789-1	01	1	1212-		●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) (B) M6 STRAIGHT	0-90301-406-0	02	1	1109-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0911-1108		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1109-1211		●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1109-1211	●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1212-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0911-1108		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	1109-	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT WHEEL BASE 3300MM(33W)	8-98033-936-0	01	1	1109-	●
20	05.600 BEARING ASM; CTR,PROP SHAFT	8-98020-880-0	01	1	0911-1211		●
20	05.600 BEARING ASM; CTR,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-98020-880-0	01	1	1212-		●
59	05.586 NUT; RET TO SUPPORT M30	8-97160-857-0	01	1	0911-1211		●
59	05.586 NUT; RET TO SUPPORT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M30	8-97160-857-0	01	1	1212-		●
89	05.586 NUT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) M12	8-97365-450-0	08	1	1105-1108		●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	1109-1211	●
89	05.586 NUT; YOKE TO RR AXLE WHEEL BASE 2700MM(27W) M12	8-97365-450-1	08	1	1212-		●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	1212-	●
89	05.586 NUT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) M12	8-97365-450-1	12	1	0911-1104		●
89	05.586 NUT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 44 00MM(44W) M12	8-97365-450-1	12	1	1105-1108		●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	12	1	1109-		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 07.347 ID=12.2	0-91510-812-0	08	1	1105-1108		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	1109-1211	●
90	05.586 WASHER; LK,YOKE TO RR AXLE WHEEL BASE 2700MM(27W) 07.347 ID=12.2	0-91510-812-0	08	1	1212-		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	1212-	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) 07.347 ID=12.2	0-91510-812-0	12	1	0911-1104		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 44 00MM(44W) 07.347 ID=12.2	0-91510-812-0	12	1	1105-1108		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	12	1	1109-		●
120	05.586 BOLT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) M12X35	8-97365-451-0	04	1	1105-1108		●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	1109-1211	●
120	05.586 BOLT; YOKE TO RR AXLE WHEEL BASE 2700MM(27W) M12X35	8-97365-451-1	04	1	1212-		●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	1212-	●
120	05.586 BOLT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) M12X35	8-97365-451-1	08	1	0911-1104		●
120	05.586 BOLT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 44 00MM(44W) M12X35	8-97365-451-1	08	1	1105-1108		●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	08	1	1109-		●
121	05.598 RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0911-1104		●
121	05.598 RETAINER; CUSHION RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W)	8-97035-623-1	01	1	1105-1108		●
121	05.598 RETAINER; CUSHION RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-97035-623-1	01	1	1109-		●
121	05.598 RETAINER; CUSHION RUBBER WHEEL BASE 3300MM(33W)	8-97035-623-1	01	1	1109-	●
123	05.601 BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0911-1104		●
123	05.601 BOLT; RET WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1105-1108		●
123	05.601 BOLT; RET WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1109-		●
123	05.601 BOLT; RET WHEEL BASE 3300MM(33W) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1109-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2700MM(27W) L=246	8-98034-338-1	01	1	1109-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 3300MM(33W) L=183	8-98033-647-2	01	1	1109-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=224	8-98044-229-0	01	1	0911-		●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W) (A)	1-09600-023-0	02	1	1109-	●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0911-1108		●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1109-	●	●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A)	1-09600-023-0	01	1	0911-1104		●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A)	1-09600-023-0	01	1	0911-1104		●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 44 00MM(44W) (A)	1-09600-023-0	01	1	1105-1108		●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (A)	1-09600-023-0	01	1	1105-1108		●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	1-09600-023-0	01	1	1109-1211		●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1109-1211	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1212-	●	●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	1-09600-023-0	01	1	1212-		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0911-1108		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1109-1304	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1305-		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE WHEEL BASE 2700MM(27W) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1305-	●
128	05.586 SEAL; SLEEVE	8-97145-746-0	01	1	0911-1108		●
128	05.586 SEAL; SLEEVE	8-97145-746-0	01	1	1109-		●
128	05.586 SEAL; SLEEVE WHEEL BASE 2700MM(27W)	8-97145-746-0	01	1	1109-	●
226	05.586 PLATE; LK,CENTER BRG	8-97371-572-0	02	1	0911-1104		●
226	05.586 PLATE; LK,CENTER BRG WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W)	8-97371-572-0	02	1	1105-1108		●
226	05.586 PLATE; LK,CENTER BRG WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-97371-572-0	02	1	1109-		●
226	05.586 PLATE; LK,CENTER BRG WHEEL BASE 3300MM(33W)	8-97371-572-0	02	1	1109-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=555	8-98024-909-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=995	8-98024-911-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=1021	8-98040-826-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=972	8-98040-827-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=627	8-98006-983-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1062	8-98040-528-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) (C) L=972	8-98040-827-1	01	1	1105-1108		●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 2700MM(27W) (C) L=1254	8-97387-791-3	01	1	1109-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) (A) L=630	8-98024-913-1	01	1	1105-1211		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=630	8-98024-913-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) (B) L=1001	8-98024-923-1	01	1	1105-1108		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) (B) L=1001	8-98024-923-1	01	1	1109-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) (B) L=1001	8-98024-923-1	01	1	1109-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) (B) L=1252	8-98063-805-1	01	1	1105-1108		●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (B) L=1066	8-97387-806-4	01	1	1109-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) (A) L=1367	8-98019-423-1	01	1	1105-1108		●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (A) L=845	8-98039-649-1	01	1	1109-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) (B) L=1302	8-98024-925-1	01	1	1105-1108		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) (A) L=683	8-98006-982-1	01	1	1109-1211		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=683	8-98006-982-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR (B) L=1011	8-98040-477-1	01	1	0911-1108		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) (B) L=1011	8-98040-477-1	01	1	1109-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) (B) L=1011	8-98040-477-1	01	1	1109-		●
300	05.544 SHAFT ASM; PROP,RR (A) L=1127	8-98040-793-1	01	1	0911-1104		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) L=1127	8-98040-793-1	01	1	1105-1108		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) (A) L=1127	8-98040-793-1	01	1	1109-1211		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) (A) L=1127	8-98040-793-1	01	1	1109-1211		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1127	8-98040-793-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1127	8-98040-793-1	01	1	1212-		●

181 127 20 300 345 9 17 8 226 126 123 121 89 90 300 9 8 120 17 9 125 17 126 126 17 90 89 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 2700MM(27W) D=80	8-97322-663-0	02	1	1109-	●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1109-	●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	1109-	●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	01	1	0911-1211		●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	02	1	1212-		●
8	05.544 YOKE; FLANGE,PROP SHAFT D=80	1-37211-037-4	02	1	0911-1211		●
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) D=80	1-37211-037-4	01	1	1212-		●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-1	02	1	1109-	●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W)	8-98033-605-1	01	1	1109-	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98020-789-1	01	1	0911-1108		●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98020-789-1	02	1	1109-		●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98020-789-1	02	1	0911-1108		●
9	05.548 JOURNAL ASM; PROP SHAFT	8-98020-789-1	01	1	1109-1211		●
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-98020-789-1	01	1	1212-		●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) (B) M6 STRAIGHT	0-90301-406-0	02	1	1109-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0911-1108		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1109-1211		●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1109-1211	●
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	1212-	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0911-1108		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	1109-	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT WHEEL BASE 3300MM(33W)	8-98033-936-0	01	1	1109-	●
20	05.600 BEARING ASM; CTR,PROP SHAFT	8-98020-880-0	01	1	0911-1211		●
20	05.600 BEARING ASM; CTR,PROP SHAFT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-98020-880-0	01	1	1212-		●
89	05.586 NUT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) M12	8-97365-450-0	08	1	1105-1108		●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	1109-1211	●
89	05.586 NUT; YOKE TO RR AXLE WHEEL BASE 2700MM(27W) M12	8-97365-450-1	08	1	1212-		●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	1212-	●
89	05.586 NUT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) M12	8-97365-450-1	12	1	0911-1104		●
89	05.586 NUT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 44 00MM(44W) M12	8-97365-450-1	12	1	1105-1108		●
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	12	1	1109-		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 07.347 ID=12.2	0-91510-812-0	08	1	1105-1108		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	1109-1211	●
90	05.586 WASHER; LK,YOKE TO RR AXLE WHEEL BASE 2700MM(27W) 07.347 ID=12.2	0-91510-812-0	08	1	1212-		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	1212-	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) 07.347 ID=12.2	0-91510-812-0	12	1	0911-1104		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 44 00MM(44W) 07.347 ID=12.2	0-91510-812-0	12	1	1105-1108		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	12	1	1109-		●
120	05.586 BOLT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) M12X35	8-97365-451-0	04	1	1105-1108		●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	1109-1211	●
120	05.586 BOLT; YOKE TO RR AXLE WHEEL BASE 2700MM(27W) M12X35	8-97365-451-1	04	1	1212-		●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	1212-	●
120	05.586 BOLT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) M12X35	8-97365-451-1	08	1	0911-1104		●
120	05.586 BOLT; YOKE TO RR AXLE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 44 00MM(44W) M12X35	8-97365-451-1	08	1	1105-1108		●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	08	1	1109-		●
121	05.598 RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0911-1104		●
121	05.598 RETAINER; CUSHION RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W)	8-97035-623-1	01	1	1105-1108		●
121	05.598 RETAINER; CUSHION RUBBER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-97035-623-1	01	1	1109-		●
121	05.598 RETAINER; CUSHION RUBBER WHEEL BASE 3300MM(33W)	8-97035-623-1	01	1	1109-	●
123	05.601 BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0911-1104		●
123	05.601 BOLT; RET WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1105-1108		●
123	05.601 BOLT; RET WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1109-		●
123	05.601 BOLT; RET WHEEL BASE 3300MM(33W) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	1109-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2700MM(27W) L=246	8-98034-338-1	01	1	1109-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 3300MM(33W) L=183	8-98033-647-2	01	1	1109-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT L=224	8-98044-229-0	01	1	0911-		●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W) (A)	1-09600-023-0	02	1	1109-	●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0911-1108		●
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	1109-	●	●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A)	1-09600-023-0	01	1	0911-1104		●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A)	1-09600-023-0	01	1	0911-1104		●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 44 00MM(44W) (A)	1-09600-023-0	01	1	1105-1108		●
126	05.556 PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) (A)	1-09600-023-0	01	1	1105-1108		●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	1-09600-023-0	01	1	1109-1211		●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1109-1211	●
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	1212-	●	●
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	1-09600-023-0	01	1	1212-		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0911-1108		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1109-1304	●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1305-		●
127	05.586 NIPPLE; GREASE,SPLINED YOKE WHEEL BASE 2700MM(27W) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	1305-	●
181	05.586 COVER; BRG,PROP SHAFT WHEEL BASE 3300MM(33W)	8-98046-526-0	01	1	1109-	●
226	05.586 PLATE; LK,CENTER BRG	8-97371-572-0	02	1	0911-1104		●
226	05.586 PLATE; LK,CENTER BRG WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W)	8-97371-572-0	02	1	1105-1108		●
226	05.586 PLATE; LK,CENTER BRG WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W)	8-97371-572-0	02	1	1109-		●
226	05.586 PLATE; LK,CENTER BRG WHEEL BASE 3300MM(33W)	8-97371-572-0	02	1	1109-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=555	8-98024-909-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=995	8-98024-911-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=1021	8-98040-826-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=972	8-98040-827-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=627	8-98006-983-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=1062	8-98040-528-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) (C) L=972	8-98040-827-1	01	1	1105-1108		●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 2700MM(27W) (C) L=1254	8-97387-791-3	01	1	1109-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) (A) L=630	8-98024-913-1	01	1	1105-1211		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=630	8-98024-913-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) (B) L=1001	8-98024-923-1	01	1	1105-1108		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W) (B) L=1001	8-98024-923-1	01	1	1109-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) (B) L=1001	8-98024-923-1	01	1	1109-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4100MM(41W) (B) L=1252	8-98063-805-1	01	1	1105-1108		●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (B) L=1066	8-97387-806-4	01	1	1109-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) (A) L=1367	8-98019-423-1	01	1	1105-1108		●
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (A) L=845	8-98039-649-1	01	1	1109-	●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 4400MM(44W) (B) L=1302	8-98024-925-1	01	1	1105-1108		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) (A) L=683	8-98006-982-1	01	1	1109-1211		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=683	8-98006-982-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR (B) L=1011	8-98040-477-1	01	1	0911-1108		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) (B) L=1011	8-98040-477-1	01	1	1109-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) (B) L=1011	8-98040-477-1	01	1	1109-		●
300	05.544 SHAFT ASM; PROP,RR (A) L=1127	8-98040-793-1	01	1	0911-1104		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) L=1127	8-98040-793-1	01	1	1105-1108		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) (A) L=1127	8-98040-793-1	01	1	1109-1211		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) (A) L=1127	8-98040-793-1	01	1	1109-1211		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1127	8-98040-793-1	01	1	1212-		●
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=1127	8-98040-793-1	01	1	1212-		●
345	05.600 PLUG; PROP SHAFT WHEEL BASE 3300MM(33W)	8-98042-692-0	01	1	1109-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
