◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51244 - NPR(LHD) EURO5 ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#50223) — 110 parça
çizim 159321
49 19 49 68 49 68 68 68 68
BalonParca AdiParca NoAdetTipApplied Date A B
19 04.686 BRACKET; OIL PIPE 8-97389-845-2 01 1 0911-1108 ●
19 04.686 BRACKET; OIL PIPE 8-97389-845-2 01 1 1109- ● ●
49 04.686 BRACKET; BRK PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 06.672 (C) 		8-97387-196-0 01 1 0911-1211 ●
49 04.686 BRACKET; BRK PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 06.672 (C) 		8-97387-196-0 01 1 1212- ●
49 04.686 BRACKET; BRK PIPE
(B) 		8-98033-802-1 01 1 0911-1211 ●
49 04.686 BRACKET; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-98033-802-1 01 1 1212- ●
49 04.686 BRACKET; BRK PIPE
(A) 		8-98036-116-2 01 1 0911-1103 ●
49 04.686 BRACKET; BRK PIPE
(A) 		8-98187-801-0 01 1 1104-1211 ●
49 04.686 BRACKET; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98187-801-0 01 1 1212- ●
68 04.686 BRACKET; CLIP
(B) 		8-98017-159-0 01 1 1109- ●
68 04.686 BRACKET; CLIP
(C) 		8-98034-786-0 01 1 1109- ●
68 04.686 BRACKET; CLIP
(E) 		8-98136-287-1 01 1 1109- ●
68 04.686 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) 		8-98049-137-1 01 1 1109- ●
68 04.686 BRACKET; CLIP
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (D) 		8-98060-016-3 01 1 1109- ●

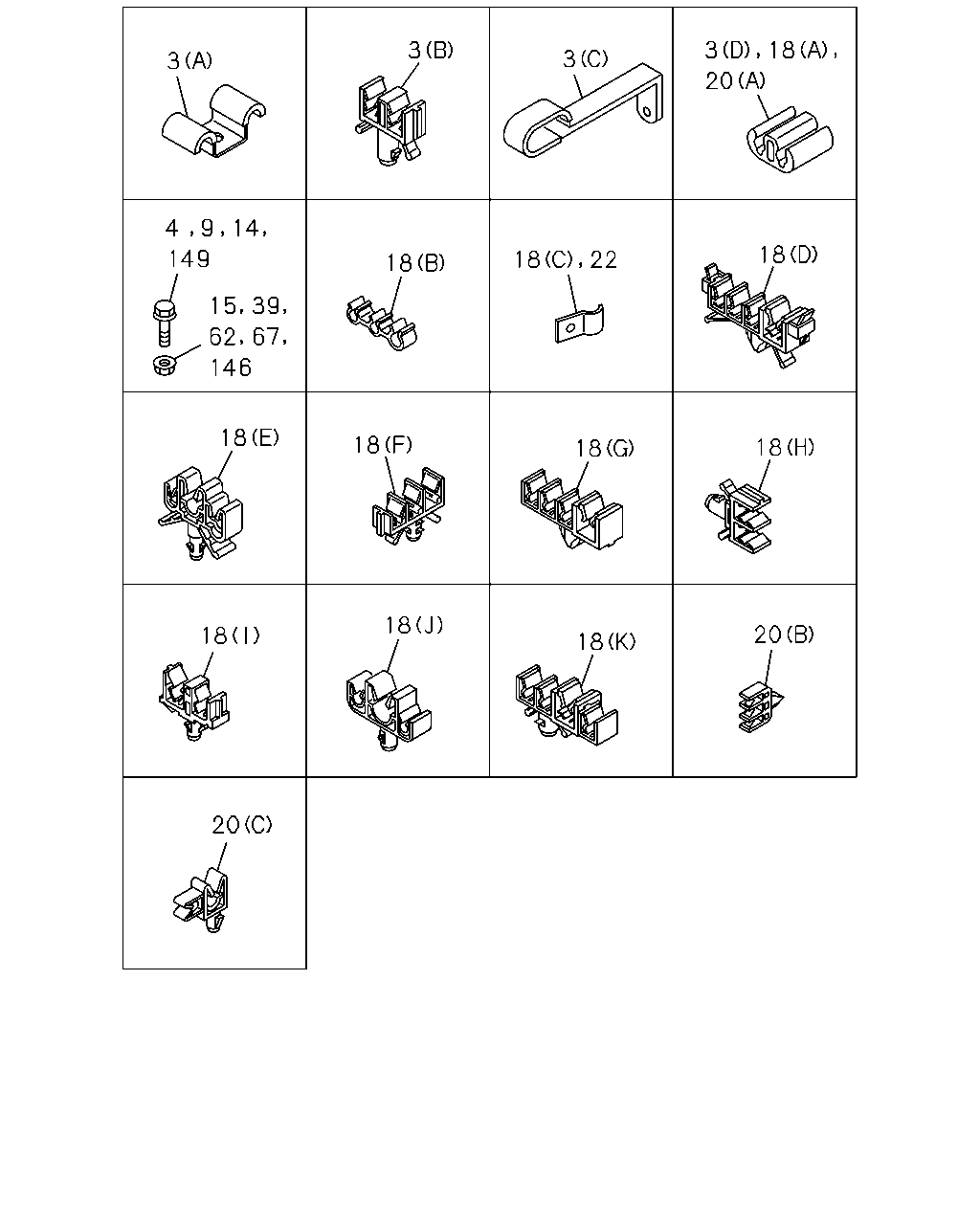

çizim 159324
3 18 3 3 3 20 4 18 149 18 146 18 18 18 18 18 20 18 18 20 18 22 9 14 15 39 62 67
BalonParca AdiParca NoAdetTipApplied Date A B
3 04.685 CLIP; BRK PIPE
04.047 (A) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 0911-1211 ●
3 04.685 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.047 (A) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 1212- ●
3 04.685 CLIP; BRK PIPE
04.047 (C) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 0911-1211 ●
3 04.685 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.047 (C) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 1212- ●
3 04.685 CLIP; BRK PIPE
06.672 (D) ID=10X2 H=22 		8-94252-455-2 03 1 0911-1211 ●
3 04.685 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 06.672 (D) ID=10X2 H=22 		8-94252-455-2 03 1 1212- ●
3 04.685 CLIP; BRK PIPE
04.930 (B) ID=10X2 H=37.5 		8-97018-546-0 01 1 0911-1211 ●
3 04.685 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 04.930 (B) ID=10X2 H=37.5 		8-97018-546-0 01 1 1212- ●
4 04.686 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 1109- ●
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0911-1108 ●
4 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1109- ● ●
4 04.686 BOLT; BRKT
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0911-1211 ●
4 04.686 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 1212- ●
9 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0911-1108 ●
9 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0911-1108 ●
9 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1109-1111 ● ●
9 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1109-1111 ●
9 04.686 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1112- ● ●
9 04.686 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1112- ●
14 04.686 BOLT; CLIP,OIL PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1109- ●
14 04.686 BOLT; CLIP,OIL PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0911- ●
15 04.686 NUT; CLIP,OIL PIPE
01.062 M8 FLANGE 		0-91180-108-0 01 1 1109- ●
15 04.686 NUT; CLIP,OIL PIPE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0911- ●
18 04.686 CLIP; BRK PIPE
(H) ID=4.8X2 		8-94316-410-0 02 1 1109- ●
18 04.686 CLIP; BRK PIPE
03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 06 1 1109- ●
18 04.686 CLIP; BRK PIPE
(J) ID=12 & 6.35 & 4.76 		8-97305-169-1 02 1 1109- ●
18 04.686 CLIP; BRK PIPE
03.162 (K) ID=10 OR 12 & 6.35X2 & 4.76 		8-97326-156-2 01 1 1109- ●
18 04.686 CLIP; BRK PIPE
03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 1011-1211 ●
18 04.686 CLIP; BRK PIPE
03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 1212- ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) (D) ID=10 & 4.76X3 		8-97326-158-1 04 1 1105-1108 ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3300MM(33W) (D) ID=10 & 4.76X3 		8-97326-158-1 04 1 1109- ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 4100MM(41W) (D) ID=10 & 4.76X3 		8-97326-158-1 06 1 1105-1108 ●
18 04.686 CLIP; BRK PIPE
(D) ID=10 & 4.76X3 		8-97326-158-1 07 1 1109- ● ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 4400MM(44W) (D) ID=10 & 4.76X3 		8-97326-158-1 07 1 1105-1108 ●
18 04.686 CLIP; BRK PIPE
(D) ID=10 & 4.76X3 		8-97326-158-1 07 1 1105-1108 ●
18 04.686 CLIP; BRK PIPE
(G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1109-1111 ●
18 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1112- ●
18 04.686 CLIP; BRK PIPE
(G) ID=10 & 4.76X3 		8-97168-819-0 01 1 1112- ●
18 04.686 CLIP; BRK PIPE
(C) B=18 L=20 		1-09700-372-0 02 1 0911- ●
18 04.686 CLIP; BRK PIPE
(B) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0911- ●
18 04.686 CLIP; BRK PIPE
(H) ID=4.8X2 		8-94316-410-0 01 1 0911-1111 ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (H) ID=4.8X2 		8-94316-410-0 01 1 1112- ●
18 04.686 CLIP; BRK PIPE
(A) ID=4.8X2 		8-94389-060-0 01 1 0911-1111 ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X2 		8-94389-060-0 01 1 1112- ●
18 04.686 CLIP; BRK PIPE
(I) ID=4.8X2 		8-94455-816-0 01 1 0911-1111 ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (I) ID=4.8X2 		8-94455-816-0 01 1 1112- ●
18 04.686 CLIP; BRK PIPE
03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 0911-1010 ●
18 04.686 CLIP; BRK PIPE
03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 1011-1211 ●
18 04.686 CLIP; BRK PIPE
03.162 (F) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 1212- ●
18 04.686 CLIP; BRK PIPE
(G) ID=10 & 4.76X3 		8-97168-819-0 02 1 0911-1108 ●
18 04.686 CLIP; BRK PIPE
(G) ID=10 & 4.76X3 		8-97168-819-0 02 1 1109- ● ●
18 04.686 CLIP; BRK PIPE
(E) ID=12 & 6.35 & 4.76 		8-97202-954-1 03 1 0911- ●
18 04.686 CLIP; BRK PIPE
(D) ID=10 & 4.76X3 		8-97326-158-1 05 1 0911-1104 ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 3800MM(38W) (D) ID=10 & 4.76X3 		8-97326-158-1 05 1 1105- ●
18 04.686 CLIP; BRK PIPE
(D) ID=10 & 4.76X3 		8-97326-158-1 07 1 0911-1104 ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2700MM(27W) (D) ID=10 & 4.76X3 		8-97326-158-1 02 1 1105-1108 ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2700MM(27W) (D) ID=10 & 4.76X3 		8-97326-158-1 02 1 1109-1211 ●
18 04.686 CLIP; BRK PIPE
WHEEL BASE 2700MM(27W) (D) ID=10 & 4.76X3 		8-97326-158-1 02 1 1212- ● ●
20 04.686 CLIP; BRK PIPE
03.162 (A) ID=6.35 & 6.35 		8-94474-113-0 01 1 1109-1211 ●
20 04.686 CLIP; BRK PIPE
EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=6.35 & 6.35 		8-94474-113-0 01 1 1212- ●
20 04.686 CLIP; BRK PIPE
03.162 (A) ID=6.35 & 6.35 		8-94474-113-0 01 1 1212- ●
20 04.686 CLIP; BRK PIPE
(B) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 0911-1108 ●
20 04.686 CLIP; BRK PIPE
(B) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 1109- ● ●
20 04.686 CLIP; BRK PIPE
03.162 (A) ID=6.35 & 6.35 		8-94474-113-0 03 1 0911-1211 ●
20 04.686 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) ID=6.35 & 6.35 		8-94474-113-0 03 1 1212- ●
20 04.686 CLIP; BRK PIPE
03.162 (C) ID=12 & 6.35 		8-97215-437-0 01 1 0911-1108 ●
20 04.686 CLIP; BRK PIPE
03.162 (C) ID=12 & 6.35 		8-97215-437-0 01 1 0911-1108 ●
20 04.686 CLIP; BRK PIPE
03.162 (C) ID=12 & 6.35 		8-97215-437-0 01 1 1109-1211 ● ●
20 04.686 CLIP; BRK PIPE
03.162 (C) ID=12 & 6.35 		8-97215-437-0 01 1 1109-1211 ●
20 04.686 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) ID=12 & 6.35 		8-97215-437-0 01 1 1212- ●
20 04.686 CLIP; BRK PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) ID=12 & 6.35 		8-97215-437-0 01 1 1212- ●
20 04.686 CLIP; BRK PIPE
03.162 (C) ID=12 & 6.35 		8-97215-437-0 01 1 1212- ●
22 04.686 CLIP; PIPE TO FRAME
B=18 L=20 		1-09700-372-0 01 1 1109- ●
39 04.686 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 0911-1108 ●
39 04.686 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 0911-1108 ●
39 04.686 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 1109-1111 ● ●
39 04.686 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 1109-1111 ●
39 04.686 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 1112- ● ●
39 04.686 NUT; BRKT FIX
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1112- ●
62 04.686 NUT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0911-1211 ●
62 04.686 NUT
HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1212- ●
67 04.686 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1109- ●
67 04.686 NUT; BRKT
00.837 M10 		8-98034-487-1 01 1 1109- ●
67 04.686 NUT; BRKT
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1109- ●
67 04.686 NUT; BRKT
06.515 M14 		0-91111-514-0 01 1 0911-1211 ●
67 04.686 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 06.515 M14 		0-91111-514-0 01 1 1212- ●
67 04.686 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0911-1211 ●
67 04.686 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1212- ●
146 04.686 NUT; PIPE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0911-1211 ●
146 04.686 NUT; PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0911-1211 ●
146 04.686 NUT; PIPE
HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1212- ●
146 04.686 NUT; PIPE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1212- ●
146 04.686 NUT; PIPE
03.162 M10 FLANGE 		0-91180-110-0 02 1 0911-1211 ●
146 04.686 NUT; PIPE
HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1212- ●
149 04.686 BOLT; HOSE
03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0911-1211 ●
149 04.686 BOLT; HOSE
HYDRO BRAKE BOOSTER(7QQ) 03.162 M6X20 FLANGE 		0-28650-620-0 01 1 1212- ●
