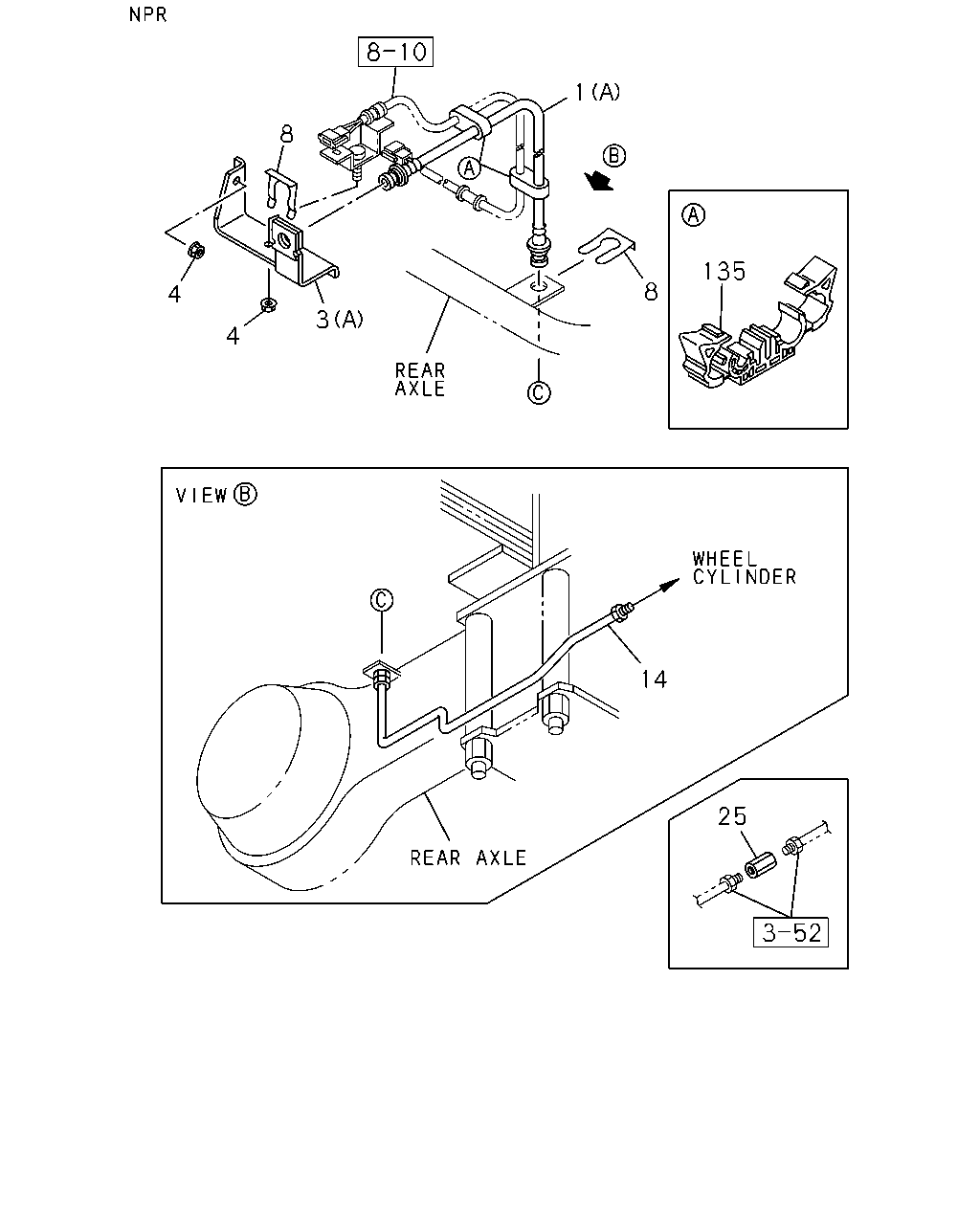

3-55 — BRAKE PIPING; OIL,REAR (#50222) — 75 parça

8 1 14 8 9 3 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.680 HOSE; FLEX,RR BRK (B) L=310	8-97035-063-1	01	1	1109-	●
1	04.680 HOSE; FLEX,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=405	8-97089-061-0	01	1	1112-		●
1	04.680 HOSE; FLEX,RR BRK (A)	8-97253-569-0	01	1	0911-1111		●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97253-569-0	01	1	1112-		●
1	04.680 HOSE; FLEX,RR BRK (A)	8-97253-570-0	01	1	0911-1111		●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97253-570-0	01	1	1112-		●
3	04.681 BRACKET; FLEX HOSE,RR BRK 04.845 (B)	8-97205-199-1	01	1	1109-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (A)	8-97205-714-1	01	1	0911-1111		●
3	04.681 BRACKET; FLEX HOSE,RR BRK (A)	8-97205-714-1	01	1	0911-1111		●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97205-714-1	01	1	1112-		●
3	04.681 BRACKET; FLEX HOSE,RR BRK (A)	8-97205-714-1	01	1	1112-		●
8	04.686 CLIP; RR BRK	8-97360-054-0	02	1	1109-1111	●
8	04.686 CLIP; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97360-054-0	02	1	1112-		●
8	04.686 CLIP; RR BRK	8-97360-054-0	02	1	1112-	●
8	04.686 CLIP; RR BRK	8-97360-054-0	04	1	0911-1111		●
8	04.686 CLIP; RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97360-054-0	04	1	1112-		●
9	04.685 PIPE; BRK,RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98026-057-0	01	1	1508-		●
9	04.685 PIPE; BRK,RR AXLE	8-98026-056-0	01	1	1109-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-98026-041-0	01	1	1109-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4HK1-TCN ENG(RDQ)	8-97359-748-0	01	1	0911-1007		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97359-748-0	01	1	1008-1111		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97359-748-0	01	1	1112-1507		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97359-748-0	01	1	1508-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4HK1-TCN ENG(RDQ)	8-97359-749-0	01	1	0911-1007		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97359-749-0	01	1	1008-1111		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97359-749-0	01	1	1112-		●
25	04.686 CONNECTOR M10 STRAIGHT	0-92107-005-0	01	1	0911-1108		●
25	04.686 CONNECTOR M10 STRAIGHT	0-92107-005-0	01	1	0911-1108		●
25	04.686 CONNECTOR M10 STRAIGHT	0-92107-005-0	01	1	1109-1111	●	●
25	04.686 CONNECTOR M10 STRAIGHT	0-92107-005-0	01	1	1109-1111	●	●
25	04.686 CONNECTOR M10 STRAIGHT	0-92107-005-0	01	1	1112-	●	●
25	04.686 CONNECTOR 4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT	0-92107-005-0	01	1	1112-		●
25	04.686 CONNECTOR M10 STRAIGHT	0-92107-005-0	01	1	1112-	●

1 8 135 8 4 3 4 14 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.680 HOSE; FLEX,RR BRK (B) L=310	8-97035-063-1	01	1	1109-	●
1	04.680 HOSE; FLEX,RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=405	8-97089-061-0	01	1	1112-		●
1	04.680 HOSE; FLEX,RR BRK (A)	8-97253-569-0	01	1	0911-1111		●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97253-569-0	01	1	1112-		●
1	04.680 HOSE; FLEX,RR BRK (A)	8-97253-570-0	01	1	0911-1111		●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97253-570-0	01	1	1112-		●
3	04.681 BRACKET; FLEX HOSE,RR BRK 04.845 (B)	8-97205-199-1	01	1	1109-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK (A)	8-97205-714-1	01	1	0911-1111		●
3	04.681 BRACKET; FLEX HOSE,RR BRK (A)	8-97205-714-1	01	1	0911-1111		●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97205-714-1	01	1	1112-		●
3	04.681 BRACKET; FLEX HOSE,RR BRK (A)	8-97205-714-1	01	1	1112-		●
4	04.686 NUT; BRKT,FLEX HOSE,RR BRK 01.062 M8 FLANGE	0-91180-108-0	02	1	0911-1111		●
4	04.686 NUT; BRKT,FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	02	1	1112-		●
8	04.686 CLIP; RR BRK	8-97360-054-0	02	1	1109-1111	●
8	04.686 CLIP; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97360-054-0	02	1	1112-		●
8	04.686 CLIP; RR BRK	8-97360-054-0	02	1	1112-	●
8	04.686 CLIP; RR BRK	8-97360-054-0	04	1	0911-1111		●
8	04.686 CLIP; RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97360-054-0	04	1	1112-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-98026-041-0	01	1	1109-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4HK1-TCN ENG(RDQ)	8-97359-748-0	01	1	0911-1007		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97359-748-0	01	1	1008-1111		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97359-748-0	01	1	1112-1507		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97359-748-0	01	1	1508-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4HK1-TCN ENG(RDQ)	8-97359-749-0	01	1	0911-1007		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97359-749-0	01	1	1008-1111		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97359-749-0	01	1	1112-		●
25	04.686 CONNECTOR M10 STRAIGHT	0-92107-005-0	01	1	0911-1108		●
25	04.686 CONNECTOR M10 STRAIGHT	0-92107-005-0	01	1	0911-1108		●
25	04.686 CONNECTOR M10 STRAIGHT	0-92107-005-0	01	1	1109-1111	●	●
25	04.686 CONNECTOR M10 STRAIGHT	0-92107-005-0	01	1	1109-1111	●	●
25	04.686 CONNECTOR M10 STRAIGHT	0-92107-005-0	01	1	1112-	●	●
25	04.686 CONNECTOR 4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT	0-92107-005-0	01	1	1112-		●
25	04.686 CONNECTOR M10 STRAIGHT	0-92107-005-0	01	1	1112-	●
135	04.686 CLIP; FLEX HOSE	8-97207-699-0	04	1	0911-1111		●
135	04.686 CLIP; FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97207-699-0	04	1	1112-		●

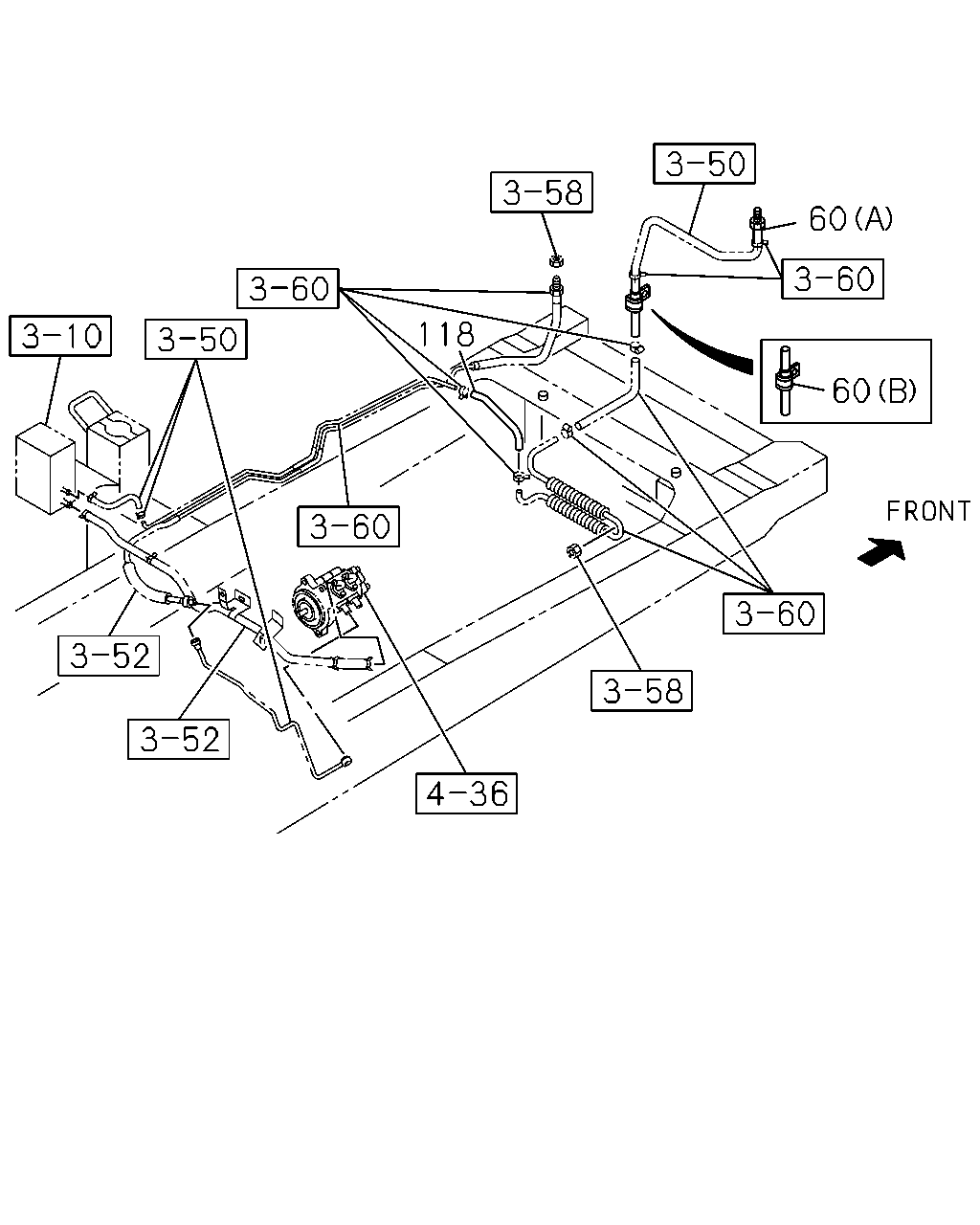

60 118 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
60	04.685 PIPE ASM; BRK (A)	8-98080-549-0	01	1	0911-1211	●
60	04.685 PIPE ASM; BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-549-0	01	1	1212-	●
60	04.685 PIPE ASM; BRK (B)	8-98127-815-0	01	1	0911-1211	●
60	04.685 PIPE ASM; BRK HYDRO BRAKE BOOSTER(7QQ) (B)	8-98127-815-0	01	1	1212-	●
118	04.680 HOSE; PIPE TO PIPE	8-97181-217-2	01	1	0911-1001	●
118	04.680 HOSE; PIPE TO PIPE	8-98158-200-0	01	1	1002-1211	●
118	04.680 HOSE; PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ)	8-98158-200-0	01	1	1212-	●
