◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51244 - NPR(LHD) EURO5 ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#50221) — 195 parça

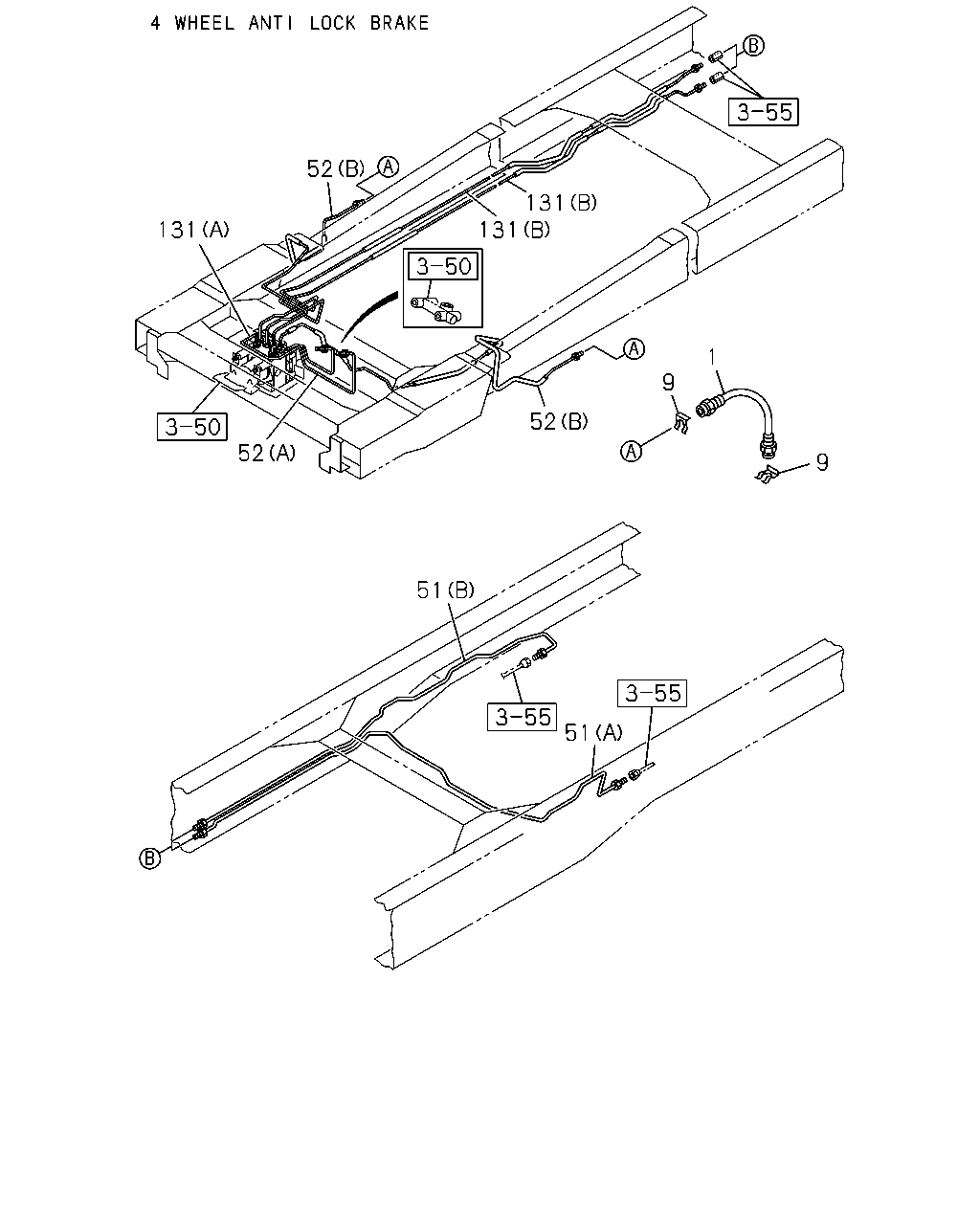

çizim 159317
52 131 131 131 1 9 52 52 9 51 51
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,FRT BRK
FRONT WIDE TREAD<7GV> 		8-97115-907-0 02 1 0911- ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRONT WIDE TREAD<7GV> 		8-97039-543-1 02 1 0911-1108 ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRONT WIDE TREAD<7GV> 		8-97039-543-1 02 1 1109- ●
1 04.680 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 1109- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0911-1108 ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1109-1211 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1109-1211 ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1212- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1212- ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRONT WIDE TREAD<7GV> (C) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 1212- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 1212- ●
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98136-043-0 01 1 1112- ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 1105-1108 ●
51 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 1109- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 1105-1108 ●
51 04.685 PIPE; BRK
(D) 4/6WAY TO 2WAY,FRONT 		8-98056-331-1 01 1 1109- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 1105-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 1105-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 1105-1108 ●
51 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 1109- ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98041-058-0 01 1 1105-1108 ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 1105-1108 ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 1105-1108 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0911-1104 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 1105-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 1112- ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0911-1104 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 1105-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 1112- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO REAR 		8-98057-261-0 01 1 1212- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (E) 2WAY TO LSPV,FRONT 		8-97389-451-1 01 1 1109- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (F) 2WAY TO LSPV,REAR 		8-98056-316-0 01 1 1109- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (E) 2WAY TO LSPV,FRONT 		8-97389-452-1 01 1 1109- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (F) 2WAY TO LSPV,REAR 		8-98051-645-0 01 1 1109- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO REAR 		8-98057-262-0 01 1 1112- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO REAR 		8-98057-263-0 01 1 1112- ●
52 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98135-962-0 01 1 0911-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98135-962-0 01 1 1112- ●
52 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98135-964-0 01 1 0911-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98135-964-0 01 1 1112- ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0911-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 1112- ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) (C) 		8-98036-162-0 01 1 0911-1108 ●
52 04.685 PIPE; BRK
(C) 		8-98036-162-0 01 1 1109-1211 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98036-162-0 01 1 1212- ●
52 04.685 PIPE; BRK
EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0911-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 1112- ●
52 04.685 PIPE; BRK
EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0911-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 1112- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
(A) 4WAY TO HU,REAR 		8-97389-372-2 01 1 0911-1111 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,REAR 		8-97389-372-2 01 1 1112- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
04.686 (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98033-767-1 01 1 0911-1111 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 04.686 (B) BRAKE SYSTEM,RR RH HU TO 2WAY,REAR 		8-98033-767-1 01 1 1112- ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
04.686 (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98033-768-1 01 1 0911-1111 ●
131 04.685 PIPE; OIL,BRK,4/5WAY TO HYD UNIT
4 WHEEL ANTI LOCK BRAKE<JE5> 04.686 (B) BRAKE SYSTEM,RR LH HU TO 2WAY,REAR 		8-98033-768-1 01 1 1112- ●

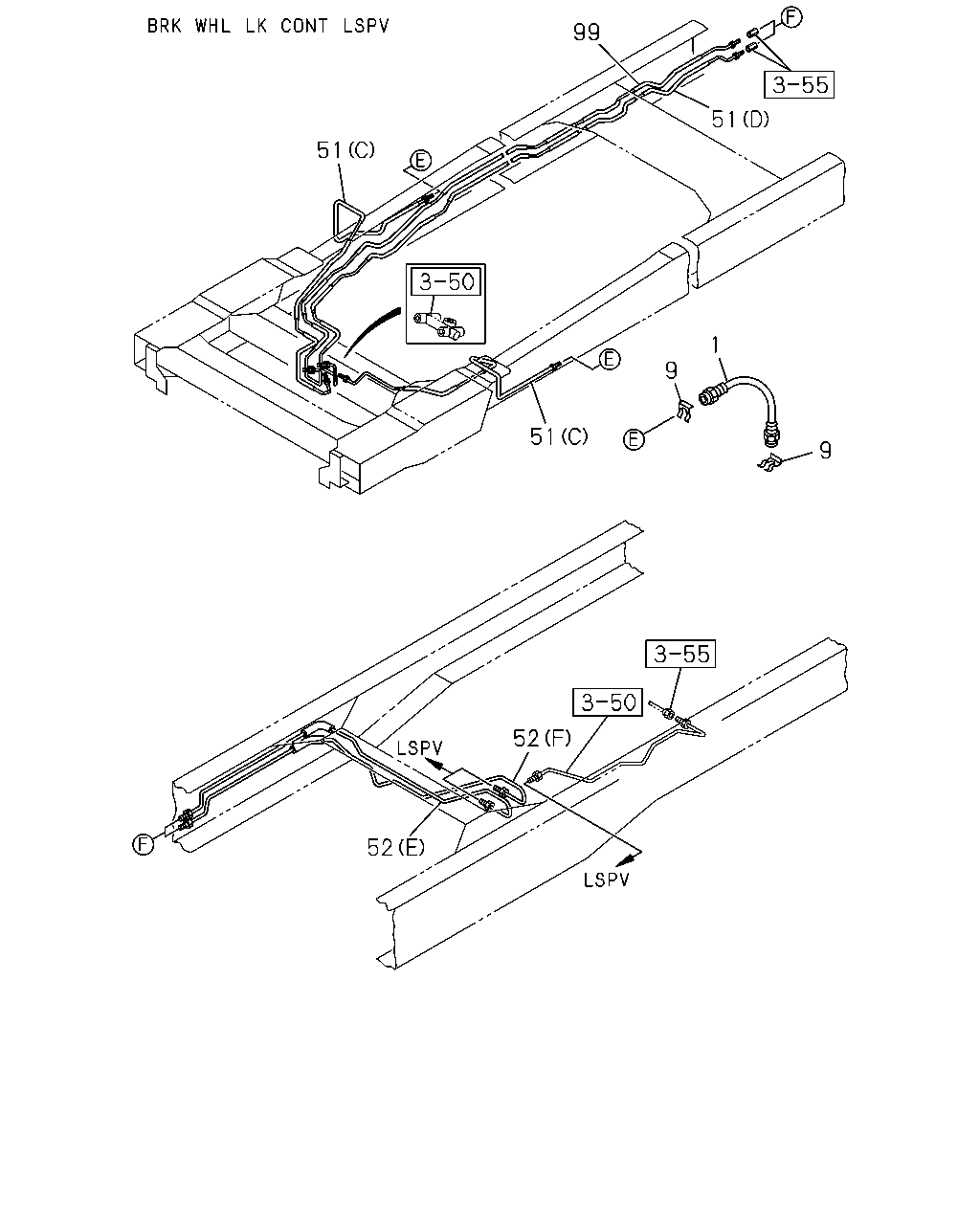

çizim 159320
99 51 51 1 9 51 9 52 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,FRT BRK
FRONT WIDE TREAD<7GV> 		8-97115-907-0 02 1 0911- ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRONT WIDE TREAD<7GV> 		8-97039-543-1 02 1 0911-1108 ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRONT WIDE TREAD<7GV> 		8-97039-543-1 02 1 1109- ●
1 04.680 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 1109- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0911-1108 ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1109-1211 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1109-1211 ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1212- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1212- ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRONT WIDE TREAD<7GV> (C) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 1212- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 1212- ●
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98136-043-0 01 1 1112- ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 1105-1108 ●
51 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 1109- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 1105-1108 ●
51 04.685 PIPE; BRK
(D) 4/6WAY TO 2WAY,FRONT 		8-98056-331-1 01 1 1109- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 1105-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 1105-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 1105-1108 ●
51 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 1109- ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98041-058-0 01 1 1105-1108 ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 1105-1108 ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 1105-1108 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0911-1104 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 1105-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 1112- ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0911-1104 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 1105-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 1112- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO REAR 		8-98057-261-0 01 1 1212- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (E) 2WAY TO LSPV,FRONT 		8-97389-451-1 01 1 1109- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (F) 2WAY TO LSPV,REAR 		8-98056-316-0 01 1 1109- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (E) 2WAY TO LSPV,FRONT 		8-97389-452-1 01 1 1109- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (F) 2WAY TO LSPV,REAR 		8-98051-645-0 01 1 1109- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO REAR 		8-98057-262-0 01 1 1112- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO REAR 		8-98057-263-0 01 1 1112- ●
52 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98135-962-0 01 1 0911-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98135-962-0 01 1 1112- ●
52 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98135-964-0 01 1 0911-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98135-964-0 01 1 1112- ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0911-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 1112- ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) (C) 		8-98036-162-0 01 1 0911-1108 ●
52 04.685 PIPE; BRK
(C) 		8-98036-162-0 01 1 1109-1211 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98036-162-0 01 1 1212- ●
52 04.685 PIPE; BRK
EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0911-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 1112- ●
52 04.685 PIPE; BRK
EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0911-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 1112- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 1109- ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 1112- ●

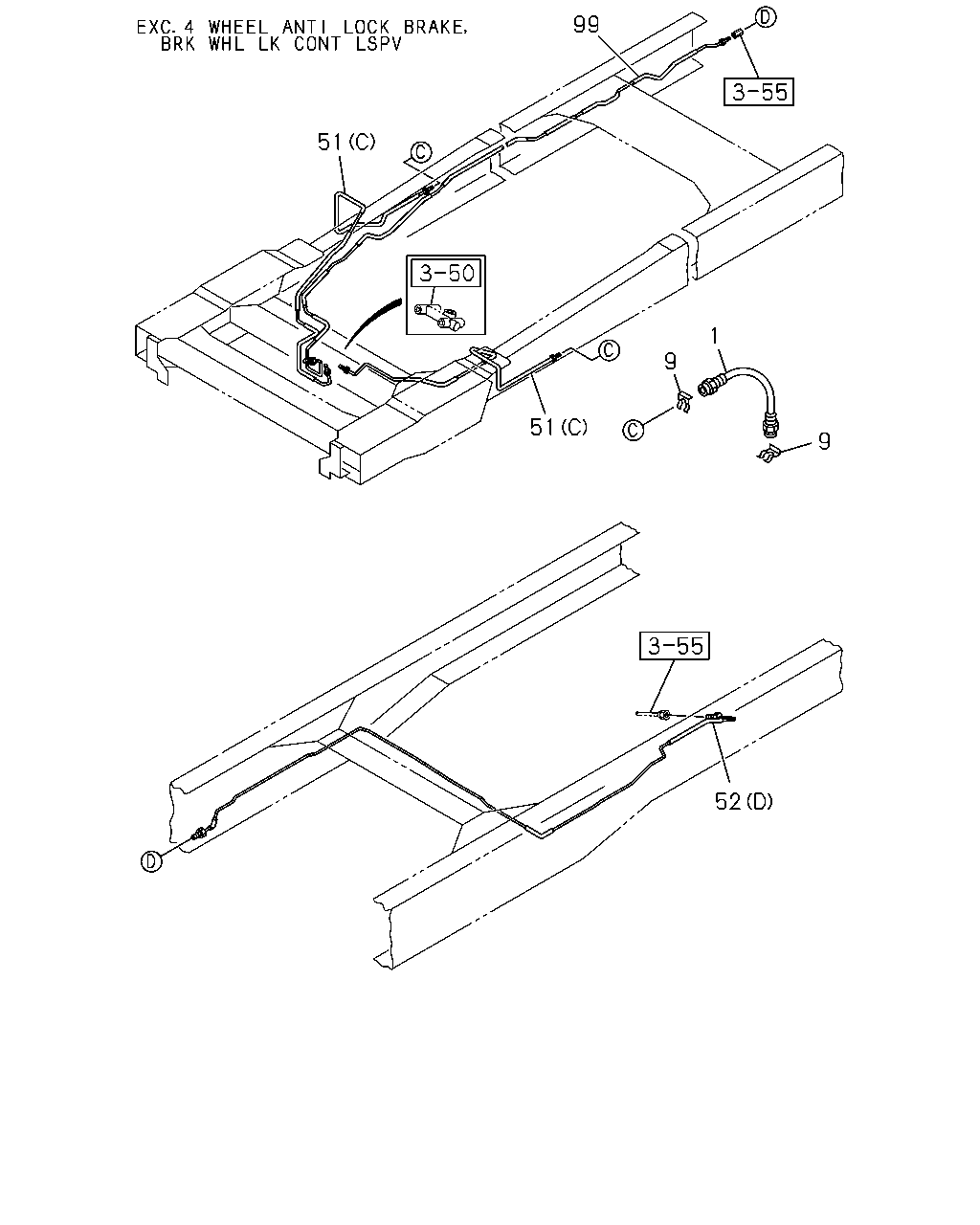

çizim 159331
99 51 1 9 51 9 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,FRT BRK
FRONT WIDE TREAD<7GV> 		8-97115-907-0 02 1 0911- ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRONT WIDE TREAD<7GV> 		8-97039-543-1 02 1 0911-1108 ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRONT WIDE TREAD<7GV> 		8-97039-543-1 02 1 1109- ●
1 04.680 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 1109- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0911-1108 ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1109-1211 ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1109-1211 ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1212- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1212- ● ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,FRONT WIDE TREAD<7GV> (C) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98065-765-1 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 1212- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 1212- ●
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT RH 5/6WAY TO FRONT 		8-98136-043-0 01 1 1112- ●
51 04.685 PIPE; BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) BRAKE SYSTEM,FRT LH 5/6WAY TO FRONT 		8-98065-766-1 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-776-1 01 1 1105-1108 ●
51 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98056-312-1 01 1 1109- ●
51 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-545-0 01 1 1105-1108 ●
51 04.685 PIPE; BRK
(D) 4/6WAY TO 2WAY,FRONT 		8-98056-331-1 01 1 1109- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 1105-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-777-1 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 1105-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-055-0 01 1 1112- ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98041-057-0 01 1 1105-1108 ●
51 04.685 PIPE; BRK
(C) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98106-599-0 01 1 1109- ●
51 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98041-058-0 01 1 1105-1108 ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-779-1 01 1 1105-1108 ●
51 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98047-143-0 01 1 1105-1108 ●
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 0911-1104 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 1105-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,RR LH 2WAY TO REAR 		8-98033-778-1 01 1 1112- ●
51 04.685 PIPE; BRK
(B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 0911-1104 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 1105-1111 ●
51 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) BRAKE SYSTEM,RR RH 2WAY TO REAR 		8-98052-566-0 01 1 1112- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO REAR 		8-98057-261-0 01 1 1212- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (E) 2WAY TO LSPV,FRONT 		8-97389-451-1 01 1 1109- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (F) 2WAY TO LSPV,REAR 		8-98056-316-0 01 1 1109- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (E) 2WAY TO LSPV,FRONT 		8-97389-452-1 01 1 1109- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (F) 2WAY TO LSPV,REAR 		8-98051-645-0 01 1 1109- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO REAR 		8-98057-262-0 01 1 1112- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO REAR 		8-98057-263-0 01 1 1112- ●
52 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98135-962-0 01 1 0911-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98135-962-0 01 1 1112- ●
52 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98135-964-0 01 1 0911-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98135-964-0 01 1 1112- ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0911-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 1112- ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) (C) 		8-98036-162-0 01 1 0911-1108 ●
52 04.685 PIPE; BRK
(C) 		8-98036-162-0 01 1 1109-1211 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98036-162-0 01 1 1212- ●
52 04.685 PIPE; BRK
EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0911-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 1112- ●
52 04.685 PIPE; BRK
EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0911-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 1112- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4/6WAY TO 2WAY,REAR 		8-97389-415-2 01 1 1109- ●
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 1112- ●

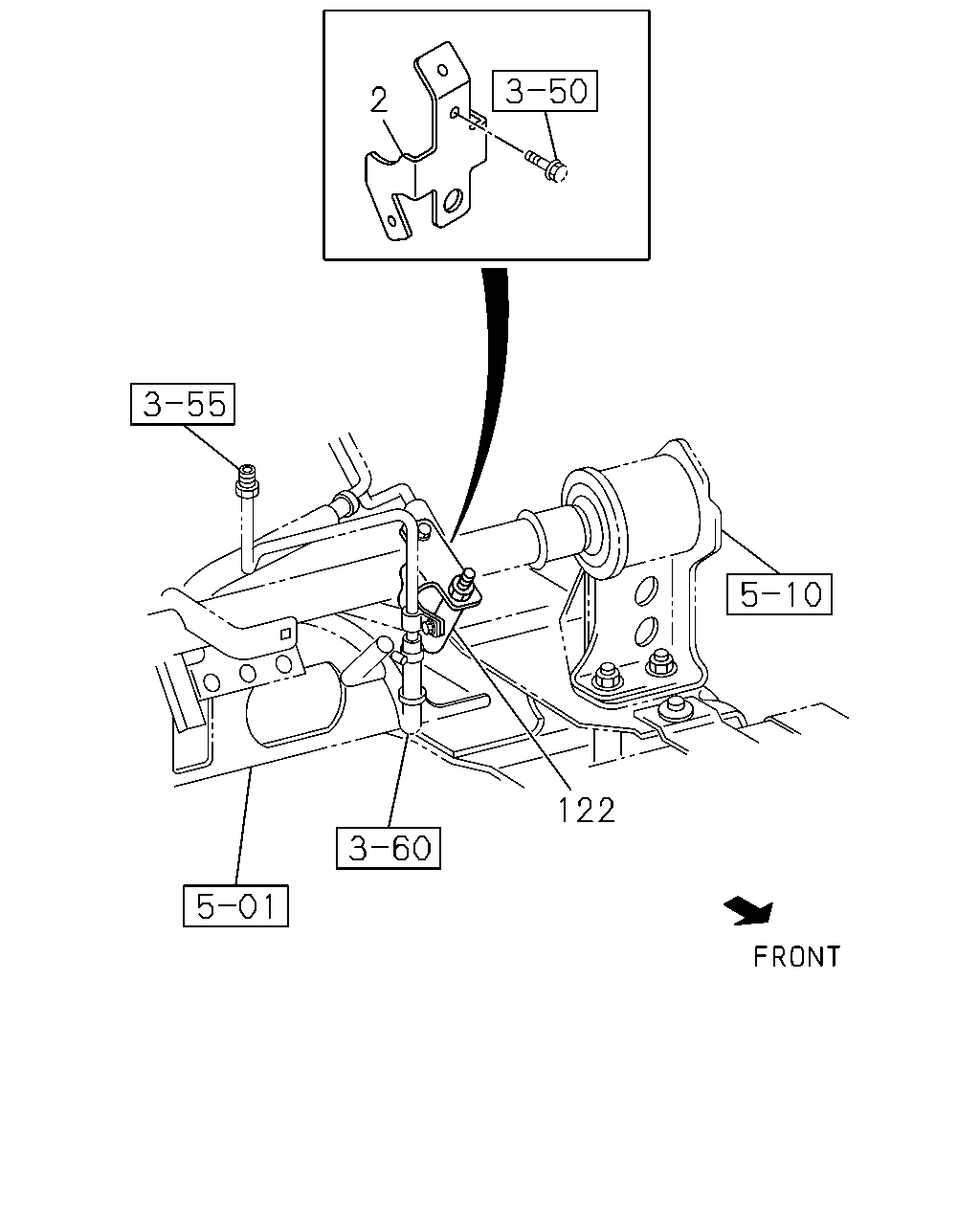

çizim 159566
2 122
BalonParca AdiParca NoAdetTipApplied Date A B
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-98136-578-0 01 1 0911-1211 ●
2 04.681 BRACKET; FLEX HOSE,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) 		8-98136-578-0 01 1 1212- ●
122 04.685 PIPE ASM; BRK,2 WAY
L=1284 		8-98136-575-0 01 1 0911-1211 ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) L=1284 		8-98136-575-0 01 1 1212- ●

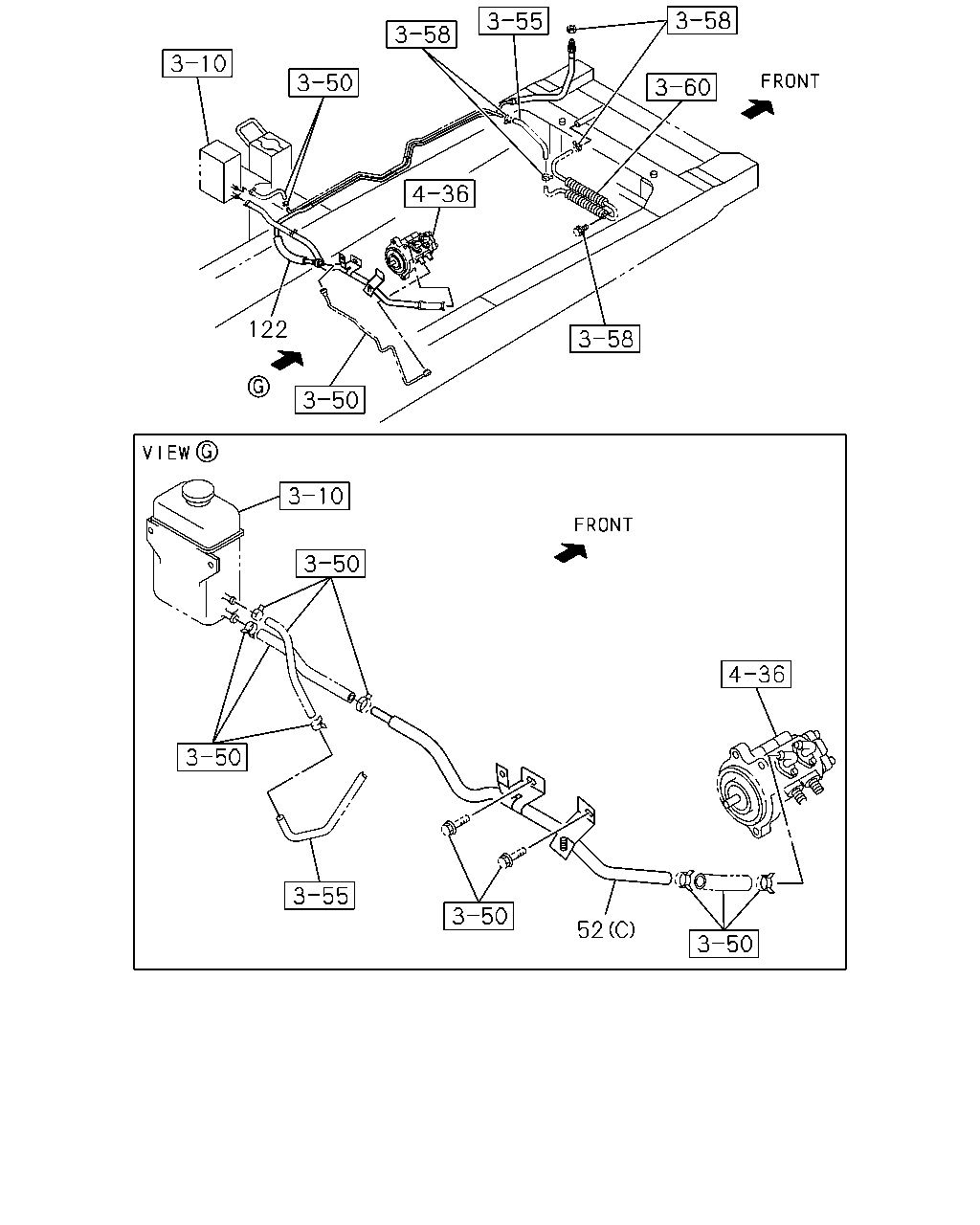

çizim 159579
122 52
BalonParca AdiParca NoAdetTipApplied Date A B
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO REAR 		8-98057-261-0 01 1 1212- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (E) 2WAY TO LSPV,FRONT 		8-97389-451-1 01 1 1109- ●
52 04.685 PIPE; BRK
WHEEL BASE 2700MM(27W) (F) 2WAY TO LSPV,REAR 		8-98056-316-0 01 1 1109- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (E) 2WAY TO LSPV,FRONT 		8-97389-452-1 01 1 1109- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) (F) 2WAY TO LSPV,REAR 		8-98051-645-0 01 1 1109- ●
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO REAR 		8-98057-262-0 01 1 1112- ●
52 04.685 PIPE; BRK
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 2WAY TO REAR 		8-98057-263-0 01 1 1112- ●
52 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98135-962-0 01 1 0911-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98135-962-0 01 1 1112- ●
52 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98135-964-0 01 1 0911-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98135-964-0 01 1 1112- ●
52 04.685 PIPE; BRK
(A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 0911-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 4WAY TO HU,FRONT 		8-97389-369-1 01 1 1112- ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) (C) 		8-98036-162-0 01 1 0911-1108 ●
52 04.685 PIPE; BRK
(C) 		8-98036-162-0 01 1 1109-1211 ●
52 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (C) 		8-98036-162-0 01 1 1212- ●
52 04.685 PIPE; BRK
EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 0911-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT RH HU TO 2WAY,FRONT 		8-98053-032-1 01 1 1112- ●
52 04.685 PIPE; BRK
EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 0911-1111 ●
52 04.685 PIPE; BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B) BRAKE SYSTEM,FRT LH HU TO 2WAY,FRONT 		8-98053-033-1 01 1 1112- ●
122 04.685 PIPE ASM; BRK,2 WAY
L=1284 		8-98136-575-0 01 1 0911-1211 ●
122 04.685 PIPE ASM; BRK,2 WAY
HYDRO BRAKE BOOSTER(7QQ) L=1284 		8-98136-575-0 01 1 1212- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
