Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#50220) — 308 parça

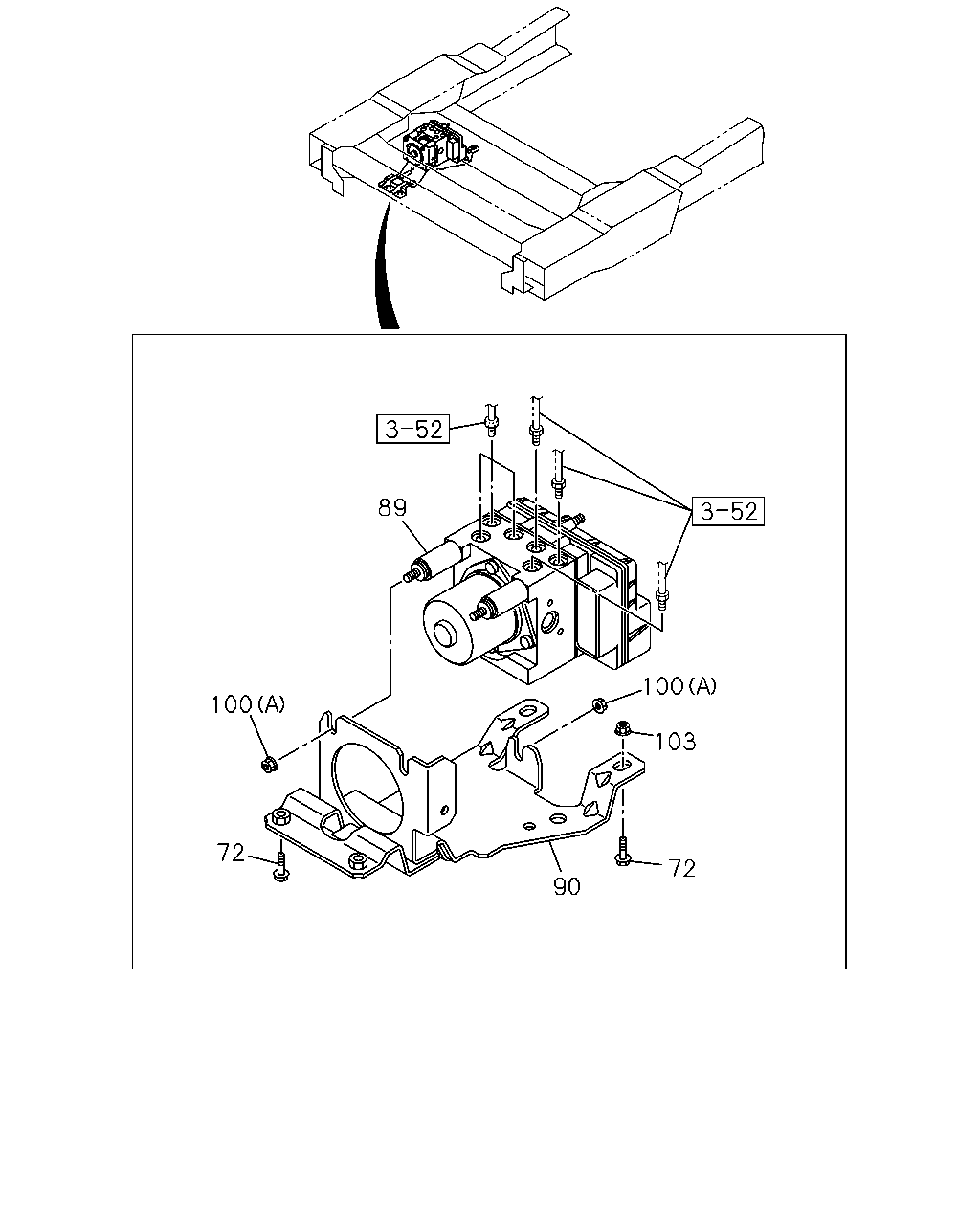

89 100 72 90 72 103 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
72	04.686 BOLT; BRKT TO BODY 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0911-1111	●
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1112-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98214-135-1	01	1	1212-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98081-561-1	01	1	0911-1006	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98158-006-0	01	1	1007-1111	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-006-1	01	1	1112-1211	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TAIWAN EQUIPMENT(B04)	8-98158-006-1	01	1	1212-1504	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK TURKEY EQUIPMENT(B11) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98158-006-1	01	1	1505-	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS	8-97385-320-0	01	1	0911-1111	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97385-320-0	01	1	1112-	●
100	04.730 NUT; HYDRAULIC UNIT 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	0911-1111	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	1112-	●
100	04.730 NUT; HYDRAULIC UNIT 4HK1-TCN ENG(RDQ) (B)	8-97358-958-0	01	1	0911-1108	●
100	04.730 NUT; HYDRAULIC UNIT (B)	8-97358-958-0	01	1	1109-1211	●
100	04.730 NUT; HYDRAULIC UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	1212-	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0911-1111	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	02	1	1112-1507	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	01	1	1508-	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	35	04.685 PIPE; BRK,VLV TO RR AXLE	8-97389-541-2	01	1	1109-		●

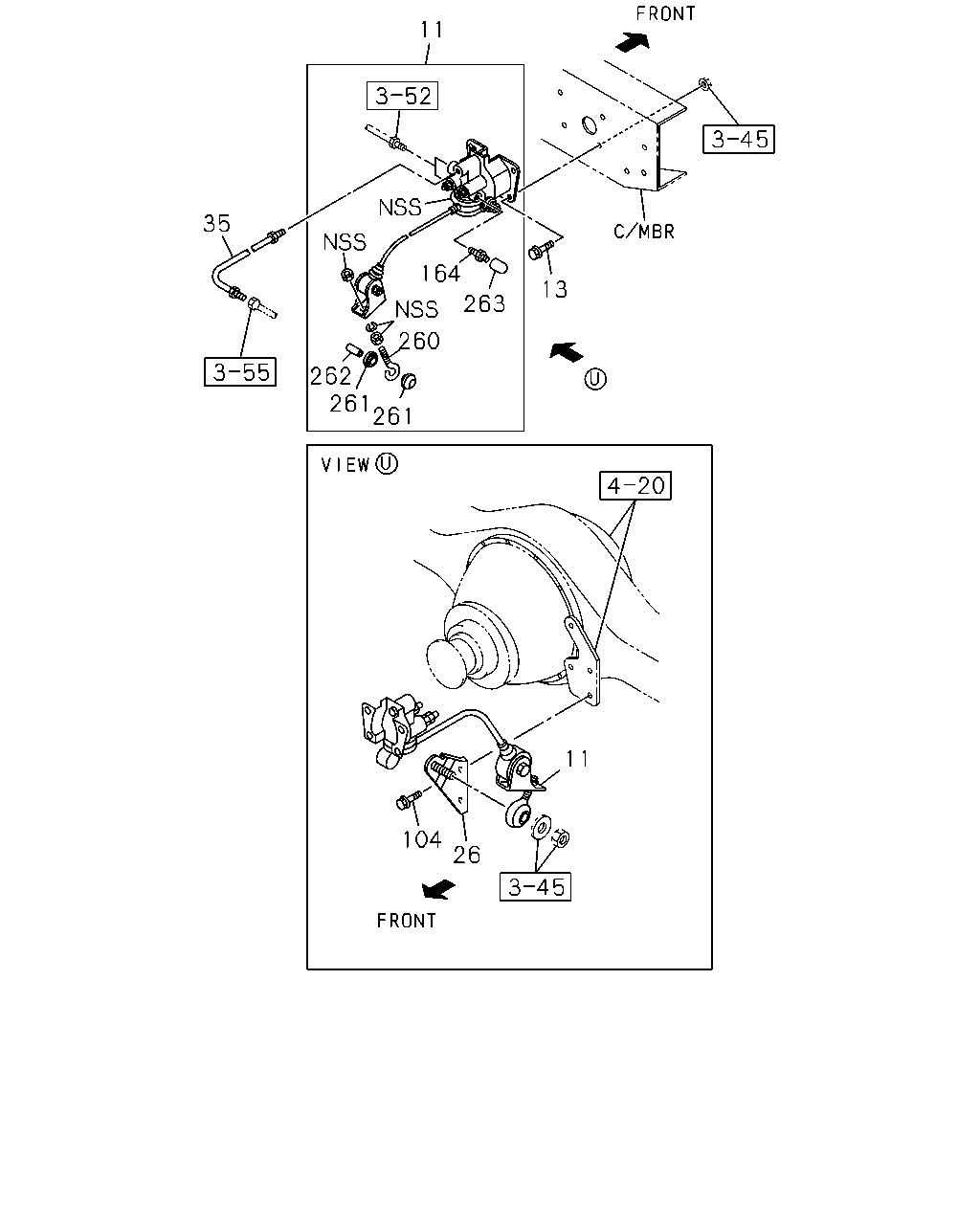

11 35 164 260 261 261 262 263 13 11 26 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
11	04.686 VALVE; BRK CONT 04.730	8-94368-455-2	01	1	1109-1109	●
11	04.686 VALVE; BRK CONT 04.730	8-94427-224-2	01	1	1109-	●
13	04.686 BOLT; VLV TO BRKT 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1109-	●
26	04.730 BRACKET; PROPORTIONING VLV	8-98029-822-0	01	1	1109-	●
35	04.685 PIPE; BRK,VLV TO RR AXLE	8-97389-541-2	01	1	1109-	●
104	04.730 BOLT; BRKT TO BODY 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1109-	●
164	04.730 SCREW; BLEEDER 04.685	8-97093-663-0	01	1	1109-	●
260	04.685 SHACKLE; LSPV 04.710	8-97173-366-0	01	1	1109-	●
261	04.685 BUSHING; LSPV 04.710	8-97145-631-0	02	1	1109-	●
262	04.685 COLLAR; LSPV 04.710	8-97139-186-0	01	1	1109-	●
263	04.685 CAP; BLEEDER	8-97093-662-0	01	1	1109-	●

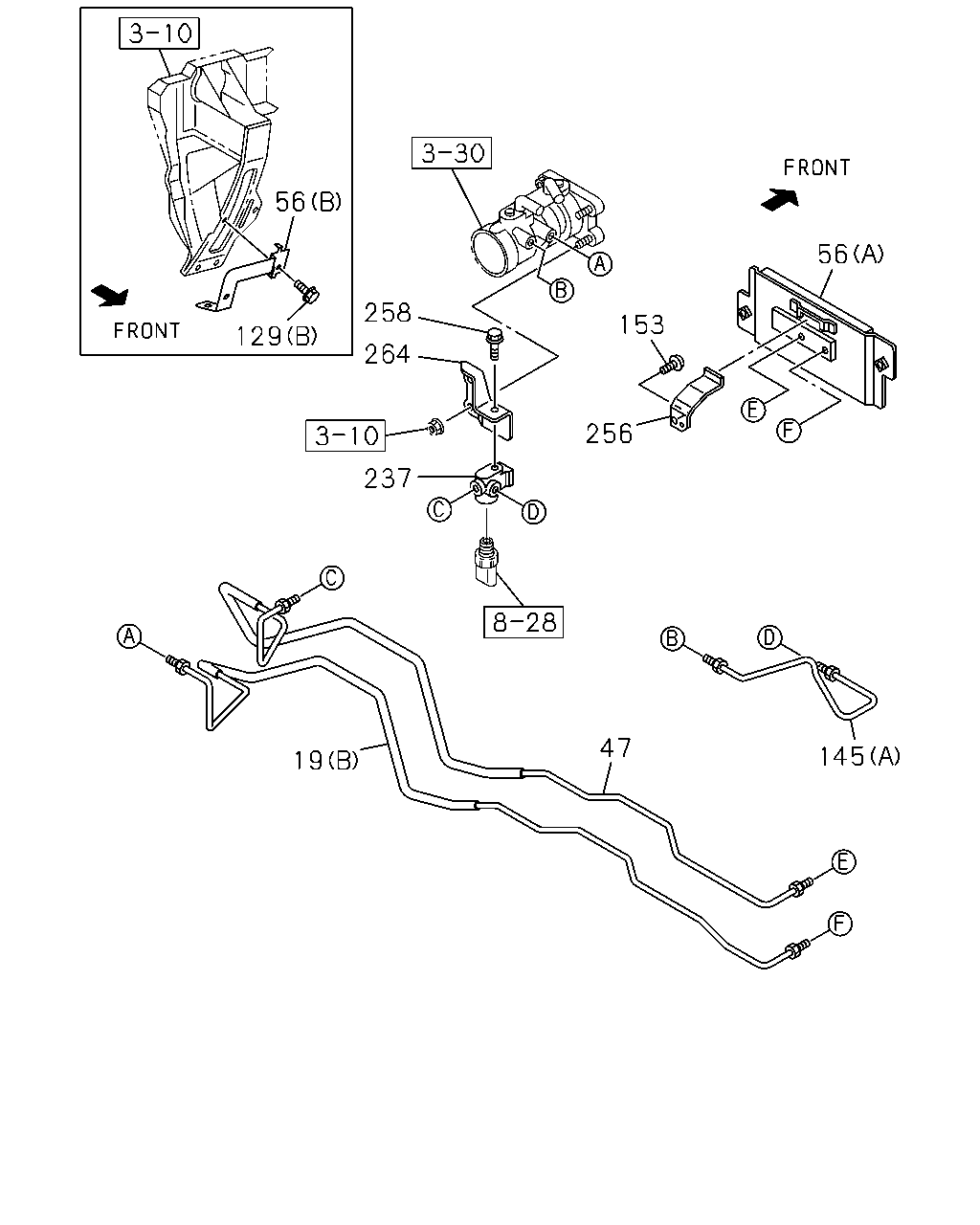

56 129 153 256 56 145 19 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98056-155-1	02	1	1109-1211		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98056-155-1	02	1	1212-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98056-155-1	02	1	1212-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98076-015-0	01	1	1109-1211		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98076-015-0	01	1	1212-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98076-015-0	01	1	1212-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98055-945-2	01	1	0911-1211	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98055-945-2	01	1	1212-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98080-579-1	02	1	0911-1211	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-579-1	02	1	1212-	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-271-1	01	1	1212-	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-269-1	01	1	1212-	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1109-1211		●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-268-1	01	1	1212-	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1212-		●
56	04.686 BRACKET; UNION,BRK (A)	8-98034-288-4	01	1	0911-1005	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-270-1	01	1	1006-1211	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-270-1	01	1	1212-	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	0911-1108	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	1109-	●	●
129	04.710 BOLT; BRKT 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	0911-1211	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1212-	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0911-1108	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1109-	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0911-1108	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1109-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) L=247	8-98133-410-0	01	1	1212-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (B)	8-98070-477-1	01	1	1109-1211		●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (B)	8-98070-477-1	01	1	1212-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (B)	8-98070-477-1	01	1	1212-		●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98070-483-0	01	1	1112-1211	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98070-483-0	01	1	1212-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (A) L=228	8-98133-411-0	01	1	0911-1111	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=228	8-98133-411-0	01	1	1112-1211	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (A) L=228	8-98133-411-0	01	1	1212-	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0911-1001	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1002-1108	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1109-1211	●	●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1212-	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1212-		●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98039-683-4	01	1	0911-1001	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98039-683-4	01	1	1002-1005	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1006-1108	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1109-1211	●	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1212-	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1212-		●

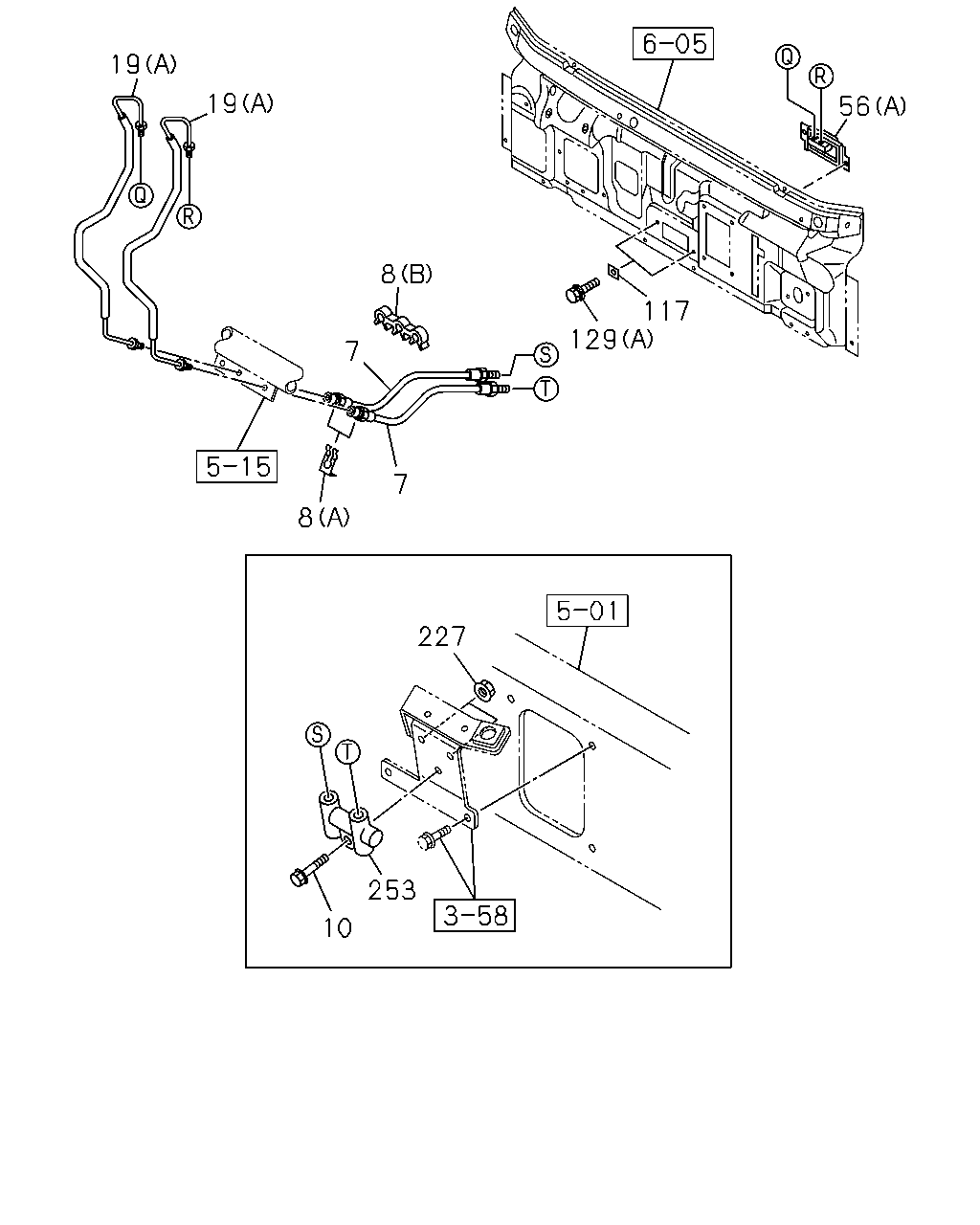

56 117 129 8 19 19 7 7 227 253 10 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98029-865-0	02	1	0911-1108	●
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98029-865-0	02	1	1109-	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	0911-1108	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	1109-	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	0911-1108	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	1109-	●	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0911-1108	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	1109-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98056-155-1	02	1	1109-1211		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98056-155-1	02	1	1212-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98056-155-1	02	1	1212-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98076-015-0	01	1	1109-1211		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98076-015-0	01	1	1212-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98076-015-0	01	1	1212-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98055-945-2	01	1	0911-1211	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98055-945-2	01	1	1212-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98080-579-1	02	1	0911-1211	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-579-1	02	1	1212-	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-271-1	01	1	1212-	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-269-1	01	1	1212-	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1109-1211		●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-268-1	01	1	1212-	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1212-		●
56	04.686 BRACKET; UNION,BRK (A)	8-98034-288-4	01	1	0911-1005	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-270-1	01	1	1006-1211	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-270-1	01	1	1212-	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	0911-1108	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	1109-	●	●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	0911-1108	●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	1109-	●	●
129	04.710 BOLT; BRKT 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	0911-1211	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1212-	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0911-1108	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1109-	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0911-1108	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1109-	●	●
227	04.685 NUT; JOINT 01.062 M8 FLANGE	0-91180-108-0	02	1	0911-1108	●
227	04.685 NUT; JOINT 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-	●
227	04.685 NUT; JOINT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-		●
253	04.840 JOINT 04.686	8-97120-033-2	01	1	1109-		●
253	04.840 JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686	5-47456-009-1	01	1	1112-	●
253	04.840 JOINT	8-97038-940-1	01	1	0911-1111	●
253	04.840 JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97038-940-1	01	1	1112-	●

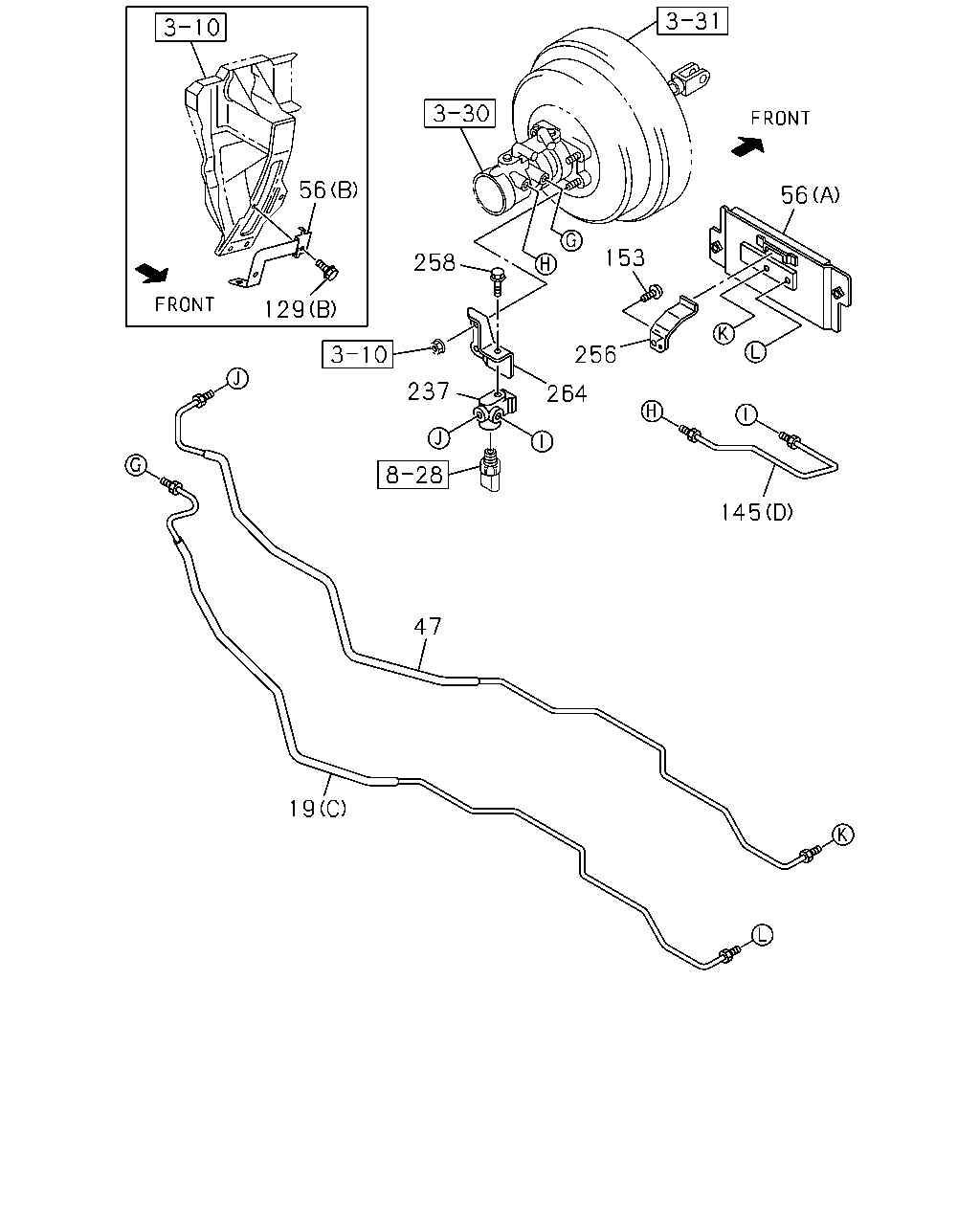

56 56 258 153 129 264 256 237 47 145 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98056-155-1	02	1	1109-1211		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98056-155-1	02	1	1212-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98056-155-1	02	1	1212-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98076-015-0	01	1	1109-1211		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98076-015-0	01	1	1212-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98076-015-0	01	1	1212-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98055-945-2	01	1	0911-1211	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98055-945-2	01	1	1212-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98080-579-1	02	1	0911-1211	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-579-1	02	1	1212-	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) L=876	8-98133-415-0	01	1	1212-	●
47	04.685 PIPE; OIL,FRT BRK L=1054	8-98133-416-0	01	1	0911-1111	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> L=1054	8-98133-416-0	01	1	1112-1211	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) L=1054	8-98133-416-0	01	1	1212-	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-271-1	01	1	1212-	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-269-1	01	1	1212-	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1109-1211		●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-268-1	01	1	1212-	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1212-		●
56	04.686 BRACKET; UNION,BRK (A)	8-98034-288-4	01	1	0911-1005	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-270-1	01	1	1006-1211	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-270-1	01	1	1212-	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	0911-1108	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	1109-	●	●
129	04.710 BOLT; BRKT 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	0911-1211	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1212-	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0911-1108	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1109-	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0911-1108	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1109-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) L=247	8-98133-410-0	01	1	1212-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (B)	8-98070-477-1	01	1	1109-1211		●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (B)	8-98070-477-1	01	1	1212-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (B)	8-98070-477-1	01	1	1212-		●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98070-483-0	01	1	1112-1211	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98070-483-0	01	1	1212-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (A) L=228	8-98133-411-0	01	1	0911-1111	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=228	8-98133-411-0	01	1	1112-1211	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (A) L=228	8-98133-411-0	01	1	1212-	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0911-1001	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1002-1108	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1109-1211	●	●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1212-	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1212-		●
237	04.840 CONNECTOR; MODULATOR	8-98111-748-1	01	1	0911-1111	●
237	04.840 CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98111-748-1	01	1	1112-	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98039-683-4	01	1	0911-1001	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98039-683-4	01	1	1002-1005	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1006-1108	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1109-1211	●	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1212-	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1212-		●
258	04.730 BOLT; PIPE,BRK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0911-1111	●
258	04.730 BOLT; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1112-	●
264	04.681 BRACKET; SENSOR,PRESSURE	8-97387-683-2	01	1	0911-1111	●
264	04.681 BRACKET; SENSOR,PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-683-2	01	1	1112-	●

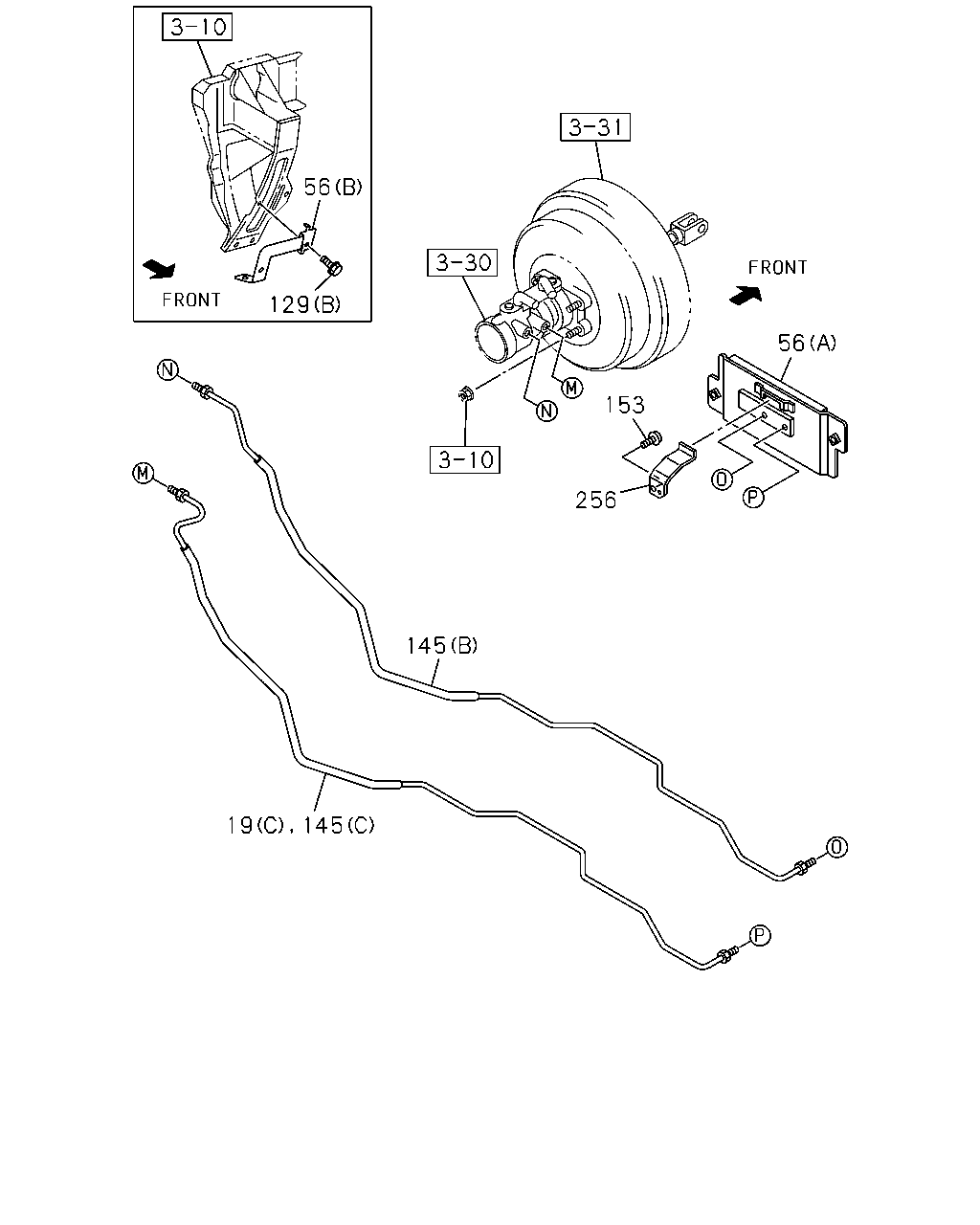

56 129 258 153 256 56 264 237 47 19 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98056-155-1	02	1	1109-1211		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98056-155-1	02	1	1212-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98056-155-1	02	1	1212-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98076-015-0	01	1	1109-1211		●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98076-015-0	01	1	1212-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98076-015-0	01	1	1212-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98055-945-2	01	1	0911-1211	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98055-945-2	01	1	1212-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98080-579-1	02	1	0911-1211	●
19	04.685 PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-579-1	02	1	1212-	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) L=876	8-98133-415-0	01	1	1212-	●
47	04.685 PIPE; OIL,FRT BRK L=1054	8-98133-416-0	01	1	0911-1111	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> L=1054	8-98133-416-0	01	1	1112-1211	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) L=1054	8-98133-416-0	01	1	1212-	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-271-1	01	1	1212-	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-269-1	01	1	1212-	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1109-1211		●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-268-1	01	1	1212-	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1212-		●
56	04.686 BRACKET; UNION,BRK (A)	8-98034-288-4	01	1	0911-1005	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-270-1	01	1	1006-1211	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-270-1	01	1	1212-	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	0911-1108	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	1109-	●	●
129	04.710 BOLT; BRKT 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	0911-1211	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1212-	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0911-1108	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1109-	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0911-1108	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1109-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HYDRO BRAKE BOOSTER(7QQ) (D) L=247	8-98133-410-0	01	1	1212-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (B)	8-98070-477-1	01	1	1109-1211		●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (B)	8-98070-477-1	01	1	1212-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (B)	8-98070-477-1	01	1	1212-		●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98070-483-0	01	1	1112-1211	●
145	04.685 PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98070-483-0	01	1	1212-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (A) L=228	8-98133-411-0	01	1	0911-1111	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (A) L=228	8-98133-411-0	01	1	1112-1211	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) (A) L=228	8-98133-411-0	01	1	1212-	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	0911-1001	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1002-1108	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1109-1211	●	●
153	04.730 SCREW; BRKT FIX FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1212-	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1212-		●
237	04.840 CONNECTOR; MODULATOR	8-98111-748-1	01	1	0911-1111	●
237	04.840 CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98111-748-1	01	1	1112-	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98039-683-4	01	1	0911-1001	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98039-683-4	01	1	1002-1005	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1006-1108	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1109-1211	●	●
256	04.840 BRACKET; BRK PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1212-	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1212-		●
258	04.730 BOLT; PIPE,BRK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0911-1111	●
258	04.730 BOLT; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1112-	●
264	04.681 BRACKET; SENSOR,PRESSURE	8-97387-683-2	01	1	0911-1111	●
264	04.681 BRACKET; SENSOR,PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-683-2	01	1	1112-	●

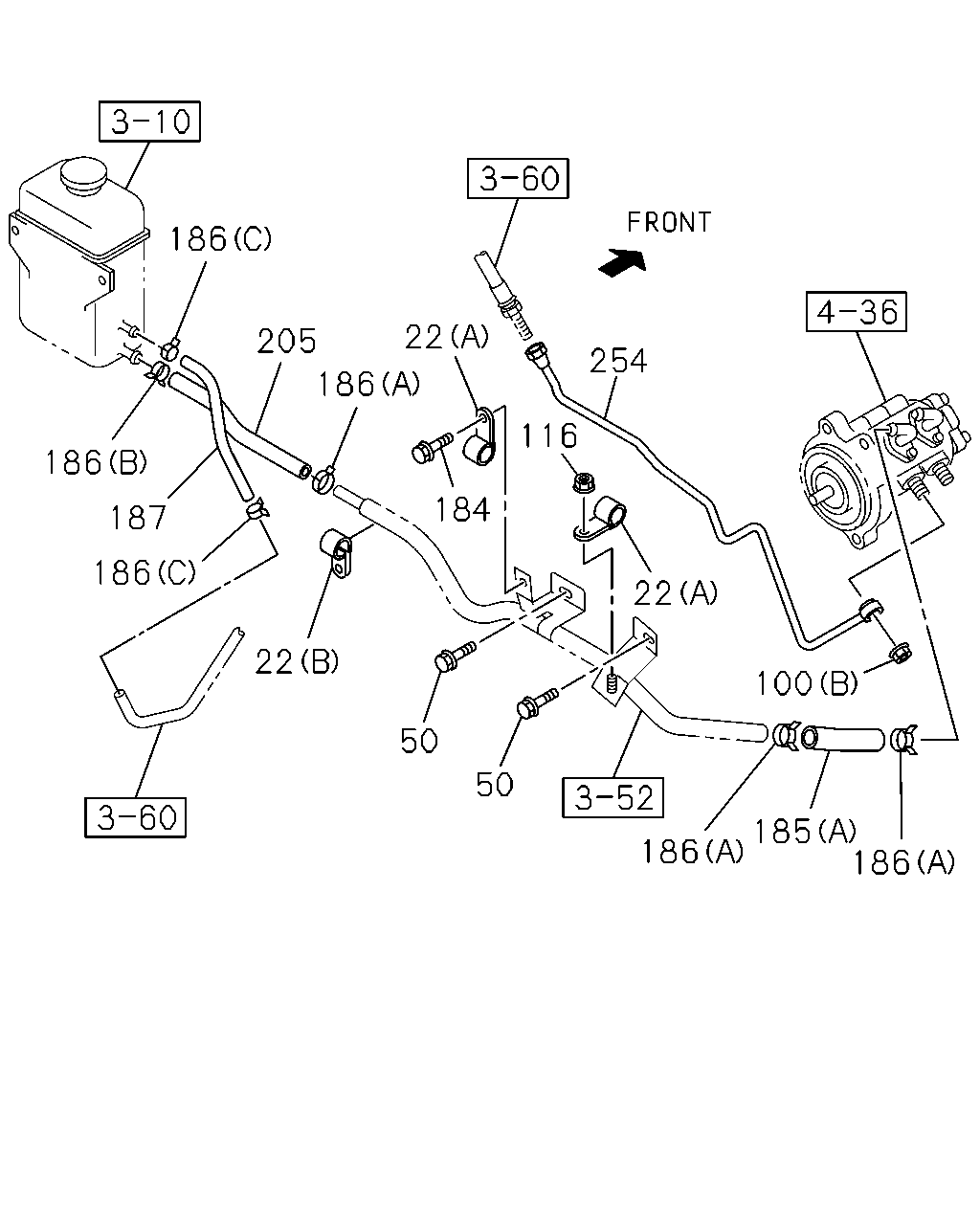

186 205 186 186 186 187 22 116 184 22 50 22 50 100 185 186 186 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
22	04.685 CLIP 4HK1-TCN ENG(RDQ) (A) ID=10 L=16.5	8-98082-034-0	02	1	0911-1108	●
22	04.685 CLIP (A) ID=10 L=16.5	8-98082-034-0	02	1	1109-1211	●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A) ID=10 L=16.5	8-98082-034-0	02	1	1212-	●
22	04.685 CLIP 4HK1-TCN ENG(RDQ) (B) ID=17 L=21	8-98082-035-0	01	1	0911-1108	●
22	04.685 CLIP (B) ID=17 L=21	8-98082-035-0	01	1	1109-1211	●
22	04.685 CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (B) ID=17 L=21	8-98082-035-0	01	1	1212-	●
50	04.710 BOLT; PIPE 4HK1-TCN ENG(RDQ) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0911-1108	●
50	04.710 BOLT; PIPE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1109-1211	●
50	04.710 BOLT; PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1212-	●
100	04.730 NUT; HYDRAULIC UNIT 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	0911-1111	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 (A) M8 FLANGE	0-91180-108-0	03	1	1112-	●
100	04.730 NUT; HYDRAULIC UNIT 4HK1-TCN ENG(RDQ) (B)	8-97358-958-0	01	1	0911-1108	●
100	04.730 NUT; HYDRAULIC UNIT (B)	8-97358-958-0	01	1	1109-1211	●
100	04.730 NUT; HYDRAULIC UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (B)	8-97358-958-0	01	1	1212-	●
116	04.686 NUT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0911-1108	●
116	04.686 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-1211	●
116	04.686 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1212-	●
184	04.681 BOLT; CLIP 4HK1-TCN ENG(RDQ) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0911-1108	●
184	04.681 BOLT; CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1109-1211	●
184	04.681 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1212-	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ) (A)	8-97330-513-0	01	1	0911-1108	●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	1109-1211	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	1212-	●
185	04.681 HOSE; RUBBER,SUCTION (B)	8-98082-497-0	01	1	0911-1211	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98082-497-0	01	1	1212-	●
186	04.681 CLIP; HOSE 04.930 (C) ID=16	8-94238-568-0	02	1	0911-0911	●
186	04.681 CLIP; HOSE 03.162 (C) ID=16	8-98008-098-0	02	1	0912-1211	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) ID=16	8-98008-098-0	02	1	1212-	●
186	04.681 CLIP; HOSE 06.672 (A) ID=21	8-94242-034-0	01	1	0911-0911	●
186	04.681 CLIP; HOSE (A) ID=21	8-98150-355-0	01	1	0912-1211	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (A) ID=21	8-98150-355-0	01	1	1212-	●
186	04.681 CLIP; HOSE 4HK1-TCN ENG(RDQ) 06.672 (A) ID=21	8-94242-034-0	02	1	0911-1108	●
186	04.681 CLIP; HOSE 06.672 (A) ID=21	8-94242-034-0	02	1	1109-1211	●
186	04.681 CLIP; HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) 06.672 (A) ID=21	8-94242-034-0	02	1	1212-	●
186	04.681 CLIP; HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0911-1003	●
186	04.681 CLIP; HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-1211	●
186	04.681 CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) 03.278 (B) ID=22	8-97359-141-0	01	1	1212-	●
187	04.681 HOSE; RUBBER,OIL TANK 06.671 L=220 SERVICED BY L=3000	0-19809-300-0	01	1	0911-1211	●
187	04.681 HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER(7QQ) 06.671 L=220 SERVICED BY L=3000	0-19809-300-0	01	1	1212-	●
205	04.681 HOSE; TANK TO PIPE 06.670 SERVICED BY L=300	0-09814-300-0	01	1	0911-1211	●
205	04.681 HOSE; TANK TO PIPE HYDRO BRAKE BOOSTER(7QQ) 06.670 SERVICED BY L=300	0-09814-300-0	01	1	1212-	●
254	04.685 PIPE; BRAKE,2WAY 4HK1-TCN ENG(RDQ)	8-98036-161-0	01	1	0911-1108	●
254	04.685 PIPE; BRAKE,2WAY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98036-161-0	01	1	1109-1211	●
254	04.685 PIPE; BRAKE,2WAY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ)	8-98036-161-0	01	1	1212-	●

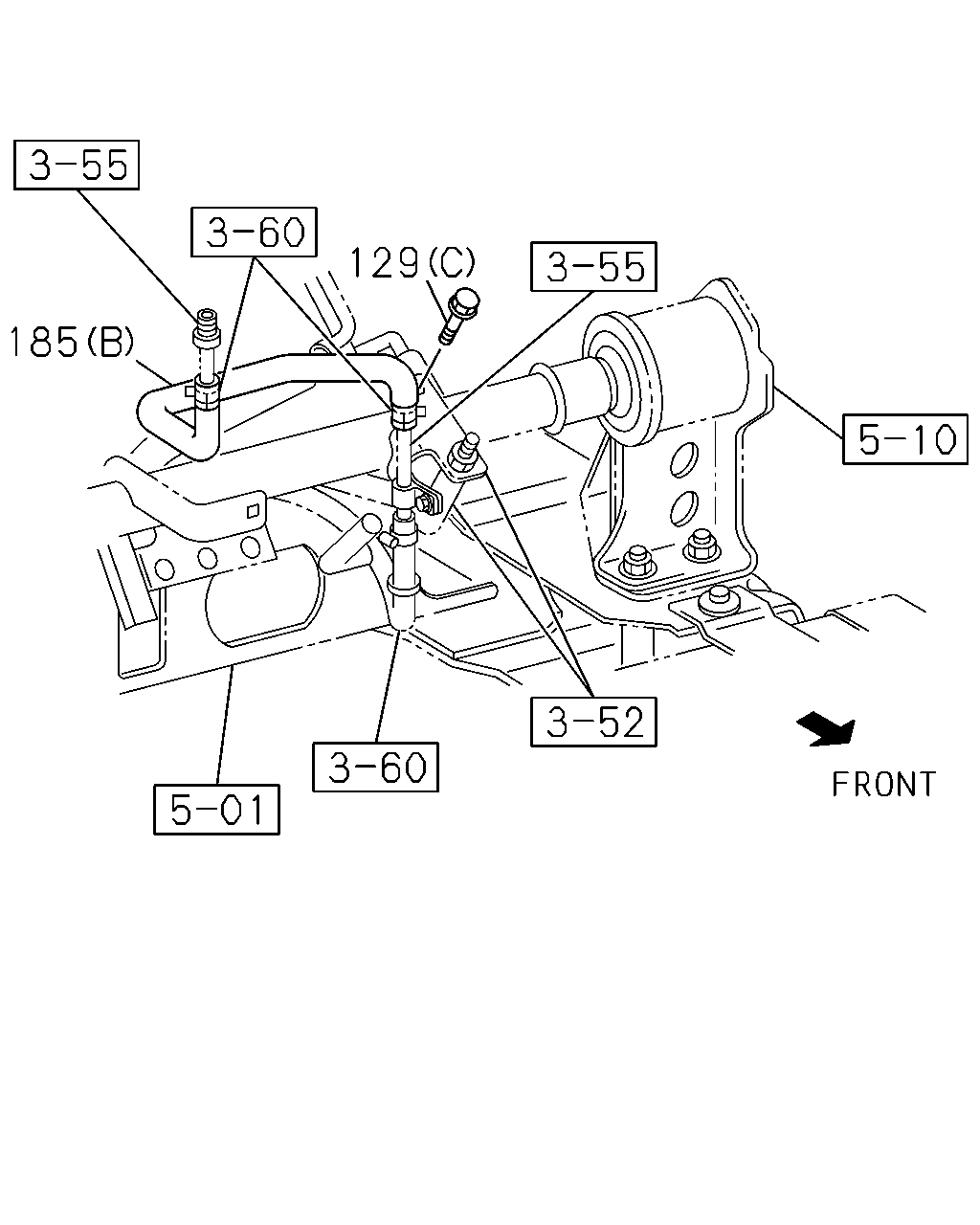

129 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
129	04.710 BOLT; BRKT 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	0911-1211	●
129	04.710 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.162 (C) M6X12 FLANGE	0-28050-612-0	01	1	1212-	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0911-1108	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1109-	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0911-1108	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1109-	●	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ) (A)	8-97330-513-0	01	1	0911-1108	●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	1109-1211	●
185	04.681 HOSE; RUBBER,SUCTION 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	1212-	●
185	04.681 HOSE; RUBBER,SUCTION (B)	8-98082-497-0	01	1	0911-1211	●
185	04.681 HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98082-497-0	01	1	1212-	●

130 130 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
130	04.686 BRACKET; SPEED SENSOR FRONT WIDE TREAD<7GV> (B)	8-98141-581-0	02	1	1008-1111	●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)	8-98141-581-0	02	1	1112-	●
130	04.686 BRACKET; SPEED SENSOR (A)	8-97080-060-2	02	1	0911-1111	●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97080-060-2	02	1	1112-	●
131	04.710 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0911-1111	●
131	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1112-	●

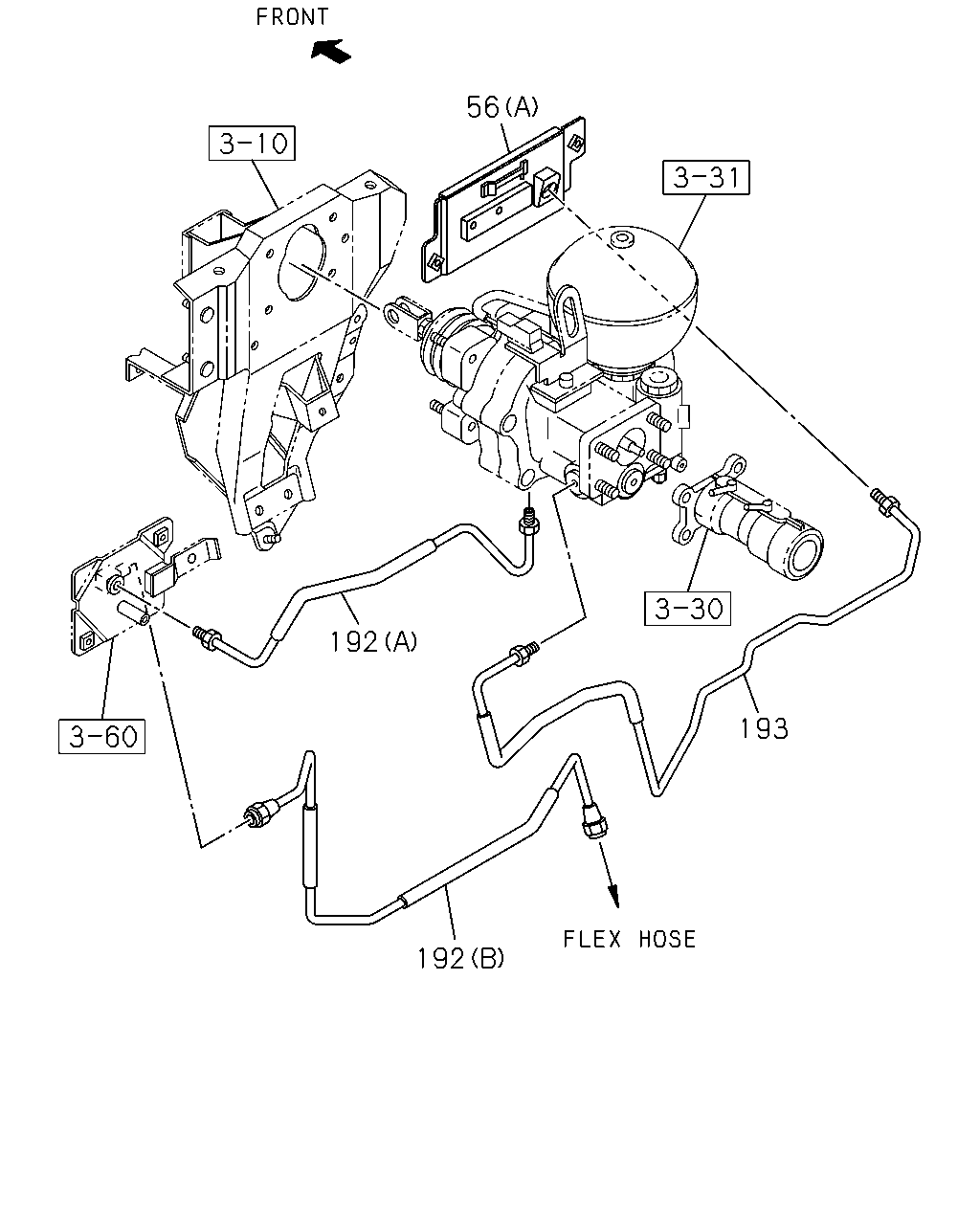

193 192 56 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-271-1	01	1	1212-	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-269-1	01	1	1212-	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1109-1211		●
56	04.686 BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ), TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-268-1	01	1	1212-	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1212-		●
56	04.686 BRACKET; UNION,BRK (A)	8-98034-288-4	01	1	0911-1005	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-270-1	01	1	1006-1211	●
56	04.686 BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-270-1	01	1	1212-	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	0911-1108	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	1109-	●	●
192	04.685 PIPE; PRESSURE (A)	8-98033-960-0	01	1	0911-1211	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98033-960-0	01	1	1212-	●
192	04.685 PIPE; PRESSURE (B)	8-98033-961-3	01	1	0911-1211	●
192	04.685 PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98033-961-3	01	1	1212-	●
193	04.685 PIPE; RETURN	8-98090-257-0	01	1	0911-1211	●
193	04.685 PIPE; RETURN HYDRO BRAKE BOOSTER(7QQ)	8-98090-257-0	01	1	1212-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
