3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#50218) — 45 parça

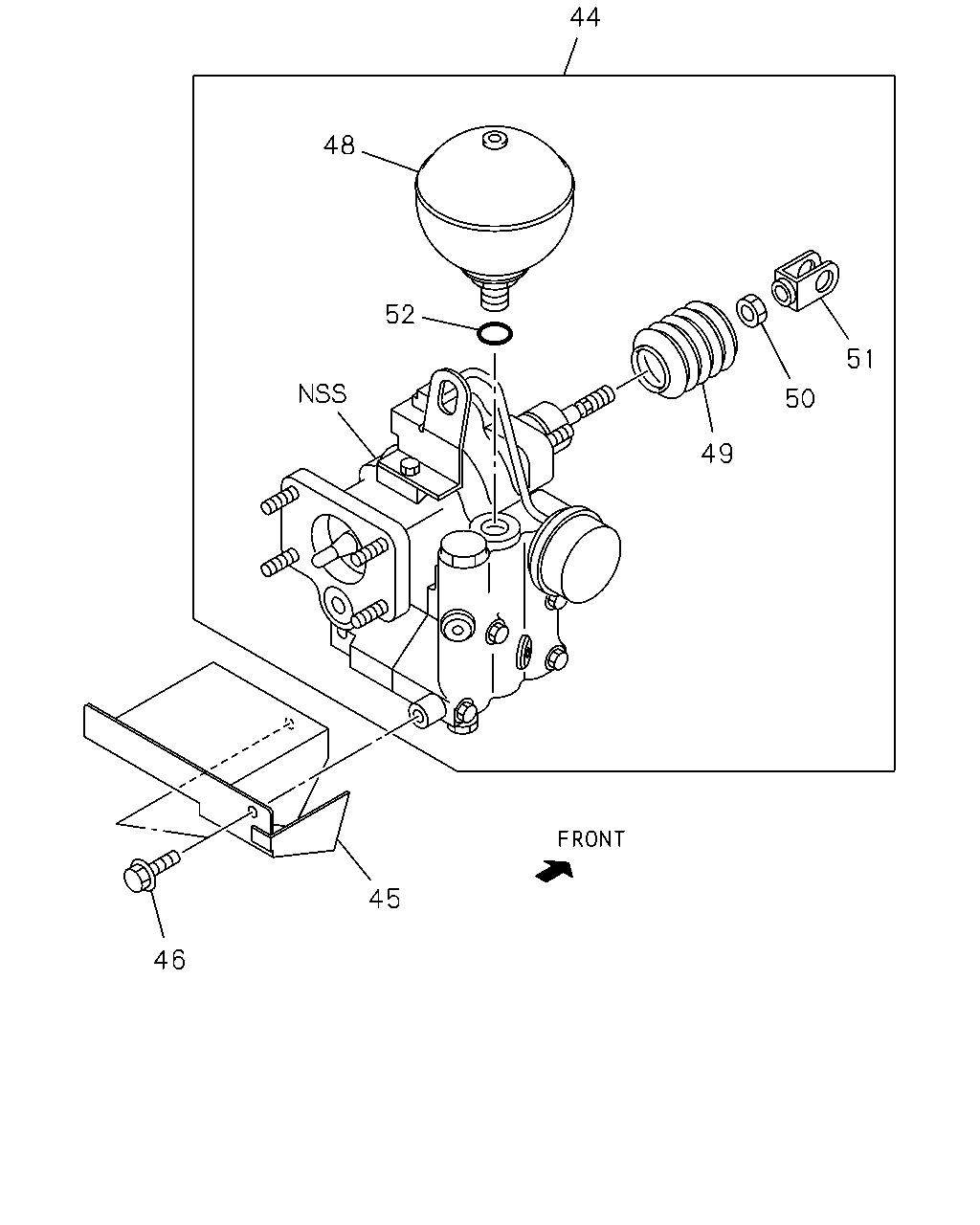

çizim 159304
44 48 52 51 50 49 45 46
BalonParca AdiParca NoAdetTipApplied Date A B
44 04.901 BOOSTER; HYDRAULIC BRK 8-98031-414-0 01 1 0911-1211 ●
44 04.901 BOOSTER; HYDRAULIC BRK
HYDRO BRAKE BOOSTER(7QQ) 		8-98031-414-0 01 1 1212- ●
45 04.901 PROTECTOR; HEAT 8-98031-415-1 01 1 0911-1211 ●
45 04.901 PROTECTOR; HEAT
HYDRO BRAKE BOOSTER(7QQ) 		8-98031-415-1 01 1 1212- ●
46 04.901 BOLT; HEAT PROTECTOR
03.671 M6X10 FLANGE 		0-28050-610-0 02 1 0911-1211 ●
46 04.901 BOLT; HEAT PROTECTOR
HYDRO BRAKE BOOSTER(7QQ) 03.671 M6X10 FLANGE 		0-28050-610-0 02 1 1212- ●
48 04.906 ACCUMULATOR; HYDRO BOOSTER 8-98038-346-0 01 1 0911-1211 ●
48 04.906 ACCUMULATOR; HYDRO BOOSTER
HYDRO BRAKE BOOSTER(7QQ) 		8-98038-346-0 01 1 1212- ●
49 04.906 GUARD; HYDRO BRK BOOSTER 8-97191-043-0 01 1 0911-1211 ●
49 04.906 GUARD; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ) 		8-97191-043-0 01 1 1212- ●
50 04.906 NUT; HYDRO BRK BOOSTER 8-98038-349-0 01 1 0911-1211 ●
50 04.906 NUT; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ) 		8-98038-349-0 01 1 1212- ●
51 04.906 CLEVIS; HYDRO BRK BOOSTER 8-98038-347-0 01 1 0911-1211 ●
51 04.906 CLEVIS; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ) 		8-98038-347-0 01 1 1212- ●
52 04.906 GASKET; HYDRO BRK BOOSTER
04.910 		8-97191-038-0 01 1 0911-1211 ●
52 04.906 GASKET; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ) 04.910 		8-97191-038-0 01 1 1212- ●
çizim 159555
1 17 16 24 15 12 11 23 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.901 MASTER VAC ASM; BRK 8-97162-798-1 01 1 1109-1109 ●
1 04.901 MASTER VAC ASM; BRK 8-97162-800-1 01 1 1109-1211 ●
1 04.901 MASTER VAC ASM; BRK
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97162-800-1 01 1 1212- ●
1 04.901 MASTER VAC ASM; BRK 8-97162-800-1 01 1 1212- ●
3 04.906 RETAINER; FRT SHELL,M/VAC 9-83315-319-0 01 1 1109-1211 ●
3 04.906 RETAINER; FRT SHELL,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		9-83315-319-0 01 1 1212- ●
3 04.906 RETAINER; FRT SHELL,M/VAC 9-83315-319-0 01 1 1212- ●
11 04.906 FILTER; M/VAC 8-97205-576-0 01 1 1109-1211 ●
11 04.906 FILTER; M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97205-576-0 01 1 1212- ●
11 04.906 FILTER; M/VAC 8-97205-576-0 01 1 1212- ●
12 04.906 SILENCER; M/VAC 8-97205-577-0 01 1 1109-1211 ●
12 04.906 SILENCER; M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97205-577-0 01 1 1212- ●
12 04.906 SILENCER; M/VAC 8-97205-577-0 01 1 1212- ●
15 04.906 RETAINER; GUARD,M/VAC 8-94375-083-0 01 1 1109-1211 ●
15 04.906 RETAINER; GUARD,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-94375-083-0 01 1 1212- ●
15 04.906 RETAINER; GUARD,M/VAC 8-94375-083-0 01 1 1212- ●
16 04.662 NUT; VLV ROD,M/VAC
M10 		1-52139-008-0 01 1 1109-1211 ●
16 04.662 NUT; VLV ROD,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) M10 		1-52139-008-0 01 1 1212- ●
16 04.662 NUT; VLV ROD,M/VAC
M10 		1-52139-008-0 01 1 1212- ●
17 04.662 CLEVIS; YOKE,M/VAC 8-97224-610-0 01 1 1109-1211 ●
17 04.662 CLEVIS; YOKE,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97224-610-0 01 1 1212- ●
17 04.662 CLEVIS; YOKE,M/VAC 8-97224-610-0 01 1 1212- ●
23 04.910 SEAL; M/VAC 8-97261-943-0 01 1 1109-1109 ●
23 04.910 SEAL; M/VAC 8-97079-350-0 01 1 1109-1211 ●
23 04.910 SEAL; M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97079-350-0 01 1 1212- ●
23 04.910 SEAL; M/VAC 8-97079-350-0 01 1 1212- ●
24 04.906 GUARD; VLV BODY,M/VAC 8-97205-578-0 01 1 1109-1211 ●
24 04.906 GUARD; VLV BODY,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97205-578-0 01 1 1212- ●
24 04.906 GUARD; VLV BODY,M/VAC 8-97205-578-0 01 1 1212- ●
