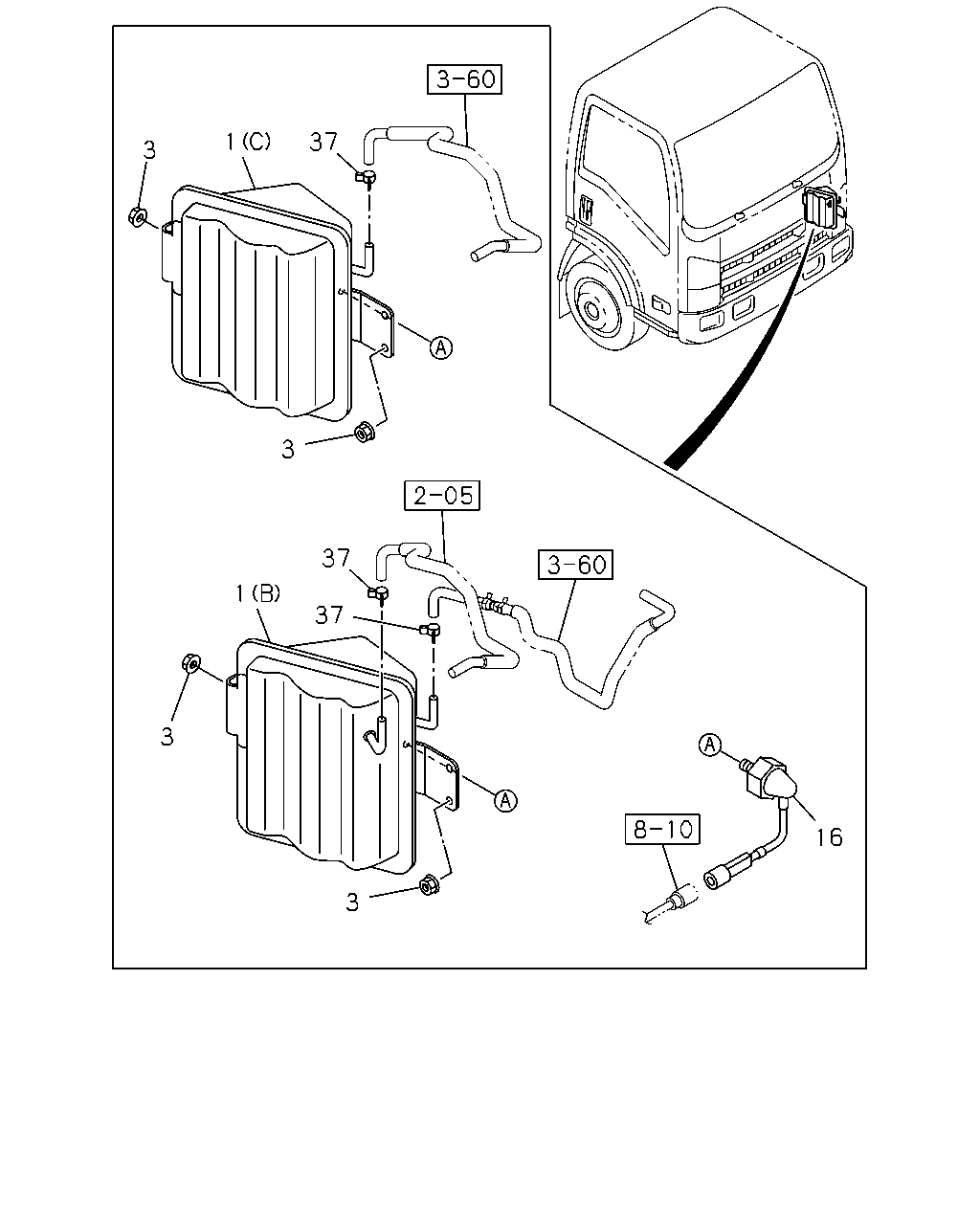

3-21 — VACUUM TANK (#50216) — 49 parça

37 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (B)	8-98009-123-0	01	1	1109-1211	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98009-123-0	01	1	1212-		●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (B)	8-98009-123-0	01	1	1212-	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98009-124-1	01	1	1109-1211	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (C)	8-98009-124-1	01	1	1212-		●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98009-124-1	01	1	1212-	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (A)	8-98032-292-0	01	1	0911-1211		●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98032-292-0	01	1	1212-		●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 04.785	8-98008-071-0	03	1	0911-1108		●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 04.785	8-98008-071-0	03	1	1109-1211		●
3	04.902 NUT; VAC TANK TO BRKT 04.785	8-98008-071-0	03	1	1109-1211	●
3	04.902 NUT; VAC TANK TO BRKT EXC. HYDRO BRAKE BOOSTER(7QQ) 04.785	8-98008-071-0	03	1	1212-		●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.785	8-98008-071-0	03	1	1212-		●
3	04.902 NUT; VAC TANK TO BRKT 04.785	8-98008-071-0	03	1	1212-	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5	8-94367-944-0	01	1	1109-1211		●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5	8-94367-944-0	01	1	1109-1211	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	01	1	1212-		●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	01	1	1212-		●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5	8-94367-944-0	01	1	1212-	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5	8-94367-944-0	01	1	0911-1108		●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5	8-94367-944-0	02	1	1109-1211	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	02	1	1212-		●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5	8-94367-944-0	02	1	1212-	●

1 37 3 3 37 1 37 3 16 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (B)	8-98009-123-0	01	1	1109-1211	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98009-123-0	01	1	1212-		●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (B)	8-98009-123-0	01	1	1212-	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98009-124-1	01	1	1109-1211	●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) (C)	8-98009-124-1	01	1	1212-		●
1	04.902 TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98009-124-1	01	1	1212-	●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) (A)	8-98032-292-0	01	1	0911-1211		●
1	04.902 TANK; VAC,MAIN POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98032-292-0	01	1	1212-		●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 04.785	8-98008-071-0	03	1	0911-1108		●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) 04.785	8-98008-071-0	03	1	1109-1211		●
3	04.902 NUT; VAC TANK TO BRKT 04.785	8-98008-071-0	03	1	1109-1211	●
3	04.902 NUT; VAC TANK TO BRKT EXC. HYDRO BRAKE BOOSTER(7QQ) 04.785	8-98008-071-0	03	1	1212-		●
3	04.902 NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.785	8-98008-071-0	03	1	1212-		●
3	04.902 NUT; VAC TANK TO BRKT 04.785	8-98008-071-0	03	1	1212-	●
16	04.906 SWITCH; VAC	8-98049-417-0	01	1	1109-1211	●
16	04.906 SWITCH; VAC EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98049-417-0	01	1	1212-		●
16	04.906 SWITCH; VAC	8-98049-417-0	01	1	1212-	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5	8-94367-944-0	01	1	1109-1211		●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5	8-94367-944-0	01	1	1109-1211	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	01	1	1212-		●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKEBOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	01	1	1212-		●
37	04.902 CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5	8-94367-944-0	01	1	1212-	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5	8-94367-944-0	01	1	0911-1108		●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5	8-94367-944-0	02	1	1109-1211	●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5	8-94367-944-0	02	1	1212-		●
37	04.902 CLIP; RUBBER HOSE POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5	8-94367-944-0	02	1	1212-	●
