3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#50215) — 65 parça

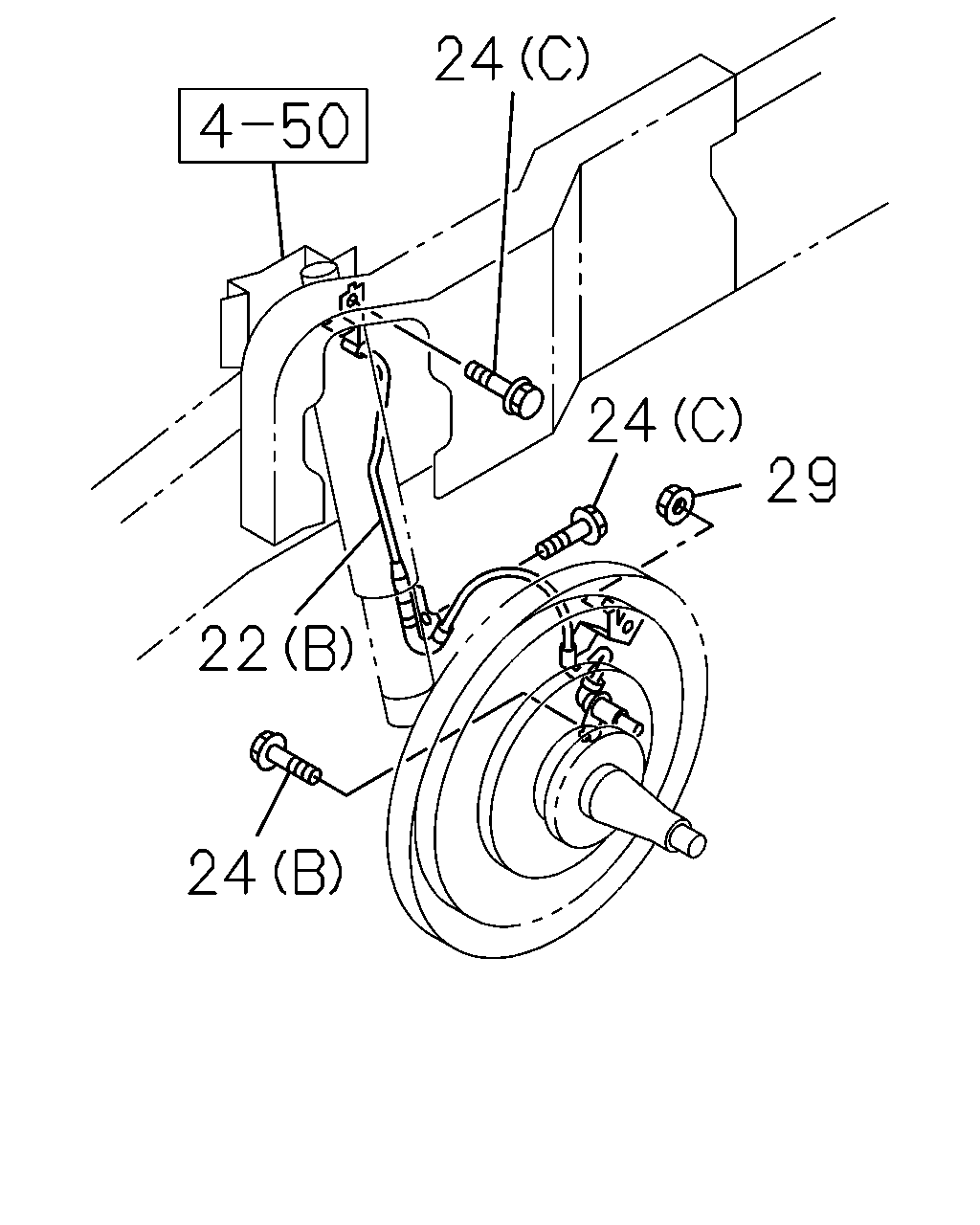

24 24 29 22 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	04.710 SENSOR; SPEED (A)	8-98002-215-1	02	1	0911-1401
22	04.710 SENSOR; SPEED 04.110 (A)	8-98219-354-0	02	1	1402-
22	04.710 SENSOR; SPEED (B)	8-98006-186-0	01	1	0911-1007
22	04.710 SENSOR; SPEED EXC. FRONT WIDE TREAD<7GV> (B)	8-98006-186-0	01	1	1008-1111
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B)	8-98006-186-0	01	1	1112-1408
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B)	8-98219-393-0	01	1	1409-
22	04.710 SENSOR; SPEED (B)	8-98006-187-0	01	1	0911-1007
22	04.710 SENSOR; SPEED EXC. FRONT WIDE TREAD<7GV> (B)	8-98006-187-0	01	1	1008-1111
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B)	8-98006-187-0	01	1	1112-1408
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B)	8-98219-394-0	01	1	1409-
22	04.710 SENSOR; SPEED FRONT WIDE TREAD<7GV> (B)	8-98132-211-2	01	1	1008-1111
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)	8-98132-211-2	01	1	1112-
22	04.710 SENSOR; SPEED FRONT WIDE TREAD<7GV> (B)	8-98132-212-2	01	1	1008-1111
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)	8-98132-212-2	01	1	1112-
24	04.730 BOLT; SENSOR 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	0911-1401
24	04.730 BOLT; SENSOR 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-
24	04.730 BOLT; SENSOR 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0911-1310
24	04.730 BOLT; SENSOR 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	0911-1007
24	04.730 BOLT; SENSOR EXC. FRONT WIDE TREAD<7GV> 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1008-1111
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1112-
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0911-1007
24	04.730 BOLT; SENSOR EXC. FRONT WIDE TREAD<7GV> 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1008-1111
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1112-1112
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1112-
24	04.730 BOLT; SENSOR FRONT WIDE TREAD<7GV> 03.275 (C) M8X25 FLANGE	0-28050-825-0	04	1	1008-1111
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 03.275 (C) M8X25 FLANGE	0-28050-825-0	04	1	1112-1112
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1112-
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (C) M6X10 FLANGE	0-28050-610-0	02	1	1112-
29	04.730 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0911-1007
29	04.730 NUT EXC. FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE	0-91180-108-0	02	1	1008-1111
29	04.730 NUT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE	0-91180-108-0	02	1	1112-
29	04.730 NUT FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE	0-91180-108-0	04	1	1008-1111
29	04.730 NUT 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE	0-91180-108-0	04	1	1112-

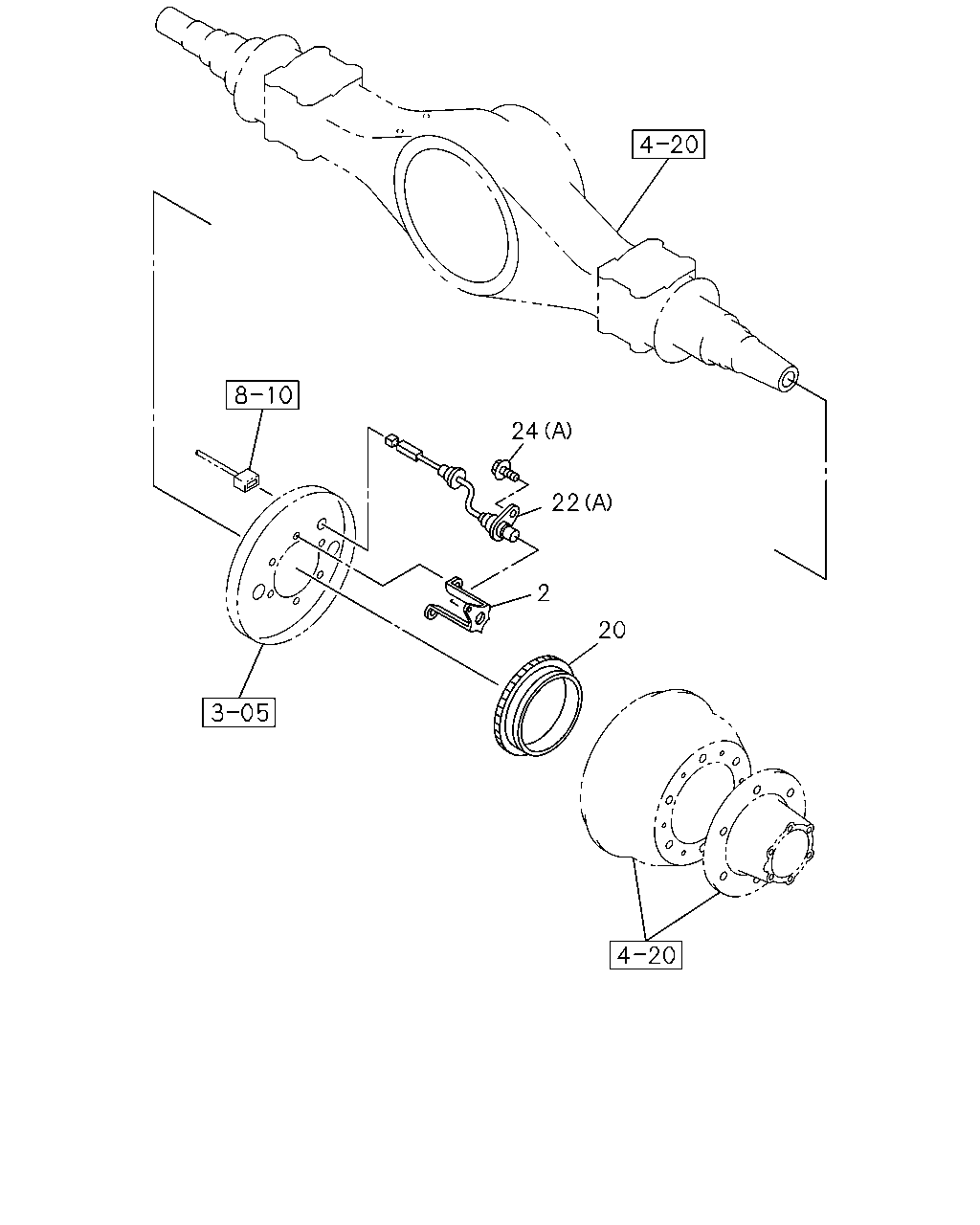

24 22 2 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	04.730 BRACKET; SENSOR	8-98002-440-1	02	1	0911-
20	04.710 ROTOR; SENSOR	8-97206-775-3	02	1	0911-
22	04.710 SENSOR; SPEED (A)	8-98002-215-1	02	1	0911-1401
22	04.710 SENSOR; SPEED 04.110 (A)	8-98219-354-0	02	1	1402-
22	04.710 SENSOR; SPEED (B)	8-98006-186-0	01	1	0911-1007
22	04.710 SENSOR; SPEED EXC. FRONT WIDE TREAD<7GV> (B)	8-98006-186-0	01	1	1008-1111
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B)	8-98006-186-0	01	1	1112-1408
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B)	8-98219-393-0	01	1	1409-
22	04.710 SENSOR; SPEED (B)	8-98006-187-0	01	1	0911-1007
22	04.710 SENSOR; SPEED EXC. FRONT WIDE TREAD<7GV> (B)	8-98006-187-0	01	1	1008-1111
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B)	8-98006-187-0	01	1	1112-1408
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B)	8-98219-394-0	01	1	1409-
22	04.710 SENSOR; SPEED FRONT WIDE TREAD<7GV> (B)	8-98132-211-2	01	1	1008-1111
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)	8-98132-211-2	01	1	1112-
22	04.710 SENSOR; SPEED FRONT WIDE TREAD<7GV> (B)	8-98132-212-2	01	1	1008-1111
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)	8-98132-212-2	01	1	1112-
24	04.730 BOLT; SENSOR 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	0911-1401
24	04.730 BOLT; SENSOR 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-
24	04.730 BOLT; SENSOR 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0911-1310
24	04.730 BOLT; SENSOR 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-
24	04.730 BOLT; SENSOR 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	0911-1007
24	04.730 BOLT; SENSOR EXC. FRONT WIDE TREAD<7GV> 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1008-1111
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1112-
24	04.730 BOLT; SENSOR 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0911-1007
24	04.730 BOLT; SENSOR EXC. FRONT WIDE TREAD<7GV> 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1008-1111
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1112-1112
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1112-
24	04.730 BOLT; SENSOR FRONT WIDE TREAD<7GV> 03.275 (C) M8X25 FLANGE	0-28050-825-0	04	1	1008-1111
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 03.275 (C) M8X25 FLANGE	0-28050-825-0	04	1	1112-1112
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1112-
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (C) M6X10 FLANGE	0-28050-610-0	02	1	1112-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
