3-11 — PARKING BRAKE CONTROL (#50214) — 261 parça

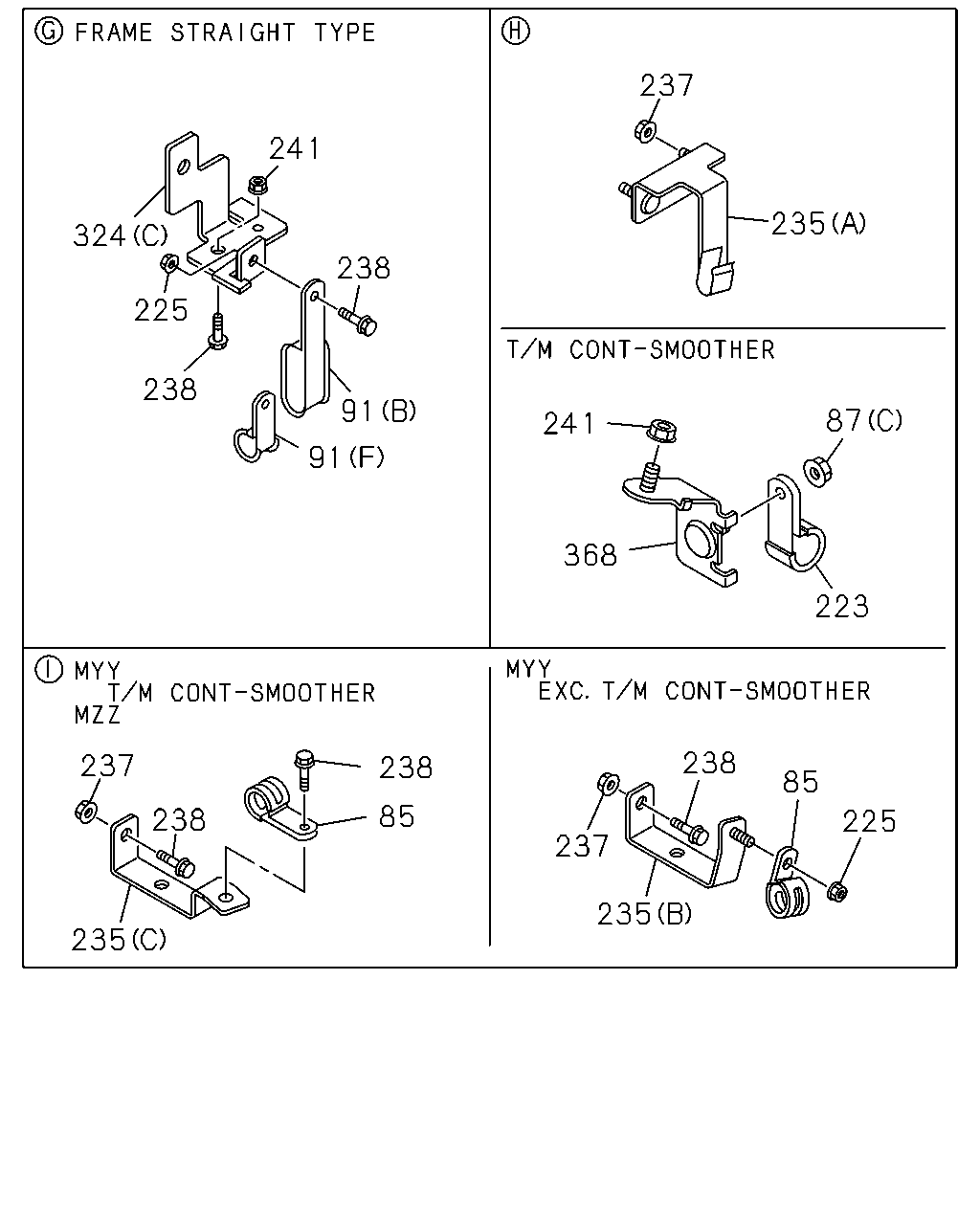

çizim 159294
324 225 238 91 91 238 237 238 235 238 85 237 235 241 87 368 223 238 85 225 237 235 241
BalonParca AdiParca NoAdetTipApplied Date A B
85 04.785 CLIP; BRKT
M/T MZZ6F(RSR) ID=13 L=20 		0-95235-236-0 01 1 1109- ●
85 04.785 CLIP; BRKT
M/T MYY6S(RST) ID=14.5 L=20 		1-09701-012-0 01 1 0911-1108 ●
85 04.785 CLIP; BRKT
M/T MYY6S(RST) ID=14.5 L=20 		1-09701-012-0 01 1 1109- ●
85 04.785 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1109- ●
87 04.785 NUT
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1212- ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0911-1108 ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1109- ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 0911-1108 ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1109- ● ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (E) ID=16 L=28 		0-95235-556-0 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-98023-698-0 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (D) ID=13 L=28 		0-95235-255-0 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (D) ID=13 L=28 		0-95235-255-0 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (C) 		8-97036-332-1 01 1 1109- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (B) 		8-98023-697-0 01 1 0911-1211 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (B) 		8-98023-697-0 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 0911-1108 ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 0911-1108 ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 0911-1108 ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1109-1211 ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1109-1211 ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1109-1211 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1212- ●
223 04.785 CLIP; PARKING BRK CABLE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 ID=13 L=20 		1-09701-138-1 01 1 1212- ●
225 04.785 NUT; CABLE CLIP
M/T MYY6S(RST) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0911-1108 ●
225 04.785 NUT; CABLE CLIP
M/T MYY6S(RST) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1109-1211 ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1109-1211 ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1109-1211 ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1109-1211 ●
225 04.785 NUT; CABLE CLIP
M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1212- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1212- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1212- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1212- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0911- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(D) 		8-98034-410-3 01 1 1109- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) (C) 		8-98033-907-0 01 1 1109-1211 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) (C) 		8-98033-907-0 01 1 1212- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98033-907-0 01 1 1212- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(A) 		8-98074-995-0 01 1 0911- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) (B) 		8-98087-322-0 01 1 0911-1211 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98087-322-0 01 1 1212- ●
237 04.785 NUT; BRKT TO FRAME
M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1212- ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 0911-1108 ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1109-1211 ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1212- ● ●
237 04.785 NUT; BRKT TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1212- ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1109-1211 ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1109-1211 ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1212- ●
238 04.785 BOLT; CLIP TO BRKT
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1212- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1212- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0911- ●
238 04.785 BOLT; CLIP TO BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0911- ●
241 04.785 NUT; BRKT
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1212- ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0911- ●
324 04.785 BRACKET
(F) 		8-98091-693-0 01 1 1109- ●
324 04.785 BRACKET
(G) 		8-98101-848-0 01 1 1109-1110 ●
324 04.785 BRACKET
04.047 (G) 		8-98189-805-0 01 1 1111- ●
324 04.785 BRACKET
04.047 (E) 		8-98034-185-1 01 1 0911- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ) 04.047 (B) 		8-98061-626-1 01 1 0911-1108 ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.047 (B) 		8-98061-626-1 01 1 1109- ●
324 04.785 BRACKET
(C) 		8-98087-330-1 01 1 0911- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ) (D) 		8-98094-197-0 01 1 0911-1108 ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-98094-197-0 01 1 1109-1110 ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.010 (D) 		8-98189-804-0 01 1 1111- ●
324 04.785 BRACKET
(A) 		8-98099-516-0 01 1 0911-1508 ●
324 04.785 BRACKET
(A) 		8-98216-763-1 01 1 1509- ●
368 04.785 BRACKET; T/M SIDE
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98144-584-0 01 1 1212- ●

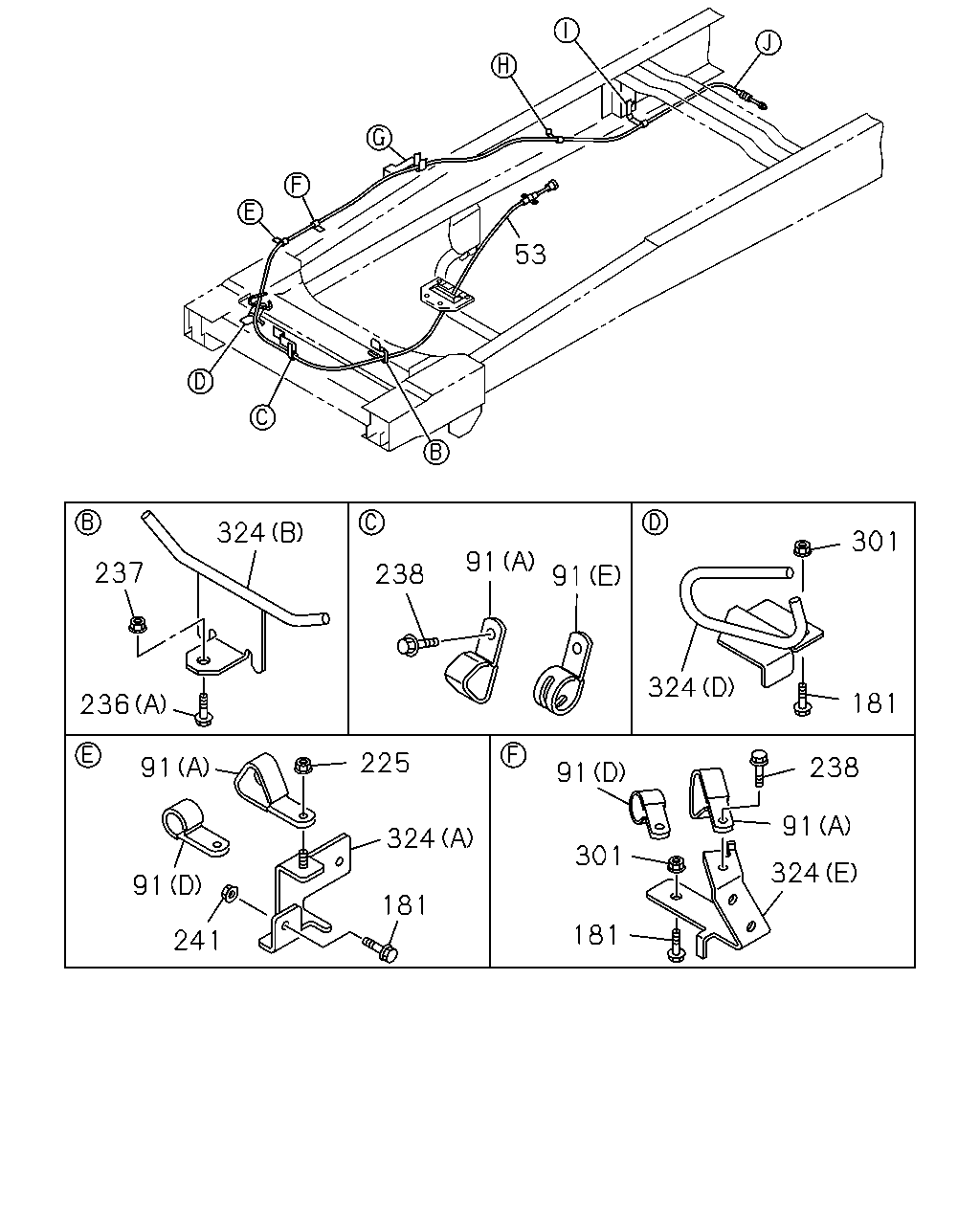

çizim 159297
53 324 237 236 91 91 225 241 324 181 91 301 181 238 91 91 324 301 181 238 91 324
BalonParca AdiParca NoAdetTipApplied Date A B
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-097-4 01 1 1212- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98144-781-1 01 1 1212- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) 		8-98057-119-1 01 1 1109- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) 		8-98057-441-3 01 1 1109-1211 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-441-3 01 1 1212- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) 		8-98060-996-3 01 1 0911-1211 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98060-996-3 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (E) ID=16 L=28 		0-95235-556-0 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-98023-698-0 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (D) ID=13 L=28 		0-95235-255-0 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (D) ID=13 L=28 		0-95235-255-0 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (C) 		8-97036-332-1 01 1 1109- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (B) 		8-98023-697-0 01 1 0911-1211 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (B) 		8-98023-697-0 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 0911-1108 ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 0911-1108 ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 0911-1108 ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1109-1211 ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1109-1211 ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1109-1211 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1212- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0911-1108 ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1109- ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0911- ●
225 04.785 NUT; CABLE CLIP
M/T MYY6S(RST) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0911-1108 ●
225 04.785 NUT; CABLE CLIP
M/T MYY6S(RST) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1109-1211 ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1109-1211 ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1109-1211 ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1109-1211 ●
225 04.785 NUT; CABLE CLIP
M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1212- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1212- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1212- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1212- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0911- ●
236 04.785 BOLT; BRKT TO FRAME
M/T MZZ6F(RSR) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1109- ●
236 04.785 BOLT; BRKT TO FRAME
4HK1-TCN ENG(RDQ) 00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 0911-1108 ●
236 04.785 BOLT; BRKT TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1109- ●
237 04.785 NUT; BRKT TO FRAME
M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1212- ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 0911-1108 ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1109-1211 ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1212- ● ●
237 04.785 NUT; BRKT TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1212- ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1109-1211 ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1109-1211 ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1212- ●
238 04.785 BOLT; CLIP TO BRKT
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1212- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1212- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0911- ●
238 04.785 BOLT; CLIP TO BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0911- ●
241 04.785 NUT; BRKT
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1212- ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0911- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 0911-1108 ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 0911-1108 ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1109- ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1109- ●
324 04.785 BRACKET
(F) 		8-98091-693-0 01 1 1109- ●
324 04.785 BRACKET
(G) 		8-98101-848-0 01 1 1109-1110 ●
324 04.785 BRACKET
04.047 (G) 		8-98189-805-0 01 1 1111- ●
324 04.785 BRACKET
04.047 (E) 		8-98034-185-1 01 1 0911- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ) 04.047 (B) 		8-98061-626-1 01 1 0911-1108 ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.047 (B) 		8-98061-626-1 01 1 1109- ●
324 04.785 BRACKET
(C) 		8-98087-330-1 01 1 0911- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ) (D) 		8-98094-197-0 01 1 0911-1108 ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-98094-197-0 01 1 1109-1110 ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.010 (D) 		8-98189-804-0 01 1 1111- ●
324 04.785 BRACKET
(A) 		8-98099-516-0 01 1 0911-1508 ●
324 04.785 BRACKET
(A) 		8-98216-763-1 01 1 1509- ●

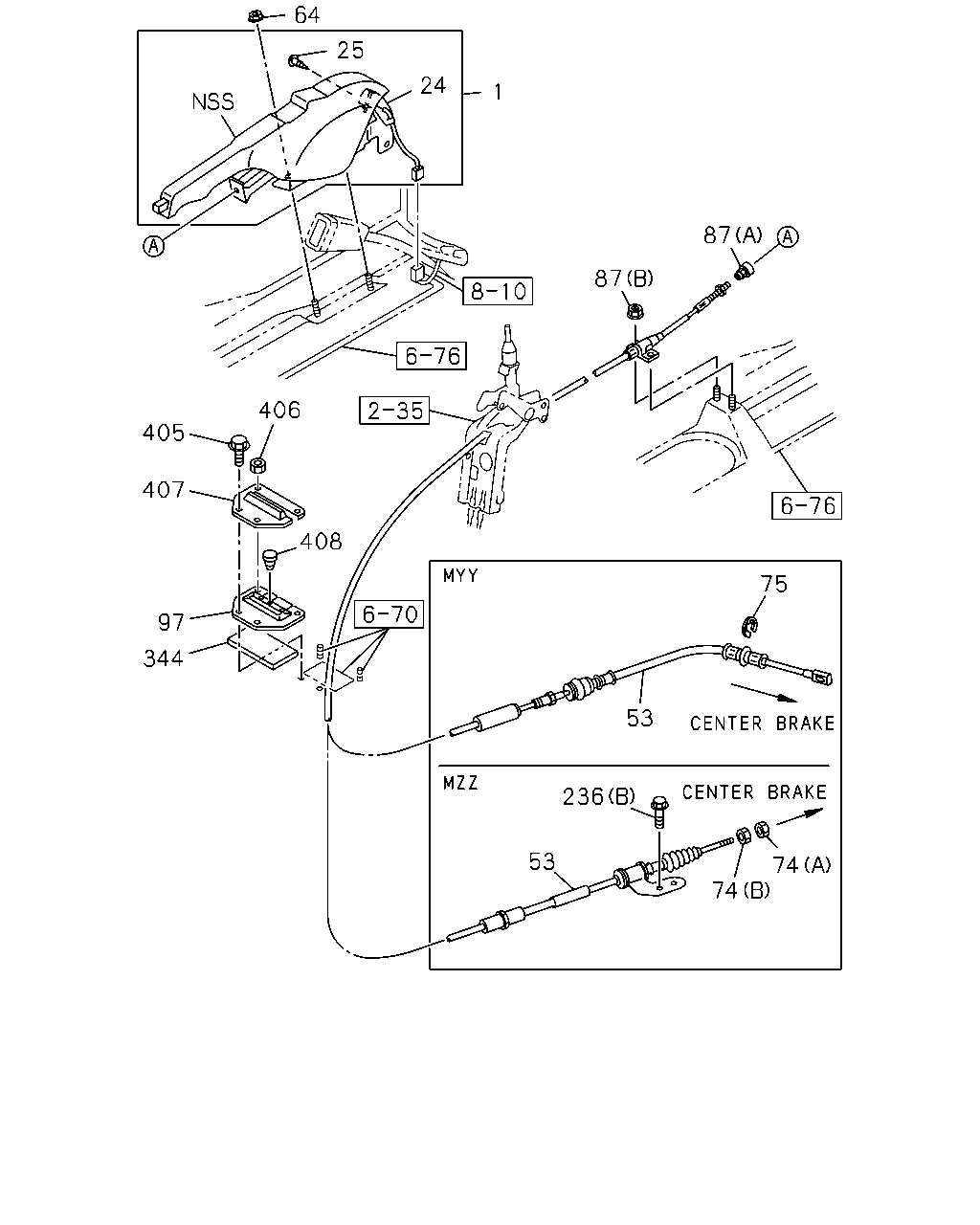

çizim 159302
64 24 1 87 87 406 405 407 97 344 408 236 53 74 75 25 74 53
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97406-006-0 01 1 0911-1108 ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97406-006-0 01 1 1109-1303 ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97426-514-0 01 1 1304- ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0911-1108 ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 1109-1303 ● ●
24 04.589 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1304- ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0911-1108 ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 1109- ● ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-097-4 01 1 1212- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98144-781-1 01 1 1212- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) 		8-98057-119-1 01 1 1109- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) 		8-98057-441-3 01 1 1109-1211 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-441-3 01 1 1212- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) 		8-98060-996-3 01 1 0911-1211 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98060-996-3 01 1 1212- ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0911-1108 ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 1109- ● ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) 02.334 (A) M8 		0-91110-508-0 01 1 1109- ●
74 04.785 NUT; CONT WIRE
M/T MZZ6F(RSR) (B) M8 FLANGE 		9-46259-016-0 01 1 1109- ●
75 04.790 RING; SNAP,HAND BRK CABLE
M/T MYY6S(RST) ID=12 		0-91805-512-0 01 1 0911-1108 ●
75 04.790 RING; SNAP,HAND BRK CABLE
M/T MYY6S(RST) ID=12 		0-91805-512-0 01 1 1109- ●
75 04.790 RING; SNAP,HAND BRK CABLE
M/T MYY5T(RSM) ID=12 		0-91805-512-0 01 1 1109- ●
87 04.785 NUT
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1212- ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0911-1108 ●
87 04.785 NUT
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1109- ● ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 0911-1108 ●
87 04.785 NUT
(A) M6 		8-98034-313-1 01 1 1109- ● ●
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97091-890-0 01 1 0911-1108 ●
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97091-890-0 01 1 1109- ● ●
236 04.785 BOLT; BRKT TO FRAME
M/T MZZ6F(RSR) 00.029 (B) M10X30 FLANGE 		0-28651-030-0 02 1 1109- ●
236 04.785 BOLT; BRKT TO FRAME
4HK1-TCN ENG(RDQ) 00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 0911-1108 ●
236 04.785 BOLT; BRKT TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 1109- ●
344 04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047 		8-97096-753-0 01 1 0911-1108 ●
344 04.595 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 04.047 		8-97096-753-0 01 1 1109- ● ●
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 0911-1108 ●
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 1109- ● ●
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 0911-1108 ●
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 1109- ● ●
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 0911-1108 ●
407 04.785 RETAINER; GROMMET
04.047 		1-33657-674-0 01 1 1109- ● ●
408 04.785 CAP; GROMMET
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 		8-97371-108-0 02 1 1212- ●

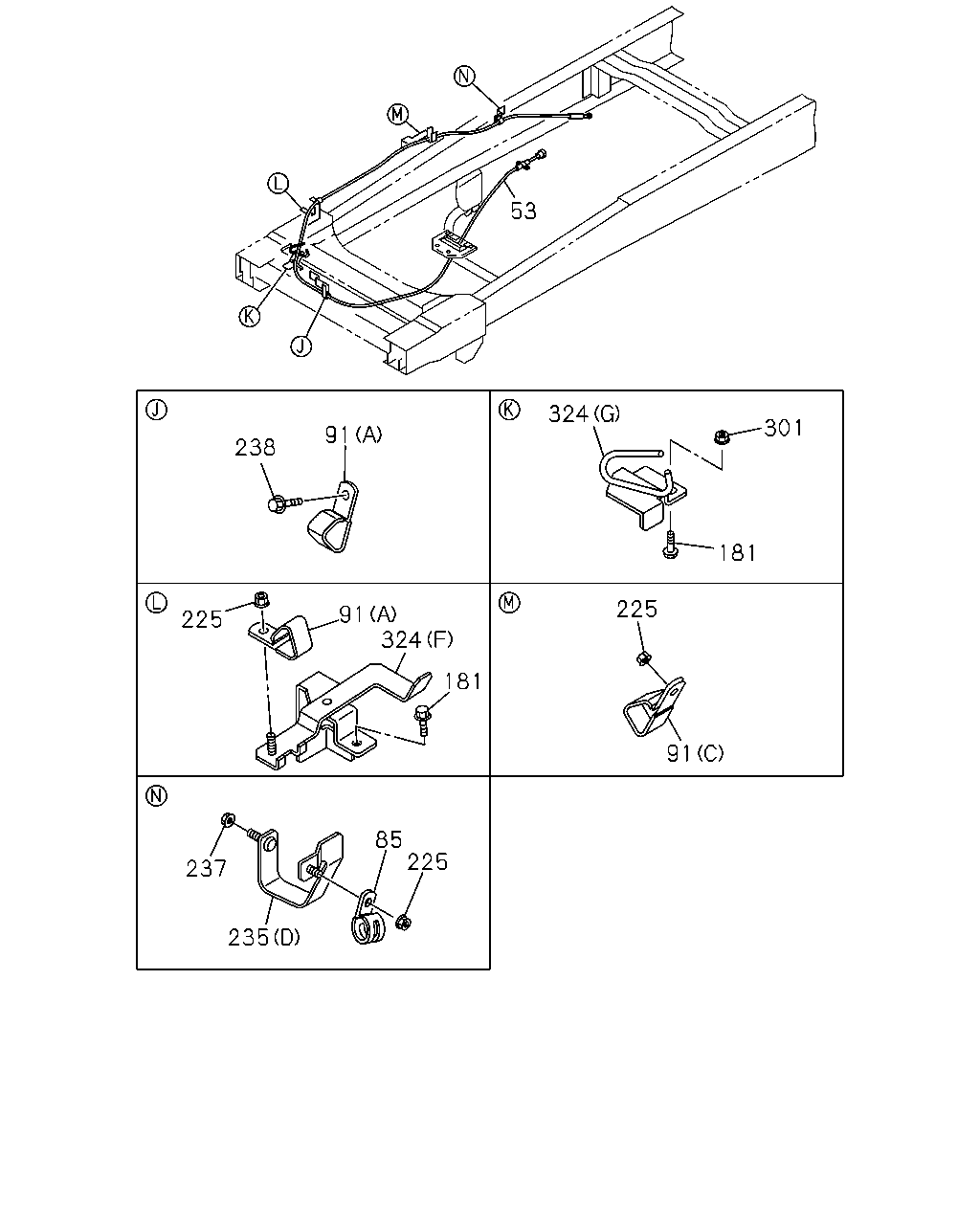

çizim 159550
53 324 301 91 238 181 225 91 324 225 181 91 85 225 237 235
BalonParca AdiParca NoAdetTipApplied Date A B
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98049-097-4 01 1 1212- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98144-781-1 01 1 1212- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY5T(RSM) 		8-98057-119-1 01 1 1109- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) 		8-98057-441-3 01 1 1109-1211 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98057-441-3 01 1 1212- ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) 		8-98060-996-3 01 1 0911-1211 ●
53 04.779 CABLE; PARK BRK,FRT LWR
M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98060-996-3 01 1 1212- ●
85 04.785 CLIP; BRKT
M/T MZZ6F(RSR) ID=13 L=20 		0-95235-236-0 01 1 1109- ●
85 04.785 CLIP; BRKT
M/T MYY6S(RST) ID=14.5 L=20 		1-09701-012-0 01 1 0911-1108 ●
85 04.785 CLIP; BRKT
M/T MYY6S(RST) ID=14.5 L=20 		1-09701-012-0 01 1 1109- ●
85 04.785 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1109- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (E) ID=16 L=28 		0-95235-556-0 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (F) 		8-98023-698-0 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (D) ID=13 L=28 		0-95235-255-0 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.540 (D) ID=13 L=28 		0-95235-255-0 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (C) 		8-97036-332-1 01 1 1109- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (B) 		8-98023-697-0 01 1 0911-1211 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (B) 		8-98023-697-0 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 0911-1108 ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 0911-1108 ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 0911-1108 ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1109-1211 ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1109-1211 ● ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1109-1211 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (A) 		8-97036-333-1 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1212- ●
91 04.785 CLIP; PARKING BRK CABLE
04.047 (A) 		8-97036-333-1 01 1 1212- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0911-1108 ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1109- ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0911- ●
225 04.785 NUT; CABLE CLIP
M/T MYY6S(RST) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0911-1108 ●
225 04.785 NUT; CABLE CLIP
M/T MYY6S(RST) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1109-1211 ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1109-1211 ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1109-1211 ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1109-1211 ●
225 04.785 NUT; CABLE CLIP
M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1212- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1212- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1212- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 1212- ●
225 04.785 NUT; CABLE CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0911- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(D) 		8-98034-410-3 01 1 1109- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) (C) 		8-98033-907-0 01 1 1109-1211 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MZZ6F(RSR) (C) 		8-98033-907-0 01 1 1212- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98033-907-0 01 1 1212- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
(A) 		8-98074-995-0 01 1 0911- ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) (B) 		8-98087-322-0 01 1 0911-1211 ●
235 04.785 BRACKET; CONT CABLE TO FRAME
M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98087-322-0 01 1 1212- ●
237 04.785 NUT; BRKT TO FRAME
M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1212- ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 0911-1108 ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1109-1211 ● ●
237 04.785 NUT; BRKT TO FRAME
03.162 M10 FLANGE 		0-91180-110-0 01 1 1212- ● ●
237 04.785 NUT; BRKT TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1212- ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1109-1211 ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1109-1211 ●
238 04.785 BOLT; CLIP TO BRKT
M/T MZZ6F(RSR) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1212- ●
238 04.785 BOLT; CLIP TO BRKT
M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1212- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1212- ●
238 04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 03 1 0911- ●
238 04.785 BOLT; CLIP TO BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0911- ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 0911-1108 ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 0911-1108 ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1109- ● ●
301 04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE 		0-91180-108-0 01 1 1109- ●
324 04.785 BRACKET
(F) 		8-98091-693-0 01 1 1109- ●
324 04.785 BRACKET
(G) 		8-98101-848-0 01 1 1109-1110 ●
324 04.785 BRACKET
04.047 (G) 		8-98189-805-0 01 1 1111- ●
324 04.785 BRACKET
04.047 (E) 		8-98034-185-1 01 1 0911- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ) 04.047 (B) 		8-98061-626-1 01 1 0911-1108 ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.047 (B) 		8-98061-626-1 01 1 1109- ●
324 04.785 BRACKET
(C) 		8-98087-330-1 01 1 0911- ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ) (D) 		8-98094-197-0 01 1 0911-1108 ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-98094-197-0 01 1 1109-1110 ●
324 04.785 BRACKET
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.010 (D) 		8-98189-804-0 01 1 1111- ●
324 04.785 BRACKET
(A) 		8-98099-516-0 01 1 0911-1508 ●
324 04.785 BRACKET
(A) 		8-98216-763-1 01 1 1509- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
