3-05 — REAR WHEEL BRAKE (#50211) — 70 parça

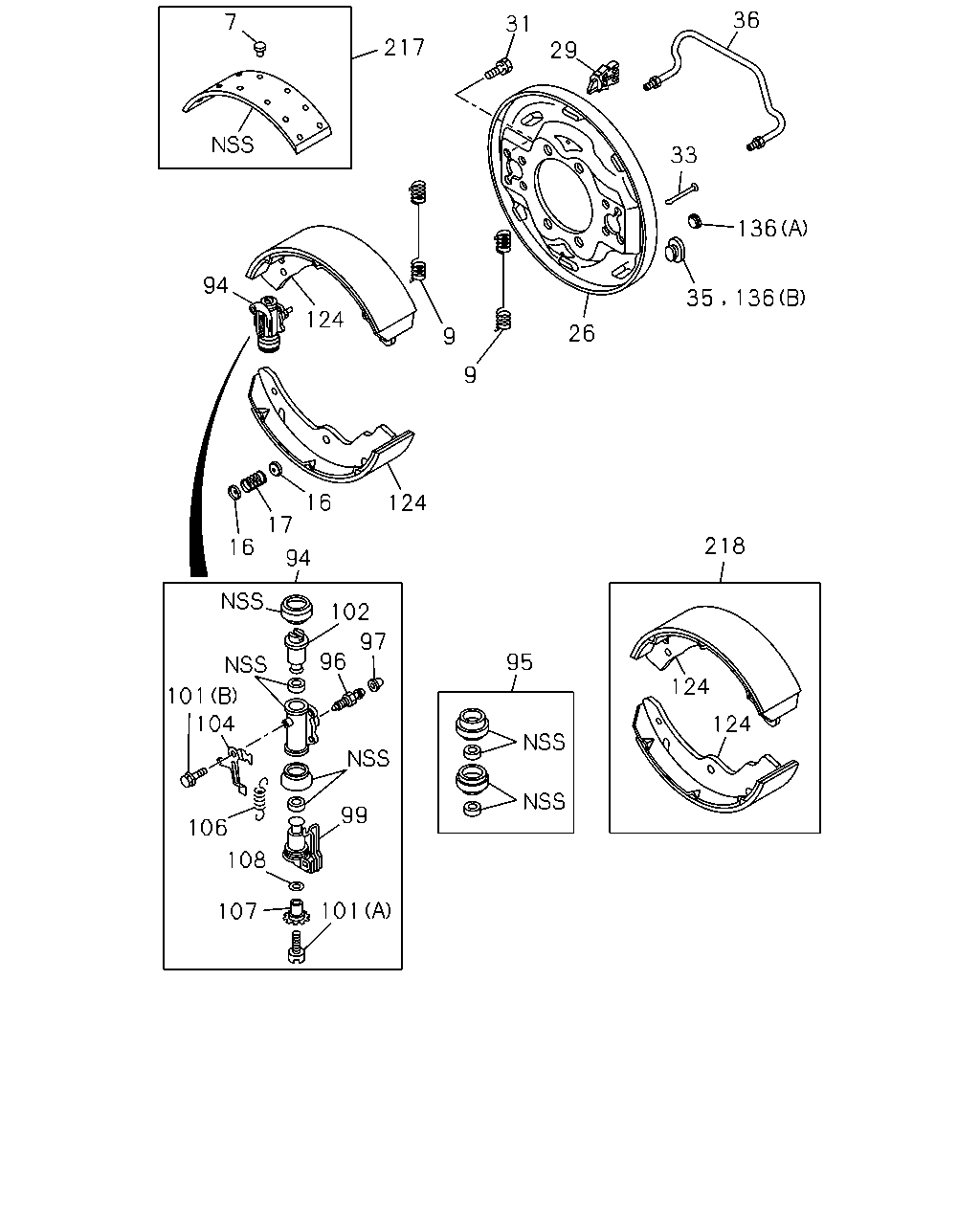

çizim 159299
36 7 31 217 29 33 136 94 35 136 124 26 9 9 16 124 17 218 16 94 102 97 96 95 124 101 104 124 99 106 108 101 107
BalonParca AdiParca NoAdetTipApplied Date A B
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 48 1 1109- ●
7 05.019 RIVET; LINING,RR BRK 1-09732-029-0 64 1 0911- ●
9 05.026 SPRING; RETURN,BRK SHOE 8-97022-087-0 04 1 1109- ●
9 05.026 SPRING; RETURN,BRK SHOE 8-97122-869-0 04 1 0911- ●
16 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 0911-1108 ●
16 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 1109- ● ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		5-09580-101-1 04 1 0911-1108 ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		5-09580-101-1 04 1 1109- ● ●
26 05.001 PLATE; BACK,RR BRK 8-97376-073-0 01 1 1109- ●
26 05.001 PLATE; BACK,RR BRK 8-97376-074-0 01 1 1109- ●
26 05.001 PLATE; BACK,RR BRK 8-97207-157-0 01 1 0911- ●
26 05.001 PLATE; BACK,RR BRK 8-97207-158-0 01 1 0911- ●
29 04.685 CLIP; PIPE,BRK 8-97022-086-0 02 1 0911-1108 ●
29 04.685 CLIP; PIPE,BRK 8-97022-086-0 02 1 1109- ● ●
31 04.665 BOLT; RR WHEEL CYL 8-97081-305-0 16 1 0911-1108 ●
31 04.665 BOLT; RR WHEEL CYL 8-97081-305-0 16 1 1109- ● ●
33 05.043 PIN; SHOE HOLD DOWN 8-97022-089-0 04 1 1109- ●
33 05.043 PIN; SHOE HOLD DOWN 8-97122-870-0 04 1 0911- ●
35 05.002 GROMMET; CHECK HOLE 8-97017-507-0 02 1 1109- ●
35 05.002 GROMMET; CHECK HOLE 8-97017-507-0 06 1 0911- ●
36 04.685 PIPE; OIL,RR BRK 8-97192-215-0 02 1 0911-1108 ●
36 04.685 PIPE; OIL,RR BRK 8-97192-215-0 02 1 1109- ● ●
94 04.665 CYLINDER; WHEEL,RR BRK 8-97349-705-0 02 1 1109- ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR 		8-97349-706-0 01 1 1109- ●
94 04.665 CYLINDER; WHEEL,RR BRK
FRONT 		8-97349-708-0 01 1 1109- ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR 		8-97358-878-0 01 1 0911- ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR 		8-97358-879-0 01 1 0911- ●
94 04.665 CYLINDER; WHEEL,RR BRK
FRONT 		8-97358-880-0 01 1 0911- ●
94 04.665 CYLINDER; WHEEL,RR BRK
FRONT 		8-97358-881-0 01 1 0911- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87832-070-0 01 1 1109- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87832-051-0 02 1 0911- ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-476-0 01 1 1109- ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-477-0 02 1 0911- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 01 1 1109- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 02 1 0911- ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-729-0 02 1 1109- ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-730-0 02 1 1109- ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-731-0 02 1 0911- ●
99 04.668 PISTON; RR WHEEL CYL 8-97349-732-0 02 1 0911- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) 		8-97349-741-0 02 1 0911-1108 ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) 		8-97349-741-0 02 1 1109- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) 		8-97349-742-0 02 1 0911-1108 ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(A) 		8-97349-742-0 02 1 1109- ● ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(B) 		8-97349-747-0 04 1 0911-1108 ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
(B) 		8-97349-747-0 04 1 1109- ● ●
102 04.668 PISTON; REAR WHEEL CYL 8-97078-045-0 04 1 1109- ●
102 04.668 PISTON; REAR WHEEL CYL 8-97332-043-0 04 1 0911- ●
104 05.103 LEVER; ADJ 8-97349-743-0 02 1 0911-1108 ●
104 05.103 LEVER; ADJ 8-97349-743-0 02 1 1109- ● ●
104 05.103 LEVER; ADJ 8-97349-744-0 02 1 0911-1108 ●
104 05.103 LEVER; ADJ 8-97349-744-0 02 1 1109- ● ●
106 05.107 SPRING; ADJ LEVER 8-97349-745-0 04 1 0911-1108 ●
106 05.107 SPRING; ADJ LEVER 8-97349-745-0 04 1 1109- ● ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97349-738-0 02 1 1109- ●
107 05.110 GEAR; ADJ,RR W/CYL 8-97349-740-0 02 1 1109- ●
107 05.110 GEAR; ADJ,RR W/CYL
04.665 		8-97358-894-0 02 1 0911- ●
107 05.110 GEAR; ADJ,RR W/CYL
04.665 		8-97358-895-0 02 1 0911- ●
108 05.110 WASHER; THRUST,GEAR ADJ 8-97349-736-0 04 1 0911-1108 ●
108 05.110 WASHER; THRUST,GEAR ADJ 8-97349-736-0 04 1 1109- ● ●
124 05.017 SHOE ASM; BRK,RR 8-97201-061-0 04 1 1109- ●
124 05.017 SHOE ASM; BRK,RR 8-97188-455-0 04 1 0911- ●
136 05.002 GROMMET
(B) 		8-97017-507-0 04 1 1109- ●
136 05.002 GROMMET
04.670 (A) 		1-47154-008-0 04 1 0911-1108 ●
136 05.002 GROMMET
04.670 (A) 		1-47154-008-0 04 1 1109- ● ●
217 05.018 LINING KIT; RR BRK 5-87831-774-0 01 1 1109- ●
217 05.018 LINING KIT; RR BRK 5-87831-692-0 01 1 0911- ●
217 05.018 LINING KIT; RR BRK
BEST VALUE PARTS 		5-87610-119-0 01 1 0911- ●
217 05.018 LINING KIT; RR BRK
BEST VALUE PARTS 		5-87610-120-0 01 1 1109- ●
218 05.017 SHOE KIT; BRK,RR 5-87831-775-0 01 1 1109- ●
218 05.017 SHOE KIT; BRK,RR 5-87831-693-0 01 1 0911- ●
