3-01 — FRONT WHEEL BRAKE (#50210) — 141 parça

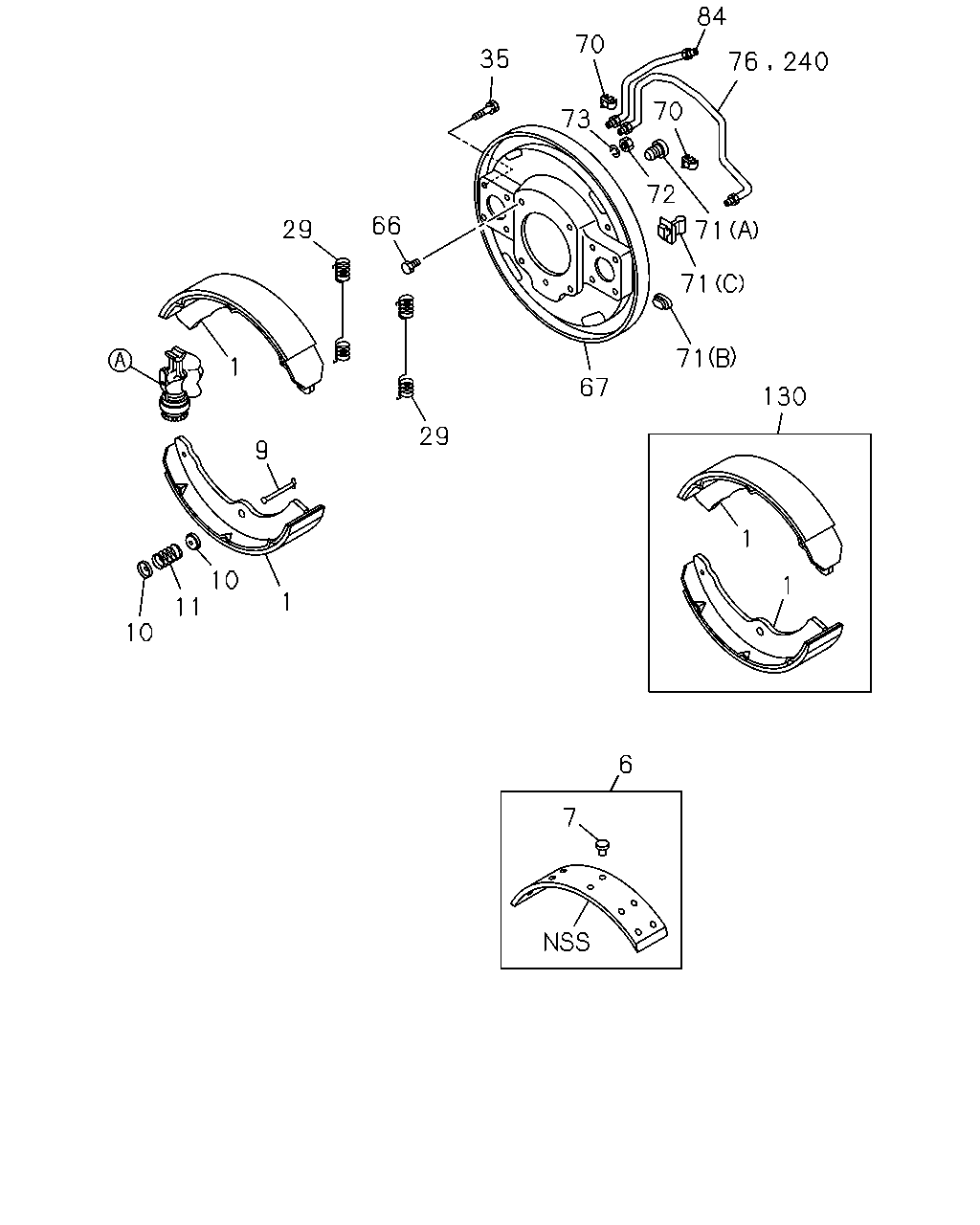

çizim 159284
84 70 35 70 73 72 66 29 71 71 71 1 67 130 29 9 1 10 1 1 11 10 6 7 76 240
BalonParca AdiParca NoAdetTipApplied Date A B
1 05.017 SHOE; BRK,FRT 8-97201-061-0 04 1 1109- ●
1 05.017 SHOE; BRK,FRT 8-97188-455-0 04 1 0911- ●
6 05.018 LINING KIT; FRT BRK 5-87831-774-0 01 1 1109- ●
6 05.018 LINING KIT; FRT BRK 5-87831-692-0 01 1 0911- ●
6 05.018 LINING KIT; FRT BRK
BEST VALUE PARTS 		5-87610-119-0 01 1 0911- ●
6 05.018 LINING KIT; FRT BRK
BEST VALUE PARTS 		5-87610-120-0 01 1 1109- ●
7 05.019 RIVET; LINING,FRT BRK 1-09732-029-0 48 1 1109- ●
7 05.019 RIVET; LINING,FRT BRK 1-09732-029-0 64 1 0911- ●
9 05.026 PIN; SHOE HOLDER
05.043 		8-97022-089-0 04 1 1109- ●
9 05.026 PIN; SHOE HOLDER
05.043 		8-97122-870-0 04 1 0911- ●
10 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 0911-1108 ●
10 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 1109- ● ●
11 05.027 SPRING; SHOE HOLDING
05.043 		5-09580-101-1 04 1 0911-1108 ●
11 05.027 SPRING; SHOE HOLDING
05.043 		5-09580-101-1 04 1 1109- ● ●
29 05.026 SPRING; RETURN,FRT BRK SHOE 8-97022-087-0 04 1 1109- ●
29 05.026 SPRING; RETURN,FRT BRK SHOE 8-97122-869-0 04 1 0911- ●
35 04.665 BOLT; FRT WHEEL CYL 8-97081-305-0 16 1 0911-1108 ●
35 04.665 BOLT; FRT WHEEL CYL 8-97081-305-0 16 1 1109- ● ●
66 05.815 BOLT; OIL SHIELD COVER
05.002 M14X40 		8-98007-879-0 08 1 0911-1108 ●
66 05.815 BOLT; OIL SHIELD COVER
05.002 M14X40 		8-98007-879-0 08 1 1109- ● ●
67 05.001 PLATE; BACK,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) 		8-97122-858-0 01 1 1411- ●
67 05.001 PLATE; BACK,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) 		8-97122-859-0 01 1 1411- ●
67 05.001 PLATE; BACK,FRT BRK 8-98047-535-0 01 1 1109- ●
67 05.001 PLATE; BACK,FRT BRK 8-98047-536-0 01 1 1109- ●
67 05.001 PLATE; BACK,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97160-410-0 01 1 1112-1211 ●
67 05.001 PLATE; BACK,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97160-410-0 01 1 1212- ●
67 05.001 PLATE; BACK,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97160-411-0 01 1 1112-1211 ●
67 05.001 PLATE; BACK,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97160-411-0 01 1 1212- ●
67 05.001 PLATE; BACK,FRT BRK 8-97358-868-0 01 1 0911-1111 ●
67 05.001 PLATE; BACK,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97358-868-0 01 1 1112- ●
67 05.001 PLATE; BACK,FRT BRK 8-97358-869-0 01 1 0911-1111 ●
67 05.001 PLATE; BACK,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97358-869-0 01 1 1112- ●
70 04.685 CLIP; PIPE HOLD 8-97022-086-0 04 1 0911-1108 ●
70 04.685 CLIP; PIPE HOLD 8-97022-086-0 04 1 1109- ● ●
71 05.002 GROMMET; CHECK HOLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97017-507-0 02 1 1112- ●
71 05.002 GROMMET; CHECK HOLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97044-742-1 04 1 1112-1410 ●
71 05.002 GROMMET; CHECK HOLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97044-742-1 02 1 1411- ●
71 05.002 GROMMET; CHECK HOLE
04.670 (A) 		1-47154-008-0 04 1 0911-1108 ●
71 05.002 GROMMET; CHECK HOLE
04.670 (A) 		1-47154-008-0 04 1 1109-1111 ● ●
71 05.002 GROMMET; CHECK HOLE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.670 (A) 		1-47154-008-0 04 1 1112- ●
71 05.002 GROMMET; CHECK HOLE
04.670 (A) 		1-47154-008-0 04 1 1112- ●
71 05.002 GROMMET; CHECK HOLE
(B) 		8-97017-507-0 06 1 0911-1108 ●
71 05.002 GROMMET; CHECK HOLE
(B) 		8-97017-507-0 06 1 1109-1111 ● ●
71 05.002 GROMMET; CHECK HOLE
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97017-507-0 06 1 1112- ●
71 05.002 GROMMET; CHECK HOLE
(B) 		8-97017-507-0 06 1 1112- ●
72 05.815 NUT; OIL SHIELD COVER
07.833 M14 		0-91110-514-0 08 1 0911-1108 ●
72 05.815 NUT; OIL SHIELD COVER
07.833 M14 		0-91110-514-0 08 1 1109- ● ●
73 05.815 WASHER; LK,OIL SHIELD COVER
06.174 ID=14.2 		0-91510-814-0 08 1 0911-1108 ●
73 05.815 WASHER; LK,OIL SHIELD COVER
06.174 ID=14.2 		0-91510-814-0 08 1 1109- ● ●
76 04.685 PIPE; OIL,BACKWARD,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-847-0 02 1 1112- ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-676-0 01 1 0911-1108 ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-676-0 01 1 1109- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-677-0 01 1 0911-1108 ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-677-0 01 1 1109- ● ●
130 05.017 SHOE KIT; BRK,FRT 5-87831-775-0 01 1 1109- ●
130 05.017 SHOE KIT; BRK,FRT 5-87831-693-0 01 1 0911- ●
240 04.685 PIPE; OIL,FRT BRK 8-97079-847-0 02 1 0911-1108 ●
240 04.685 PIPE; OIL,FRT BRK 8-97079-847-0 02 1 1109-1111 ● ●
240 04.685 PIPE; OIL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-847-0 02 1 1112- ●
240 04.685 PIPE; OIL,FRT BRK 8-97079-847-0 02 1 1112- ●
çizim 159512
15 15 24 17 16 25 302 255 302 17 16 254 254 24 253 24 253 25 252 252 25 15 26 17 16 18 19 24 25
BalonParca AdiParca NoAdetTipApplied Date A B
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (B) REAR 		8-97144-795-0 01 1 1411- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (B) REAR 		8-97144-796-0 01 1 1411- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (B) FRONT 		8-97144-797-0 01 1 1411- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (B) FRONT 		8-97144-798-0 01 1 1411- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
(C) FRONT 		8-97349-705-0 01 1 1109- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
(C) FRONT 		8-97349-706-0 01 1 1109- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
(C) REAR 		8-97349-707-0 01 1 1109- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
(C) REAR 		8-97349-708-0 01 1 1109- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT 		8-97353-573-0 01 1 1112-1211 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT 		8-97353-573-0 01 1 1212- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT 		8-97353-574-0 01 1 1112-1211 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT 		8-97353-574-0 01 1 1212- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR 		8-97353-575-0 01 1 1112-1211 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR 		8-97353-575-0 01 1 1212- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR 		8-97353-576-0 01 1 1112-1211 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR 		8-97353-576-0 01 1 1212- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
(A) FRONT 		8-98081-290-0 01 1 0911-1111 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT 		8-98081-290-0 01 1 1112- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
(A) FRONT 		8-98081-291-0 01 1 0911-1111 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT 		8-98081-291-0 01 1 1112- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
(A) REAR 		8-98081-292-0 01 1 0911-1111 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR 		8-98081-292-0 01 1 1112- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
(A) REAR 		8-98081-293-0 01 1 0911-1111 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR 		8-98081-293-0 01 1 1112- ●
16 04.666 SCREW; BLEEDER,FRT BRK 8-98050-476-0 02 1 1109- ●
16 04.666 SCREW; BLEEDER,FRT BRK 8-98050-477-0 02 1 0911- ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 02 1 0911-1108 ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 02 1 1109- ● ●
18 05.107 STOPPER; ADJ SCREW
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94128-486-0 04 1 1112- ●
19 05.107 SCREW; STOPPER SETTING
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94128-727-0 04 1 1112- ●
24 04.668 PISTON; FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) (A) 		8-94414-700-1 04 1 1411- ●
24 04.668 PISTON; FRT WHEEL CYL
(B) 		8-97078-045-0 04 1 1109- ●
24 04.668 PISTON; FRT WHEEL CYL
(A) 		8-97349-729-0 02 1 1109- ●
24 04.668 PISTON; FRT WHEEL CYL
(A) 		8-97349-730-0 02 1 1109- ●
24 04.668 PISTON; FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97353-579-0 04 1 1112-1211 ●
24 04.668 PISTON; FRT WHEEL CYL
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97353-579-0 04 1 1212- ●
24 04.668 PISTON; FRT WHEEL CYL
(A) 		8-97349-731-0 02 1 0911-1111 ●
24 04.668 PISTON; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97349-731-0 02 1 1112- ●
24 04.668 PISTON; FRT WHEEL CYL
(A) 		8-97349-732-0 02 1 0911-1111 ●
24 04.668 PISTON; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97349-732-0 02 1 1112- ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.666 		8-94414-702-0 04 1 1112- ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
04.666 		8-97349-741-0 02 1 0911-1108 ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
04.666 		8-97349-741-0 02 1 1109-1111 ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 04.666 		8-97349-741-0 02 1 1112- ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
04.666 		8-97349-741-0 02 1 1112- ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
04.666 		8-97349-742-0 02 1 0911-1108 ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
04.666 		8-97349-742-0 02 1 1109-1111 ● ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 04.666 		8-97349-742-0 02 1 1112- ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
04.666 		8-97349-742-0 02 1 1112- ●
26 04.667 CUP SET; FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ) 04.665 		5-87831-598-0 01 1 1411- ●
26 04.667 CUP SET; FRT WHEEL CYL 5-87832-069-0 02 1 1109- ●
26 04.667 CUP SET; FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 		5-87832-080-0 01 1 1112-1211 ●
26 04.667 CUP SET; FRT WHEEL CYL
HYDRO BRAKE BOOSTER(7QQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 		5-87832-080-0 01 1 1212- ●
26 04.667 CUP SET; FRT WHEEL CYL
04.665 		5-87832-051-0 01 1 0911-1111 ●
26 04.667 CUP SET; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 		5-87832-051-0 01 1 1112- ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
05.110 		8-97349-738-0 02 1 1109- ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
05.110 		8-97349-740-0 02 1 1109- ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL 8-97358-894-0 02 1 0911-1111 ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97358-894-0 02 1 1112- ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL 8-97358-895-0 02 1 0911-1111 ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97358-895-0 02 1 1112- ●
253 04.665 WASHER; THRUST
05.110 		8-97349-736-0 04 1 0911-1108 ●
253 04.665 WASHER; THRUST
05.110 		8-97349-736-0 04 1 1109-1111 ● ●
253 04.665 WASHER; THRUST
4 WHEEL ANTI LOCK BRAKE<JE5> 05.110 		8-97349-736-0 04 1 1112- ●
253 04.665 WASHER; THRUST
05.110 		8-97349-736-0 04 1 1112- ●
254 04.665 SPRING; ADJ LEVER
05.107 		8-97349-745-0 04 1 0911-1108 ●
254 04.665 SPRING; ADJ LEVER
05.107 		8-97349-745-0 04 1 1109-1111 ● ●
254 04.665 SPRING; ADJ LEVER
4 WHEEL ANTI LOCK BRAKE<JE5> 05.107 		8-97349-745-0 04 1 1112- ●
254 04.665 SPRING; ADJ LEVER
05.107 		8-97349-745-0 04 1 1112- ●
255 04.665 LEVER; ADJ
05.103 		8-97349-743-0 02 1 0911-1108 ●
255 04.665 LEVER; ADJ
05.103 		8-97349-743-0 02 1 1109-1111 ● ●
255 04.665 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> 05.103 		8-97349-743-0 02 1 1112- ●
255 04.665 LEVER; ADJ
05.103 		8-97349-743-0 02 1 1112- ●
255 04.665 LEVER; ADJ
05.103 		8-97349-744-0 02 1 0911-1108 ●
255 04.665 LEVER; ADJ
05.103 		8-97349-744-0 02 1 1109-1111 ● ●
255 04.665 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> 05.103 		8-97349-744-0 02 1 1112- ●
255 04.665 LEVER; ADJ
05.103 		8-97349-744-0 02 1 1112- ●
302 04.665 SCREW; ADJ LEVER
04.666 		8-97349-747-0 04 1 0911-1108 ●
302 04.665 SCREW; ADJ LEVER
04.666 		8-97349-747-0 04 1 1109-1111 ● ●
302 04.665 SCREW; ADJ LEVER
4 WHEEL ANTI LOCK BRAKE<JE5> 04.666 		8-97349-747-0 04 1 1112- ●
302 04.665 SCREW; ADJ LEVER
04.666 		8-97349-747-0 04 1 1112- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
