◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10722 - CXH RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-90A - POWER TAKE OFF; FLYWHEEL ▶
0-90A — POWER TAKE OFF; FLYWHEEL (#5021) — 92 parça

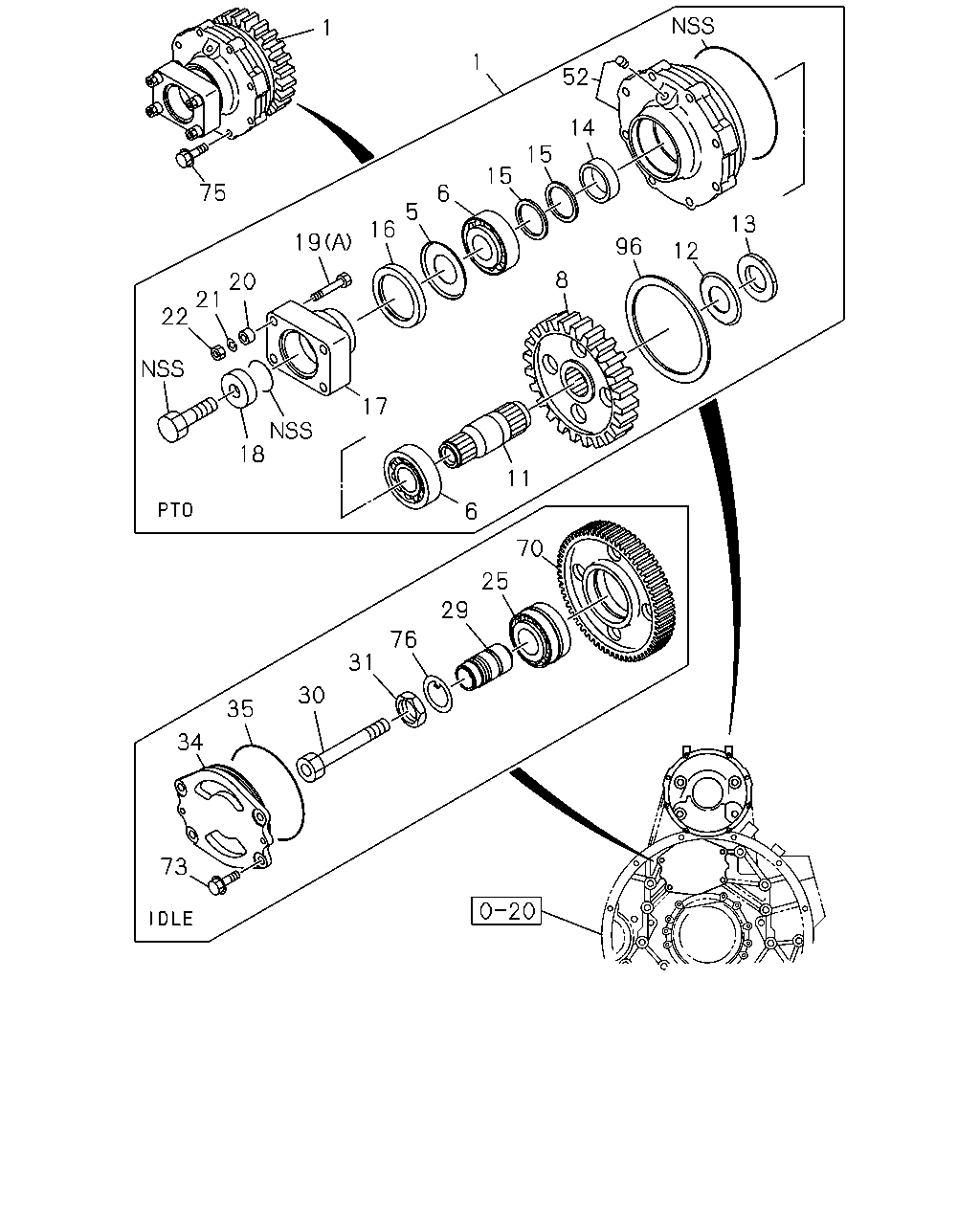

çizim 39104
1 1 52 14 15 15 75 6 5 13 16 19 96 12 8 20 21 22 17 18 11 6 70 25 29 76 31 30 35 34 73
BalonParca AdiParca NoAdetTipApplied Date A B
1 POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO<SV1> 		1-38000-308-0 01 1 9703-9905 ●
1 POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO<SV1> 		1-38000-308-0 01 1 9906- ●
5 SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO<SV1> 		1-09625-128-0 01 1 9703-9905 ●
5 SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO<SV1> 		1-09625-128-0 01 1 9906- ●
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO<SV1> NSK 		9-00093-149-0 02 1 9703-9905 ●
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO<SV1> NSK 		9-00093-149-0 02 1 9906- ●
8 GEAR; FLYWHEEL PTO
ENGINE REAR PTO<SV1> Z=61 		1-38241-105-0 01 1 9703-9905 ●
8 GEAR; FLYWHEEL PTO
ENGINE REAR PTO<SV1> Z=61 		1-38241-105-0 01 1 9906- ●
11 SHAFT; PTO,FLYWHEEL
ENGINE REAR PTO<SV1> 		1-38221-031-0 01 1 9703-9905 ●
11 SHAFT; PTO,FLYWHEEL
ENGINE REAR PTO<SV1> 		1-38221-031-0 01 1 9906- ●
12 WASHER; LK,SHAFT NUT,FLYWHEEL PTO
ENGINE REAR PTO<SV1> 		9-09853-865-0 01 1 9703-9905 ●
12 WASHER; LK,SHAFT NUT,FLYWHEEL PTO
ENGINE REAR PTO<SV1> 		9-09853-865-0 01 1 9906- ●
13 NUT; SHAFT,FLYWHEEL PTO
ENGINE REAR PTO<SV1> 		9-09843-720-0 01 1 9703-9905 ●
13 NUT; SHAFT,FLYWHEEL PTO
ENGINE REAR PTO<SV1> 		9-09843-720-0 01 1 9906- ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> T=17.95 		9-38226-045-0 01 1 9703-9905 ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> T=17.95 		9-38226-045-0 01 1 9906- ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> T=18.20 		9-38226-046-0 01 1 9703-9905 ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> T=18.20 		9-38226-046-0 01 1 9906- ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> T=18.45 		9-38226-047-0 01 1 9703-9905 ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> T=18.45 		9-38226-047-0 01 1 9906- ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> T=18.70 		9-38226-048-0 01 1 9703-9905 ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> T=18.70 		9-38226-048-0 01 1 9906- ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> T=18.95 		9-38226-049-0 01 1 9703-9905 ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> T=18.95 		9-38226-049-0 01 1 9906- ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> T=19.20 		9-38226-050-0 01 1 9703-9905 ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> T=19.20 		9-38226-050-0 01 1 9906- ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> T=19.45 		9-38226-051-0 01 1 9703-9905 ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO<SV1> T=19.45 		9-38226-051-0 01 1 9906- ●
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.50 		9-41229-324-0 AR 1 9703-9905 ●
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.50 		9-41229-324-0 AR 1 9906- ●
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.51 		9-41229-325-0 AR 1 9703-9905 ●
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.51 		9-41229-325-0 AR 1 9906- ●
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.52 		9-41229-326-0 AR 1 9703-9905 ●
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.52 		9-41229-326-0 AR 1 9906- ●
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.53 		9-41229-327-0 AR 1 9703-9905 ●
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.53 		9-41229-327-0 AR 1 9906- ●
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.54 		9-41229-328-0 AR 1 9703-9905 ●
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.54 		9-41229-328-0 AR 1 9906- ●
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.55 		9-41229-329-0 AR 1 9703-9905 ●
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.55 		9-41229-329-0 AR 1 9906- ●
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.56 		9-41229-330-0 AR 1 9703-9905 ●
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.56 		9-41229-330-0 AR 1 9906- ●
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.57 		9-41229-331-0 AR 1 9703-9905 ●
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.57 		9-41229-331-0 AR 1 9906- ●
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.58 		9-41229-332-0 AR 1 9703-9905 ●
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.58 		9-41229-332-0 AR 1 9906- ●
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.59 		9-41229-333-0 AR 1 9703-9905 ●
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.59 		9-41229-333-0 AR 1 9906- ●
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.60 		9-41229-334-0 AR 1 9703-9905 ●
15 SHIM; PTO
ENGINE REAR PTO<SV1> T=3.60 		9-41229-334-0 AR 1 9906- ●
16 THROWER; OIL,FLYWHEEL PTO
ENGINE REAR PTO<SV1> 		9-38175-011-0 01 1 9703-9905 ●
16 THROWER; OIL,FLYWHEEL PTO
ENGINE REAR PTO<SV1> 		9-38175-011-0 01 1 9906- ●
17 FLANGE; PTO,FLYWHEEL
ENGINE REAR PTO<SV1> 		1-38189-010-0 01 1 9802-9905 ●
17 FLANGE; PTO,FLYWHEEL
ENGINE REAR PTO<SV1> 		1-38189-010-1 01 1 9906- ●
18 WASHER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO<SV1> 		1-09509-014-0 01 1 9802-9905 ●
18 WASHER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO<SV1> 		1-09509-014-0 01 1 9906- ●
19 BOLT; FLANGE
ENGINE REAR PTO<SV1> (A) M12X70 		9-92621-270-0 04 1 9802-9905 ●
19 BOLT; FLANGE
ENGINE REAR PTO<SV1> (A) M12X70 		9-92621-270-0 04 1 9906- ●
20 SPACER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO<SV1> T=13 ID=22.2 		9-38189-005-0 04 1 9802-9905 ●
20 SPACER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO<SV1> T=13 ID=22.2 		9-38189-005-0 04 1 9906- ●
21 WASHER; LK,FLANGE
ENGINE REAR PTO<SV1> ID=12.2 		9-09150-612-0 04 1 9802-9905 ●
21 WASHER; LK,FLANGE
ENGINE REAR PTO<SV1> ID=12.2 		9-09150-612-0 04 1 9906- ●
22 NUT; FLANGE
ENGINE REAR PTO<SV1> M12 		9-99110-512-0 04 1 9802-9905 ●
22 NUT; FLANGE
ENGINE REAR PTO<SV1> M12 		9-99110-512-0 04 1 9906- ●
25 BEARING; IDLE DRIVEN GEAR,FLYWHEEL PTO
ENGINE REAR PTO<SV1> 		1-09820-105-0 01 1 9703-9905 ●
25 BEARING; IDLE DRIVEN GEAR,FLYWHEEL PTO
ENGINE REAR PTO<SV1> 		1-09820-105-0 01 1 9906- ●
29 SPINDLE; IDLE GEAR,PTO
ENGINE REAR PTO<SV1> 		1-12531-073-0 01 1 9703-9905 ●
29 SPINDLE; IDLE GEAR,PTO
ENGINE REAR PTO<SV1> 		1-12531-073-0 01 1 9906-0008 ●
29 SPINDLE; IDLE GEAR,PTO
ENGINE REAR PTO<SV1> 		1-12531-073-0 02 1 0009-0011 ●
29 SPINDLE; IDLE GEAR,PTO
ENGINE REAR PTO<SV1> 		1-12531-108-0 01 1 0012- ●
30 BOLT; SPINDLE
ENGINE REAR PTO<SV1> 		9-09805-081-1 01 1 9703-9905 ●
30 BOLT; SPINDLE
ENGINE REAR PTO<SV1> 		9-09805-081-1 01 1 9906- ●
31 NUT; IDLE GEAR
ENGINE REAR PTO<SV1> 		9-09843-063-0 01 1 9703-9905 ●
31 NUT; IDLE GEAR
ENGINE REAR PTO<SV1> 		9-09843-063-0 01 1 9906- ●
34 COVER; PTO,FLYWHEEL
ENGINE REAR PTO<SV1> 		1-11343-009-0 01 1 9703-9905 ●
34 COVER; PTO,FLYWHEEL
ENGINE REAR PTO<SV1> 		1-11343-009-0 01 1 9906-0011 ●
34 COVER; PTO,FLYWHEEL
ENGINE REAR PTO<SV1> 		1-11343-012-1 01 1 0012- ●
35 GASKET; COVER
ENGINE REAR PTO<SV1> 		1-09623-266-0 01 1 9703-9905 ●
35 GASKET; COVER
ENGINE REAR PTO<SV1> 		1-09623-266-0 01 1 9906- ●
52 CASE; BRG,PTO
ENGINE REAR PTO<SV1> 		9-38181-007-1 01 1 9703-9905 ●
52 CASE; BRG,PTO
ENGINE REAR PTO<SV1> 		9-38181-007-2 01 1 9906- ●
70 GEAR; IDLE DRIVEN,PTO
ENGINE REAR PTO<SV1> Z=63 		1-38261-030-1 01 1 9703-9905 ●
70 GEAR; IDLE DRIVEN,PTO
ENGINE REAR PTO<SV1> Z=63 		1-38261-030-1 01 1 9906- ●
73 BOLT; COVER,PTO
ENGINE REAR PTO<SV1> M10X25 FLANGE 		0-28781-025-0 04 1 9703-9905 ●
73 BOLT; COVER,PTO
ENGINE REAR PTO<SV1> M10X25 FLANGE 		0-28781-025-0 04 1 9906-0011 ●
73 BOLT; COVER,PTO
ENGINE REAR PTO<SV1> 		0-28191-220-0 06 1 0012- ●
75 BOLT; COVER
ENGINE REAR PTO<SV1> M10X30 FLANGE 		0-28781-030-0 08 1 9703-9905 ●
75 BOLT; COVER
ENGINE REAR PTO<SV1> M10X30 FLANGE 		0-28781-030-0 08 1 9906- ●
76 WASHER; LK,IDLE GEAR
ENGINE REAR PTO<SV1> 		9-09854-034-0 01 1 9703-9905 ●
76 WASHER; LK,IDLE GEAR
ENGINE REAR PTO<SV1> 		9-09854-034-0 01 1 9906- ●
96 RING; GEAR PTO
ENGINE REAR PTO<SV1> 		1-38261-027-0 01 1 9703-9905 ●
96 RING; GEAR PTO
ENGINE REAR PTO<SV1> 		1-38261-027-0 01 1 9906- ●
