2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#50206) — 101 parça

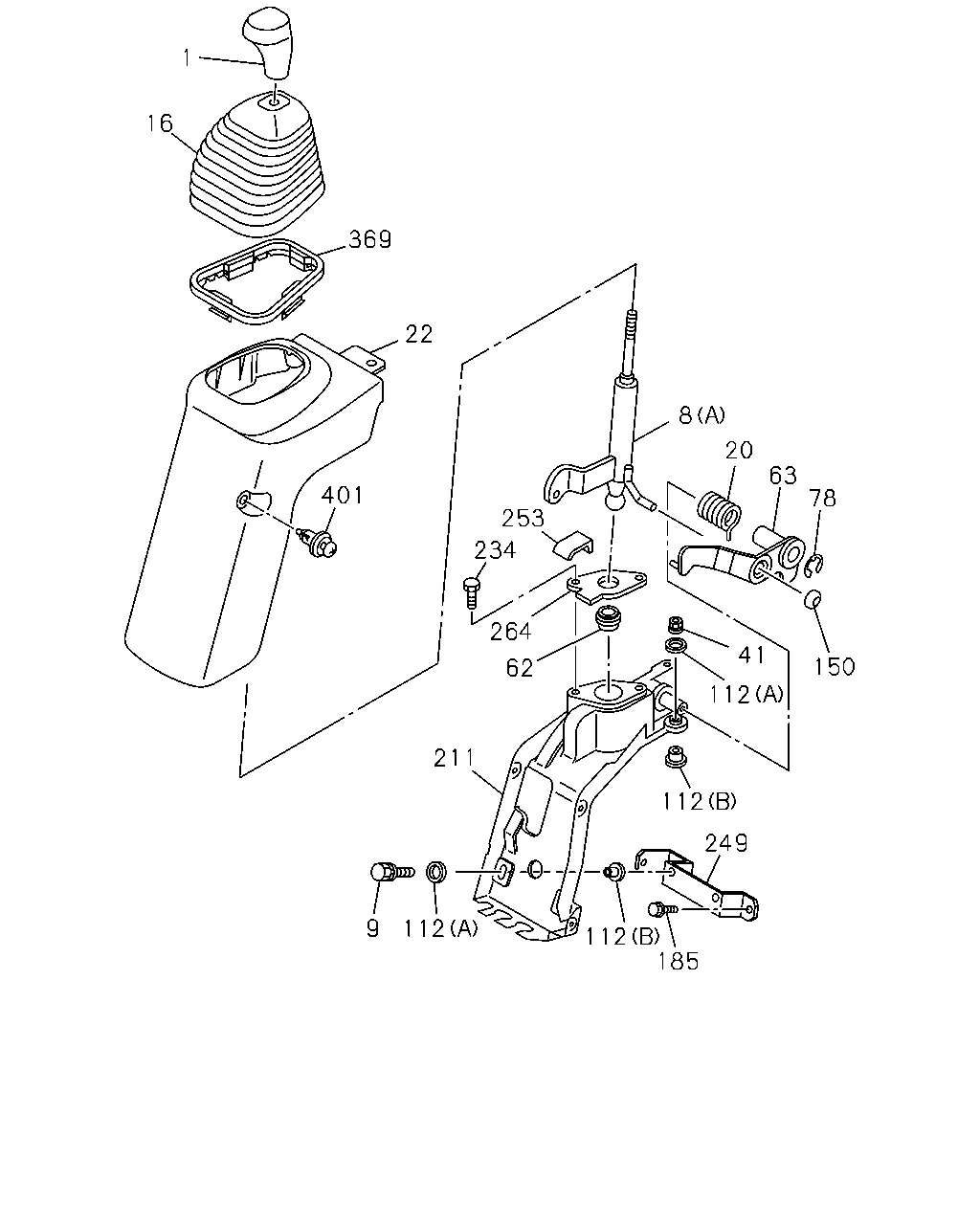

çizim 159285
22 8 78 63 20 150 112 112 249 41 264 234 62 253 369 1 16 401 211 185 112 112 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.006 KNOB; CHANGE LEVER
BLACK 		8-97196-286-1 01 1 1109- ●
1 04.006 KNOB; CHANGE LEVER
BLACK 		8-97196-287-1 01 1 0911-1108 ●
1 04.006 KNOB; CHANGE LEVER
BLACK 		8-97196-287-1 01 1 1109-1211 ● ●
1 04.006 KNOB; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 		8-97196-287-1 01 1 1212- ● ●
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY 		8-97421-816-0 01 1 1212-1311 ● ●
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY 		8-97429-048-0 01 1 1312-1408 ● ●
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY 		8-97465-739-1 01 1 1409- ● ●
8 04.006 LEVER; CHANGE
(A) 		8-97204-506-0 01 1 0911-1108 ●
8 04.006 LEVER; CHANGE
(A) 		8-97204-506-0 01 1 1109-1211 ● ● ●
8 04.006 LEVER; CHANGE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97204-506-0 01 1 1212- ● ●
8 04.006 LEVER; CHANGE
(A) 		8-97204-506-0 01 1 1212- ●
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 0911-1108 ●
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 1109- ● ● ●
16 04.015 BOOT; CHANGE LEVER 8-98035-063-0 01 1 0911-1108 ●
16 04.015 BOOT; CHANGE LEVER 8-98035-063-0 01 1 1109-1211 ● ● ●
16 04.015 BOOT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98035-063-0 01 1 1212- ● ● ●
20 04.012 SPRING; CHANGE LEVER 8-97204-514-1 01 1 0911-1108 ●
20 04.012 SPRING; CHANGE LEVER 8-97204-514-1 01 1 1109-1211 ● ● ●
20 04.012 SPRING; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97204-514-1 01 1 1212- ● ●
20 04.012 SPRING; CHANGE LEVER 8-97204-514-1 01 1 1212- ●
22 04.015 COVER; DUST,CHANGE LEVER
GRAY 		8-97411-505-1 01 1 0911-1012 ●
22 04.015 COVER; DUST,CHANGE LEVER
GRAY 		8-97422-706-0 01 1 1101-1108 ●
22 04.015 COVER; DUST,CHANGE LEVER
GRAY 		8-97422-706-0 01 1 1109- ● ● ●
41 04.012 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1212- ● ●
41 04.012 NUT; CHANGE LEVER
01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 0911-1108 ●
41 04.012 NUT; CHANGE LEVER
01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1109-1211 ● ● ●
41 04.012 NUT; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1212- ● ●
41 04.012 NUT; CHANGE LEVER
01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1212- ●
62 04.012 SEAT; BALL,CHANGE LEVER 8-97011-895-1 01 1 0911-1108 ●
62 04.012 SEAT; BALL,CHANGE LEVER 8-97011-895-1 01 1 1109-1211 ● ● ●
62 04.012 SEAT; BALL,CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97011-895-1 01 1 1212- ● ●
62 04.012 SEAT; BALL,CHANGE LEVER 8-97011-895-1 01 1 1212- ●
63 04.006 LEVER; RELAY,SELECT 8-97143-199-0 01 1 1109- ●
63 04.006 LEVER; RELAY,SELECT 8-97163-768-0 01 1 0911-1108 ●
63 04.006 LEVER; RELAY,SELECT 8-97163-768-0 01 1 1109-1211 ● ●
63 04.006 LEVER; RELAY,SELECT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-768-0 01 1 1212- ● ●
78 04.008 RING; SNAP,CHANGE LEVER
ID=10 		0-91805-510-0 01 1 0911-1108 ●
78 04.008 RING; SNAP,CHANGE LEVER
ID=10 		0-91805-510-0 01 1 1109-1211 ● ● ●
78 04.008 RING; SNAP,CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10 		0-91805-510-0 01 1 1212- ● ●
78 04.008 RING; SNAP,CHANGE LEVER
ID=10 		0-91805-510-0 01 1 1212- ●
112 04.012 RUBBER; CUSHION
(A) 		8-97091-426-0 04 1 0911-1108 ●
112 04.012 RUBBER; CUSHION
(A) 		8-97091-426-0 04 1 1109-1211 ● ● ●
112 04.012 RUBBER; CUSHION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97091-426-0 04 1 1212- ● ●
112 04.012 RUBBER; CUSHION
(A) 		8-97091-426-0 04 1 1212- ●
112 04.012 RUBBER; CUSHION
(B) 		8-97091-427-0 04 1 0911-1108 ●
112 04.012 RUBBER; CUSHION
(B) 		8-97091-427-0 04 1 1109-1211 ● ● ●
112 04.012 RUBBER; CUSHION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97091-427-0 04 1 1212- ● ●
112 04.012 RUBBER; CUSHION
(B) 		8-97091-427-0 04 1 1212- ●
150 04.008 BALL; DETENT,CONT LEVER 8-97049-147-0 01 1 0911-1108 ●
150 04.008 BALL; DETENT,CONT LEVER 8-97049-147-0 01 1 1109-1211 ● ● ●
150 04.008 BALL; DETENT,CONT LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97049-147-0 01 1 1212- ● ●
150 04.008 BALL; DETENT,CONT LEVER 8-97049-147-0 01 1 1212- ●
185 04.012 BOLT; BRKT,COVER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0911-1108 ●
185 04.012 BOLT; BRKT,COVER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1109- ● ● ●
211 04.010 BRACKET; CHANGE LEVER 8-97204-505-1 01 1 0911-1108 ●
211 04.010 BRACKET; CHANGE LEVER 8-97204-505-1 01 1 1109-1211 ● ● ●
211 04.010 BRACKET; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97204-505-1 01 1 1212- ● ●
211 04.010 BRACKET; CHANGE LEVER 8-97204-505-1 01 1 1212- ●
234 04.010 BOLT; BRKT
M6X12 FLANGE 		1-33739-842-0 02 1 0911-1108 ●
234 04.010 BOLT; BRKT
M6X12 FLANGE 		1-33739-842-0 02 1 1109-1211 ● ● ●
234 04.010 BOLT; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE 		1-33739-842-0 02 1 1212- ● ●
234 04.010 BOLT; BRKT
M6X12 FLANGE 		1-33739-842-0 02 1 1212- ●
249 04.012 BRACKET; COVER 8-97387-767-0 01 1 0911-1108 ●
249 04.012 BRACKET; COVER 8-97387-767-0 01 1 1109- ● ● ●
253 04.012 STOPPER; CHANGE LEVER 8-97204-510-0 01 1 0911-1108 ●
253 04.012 STOPPER; CHANGE LEVER 8-97204-510-0 01 1 1109-1211 ● ● ●
253 04.012 STOPPER; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97204-510-0 01 1 1212- ● ●
253 04.012 STOPPER; CHANGE LEVER 8-97204-510-0 01 1 1212- ●
264 04.015 PLATE; COVER 8-97204-511-0 01 1 0911-1108 ●
264 04.015 PLATE; COVER 8-97204-511-0 01 1 1109-1211 ● ● ●
264 04.015 PLATE; COVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97204-511-0 01 1 1212- ● ●
264 04.015 PLATE; COVER 8-97204-511-0 01 1 1212- ●
369 04.012 RETAINER; REINF 8-98032-213-1 01 1 0911-1108 ●
369 04.012 RETAINER; REINF 8-98032-213-1 01 1 1109-1211 ● ● ●
369 04.012 RETAINER; REINF
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98032-213-1 01 1 1212- ● ● ●
401 04.012 CLIP; COVER
GRAY 		8-97406-179-0 04 1 0911-1108 ●
401 04.012 CLIP; COVER
GRAY 		8-97406-179-0 04 1 1109- ● ● ●

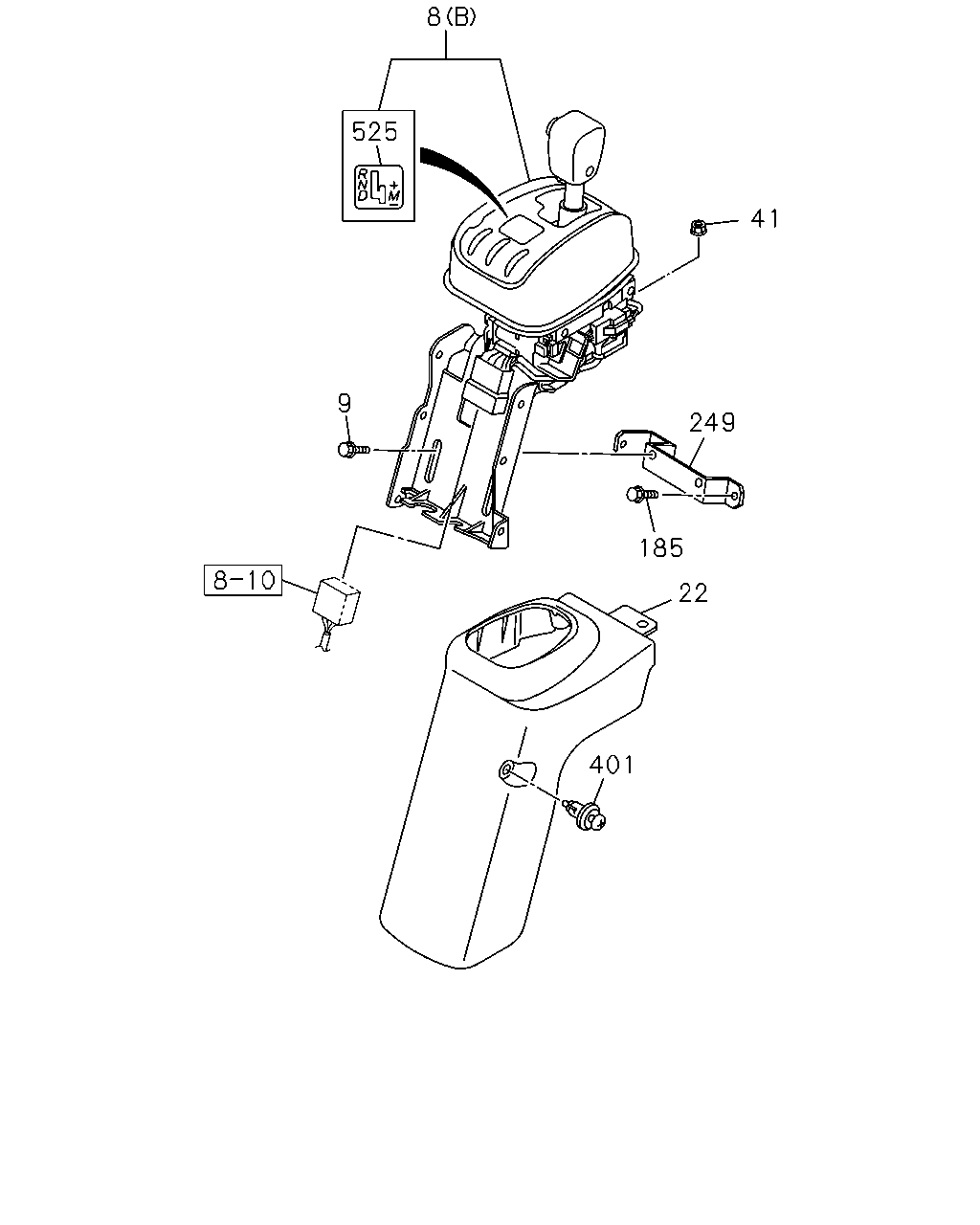

çizim 331105
41 249 185 22 401 9 8 525
BalonParca AdiParca NoAdetTipApplied Date A B C
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY 		8-97421-816-0 01 1 1212-1311 ● ●
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY 		8-97429-048-0 01 1 1312-1408 ● ●
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY 		8-97465-739-1 01 1 1409- ● ●
8 04.006 LEVER; CHANGE
(A) 		8-97204-506-0 01 1 0911-1108 ●
8 04.006 LEVER; CHANGE
(A) 		8-97204-506-0 01 1 1109-1211 ● ● ●
8 04.006 LEVER; CHANGE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97204-506-0 01 1 1212- ● ●
8 04.006 LEVER; CHANGE
(A) 		8-97204-506-0 01 1 1212- ●
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 0911-1108 ●
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 1109- ● ● ●
22 04.015 COVER; DUST,CHANGE LEVER
GRAY 		8-97411-505-1 01 1 0911-1012 ●
22 04.015 COVER; DUST,CHANGE LEVER
GRAY 		8-97422-706-0 01 1 1101-1108 ●
22 04.015 COVER; DUST,CHANGE LEVER
GRAY 		8-97422-706-0 01 1 1109- ● ● ●
41 04.012 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1212- ● ●
41 04.012 NUT; CHANGE LEVER
01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 0911-1108 ●
41 04.012 NUT; CHANGE LEVER
01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1109-1211 ● ● ●
41 04.012 NUT; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1212- ● ●
41 04.012 NUT; CHANGE LEVER
01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1212- ●
185 04.012 BOLT; BRKT,COVER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0911-1108 ●
185 04.012 BOLT; BRKT,COVER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1109- ● ● ●
249 04.012 BRACKET; COVER 8-97387-767-0 01 1 0911-1108 ●
249 04.012 BRACKET; COVER 8-97387-767-0 01 1 1109- ● ● ●
401 04.012 CLIP; COVER
GRAY 		8-97406-179-0 04 1 0911-1108 ●
401 04.012 CLIP; COVER
GRAY 		8-97406-179-0 04 1 1109- ● ● ●
525 04.040 LABEL; SHIFT POSITION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-480-1 01 1 1212- ● ●
