◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51244 - NPR(LHD) EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26 - MANUAL TRANSMISSION GEAR ▶
2-26 — MANUAL TRANSMISSION GEAR (#50204) — 895 parça

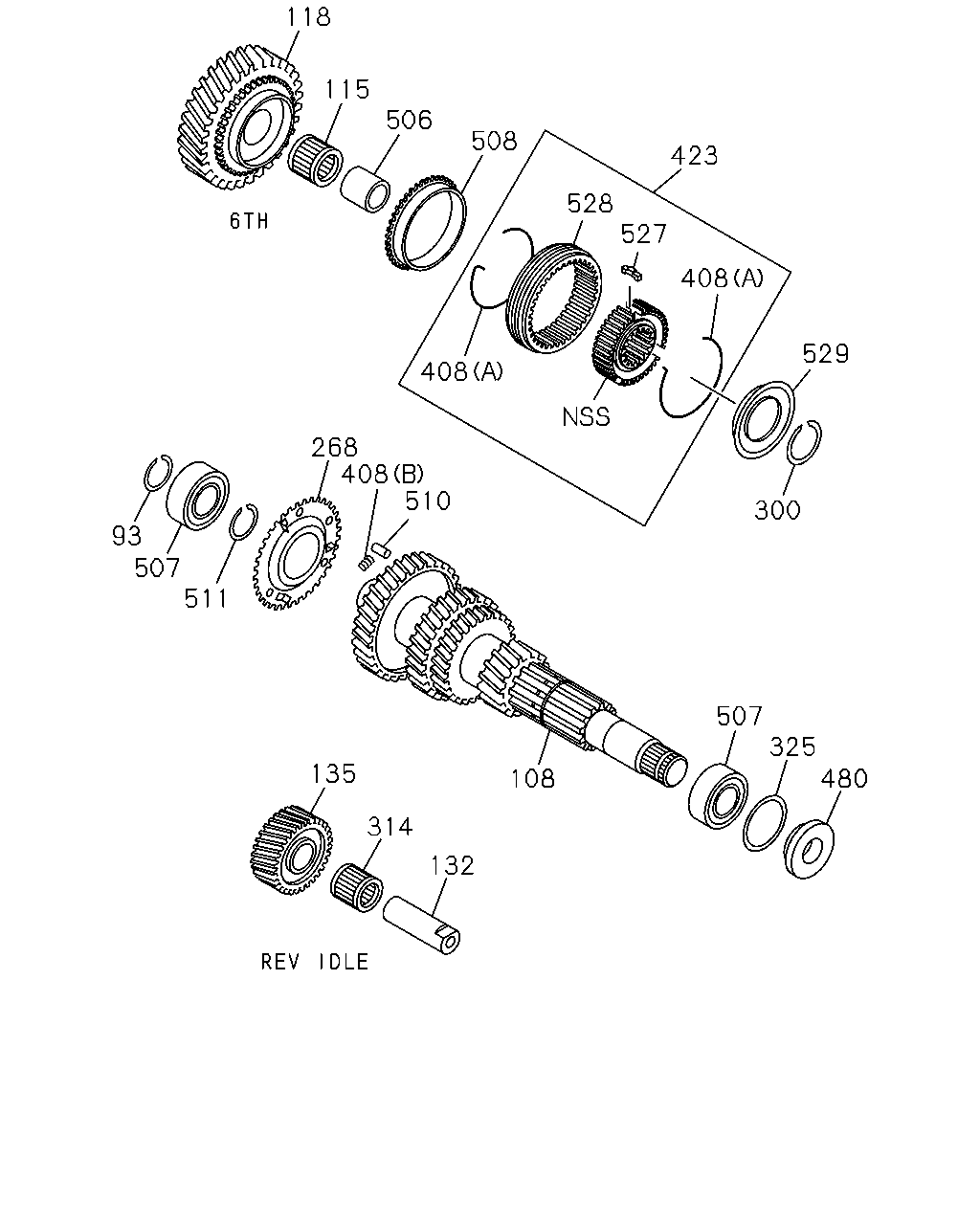

çizim 159282
118 115 506 508 423 528 527 408 529 408 268 408 510 300 93 507 511 507 325 135 480 108 314 132
BalonParca AdiParca NoAdetTipApplied Date A B C
93 04.422 RING; SNAP,COUNTER FRT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=34.4 T=1.9 		8-97254-735-0 01 1 1109-1211 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=1.9 		8-97254-735-0 01 1 1212- ●
93 04.422 RING; SNAP,COUNTER FRT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=34.4 T=2.1 		8-97254-738-0 01 1 1109-1211 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.1 		8-97254-738-0 01 1 1212- ●
93 04.422 RING; SNAP,COUNTER FRT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=34.4 T=2.3 		8-97254-741-0 01 1 1109-1211 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.3 		8-97254-741-0 01 1 1212- ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 0911-1108 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 1109- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 0911-1108 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 1109- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 0911-1108 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 1109- ● ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20 		8-97252-639-1 01 1 1212- ●
108 04.428 SHAFT; COUNTER
Z=45-49-33-20 		8-97380-630-1 01 1 1109- ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=46-38-29-21 		8-98113-224-0 01 1 1109-1211 ●
108 04.428 SHAFT; COUNTER
Z=46-38-29-21 		8-98113-224-0 01 1 1212-1308 ●
108 04.428 SHAFT; COUNTER
Z=46-38-29-21 		8-98249-489-0 01 1 1309- ●
108 04.428 SHAFT; COUNTER
Z=47-39-33-20 		8-97380-627-1 01 1 0911-1211 ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-39-33-20 		8-97380-627-1 01 1 1212- ●
115 04.352 BEARING; NEEDLE,6TH,COUNTER
OD=49.8 		8-98286-084-0 01 1 1411- ● ●
115 04.352 BEARING; NEEDLE,6TH,COUNTER
OD=49.75 		8-97253-113-0 01 1 0911-1108 ●
115 04.352 BEARING; NEEDLE,6TH,COUNTER
OD=49.75 		8-97253-113-0 01 1 1109- ● ●
118 04.421 GEAR; 6TH,COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47 		8-97241-246-0 01 1 1109-1211 ●
118 04.421 GEAR; 6TH,COUNTER
Z=47 		8-97241-246-0 01 1 1212- ●
118 04.421 GEAR; 6TH,COUNTER
Z=50 		8-97386-580-0 01 1 0911- ●
132 04.433 SHAFT; REV 8-97252-655-0 01 1 0911-1108 ●
132 04.433 SHAFT; REV 8-97252-655-0 01 1 1109- ● ● ●
135 04.430 GEAR; REV IDLER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=26 		8-97241-292-2 01 1 1109-1211 ●
135 04.430 GEAR; REV IDLER
Z=26 		8-97241-292-2 01 1 1212- ●
135 04.430 GEAR; REV IDLER
Z=25 		8-98031-869-1 01 1 0911-1108 ●
135 04.430 GEAR; REV IDLER
Z=25 		8-98031-869-1 01 1 1109- ● ●
268 04.537 PLATE; ANTI LASH,COUNTER 8-97257-300-1 01 1 1109- ●
268 04.537 PLATE; ANTI LASH,COUNTER 8-97252-684-1 01 1 0911-1211 ●
268 04.537 PLATE; ANTI LASH,COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-684-1 01 1 1212- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=33.2 T=1.7 		8-97288-618-0 01 1 1109-1211 ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.7 		8-97288-618-0 01 1 1212- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=33.2 T=1.8 		8-97288-619-0 01 1 1109-1211 ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.8 		8-97288-619-0 01 1 1212- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=33.2 T=1.9 		8-97288-620-0 01 1 1109-1211 ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.9 		8-97288-620-0 01 1 1212- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=33.2 T=1.6 		8-97365-616-0 01 1 1109-1211 ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.6 		8-97365-616-0 01 1 1212- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.7 		8-97254-727-0 01 1 0911- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
04.384 ID=30.7 T=1.8 		8-97254-728-0 01 1 0911- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.9 		8-97254-734-0 01 1 0911- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.6 		8-97365-617-0 01 1 0911- ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 0911-1108 ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 1109- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.38 		8-97252-656-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.38 		8-97252-656-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.44 		8-97252-657-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.44 		8-97252-657-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.50 		8-97252-658-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.50 		8-97252-658-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.56 		8-97252-659-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.56 		8-97252-659-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.62 		8-97252-660-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.62 		8-97252-660-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.68 		8-97252-661-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.68 		8-97252-661-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.74 		8-97252-662-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.74 		8-97252-662-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.80 		8-97252-663-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.80 		8-97252-663-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.86 		8-97252-664-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.86 		8-97252-664-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.92 		8-97252-665-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.92 		8-97252-665-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.98 		8-97257-621-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.98 		8-97257-621-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.20 		8-97306-185-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.20 		8-97306-185-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.26 		8-97306-186-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.26 		8-97306-186-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.32 		8-97306-187-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.32 		8-97306-187-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 1109- ● ●
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 0911-1108 ●
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 1109-1211 ● ●
408 04.384 SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B) 		8-94148-196-0 03 1 1212- ●
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 1212- ●
408 04.384 SPRING
(A) 		8-97366-040-1 04 1 0911-1108 ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 1109- ● ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 1109- ●
423 04.384 SLEEVE & HUB ASM; 6TH 8-97367-022-0 01 1 0911- ●
480 04.419 WASHER; THRUST,6TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97253-122-1 01 1 1109-1211 ●
480 04.419 WASHER; THRUST,6TH 8-97253-122-1 01 1 1212- ●
480 04.419 WASHER; THRUST,6TH 8-97253-123-1 01 1 0911- ●
506 04.419 COLLAR; 6TH,COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97253-120-1 01 1 1109-1211 ●
506 04.419 COLLAR; 6TH,COUNTER 8-97253-120-1 01 1 1212- ●
506 04.419 COLLAR; 6TH,COUNTER 8-97253-121-1 01 1 0911- ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97253-106-0 02 1 1109-1211 ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-106-0 02 1 1212- ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 0911-1108 ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 1109- ● ●
508 04.383 RING; BLOCK,6TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-306-1 01 1 1109-1211 ●
508 04.383 RING; BLOCK,6TH
Z=45 		8-97241-306-1 01 1 1212- ●
508 04.383 RING; BLOCK,6TH
04.395 Z=45 		8-97309-532-0 01 1 0911- ●
510 04.540 PIN; STRAIGHT,ANTI LASH
00.862 		9-08160-825-0 03 1 0911-1108 ●
510 04.540 PIN; STRAIGHT,ANTI LASH
00.862 		9-08160-825-0 03 1 1109-1211 ● ●
510 04.540 PIN; STRAIGHT,ANTI LASH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.862 		9-08160-825-0 03 1 1212- ●
510 04.540 PIN; STRAIGHT,ANTI LASH
00.862 		9-08160-825-0 03 1 1212- ●
511 04.416 RING; SNAP,ANTI LASH PLATE 8-97254-767-0 01 1 0911-1108 ●
511 04.416 RING; SNAP,ANTI LASH PLATE 8-97254-767-0 01 1 1109-1211 ● ●
511 04.416 RING; SNAP,ANTI LASH PLATE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-767-0 01 1 1212- ●
511 04.416 RING; SNAP,ANTI LASH PLATE 8-97254-767-0 01 1 1212- ●
527 04.384 INSERT; 6TH 8-94448-202-2 03 1 0911- ●
528 04.384 SLEEVE; 6TH
04.535 Z=45 		8-94421-871-1 01 1 0911- ●
529 04.384 PLATE; STOPPER,6TH 8-97248-952-0 01 1 0911- ●

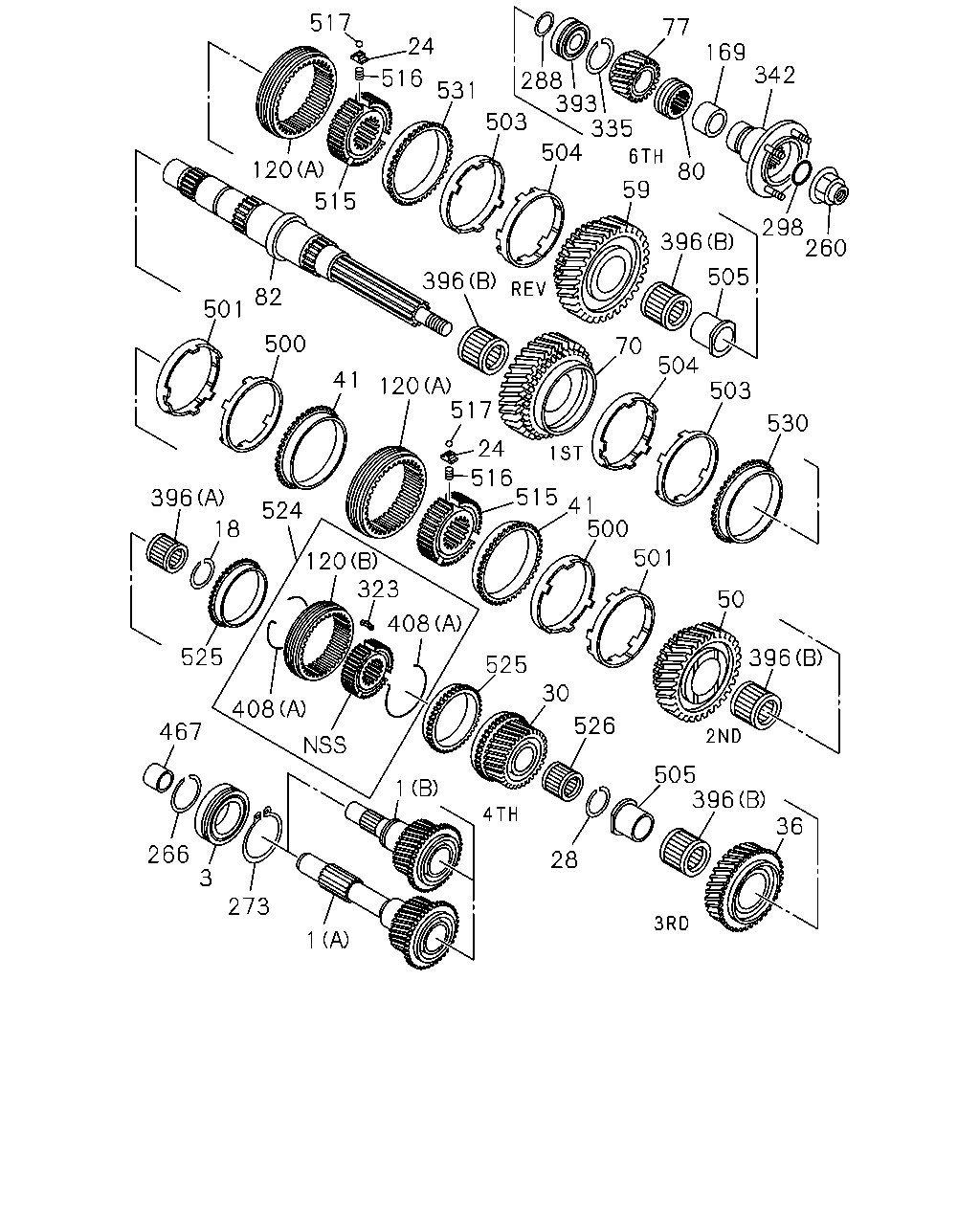

çizim 159312
36 396 505 526 30 525 1 28 1 273 3 266 467 525 408 323 408 515 41 500 501 50 530 503 504 70 24 516 120 517 41 500 82 501 396 18 524 120 505 396 298 260 342 169 77 80 59 335 504 393 288 503 396 531 516 24 517 120 515 396
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26 		8-98021-267-0 01 1 1212- ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=25 		8-97371-091-0 01 1 1212- ●
1 04.351 SHAFT; TOP GEAR,TRANS
(A) Z=28 		8-98031-848-0 01 1 1109- ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=25 		8-97371-090-0 01 1 1109- ●
1 04.351 SHAFT; TOP GEAR,TRANS
(A) Z=26 		8-98021-266-0 01 1 0911-1211 ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=26 		8-98021-266-0 01 1 1212- ●
3 04.403 BEARING; TOP GEAR SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) NSK 		8-97253-097-1 01 1 1109-1211 ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-097-1 01 1 1212- ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 0911-1108 ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 1109- ● ●
18 04.384 RING; SNAP,CLU HUB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=35.7 T=1.8 		8-97256-855-0 01 1 1109-1211 ●
18 04.384 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1212- ●
18 04.384 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 0911-1108 ●
18 04.384 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 1109- ● ●
24 04.383 BLOCK; INDEX,SYN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-313-1 12 1 1109-1211 ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1212- ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 06 1 0911-1108 ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 06 1 1109-1211 ● ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 1212- ● ●
24 04.383 BLOCK; INDEX,SYN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-313-1 03 1 1212- ● ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 1212- ●
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 0911-1108 ●
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 1109- ● ● ●
30 04.415 GEAR; 4TH,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=28 		8-97252-628-0 01 1 1109-1211 ●
30 04.415 GEAR; 4TH,MAINSHAFT
Z=28 		8-97252-628-0 01 1 1212- ●
30 04.415 GEAR; 4TH,MAINSHAFT
Z=28 		8-97241-230-0 01 1 0911- ●
36 04.415 GEAR; 3RD,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=31 		8-97252-630-1 01 1 1109-1211 ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=31 		8-97252-630-1 01 1 1212- ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 0911-1108 ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 1109- ● ●
41 04.383 RING; BLOCK,2ND & 3RD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 02 1 1109-1211 ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=54 		8-97241-305-2 02 1 1212- ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 0911-1108 ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 1109- ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43 		8-97241-236-1 01 1 1109-1211 ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=43 		8-97241-236-1 01 1 1212- ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 0911-1108 ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 1109- ● ●
59 04.417 GEAR; REV MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-243-0 01 1 1109-1211 ●
59 04.417 GEAR; REV MAINSHAFT
Z=45 		8-97241-243-0 01 1 1212- ●
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97350-011-0 01 1 0911-1006 ●
59 04.417 GEAR; REV MAINSHAFT
4HK1-TCN ENG(RDQ) Z=41 		8-97241-244-0 01 1 1007-1108 ●
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97241-244-0 01 1 1109- ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43 		8-97352-815-0 01 1 1212- ●
70 04.417 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-241-0 01 1 1109-1211 ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=45 		8-97241-241-0 01 1 1212- ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=43 		8-97350-010-0 01 1 0911-1108 ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=43 		8-97350-010-0 01 1 1109-1211 ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43 		8-97350-010-0 01 1 1212- ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=43 		8-97350-010-0 01 1 1212- ●
77 04.421 GEAR; 6TH,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=20 		8-97252-634-0 01 1 1109-1211 ●
77 04.421 GEAR; 6TH,MAINSHAFT
Z=20 		8-97252-634-0 01 1 1212- ●
77 04.421 GEAR; 6TH,MAINSHAFT
Z=21 		8-97386-582-0 01 1 0911- ●
80 04.343 GEAR; SPD DRIVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=6 		8-97327-118-0 01 1 1109-1211 ●
80 04.343 GEAR; SPD DRIVE
Z=6 		8-97327-118-0 01 1 1212- ●
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 0911-1108 ●
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 1109- ● ●
82 04.403 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-117-3 01 1 1109- ●
82 04.403 SHAFT; MAIN,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=26-42-23 		8-97253-115-3 01 1 1109-1211 ●
82 04.403 SHAFT; MAIN,TRANS
Z=26-42-23 		8-97253-115-3 01 1 1212- ●
82 04.403 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-116-3 01 1 0911- ●
120 04.383 SLEEVE
04.535 (B) Z=45 		8-94421-871-1 01 1 0911-1108 ●
120 04.383 SLEEVE
04.535 (B) Z=45 		8-94421-871-1 01 1 1109- ● ●
120 04.383 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 0911-1108 ●
120 04.383 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1109-1211 ● ●
120 04.383 SLEEVE
(A) Z=45 		8-97241-296-1 01 1 1212-1311 ● ●
120 04.383 SLEEVE
(A) Z=45 		8-97241-296-1 01 1 1212-1311 ● ●
120 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 01 1 1312- ● ●
120 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 01 1 1312- ● ●
169 04.419 COLLAR; MAINSHAFT 8-97252-937-1 01 1 0911- ●
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 0911-1108 ●
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 1109-1211 ● ● ●
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 1212- ● ● ●
266 04.525 RING; SNAP,BRG INNER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97286-915-0 01 1 1109-1211 ●
266 04.525 RING; SNAP,BRG INNER 8-97286-915-0 01 1 1212- ●
266 04.525 RING; SNAP,BRG INNER 8-97286-916-0 01 1 0911-1108 ●
266 04.525 RING; SNAP,BRG INNER 8-97286-916-0 01 1 1109- ● ●
273 04.525 RING; SNAP,BRG OUTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-609-0 01 1 1109-1211 ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-609-0 01 1 1212- ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 0911-1108 ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 1109- ● ●
288 04.399 SPACER; BRG,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-941-0 01 1 1109-1211 ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-941-0 01 1 1212- ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 0911-1108 ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 1109- ● ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 05.595 ID=35.7 T=5 		1-09623-379-0 01 1 1109-1211 ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5 		1-09623-379-0 01 1 1212- ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-98028-226-0 01 1 0911-1108 ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-98028-226-0 01 1 1109- ● ●
323 04.384 INSERT 8-94448-202-2 03 1 0911-1108 ●
323 04.384 INSERT 8-94448-202-2 03 1 1109- ● ●
335 04.383 RING; SNAP,BEARING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-720-0 01 1 1109-1211 ●
335 04.383 RING; SNAP,BEARING 8-97254-720-0 01 1 1212- ●
335 04.383 RING; SNAP,BEARING 8-97254-722-0 01 1 0911-1108 ●
335 04.383 RING; SNAP,BEARING 8-97254-722-0 01 1 1109- ● ●
342 05.545 FLANGE; OUTPUT 8-98031-640-0 01 1 1109- ●
342 05.545 FLANGE; OUTPUT 8-98031-862-0 01 1 0911- ●
393 04.352 BEARING; MAINSHAFT END
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97253-104-0 01 1 1109-1211 ●
393 04.352 BEARING; MAINSHAFT END 8-97253-104-0 01 1 1212- ●
393 04.352 BEARING; MAINSHAFT END 8-97253-105-1 01 1 0911-1108 ●
393 04.352 BEARING; MAINSHAFT END 8-97253-105-1 01 1 1109- ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97253-099-1 01 1 1109-1211 ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-099-1 01 1 1212- ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 0911-1108 ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 1109- ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 0911-1108 ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 1109- ● ● ●
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 0911-1108 ●
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 1109-1211 ● ●
408 04.384 SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B) 		8-94148-196-0 03 1 1212- ●
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 1212- ●
408 04.384 SPRING
(A) 		8-97366-040-1 04 1 0911-1108 ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 1109- ● ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 1109- ●
467 04.317 COLLAR; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-183-1 01 1 1212- ● ●
500 04.383 RING; OUTSIDE,3RD & 2ND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-307-1 02 1 1109-1211 ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-307-1 02 1 1212- ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 0911-1108 ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 1109- ● ●
501 04.383 RING; INSIDE,3RD & 2ND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-311-1 02 1 1109-1211 ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-311-1 02 1 1212- ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 0911-1108 ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 1109- ● ●
503 04.383 RING; OUTSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-307-1 02 1 1109- ●
503 04.383 RING; OUTSIDE,LOW & REV 8-97241-309-1 02 1 0911-1006 ●
503 04.383 RING; OUTSIDE,LOW & REV
4HK1-TCN ENG(RDQ) 		8-97241-309-1 01 1 1007-1108 ●
503 04.383 RING; OUTSIDE,LOW & REV 8-97241-309-1 01 1 1109-1211 ● ●
503 04.383 RING; OUTSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-309-1 01 1 1212- ●
503 04.383 RING; OUTSIDE,LOW & REV 8-97241-309-1 01 1 1212- ●
504 04.383 RING; INSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-311-1 02 1 1109- ●
504 04.383 RING; INSIDE,LOW & REV 8-97241-312-1 02 1 0911-1006 ●
504 04.383 RING; INSIDE,LOW & REV
4HK1-TCN ENG(RDQ) 		8-97241-312-1 01 1 1007-1108 ●
504 04.383 RING; INSIDE,LOW & REV 8-97241-312-1 01 1 1109-1211 ● ●
504 04.383 RING; INSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-312-1 01 1 1212- ●
504 04.383 RING; INSIDE,LOW & REV 8-97241-312-1 01 1 1212- ●
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 0911-1108 ●
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 1109- ● ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97239-155-2 02 1 1109-1211 ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 01 1 1212- ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 01 1 1212- ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 02 1 0911-1108 ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 02 1 1109-1211 ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 01 1 1212- ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 01 1 1212- ● ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-803-1 03 1 1212- ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-803-1 12 1 1109-1211 ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97305-803-1 09 1 1212- ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 06 1 0911-1108 ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 06 1 1109-1211 ● ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 03 1 1212- ● ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-835-0 03 1 1212- ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 03 1 1212- ●
517 04.384 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 12 1 1109-1211 ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1212- ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 06 1 0911-1108 ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 06 1 1109-1211 ● ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 1212- ● ●
517 04.384 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 03 1 1212- ● ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 1212- ●
524 04.395 SLEEVE & HUB ASM; TOP-4TH,OD 8-97366-526-0 01 1 0911-1108 ●
524 04.395 SLEEVE & HUB ASM; TOP-4TH,OD 8-97366-526-0 01 1 1109- ● ●
525 04.395 RING; BLOCK,TOP & 4TH,OD
Z=45 		8-97309-532-0 02 1 0911-1108 ●
525 04.395 RING; BLOCK,TOP & 4TH,OD
Z=45 		8-97309-532-0 02 1 1109- ● ●
526 04.352 BEARING; NEEDLE,4TH & 5TH 8-97253-112-0 01 1 0911-1108 ●
526 04.352 BEARING; NEEDLE,4TH & 5TH 8-97253-112-0 01 1 1109- ● ●
530 04.383 RING; BLOCK,LOW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 01 1 1109- ●
530 04.383 RING; BLOCK,LOW
Z=45 		8-97241-306-1 01 1 0911-1108 ●
530 04.383 RING; BLOCK,LOW
Z=45 		8-97241-306-1 01 1 1109-1211 ● ●
530 04.383 RING; BLOCK,LOW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-306-1 01 1 1212- ●
530 04.383 RING; BLOCK,LOW
Z=45 		8-97241-306-1 01 1 1212- ●
531 04.383 RING; BLOCK,REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 01 1 1109- ●
531 04.383 RING; BLOCK,REV
Z=45 		8-97241-306-1 01 1 0911-1006 ●
531 04.383 RING; BLOCK,REV
4HK1-TCN ENG(RDQ) Z=45 		8-97368-343-0 01 1 1007-1108 ●
531 04.383 RING; BLOCK,REV
Z=45 		8-97368-343-0 01 1 1109-1211 ● ●
531 04.383 RING; BLOCK,REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97368-343-0 01 1 1212- ●
531 04.383 RING; BLOCK,REV
Z=45 		8-97368-343-0 01 1 1212- ●

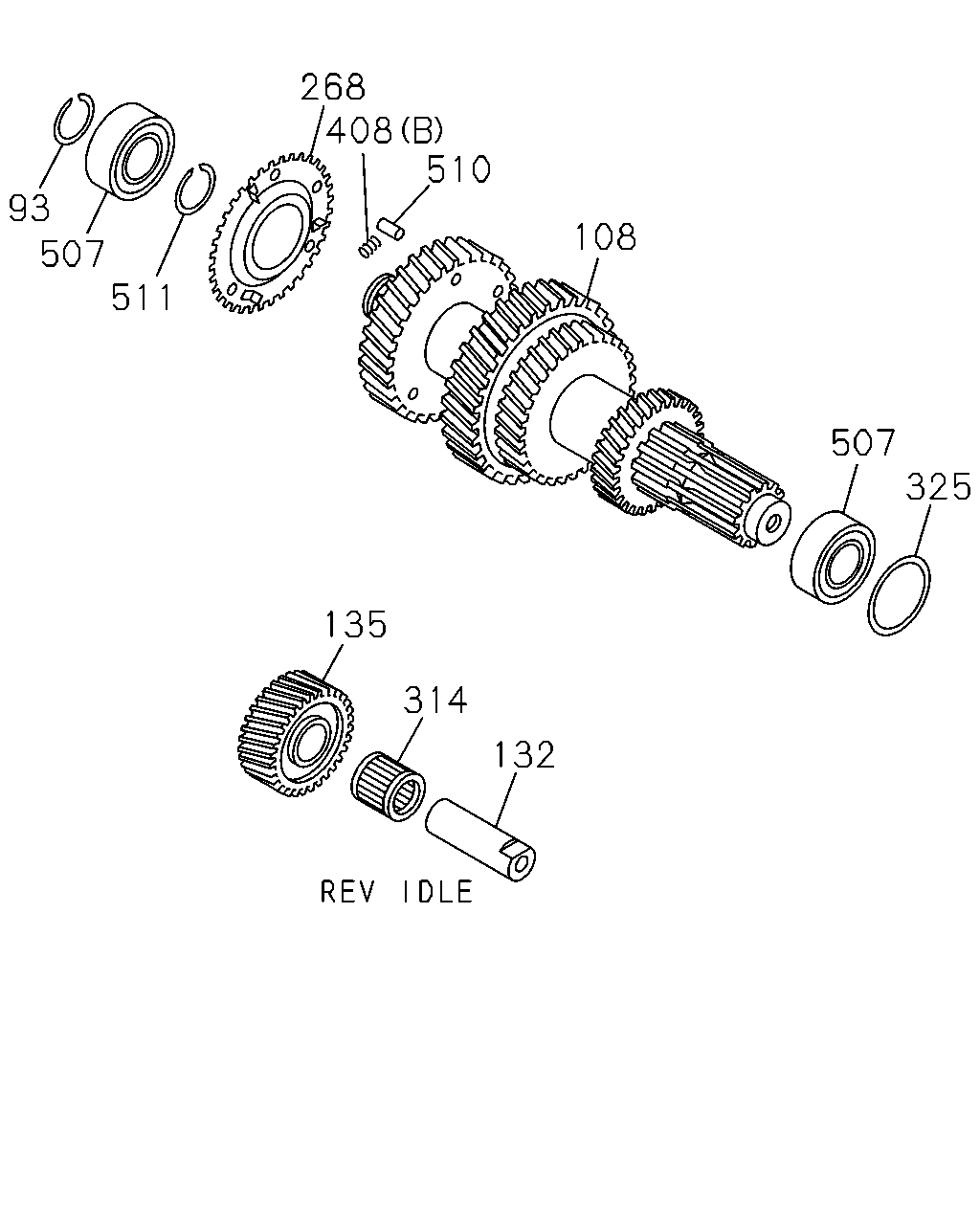

çizim 159532
268 408 510 93 108 507 511 507 325 135 314 132
BalonParca AdiParca NoAdetTipApplied Date A B C
93 04.422 RING; SNAP,COUNTER FRT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=34.4 T=1.9 		8-97254-735-0 01 1 1109-1211 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=1.9 		8-97254-735-0 01 1 1212- ●
93 04.422 RING; SNAP,COUNTER FRT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=34.4 T=2.1 		8-97254-738-0 01 1 1109-1211 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.1 		8-97254-738-0 01 1 1212- ●
93 04.422 RING; SNAP,COUNTER FRT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=34.4 T=2.3 		8-97254-741-0 01 1 1109-1211 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.3 		8-97254-741-0 01 1 1212- ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 0911-1108 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 1109- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 0911-1108 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 1109- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 0911-1108 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 1109- ● ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20 		8-97252-639-1 01 1 1212- ●
108 04.428 SHAFT; COUNTER
Z=45-49-33-20 		8-97380-630-1 01 1 1109- ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=46-38-29-21 		8-98113-224-0 01 1 1109-1211 ●
108 04.428 SHAFT; COUNTER
Z=46-38-29-21 		8-98113-224-0 01 1 1212-1308 ●
108 04.428 SHAFT; COUNTER
Z=46-38-29-21 		8-98249-489-0 01 1 1309- ●
108 04.428 SHAFT; COUNTER
Z=47-39-33-20 		8-97380-627-1 01 1 0911-1211 ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-39-33-20 		8-97380-627-1 01 1 1212- ●
132 04.433 SHAFT; REV 8-97252-655-0 01 1 0911-1108 ●
132 04.433 SHAFT; REV 8-97252-655-0 01 1 1109- ● ● ●
135 04.430 GEAR; REV IDLER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=26 		8-97241-292-2 01 1 1109-1211 ●
135 04.430 GEAR; REV IDLER
Z=26 		8-97241-292-2 01 1 1212- ●
135 04.430 GEAR; REV IDLER
Z=25 		8-98031-869-1 01 1 0911-1108 ●
135 04.430 GEAR; REV IDLER
Z=25 		8-98031-869-1 01 1 1109- ● ●
268 04.537 PLATE; ANTI LASH,COUNTER 8-97257-300-1 01 1 1109- ●
268 04.537 PLATE; ANTI LASH,COUNTER 8-97252-684-1 01 1 0911-1211 ●
268 04.537 PLATE; ANTI LASH,COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-684-1 01 1 1212- ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 0911-1108 ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 1109- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.38 		8-97252-656-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.38 		8-97252-656-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.44 		8-97252-657-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.44 		8-97252-657-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.50 		8-97252-658-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.50 		8-97252-658-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.56 		8-97252-659-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.56 		8-97252-659-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.62 		8-97252-660-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.62 		8-97252-660-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.68 		8-97252-661-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.68 		8-97252-661-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.74 		8-97252-662-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.74 		8-97252-662-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.80 		8-97252-663-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.80 		8-97252-663-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.86 		8-97252-664-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.86 		8-97252-664-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.92 		8-97252-665-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.92 		8-97252-665-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.98 		8-97257-621-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.98 		8-97257-621-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.20 		8-97306-185-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.20 		8-97306-185-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.26 		8-97306-186-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.26 		8-97306-186-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.32 		8-97306-187-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.32 		8-97306-187-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 1109- ● ●
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 0911-1108 ●
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 1109-1211 ● ●
408 04.384 SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B) 		8-94148-196-0 03 1 1212- ●
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 1212- ●
408 04.384 SPRING
(A) 		8-97366-040-1 04 1 0911-1108 ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 1109- ● ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 1109- ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97253-106-0 02 1 1109-1211 ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-106-0 02 1 1212- ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 0911-1108 ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 1109- ● ●
510 04.540 PIN; STRAIGHT,ANTI LASH
00.862 		9-08160-825-0 03 1 0911-1108 ●
510 04.540 PIN; STRAIGHT,ANTI LASH
00.862 		9-08160-825-0 03 1 1109-1211 ● ●
510 04.540 PIN; STRAIGHT,ANTI LASH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.862 		9-08160-825-0 03 1 1212- ●
510 04.540 PIN; STRAIGHT,ANTI LASH
00.862 		9-08160-825-0 03 1 1212- ●
511 04.416 RING; SNAP,ANTI LASH PLATE 8-97254-767-0 01 1 0911-1108 ●
511 04.416 RING; SNAP,ANTI LASH PLATE 8-97254-767-0 01 1 1109-1211 ● ●
511 04.416 RING; SNAP,ANTI LASH PLATE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-767-0 01 1 1212- ●
511 04.416 RING; SNAP,ANTI LASH PLATE 8-97254-767-0 01 1 1212- ●

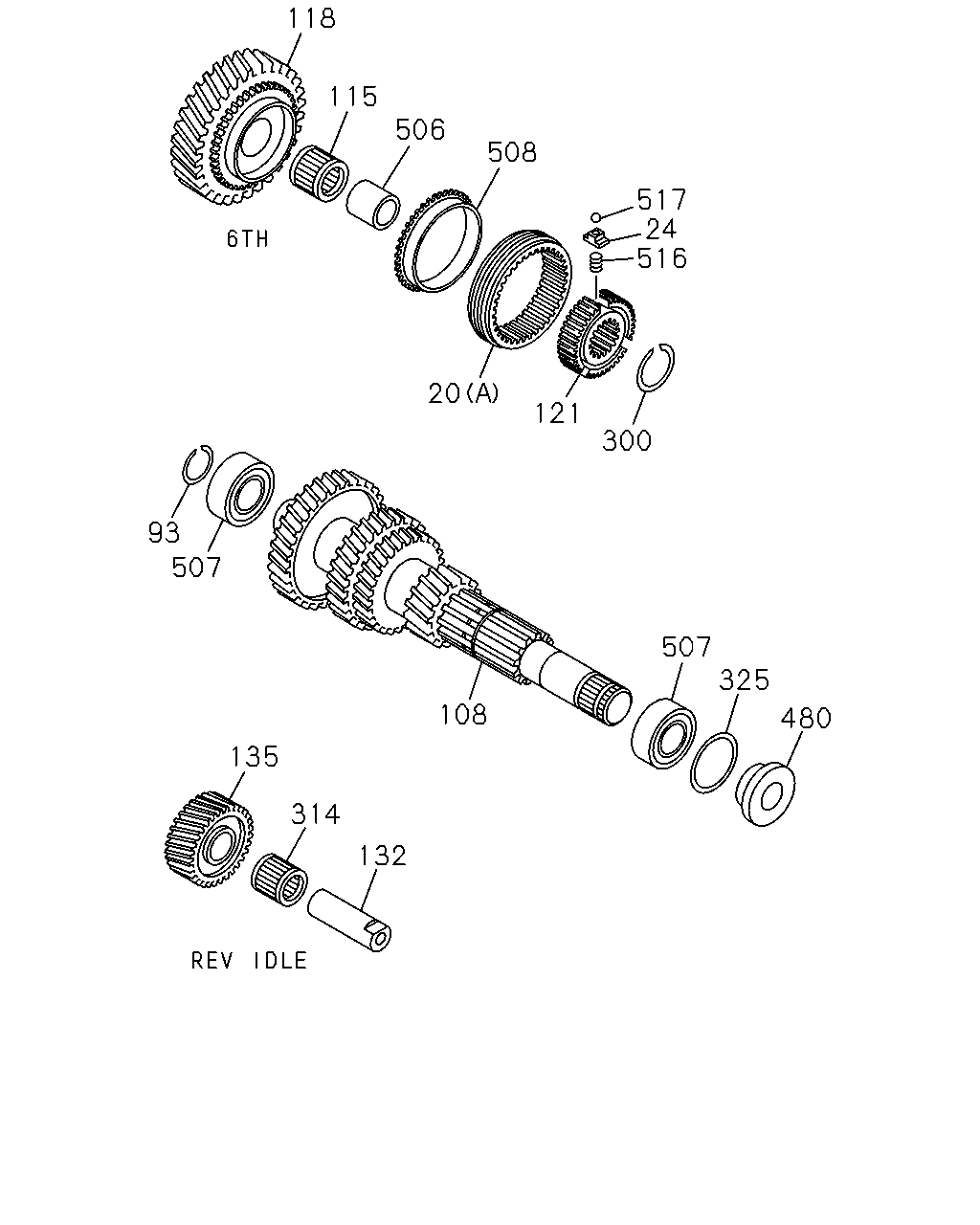

çizim 159552
118 115 506 508 517 24 516 20 121 300 93 507 507 325 108 480 135 314 132
BalonParca AdiParca NoAdetTipApplied Date A B C
20 04.383 SLEEVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) Z=54 		8-97241-295-2 02 1 1109-1211 ●
20 04.383 SLEEVE
(B) Z=54 		8-97241-295-2 01 1 1212- ●
20 04.383 SLEEVE
(B) Z=54 		8-97241-295-2 01 1 1212- ●
20 04.383 SLEEVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=45 		8-97241-296-1 02 1 1109-1211 ●
20 04.383 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1212-1311 ●
20 04.383 SLEEVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=45 		8-98258-279-0 02 1 1312-1402 ●
20 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1403- ●
24 04.383 BLOCK; INDEX,SYN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-313-1 12 1 1109-1211 ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1212- ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 06 1 0911-1108 ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 06 1 1109-1211 ● ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 1212- ● ●
24 04.383 BLOCK; INDEX,SYN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-313-1 03 1 1212- ● ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 1212- ●
93 04.422 RING; SNAP,COUNTER FRT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=34.4 T=1.9 		8-97254-735-0 01 1 1109-1211 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=1.9 		8-97254-735-0 01 1 1212- ●
93 04.422 RING; SNAP,COUNTER FRT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=34.4 T=2.1 		8-97254-738-0 01 1 1109-1211 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.1 		8-97254-738-0 01 1 1212- ●
93 04.422 RING; SNAP,COUNTER FRT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=34.4 T=2.3 		8-97254-741-0 01 1 1109-1211 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.3 		8-97254-741-0 01 1 1212- ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 0911-1108 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=1.9 		8-97254-734-0 01 1 1109- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 0911-1108 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.1 		8-97254-740-0 01 1 1109- ● ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 0911-1108 ●
93 04.422 RING; SNAP,COUNTER FRT BRG
ID=30.7 T=2.3 		8-97254-742-0 01 1 1109- ● ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=47-39-33-20 		8-97252-639-1 01 1 1212- ●
108 04.428 SHAFT; COUNTER
Z=45-49-33-20 		8-97380-630-1 01 1 1109- ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=46-38-29-21 		8-98113-224-0 01 1 1109-1211 ●
108 04.428 SHAFT; COUNTER
Z=46-38-29-21 		8-98113-224-0 01 1 1212-1308 ●
108 04.428 SHAFT; COUNTER
Z=46-38-29-21 		8-98249-489-0 01 1 1309- ●
108 04.428 SHAFT; COUNTER
Z=47-39-33-20 		8-97380-627-1 01 1 0911-1211 ●
108 04.428 SHAFT; COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47-39-33-20 		8-97380-627-1 01 1 1212- ●
115 04.352 BEARING; NEEDLE,6TH,COUNTER
OD=49.8 		8-98286-084-0 01 1 1411- ● ●
115 04.352 BEARING; NEEDLE,6TH,COUNTER
OD=49.75 		8-97253-113-0 01 1 0911-1108 ●
115 04.352 BEARING; NEEDLE,6TH,COUNTER
OD=49.75 		8-97253-113-0 01 1 1109- ● ●
118 04.421 GEAR; 6TH,COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=47 		8-97241-246-0 01 1 1109-1211 ●
118 04.421 GEAR; 6TH,COUNTER
Z=47 		8-97241-246-0 01 1 1212- ●
118 04.421 GEAR; 6TH,COUNTER
Z=50 		8-97386-580-0 01 1 0911- ●
121 04.384 HUB; CLU,6TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-301-2 01 1 1109-1211 ●
121 04.384 HUB; CLU,6TH 8-97241-301-2 01 1 1212- ●
132 04.433 SHAFT; REV 8-97252-655-0 01 1 0911-1108 ●
132 04.433 SHAFT; REV 8-97252-655-0 01 1 1109- ● ● ●
135 04.430 GEAR; REV IDLER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=26 		8-97241-292-2 01 1 1109-1211 ●
135 04.430 GEAR; REV IDLER
Z=26 		8-97241-292-2 01 1 1212- ●
135 04.430 GEAR; REV IDLER
Z=25 		8-98031-869-1 01 1 0911-1108 ●
135 04.430 GEAR; REV IDLER
Z=25 		8-98031-869-1 01 1 1109- ● ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=33.2 T=1.7 		8-97288-618-0 01 1 1109-1211 ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.7 		8-97288-618-0 01 1 1212- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=33.2 T=1.8 		8-97288-619-0 01 1 1109-1211 ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.8 		8-97288-619-0 01 1 1212- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=33.2 T=1.9 		8-97288-620-0 01 1 1109-1211 ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.9 		8-97288-620-0 01 1 1212- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=33.2 T=1.6 		8-97365-616-0 01 1 1109-1211 ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.6 		8-97365-616-0 01 1 1212- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.7 		8-97254-727-0 01 1 0911- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
04.384 ID=30.7 T=1.8 		8-97254-728-0 01 1 0911- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.9 		8-97254-734-0 01 1 0911- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=30.7 T=1.6 		8-97365-617-0 01 1 0911- ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 0911-1108 ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 1109- ● ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.38 		8-97252-656-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.38 		8-97252-656-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.44 		8-97252-657-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.44 		8-97252-657-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.50 		8-97252-658-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.50 		8-97252-658-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.56 		8-97252-659-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.56 		8-97252-659-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.62 		8-97252-660-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.62 		8-97252-660-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.68 		8-97252-661-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.68 		8-97252-661-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.74 		8-97252-662-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.74 		8-97252-662-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.80 		8-97252-663-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.80 		8-97252-663-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.86 		8-97252-664-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.86 		8-97252-664-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.92 		8-97252-665-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.92 		8-97252-665-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.98 		8-97257-621-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.98 		8-97257-621-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.20 		8-97306-185-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.20 		8-97306-185-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.26 		8-97306-186-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.26 		8-97306-186-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=70 T=1.32 		8-97306-187-0 01 1 1109-1211 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=70 T=1.32 		8-97306-187-0 01 1 1212- ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.29 		8-97252-666-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.35 		8-97252-667-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.41 		8-97252-668-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.47 		8-97252-669-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.53 		8-97252-670-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.59 		8-97252-671-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.65 		8-97252-672-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.71 		8-97252-673-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.77 		8-97252-674-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.83 		8-97252-675-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.89 		8-97257-622-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.11 		8-97306-188-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.17 		8-97306-189-0 01 1 1109- ● ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 0911-1108 ●
325 04.423 SHIM; COUNTER SHAFT BRG
ID=62.7 T=2.23 		8-97306-190-0 01 1 1109- ● ●
480 04.419 WASHER; THRUST,6TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97253-122-1 01 1 1109-1211 ●
480 04.419 WASHER; THRUST,6TH 8-97253-122-1 01 1 1212- ●
480 04.419 WASHER; THRUST,6TH 8-97253-123-1 01 1 0911- ●
506 04.419 COLLAR; 6TH,COUNTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97253-120-1 01 1 1109-1211 ●
506 04.419 COLLAR; 6TH,COUNTER 8-97253-120-1 01 1 1212- ●
506 04.419 COLLAR; 6TH,COUNTER 8-97253-121-1 01 1 0911- ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97253-106-0 02 1 1109-1211 ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-106-0 02 1 1212- ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 0911-1108 ●
507 04.422 BEARING; COUNTER SHAFT,FRT & RR 8-97253-107-0 02 1 1109- ● ●
508 04.383 RING; BLOCK,6TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-306-1 01 1 1109-1211 ●
508 04.383 RING; BLOCK,6TH
Z=45 		8-97241-306-1 01 1 1212- ●
508 04.383 RING; BLOCK,6TH
04.395 Z=45 		8-97309-532-0 01 1 0911- ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-803-1 03 1 1212- ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-803-1 12 1 1109-1211 ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97305-803-1 09 1 1212- ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 06 1 0911-1108 ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 06 1 1109-1211 ● ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 03 1 1212- ● ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-835-0 03 1 1212- ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 03 1 1212- ●
517 04.384 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 12 1 1109-1211 ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1212- ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 06 1 0911-1108 ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 06 1 1109-1211 ● ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 1212- ● ●
517 04.384 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 03 1 1212- ● ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 1212- ●
çizim 159563
1 273 3 266 28 505 396 36 396 50 501 526 523 525 41 500 515 516 408 408 120 323 18 524 525 396 41 120 517 24 504 503 530 70 396 515 120 82 501 500 505 396 298 260 80 342 519 335 59 393 288 531 516 24 517
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26 		8-98021-267-0 01 1 1212- ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=25 		8-97371-091-0 01 1 1212- ●
1 04.351 SHAFT; TOP GEAR,TRANS
(A) Z=28 		8-98031-848-0 01 1 1109- ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=25 		8-97371-090-0 01 1 1109- ●
1 04.351 SHAFT; TOP GEAR,TRANS
(A) Z=26 		8-98021-266-0 01 1 0911-1211 ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=26 		8-98021-266-0 01 1 1212- ●
3 04.403 BEARING; TOP GEAR SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) NSK 		8-97253-097-1 01 1 1109-1211 ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-097-1 01 1 1212- ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 0911-1108 ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 1109- ● ●
18 04.384 RING; SNAP,CLU HUB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=35.7 T=1.8 		8-97256-855-0 01 1 1109-1211 ●
18 04.384 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1212- ●
18 04.384 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 0911-1108 ●
18 04.384 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 1109- ● ●
24 04.383 BLOCK; INDEX,SYN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-313-1 12 1 1109-1211 ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1212- ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 06 1 0911-1108 ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 06 1 1109-1211 ● ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 1212- ● ●
24 04.383 BLOCK; INDEX,SYN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-313-1 03 1 1212- ● ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 1212- ●
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 0911-1108 ●
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 1109- ● ● ●
36 04.415 GEAR; 3RD,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=31 		8-97252-630-1 01 1 1109-1211 ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=31 		8-97252-630-1 01 1 1212- ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 0911-1108 ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 1109- ● ●
41 04.383 RING; BLOCK,2ND & 3RD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 02 1 1109-1211 ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=54 		8-97241-305-2 02 1 1212- ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 0911-1108 ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 1109- ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43 		8-97241-236-1 01 1 1109-1211 ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=43 		8-97241-236-1 01 1 1212- ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 0911-1108 ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 1109- ● ●
59 04.417 GEAR; REV MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-243-0 01 1 1109-1211 ●
59 04.417 GEAR; REV MAINSHAFT
Z=45 		8-97241-243-0 01 1 1212- ●
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97350-011-0 01 1 0911-1006 ●
59 04.417 GEAR; REV MAINSHAFT
4HK1-TCN ENG(RDQ) Z=41 		8-97241-244-0 01 1 1007-1108 ●
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97241-244-0 01 1 1109- ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43 		8-97352-815-0 01 1 1212- ●
70 04.417 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-241-0 01 1 1109-1211 ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=45 		8-97241-241-0 01 1 1212- ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=43 		8-97350-010-0 01 1 0911-1108 ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=43 		8-97350-010-0 01 1 1109-1211 ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43 		8-97350-010-0 01 1 1212- ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=43 		8-97350-010-0 01 1 1212- ●
80 04.343 GEAR; SPD DRIVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=6 		8-97327-118-0 01 1 1109-1211 ●
80 04.343 GEAR; SPD DRIVE
Z=6 		8-97327-118-0 01 1 1212- ●
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 0911-1108 ●
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 1109- ● ●
82 04.403 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-117-3 01 1 1109- ●
82 04.403 SHAFT; MAIN,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=26-42-23 		8-97253-115-3 01 1 1109-1211 ●
82 04.403 SHAFT; MAIN,TRANS
Z=26-42-23 		8-97253-115-3 01 1 1212- ●
82 04.403 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-116-3 01 1 0911- ●
120 04.383 SLEEVE
04.535 (B) Z=45 		8-94421-871-1 01 1 0911-1108 ●
120 04.383 SLEEVE
04.535 (B) Z=45 		8-94421-871-1 01 1 1109- ● ●
120 04.383 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 0911-1108 ●
120 04.383 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1109-1211 ● ●
120 04.383 SLEEVE
(A) Z=45 		8-97241-296-1 01 1 1212-1311 ● ●
120 04.383 SLEEVE
(A) Z=45 		8-97241-296-1 01 1 1212-1311 ● ●
120 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 01 1 1312- ● ●
120 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 01 1 1312- ● ●
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 0911-1108 ●
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 1109-1211 ● ● ●
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 1212- ● ● ●
266 04.525 RING; SNAP,BRG INNER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97286-915-0 01 1 1109-1211 ●
266 04.525 RING; SNAP,BRG INNER 8-97286-915-0 01 1 1212- ●
266 04.525 RING; SNAP,BRG INNER 8-97286-916-0 01 1 0911-1108 ●
266 04.525 RING; SNAP,BRG INNER 8-97286-916-0 01 1 1109- ● ●
273 04.525 RING; SNAP,BRG OUTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-609-0 01 1 1109-1211 ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-609-0 01 1 1212- ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 0911-1108 ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 1109- ● ●
288 04.399 SPACER; BRG,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-941-0 01 1 1109-1211 ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-941-0 01 1 1212- ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 0911-1108 ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 1109- ● ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 05.595 ID=35.7 T=5 		1-09623-379-0 01 1 1109-1211 ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5 		1-09623-379-0 01 1 1212- ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-98028-226-0 01 1 0911-1108 ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-98028-226-0 01 1 1109- ● ●
323 04.384 INSERT 8-94448-202-2 03 1 0911-1108 ●
323 04.384 INSERT 8-94448-202-2 03 1 1109- ● ●
335 04.383 RING; SNAP,BEARING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-720-0 01 1 1109-1211 ●
335 04.383 RING; SNAP,BEARING 8-97254-720-0 01 1 1212- ●
335 04.383 RING; SNAP,BEARING 8-97254-722-0 01 1 0911-1108 ●
335 04.383 RING; SNAP,BEARING 8-97254-722-0 01 1 1109- ● ●
342 05.545 FLANGE; OUTPUT 8-98031-640-0 01 1 1109- ●
342 05.545 FLANGE; OUTPUT 8-98031-862-0 01 1 0911- ●
393 04.352 BEARING; MAINSHAFT END
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97253-104-0 01 1 1109-1211 ●
393 04.352 BEARING; MAINSHAFT END 8-97253-104-0 01 1 1212- ●
393 04.352 BEARING; MAINSHAFT END 8-97253-105-1 01 1 0911-1108 ●
393 04.352 BEARING; MAINSHAFT END 8-97253-105-1 01 1 1109- ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97253-099-1 01 1 1109-1211 ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-099-1 01 1 1212- ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 0911-1108 ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 1109- ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 0911-1108 ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 1109- ● ● ●
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 0911-1108 ●
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 1109-1211 ● ●
408 04.384 SPRING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.422 (B) 		8-94148-196-0 03 1 1212- ●
408 04.384 SPRING
04.422 (B) 		8-94148-196-0 03 1 1212- ●
408 04.384 SPRING
(A) 		8-97366-040-1 04 1 0911-1108 ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 1109- ● ●
408 04.384 SPRING
(A) 		8-97366-040-1 02 1 1109- ●
500 04.383 RING; OUTSIDE,3RD & 2ND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-307-1 02 1 1109-1211 ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-307-1 02 1 1212- ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 0911-1108 ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 1109- ● ●
501 04.383 RING; INSIDE,3RD & 2ND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-311-1 02 1 1109-1211 ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-311-1 02 1 1212- ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 0911-1108 ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 1109- ● ●
503 04.383 RING; OUTSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-307-1 02 1 1109- ●
503 04.383 RING; OUTSIDE,LOW & REV 8-97241-309-1 02 1 0911-1006 ●
503 04.383 RING; OUTSIDE,LOW & REV
4HK1-TCN ENG(RDQ) 		8-97241-309-1 01 1 1007-1108 ●
503 04.383 RING; OUTSIDE,LOW & REV 8-97241-309-1 01 1 1109-1211 ● ●
503 04.383 RING; OUTSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-309-1 01 1 1212- ●
503 04.383 RING; OUTSIDE,LOW & REV 8-97241-309-1 01 1 1212- ●
504 04.383 RING; INSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-311-1 02 1 1109- ●
504 04.383 RING; INSIDE,LOW & REV 8-97241-312-1 02 1 0911-1006 ●
504 04.383 RING; INSIDE,LOW & REV
4HK1-TCN ENG(RDQ) 		8-97241-312-1 01 1 1007-1108 ●
504 04.383 RING; INSIDE,LOW & REV 8-97241-312-1 01 1 1109-1211 ● ●
504 04.383 RING; INSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-312-1 01 1 1212- ●
504 04.383 RING; INSIDE,LOW & REV 8-97241-312-1 01 1 1212- ●
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 0911-1108 ●
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 1109- ● ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97239-155-2 02 1 1109-1211 ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 01 1 1212- ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 01 1 1212- ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 02 1 0911-1108 ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 02 1 1109-1211 ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 01 1 1212- ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 01 1 1212- ● ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-803-1 03 1 1212- ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-803-1 12 1 1109-1211 ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97305-803-1 09 1 1212- ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 06 1 0911-1108 ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 06 1 1109-1211 ● ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 03 1 1212- ● ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-835-0 03 1 1212- ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 03 1 1212- ●
517 04.384 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 12 1 1109-1211 ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1212- ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 06 1 0911-1108 ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 06 1 1109-1211 ● ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 1212- ● ●
517 04.384 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 03 1 1212- ● ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 1212- ●
519 04.419 COLLAR; MAINSHAFT END,5TH
04.415 		8-97252-940-0 01 1 1109- ●
523 04.395 GEAR; OD,MAINSHAFT
Z=22 		8-97241-231-0 01 1 1109- ●
524 04.395 SLEEVE & HUB ASM; TOP-4TH,OD 8-97366-526-0 01 1 0911-1108 ●
524 04.395 SLEEVE & HUB ASM; TOP-4TH,OD 8-97366-526-0 01 1 1109- ● ●
525 04.395 RING; BLOCK,TOP & 4TH,OD
Z=45 		8-97309-532-0 02 1 0911-1108 ●
525 04.395 RING; BLOCK,TOP & 4TH,OD
Z=45 		8-97309-532-0 02 1 1109- ● ●
526 04.352 BEARING; NEEDLE,4TH & 5TH 8-97253-112-0 01 1 0911-1108 ●
526 04.352 BEARING; NEEDLE,4TH & 5TH 8-97253-112-0 01 1 1109- ● ●
530 04.383 RING; BLOCK,LOW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 01 1 1109- ●
530 04.383 RING; BLOCK,LOW
Z=45 		8-97241-306-1 01 1 0911-1108 ●
530 04.383 RING; BLOCK,LOW
Z=45 		8-97241-306-1 01 1 1109-1211 ● ●
530 04.383 RING; BLOCK,LOW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-306-1 01 1 1212- ●
530 04.383 RING; BLOCK,LOW
Z=45 		8-97241-306-1 01 1 1212- ●
531 04.383 RING; BLOCK,REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 01 1 1109- ●
531 04.383 RING; BLOCK,REV
Z=45 		8-97241-306-1 01 1 0911-1006 ●
531 04.383 RING; BLOCK,REV
4HK1-TCN ENG(RDQ) Z=45 		8-97368-343-0 01 1 1007-1108 ●
531 04.383 RING; BLOCK,REV
Z=45 		8-97368-343-0 01 1 1109-1211 ● ●
531 04.383 RING; BLOCK,REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97368-343-0 01 1 1212- ●
531 04.383 RING; BLOCK,REV
Z=45 		8-97368-343-0 01 1 1212- ●
çizim 159575
1 273 3 266 467 19 20 21 1 36 396 505 28 432 30 19 515 516 24 20 517 500 501 50 396 41 516 24 517 41 500 501 396 18 396 70 504 503 530 82 515 20 24 516 531 503 504 288 393 335 80 396 59 298 260 77 517 505
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=26 		8-98021-267-0 01 1 1212- ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=25 		8-97371-091-0 01 1 1212- ●
1 04.351 SHAFT; TOP GEAR,TRANS
(A) Z=28 		8-98031-848-0 01 1 1109- ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=25 		8-97371-090-0 01 1 1109- ●
1 04.351 SHAFT; TOP GEAR,TRANS
(A) Z=26 		8-98021-266-0 01 1 0911-1211 ●
1 04.351 SHAFT; TOP GEAR,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=26 		8-98021-266-0 01 1 1212- ●
3 04.403 BEARING; TOP GEAR SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) NSK 		8-97253-097-1 01 1 1109-1211 ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-097-1 01 1 1212- ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 0911-1108 ●
3 04.403 BEARING; TOP GEAR SHAFT
NSK 		8-97253-098-1 01 1 1109- ● ●
18 04.384 RING; SNAP,CLU HUB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=35.7 T=1.8 		8-97256-855-0 01 1 1109-1211 ●
18 04.384 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1212- ●
18 04.384 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 0911-1108 ●
18 04.384 RING; SNAP,CLU HUB
ID=30.7 T=1.8 		8-97254-728-0 01 1 1109- ● ●
19 04.383 RING; BLOCK,4TH & 5TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-306-1 02 1 1109-1211 ●
19 04.383 RING; BLOCK,4TH & 5TH
Z=45 		8-97241-306-1 02 1 1212- ●
20 04.383 SLEEVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) Z=54 		8-97241-295-2 02 1 1109-1211 ●
20 04.383 SLEEVE
(B) Z=54 		8-97241-295-2 01 1 1212- ●
20 04.383 SLEEVE
(B) Z=54 		8-97241-295-2 01 1 1212- ●
20 04.383 SLEEVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=45 		8-97241-296-1 02 1 1109-1211 ●
20 04.383 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1212-1311 ●
20 04.383 SLEEVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) Z=45 		8-98258-279-0 02 1 1312-1402 ●
20 04.383 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1403- ●
21 04.384 HUB; CLU,4TH & 5TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-299-3 01 1 1109-1211 ●
21 04.384 HUB; CLU,4TH & 5TH 8-97241-299-3 01 1 1212- ●
24 04.383 BLOCK; INDEX,SYN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-313-1 12 1 1109-1211 ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1212- ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 06 1 0911-1108 ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 06 1 1109-1211 ● ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 1212- ● ●
24 04.383 BLOCK; INDEX,SYN
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-313-1 03 1 1212- ● ●
24 04.383 BLOCK; INDEX,SYN 8-97241-313-1 03 1 1212- ●
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 0911-1108 ●
28 04.416 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 1109- ● ● ●
30 04.415 GEAR; 4TH,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=28 		8-97252-628-0 01 1 1109-1211 ●
30 04.415 GEAR; 4TH,MAINSHAFT
Z=28 		8-97252-628-0 01 1 1212- ●
30 04.415 GEAR; 4TH,MAINSHAFT
Z=28 		8-97241-230-0 01 1 0911- ●
36 04.415 GEAR; 3RD,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=31 		8-97252-630-1 01 1 1109-1211 ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=31 		8-97252-630-1 01 1 1212- ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 0911-1108 ●
36 04.415 GEAR; 3RD,MAINSHAFT
Z=34 		8-97241-234-0 01 1 1109- ● ●
41 04.383 RING; BLOCK,2ND & 3RD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 02 1 1109-1211 ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=54 		8-97241-305-2 02 1 1212- ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 0911-1108 ●
41 04.383 RING; BLOCK,2ND & 3RD
Z=45 		8-97241-306-1 02 1 1109- ● ●
50 04.395 GEAR; 2ND,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43 		8-97241-236-1 01 1 1109-1211 ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=43 		8-97241-236-1 01 1 1212- ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 0911-1108 ●
50 04.395 GEAR; 2ND,MAINSHAFT
Z=38 		8-97241-237-1 01 1 1109- ● ●
59 04.417 GEAR; REV MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-243-0 01 1 1109-1211 ●
59 04.417 GEAR; REV MAINSHAFT
Z=45 		8-97241-243-0 01 1 1212- ●
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97350-011-0 01 1 0911-1006 ●
59 04.417 GEAR; REV MAINSHAFT
4HK1-TCN ENG(RDQ) Z=41 		8-97241-244-0 01 1 1007-1108 ●
59 04.417 GEAR; REV MAINSHAFT
Z=41 		8-97241-244-0 01 1 1109- ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43 		8-97352-815-0 01 1 1212- ●
70 04.417 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-241-0 01 1 1109-1211 ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=45 		8-97241-241-0 01 1 1212- ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=43 		8-97350-010-0 01 1 0911-1108 ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=43 		8-97350-010-0 01 1 1109-1211 ● ●
70 04.417 GEAR; 1ST,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=43 		8-97350-010-0 01 1 1212- ●
70 04.417 GEAR; 1ST,MAINSHAFT
Z=43 		8-97350-010-0 01 1 1212- ●
77 04.421 GEAR; 6TH,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=20 		8-97252-634-0 01 1 1109-1211 ●
77 04.421 GEAR; 6TH,MAINSHAFT
Z=20 		8-97252-634-0 01 1 1212- ●
77 04.421 GEAR; 6TH,MAINSHAFT
Z=21 		8-97386-582-0 01 1 0911- ●
80 04.343 GEAR; SPD DRIVE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=6 		8-97327-118-0 01 1 1109-1211 ●
80 04.343 GEAR; SPD DRIVE
Z=6 		8-97327-118-0 01 1 1212- ●
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 0911-1108 ●
80 04.343 GEAR; SPD DRIVE
Z=4 		8-97253-556-0 01 1 1109- ● ●
82 04.403 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-117-3 01 1 1109- ●
82 04.403 SHAFT; MAIN,TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=26-42-23 		8-97253-115-3 01 1 1109-1211 ●
82 04.403 SHAFT; MAIN,TRANS
Z=26-42-23 		8-97253-115-3 01 1 1212- ●
82 04.403 SHAFT; MAIN,TRANS
Z=28-42-42-21 		8-97253-116-3 01 1 0911- ●
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 0911-1108 ●
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 1109-1211 ● ● ●
260 04.412 NUT; MAINSHAFT END
04.525 M27 H=25 		8-97360-410-0 01 1 1212- ● ● ●
266 04.525 RING; SNAP,BRG INNER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97286-915-0 01 1 1109-1211 ●
266 04.525 RING; SNAP,BRG INNER 8-97286-915-0 01 1 1212- ●
266 04.525 RING; SNAP,BRG INNER 8-97286-916-0 01 1 0911-1108 ●
266 04.525 RING; SNAP,BRG INNER 8-97286-916-0 01 1 1109- ● ●
273 04.525 RING; SNAP,BRG OUTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-609-0 01 1 1109-1211 ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-609-0 01 1 1212- ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 0911-1108 ●
273 04.525 RING; SNAP,BRG OUTER 8-97254-610-0 01 1 1109- ● ●
288 04.399 SPACER; BRG,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-941-0 01 1 1109-1211 ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-941-0 01 1 1212- ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 0911-1108 ●
288 04.399 SPACER; BRG,MAINSHAFT 8-97252-942-0 01 1 1109- ● ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 05.595 ID=35.7 T=5 		1-09623-379-0 01 1 1109-1211 ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5 		1-09623-379-0 01 1 1212- ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-98028-226-0 01 1 0911-1108 ●
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 		8-98028-226-0 01 1 1109- ● ●
335 04.383 RING; SNAP,BEARING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-720-0 01 1 1109-1211 ●
335 04.383 RING; SNAP,BEARING 8-97254-720-0 01 1 1212- ●
335 04.383 RING; SNAP,BEARING 8-97254-722-0 01 1 0911-1108 ●
335 04.383 RING; SNAP,BEARING 8-97254-722-0 01 1 1109- ● ●
393 04.352 BEARING; MAINSHAFT END
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97253-104-0 01 1 1109-1211 ●
393 04.352 BEARING; MAINSHAFT END 8-97253-104-0 01 1 1212- ●
393 04.352 BEARING; MAINSHAFT END 8-97253-105-1 01 1 0911-1108 ●
393 04.352 BEARING; MAINSHAFT END 8-97253-105-1 01 1 1109- ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97253-099-1 01 1 1109-1211 ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-099-1 01 1 1212- ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 0911-1108 ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-102-1 01 1 1109- ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 0911-1108 ●
396 04.352 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 1109- ● ● ●
432 04.419 BEARING; NEEDLE,4TH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) NSK 		8-97253-111-0 01 1 1109-1211 ●
432 04.419 BEARING; NEEDLE,4TH
NSK 		8-97253-111-0 01 1 1212- ●
467 04.317 COLLAR; SHAFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-183-1 01 1 1212- ● ●
500 04.383 RING; OUTSIDE,3RD & 2ND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-307-1 02 1 1109-1211 ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-307-1 02 1 1212- ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 0911-1108 ●
500 04.383 RING; OUTSIDE,3RD & 2ND 8-97241-309-1 02 1 1109- ● ●
501 04.383 RING; INSIDE,3RD & 2ND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-311-1 02 1 1109-1211 ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-311-1 02 1 1212- ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 0911-1108 ●
501 04.383 RING; INSIDE,3RD & 2ND 8-97241-312-1 02 1 1109- ● ●
503 04.383 RING; OUTSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-307-1 02 1 1109- ●
503 04.383 RING; OUTSIDE,LOW & REV 8-97241-309-1 02 1 0911-1006 ●
503 04.383 RING; OUTSIDE,LOW & REV
4HK1-TCN ENG(RDQ) 		8-97241-309-1 01 1 1007-1108 ●
503 04.383 RING; OUTSIDE,LOW & REV 8-97241-309-1 01 1 1109-1211 ● ●
503 04.383 RING; OUTSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-309-1 01 1 1212- ●
503 04.383 RING; OUTSIDE,LOW & REV 8-97241-309-1 01 1 1212- ●
504 04.383 RING; INSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-311-1 02 1 1109- ●
504 04.383 RING; INSIDE,LOW & REV 8-97241-312-1 02 1 0911-1006 ●
504 04.383 RING; INSIDE,LOW & REV
4HK1-TCN ENG(RDQ) 		8-97241-312-1 01 1 1007-1108 ●
504 04.383 RING; INSIDE,LOW & REV 8-97241-312-1 01 1 1109-1211 ● ●
504 04.383 RING; INSIDE,LOW & REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97241-312-1 01 1 1212- ●
504 04.383 RING; INSIDE,LOW & REV 8-97241-312-1 01 1 1212- ●
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 0911-1108 ●
505 04.419 COLLAR; 3RD & REV 8-97253-119-2 02 1 1109- ● ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97239-155-2 02 1 1109-1211 ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 01 1 1212- ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 01 1 1212- ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 02 1 0911-1108 ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 02 1 1109-1211 ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 01 1 1212- ● ●
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD 8-97241-298-3 01 1 1212- ● ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-803-1 03 1 1212- ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97305-803-1 12 1 1109-1211 ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97305-803-1 09 1 1212- ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 06 1 0911-1108 ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 06 1 1109-1211 ● ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 03 1 1212- ● ●
516 04.384 SPRING; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97254-835-0 03 1 1212- ●
516 04.384 SPRING; SYNCHRO,INDEX 8-97254-835-0 03 1 1212- ●
517 04.384 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 12 1 1109-1211 ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1212- ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 06 1 0911-1108 ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 06 1 1109-1211 ● ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 1212- ● ●
517 04.384 BALL; SYNCHRO,INDEX
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97252-935-0 03 1 1212- ● ●
517 04.384 BALL; SYNCHRO,INDEX 8-97252-935-0 03 1 1212- ●
530 04.383 RING; BLOCK,LOW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 01 1 1109- ●
530 04.383 RING; BLOCK,LOW
Z=45 		8-97241-306-1 01 1 0911-1108 ●
530 04.383 RING; BLOCK,LOW
Z=45 		8-97241-306-1 01 1 1109-1211 ● ●
530 04.383 RING; BLOCK,LOW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97241-306-1 01 1 1212- ●
530 04.383 RING; BLOCK,LOW
Z=45 		8-97241-306-1 01 1 1212- ●
531 04.383 RING; BLOCK,REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=54 		8-97241-305-2 01 1 1109- ●
531 04.383 RING; BLOCK,REV
Z=45 		8-97241-306-1 01 1 0911-1006 ●
531 04.383 RING; BLOCK,REV
4HK1-TCN ENG(RDQ) Z=45 		8-97368-343-0 01 1 1007-1108 ●
531 04.383 RING; BLOCK,REV
Z=45 		8-97368-343-0 01 1 1109-1211 ● ●
531 04.383 RING; BLOCK,REV
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=45 		8-97368-343-0 01 1 1212- ●
531 04.383 RING; BLOCK,REV
Z=45 		8-97368-343-0 01 1 1212- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
