Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#50202) — 300 parça

1 1

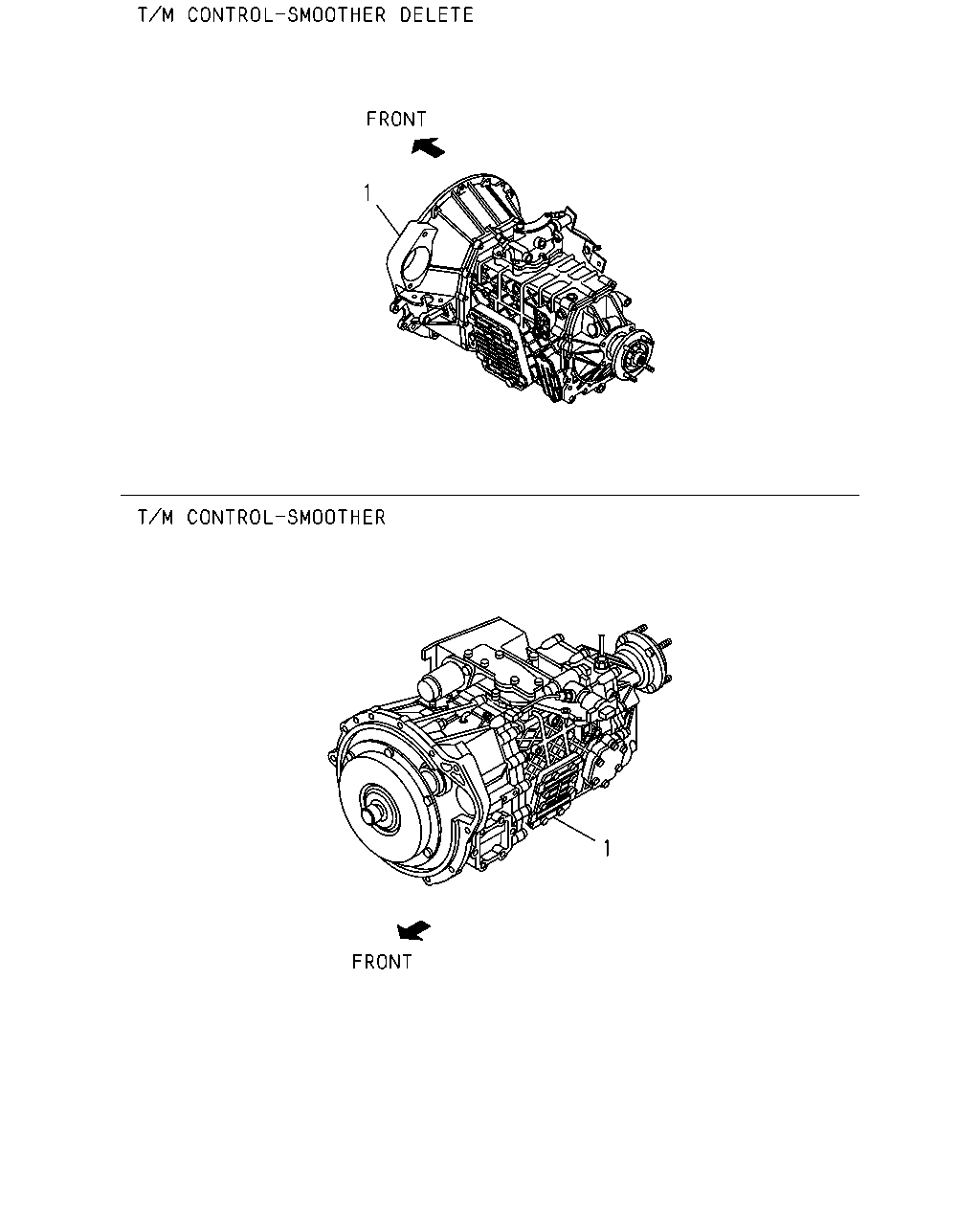

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98067-683-0	01	1	1212-1402	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98067-683-0	01	1	1403-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98067-683-0	01	1	1212-1402	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98067-683-0	01	1	1403-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	8-98067-683-0	01	1	1212-1402	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98067-683-0	01	1	1403-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>	8-98067-683-0	01	1	1212-1402	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>,PTO MANUAL CONTROL(6WC)	8-98067-683-0	01	1	1403-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98066-939-0	01	1	1212-1402		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98066-939-0	01	1	1403-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98066-939-0	01	1	1212-1402		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98066-939-0	01	1	1403-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	8-98066-939-0	01	1	1212-1402		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98066-939-0	01	1	1403-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>	8-98066-939-0	01	1	1212-1402		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>,PTO MANUAL CONTROL(6WC)	8-98066-939-0	01	1	1403-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-98067-623-0	01	1	1109-1402			●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98067-623-0	01	1	1403-			●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66)	8-98067-623-0	01	1	1109-1402			●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98067-623-0	01	1	1403-			●
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-98066-933-0	01	1	1109-1211		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98066-933-0	01	1	1212-1402		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98066-933-0	01	1	1403-		●
1	04.003 TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-98066-933-0	01	1	1109-1211		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66)	8-98066-933-0	01	1	1212-1402		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98066-933-0	01	1	1403-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66)	8-98067-680-0	01	1	0911-1211	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98067-680-0	01	1	1212-1402	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98067-680-0	01	1	1403-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) EXC. PTO TRANSMISSION SIDE(V66)	8-98067-680-0	01	1	0911-1211	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66)	8-98067-680-0	01	1	1212-1402	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98067-680-0	01	1	1403-	●
630	04.105 GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15.8	8-97305-656-0	01	1	1212-	●	●

421 86 430 50 90 86 324 90 324 86 586 50 430 86 421 430 611 610 256 50 256 435 417 45 429 429 317 319 119 121 71 72 265 609 257 117 33 316 256 33 256 388 587 434 388 33 256 256 316 24 13 434

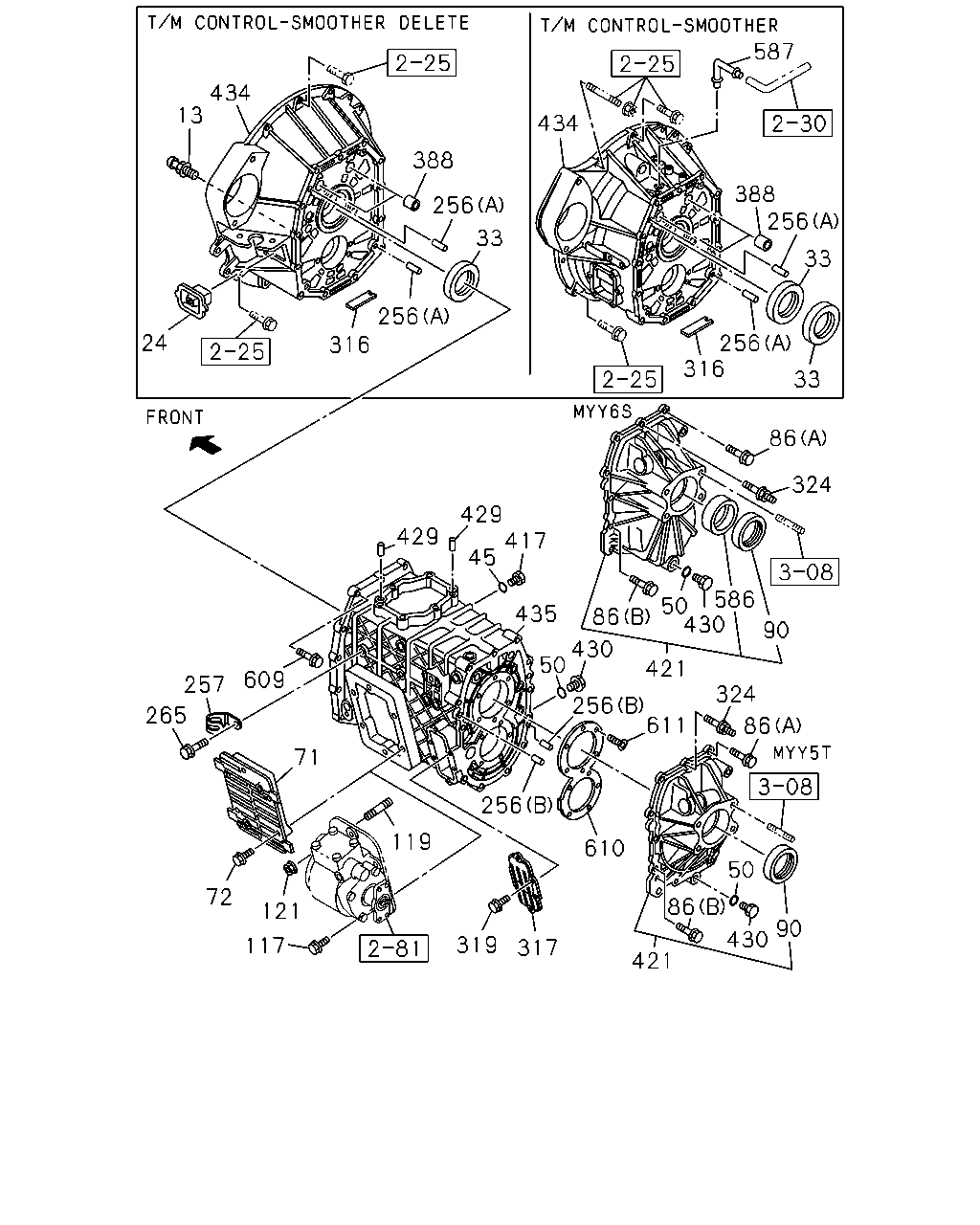

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	04.302 SUPPORT; SHIFT FORK	8-97255-384-1	01	1	1109-			●
13	04.302 SUPPORT; SHIFT FORK	8-97255-385-1	01	1	0911-1211	●
13	04.302 SUPPORT; SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97255-385-1	01	1	1212-	●
24	00.797 COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	0911-1108	●
24	00.797 COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	1109-1211	●		●
24	00.797 COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97255-201-0	01	1	1212-	●
24	00.797 COVER; CHECK HOLE,DUST	8-97255-201-0	01	1	1212-			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	1212-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0911-1108	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1109-1211	●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ).	8-97253-550-0	01	1	1212-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1212-			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0911-1108	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1109-	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1109-		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	0911-	●
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-624-2	01	1	1109-		●
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0911-1108	●
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	1109-	●		●
72	04.439 BOLT; SIDE COVER 4HK1-TCN ENG(RDQ) EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	0911-1108	●
72	04.439 BOLT; SIDE COVER 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	1109-	●		●
72	04.439 BOLT; SIDE COVER 4HK1-TCS ENG(RJS) EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	08	1	1109-		●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	09	1	1406-	●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	0911-1108	●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1109-1211	●	●	●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1212-1405	●	●	●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1406-		●	●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	0911-1108	●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	1109-1211	●	●	●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	1212-	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) NOK	8-97253-551-1	01	1	1109-1211		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	1212-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	0911-1108	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	1109-	●		●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X28 FLANGE	8-98044-944-0	06	1	1109-		●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	03	1	0911-1107	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1108-1108	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1109-	●		●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.403 M10X30 L=45	0-44011-030-0	02	1	1108-1108	●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.403 M10X30 L=45	0-44011-030-0	02	1	1109-	●		●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	03	1	0911-1107	●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	02	1	1108-1108	●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	02	1	1109-	●	●	●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	02	1	1109-		●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	03	1	0911-1006	●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	04	1	1007-1108	●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	04	1	1109-	●		●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0911-1108	●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	1109-	●	●	●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0911-1108	●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	1109-	●	●	●
257	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1212-	●	●
265	00.785 BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1212-	●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0911-1108	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1109-	●	●	●
317	04.109 COVER; CASE	8-97252-626-0	01	1	0911-1108	●
317	04.109 COVER; CASE	8-97252-626-0	01	1	1109-	●	●	●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	0911-1108	●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	1109-	●	●	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	02	1	1406-	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	0911-1108	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	1109-1211	●	●	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	1212-1405	●	●	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	1406-		●	●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	0911-1108	●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	1109-	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0911-1108	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1109-	●	●	●
421	04.317 COVER; RR,TRANS	8-98020-029-0	01	1	1109-			●
421	04.317 COVER; RR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97238-934-5	01	1	1109-1211		●
421	04.317 COVER; RR,TRANS	8-97238-934-5	01	1	1212-		●
421	04.317 COVER; RR,TRANS	8-98020-028-0	01	1	0911-	●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0911-1108	●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	1109-	●	●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1109-		●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	02	1	0911-	●
434	00.683 HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98100-978-0	01	1	1212-	●
434	00.683 HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98100-980-0	01	1	1212-		●
434	00.683 HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97238-930-4	01	1	1109-		●
434	00.683 HOUSING; CLU	8-97237-099-5	01	1	0911-1108	●
434	00.683 HOUSING; CLU	8-97237-099-5	01	1	1109-1211	●		●
434	00.683 HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97237-099-5	01	1	1212-	●
434	00.683 HOUSING; CLU	8-97237-099-5	01	1	1212-			●
435	04.103 CASE; TRANS	8-97379-375-0	01	1	1109-			●
435	04.103 CASE; TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97382-868-1	01	1	1109-1211		●
435	04.103 CASE; TRANS	8-97382-868-1	01	1	1212-		●
435	04.103 CASE; TRANS	8-97379-374-0	01	1	0911-	●
586	00.683 BEARING; NEEDLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97253-108-0	01	1	1109-1211		●
586	00.683 BEARING; NEEDLE	8-97253-108-0	01	1	1212-		●
586	00.683 BEARING; NEEDLE	8-97253-109-0	01	1	0911-	●
587	04.020 PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF) 04.510	8-97358-318-0	01	1	1212-	●	●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	0911-1108	●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	1109-1211	●	●	●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	1212-	●	●	●
610	04.412 RETAINER; BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-314-2	01	1	1109-1211		●
610	04.412 RETAINER; BRG	8-97241-314-2	01	1	1212-		●
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	0911-1108	●
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	1109-	●		●
611	04.104 SCREW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X27 TORQUES	8-97365-354-0	10	1	1109-1211		●
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	10	1	1212-		●
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	11	1	0911-1108	●
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	11	1	1109-	●		●
630	04.105 GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15.8	8-97305-656-0	01	1	1212-	●	●

631 430 90 586 86 421 50 324 86 611 256 610 256 119 117 317 319 121 72 71 265 609 257 435 417 45 429 429 316 33 256 33 256 388 587 434 33 256 316 434 388 256

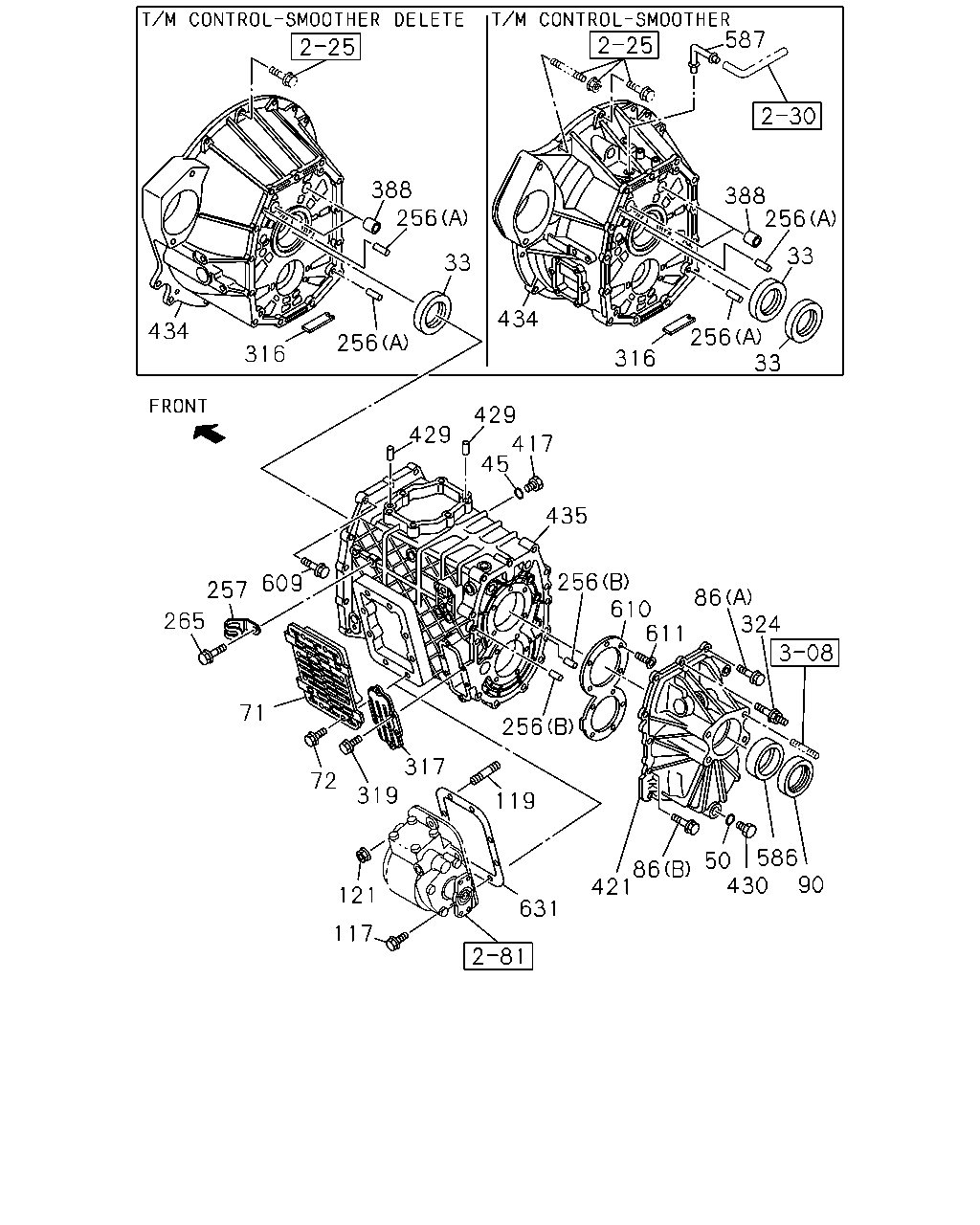

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	1212-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0911-1108	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1109-1211	●	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ).	8-97253-550-0	01	1	1212-	●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	1212-			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0911-1108	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1109-	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1109-		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	0911-	●
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-624-2	01	1	1109-		●
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0911-1108	●
71	04.439 COVER; SIDE,TRANS CASE EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	1109-	●		●
72	04.439 BOLT; SIDE COVER 4HK1-TCN ENG(RDQ) EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	0911-1108	●
72	04.439 BOLT; SIDE COVER 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	1109-	●		●
72	04.439 BOLT; SIDE COVER 4HK1-TCS ENG(RJS) EXC. PTO TRANSMISSION SIDE(V66) 00.206 M10X20 FLANGE	8-98014-142-0	08	1	1109-		●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	09	1	1406-	●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	0911-1108	●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1109-1211	●	●	●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1212-1405	●	●	●
86	04.317 BOLT; RR COVER 09.171 (A) M10X40 FLANGE	0-28151-040-0	10	1	1406-		●	●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	0911-1108	●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	1109-1211	●	●	●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	8-97365-377-0	02	1	1212-	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) NOK	8-97253-551-1	01	1	1109-1211		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	1212-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	0911-1108	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-552-1	01	1	1109-	●		●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X28 FLANGE	8-98044-944-0	06	1	1109-		●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	03	1	0911-1107	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1108-1108	●
117	04.439 BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) 00.780 M10X30 FLANGE	0-28751-030-0	02	1	1109-	●		●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.403 M10X30 L=45	0-44011-030-0	02	1	1108-1108	●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.403 M10X30 L=45	0-44011-030-0	02	1	1109-	●		●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	03	1	0911-1107	●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	02	1	1108-1108	●
119	04.439 STUD; PTO FIX PTO TRANSMISSION SIDE(V66) 03.342 M10X25 L=40	0-44011-025-0	02	1	1109-	●	●	●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	02	1	1109-		●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	03	1	0911-1006	●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	04	1	1007-1108	●
121	04.439 NUT; PTO FIX PTO TRANSMISSION SIDE(V66) 04.085 M10 FLANGE	0-91180-210-0	04	1	1109-	●		●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0911-1108	●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	1109-	●	●	●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0911-1108	●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	1109-	●	●	●
257	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1212-	●	●
265	00.785 BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1212-	●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0911-1108	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	1109-	●	●	●
317	04.109 COVER; CASE	8-97252-626-0	01	1	0911-1108	●
317	04.109 COVER; CASE	8-97252-626-0	01	1	1109-	●	●	●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	0911-1108	●
319	04.109 BOLT; COVER 04.338 M8X20 FLANGE	0-28050-820-0	06	1	1109-	●	●	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	02	1	1406-	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	0911-1108	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	1109-1211	●	●	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	1212-1405	●	●	●
324	04.319 STUD; RR COVER 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	1406-		●	●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	0911-1108	●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	1109-	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0911-1108	●
417	04.105 PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1109-	●	●	●
421	04.317 COVER; RR,TRANS	8-98020-029-0	01	1	1109-			●
421	04.317 COVER; RR,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97238-934-5	01	1	1109-1211		●
421	04.317 COVER; RR,TRANS	8-97238-934-5	01	1	1212-		●
421	04.317 COVER; RR,TRANS	8-98020-028-0	01	1	0911-	●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0911-1108	●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	1109-	●	●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1109-		●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	02	1	0911-	●
434	00.683 HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98100-978-0	01	1	1212-	●
434	00.683 HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98100-980-0	01	1	1212-		●
434	00.683 HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97238-930-4	01	1	1109-		●
434	00.683 HOUSING; CLU	8-97237-099-5	01	1	0911-1108	●
434	00.683 HOUSING; CLU	8-97237-099-5	01	1	1109-1211	●		●
434	00.683 HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97237-099-5	01	1	1212-	●
434	00.683 HOUSING; CLU	8-97237-099-5	01	1	1212-			●
435	04.103 CASE; TRANS	8-97379-375-0	01	1	1109-			●
435	04.103 CASE; TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97382-868-1	01	1	1109-1211		●
435	04.103 CASE; TRANS	8-97382-868-1	01	1	1212-		●
435	04.103 CASE; TRANS	8-97379-374-0	01	1	0911-	●
586	00.683 BEARING; NEEDLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97253-108-0	01	1	1109-1211		●
586	00.683 BEARING; NEEDLE	8-97253-108-0	01	1	1212-		●
586	00.683 BEARING; NEEDLE	8-97253-109-0	01	1	0911-	●
587	04.020 PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF) 04.510	8-97358-318-0	01	1	1212-	●	●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	0911-1108	●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	1109-1211	●	●	●
609	04.104 BOLT; HSG TO CASE 09.171 M10X40 FLANGE	0-28151-040-0	13	1	1212-	●	●	●
610	04.412 RETAINER; BRG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97241-314-2	01	1	1109-1211		●
610	04.412 RETAINER; BRG	8-97241-314-2	01	1	1212-		●
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	0911-1108	●
610	04.412 RETAINER; BRG	8-97241-315-1	01	1	1109-	●		●
611	04.104 SCREW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X27 TORQUES	8-97365-354-0	10	1	1109-1211		●
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	10	1	1212-		●
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	11	1	0911-1108	●
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	11	1	1109-	●		●
630	04.105 GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15.8	8-97305-656-0	01	1	1212-	●	●
631	04.439 SPACER; PTO PTO TRANSMISSION SIDE(V66)	8-97328-662-0	01	1	1109-		●

606 601 600 602 561 603 604 605 607 599 598 282 283 647 406 649 11 629 629 631 591 595 255 254 594 592 594 593 628 595 261 596 597 1

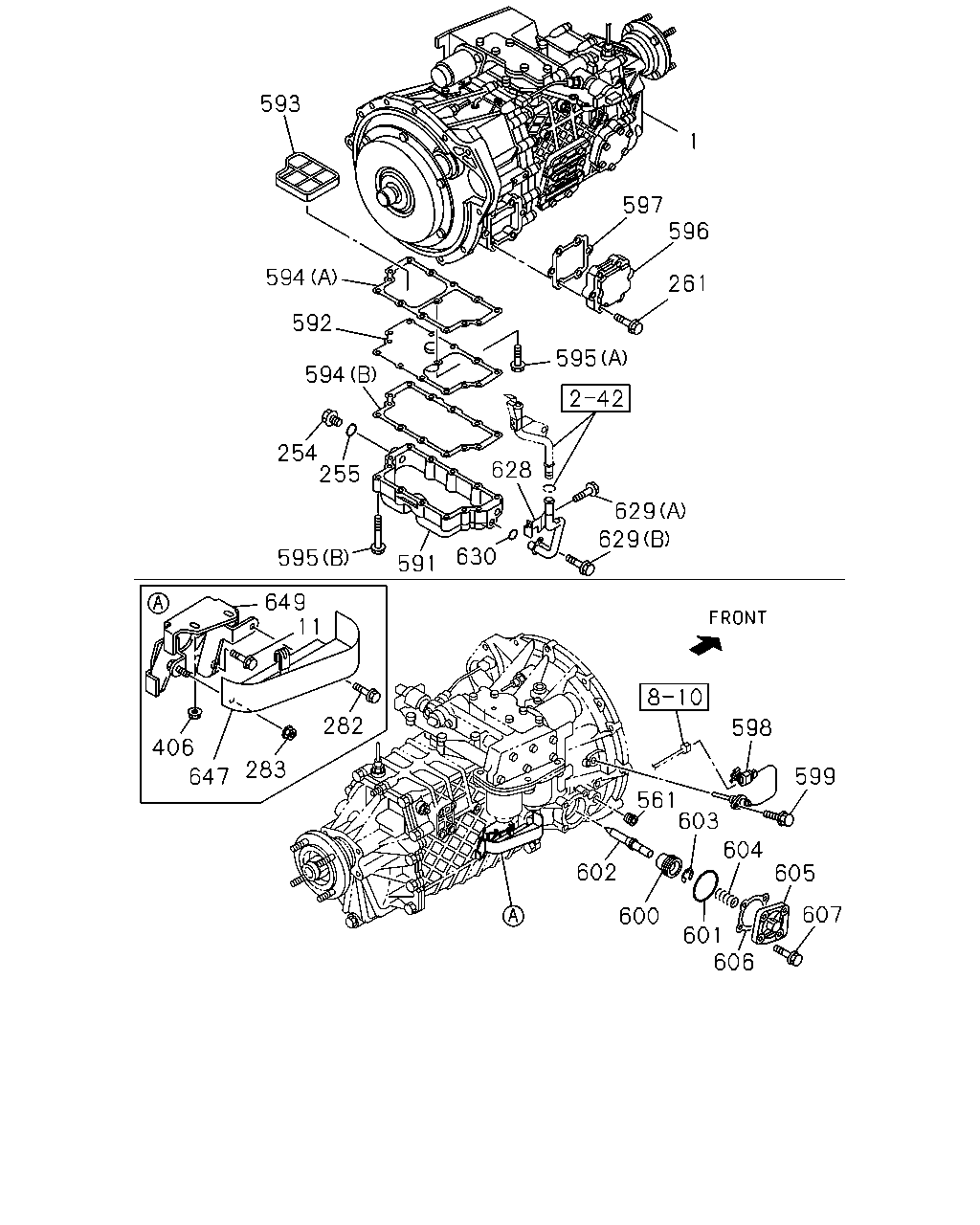

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98067-683-0	01	1	1212-1402	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98067-683-0	01	1	1403-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98067-683-0	01	1	1212-1402	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98067-683-0	01	1	1403-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	8-98067-683-0	01	1	1212-1402	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98067-683-0	01	1	1403-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>	8-98067-683-0	01	1	1212-1402	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>,PTO MANUAL CONTROL(6WC)	8-98067-683-0	01	1	1403-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98066-939-0	01	1	1212-1402		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) PTO TRANSMISSION SIDE(V66) KD PREPARATORY PACK<6HF> PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98066-939-0	01	1	1403-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98066-939-0	01	1	1212-1402		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. KD PREPARATORY PACK<6HF>	8-98066-939-0	01	1	1403-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66)	8-98066-939-0	01	1	1212-1402		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98066-939-0	01	1	1403-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>	8-98066-939-0	01	1	1212-1402		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),KD PREPARATORY PACK<6HF>,PTO MANUAL CONTROL(6WC)	8-98066-939-0	01	1	1403-		●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-98067-623-0	01	1	1109-1402			●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98067-623-0	01	1	1403-			●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66)	8-98067-623-0	01	1	1109-1402			●
1	04.003 TRANSMISSION ASM; MANUAL 4JJ1-TCS ENG(LFB) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98067-623-0	01	1	1403-			●
1	04.003 TRANSMISSION ASM; MANUAL PTO TRANSMISSION SIDE(V66)	8-98066-933-0	01	1	1109-1211		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98066-933-0	01	1	1212-1402		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98066-933-0	01	1	1403-		●
1	04.003 TRANSMISSION ASM; MANUAL EXC. PTO TRANSMISSION SIDE(V66)	8-98066-933-0	01	1	1109-1211		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66)	8-98066-933-0	01	1	1212-1402		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCS ENG(RJS) FINAL GEAR RATIO 41/10(GT5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98066-933-0	01	1	1403-		●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66)	8-98067-680-0	01	1	0911-1211	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98067-680-0	01	1	1212-1402	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98067-680-0	01	1	1403-	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) EXC. PTO TRANSMISSION SIDE(V66)	8-98067-680-0	01	1	0911-1211	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66)	8-98067-680-0	01	1	1212-1402	●
1	04.003 TRANSMISSION ASM; MANUAL 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)	8-98067-680-0	01	1	1403-	●
11	04.085 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M10X20 FLANGE	0-28761-020-0	02	1	1212-	●	●
254	04.104 PLUG; DRAIN,OIL TRANSMISSION CONTROL-SMOOTHER(8GF) 04.105	8-97365-374-0	01	1	1212-	●	●
255	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=17	8-97115-712-0	01	1	1212-	●	●
261	04.109 BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M6X35 FLANGE	0-28650-635-0	06	1	1212-	●	●
282	00.785 BOLT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1212-	●	●
283	04.083 NUT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	1212-	●	●
406	04.510 NUT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE	0-91180-210-0	02	1	1212-	●	●
561	04.104 PLUG TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97320-204-0	01	1	1212-	●	●
591	04.195 PAN; OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-429-2	01	1	1212-	●	●
592	04.338 COVER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-771-1	01	1	1212-	●	●
593	04.338 FILTER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-438-1	01	1	1212-	●	●
594	04.105 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97256-430-1	01	1	1212-	●	●
594	04.105 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97289-772-0	01	1	1212-	●	●
595	04.510 BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1212-	●	●
595	04.510 BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M6X35 FLANGE	0-28650-635-0	13	1	1212-	●	●
596	04.317 COVER; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-773-0	01	1	1212-	●	●
597	04.109 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-774-0	01	1	1212-	●	●
598	04.329 SENSOR; TURBINE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-495-1	01	1	1212-	●	●
599	04.329 BOLT; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M6X16 FLANGE	0-28650-616-0	01	1	1212-	●	●
600	04.105 PISTON; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-652-1	01	1	1212-	●	●
601	04.317 SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-755-0	01	1	1212-	●	●
602	04.166 PLUNGER; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-653-0	01	1	1212-	●	●
603	04.317 RING; SNAP TRANSMISSION CONTROL-SMOOTHER(8GF) 03.838 ID=8	9-09185-008-0	01	1	1212-	●	●
604	04.384 SPRING; PISTON TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-752-0	01	1	1212-	●	●
605	04.356 COVER; CYLINDER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-756-0	01	1	1212-	●	●
606	04.005 GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-757-0	01	1	1212-	●	●
607	04.109 BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) 03.403 M8X30 FLANGE	0-28650-830-0	04	1	1212-	●	●
628	04.439 TUBE; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98030-395-1	01	1	1212-	●	●
629	04.317 BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 (A) M10X16 FLANGE	0-28151-016-0	01	1	1212-	●	●
629	04.317 BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1212-	●	●
630	04.105 GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=15.8	8-97305-656-0	01	1	1212-	●	●
631	04.439 SPACER; PTO PTO TRANSMISSION SIDE(V66)	8-97328-662-0	01	1	1109-		●
647	00.782 PROTECTOR; HEAT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97329-465-0	01	1	1212-	●	●
649	04.105 BRACKET; SOLENOID TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97378-439-0	01	1	1212-		●
649	04.105 BRACKET; SOLENOID TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-237-0	01	1	1212-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
