◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10722 - CXH RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-87A - COUPLING; INJECTION PUMP ▶
0-87A — COUPLING; INJECTION PUMP (#5020) — 52 parça

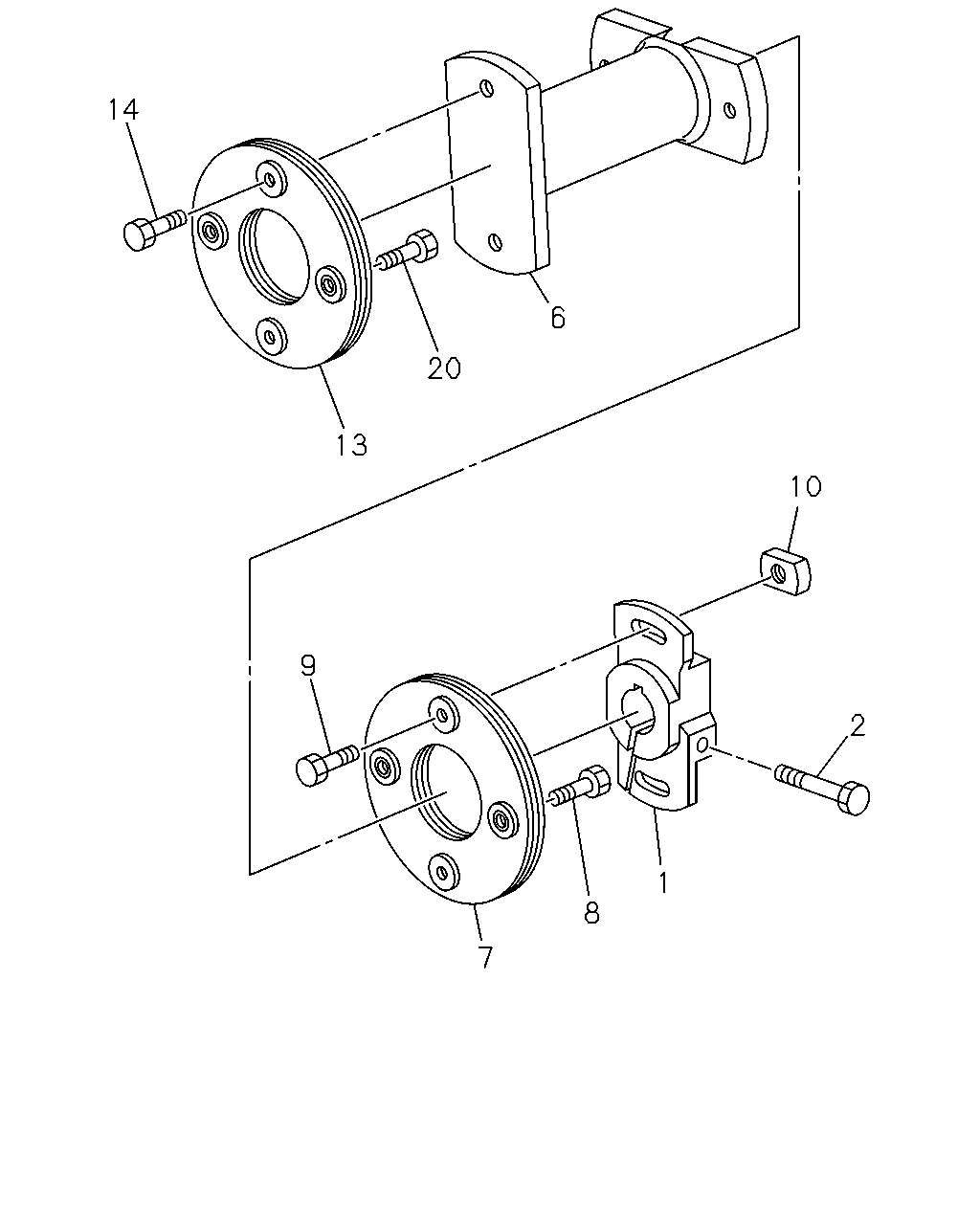

çizim 5643
14 6 20 13 10 9 2 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COUPLING; INJ PUMP DRIVE 1-15782-020-0 01 1 9606-9706 ●
1 COUPLING; INJ PUMP DRIVE 1-15782-020-0 01 1 9707-9905 ● ●
1 COUPLING; INJ PUMP DRIVE 1-15782-020-0 01 1 9906- ● ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-177-0 01 1 9606-9706 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-177-0 01 1 9707-9905 ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-177-0 01 1 9906- ● ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-176-0 01 1 9606-9706 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-176-0 01 1 9707-9905 ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-176-0 01 1 9906- ● ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-173-0 01 1 9606-9706 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-173-0 01 1 9707-9905 ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-173-0 01 1 9906- ● ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-175-0 02 1 9606-9706 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-175-0 02 1 9707-9905 ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-175-0 02 1 9906- ● ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-172-0 02 1 9606-9706 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-172-0 02 1 9707-9905 ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-172-0 02 1 9906- ● ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-174-0 02 1 9606-9706 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-174-0 02 1 9707-9905 ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-174-0 02 1 9906- ● ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-173-0 01 1 9606-9706 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-173-0 01 1 9707-9905 ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-173-0 01 1 9906- ● ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-175-0 02 1 9606-9706 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-175-0 02 1 9707-9905 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-175-0 02 1 9906- ● ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-175-0 02 1 9606-9706 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-175-0 02 1 9707-9905 ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-175-0 02 1 9906- ● ● ●

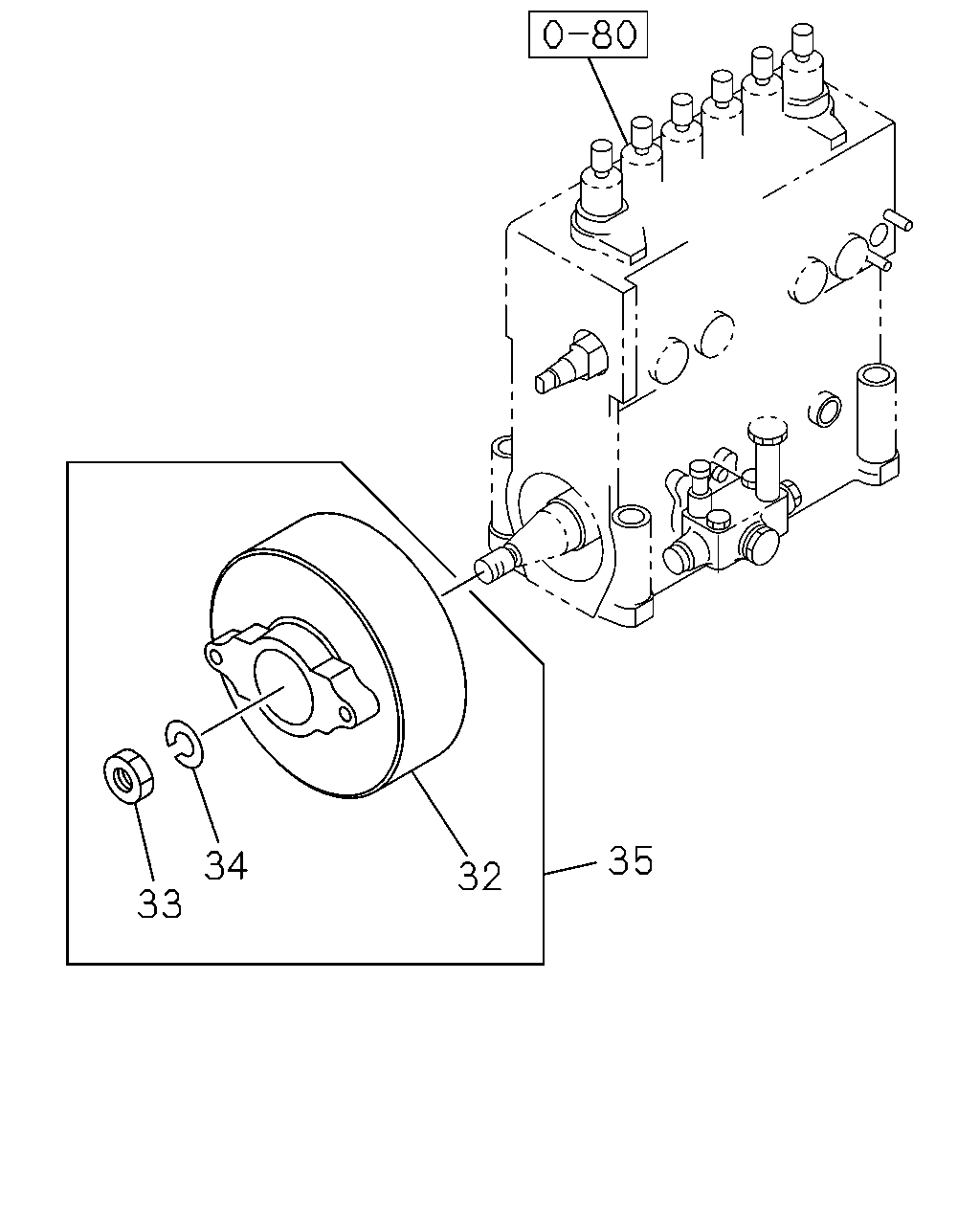

çizim 7367
35 34 32 33
BalonParca AdiParca NoAdetTipApplied Date A B C D
32 DAMPER; INJ PUMP
17 INCH CLUTCH(RF3) 		1-15744-005-1 01 1 9610-9612 ●
32 DAMPER; INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15744-005-1 01 1 9701-9706 ●
32 DAMPER; INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15744-005-1 01 1 9707-9905 ●
32 DAMPER; INJ PUMP 1-15744-005-1 01 1 9707-9905 ●
33 NUT; DAMPER
17 INCH CLUTCH(RF3) 		1-19179-020-0 01 1 9610-9612 ●
33 NUT; DAMPER
EURO2 SPECIFICATION<THN> 		1-19179-020-0 01 1 9701-9706 ●
33 NUT; DAMPER
EURO2 SPECIFICATION<THN> 		1-19179-020-0 01 1 9707-9905 ●
33 NUT; DAMPER 1-19179-020-0 01 1 9707-9905 ●
33 NUT; DAMPER
EURO2 SPECIFICATION<THN> 		1-19179-020-0 01 1 9906- ●
33 NUT; DAMPER 1-19179-020-0 01 1 9906- ●
34 WASHER; DAMPER
17 INCH CLUTCH(RF3) 		1-19179-002-0 01 1 9610-9612 ●
34 WASHER; DAMPER
EURO2 SPECIFICATION<THN> 		1-19179-002-0 01 1 9701-9706 ●
34 WASHER; DAMPER
EURO2 SPECIFICATION<THN> 		1-19179-002-0 01 1 9707-9905 ●
34 WASHER; DAMPER 1-19179-002-0 01 1 9707-9905 ●
34 WASHER; DAMPER
EURO2 SPECIFICATION<THN> 		1-19179-002-0 01 1 9906- ●
34 WASHER; DAMPER 1-19179-002-0 01 1 9906- ●
35 DAMPER ASM; INJ PUMP
17 INCH CLUTCH(RF3) 		1-15744-007-1 01 1 9610-9612 ●
35 DAMPER ASM; INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15744-007-1 01 1 9701-9706 ●
35 DAMPER ASM; INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15744-007-1 01 1 9707-9905 ●
35 DAMPER ASM; INJ PUMP 1-15744-007-1 01 1 9707-9905 ●
35 DAMPER ASM; INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15744-007-1 01 1 9906- ●
35 DAMPER ASM; INJ PUMP 1-15744-007-1 01 1 9906- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
