◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51244 - NPR(LHD) EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶
2-07 — CLUTCH BOOSTER; MINIPACK (#50199) — 10 parça

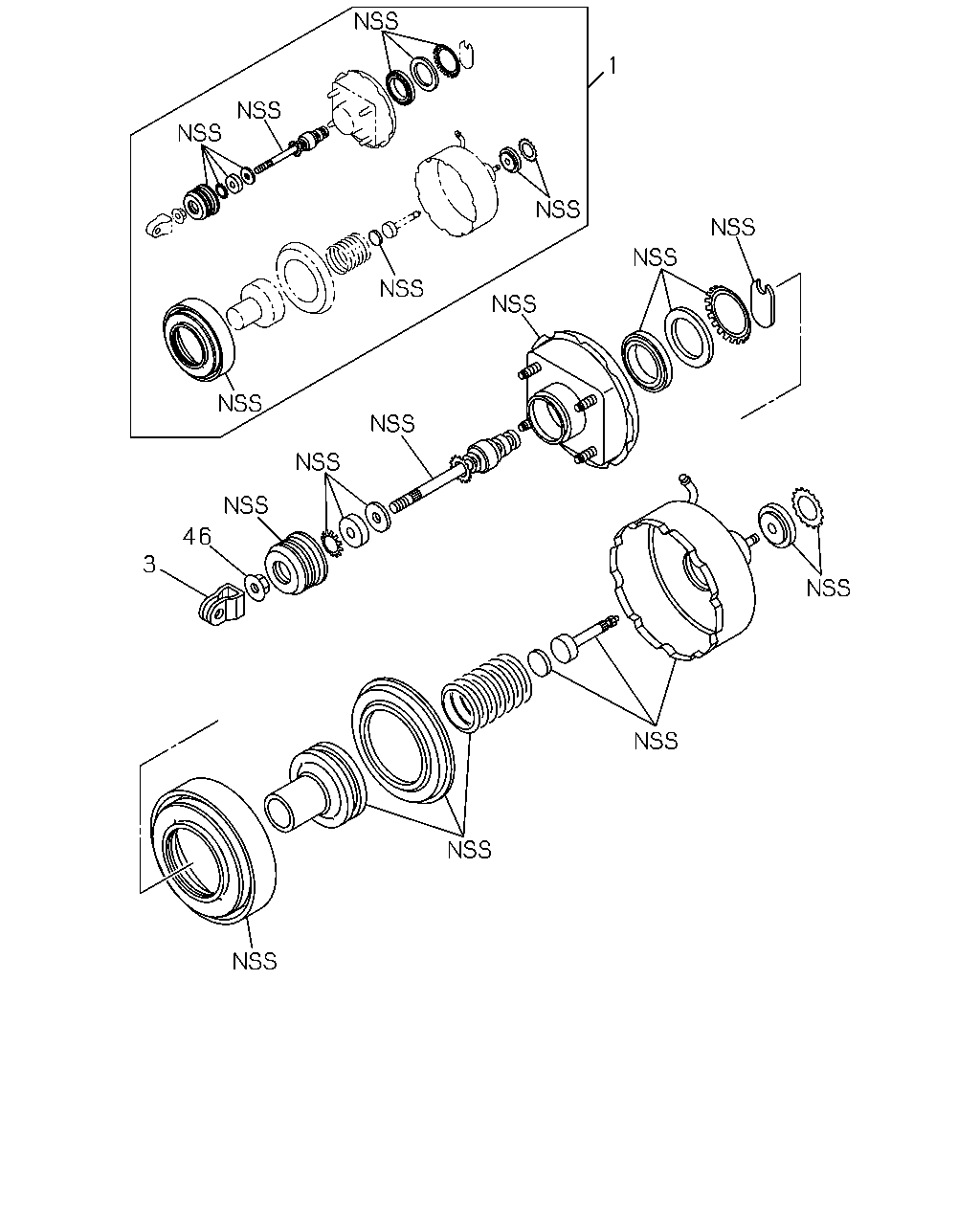

çizim 159280
1 46 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.775 REPAIR KIT; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-98049-385-0 01 1 1109- ●
1 00.775 REPAIR KIT; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-98049-386-0 01 1 0911-1108 ●
1 00.775 REPAIR KIT; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-98049-386-0 01 1 1109-1211 ● ●
1 00.775 REPAIR KIT; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98049-386-0 01 1 1212- ● ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-147-0 01 1 0911-1108 ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-147-0 01 1 1109-1211 ● ● ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97174-147-0 01 1 1212- ● ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-148-0 01 1 0911-1108 ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-148-0 01 1 1109-1211 ● ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97174-148-0 01 1 1212- ● ● ●
