1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#50193) — 126 parça
çizim 159260
137 139 138 140 187 144 144 141 141 142 142 180 180 143 143 146 184 24
BalonParca AdiParca NoAdetTipApplied Date A B
24 03.634 BOLT; COVER
03.444 		8-97065-029-0 02 1 0911-1108 ●
24 03.634 BOLT; COVER
03.444 		8-97065-029-0 02 1 0911-1108 ●
24 03.634 BOLT; COVER
03.444 		8-97065-029-0 02 1 1109- ● ●
24 03.634 BOLT; COVER
03.444 		8-97065-029-0 02 1 1109- ● ●
137 03.634 CHAMBER; POWER
(B) 		8-98038-348-0 01 1 0911-1012 ●
137 03.634 CHAMBER; POWER
(B) 		8-97985-132-0 01 1 1101-1108 ●
137 03.634 CHAMBER; POWER
(B) 		8-97985-132-0 01 1 1109- ● ●
137 03.634 CHAMBER; POWER
(A) 		8-98043-596-0 01 1 0911-1108 ●
137 03.634 CHAMBER; POWER
(A) 		8-98043-596-0 01 1 1109-1212 ● ●
137 03.634 CHAMBER; POWER
(C) 		8-98229-058-0 01 1 1301- ● ●
138 03.634 BEARING; EXH BRK VLV
FRONT 		8-98231-608-0 01 1 1301- ● ●
138 03.634 BEARING; EXH BRK VLV 5-22189-004-0 01 1 0911-1108 ●
138 03.634 BEARING; EXH BRK VLV 5-22189-004-0 01 1 0911-1108 ●
138 03.634 BEARING; EXH BRK VLV 5-22189-004-0 01 1 1109-1212 ● ●
138 03.634 BEARING; EXH BRK VLV 5-22189-004-0 01 1 1109-1212 ● ●
138 03.634 BEARING; EXH BRK VLV
REAR 		5-22189-004-0 01 1 1301- ● ●
139 03.634 GASKET; EXH BRK VLV 8-94328-234-0 01 1 0911-1108 ●
139 03.634 GASKET; EXH BRK VLV 8-94328-234-0 01 1 0911-1108 ●
139 03.634 GASKET; EXH BRK VLV 8-94328-234-0 01 1 1109- ● ●
139 03.634 GASKET; EXH BRK VLV 8-94328-234-0 01 1 1109- ● ●
140 03.634 INSULATOR; EXH BRK VLV 8-98037-494-0 01 1 0911-1108 ●
140 03.634 INSULATOR; EXH BRK VLV 8-98037-494-0 01 1 1109- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
(B) REAR 		8-97985-128-0 01 1 1101-1108 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
(B) REAR 		8-97985-128-0 01 1 1109- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
05.122 (A) 		8-94311-428-0 01 1 0911-1012 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
05.122 (A) 		8-94311-428-0 01 1 0911-1012 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
05.122 (A) FRONT 		8-94311-428-0 01 1 1101-1108 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
05.122 (A) FRONT 		8-94311-428-0 01 1 1109- ● ●
142 03.636 CLEVIS; EXH BRK VLV
(B) REAR 		8-97985-133-0 01 1 1101-1108 ●
142 03.636 CLEVIS; EXH BRK VLV
(B) REAR 		8-97985-133-0 01 1 1109- ● ●
142 03.636 CLEVIS; EXH BRK VLV
(A) 		8-97177-311-0 01 1 0911-1012 ●
142 03.636 CLEVIS; EXH BRK VLV
(A) 		8-97177-311-0 01 1 0911-1012 ●
142 03.636 CLEVIS; EXH BRK VLV
(A) FRONT 		8-97177-311-0 01 1 1101-1108 ●
142 03.636 CLEVIS; EXH BRK VLV
(A) FRONT 		8-97177-311-0 01 1 1109-1212 ● ●
142 03.636 CLEVIS; EXH BRK VLV
(A) FRONT 		8-98231-609-0 01 1 1301- ● ●
143 03.636 PIN; EXH BRK VLV
(B) REAR 		8-97985-126-0 01 1 1101-1108 ●
143 03.636 PIN; EXH BRK VLV
(B) REAR 		8-97985-126-0 01 1 1109- ● ●
143 03.636 PIN; EXH BRK VLV
(A) 		8-94311-452-0 01 1 0911-1012 ●
143 03.636 PIN; EXH BRK VLV
(A) 		8-94311-452-0 01 1 0911-1012 ●
143 03.636 PIN; EXH BRK VLV
(A) FRONT 		8-94311-452-0 01 1 1101-1108 ●
143 03.636 PIN; EXH BRK VLV
(A) FRONT 		8-94311-452-0 01 1 1109-1212 ● ●
143 03.636 PIN; EXH BRK VLV
(A) FRONT 		8-98231-610-0 01 1 1301- ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(B) REAR 		8-97985-124-0 01 1 1101-1108 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(B) REAR 		8-97985-124-0 01 1 1109-1212 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(B) 		8-97985-124-0 01 1 1301- ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(B) 		8-97985-124-0 01 1 1301- ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(A) 		8-97029-428-0 01 1 0911-1012 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(A) 		8-97029-428-0 01 1 0911-1012 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(A) FRONT 		8-97029-428-0 01 1 1101-1108 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(A) FRONT 		8-97029-428-0 01 1 1109-1212 ● ●
146 03.634 NUT; EXH BRK VLV
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0911-1103 ●
146 03.634 NUT; EXH BRK VLV
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0911-1103 ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1108 ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1108 ●
146 03.634 NUT; EXH BRK VLV
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1109- ● ●
146 03.634 NUT; EXH BRK VLV
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1109- ● ●
180 03.640 COLLAR; EXH BRK VLV
03.440 		8-97018-597-0 02 1 0912-1108 ●
180 03.640 COLLAR; EXH BRK VLV
03.440 		8-97018-597-0 02 1 1109- ● ●
184 03.634 COVER; BRKT
(A) 		8-97370-068-0 01 1 0911-1108 ●
184 03.634 COVER; BRKT
(A) 		8-97370-068-0 01 1 1109- ● ●
184 03.634 COVER; BRKT
(B) 		8-98037-493-0 01 1 0911-1108 ●
184 03.634 COVER; BRKT
(B) 		8-98037-493-0 01 1 1109- ● ●
187 03.685 PROTECTOR; EXH BRK VLV 8-98037-495-0 01 1 0911-1108 ●
187 03.685 PROTECTOR; EXH BRK VLV 8-98037-495-0 01 1 1109- ● ●

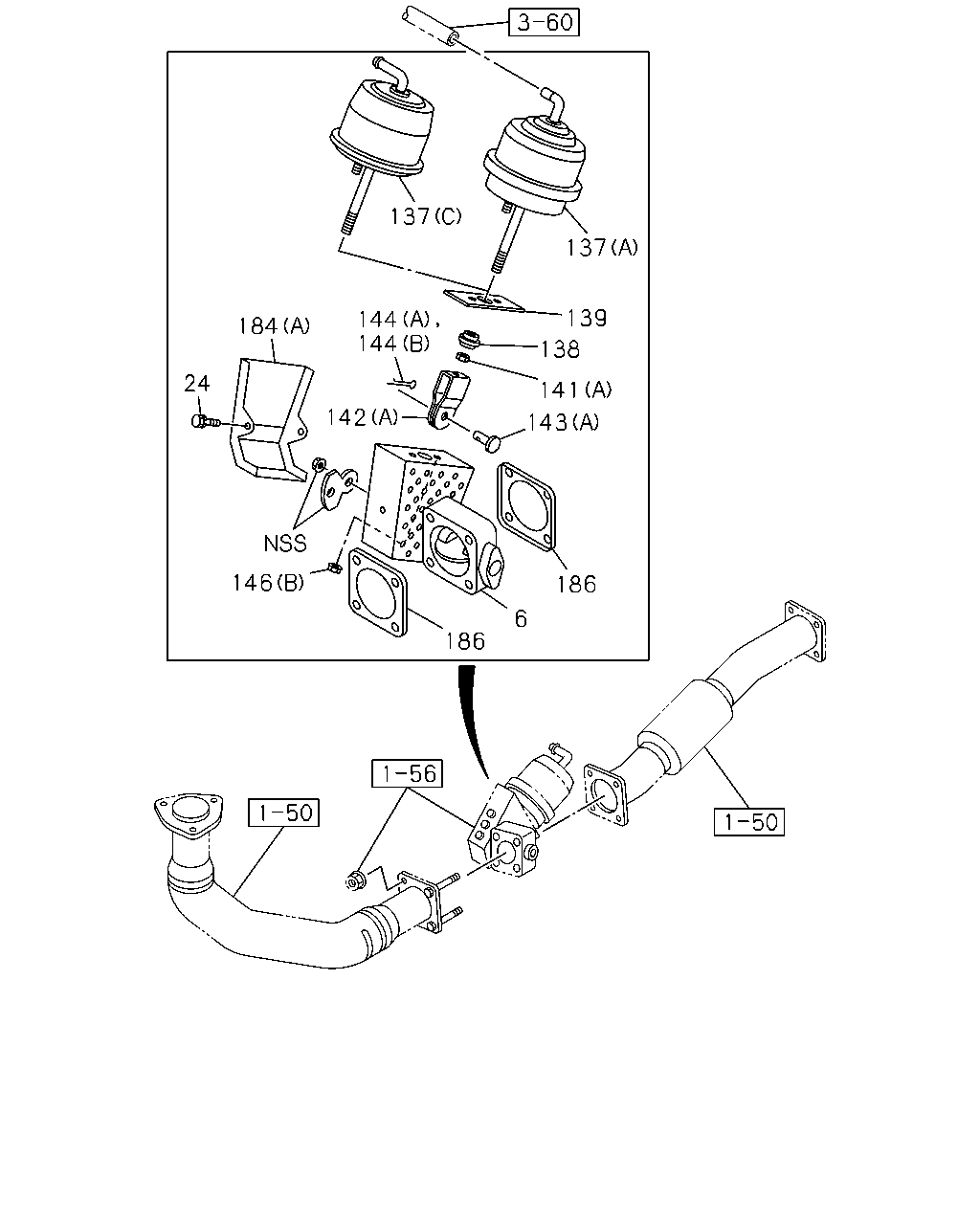

çizim 159266
137 184 24 146 144 144 142 186 6 186 143 141 138 139 137
BalonParca AdiParca NoAdetTipApplied Date A B
6 03.632 VALVE; EXH BRAKE 8-98069-291-0 01 1 0911-1108 ●
6 03.632 VALVE; EXH BRAKE 8-98069-291-0 01 1 1109- ● ●
24 03.634 BOLT; COVER
03.444 		8-97065-029-0 02 1 0911-1108 ●
24 03.634 BOLT; COVER
03.444 		8-97065-029-0 02 1 0911-1108 ●
24 03.634 BOLT; COVER
03.444 		8-97065-029-0 02 1 1109- ● ●
24 03.634 BOLT; COVER
03.444 		8-97065-029-0 02 1 1109- ● ●
137 03.634 CHAMBER; POWER
(B) 		8-98038-348-0 01 1 0911-1012 ●
137 03.634 CHAMBER; POWER
(B) 		8-97985-132-0 01 1 1101-1108 ●
137 03.634 CHAMBER; POWER
(B) 		8-97985-132-0 01 1 1109- ● ●
137 03.634 CHAMBER; POWER
(A) 		8-98043-596-0 01 1 0911-1108 ●
137 03.634 CHAMBER; POWER
(A) 		8-98043-596-0 01 1 1109-1212 ● ●
137 03.634 CHAMBER; POWER
(C) 		8-98229-058-0 01 1 1301- ● ●
138 03.634 BEARING; EXH BRK VLV
FRONT 		8-98231-608-0 01 1 1301- ● ●
138 03.634 BEARING; EXH BRK VLV 5-22189-004-0 01 1 0911-1108 ●
138 03.634 BEARING; EXH BRK VLV 5-22189-004-0 01 1 0911-1108 ●
138 03.634 BEARING; EXH BRK VLV 5-22189-004-0 01 1 1109-1212 ● ●
138 03.634 BEARING; EXH BRK VLV 5-22189-004-0 01 1 1109-1212 ● ●
138 03.634 BEARING; EXH BRK VLV
REAR 		5-22189-004-0 01 1 1301- ● ●
139 03.634 GASKET; EXH BRK VLV 8-94328-234-0 01 1 0911-1108 ●
139 03.634 GASKET; EXH BRK VLV 8-94328-234-0 01 1 0911-1108 ●
139 03.634 GASKET; EXH BRK VLV 8-94328-234-0 01 1 1109- ● ●
139 03.634 GASKET; EXH BRK VLV 8-94328-234-0 01 1 1109- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
(B) REAR 		8-97985-128-0 01 1 1101-1108 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
(B) REAR 		8-97985-128-0 01 1 1109- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
05.122 (A) 		8-94311-428-0 01 1 0911-1012 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
05.122 (A) 		8-94311-428-0 01 1 0911-1012 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
05.122 (A) FRONT 		8-94311-428-0 01 1 1101-1108 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
05.122 (A) FRONT 		8-94311-428-0 01 1 1109- ● ●
142 03.636 CLEVIS; EXH BRK VLV
(B) REAR 		8-97985-133-0 01 1 1101-1108 ●
142 03.636 CLEVIS; EXH BRK VLV
(B) REAR 		8-97985-133-0 01 1 1109- ● ●
142 03.636 CLEVIS; EXH BRK VLV
(A) 		8-97177-311-0 01 1 0911-1012 ●
142 03.636 CLEVIS; EXH BRK VLV
(A) 		8-97177-311-0 01 1 0911-1012 ●
142 03.636 CLEVIS; EXH BRK VLV
(A) FRONT 		8-97177-311-0 01 1 1101-1108 ●
142 03.636 CLEVIS; EXH BRK VLV
(A) FRONT 		8-97177-311-0 01 1 1109-1212 ● ●
142 03.636 CLEVIS; EXH BRK VLV
(A) FRONT 		8-98231-609-0 01 1 1301- ● ●
143 03.636 PIN; EXH BRK VLV
(B) REAR 		8-97985-126-0 01 1 1101-1108 ●
143 03.636 PIN; EXH BRK VLV
(B) REAR 		8-97985-126-0 01 1 1109- ● ●
143 03.636 PIN; EXH BRK VLV
(A) 		8-94311-452-0 01 1 0911-1012 ●
143 03.636 PIN; EXH BRK VLV
(A) 		8-94311-452-0 01 1 0911-1012 ●
143 03.636 PIN; EXH BRK VLV
(A) FRONT 		8-94311-452-0 01 1 1101-1108 ●
143 03.636 PIN; EXH BRK VLV
(A) FRONT 		8-94311-452-0 01 1 1109-1212 ● ●
143 03.636 PIN; EXH BRK VLV
(A) FRONT 		8-98231-610-0 01 1 1301- ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(B) REAR 		8-97985-124-0 01 1 1101-1108 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(B) REAR 		8-97985-124-0 01 1 1109-1212 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(B) 		8-97985-124-0 01 1 1301- ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(B) 		8-97985-124-0 01 1 1301- ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(A) 		8-97029-428-0 01 1 0911-1012 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(A) 		8-97029-428-0 01 1 0911-1012 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(A) FRONT 		8-97029-428-0 01 1 1101-1108 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(A) FRONT 		8-97029-428-0 01 1 1109-1212 ● ●
146 03.634 NUT; EXH BRK VLV
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0911-1103 ●
146 03.634 NUT; EXH BRK VLV
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 0911-1103 ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1108 ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1108 ●
146 03.634 NUT; EXH BRK VLV
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1109- ● ●
146 03.634 NUT; EXH BRK VLV
01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1109- ● ●
184 03.634 COVER; BRKT
(A) 		8-97370-068-0 01 1 0911-1108 ●
184 03.634 COVER; BRKT
(A) 		8-97370-068-0 01 1 1109- ● ●
184 03.634 COVER; BRKT
(B) 		8-98037-493-0 01 1 0911-1108 ●
184 03.634 COVER; BRKT
(B) 		8-98037-493-0 01 1 1109- ● ●
186 03.611 GASKET; EXH BRK VLV,BODY 8-98022-713-0 02 1 0911-1108 ●
186 03.611 GASKET; EXH BRK VLV,BODY 8-98022-713-0 02 1 1109- ● ●
