Sayfa 1-50 - Isuzu EPC

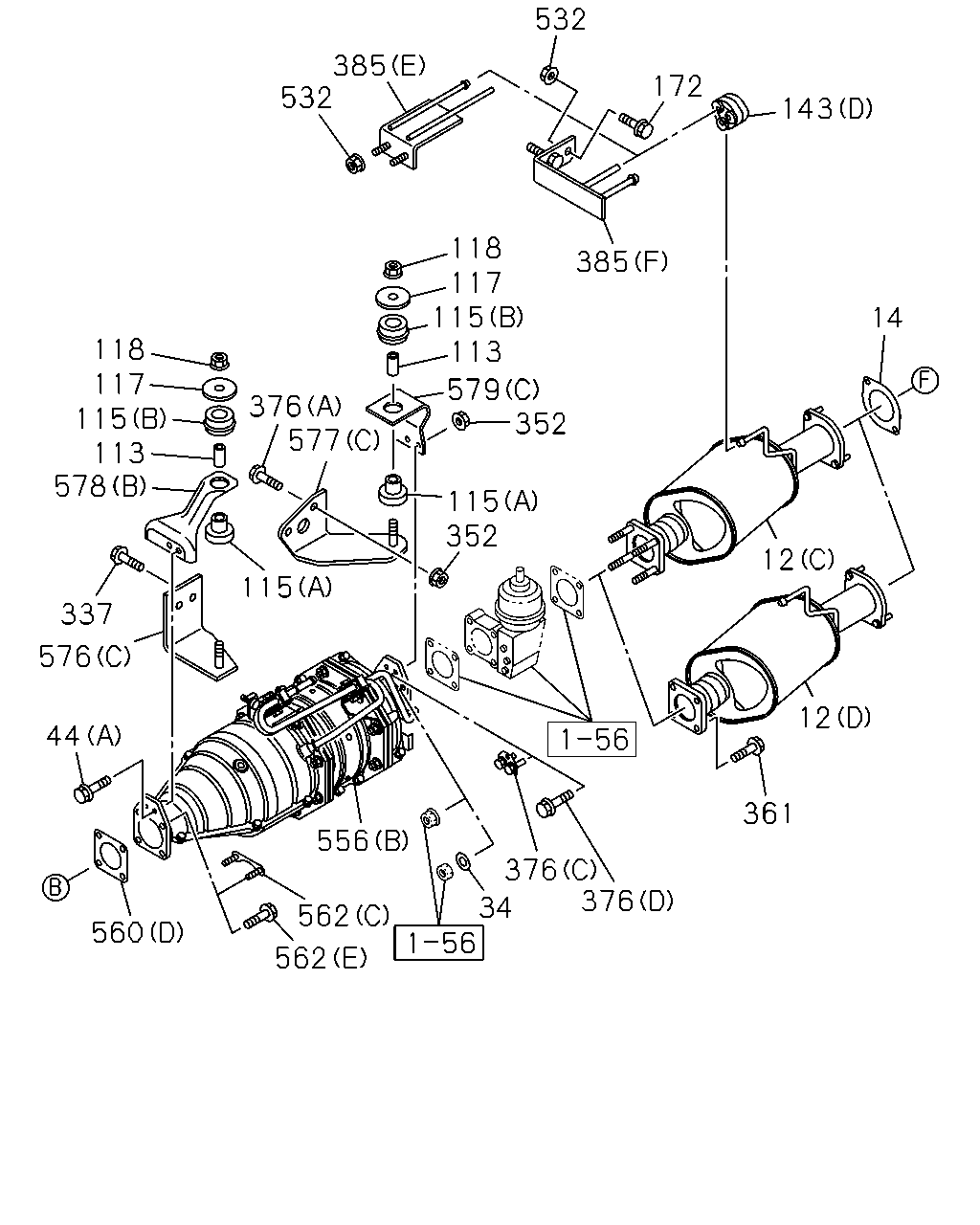

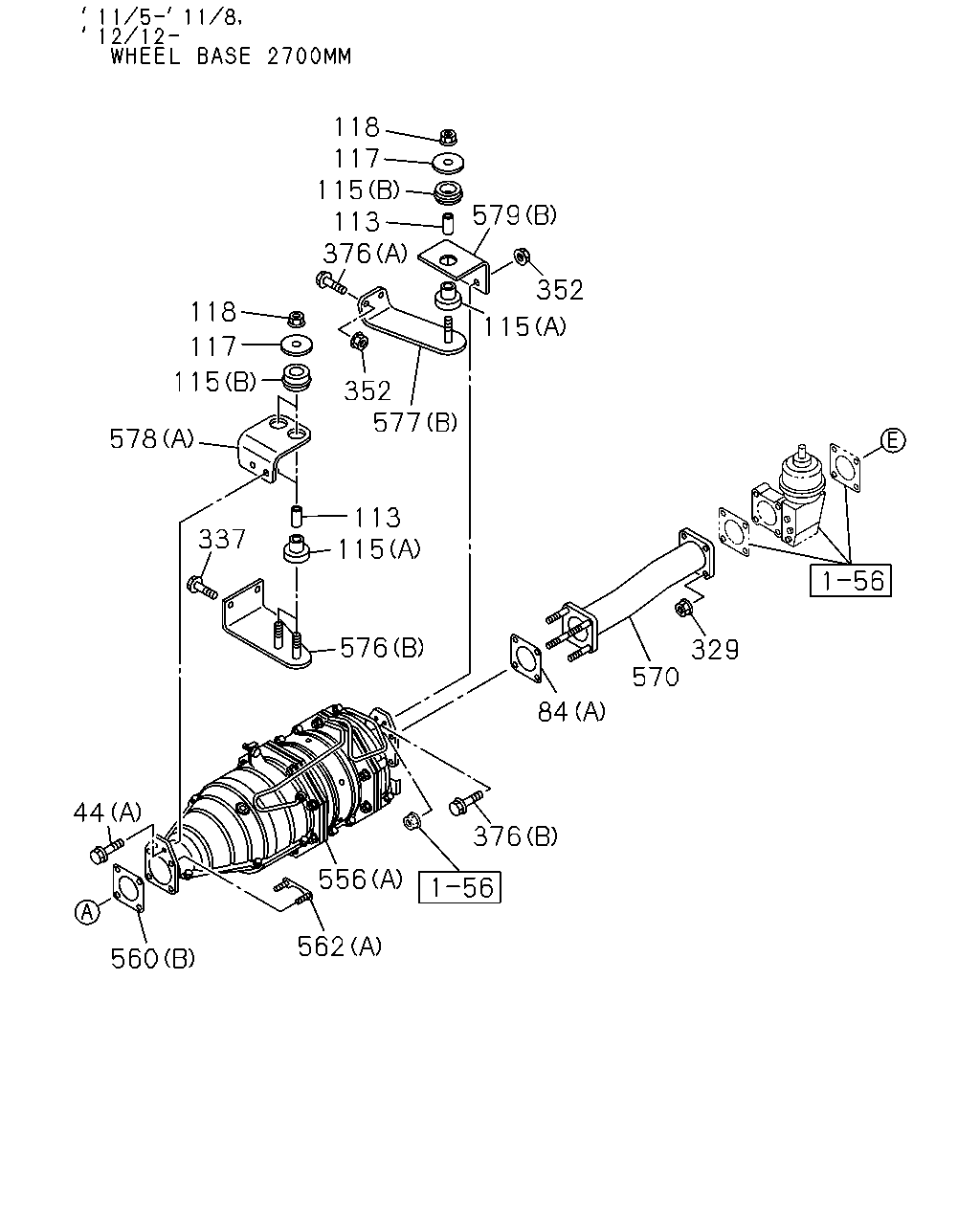

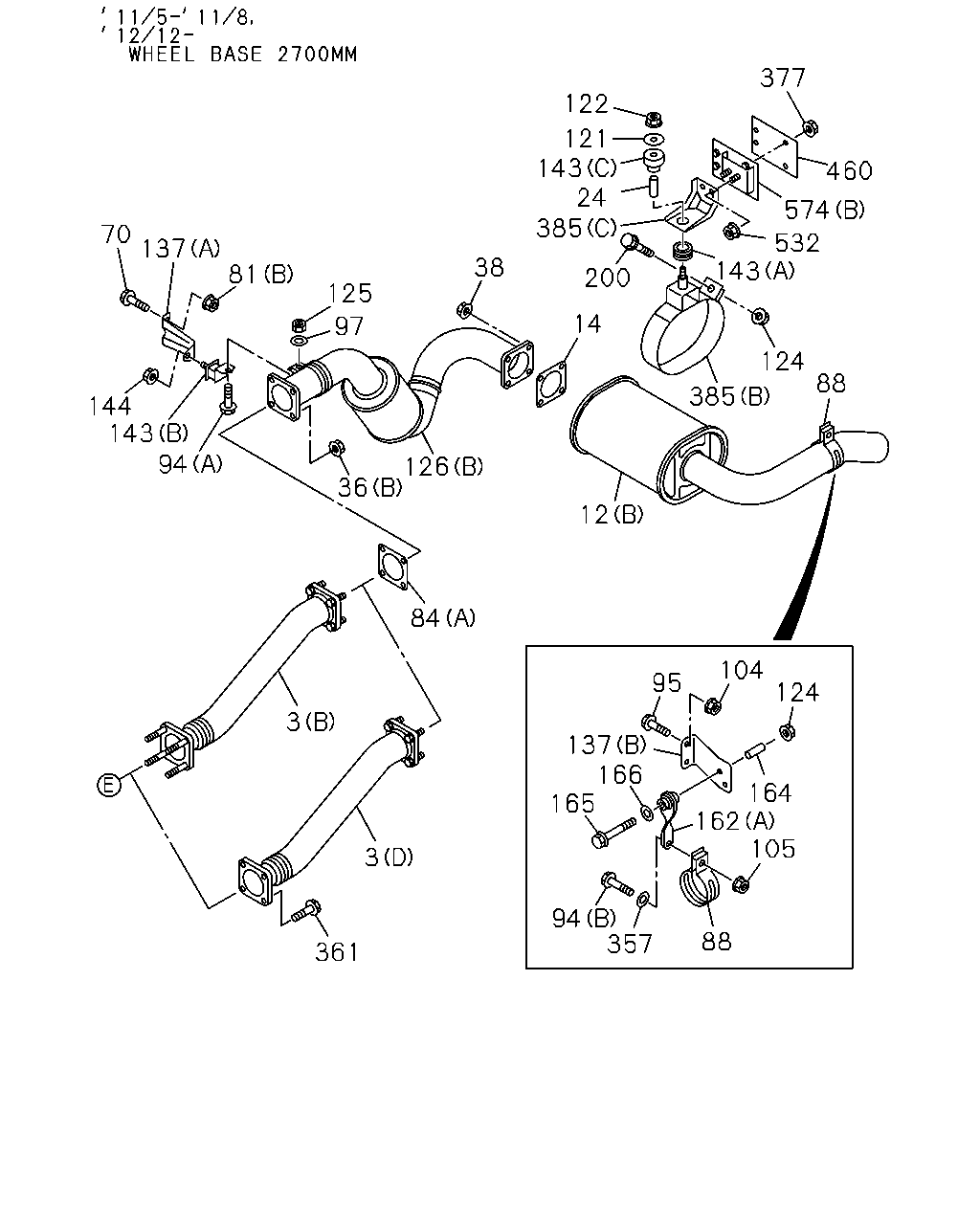

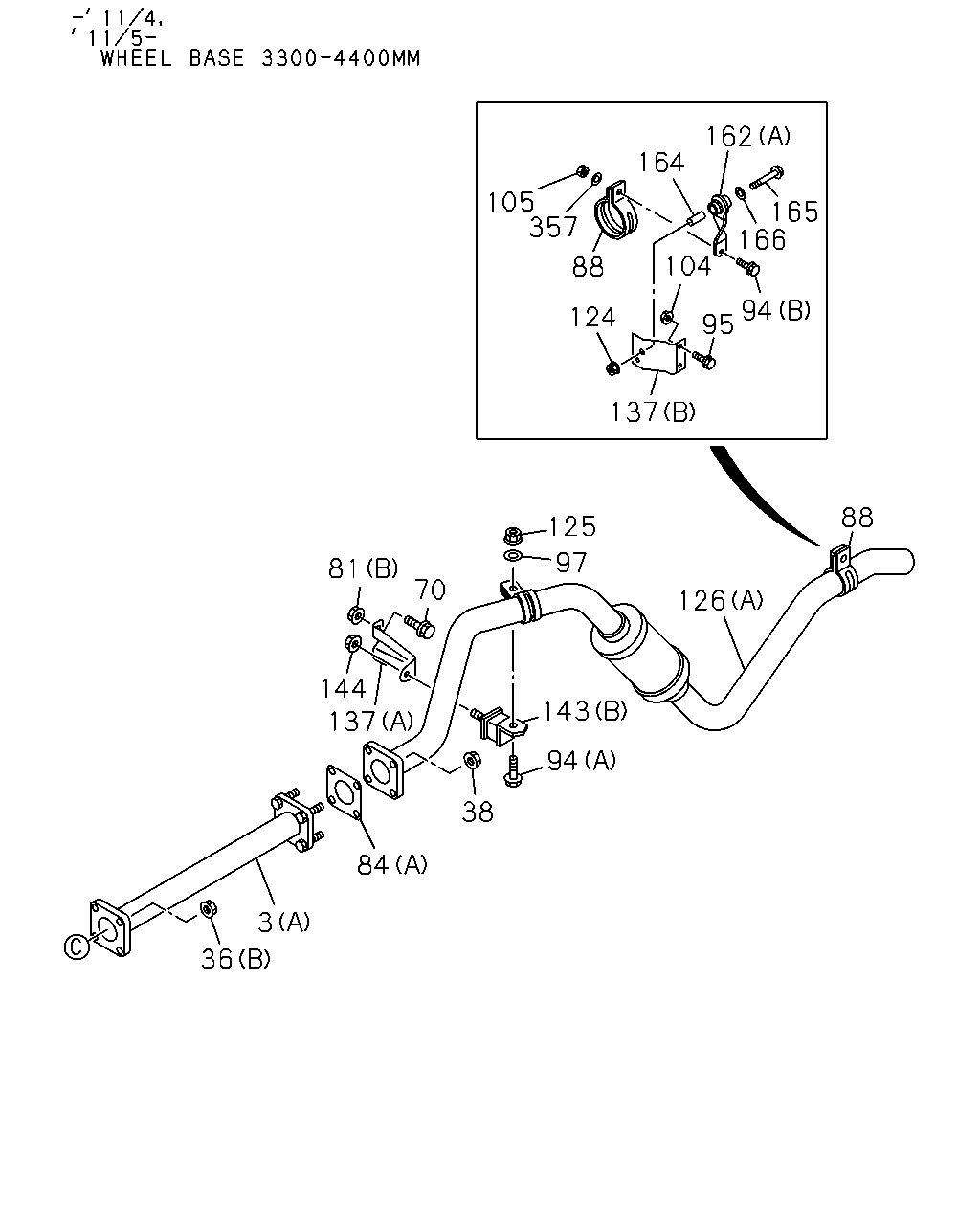

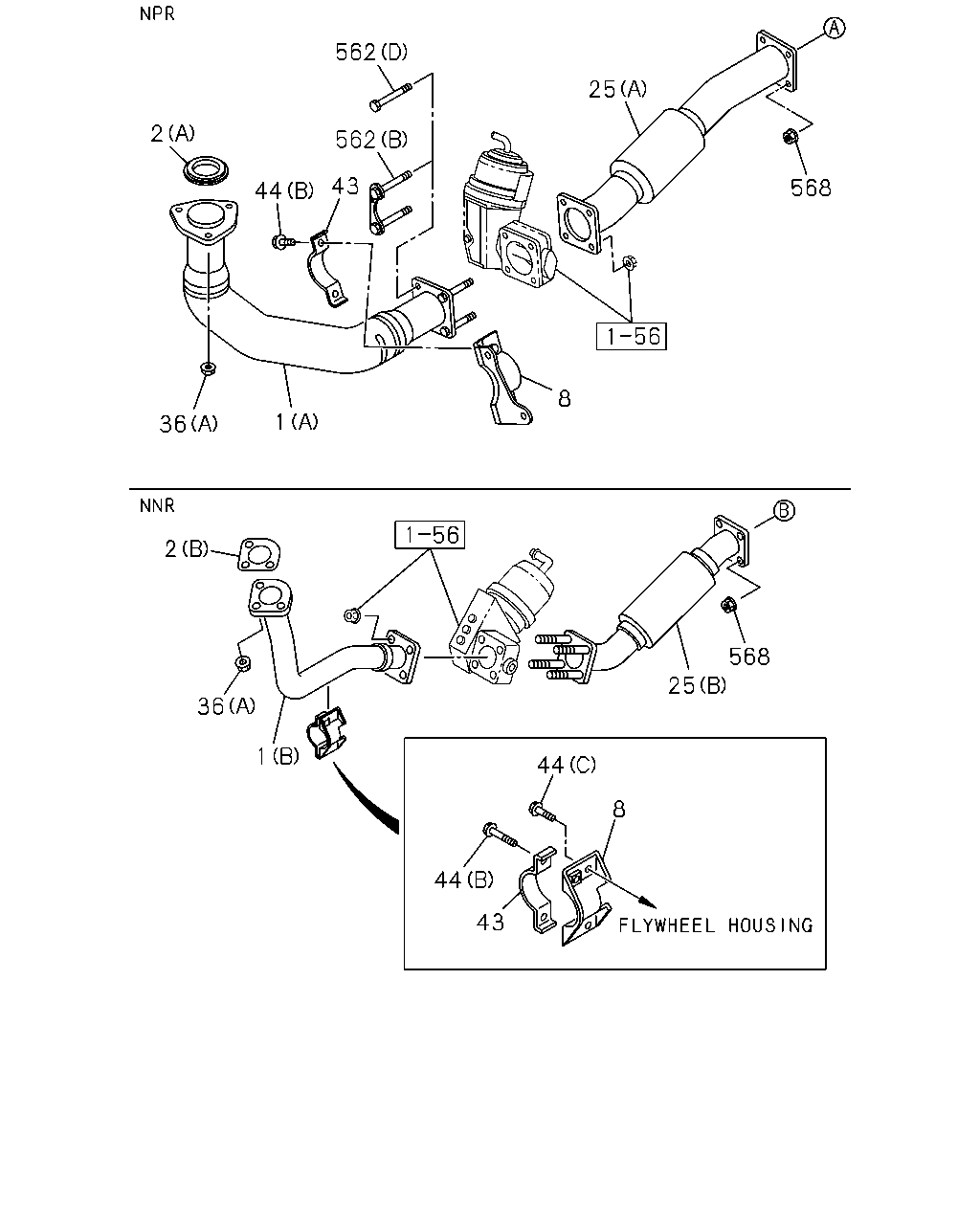

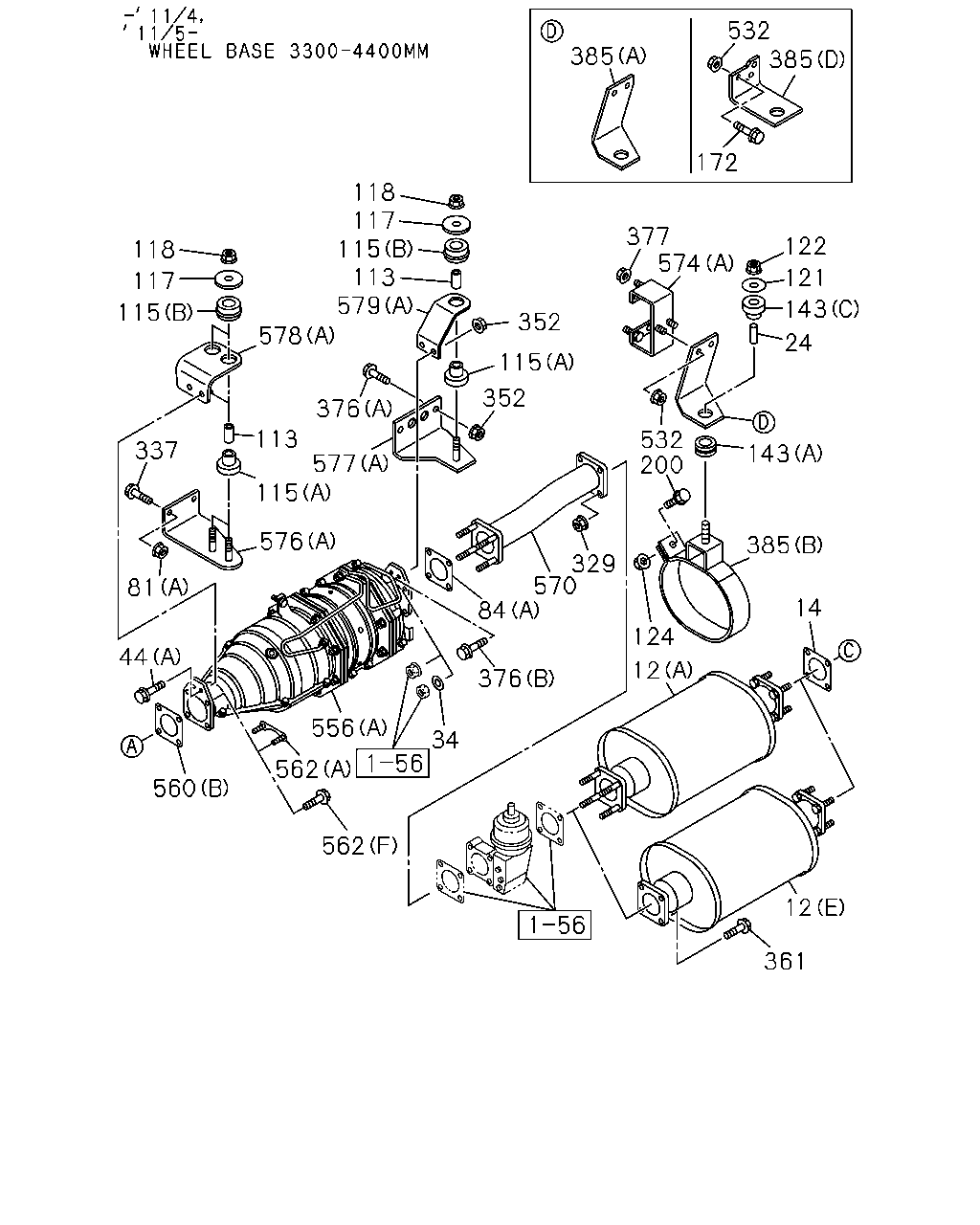

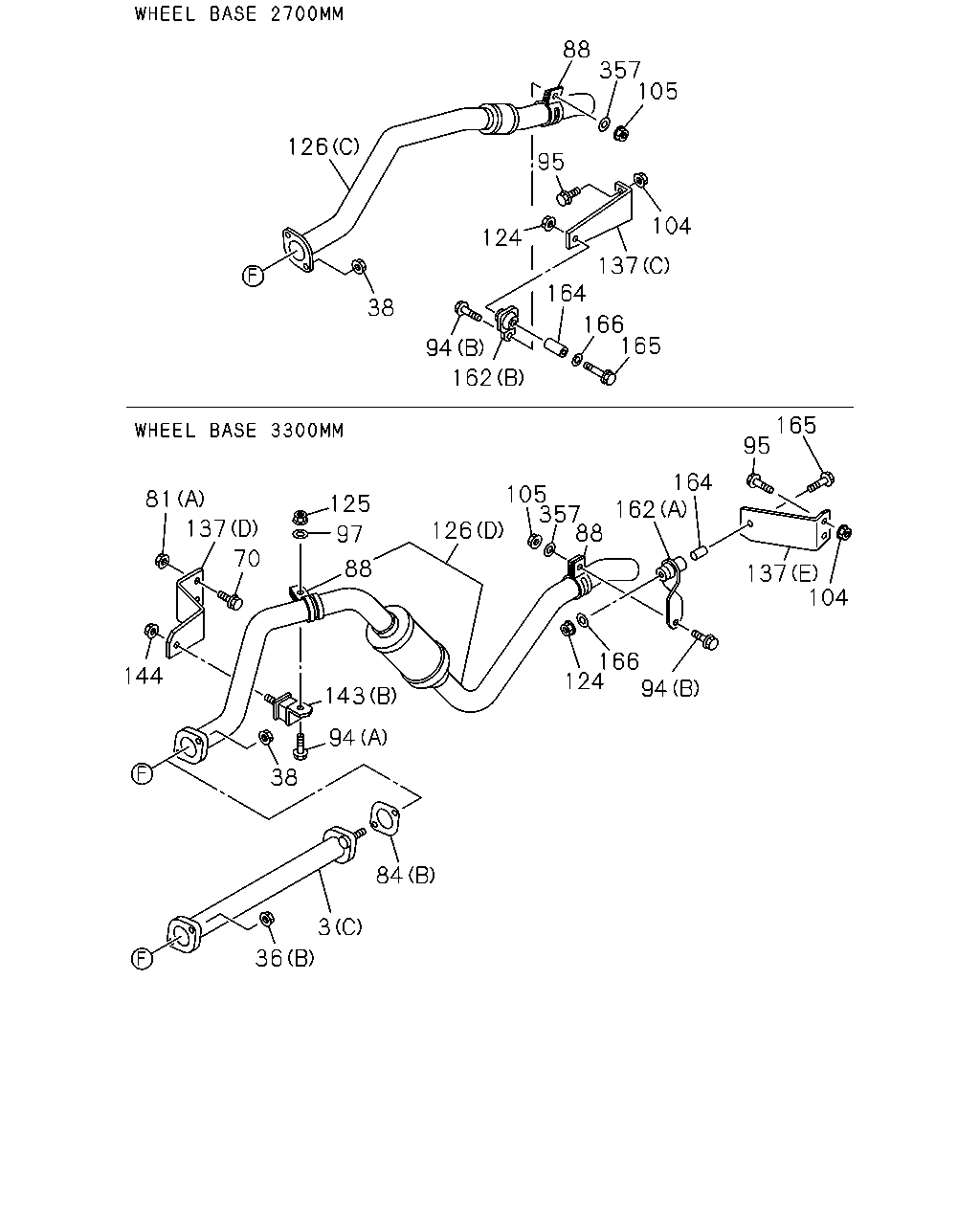

1-50 — EXHAUST PIPE AND SILENCER (#50192) — 940 parça

118 115 117 113 579 352 115 352 376 577 118 115 117 578 337 113 115 576 556 562 560 44 376 84 329 570

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	03.613 BOLT; BRKT 02.042 (C) M10X25 FLANGE	0-28151-025-0	02	1	1109-	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0911-1108		●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1109-	●	●
44	03.613 BOLT; BRKT 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	0911-1108		●
44	03.613 BOLT; BRKT 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1109-	●	●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) (B) ID=65	8-97148-757-1	01	1	1109-	●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	0911-1104		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	0911-1104		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1105-1108		●
84	03.611 GASKET; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1105-1108		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1109-1211		●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3800MM(38W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1109-1211		●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1212-		●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1212-		●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1212-		●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	03	1	0911-		●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1109-	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	03	1	0911-		●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	1109-	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	03	1	0911-		●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	1109-	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	03	1	0911-		●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1109-	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	03	1	0911-		●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1109-	●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	04	1	0911-		●
337	03.706 BOLT; RUBBER,SUPPORT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0911-1108		●
337	03.706 BOLT; RUBBER,SUPPORT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1109-	●	●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-1007		●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-1007		●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-1007		●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1008-1108		●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1008-1108		●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1109-	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1109-		●
376	03.708 BOLT; BRKT 03.690 (C) W/PLATE	8-98005-985-0	01	1	1109-1205	●
376	03.708 BOLT; BRKT 03.890 (D) M10X30 FLANGE	0-28051-030-0	02	1	1206-	●
376	03.708 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0911-1108		●
376	03.708 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1109-	●	●
376	03.708 BOLT; BRKT 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	0911-		●

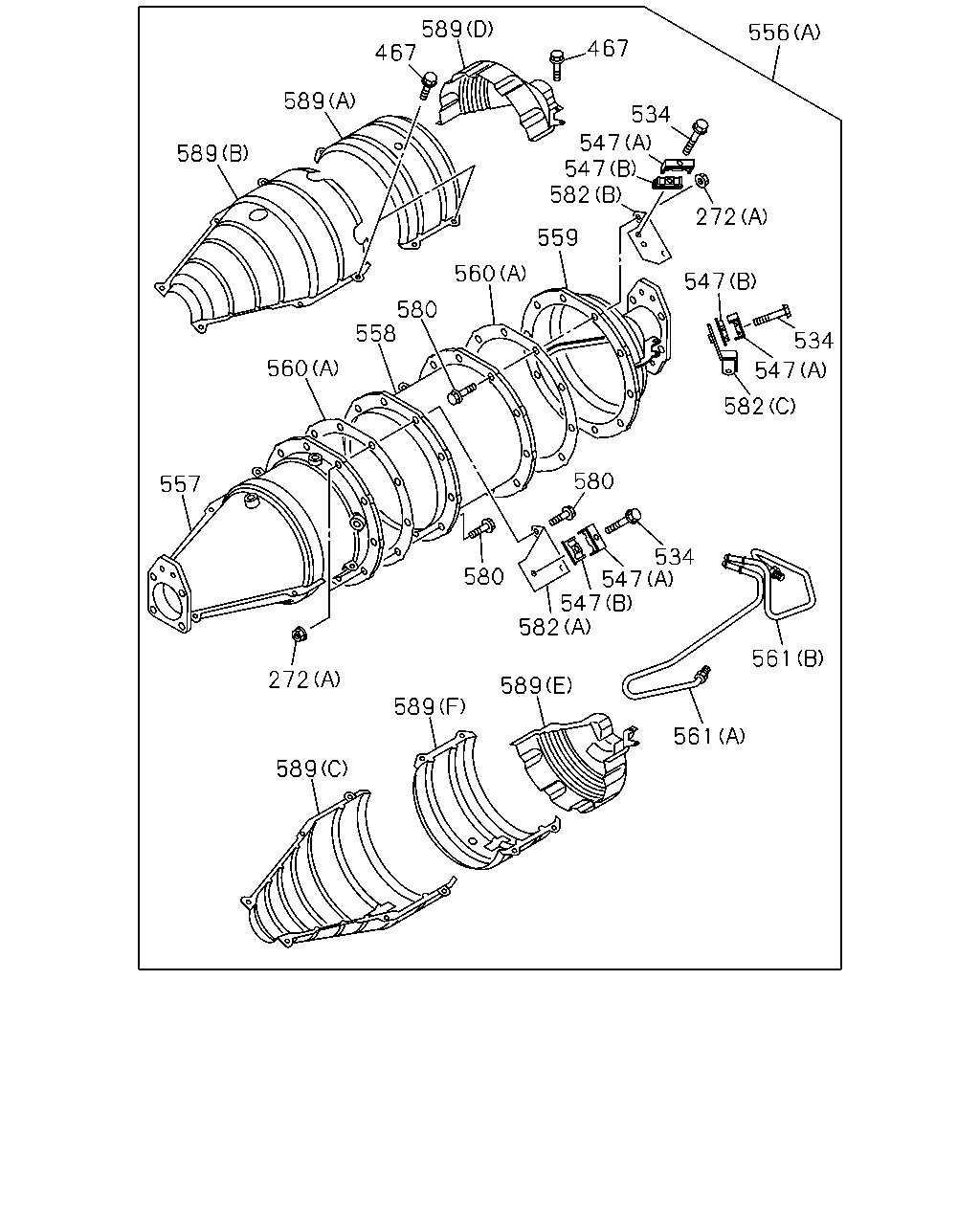

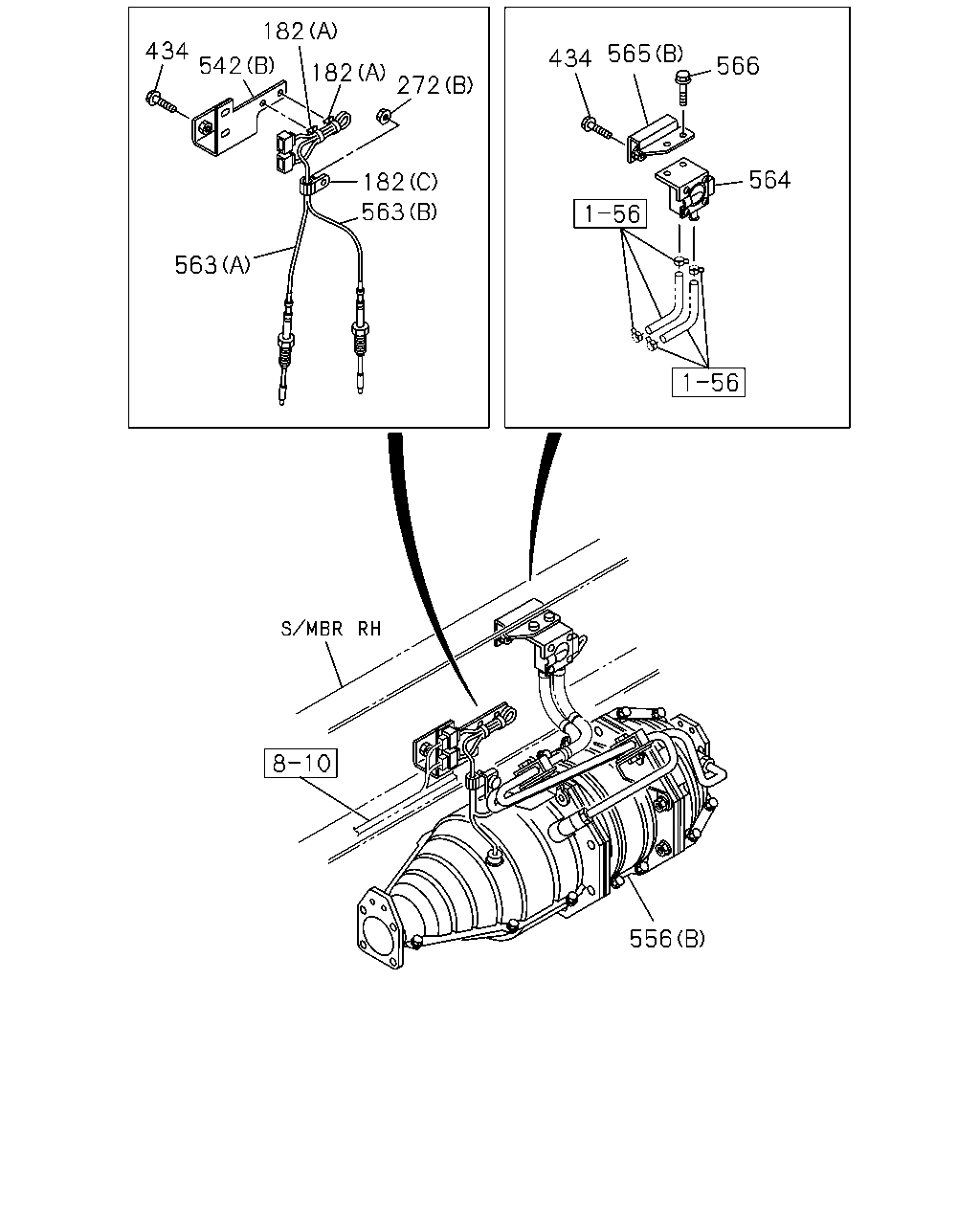

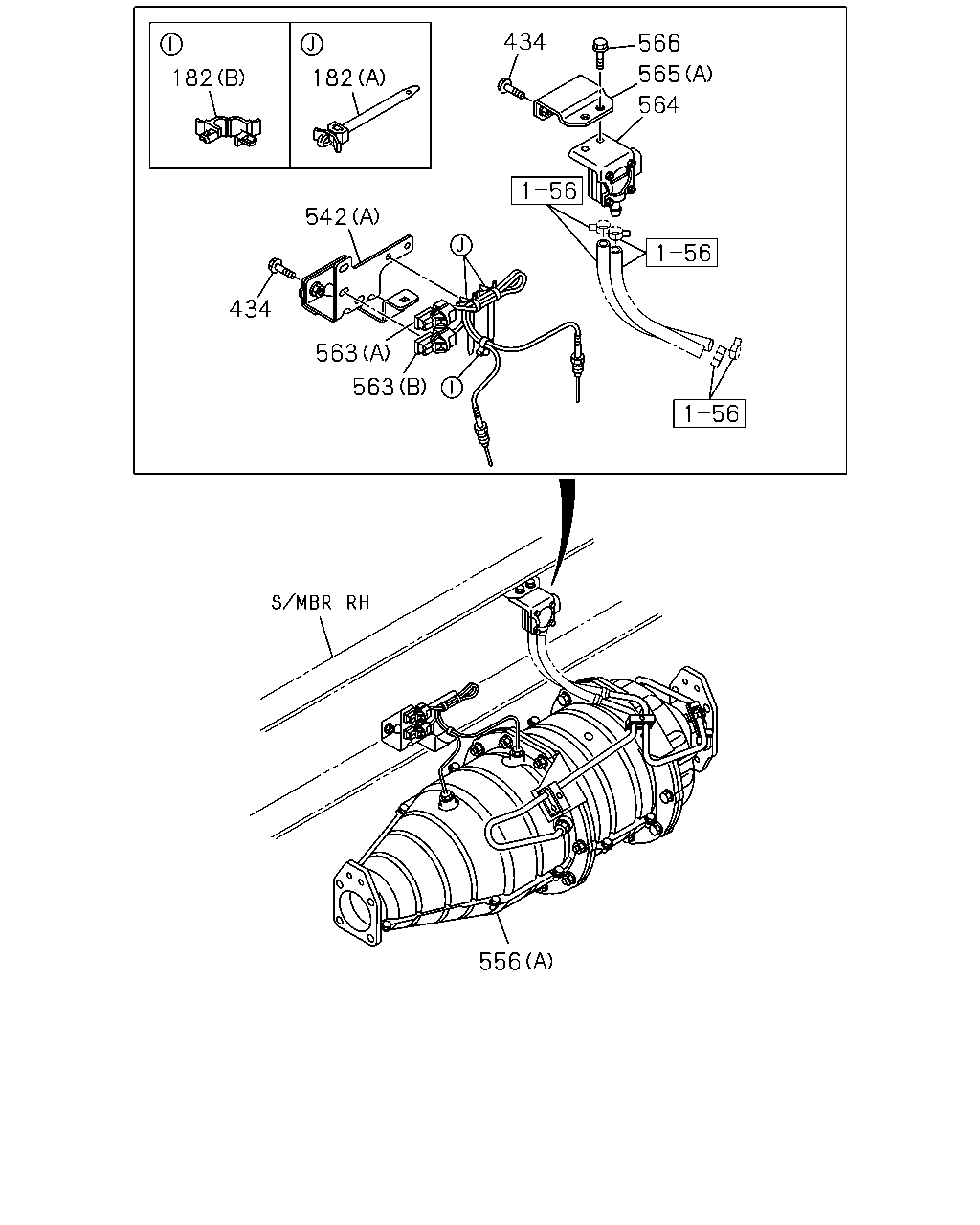

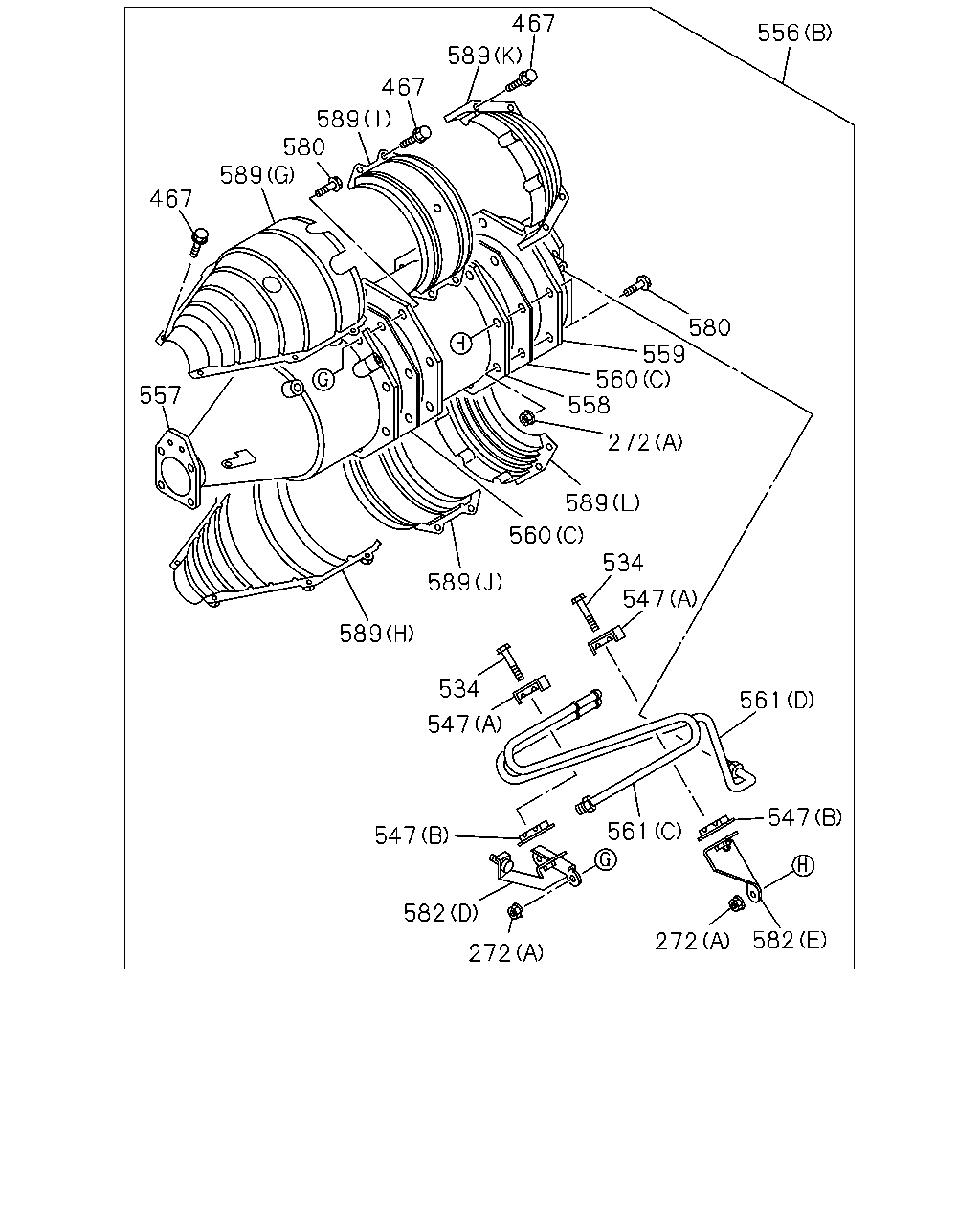

556	03.701 DPD ASM (B)	8-98084-595-4	01	1	1109-	●
556	03.701 DPD ASM (A)	8-98039-162-6	01	1	0911-1010		●
556	03.701 DPD ASM (A)	8-98084-602-4	01	1	1011-		●
560	03.611 GASKET; DPD (C)	8-97331-947-0	02	1	1109-	●
560	03.611 GASKET; DPD (D) ID=64	8-97373-108-0	01	1	1109-	●
560	03.611 GASKET; DPD (B)	1-22116-040-0	01	1	0911-		●
560	03.611 GASKET; DPD (A)	8-97611-080-0	02	1	0911-		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (A)	1-22131-962-0	02	1	1212-		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98030-175-0	01	1	1212-		●
562	03.690 PLATE; STUD,BOLT (C)	8-97373-966-0	02	1	1109-1205	●
562	03.690 PLATE; STUD,BOLT 03.162 (E) M8X35 FLANGE	0-28050-835-0	04	1	1206-	●
562	03.690 PLATE; STUD,BOLT 03.685 (A) M12X35	1-22131-963-0	02	1	0911-1203		●
562	03.690 PLATE; STUD,BOLT 03.613 (A)	1-22131-962-0	02	1	1204-1205		●
562	03.690 PLATE; STUD,BOLT 00.206 (D) M8X70 FLANGE	0-28050-870-0	02	1	1206-1211		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (D) M8X70 FLANGE	0-28050-870-0	02	1	1212-		●
562	03.690 PLATE; STUD,BOLT (B)	8-98030-175-0	01	1	0911-1205		●
562	03.690 PLATE; STUD,BOLT 00.685 (F) M12X35 FLANGE	0-28051-235-0	04	1	1206-1211		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (F) M12X35 FLANGE	0-28051-235-0	04	1	1212-		●
570	03.704 ADAPTER; EXH PIPE 4HK1-TCN ENG(RDQ)	8-98073-373-0	01	1	0911-1108		●
570	03.704 ADAPTER; EXH PIPE	8-98073-373-0	01	1	1109-		●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 2700MM(27W) (B)	8-98122-616-0	01	1	1212-		●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 2700MM(27W) (B)	8-98122-616-0	01	1	1105-1108		●
576	03.706 BRACKET; DPD FRT TO FRAME (C)	8-97387-245-0	01	1	1109-	●
576	03.706 BRACKET; DPD FRT TO FRAME (A)	8-98006-770-0	01	1	0911-1104		●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98006-770-0	01	1	1105-1108		●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-98006-770-0	01	1	1109-		●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2700MM(27W) (B)	8-98124-656-0	01	1	1212-		●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2700MM(27W) (B)	8-98124-656-0	01	1	1105-1108		●
577	03.706 BRACKET; DPD RR TO FRAME (C)	8-97387-246-2	01	1	1109-	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) (A)	8-98048-292-1	01	1	0911-1104		●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98048-292-1	01	1	1105-1108		●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-98048-292-1	01	1	1109-		●
578	03.706 BRACKET; DPD FRT (B)	8-97387-248-1	01	1	1109-	●
578	03.706 BRACKET; DPD FRT 4HK1-TCN ENG(RDQ) (A)	8-98048-296-0	01	1	0911-1108		●
578	03.706 BRACKET; DPD FRT (A)	8-98048-296-0	01	1	1109-		●
579	03.704 BRACKET; DPD RR WHEEL BASE 2700MM(27W) (B)	8-98124-658-0	01	1	1212-		●
579	03.704 BRACKET; DPD RR WHEEL BASE 2700MM(27W) (B)	8-98124-658-0	01	1	1105-1108		●
579	03.704 BRACKET; DPD RR (C)	8-97387-249-1	01	1	1109-	●
579	03.704 BRACKET; DPD RR 4HK1-TCN ENG(RDQ) (A)	8-98048-300-1	01	1	0911-1104		●
579	03.704 BRACKET; DPD RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98048-300-1	01	1	1105-1108		●
579	03.704 BRACKET; DPD RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-98048-300-1	01	1	1109-		●

385 532 385 172 118 117 115 578 337 81 44 560 113 115 576 556 562 562 118 117 115 113 579 376 577 352 115 352 329 570 84 376 377 574 532 200 124 12 122 121 143 24 143 385 14 12 361 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.701 SILENCER ASM; EXH WHEEL BASE 2700MM(27W) (B)	8-98097-779-0	01	1	1212-		●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98020-562-1	01	1	1212-		●
12	03.701 SILENCER ASM; EXH WHEEL BASE 2700MM(27W) (B)	8-98097-779-0	01	1	1105-1108		●
12	03.701 SILENCER ASM; EXH (C)	8-97387-244-1	01	1	1109-1203	●
12	03.701 SILENCER ASM; EXH (D)	8-98214-241-0	01	1	1204-1308	●
12	03.701 SILENCER ASM; EXH (D)	8-98254-792-0	01	1	1309-	●
12	03.701 SILENCER ASM; EXH (A)	8-98020-562-1	01	1	0911-1104		●
12	03.701 SILENCER ASM; EXH WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98020-562-1	01	1	1105-1108		●
12	03.701 SILENCER ASM; EXH WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-98020-562-1	01	1	1109-1203		●
12	03.701 SILENCER ASM; EXH WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (E)	8-98214-243-0	01	1	1204-1211		●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) IDENTIFICATION LABEL FOR KD<6UT> (E)	8-98214-243-0	01	1	1212-		●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 ID=65	8-97148-757-1	01	1	1109-	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=85.8	1-22116-043-0	01	1	0911-		●
24	03.613 COLLAR; DIST,CLAMP 03.706 L=37.5	9-22151-217-0	01	1	0911-		●
34	03.613 WASHER; EXH PIPE 03.632 T=1.9	5-09500-012-0	04	1	1204-1211	●	●
34	03.613 WASHER; EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 03.632 T=1.9	5-09500-012-0	04	1	1212-		●
34	03.613 WASHER; EXH PIPE 4JJ1-TCS ENG(LFB) 03.632 T=1.9	5-09500-012-0	04	1	1212-	●
44	03.613 BOLT; BRKT 02.042 (C) M10X25 FLANGE	0-28151-025-0	02	1	1109-	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0911-1108		●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1109-	●	●
44	03.613 BOLT; BRKT 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	0911-1108		●
44	03.613 BOLT; BRKT 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1109-	●	●
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1109-	●
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0911-		●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0911-1007		●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) (B) ID=65	8-97148-757-1	01	1	1109-	●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	0911-1104		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	0911-1104		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1105-1108		●
84	03.611 GASKET; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1105-1108		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1109-1211		●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3800MM(38W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1109-1211		●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1212-		●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1212-		●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1212-		●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	03	1	0911-		●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1109-	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	03	1	0911-		●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	1109-	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	03	1	0911-		●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	1109-	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	03	1	0911-		●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1109-	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	03	1	0911-		●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1109-	●
121	03.704 WASHER; PL,BRKT OD=55	9-09852-169-0	01	1	0911-		●
122	03.275 NUT; HANGER BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	0911-		●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0911-1108		●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0911-1108		●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1109-	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1109-		●
143	03.704 RUBBER; SUPPORT (D)	8-97080-694-0	01	1	1109-	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-277-1	01	1	0911-		●
143	03.704 RUBBER; SUPPORT (A)	8-94457-278-1	01	1	0911-		●
143	03.704 RUBBER; SUPPORT (B)	8-98034-767-0	01	1	0911-1108		●
143	03.704 RUBBER; SUPPORT (B)	8-98034-767-0	01	1	1109-		●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) (B)	8-98034-767-0	01	1	1109-	●
172	03.708 BOLT WHEEL BASE 4400MM(44W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1105-1108		●
172	03.708 BOLT WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1109-	●
200	03.704 BOLT; SUPPORT RUBBER 00.685 M10X40 FLANGE	0-28051-040-0	01	1	0911-		●
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	04	1	0911-		●
337	03.706 BOLT; RUBBER,SUPPORT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0911-1108		●
337	03.706 BOLT; RUBBER,SUPPORT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1109-	●	●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-1007		●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-1007		●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-1007		●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1008-1108		●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1008-1108		●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1109-	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1109-		●
361	03.704 BOLT; EXH PIPE TO PIPE M8X60 FLANGE	8-98213-301-0	04	1	1204-1211	●	●
361	03.704 BOLT; EXH PIPE TO PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> M8X60 FLANGE	8-98213-301-0	04	1	1212-		●
361	03.704 BOLT; EXH PIPE TO PIPE 4JJ1-TCS ENG(LFB) M8X60 FLANGE	8-98213-301-0	04	1	1212-	●
376	03.708 BOLT; BRKT 03.690 (C) W/PLATE	8-98005-985-0	01	1	1109-1205	●
376	03.708 BOLT; BRKT 03.890 (D) M10X30 FLANGE	0-28051-030-0	02	1	1206-	●
376	03.708 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0911-1108		●
376	03.708 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1109-	●	●
376	03.708 BOLT; BRKT 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	0911-		●
377	03.704 NUT; BRKT WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	04	1	1212-		●
377	03.704 NUT; BRKT WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	04	1	1105-1108		●
377	03.704 NUT; BRKT WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1105-1108		●
377	03.704 NUT; BRKT WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1109-1211		●
377	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EXC. FUEL TANK 140 LITTER<N19> 03.162 M10 FLANGE	0-91180-110-0	02	1	1212-		●
377	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1212-		●
377	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-1104		●
377	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1105-1211		●
377	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> 03.162 M10 FLANGE	0-91180-110-0	01	1	1212-		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2700MM(27W) (C)	8-98122-620-0	01	1	1212-		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2700MM(27W) (C)	8-98122-620-0	01	1	1105-1108		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2700MM(27W) (E)	8-98001-889-1	01	1	1109-	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (A)	8-98006-774-0	01	1	1105-		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 4400MM(44W) (D)	8-98073-377-0	01	1	1105-1108		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (F)	8-97387-251-1	01	1	1109-	●
385	03.704 BRACKET; SILENCER MTG (B)	8-98006-776-1	01	1	0911-		●
385	03.704 BRACKET; SILENCER MTG (A)	8-98073-376-0	01	1	0911-1104		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A)	8-98073-376-0	01	1	1105-1108		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3800MM(38W) (A)	8-98073-376-0	01	1	1109-		●
532	03.704 NUT WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1105-1108		●
532	03.704 NUT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1109-	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-1104		●
532	03.704 NUT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1105-1108		●
532	03.704 NUT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1109-1211		●
532	03.704 NUT WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1109-1211	●
532	03.704 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1212-		●
532	03.704 NUT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1212-	●
556	03.701 DPD ASM (B)	8-98084-595-4	01	1	1109-	●
556	03.701 DPD ASM (A)	8-98039-162-6	01	1	0911-1010		●
556	03.701 DPD ASM (A)	8-98084-602-4	01	1	1011-		●
560	03.611 GASKET; DPD (C)	8-97331-947-0	02	1	1109-	●
560	03.611 GASKET; DPD (D) ID=64	8-97373-108-0	01	1	1109-	●
560	03.611 GASKET; DPD (B)	1-22116-040-0	01	1	0911-		●
560	03.611 GASKET; DPD (A)	8-97611-080-0	02	1	0911-		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (A)	1-22131-962-0	02	1	1212-		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98030-175-0	01	1	1212-		●
562	03.690 PLATE; STUD,BOLT (C)	8-97373-966-0	02	1	1109-1205	●
562	03.690 PLATE; STUD,BOLT 03.162 (E) M8X35 FLANGE	0-28050-835-0	04	1	1206-	●
562	03.690 PLATE; STUD,BOLT 03.685 (A) M12X35	1-22131-963-0	02	1	0911-1203		●
562	03.690 PLATE; STUD,BOLT 03.613 (A)	1-22131-962-0	02	1	1204-1205		●
562	03.690 PLATE; STUD,BOLT 00.206 (D) M8X70 FLANGE	0-28050-870-0	02	1	1206-1211		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (D) M8X70 FLANGE	0-28050-870-0	02	1	1212-		●
562	03.690 PLATE; STUD,BOLT (B)	8-98030-175-0	01	1	0911-1205		●
562	03.690 PLATE; STUD,BOLT 00.685 (F) M12X35 FLANGE	0-28051-235-0	04	1	1206-1211		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (F) M12X35 FLANGE	0-28051-235-0	04	1	1212-		●
570	03.704 ADAPTER; EXH PIPE 4HK1-TCN ENG(RDQ)	8-98073-373-0	01	1	0911-1108		●
570	03.704 ADAPTER; EXH PIPE	8-98073-373-0	01	1	1109-		●
574	03.706 SPACER; DPD WHEEL BASE 2700MM(27W) (B)	8-98122-618-0	01	1	1212-		●
574	03.706 SPACER; DPD WHEEL BASE 2700MM(27W) (B)	8-98122-618-0	01	1	1105-1108		●
574	03.706 SPACER; DPD WHEEL BASE 3300MM(33W) (A)	8-98078-962-1	01	1	1105-1211		●
574	03.706 SPACER; DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> (A)	8-98078-962-1	01	1	1212-		●
574	03.706 SPACER; DPD (A)	8-98044-774-0	01	1	0911-1104		●
574	03.706 SPACER; DPD WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A)	8-98044-774-0	01	1	1105-1108		●
574	03.706 SPACER; DPD WHEEL BASE 3800MM(38W) (A)	8-98044-774-0	01	1	1109-1211		●
574	03.706 SPACER; DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EXC. FUEL TANK 140 LITTER<N19> (A)	8-98044-774-0	01	1	1212-		●
574	03.706 SPACER; DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) (A)	8-98044-774-0	01	1	1212-		●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 2700MM(27W) (B)	8-98122-616-0	01	1	1212-		●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 2700MM(27W) (B)	8-98122-616-0	01	1	1105-1108		●
576	03.706 BRACKET; DPD FRT TO FRAME (C)	8-97387-245-0	01	1	1109-	●
576	03.706 BRACKET; DPD FRT TO FRAME (A)	8-98006-770-0	01	1	0911-1104		●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98006-770-0	01	1	1105-1108		●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-98006-770-0	01	1	1109-		●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2700MM(27W) (B)	8-98124-656-0	01	1	1212-		●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2700MM(27W) (B)	8-98124-656-0	01	1	1105-1108		●
577	03.706 BRACKET; DPD RR TO FRAME (C)	8-97387-246-2	01	1	1109-	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) (A)	8-98048-292-1	01	1	0911-1104		●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98048-292-1	01	1	1105-1108		●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-98048-292-1	01	1	1109-		●
578	03.706 BRACKET; DPD FRT (B)	8-97387-248-1	01	1	1109-	●
578	03.706 BRACKET; DPD FRT 4HK1-TCN ENG(RDQ) (A)	8-98048-296-0	01	1	0911-1108		●
578	03.706 BRACKET; DPD FRT (A)	8-98048-296-0	01	1	1109-		●
579	03.704 BRACKET; DPD RR WHEEL BASE 2700MM(27W) (B)	8-98124-658-0	01	1	1212-		●
579	03.704 BRACKET; DPD RR WHEEL BASE 2700MM(27W) (B)	8-98124-658-0	01	1	1105-1108		●
579	03.704 BRACKET; DPD RR (C)	8-97387-249-1	01	1	1109-	●
579	03.704 BRACKET; DPD RR 4HK1-TCN ENG(RDQ) (A)	8-98048-300-1	01	1	0911-1104		●
579	03.704 BRACKET; DPD RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98048-300-1	01	1	1105-1108		●
579	03.704 BRACKET; DPD RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-98048-300-1	01	1	1109-		●

88 357 105 126 95 104 124 137 164 38 166 165 94 162 165 95 164 162 105 357 88 81 125 137 126 97 70 88 137 104 166 124 94 144 143 94 38 84 3 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98214-261-0	01	1	1212-		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98097-777-1	01	1	1212-		●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 2700MM(27W) (B)	8-98097-777-1	01	1	1105-1108		●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3300MM(33W) (C)	8-98005-237-0	01	1	1109-	●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 4100MM(41W) (A)	8-98099-061-0	01	1	1105-1108		●
3	03.609 PIPE; EXH,CENTER (A)	8-98020-602-0	01	1	0911-1104		●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3800MM(38W) (A)	8-98020-602-0	01	1	1105-		●
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1109-	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	0911-1104		●
36	03.613 NUT; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1105-1108		●
36	03.613 NUT; EXH PIPE WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1109-1211		●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1212-		●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1212-		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0911-1108		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1109-	●	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	1109-	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	04	1	0911-		●
70	03.706 BOLT; BRKT WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1109-	●
70	03.706 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0911-		●
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1109-	●
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0911-		●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0911-1007		●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) (B) ID=65	8-97148-757-1	01	1	1109-	●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	0911-1104		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	0911-1104		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1105-1108		●
84	03.611 GASKET; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1105-1108		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1109-1211		●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3800MM(38W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1109-1211		●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1212-		●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1212-		●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1212-		●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1109-	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1109-	●
88	03.708 CLAMP; EXH PIPE	8-98034-766-0	01	1	0911-		●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0911-1108		●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1109-	●	●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0911-1108		●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1109-		●
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1109-	●
95	03.708 BOLT; BRKT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1105-1108		●
95	03.708 BOLT; BRKT WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1109-	●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0911-1104		●
95	03.708 BOLT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1105-1108		●
95	03.708 BOLT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1109-1211		●
95	03.708 BOLT; BRKT WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1109-1211	●
95	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1212-		●
95	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1212-	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0911-1108		●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1109-		●
97	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1109-	●
104	03.704 NUT; BRKT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1105-1108		●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1109-	●
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0911-1104		●
104	03.704 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1105-1108		●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-1211		●
104	03.704 NUT; BRKT WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-1211	●
104	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1212-		●
104	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1212-	●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0911-1108		●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1109-	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0911-1108		●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0911-1108		●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1109-	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1109-		●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0911-1108		●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1109-		●
125	03.708 NUT; CLAMP WHEEL BASE 3300MM(33W) 00.833 M10	0-91110-510-0	01	1	1109-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2700MM(27W) (B)	8-98097-778-1	01	1	1212-		●
126	03.705 PIPE; EXH,RR WHEEL BASE 2700MM(27W) (B)	8-98097-778-1	01	1	1105-1108		●
126	03.705 PIPE; EXH,RR WHEEL BASE 2700MM(27W) (C)	8-98020-604-0	01	1	1109-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98099-064-0	01	1	1105-1108		●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) (D)	8-98079-101-0	01	1	1109-	●
126	03.705 PIPE; EXH,RR (A)	8-98045-047-0	01	1	0911-1104		●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-98045-047-0	01	1	1105-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (E)	8-98001-913-0	01	1	1109-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (D)	8-98019-904-2	01	1	1109-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-97185-801-0	01	1	1105-1108		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W) (C)	8-97387-256-1	01	1	1109-	●
137	03.706 BRACKET; TAIL PIPE 03.613 (A)	8-97096-651-0	01	1	0911-		●
137	03.706 BRACKET; TAIL PIPE (B)	8-97116-588-2	01	1	0911-1104		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B)	8-97116-588-2	01	1	1105-1108		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B)	8-97116-588-2	01	1	1109-1211		●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B)	8-97116-588-2	01	1	1212-		●
143	03.704 RUBBER; SUPPORT (D)	8-97080-694-0	01	1	1109-	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-277-1	01	1	0911-		●
143	03.704 RUBBER; SUPPORT (A)	8-94457-278-1	01	1	0911-		●
143	03.704 RUBBER; SUPPORT (B)	8-98034-767-0	01	1	0911-1108		●
143	03.704 RUBBER; SUPPORT (B)	8-98034-767-0	01	1	1109-		●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) (B)	8-98034-767-0	01	1	1109-	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0911-1108		●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-		●
144	03.613 NUT; MTG RUBBER WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2700MM(27W) (B) L=115	8-98032-151-0	01	1	1109-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (A) L=115	8-98034-765-0	01	1	0911-1108		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (A) L=115	8-98034-765-0	01	1	1109-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (A) L=115	8-98034-765-0	01	1	1109-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2700MM(27W) L=23	8-98006-011-0	01	1	1109-	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0911-1108		●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1109-		●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) L=37.5	9-22151-217-0	01	1	1109-	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2700MM(27W) 00.685 M10X45 FLANGE	0-28051-045-0	01	1	1109-	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0911-1108		●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1109-		●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) M10X70 FLANGE	0-28051-070-0	01	1	1109-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0911-1108		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1109-	●	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0911-1108		●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1109-	●	●

162 164 105 357 165 166 104 88 94 95 124 137 88 125 97 81 70 126 144 137 143 94 38 84 3 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98214-261-0	01	1	1212-		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98097-777-1	01	1	1212-		●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 2700MM(27W) (B)	8-98097-777-1	01	1	1105-1108		●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3300MM(33W) (C)	8-98005-237-0	01	1	1109-	●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 4100MM(41W) (A)	8-98099-061-0	01	1	1105-1108		●
3	03.609 PIPE; EXH,CENTER (A)	8-98020-602-0	01	1	0911-1104		●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3800MM(38W) (A)	8-98020-602-0	01	1	1105-		●
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1109-	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	0911-1104		●
36	03.613 NUT; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1105-1108		●
36	03.613 NUT; EXH PIPE WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1109-1211		●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1212-		●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1212-		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0911-1108		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1109-	●	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	1109-	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	04	1	0911-		●
70	03.706 BOLT; BRKT WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1109-	●
70	03.706 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0911-		●
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1109-	●
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0911-		●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0911-1007		●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) (B) ID=65	8-97148-757-1	01	1	1109-	●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	0911-1104		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	0911-1104		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1105-1108		●
84	03.611 GASKET; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1105-1108		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1109-1211		●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3800MM(38W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1109-1211		●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1212-		●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1212-		●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1212-		●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1109-	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1109-	●
88	03.708 CLAMP; EXH PIPE	8-98034-766-0	01	1	0911-		●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0911-1108		●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1109-	●	●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0911-1108		●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1109-		●
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1109-	●
95	03.708 BOLT; BRKT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1105-1108		●
95	03.708 BOLT; BRKT WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1109-	●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0911-1104		●
95	03.708 BOLT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1105-1108		●
95	03.708 BOLT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1109-1211		●
95	03.708 BOLT; BRKT WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1109-1211	●
95	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1212-		●
95	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1212-	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0911-1108		●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1109-		●
97	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1109-	●
104	03.704 NUT; BRKT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1105-1108		●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1109-	●
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0911-1104		●
104	03.704 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1105-1108		●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-1211		●
104	03.704 NUT; BRKT WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-1211	●
104	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1212-		●
104	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1212-	●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0911-1108		●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1109-	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0911-1108		●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0911-1108		●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1109-	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1109-		●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0911-1108		●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1109-		●
125	03.708 NUT; CLAMP WHEEL BASE 3300MM(33W) 00.833 M10	0-91110-510-0	01	1	1109-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2700MM(27W) (B)	8-98097-778-1	01	1	1212-		●
126	03.705 PIPE; EXH,RR WHEEL BASE 2700MM(27W) (B)	8-98097-778-1	01	1	1105-1108		●
126	03.705 PIPE; EXH,RR WHEEL BASE 2700MM(27W) (C)	8-98020-604-0	01	1	1109-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98099-064-0	01	1	1105-1108		●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) (D)	8-98079-101-0	01	1	1109-	●
126	03.705 PIPE; EXH,RR (A)	8-98045-047-0	01	1	0911-1104		●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-98045-047-0	01	1	1105-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (E)	8-98001-913-0	01	1	1109-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (D)	8-98019-904-2	01	1	1109-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-97185-801-0	01	1	1105-1108		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W) (C)	8-97387-256-1	01	1	1109-	●
137	03.706 BRACKET; TAIL PIPE 03.613 (A)	8-97096-651-0	01	1	0911-		●
137	03.706 BRACKET; TAIL PIPE (B)	8-97116-588-2	01	1	0911-1104		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B)	8-97116-588-2	01	1	1105-1108		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B)	8-97116-588-2	01	1	1109-1211		●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B)	8-97116-588-2	01	1	1212-		●
143	03.704 RUBBER; SUPPORT (D)	8-97080-694-0	01	1	1109-	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-277-1	01	1	0911-		●
143	03.704 RUBBER; SUPPORT (A)	8-94457-278-1	01	1	0911-		●
143	03.704 RUBBER; SUPPORT (B)	8-98034-767-0	01	1	0911-1108		●
143	03.704 RUBBER; SUPPORT (B)	8-98034-767-0	01	1	1109-		●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) (B)	8-98034-767-0	01	1	1109-	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0911-1108		●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-		●
144	03.613 NUT; MTG RUBBER WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2700MM(27W) (B) L=115	8-98032-151-0	01	1	1109-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (A) L=115	8-98034-765-0	01	1	0911-1108		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (A) L=115	8-98034-765-0	01	1	1109-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (A) L=115	8-98034-765-0	01	1	1109-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2700MM(27W) L=23	8-98006-011-0	01	1	1109-	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0911-1108		●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1109-		●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) L=37.5	9-22151-217-0	01	1	1109-	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2700MM(27W) 00.685 M10X45 FLANGE	0-28051-045-0	01	1	1109-	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0911-1108		●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1109-		●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) M10X70 FLANGE	0-28051-070-0	01	1	1109-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0911-1108		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1109-	●	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0911-1108		●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1109-	●	●

143 172 532 385 532 118 117 115 113 579 376 118 117 115 113 578 577 115 352 14 12 12 361 376 376 34 556 562 562 560 115 337 576 44 385 352

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	03.701 SILENCER ASM; EXH WHEEL BASE 2700MM(27W) (B)	8-98097-779-0	01	1	1212-		●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98020-562-1	01	1	1212-		●
12	03.701 SILENCER ASM; EXH WHEEL BASE 2700MM(27W) (B)	8-98097-779-0	01	1	1105-1108		●
12	03.701 SILENCER ASM; EXH (C)	8-97387-244-1	01	1	1109-1203	●
12	03.701 SILENCER ASM; EXH (D)	8-98214-241-0	01	1	1204-1308	●
12	03.701 SILENCER ASM; EXH (D)	8-98254-792-0	01	1	1309-	●
12	03.701 SILENCER ASM; EXH (A)	8-98020-562-1	01	1	0911-1104		●
12	03.701 SILENCER ASM; EXH WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98020-562-1	01	1	1105-1108		●
12	03.701 SILENCER ASM; EXH WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-98020-562-1	01	1	1109-1203		●
12	03.701 SILENCER ASM; EXH WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (E)	8-98214-243-0	01	1	1204-1211		●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) IDENTIFICATION LABEL FOR KD<6UT> (E)	8-98214-243-0	01	1	1212-		●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 ID=65	8-97148-757-1	01	1	1109-	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=85.8	1-22116-043-0	01	1	0911-		●
34	03.613 WASHER; EXH PIPE 03.632 T=1.9	5-09500-012-0	04	1	1204-1211	●	●
34	03.613 WASHER; EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 03.632 T=1.9	5-09500-012-0	04	1	1212-		●
34	03.613 WASHER; EXH PIPE 4JJ1-TCS ENG(LFB) 03.632 T=1.9	5-09500-012-0	04	1	1212-	●
44	03.613 BOLT; BRKT 02.042 (C) M10X25 FLANGE	0-28151-025-0	02	1	1109-	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0911-1108		●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1109-	●	●
44	03.613 BOLT; BRKT 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	0911-1108		●
44	03.613 BOLT; BRKT 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1109-	●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	03	1	0911-		●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1109-	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	03	1	0911-		●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	1109-	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	03	1	0911-		●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	1109-	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	03	1	0911-		●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1109-	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	03	1	0911-		●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1109-	●
143	03.704 RUBBER; SUPPORT (D)	8-97080-694-0	01	1	1109-	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-277-1	01	1	0911-		●
143	03.704 RUBBER; SUPPORT (A)	8-94457-278-1	01	1	0911-		●
143	03.704 RUBBER; SUPPORT (B)	8-98034-767-0	01	1	0911-1108		●
143	03.704 RUBBER; SUPPORT (B)	8-98034-767-0	01	1	1109-		●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) (B)	8-98034-767-0	01	1	1109-	●
172	03.708 BOLT WHEEL BASE 4400MM(44W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1105-1108		●
172	03.708 BOLT WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1109-	●
337	03.706 BOLT; RUBBER,SUPPORT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0911-1108		●
337	03.706 BOLT; RUBBER,SUPPORT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	1109-	●	●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-1007		●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-1007		●
352	03.613 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-1007		●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1008-1108		●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1008-1108		●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1109-	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	1109-		●
361	03.704 BOLT; EXH PIPE TO PIPE M8X60 FLANGE	8-98213-301-0	04	1	1204-1211	●	●
361	03.704 BOLT; EXH PIPE TO PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> M8X60 FLANGE	8-98213-301-0	04	1	1212-		●
361	03.704 BOLT; EXH PIPE TO PIPE 4JJ1-TCS ENG(LFB) M8X60 FLANGE	8-98213-301-0	04	1	1212-	●
376	03.708 BOLT; BRKT 03.690 (C) W/PLATE	8-98005-985-0	01	1	1109-1205	●
376	03.708 BOLT; BRKT 03.890 (D) M10X30 FLANGE	0-28051-030-0	02	1	1206-	●
376	03.708 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0911-1108		●
376	03.708 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	1109-	●	●
376	03.708 BOLT; BRKT 02.277 (B) M10X35 FLANGE	0-28651-035-0	02	1	0911-		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2700MM(27W) (C)	8-98122-620-0	01	1	1212-		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2700MM(27W) (C)	8-98122-620-0	01	1	1105-1108		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2700MM(27W) (E)	8-98001-889-1	01	1	1109-	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (A)	8-98006-774-0	01	1	1105-		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 4400MM(44W) (D)	8-98073-377-0	01	1	1105-1108		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (F)	8-97387-251-1	01	1	1109-	●
385	03.704 BRACKET; SILENCER MTG (B)	8-98006-776-1	01	1	0911-		●
385	03.704 BRACKET; SILENCER MTG (A)	8-98073-376-0	01	1	0911-1104		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A)	8-98073-376-0	01	1	1105-1108		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3800MM(38W) (A)	8-98073-376-0	01	1	1109-		●
532	03.704 NUT WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1105-1108		●
532	03.704 NUT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1109-	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-1104		●
532	03.704 NUT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1105-1108		●
532	03.704 NUT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1109-1211		●
532	03.704 NUT WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1109-1211	●
532	03.704 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1212-		●
532	03.704 NUT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1212-	●
556	03.701 DPD ASM (B)	8-98084-595-4	01	1	1109-	●
556	03.701 DPD ASM (A)	8-98039-162-6	01	1	0911-1010		●
556	03.701 DPD ASM (A)	8-98084-602-4	01	1	1011-		●
560	03.611 GASKET; DPD (C)	8-97331-947-0	02	1	1109-	●
560	03.611 GASKET; DPD (D) ID=64	8-97373-108-0	01	1	1109-	●
560	03.611 GASKET; DPD (B)	1-22116-040-0	01	1	0911-		●
560	03.611 GASKET; DPD (A)	8-97611-080-0	02	1	0911-		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (A)	1-22131-962-0	02	1	1212-		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98030-175-0	01	1	1212-		●
562	03.690 PLATE; STUD,BOLT (C)	8-97373-966-0	02	1	1109-1205	●
562	03.690 PLATE; STUD,BOLT 03.162 (E) M8X35 FLANGE	0-28050-835-0	04	1	1206-	●
562	03.690 PLATE; STUD,BOLT 03.685 (A) M12X35	1-22131-963-0	02	1	0911-1203		●
562	03.690 PLATE; STUD,BOLT 03.613 (A)	1-22131-962-0	02	1	1204-1205		●
562	03.690 PLATE; STUD,BOLT 00.206 (D) M8X70 FLANGE	0-28050-870-0	02	1	1206-1211		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (D) M8X70 FLANGE	0-28050-870-0	02	1	1212-		●
562	03.690 PLATE; STUD,BOLT (B)	8-98030-175-0	01	1	0911-1205		●
562	03.690 PLATE; STUD,BOLT 00.685 (F) M12X35 FLANGE	0-28051-235-0	04	1	1206-1211		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (F) M12X35 FLANGE	0-28051-235-0	04	1	1212-		●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 2700MM(27W) (B)	8-98122-616-0	01	1	1212-		●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 2700MM(27W) (B)	8-98122-616-0	01	1	1105-1108		●
576	03.706 BRACKET; DPD FRT TO FRAME (C)	8-97387-245-0	01	1	1109-	●
576	03.706 BRACKET; DPD FRT TO FRAME (A)	8-98006-770-0	01	1	0911-1104		●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98006-770-0	01	1	1105-1108		●
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-98006-770-0	01	1	1109-		●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2700MM(27W) (B)	8-98124-656-0	01	1	1212-		●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2700MM(27W) (B)	8-98124-656-0	01	1	1105-1108		●
577	03.706 BRACKET; DPD RR TO FRAME (C)	8-97387-246-2	01	1	1109-	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) (A)	8-98048-292-1	01	1	0911-1104		●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98048-292-1	01	1	1105-1108		●
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-98048-292-1	01	1	1109-		●
578	03.706 BRACKET; DPD FRT (B)	8-97387-248-1	01	1	1109-	●
578	03.706 BRACKET; DPD FRT 4HK1-TCN ENG(RDQ) (A)	8-98048-296-0	01	1	0911-1108		●
578	03.706 BRACKET; DPD FRT (A)	8-98048-296-0	01	1	1109-		●
579	03.704 BRACKET; DPD RR WHEEL BASE 2700MM(27W) (B)	8-98124-658-0	01	1	1212-		●
579	03.704 BRACKET; DPD RR WHEEL BASE 2700MM(27W) (B)	8-98124-658-0	01	1	1105-1108		●
579	03.704 BRACKET; DPD RR (C)	8-97387-249-1	01	1	1109-	●
579	03.704 BRACKET; DPD RR 4HK1-TCN ENG(RDQ) (A)	8-98048-300-1	01	1	0911-1104		●
579	03.704 BRACKET; DPD RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98048-300-1	01	1	1105-1108		●
579	03.704 BRACKET; DPD RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-98048-300-1	01	1	1109-		●

2 44 36 1 43 562 562 25 568 8 2 36 1 25 568 44 44 43 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.609 PIPE; EXH (B)	8-98026-060-0	01	1	1109-	●
1	03.609 PIPE; EXH (A)	8-98006-765-2	01	1	0911-		●
2	03.611 GASKET; PIPE TO MANIF (B)	8-97384-590-0	01	1	1109-	●
2	03.611 GASKET; PIPE TO MANIF (A)	8-97381-455-0	01	1	0911-		●
8	03.704 BRACKET; EXH PIPE 03.613	8-98026-063-0	01	1	1109-	●
8	03.704 BRACKET; EXH PIPE 03.613	8-98020-555-0	01	1	0911-		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER (B)	8-98026-062-2	01	1	1109-	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ) (A)	8-98006-766-0	01	1	0911-1108		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER (A)	8-98006-766-0	01	1	1109-		●
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1109-	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	0911-1104		●
36	03.613 NUT; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1105-1108		●
36	03.613 NUT; EXH PIPE WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1109-1211		●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1212-		●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1212-		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0911-1108		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1109-	●	●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	0911-1108		●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1109-	●	●
44	03.613 BOLT; BRKT 02.042 (C) M10X25 FLANGE	0-28151-025-0	02	1	1109-	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0911-1108		●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	1109-	●	●
44	03.613 BOLT; BRKT 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	0911-1108		●
44	03.613 BOLT; BRKT 02.277 (A) M10X35 FLANGE	0-28651-035-0	02	1	1109-	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.613 (A)	1-22131-962-0	02	1	1212-		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98030-175-0	01	1	1212-		●
562	03.690 PLATE; STUD,BOLT (C)	8-97373-966-0	02	1	1109-1205	●
562	03.690 PLATE; STUD,BOLT 03.162 (E) M8X35 FLANGE	0-28050-835-0	04	1	1206-	●
562	03.690 PLATE; STUD,BOLT 03.685 (A) M12X35	1-22131-963-0	02	1	0911-1203		●
562	03.690 PLATE; STUD,BOLT 03.613 (A)	1-22131-962-0	02	1	1204-1205		●
562	03.690 PLATE; STUD,BOLT 00.206 (D) M8X70 FLANGE	0-28050-870-0	02	1	1206-1211		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.206 (D) M8X70 FLANGE	0-28050-870-0	02	1	1212-		●
562	03.690 PLATE; STUD,BOLT (B)	8-98030-175-0	01	1	0911-1205		●
562	03.690 PLATE; STUD,BOLT 00.685 (F) M12X35 FLANGE	0-28051-235-0	04	1	1206-1211		●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 00.685 (F) M12X35 FLANGE	0-28051-235-0	04	1	1212-		●
568	03.704 NUT; DPD 01.062 M8 FLANGE	0-91180-108-0	04	1	1109-	●
568	03.704 NUT; DPD 02.042 M12 FLANGE	0-91180-112-0	04	1	0911-		●

122 143 385 24 200 14 38 377 574 460 532 143 385 124 12 126 97 125 81 137 70 144 94 143 36 84 3 361 3 121 88 104 95 137 165 94 357 88 105 164 162 124 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) IDENTIFICATION LABEL FOR KD<6UT> (D)	8-98214-261-0	01	1	1212-		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B)	8-98097-777-1	01	1	1212-		●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 2700MM(27W) (B)	8-98097-777-1	01	1	1105-1108		●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3300MM(33W) (C)	8-98005-237-0	01	1	1109-	●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 4100MM(41W) (A)	8-98099-061-0	01	1	1105-1108		●
3	03.609 PIPE; EXH,CENTER (A)	8-98020-602-0	01	1	0911-1104		●
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3800MM(38W) (A)	8-98020-602-0	01	1	1105-		●
12	03.701 SILENCER ASM; EXH WHEEL BASE 2700MM(27W) (B)	8-98097-779-0	01	1	1212-		●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)	8-98020-562-1	01	1	1212-		●
12	03.701 SILENCER ASM; EXH WHEEL BASE 2700MM(27W) (B)	8-98097-779-0	01	1	1105-1108		●
12	03.701 SILENCER ASM; EXH (C)	8-97387-244-1	01	1	1109-1203	●
12	03.701 SILENCER ASM; EXH (D)	8-98214-241-0	01	1	1204-1308	●
12	03.701 SILENCER ASM; EXH (D)	8-98254-792-0	01	1	1309-	●
12	03.701 SILENCER ASM; EXH (A)	8-98020-562-1	01	1	0911-1104		●
12	03.701 SILENCER ASM; EXH WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98020-562-1	01	1	1105-1108		●
12	03.701 SILENCER ASM; EXH WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-98020-562-1	01	1	1109-1203		●
12	03.701 SILENCER ASM; EXH WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (E)	8-98214-243-0	01	1	1204-1211		●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) IDENTIFICATION LABEL FOR KD<6UT> (E)	8-98214-243-0	01	1	1212-		●
14	03.704 GASKET; SILENCER TO EXH PIPE 03.611 ID=65	8-97148-757-1	01	1	1109-	●
14	03.704 GASKET; SILENCER TO EXH PIPE ID=85.8	1-22116-043-0	01	1	0911-		●
24	03.613 COLLAR; DIST,CLAMP 03.706 L=37.5	9-22151-217-0	01	1	0911-		●
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1109-	●
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	0911-1104		●
36	03.613 NUT; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1105-1108		●
36	03.613 NUT; EXH PIPE WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1109-1211		●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1212-		●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 03.162 (B) M10 FLANGE	0-91180-110-0	04	1	1212-		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0911-1108		●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1109-	●	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	1109-	●
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	04	1	0911-		●
70	03.706 BOLT; BRKT WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1109-	●
70	03.706 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0911-		●
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	1109-	●
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0911-		●
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0911-1007		●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) (B) ID=65	8-97148-757-1	01	1	1109-	●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	0911-1104		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	0911-1104		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1105-1108		●
84	03.611 GASKET; EXH PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1105-1108		●
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=85.8	1-22116-043-0	01	1	1109-1211		●
84	03.611 GASKET; EXH PIPE WHEEL BASE 3800MM(38W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1109-1211		●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1212-		●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1212-		●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.704 (A) ID=85.8	1-22116-043-0	01	1	1212-		●
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1109-	●
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1109-	●
88	03.708 CLAMP; EXH PIPE	8-98034-766-0	01	1	0911-		●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0911-1108		●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1109-	●	●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0911-1108		●
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1109-		●
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1109-	●
95	03.708 BOLT; BRKT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1105-1108		●
95	03.708 BOLT; BRKT WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1109-	●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0911-1104		●
95	03.708 BOLT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1105-1108		●
95	03.708 BOLT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1109-1211		●
95	03.708 BOLT; BRKT WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1109-1211	●
95	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1212-		●
95	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1212-	●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0911-1108		●
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1109-		●
97	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1109-	●
104	03.704 NUT; BRKT WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1105-1108		●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1109-	●
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0911-1104		●
104	03.704 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1105-1108		●
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-1211		●
104	03.704 NUT; BRKT WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-1211	●
104	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1212-		●
104	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1212-	●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0911-1108		●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1109-	●	●
121	03.704 WASHER; PL,BRKT OD=55	9-09852-169-0	01	1	0911-		●
122	03.275 NUT; HANGER BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	0911-		●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0911-1108		●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0911-1108		●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1109-	●	●
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	1109-		●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0911-1108		●
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	1109-		●
125	03.708 NUT; CLAMP WHEEL BASE 3300MM(33W) 00.833 M10	0-91110-510-0	01	1	1109-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 2700MM(27W) (B)	8-98097-778-1	01	1	1212-		●
126	03.705 PIPE; EXH,RR WHEEL BASE 2700MM(27W) (B)	8-98097-778-1	01	1	1105-1108		●
126	03.705 PIPE; EXH,RR WHEEL BASE 2700MM(27W) (C)	8-98020-604-0	01	1	1109-	●
126	03.705 PIPE; EXH,RR WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98099-064-0	01	1	1105-1108		●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) (D)	8-98079-101-0	01	1	1109-	●
126	03.705 PIPE; EXH,RR (A)	8-98045-047-0	01	1	0911-1104		●
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-98045-047-0	01	1	1105-		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (E)	8-98001-913-0	01	1	1109-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (D)	8-98019-904-2	01	1	1109-	●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B)	8-97185-801-0	01	1	1105-1108		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W) (C)	8-97387-256-1	01	1	1109-	●
137	03.706 BRACKET; TAIL PIPE 03.613 (A)	8-97096-651-0	01	1	0911-		●
137	03.706 BRACKET; TAIL PIPE (B)	8-97116-588-2	01	1	0911-1104		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B)	8-97116-588-2	01	1	1105-1108		●
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B)	8-97116-588-2	01	1	1109-1211		●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B)	8-97116-588-2	01	1	1212-		●
143	03.704 RUBBER; SUPPORT (D)	8-97080-694-0	01	1	1109-	●
143	03.704 RUBBER; SUPPORT (C)	8-94457-277-1	01	1	0911-		●
143	03.704 RUBBER; SUPPORT (A)	8-94457-278-1	01	1	0911-		●
143	03.704 RUBBER; SUPPORT (B)	8-98034-767-0	01	1	0911-1108		●
143	03.704 RUBBER; SUPPORT (B)	8-98034-767-0	01	1	1109-		●
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) (B)	8-98034-767-0	01	1	1109-	●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0911-1108		●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-		●
144	03.613 NUT; MTG RUBBER WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2700MM(27W) (B) L=115	8-98032-151-0	01	1	1109-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (A) L=115	8-98034-765-0	01	1	0911-1108		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (A) L=115	8-98034-765-0	01	1	1109-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (A) L=115	8-98034-765-0	01	1	1109-	●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2700MM(27W) L=23	8-98006-011-0	01	1	1109-	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0911-1108		●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1109-		●
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) L=37.5	9-22151-217-0	01	1	1109-	●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2700MM(27W) 00.685 M10X45 FLANGE	0-28051-045-0	01	1	1109-	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0911-1108		●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1109-		●
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) M10X70 FLANGE	0-28051-070-0	01	1	1109-	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0911-1108		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1109-	●	●
200	03.704 BOLT; SUPPORT RUBBER 00.685 M10X40 FLANGE	0-28051-040-0	01	1	0911-		●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0911-1108		●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1109-	●	●
361	03.704 BOLT; EXH PIPE TO PIPE M8X60 FLANGE	8-98213-301-0	04	1	1204-1211	●	●
361	03.704 BOLT; EXH PIPE TO PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> M8X60 FLANGE	8-98213-301-0	04	1	1212-		●
361	03.704 BOLT; EXH PIPE TO PIPE 4JJ1-TCS ENG(LFB) M8X60 FLANGE	8-98213-301-0	04	1	1212-	●
377	03.704 NUT; BRKT WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	04	1	1212-		●
377	03.704 NUT; BRKT WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	04	1	1105-1108		●
377	03.704 NUT; BRKT WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1105-1108		●
377	03.704 NUT; BRKT WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1109-1211		●
377	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EXC. FUEL TANK 140 LITTER<N19> 03.162 M10 FLANGE	0-91180-110-0	02	1	1212-		●
377	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1212-		●
377	03.704 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-1104		●
377	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1105-1211		●
377	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> 03.162 M10 FLANGE	0-91180-110-0	01	1	1212-		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2700MM(27W) (C)	8-98122-620-0	01	1	1212-		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2700MM(27W) (C)	8-98122-620-0	01	1	1105-1108		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2700MM(27W) (E)	8-98001-889-1	01	1	1109-	●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (A)	8-98006-774-0	01	1	1105-		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 4400MM(44W) (D)	8-98073-377-0	01	1	1105-1108		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (F)	8-97387-251-1	01	1	1109-	●
385	03.704 BRACKET; SILENCER MTG (B)	8-98006-776-1	01	1	0911-		●
385	03.704 BRACKET; SILENCER MTG (A)	8-98073-376-0	01	1	0911-1104		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A)	8-98073-376-0	01	1	1105-1108		●
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3800MM(38W) (A)	8-98073-376-0	01	1	1109-		●
460	03.609 PLATE; EXH PIPE WHEEL BASE 2700MM(27W)	8-98122-619-0	01	1	1212-		●
460	03.609 PLATE; EXH PIPE WHEEL BASE 2700MM(27W)	8-98122-619-0	01	1	1105-1108		●
532	03.704 NUT WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE	0-91180-108-0	02	1	1105-1108		●
532	03.704 NUT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	1109-	●
532	03.704 NUT 03.162 M10 FLANGE	0-91180-110-0	02	1	0911-1104		●
532	03.704 NUT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1105-1108		●
532	03.704 NUT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1109-1211		●
532	03.704 NUT WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1109-1211	●
532	03.704 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1212-		●
532	03.704 NUT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	1212-	●
574	03.706 SPACER; DPD WHEEL BASE 2700MM(27W) (B)	8-98122-618-0	01	1	1212-		●
574	03.706 SPACER; DPD WHEEL BASE 2700MM(27W) (B)	8-98122-618-0	01	1	1105-1108		●
574	03.706 SPACER; DPD WHEEL BASE 3300MM(33W) (A)	8-98078-962-1	01	1	1105-1211		●
574	03.706 SPACER; DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> (A)	8-98078-962-1	01	1	1212-		●
574	03.706 SPACER; DPD (A)	8-98044-774-0	01	1	0911-1104		●
574	03.706 SPACER; DPD WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A)	8-98044-774-0	01	1	1105-1108		●
574	03.706 SPACER; DPD WHEEL BASE 3800MM(38W) (A)	8-98044-774-0	01	1	1109-1211		●
574	03.706 SPACER; DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EXC. FUEL TANK 140 LITTER<N19> (A)	8-98044-774-0	01	1	1212-		●
574	03.706 SPACER; DPD 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W) (A)	8-98044-774-0	01	1	1212-		●

467 556 589 467 589 580 589 467 580 559 560 558 557 272 589 560 534 589 547 589 534 561 547 547 561 547 582 582 272 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
272	03.685 NUT; FLANGE 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1109-	●
272	03.685 NUT; FLANGE 01.062 (A) M8 FLANGE	0-91180-108-0	16	1	1109-	●
272	03.685 NUT; FLANGE 01.062 (A) M8 FLANGE	0-91180-108-0	20	1	0911-		●
467	03.685 BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	0911-1108		●
467	03.685 BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	1109-	●	●
534	03.704 BOLT; CLIP 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1109-	●
534	03.704 BOLT; CLIP 03.162 M6X35 FLANGE	0-28650-635-0	03	1	0911-		●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	02	1	1109-	●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	02	1	1109-	●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	03	1	0911-		●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	03	1	0911-		●
556	03.701 DPD ASM (B)	8-98084-595-4	01	1	1109-	●
556	03.701 DPD ASM (A)	8-98039-162-6	01	1	0911-1010		●
556	03.701 DPD ASM (A)	8-98084-602-4	01	1	1011-		●
557	03.701 CATALYST ASM	8-98036-815-7	01	1	1109-	●
557	03.701 CATALYST ASM	8-97608-055-8	01	1	0911-		●
558	03.634 FILTER ASM	8-98032-908-2	01	1	1109-	●
558	03.634 FILTER ASM	8-97608-057-3	01	1	0911-		●
559	03.602 COVER; RR	8-98093-507-0	01	1	1109-	●
559	03.602 COVER; RR	8-97611-078-0	01	1	0911-1010		●
559	03.602 COVER; RR	8-97622-887-0	01	1	1011-		●
560	03.611 GASKET; DPD (C)	8-97331-947-0	02	1	1109-	●
560	03.611 GASKET; DPD (D) ID=64	8-97373-108-0	01	1	1109-	●
560	03.611 GASKET; DPD (B)	1-22116-040-0	01	1	0911-		●
560	03.611 GASKET; DPD (A)	8-97611-080-0	02	1	0911-		●
561	03.609 PIPE; DPD (C)	8-98084-600-0	01	1	1109-	●
561	03.609 PIPE; DPD (D)	8-98084-601-0	01	1	1109-	●
561	03.609 PIPE; DPD (A)	8-98039-239-0	01	1	0911-1010		●
561	03.609 PIPE; DPD (A)	8-98084-603-0	01	1	1011-		●
561	03.609 PIPE; DPD (B)	8-98039-241-0	01	1	0911-1010		●
561	03.609 PIPE; DPD (B)	8-98084-604-0	01	1	1011-		●
580	03.704 BOLT; FLANGE 01.060 M8X35 FLANGE	0-28650-835-0	16	1	1109-	●
580	03.704 BOLT; FLANGE 01.060 M8X35 FLANGE	0-28650-835-0	20	1	0911-		●
582	03.706 BRACKET; PIPE (D)	8-98032-919-0	01	1	1109-	●
582	03.706 BRACKET; PIPE (E)	8-98032-920-0	01	1	1109-	●
582	03.706 BRACKET; PIPE (C)	8-97611-083-0	01	1	0911-		●
582	03.706 BRACKET; PIPE (B)	8-97611-084-0	01	1	0911-		●
582	03.706 BRACKET; PIPE (A)	8-97611-085-0	01	1	0911-		●
589	03.609 PROTECTOR; HEAT,DPD (I)	8-97383-660-0	01	1	1109-	●
589	03.609 PROTECTOR; HEAT,DPD (L)	8-97383-663-0	01	1	1109-	●
589	03.609 PROTECTOR; HEAT,DPD (G)	8-98032-921-0	01	1	1109-	●
589	03.609 PROTECTOR; HEAT,DPD (H)	8-98032-923-0	01	1	1109-	●
589	03.609 PROTECTOR; HEAT,DPD (J)	8-98032-924-0	01	1	1109-	●
589	03.609 PROTECTOR; HEAT,DPD (K)	8-98032-926-0	01	1	1109-	●
589	03.609 PROTECTOR; HEAT,DPD (A)	8-97605-172-0	01	1	0911-		●
589	03.609 PROTECTOR; HEAT,DPD (B)	8-97611-086-0	01	1	0911-		●
589	03.609 PROTECTOR; HEAT,DPD (C)	8-97611-087-0	01	1	0911-		●
589	03.609 PROTECTOR; HEAT,DPD (D)	8-97611-088-0	01	1	0911-		●
589	03.609 PROTECTOR; HEAT,DPD (E)	8-97611-089-0	01	1	0911-		●
589	03.609 PROTECTOR; HEAT,DPD (F)	8-97613-390-0	01	1	0911-		●

434 566 565 182 182 564 542 434 563 563 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
182	03.682 CLIP; HARNESS (C) ID=7	8-98002-767-0	01	1	1109-	●
182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	02	1	0911-1108		●
182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	02	1	1109-	●	●
182	03.682 CLIP; HARNESS (B) ID=7 L=7.5	8-97369-561-0	01	1	0911-		●
434	03.613 BOLT; BRKT WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1212-		●
434	03.613 BOLT; BRKT WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1105-1108		●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1109-1503	●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1504-	●
434	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0911-1104		●
434	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0911-1104		●
434	03.613 BOLT; BRKT WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1105-1108		●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1109-	●
542	03.704 BRACKET (B)	8-98004-026-1	01	1	1109-	●
542	03.704 BRACKET (A)	8-98039-602-0	01	1	0911-		●
556	03.701 DPD ASM (B)	8-98084-595-4	01	1	1109-	●
556	03.701 DPD ASM (A)	8-98039-162-6	01	1	0911-1010		●
556	03.701 DPD ASM (A)	8-98084-602-4	01	1	1011-		●
563	01.150 SENSOR; TEMPERATURE,DPD (A)	8-98004-329-0	01	1	0911-1108		●
563	01.150 SENSOR; TEMPERATURE,DPD (A)	8-98004-329-0	01	1	1109-	●	●
563	01.150 SENSOR; TEMPERATURE,DPD (B)	8-98004-330-0	01	1	0911-1108		●
563	01.150 SENSOR; TEMPERATURE,DPD (B)	8-98004-330-0	01	1	1109-	●	●
564	01.150 SENSOR; PRESSURE,DPD	8-97359-985-2	01	1	0911-1108		●
564	01.150 SENSOR; PRESSURE,DPD	8-97359-985-2	01	1	1109-	●	●
565	03.706 BRACKET; SENSOR,PRESSURE WHEEL BASE 2700MM(27W) (A)	8-98058-423-0	01	1	1212-		●
565	03.706 BRACKET; SENSOR,PRESSURE WHEEL BASE 2700MM(27W) (A)	8-98058-423-0	01	1	1105-1108		●
565	03.706 BRACKET; SENSOR,PRESSURE (B)	8-98012-396-0	01	1	1109-1503	●
565	03.706 BRACKET; SENSOR,PRESSURE (B)	8-98303-548-0	01	1	1504-	●
565	03.706 BRACKET; SENSOR,PRESSURE (A)	8-98029-347-0	01	1	0911-1104		●
565	03.706 BRACKET; SENSOR,PRESSURE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98029-347-0	01	1	1105-1108		●
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-98029-347-0	01	1	1109-		●
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCS ENG(RJS) (A)	8-98029-347-0	01	1	1109-		●
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0911-1108		●
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1109-	●	●

182 434 565 434 542 566 182 272 564 182 563 563 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
182	03.682 CLIP; HARNESS (C) ID=7	8-98002-767-0	01	1	1109-	●
182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	02	1	0911-1108		●
182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	02	1	1109-	●	●
182	03.682 CLIP; HARNESS (B) ID=7 L=7.5	8-97369-561-0	01	1	0911-		●
272	03.685 NUT; FLANGE 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1109-	●
272	03.685 NUT; FLANGE 01.062 (A) M8 FLANGE	0-91180-108-0	16	1	1109-	●
272	03.685 NUT; FLANGE 01.062 (A) M8 FLANGE	0-91180-108-0	20	1	0911-		●
434	03.613 BOLT; BRKT WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1212-		●
434	03.613 BOLT; BRKT WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1105-1108		●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1109-1503	●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	03	1	1504-	●
434	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0911-1104		●
434	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0911-1104		●
434	03.613 BOLT; BRKT WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1105-1108		●
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1109-	●
542	03.704 BRACKET (B)	8-98004-026-1	01	1	1109-	●
542	03.704 BRACKET (A)	8-98039-602-0	01	1	0911-		●
556	03.701 DPD ASM (B)	8-98084-595-4	01	1	1109-	●
556	03.701 DPD ASM (A)	8-98039-162-6	01	1	0911-1010		●
556	03.701 DPD ASM (A)	8-98084-602-4	01	1	1011-		●
563	01.150 SENSOR; TEMPERATURE,DPD (A)	8-98004-329-0	01	1	0911-1108		●
563	01.150 SENSOR; TEMPERATURE,DPD (A)	8-98004-329-0	01	1	1109-	●	●
563	01.150 SENSOR; TEMPERATURE,DPD (B)	8-98004-330-0	01	1	0911-1108		●
563	01.150 SENSOR; TEMPERATURE,DPD (B)	8-98004-330-0	01	1	1109-	●	●
564	01.150 SENSOR; PRESSURE,DPD	8-97359-985-2	01	1	0911-1108		●
564	01.150 SENSOR; PRESSURE,DPD	8-97359-985-2	01	1	1109-	●	●
565	03.706 BRACKET; SENSOR,PRESSURE WHEEL BASE 2700MM(27W) (A)	8-98058-423-0	01	1	1212-		●
565	03.706 BRACKET; SENSOR,PRESSURE WHEEL BASE 2700MM(27W) (A)	8-98058-423-0	01	1	1105-1108		●
565	03.706 BRACKET; SENSOR,PRESSURE (B)	8-98012-396-0	01	1	1109-1503	●
565	03.706 BRACKET; SENSOR,PRESSURE (B)	8-98303-548-0	01	1	1504-	●
565	03.706 BRACKET; SENSOR,PRESSURE (A)	8-98029-347-0	01	1	0911-1104		●
565	03.706 BRACKET; SENSOR,PRESSURE WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A)	8-98029-347-0	01	1	1105-1108		●
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (A)	8-98029-347-0	01	1	1109-		●
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCS ENG(RJS) (A)	8-98029-347-0	01	1	1109-		●
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0911-1108		●
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1109-	●	●

589 467 556 467 589 534 547 547 582 589 272 559 560 547 580 558 534 560 547 582 580 557 534 547 547 582 580 561 272 589 589 561 589

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
272	03.685 NUT; FLANGE 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1109-	●
272	03.685 NUT; FLANGE 01.062 (A) M8 FLANGE	0-91180-108-0	16	1	1109-	●
272	03.685 NUT; FLANGE 01.062 (A) M8 FLANGE	0-91180-108-0	20	1	0911-		●
467	03.685 BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	0911-1108		●
467	03.685 BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	1109-	●	●
534	03.704 BOLT; CLIP 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1109-	●
534	03.704 BOLT; CLIP 03.162 M6X35 FLANGE	0-28650-635-0	03	1	0911-		●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	02	1	1109-	●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	02	1	1109-	●
547	03.682 CLIP; PIPE (A) ID=7 & 7 L=22	8-97381-635-0	03	1	0911-		●
547	03.682 CLIP; PIPE (B) ID=7 & 7 L=22	8-97381-636-0	03	1	0911-		●
556	03.701 DPD ASM (B)	8-98084-595-4	01	1	1109-	●
556	03.701 DPD ASM (A)	8-98039-162-6	01	1	0911-1010		●
556	03.701 DPD ASM (A)	8-98084-602-4	01	1	1011-		●
557	03.701 CATALYST ASM	8-98036-815-7	01	1	1109-	●
557	03.701 CATALYST ASM	8-97608-055-8	01	1	0911-		●
558	03.634 FILTER ASM	8-98032-908-2	01	1	1109-	●
558	03.634 FILTER ASM	8-97608-057-3	01	1	0911-		●
559	03.602 COVER; RR	8-98093-507-0	01	1	1109-	●
559	03.602 COVER; RR	8-97611-078-0	01	1	0911-1010		●
559	03.602 COVER; RR	8-97622-887-0	01	1	1011-		●
560	03.611 GASKET; DPD (C)	8-97331-947-0	02	1	1109-	●
560	03.611 GASKET; DPD (D) ID=64	8-97373-108-0	01	1	1109-	●
560	03.611 GASKET; DPD (B)	1-22116-040-0	01	1	0911-		●
560	03.611 GASKET; DPD (A)	8-97611-080-0	02	1	0911-		●
561	03.609 PIPE; DPD (C)	8-98084-600-0	01	1	1109-	●
561	03.609 PIPE; DPD (D)	8-98084-601-0	01	1	1109-	●
561	03.609 PIPE; DPD (A)	8-98039-239-0	01	1	0911-1010		●
561	03.609 PIPE; DPD (A)	8-98084-603-0	01	1	1011-		●
561	03.609 PIPE; DPD (B)	8-98039-241-0	01	1	0911-1010		●
561	03.609 PIPE; DPD (B)	8-98084-604-0	01	1	1011-		●
580	03.704 BOLT; FLANGE 01.060 M8X35 FLANGE	0-28650-835-0	16	1	1109-	●
580	03.704 BOLT; FLANGE 01.060 M8X35 FLANGE	0-28650-835-0	20	1	0911-		●
582	03.706 BRACKET; PIPE (D)	8-98032-919-0	01	1	1109-	●
582	03.706 BRACKET; PIPE (E)	8-98032-920-0	01	1	1109-	●
582	03.706 BRACKET; PIPE (C)	8-97611-083-0	01	1	0911-		●
582	03.706 BRACKET; PIPE (B)	8-97611-084-0	01	1	0911-		●
582	03.706 BRACKET; PIPE (A)	8-97611-085-0	01	1	0911-		●
589	03.609 PROTECTOR; HEAT,DPD (I)	8-97383-660-0	01	1	1109-	●
589	03.609 PROTECTOR; HEAT,DPD (L)	8-97383-663-0	01	1	1109-	●
589	03.609 PROTECTOR; HEAT,DPD (G)	8-98032-921-0	01	1	1109-	●
589	03.609 PROTECTOR; HEAT,DPD (H)	8-98032-923-0	01	1	1109-	●
589	03.609 PROTECTOR; HEAT,DPD (J)	8-98032-924-0	01	1	1109-	●
589	03.609 PROTECTOR; HEAT,DPD (K)	8-98032-926-0	01	1	1109-	●
589	03.609 PROTECTOR; HEAT,DPD (A)	8-97605-172-0	01	1	0911-		●
589	03.609 PROTECTOR; HEAT,DPD (B)	8-97611-086-0	01	1	0911-		●
589	03.609 PROTECTOR; HEAT,DPD (C)	8-97611-087-0	01	1	0911-		●
589	03.609 PROTECTOR; HEAT,DPD (D)	8-97611-088-0	01	1	0911-		●
589	03.609 PROTECTOR; HEAT,DPD (E)	8-97611-089-0	01	1	0911-		●
589	03.609 PROTECTOR; HEAT,DPD (F)	8-97613-390-0	01	1	0911-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
