◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51244 - NPR(LHD) EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#50190) — 382 parça
çizim 159251
411 411 411 1 411 635 3 19 656 640 14 656 6 158 159 25 8 422 8 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11) (B) 756X482X376 100L 		8-98062-738-4 01 1 1212-1507 ●
1 03.001 TANK; FUEL
TAIWAN EQUIPMENT(B04) FUEL TANK 100 LITTER<N02> (B) 756X482X376 100L 		8-98153-048-2 01 1 1508- ●
1 03.001 TANK; FUEL
FUEL TANK 140 LITTER<N19> EXC. TURKEY EQUIPMENT(B11) (A) 820X500X400 140L 		8-98051-031-4 01 1 1212-1507 ●
1 03.001 TANK; FUEL
TAIWAN EQUIPMENT(B04) FUEL TANK 140 LITTER<N19> (A) 820X500X400 140L 		8-98051-031-4 01 1 1508- ●
1 03.001 TANK; FUEL
(B) 756X482X376 100L 		8-98104-006-3 01 1 1109-1211 ●
1 03.001 TANK; FUEL
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> (B) 756X482X376 100L 		8-98104-006-3 01 1 1212-1507 ●
1 03.001 TANK; FUEL
(B) 756X482X376 100L 		8-98104-006-3 01 1 1212-1507 ●
1 03.001 TANK; FUEL
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> (B) 756X482X376 90L 		8-98153-046-2 01 1 1508- ●
1 03.001 TANK; FUEL
(B) 756X482X376 90L 		8-98153-046-2 01 1 1508- ●
1 03.001 TANK; FUEL
(A) 820X500X400 140L 		8-98101-073-2 01 1 0911-1211 ●
1 03.001 TANK; FUEL
TURKEY EQUIPMENT(B11) FUEL TANK 140 LITTER<N19> (A) 820X500X400 140L 		8-98101-073-2 01 1 1212- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11) 		8-98056-705-0 01 1 1212-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
TAIWAN EQUIPMENT(B04) FUEL TANK 100 LITTER<N02> 		8-98056-705-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 140 LITTER<N19> EXC. TURKEY EQUIPMENT(B11) 		8-98065-304-0 01 1 1212-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
TAIWAN EQUIPMENT(B04) FUEL TANK 140 LITTER<N19> 		8-98065-304-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98113-179-0 01 1 1109-1211 ●
3 03.107 UNIT; FUEL TANK,SUB
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> 		8-98113-179-0 01 1 1212- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98113-179-0 01 1 1212- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98113-180-0 01 1 0911-1211 ●
3 03.107 UNIT; FUEL TANK,SUB
TURKEY EQUIPMENT(B11) FUEL TANK 140 LITTER<N19> 		8-98113-180-0 01 1 1212- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER 		0-36220-512-0 05 1 0911-1108 ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER 		0-36220-512-0 05 1 1109- ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> 06.673 (C) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1504- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1109-1211 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 100 LITTER<N02> 03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1212- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1212- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=30 		8-98067-041-0 01 1 0911-1211 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> (B) ID=30 		8-98067-041-0 01 1 1212- ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.453 M14X14 		9-09862-156-0 01 1 1109-1211 ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 100 LITTER<N02> 01.453 M14X14 		9-09862-156-0 01 1 1212- ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.453 M14X14 		9-09862-156-0 01 1 1212- ●
11 03.890 PLUG; DRAIN,FUEL TANK
M18 		8-98068-006-0 01 1 0911-1211 ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 140 LITTER<N19> M18 		8-98068-006-0 01 1 1212- ●
14 03.163 HOSE; BREATHER,OUTLET
L=420 		8-98157-809-0 01 1 1109-1211 ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=420 		8-98157-809-0 01 1 1212- ●
14 03.163 HOSE; BREATHER,OUTLET
L=420 		8-98157-809-0 01 1 1212- ●
14 03.163 HOSE; BREATHER,OUTLET
L=460 		8-98082-184-1 01 1 0911-1211 ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 140 LITTER<N19> L=460 		8-98082-184-1 01 1 1212- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11) 		8-98051-797-0 01 1 1212-1507 ●
19 03.112 GASKET; FUEL TANK UNIT
TAIWAN EQUIPMENT(B04) FUEL TANK 100 LITTER<N02> 		8-98051-797-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0911-1108 ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1109-1211 ● ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 140 LITTER<N19> EXC. TURKEY EQUIPMENT(B11) ID=42 OD=71 		5-83148-001-0 01 1 1212-1507 ●
19 03.112 GASKET; FUEL TANK UNIT
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 1212-1507 ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1212-1507 ●
19 03.112 GASKET; FUEL TANK UNIT
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> ID=42 OD=71 		5-83148-001-0 01 1 1508-1510 ●
19 03.112 GASKET; FUEL TANK UNIT
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FUEL TANK 140 LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 1508-1510 ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1508-1510 ●
19 03.112 GASKET; FUEL TANK UNIT
TAIWAN EQUIPMENT(B04) FUEL TANK 140 LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 1511- ●
19 03.112 GASKET; FUEL TANK UNIT
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 1511- ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1511- ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 1212- ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 1105-1108 ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 1109-1211 ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 100 LITTER<N02> 		8-97179-645-0 01 1 1212- ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 1212- ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-98095-223-0 01 1 0911-1211 ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 140 LITTER<N19> 		8-98095-223-0 01 1 1212- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 1109-1211 ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 100 LITTER<N02> 		8-97326-488-0 01 1 1212- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 1212- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 01 1 0911-1211 ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19> ID=45 OD=67 		1-83149-003-0 01 1 1212- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02> (D) T=5.5 		8-97371-951-0 04 1 1212- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(E) L=170.3 		1-09987-182-0 01 1 1109- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D) T=5.5 		8-97371-951-0 03 1 1105-1108 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) (D) T=5.5 		8-97371-951-0 03 1 1109-1211 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) FUEL TANK 140 LITTER<N19> (D) T=5.5 		8-97371-951-0 03 1 1212- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W) (D) T=5.5 		8-97371-951-0 04 1 1105-1108 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1109- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1109- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0911-1104 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) T=4.5 & 9 		8-97371-947-0 01 1 1105-1108 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) T=4.5 & 9 		8-97371-947-0 01 1 1109-1407 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) T=4.5 & 9 		8-97371-947-0 01 1 1408- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) T=4.5 & 9 		8-97371-947-0 01 1 1408- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 0911-1104 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 1105-1108 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) 03.162 (C) L=140 		5-09707-031-1 01 1 1105-1108 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 1109-1211 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 1212- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) 03.162 (C) L=140 		5-09707-031-1 01 1 1212- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) T=4.5 & 9 		8-97371-947-0 01 1 0911-1104 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1105-1108 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 02 1 1109- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) T=4.5 & 9 		8-97371-947-0 02 1 0911- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 03 1 0911-1104 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D) T=5.5 		8-97371-951-0 02 1 1105-1108 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) (D) T=5.5 		8-97371-951-0 02 1 1109-1211 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 1109-1211 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D) T=5.5 		8-97371-951-0 02 1 1212- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 1212- ●
422 03.023 PLUG; FUEL TANK
FUEL TANK 140 LITTER<N19> 03.890 M30 		8-98067-038-0 01 1 1504- ●
635 03.001 SCREW; ROLL OVER & FLOAT VALVE
02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 0911-1211 ●
635 03.001 SCREW; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19> 02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 1212- ●
640 03.164 VENTILATOR; HOSE,BREATHER 8-98092-398-0 01 1 0911-1211 ●
640 03.164 VENTILATOR; HOSE,BREATHER
FUEL TANK 140 LITTER<N19> 		8-98092-398-0 01 1 1212- ●
656 03.023 CLAMP; FUEL TANK
FUEL TANK 140 LITTER<N19> 		8-98304-416-0 02 1 1504- ●

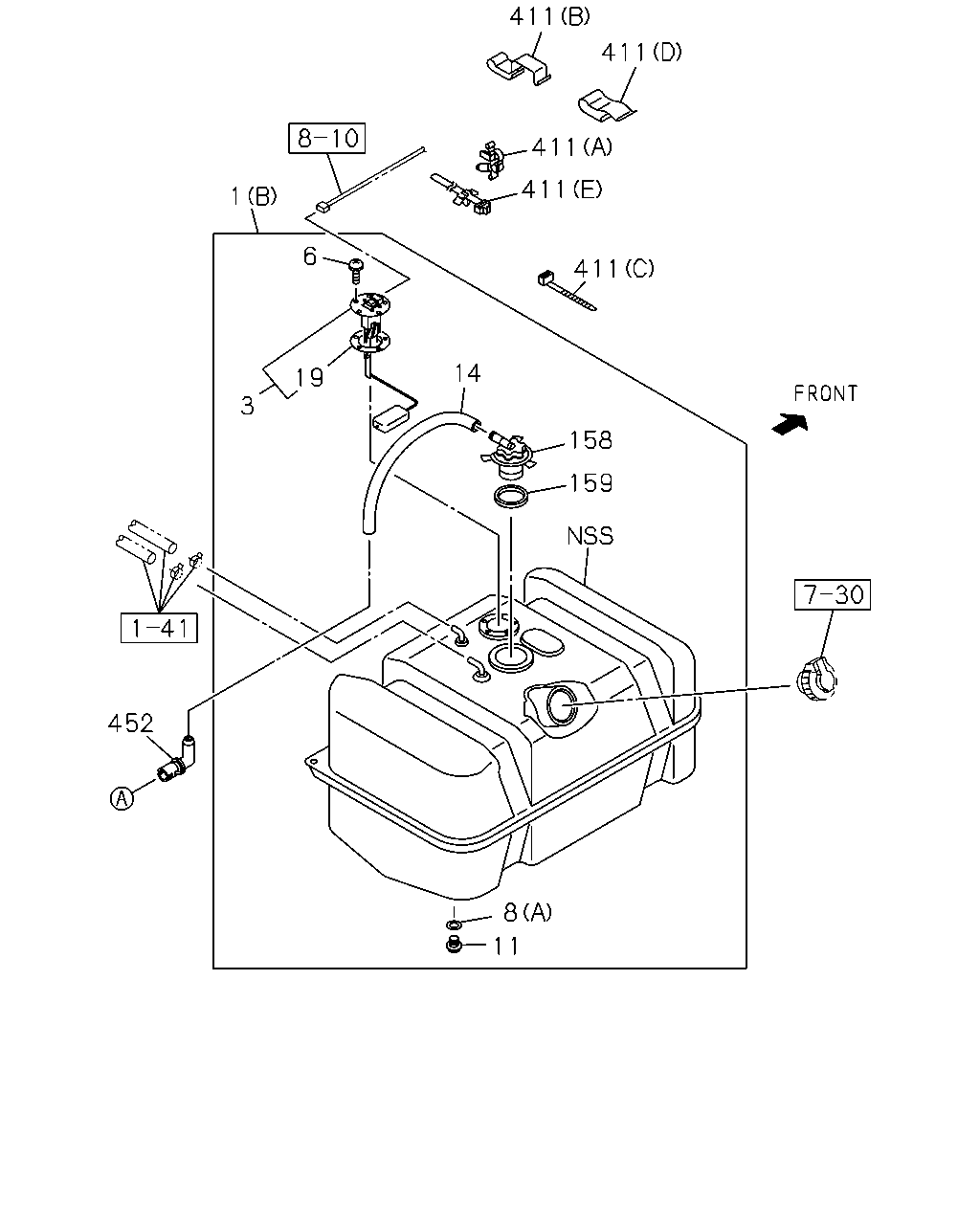

çizim 159252
411 411 411 411 411 158 159 8 11 452 3 19 14 6 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11) (B) 756X482X376 100L 		8-98062-738-4 01 1 1212-1507 ●
1 03.001 TANK; FUEL
TAIWAN EQUIPMENT(B04) FUEL TANK 100 LITTER<N02> (B) 756X482X376 100L 		8-98153-048-2 01 1 1508- ●
1 03.001 TANK; FUEL
FUEL TANK 140 LITTER<N19> EXC. TURKEY EQUIPMENT(B11) (A) 820X500X400 140L 		8-98051-031-4 01 1 1212-1507 ●
1 03.001 TANK; FUEL
TAIWAN EQUIPMENT(B04) FUEL TANK 140 LITTER<N19> (A) 820X500X400 140L 		8-98051-031-4 01 1 1508- ●
1 03.001 TANK; FUEL
(B) 756X482X376 100L 		8-98104-006-3 01 1 1109-1211 ●
1 03.001 TANK; FUEL
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> (B) 756X482X376 100L 		8-98104-006-3 01 1 1212-1507 ●
1 03.001 TANK; FUEL
(B) 756X482X376 100L 		8-98104-006-3 01 1 1212-1507 ●
1 03.001 TANK; FUEL
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> (B) 756X482X376 90L 		8-98153-046-2 01 1 1508- ●
1 03.001 TANK; FUEL
(B) 756X482X376 90L 		8-98153-046-2 01 1 1508- ●
1 03.001 TANK; FUEL
(A) 820X500X400 140L 		8-98101-073-2 01 1 0911-1211 ●
1 03.001 TANK; FUEL
TURKEY EQUIPMENT(B11) FUEL TANK 140 LITTER<N19> (A) 820X500X400 140L 		8-98101-073-2 01 1 1212- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11) 		8-98056-705-0 01 1 1212-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
TAIWAN EQUIPMENT(B04) FUEL TANK 100 LITTER<N02> 		8-98056-705-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 140 LITTER<N19> EXC. TURKEY EQUIPMENT(B11) 		8-98065-304-0 01 1 1212-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
TAIWAN EQUIPMENT(B04) FUEL TANK 140 LITTER<N19> 		8-98065-304-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98113-179-0 01 1 1109-1211 ●
3 03.107 UNIT; FUEL TANK,SUB
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> 		8-98113-179-0 01 1 1212- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98113-179-0 01 1 1212- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98113-180-0 01 1 0911-1211 ●
3 03.107 UNIT; FUEL TANK,SUB
TURKEY EQUIPMENT(B11) FUEL TANK 140 LITTER<N19> 		8-98113-180-0 01 1 1212- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER 		0-36220-512-0 05 1 0911-1108 ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER 		0-36220-512-0 05 1 1109- ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> 06.673 (C) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1504- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1109-1211 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 100 LITTER<N02> 03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1212- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1212- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=30 		8-98067-041-0 01 1 0911-1211 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> (B) ID=30 		8-98067-041-0 01 1 1212- ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.453 M14X14 		9-09862-156-0 01 1 1109-1211 ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 100 LITTER<N02> 01.453 M14X14 		9-09862-156-0 01 1 1212- ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.453 M14X14 		9-09862-156-0 01 1 1212- ●
11 03.890 PLUG; DRAIN,FUEL TANK
M18 		8-98068-006-0 01 1 0911-1211 ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 140 LITTER<N19> M18 		8-98068-006-0 01 1 1212- ●
14 03.163 HOSE; BREATHER,OUTLET
L=420 		8-98157-809-0 01 1 1109-1211 ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=420 		8-98157-809-0 01 1 1212- ●
14 03.163 HOSE; BREATHER,OUTLET
L=420 		8-98157-809-0 01 1 1212- ●
14 03.163 HOSE; BREATHER,OUTLET
L=460 		8-98082-184-1 01 1 0911-1211 ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 140 LITTER<N19> L=460 		8-98082-184-1 01 1 1212- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11) 		8-98051-797-0 01 1 1212-1507 ●
19 03.112 GASKET; FUEL TANK UNIT
TAIWAN EQUIPMENT(B04) FUEL TANK 100 LITTER<N02> 		8-98051-797-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0911-1108 ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1109-1211 ● ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 140 LITTER<N19> EXC. TURKEY EQUIPMENT(B11) ID=42 OD=71 		5-83148-001-0 01 1 1212-1507 ●
19 03.112 GASKET; FUEL TANK UNIT
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 1212-1507 ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1212-1507 ●
19 03.112 GASKET; FUEL TANK UNIT
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> ID=42 OD=71 		5-83148-001-0 01 1 1508-1510 ●
19 03.112 GASKET; FUEL TANK UNIT
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FUEL TANK 140 LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 1508-1510 ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1508-1510 ●
19 03.112 GASKET; FUEL TANK UNIT
TAIWAN EQUIPMENT(B04) FUEL TANK 140 LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 1511- ●
19 03.112 GASKET; FUEL TANK UNIT
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 1511- ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1511- ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 1109-1211 ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 100 LITTER<N02> 		8-97179-645-0 01 1 1212- ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 1212- ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-98095-223-0 01 1 0911-1211 ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 140 LITTER<N19> 		8-98095-223-0 01 1 1212- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 1109-1211 ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 100 LITTER<N02> 		8-97326-488-0 01 1 1212- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 1212- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 01 1 0911-1211 ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19> ID=45 OD=67 		1-83149-003-0 01 1 1212- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02> (D) T=5.5 		8-97371-951-0 04 1 1212- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(E) L=170.3 		1-09987-182-0 01 1 1109- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D) T=5.5 		8-97371-951-0 03 1 1105-1108 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) (D) T=5.5 		8-97371-951-0 03 1 1109-1211 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) FUEL TANK 140 LITTER<N19> (D) T=5.5 		8-97371-951-0 03 1 1212- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W) (D) T=5.5 		8-97371-951-0 04 1 1105-1108 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1109- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1109- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0911-1104 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) T=4.5 & 9 		8-97371-947-0 01 1 1105-1108 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) T=4.5 & 9 		8-97371-947-0 01 1 1109-1407 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) T=4.5 & 9 		8-97371-947-0 01 1 1408- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) T=4.5 & 9 		8-97371-947-0 01 1 1408- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 0911-1104 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 1105-1108 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) 03.162 (C) L=140 		5-09707-031-1 01 1 1105-1108 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 1109-1211 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 1212- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) 03.162 (C) L=140 		5-09707-031-1 01 1 1212- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) T=4.5 & 9 		8-97371-947-0 01 1 0911-1104 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1105-1108 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 02 1 1109- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) T=4.5 & 9 		8-97371-947-0 02 1 0911- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 03 1 0911-1104 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D) T=5.5 		8-97371-951-0 02 1 1105-1108 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) (D) T=5.5 		8-97371-951-0 02 1 1109-1211 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 1109-1211 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D) T=5.5 		8-97371-951-0 02 1 1212- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 1212- ●
452 03.028 BREATHER; FUEL TANK 8-97357-261-0 01 1 1109-1211 ●
452 03.028 BREATHER; FUEL TANK
FUEL TANK 100 LITTER<N02> 		8-97357-261-0 01 1 1212- ●
452 03.028 BREATHER; FUEL TANK 8-97357-261-0 01 1 1212- ●

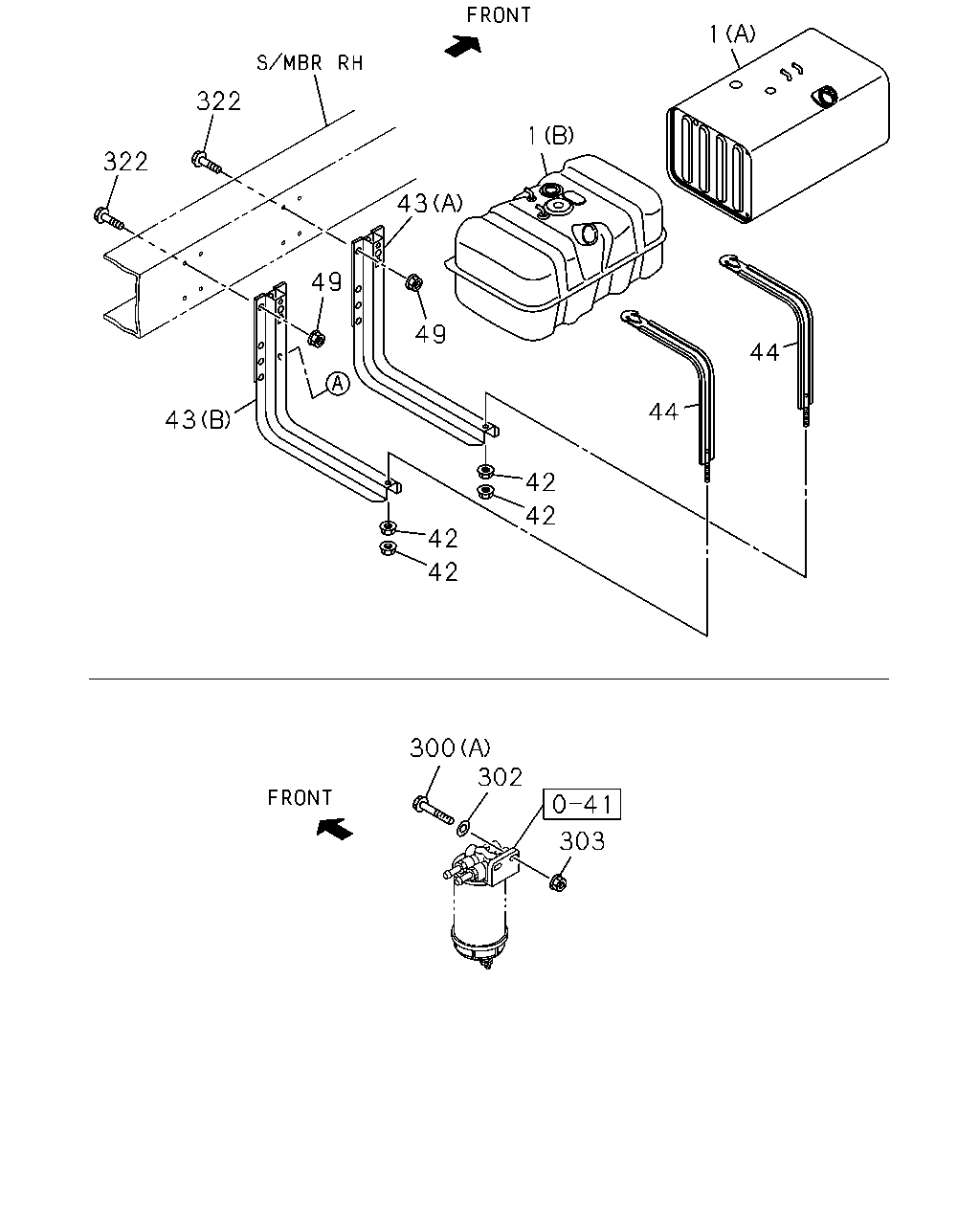

çizim 159256
1 44 44 42 42 42 42 43 49 43 49 1 322 322 300 302 303
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11) (B) 756X482X376 100L 		8-98062-738-4 01 1 1212-1507 ●
1 03.001 TANK; FUEL
TAIWAN EQUIPMENT(B04) FUEL TANK 100 LITTER<N02> (B) 756X482X376 100L 		8-98153-048-2 01 1 1508- ●
1 03.001 TANK; FUEL
FUEL TANK 140 LITTER<N19> EXC. TURKEY EQUIPMENT(B11) (A) 820X500X400 140L 		8-98051-031-4 01 1 1212-1507 ●
1 03.001 TANK; FUEL
TAIWAN EQUIPMENT(B04) FUEL TANK 140 LITTER<N19> (A) 820X500X400 140L 		8-98051-031-4 01 1 1508- ●
1 03.001 TANK; FUEL
(B) 756X482X376 100L 		8-98104-006-3 01 1 1109-1211 ●
1 03.001 TANK; FUEL
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> (B) 756X482X376 100L 		8-98104-006-3 01 1 1212-1507 ●
1 03.001 TANK; FUEL
(B) 756X482X376 100L 		8-98104-006-3 01 1 1212-1507 ●
1 03.001 TANK; FUEL
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> (B) 756X482X376 90L 		8-98153-046-2 01 1 1508- ●
1 03.001 TANK; FUEL
(B) 756X482X376 90L 		8-98153-046-2 01 1 1508- ●
1 03.001 TANK; FUEL
(A) 820X500X400 140L 		8-98101-073-2 01 1 0911-1211 ●
1 03.001 TANK; FUEL
TURKEY EQUIPMENT(B11) FUEL TANK 140 LITTER<N19> (A) 820X500X400 140L 		8-98101-073-2 01 1 1212- ●
42 03.023 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 1109-1211 ●
42 03.023 NUT; SUPPORT BELT
FUEL TANK 100 LITTER<N02> M8 FLANGE 		9-09130-408-0 02 1 1212- ●
42 03.023 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 1212- ●
42 03.023 NUT; SUPPORT BELT
00.833 M10 		0-91110-510-0 04 1 0911-1211 ●
42 03.023 NUT; SUPPORT BELT
FUEL TANK 140 LITTER<N19> 00.833 M10 		0-91110-510-0 04 1 1212- ●
43 03.015 BRACKET; FUEL TANK
(A) 		8-97384-060-5 01 1 1109-1211 ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 100 LITTER<N02> (A) 		8-97384-060-5 01 1 1212- ●
43 03.015 BRACKET; FUEL TANK
(A) 		8-97384-060-5 01 1 1212- ●
43 03.015 BRACKET; FUEL TANK
(B) 		8-97384-062-6 01 1 1109-1211 ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 100 LITTER<N02> (B) 		8-97384-062-6 01 1 1212- ●
43 03.015 BRACKET; FUEL TANK
(B) 		8-97384-062-6 01 1 1212- ●
43 03.015 BRACKET; FUEL TANK
(A) 		8-98049-768-1 01 1 0911-1211 ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 140 LITTER<N19> (A) 		8-98049-768-1 01 1 1212- ●
43 03.015 BRACKET; FUEL TANK
(B) 		8-98083-790-0 01 1 0911-1007 ●
43 03.015 BRACKET; FUEL TANK
(B) 		8-98127-229-0 01 1 1008-1211 ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 140 LITTER<N19> (B) 		8-98127-229-0 01 1 1212- ●
44 03.023 BAND; FUEL TANK
L=795 		8-97384-080-2 02 1 1109-1211 ●
44 03.023 BAND; FUEL TANK
FUEL TANK 100 LITTER<N02> L=795 		8-97384-080-2 02 1 1212- ●
44 03.023 BAND; FUEL TANK
L=795 		8-97384-080-2 02 1 1212- ●
44 03.023 BAND; FUEL TANK
L=925 		8-98049-769-1 02 1 0911-1211 ●
44 03.023 BAND; FUEL TANK
FUEL TANK 140 LITTER<N19> L=925 		8-98049-769-1 02 1 1212- ●
49 03.023 NUT; BRKT
WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE 		0-91180-210-0 07 1 1212- ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE 		0-91180-210-0 09 1 1109- ●
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 0911-1104 ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 04.085 M10 FLANGE 		0-91180-210-0 08 1 1105-1108 ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 04.085 M10 FLANGE 		0-91180-210-0 08 1 1109-1211 ●
49 03.023 NUT; BRKT
WHEEL BASE 2700MM(27W) 04.085 M10 FLANGE 		0-91180-210-0 08 1 1109-1211 ●
49 03.023 NUT; BRKT
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE 		0-91180-210-0 08 1 1212- ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE 		0-91180-210-0 08 1 1212- ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.085 M10 FLANGE 		0-91180-210-0 08 1 1212- ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE 		0-91180-210-0 08 1 1212- ●
49 03.023 NUT; BRKT
WHEEL BASE 2700MM(27W) 04.085 M10 FLANGE 		0-91180-210-0 08 1 1212- ●
300 03.162 BOLT; BRKT TO BODY
06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1109- ●
300 03.162 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) 03.613 (A) M10X40 FLANGE 		0-28651-040-0 02 1 0911-1108 ●
300 03.162 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) 03.613 (A) M10X40 FLANGE 		0-28651-040-0 02 1 1109- ●
300 03.162 BOLT; BRKT TO BODY
03.613 (A) M10X40 FLANGE 		0-28651-040-0 02 1 1109- ●
302 03.162 WASHER; PL,SEDIMENTER
POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26 		0-91614-710-0 02 1 0911-1108 ●
302 03.162 WASHER; PL,SEDIMENTER
POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26 		0-91614-710-0 02 1 1109- ●
302 03.162 WASHER; PL,SEDIMENTER
04.085 ID=10.5 OD=26 		0-91614-710-0 02 1 1109- ●
303 03.162 NUT; SEDIMENTER BRKT
POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE 		0-91180-110-0 02 1 0911-1108 ●
303 03.162 NUT; SEDIMENTER BRKT
POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE 		0-91180-110-0 02 1 1109- ●
303 03.162 NUT; SEDIMENTER BRKT
M10 FLANGE 		0-91180-110-0 02 1 1109- ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.613 M10X40 FLANGE 		0-28661-040-0 06 1 1212-1410 ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.613 M10X40 FLANGE 		0-28661-040-0 06 1 1411- ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 2700MM(27W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.613 M10X40 FLANGE 		0-28661-040-0 07 1 1212-1410 ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 2700MM(27W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.613 M10X40 FLANGE 		0-28661-040-0 07 1 1411- ●
322 03.895 BOLT; BRKT FIX
03.613 M10X40 FLANGE 		0-28661-040-0 08 1 0911-1104 ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1105-1108 ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1109-1211 ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1109-1211 ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1212-1410 ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1212-1410 ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1212-1410 ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1212-1410 ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1411- ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1411- ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W) TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FUEL TANK 140 LITTER<N19> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1411- ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1411- ●
çizim 159258
6 158 159 14 1 411 411 411 411 635 3 19 640 8 11 25 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11) (B) 756X482X376 100L 		8-98062-738-4 01 1 1212-1507 ●
1 03.001 TANK; FUEL
TAIWAN EQUIPMENT(B04) FUEL TANK 100 LITTER<N02> (B) 756X482X376 100L 		8-98153-048-2 01 1 1508- ●
1 03.001 TANK; FUEL
FUEL TANK 140 LITTER<N19> EXC. TURKEY EQUIPMENT(B11) (A) 820X500X400 140L 		8-98051-031-4 01 1 1212-1507 ●
1 03.001 TANK; FUEL
TAIWAN EQUIPMENT(B04) FUEL TANK 140 LITTER<N19> (A) 820X500X400 140L 		8-98051-031-4 01 1 1508- ●
1 03.001 TANK; FUEL
(B) 756X482X376 100L 		8-98104-006-3 01 1 1109-1211 ●
1 03.001 TANK; FUEL
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> (B) 756X482X376 100L 		8-98104-006-3 01 1 1212-1507 ●
1 03.001 TANK; FUEL
(B) 756X482X376 100L 		8-98104-006-3 01 1 1212-1507 ●
1 03.001 TANK; FUEL
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> (B) 756X482X376 90L 		8-98153-046-2 01 1 1508- ●
1 03.001 TANK; FUEL
(B) 756X482X376 90L 		8-98153-046-2 01 1 1508- ●
1 03.001 TANK; FUEL
(A) 820X500X400 140L 		8-98101-073-2 01 1 0911-1211 ●
1 03.001 TANK; FUEL
TURKEY EQUIPMENT(B11) FUEL TANK 140 LITTER<N19> (A) 820X500X400 140L 		8-98101-073-2 01 1 1212- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11) 		8-98056-705-0 01 1 1212-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
TAIWAN EQUIPMENT(B04) FUEL TANK 100 LITTER<N02> 		8-98056-705-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 140 LITTER<N19> EXC. TURKEY EQUIPMENT(B11) 		8-98065-304-0 01 1 1212-1507 ●
3 03.107 UNIT; FUEL TANK,SUB
TAIWAN EQUIPMENT(B04) FUEL TANK 140 LITTER<N19> 		8-98065-304-0 01 1 1508- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98113-179-0 01 1 1109-1211 ●
3 03.107 UNIT; FUEL TANK,SUB
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> 		8-98113-179-0 01 1 1212- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98113-179-0 01 1 1212- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98113-180-0 01 1 0911-1211 ●
3 03.107 UNIT; FUEL TANK,SUB
TURKEY EQUIPMENT(B11) FUEL TANK 140 LITTER<N19> 		8-98113-180-0 01 1 1212- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER 		0-36220-512-0 05 1 0911-1108 ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER 		0-36220-512-0 05 1 1109- ● ●
7 03.112 GASKET; TANK UNIT,SUB TANK
03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 0911-1211 ●
7 03.112 GASKET; TANK UNIT,SUB TANK
FUEL TANK 140 LITTER<N19> 03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 1212-1503 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> 06.673 (C) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1504- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1109-1211 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 100 LITTER<N02> 03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1212- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1212- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=30 		8-98067-041-0 01 1 0911-1211 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> (B) ID=30 		8-98067-041-0 01 1 1212- ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.453 M14X14 		9-09862-156-0 01 1 1109-1211 ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 100 LITTER<N02> 01.453 M14X14 		9-09862-156-0 01 1 1212- ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.453 M14X14 		9-09862-156-0 01 1 1212- ●
11 03.890 PLUG; DRAIN,FUEL TANK
M18 		8-98068-006-0 01 1 0911-1211 ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 140 LITTER<N19> M18 		8-98068-006-0 01 1 1212- ●
14 03.163 HOSE; BREATHER,OUTLET
L=420 		8-98157-809-0 01 1 1109-1211 ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=420 		8-98157-809-0 01 1 1212- ●
14 03.163 HOSE; BREATHER,OUTLET
L=420 		8-98157-809-0 01 1 1212- ●
14 03.163 HOSE; BREATHER,OUTLET
L=460 		8-98082-184-1 01 1 0911-1211 ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 140 LITTER<N19> L=460 		8-98082-184-1 01 1 1212- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11) 		8-98051-797-0 01 1 1212-1507 ●
19 03.112 GASKET; FUEL TANK UNIT
TAIWAN EQUIPMENT(B04) FUEL TANK 100 LITTER<N02> 		8-98051-797-0 01 1 1508- ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0911-1108 ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1109-1211 ● ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 140 LITTER<N19> EXC. TURKEY EQUIPMENT(B11) ID=42 OD=71 		5-83148-001-0 01 1 1212-1507 ●
19 03.112 GASKET; FUEL TANK UNIT
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 1212-1507 ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1212-1507 ●
19 03.112 GASKET; FUEL TANK UNIT
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> ID=42 OD=71 		5-83148-001-0 01 1 1508-1510 ●
19 03.112 GASKET; FUEL TANK UNIT
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) FUEL TANK 140 LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 1508-1510 ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1508-1510 ●
19 03.112 GASKET; FUEL TANK UNIT
TAIWAN EQUIPMENT(B04) FUEL TANK 140 LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 1511- ●
19 03.112 GASKET; FUEL TANK UNIT
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 1511- ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1511- ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 1212- ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 1105-1108 ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 1109-1211 ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 100 LITTER<N02> 		8-97179-645-0 01 1 1212- ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 1212- ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-98095-223-0 01 1 0911-1211 ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 140 LITTER<N19> 		8-98095-223-0 01 1 1212- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 1109-1211 ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 100 LITTER<N02> 		8-97326-488-0 01 1 1212- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 1212- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 01 1 0911-1211 ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19> ID=45 OD=67 		1-83149-003-0 01 1 1212- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02> (D) T=5.5 		8-97371-951-0 04 1 1212- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(E) L=170.3 		1-09987-182-0 01 1 1109- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (D) T=5.5 		8-97371-951-0 03 1 1105-1108 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) (D) T=5.5 		8-97371-951-0 03 1 1109-1211 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) FUEL TANK 140 LITTER<N19> (D) T=5.5 		8-97371-951-0 03 1 1212- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 4400MM(44W) (D) T=5.5 		8-97371-951-0 04 1 1105-1108 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1109- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1109- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 0911-1104 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (B) T=4.5 & 9 		8-97371-947-0 01 1 1105-1108 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) T=4.5 & 9 		8-97371-947-0 01 1 1109-1407 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) T=4.5 & 9 		8-97371-947-0 01 1 1408- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) T=4.5 & 9 		8-97371-947-0 01 1 1408- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 0911-1104 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 1105-1108 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) 03.162 (C) L=140 		5-09707-031-1 01 1 1105-1108 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 1109-1211 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 1212- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) 03.162 (C) L=140 		5-09707-031-1 01 1 1212- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) T=4.5 & 9 		8-97371-947-0 01 1 0911-1104 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1105-1108 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 02 1 1109- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) T=4.5 & 9 		8-97371-947-0 02 1 0911- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 03 1 0911-1104 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D) T=5.5 		8-97371-951-0 02 1 1105-1108 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) (D) T=5.5 		8-97371-951-0 02 1 1109-1211 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 1109-1211 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D) T=5.5 		8-97371-951-0 02 1 1212- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 1212- ●
635 03.001 SCREW; ROLL OVER & FLOAT VALVE
02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 0911-1211 ●
635 03.001 SCREW; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19> 02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 1212- ●
640 03.164 VENTILATOR; HOSE,BREATHER 8-98092-398-0 01 1 0911-1211 ●
640 03.164 VENTILATOR; HOSE,BREATHER
FUEL TANK 140 LITTER<N19> 		8-98092-398-0 01 1 1212- ●

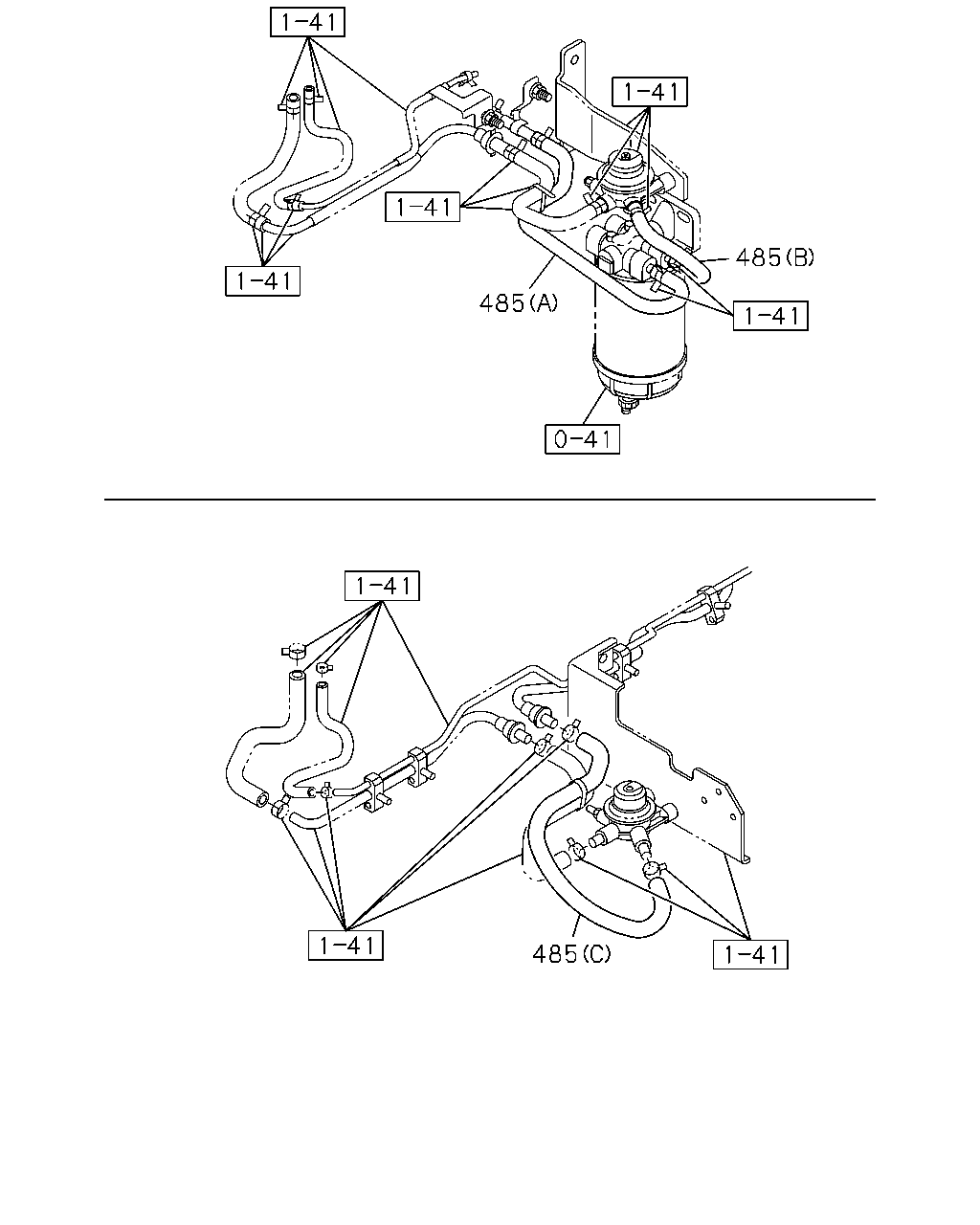

çizim 159259
485 485 485
BalonParca AdiParca NoAdetTipApplied Date A B
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) EXC. TURKEY EQUIPMENT(B11) (A) 		8-98099-503-0 01 1 1212- ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) EXC. TURKEY EQUIPMENT(B11) (B) 		8-98105-710-0 01 1 1212- ●
485 03.163 HOSE; FUEL
EXC. TURKEY EQUIPMENT(B11),POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98041-728-0 01 1 1212- ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98138-300-0 01 1 0911-1211 ●
485 03.163 HOSE; FUEL
TURKEY EQUIPMENT(B11) POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98138-300-0 01 1 1212- ●
485 03.163 HOSE; FUEL
POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98139-112-1 01 1 0911-1211 ●
485 03.163 HOSE; FUEL
TURKEY EQUIPMENT(B11) POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98139-112-1 01 1 1212- ●
485 03.163 HOSE; FUEL
EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98120-959-1 01 1 0911-1211 ●
485 03.163 HOSE; FUEL
TURKEY EQUIPMENT(B11) EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98120-959-1 01 1 1212- ●

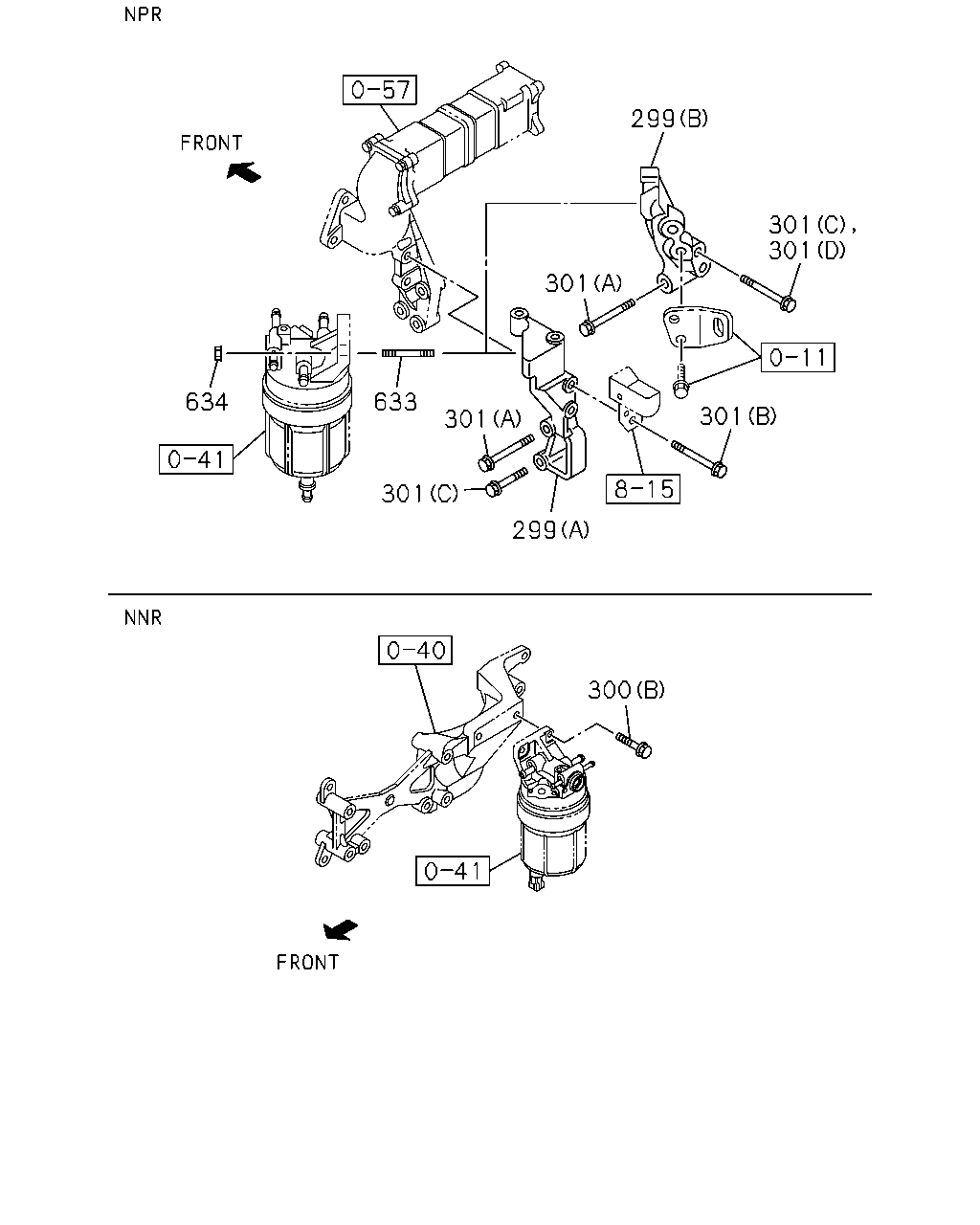

çizim 475372
633 634 301 301 299 301 301 301 299 301 300
BalonParca AdiParca NoAdetTipApplied Date A B
299 03.162 BRACKET; FUEL FILTER
EGR COOLER LH POSITION<KCC> (B) 		8-98186-569-0 01 1 1112- ●
299 03.162 BRACKET; FUEL FILTER
(A) 		8-98023-175-3 01 1 0911-1111 ●
299 03.162 BRACKET; FUEL FILTER
EXC. EGR COOLER LH POSITION<KCC> (A) 		8-98023-175-3 01 1 1112- ●
300 03.162 BOLT; BRKT TO BODY
06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 1109- ●
300 03.162 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) 03.613 (A) M10X40 FLANGE 		0-28651-040-0 02 1 0911-1108 ●
300 03.162 BOLT; BRKT TO BODY
POOR QUALITY DIESEL FUEL(KF0) 03.613 (A) M10X40 FLANGE 		0-28651-040-0 02 1 1109- ●
300 03.162 BOLT; BRKT TO BODY
03.613 (A) M10X40 FLANGE 		0-28651-040-0 02 1 1109- ●
301 03.162 BOLT; BRKT TO SEDIMENTER
EGR COOLER LH POSITION<KCC> 00.206 (D) M12X70 FLANGE 		0-28151-270-0 02 1 1112-1202 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
EGR COOLER LH POSITION<KCC> 09.181 (C) M12X80 		0-28151-280-0 02 1 1203- ●
301 03.162 BOLT; BRKT TO SEDIMENTER
02.510 (A) M12X100 FLANGE 		0-28151-200-0 01 1 0911- ●
301 03.162 BOLT; BRKT TO SEDIMENTER
00.685 (B) M12X50 FLANGE 		0-28151-250-0 01 1 0911-1111 ●
301 03.162 BOLT; BRKT TO SEDIMENTER
EXC. EGR COOLER LH POSITION<KCC> 00.685 (B) M12X50 FLANGE 		0-28151-250-0 01 1 1112- ●
301 03.162 BOLT; BRKT TO SEDIMENTER
09.181 (C) M12X80 		0-28151-280-0 01 1 0911- ●
633 03.162 STUD; BRKT TO SEDIMENTER
03.275 M8X25 L=37 		0-41010-825-0 02 1 0911- ●
634 03.162 NUT; BRKT TO SEDIMENTER
01.062 M8 FLANGE 		0-91180-108-0 02 1 0911- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
