Sayfa 1-31 - Isuzu EPC

1-31 — AIR DUCT (#50188) — 210 parça

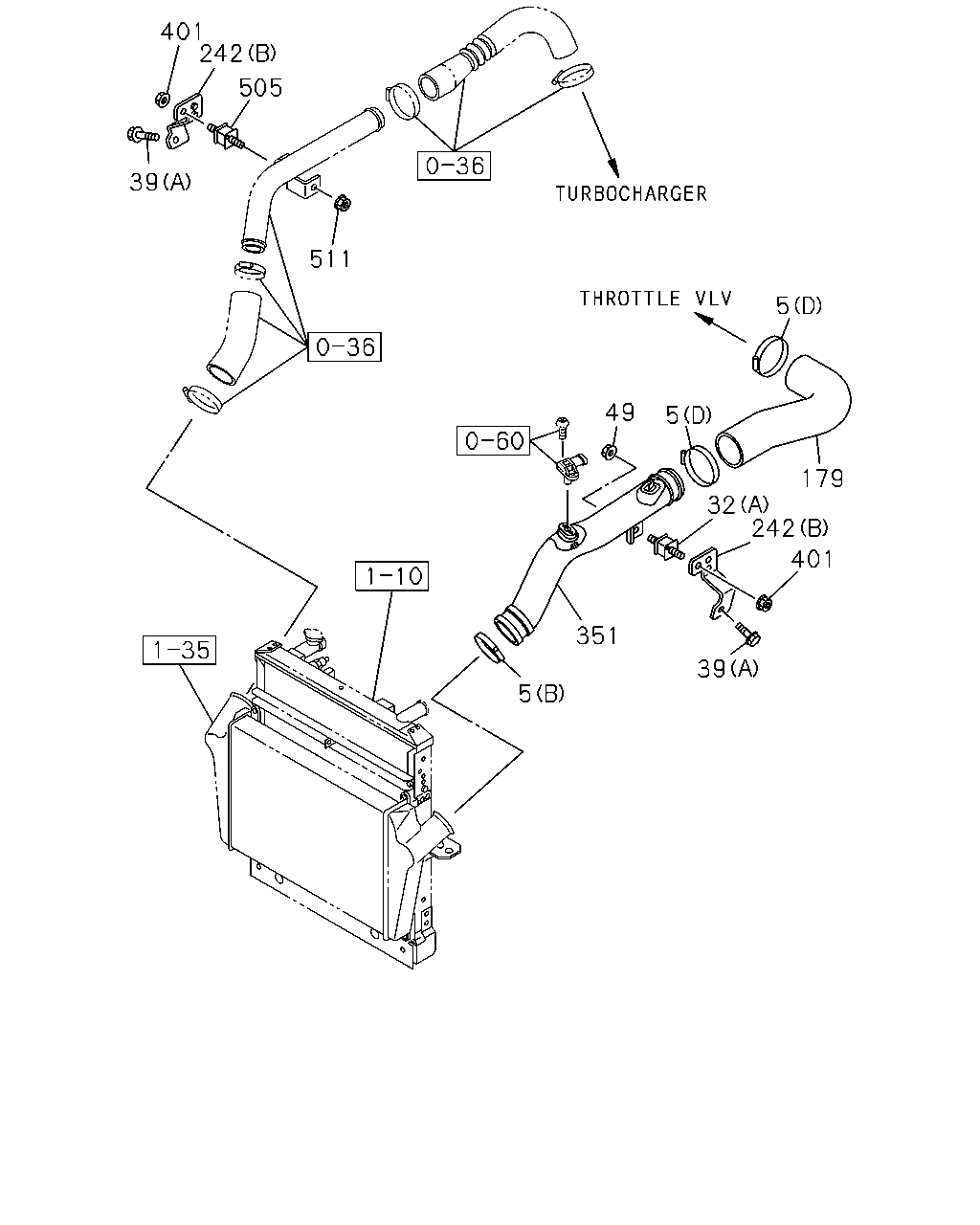

401 242 505 39 511 5 49 5 179 32 242 401 351 39 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=77-99	1-09707-141-0	02	1	1212-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=70-90	8-98122-372-0	01	1	1212-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=77-99	1-09707-141-0	02	1	1105-1108	●
5	03.407 CLIP; AIR DUCT (E) ID=45-65	8-98133-348-0	01	1	1109-		●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=70-90	8-98122-372-0	01	1	1105-1108	●
5	03.407 CLIP; AIR DUCT (D) ID=55-75	8-98133-349-0	01	1	1109-		●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	0911-1108	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1109-	●	●
5	03.407 CLIP; AIR DUCT (B) ID=65-85	8-98133-350-0	01	1	0911-1104	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=65-85	8-98133-350-0	01	1	1105-1108	●
5	03.407 CLIP; AIR DUCT (B) ID=65-85	8-98133-350-0	01	1	1109-1211	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=65-85	8-98133-350-0	01	1	1212-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) (B) ID=65-85	8-98133-350-0	01	1	1212-		●
5	03.407 CLIP; AIR DUCT (D) ID=75-95	8-98133-357-0	02	1	0911-1104	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=75-95	8-98133-357-0	02	1	1105-1108	●
5	03.407 CLIP; AIR DUCT (D) ID=75-95	8-98133-357-0	02	1	1109-1211	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=75-95	8-98133-357-0	02	1	1212-	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	0911-1108	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1109-	●	●
32	03.417 RUBBER; AIR DUCT MTG 01.277 (B) OD=32	8-94395-766-0	01	1	1109-		●
32	03.417 RUBBER; AIR DUCT MTG 03.265 (C) OD=23	8-97105-689-6	01	1	1109-		●
32	03.417 RUBBER; AIR DUCT MTG (A)	8-98036-826-0	01	1	0911-1106	●
32	03.417 RUBBER; AIR DUCT MTG (A)	8-97081-886-0	01	1	1107-	●
39	03.417 BOLT; BRKT 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1109-		●
39	03.417 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0911-1108	●
39	03.417 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1109-	●	●
49	03.417 NUT; AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	0911-1108	●
49	03.417 NUT; AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●	●
179	03.417 HOSE; AIR INT	8-98050-920-2	01	1	1109-		●
179	03.417 HOSE; AIR INT	8-98117-928-2	01	1	0911-	●
242	03.417 BRACKET; AIR DUCT (F)	8-98070-942-2	01	1	1109-		●
242	03.417 BRACKET; AIR DUCT (G)	8-98070-943-0	01	1	1109-		●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	0911-1108	●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	1109-1510	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1511-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	0911-	●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-143-1	01	1	0911-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	0911-1108	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1109-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	0911-1108	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1109-	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	0911-1108	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1109-	●	●
351	03.407 DUCT; AIR 03.417	8-98051-032-1	01	1	1109-		●
351	03.407 DUCT; AIR	8-98105-722-1	01	1	0911-	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	0911-1108	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	0911-1108	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●
505	03.406 RUBBER; MTG 03.417	8-98036-826-0	01	1	0911-1106	●
505	03.406 RUBBER; MTG 03.417	8-97081-886-0	01	1	1107-1108	●
505	03.406 RUBBER; MTG 03.417	8-97081-886-0	01	1	1109-	●	●
511	03.417 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0911-1108	●
511	03.417 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●	●

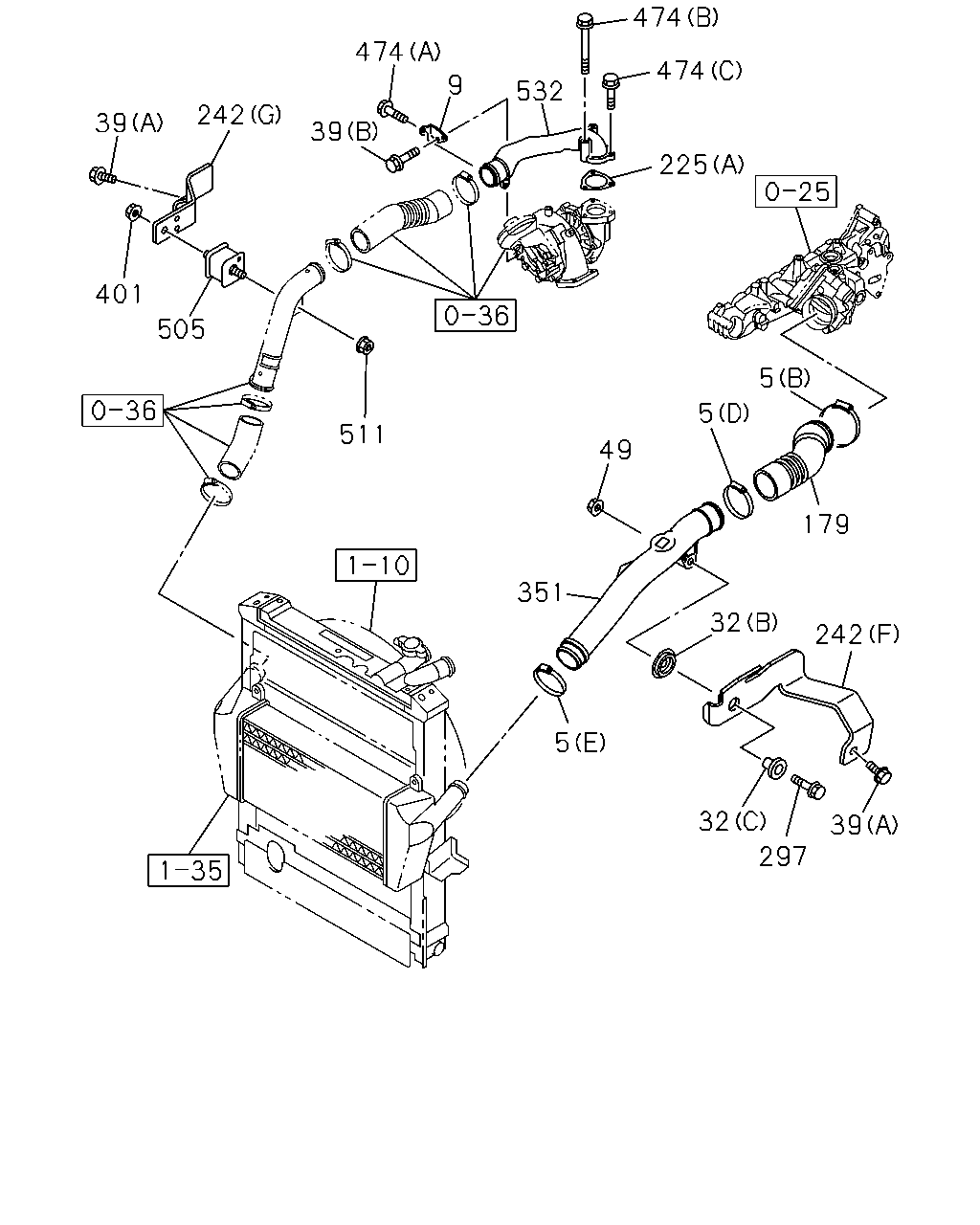

474 39 242 39 401 505 511 351 49 5 5 179 242 32 39 297 32 5 225 474 474 532 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=77-99	1-09707-141-0	02	1	1212-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=70-90	8-98122-372-0	01	1	1212-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=77-99	1-09707-141-0	02	1	1105-1108	●
5	03.407 CLIP; AIR DUCT (E) ID=45-65	8-98133-348-0	01	1	1109-		●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=70-90	8-98122-372-0	01	1	1105-1108	●
5	03.407 CLIP; AIR DUCT (D) ID=55-75	8-98133-349-0	01	1	1109-		●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	0911-1108	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1109-	●	●
5	03.407 CLIP; AIR DUCT (B) ID=65-85	8-98133-350-0	01	1	0911-1104	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=65-85	8-98133-350-0	01	1	1105-1108	●
5	03.407 CLIP; AIR DUCT (B) ID=65-85	8-98133-350-0	01	1	1109-1211	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=65-85	8-98133-350-0	01	1	1212-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) (B) ID=65-85	8-98133-350-0	01	1	1212-		●
5	03.407 CLIP; AIR DUCT (D) ID=75-95	8-98133-357-0	02	1	0911-1104	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=75-95	8-98133-357-0	02	1	1105-1108	●
5	03.407 CLIP; AIR DUCT (D) ID=75-95	8-98133-357-0	02	1	1109-1211	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=75-95	8-98133-357-0	02	1	1212-	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	0911-1108	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1109-	●	●
9	03.417 BRACKET; INT PIPE	8-98009-086-0	01	1	1109-		●
32	03.417 RUBBER; AIR DUCT MTG 01.277 (B) OD=32	8-94395-766-0	01	1	1109-		●
32	03.417 RUBBER; AIR DUCT MTG 03.265 (C) OD=23	8-97105-689-6	01	1	1109-		●
32	03.417 RUBBER; AIR DUCT MTG (A)	8-98036-826-0	01	1	0911-1106	●
32	03.417 RUBBER; AIR DUCT MTG (A)	8-97081-886-0	01	1	1107-	●
39	03.417 BOLT; BRKT 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	1109-		●
39	03.417 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0911-1108	●
39	03.417 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1109-	●	●
49	03.417 NUT; AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	0911-1108	●
49	03.417 NUT; AIR DUCT 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●	●
179	03.417 HOSE; AIR INT	8-98050-920-2	01	1	1109-		●
179	03.417 HOSE; AIR INT	8-98117-928-2	01	1	0911-	●
225	03.417 GASKET; AIR PIPE FRIGID ZONE(YL3) 01.097 (B) ID=43.7	9-09561-344-0	01	1	1508-	●
225	03.417 GASKET; AIR PIPE 03.270 (A) ID=47	8-97202-328-1	01	1	1109-		●
242	03.417 BRACKET; AIR DUCT (F)	8-98070-942-2	01	1	1109-		●
242	03.417 BRACKET; AIR DUCT (G)	8-98070-943-0	01	1	1109-		●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	0911-1108	●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	1109-1510	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1511-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	0911-	●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-143-1	01	1	0911-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	0911-1108	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1109-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	0911-1108	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1109-	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	0911-1108	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1109-	●	●
297	03.417 BOLT; DUCT 00.685 M8X40 FLANGE	0-28650-840-0	01	1	1109-		●
351	03.407 DUCT; AIR 03.417	8-98051-032-1	01	1	1109-		●
351	03.407 DUCT; AIR	8-98105-722-1	01	1	0911-	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	0911-1108	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	0911-1108	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●	●
401	03.403 NUT; BRKT,AIR INT 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●
474	03.417 BOLT; PIPE (B) M6X70 FLANGE	0-28050-670-0	02	1	1109-		●
474	03.417 BOLT; PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1109-		●
474	03.417 BOLT; PIPE 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	1109-		●
505	03.406 RUBBER; MTG 03.417	8-98036-826-0	01	1	0911-1106	●
505	03.406 RUBBER; MTG 03.417	8-97081-886-0	01	1	1107-1108	●
505	03.406 RUBBER; MTG 03.417	8-97081-886-0	01	1	1109-	●	●
511	03.417 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0911-1108	●
511	03.417 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-	●	●
532	03.417 PIPE; INTAKE	8-97385-203-1	01	1	1109-1303		●
532	03.417 PIPE; INTAKE	8-98237-771-1	01	1	1304-		●

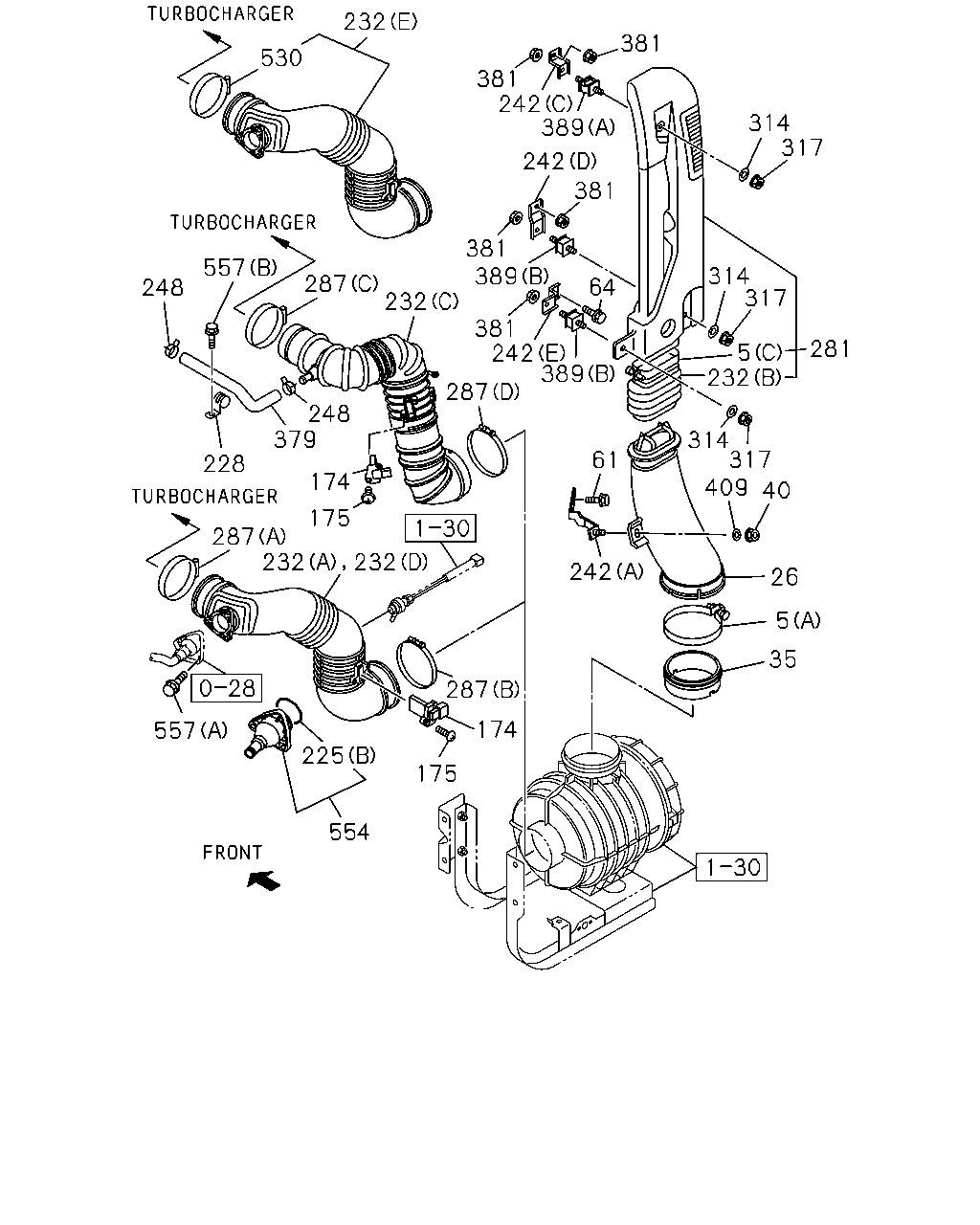

530 232 381 381 242 242 389 381 314 317 314 281 317 5 314 409 317 26 5 35 242 61 389 242 381 389 381 64 232 232 287 557 248 248 379 175 287 232 232 228 225 557 554 175 287 174 40 174 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=77-99	1-09707-141-0	02	1	1212-	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=70-90	8-98122-372-0	01	1	1212-	●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=77-99	1-09707-141-0	02	1	1105-1108	●
5	03.407 CLIP; AIR DUCT (E) ID=45-65	8-98133-348-0	01	1	1109-		●
5	03.407 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=70-90	8-98122-372-0	01	1	1105-1108	●
5	03.407 CLIP; AIR DUCT (D) ID=55-75	8-98133-349-0	01	1	1109-		●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	0911-1108	●
5	03.407 CLIP; AIR DUCT (A) ID=127	1-14239-263-0	01	1	1109-	●	●
5	03.407 CLIP; AIR DUCT (B) ID=65-85	8-98133-350-0	01	1	0911-1104	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (B) ID=65-85	8-98133-350-0	01	1	1105-1108	●
5	03.407 CLIP; AIR DUCT (B) ID=65-85	8-98133-350-0	01	1	1109-1211	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=65-85	8-98133-350-0	01	1	1212-	●
5	03.407 CLIP; AIR DUCT 4JJ1-TCS ENG(LFB) (B) ID=65-85	8-98133-350-0	01	1	1212-		●
5	03.407 CLIP; AIR DUCT (D) ID=75-95	8-98133-357-0	02	1	0911-1104	●
5	03.407 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> (D) ID=75-95	8-98133-357-0	02	1	1105-1108	●
5	03.407 CLIP; AIR DUCT (D) ID=75-95	8-98133-357-0	02	1	1109-1211	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=75-95	8-98133-357-0	02	1	1212-	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	0911-1108	●
5	03.407 CLIP; AIR DUCT (C) D=101.6	9-09915-502-1	01	1	1109-	●	●
26	03.417 DUCT; AIR INT	8-98025-626-0	01	1	0911-1108	●
26	03.417 DUCT; AIR INT	8-98025-626-0	01	1	1109-	●	●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	0911-1108	●
35	03.406 SEAL; DUCT,INT	8-98029-332-0	01	1	1109-	●	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	0911-1108	●
40	03.417 NUT; AIR INT DUCT 03.162 M10 FLANGE	0-91180-110-0	01	1	1109-	●	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0911-1108	●
61	03.417 BOLT; BRKT,AIR DUCT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1109-	●	●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	0911-1108	●
64	03.417 BOLT; BRKT,AIR DUCT M8X16	0-52000-816-0	01	1	1109-	●	●
174	03.682 SENSOR; AIR FLOW CONT	8-98113-202-1	01	1	1109-		●
174	03.682 SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0911-	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0911-0911	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0911-0911	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0912-1108	●
175	03.682 BOLT; AIR FLOW CONT SENSOR 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	1109-	●	●
225	03.417 GASKET; AIR PIPE FRIGID ZONE(YL3) 01.097 (B) ID=43.7	9-09561-344-0	01	1	1508-	●
225	03.417 GASKET; AIR PIPE 03.270 (A) ID=47	8-97202-328-1	01	1	1109-		●
228	03.278 CLIP; PCV HOSE ID=24.5 H=29 L=25	8-98120-913-0	01	1	1109-		●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (D)	8-98079-860-0	01	1	1212-1402	●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (D)	8-98272-700-0	01	1	1403-1406	●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (E)	8-98281-178-0	01	1	1407-	●
232	03.417 HOSE; CONN (C)	8-98048-137-0	01	1	1109-		●
232	03.417 HOSE; CONN (A)	8-98059-989-2	01	1	0911-1211	●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> (A)	8-98059-989-2	01	1	1212-1402	●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> (A)	8-98272-698-0	01	1	1403-1406	●
232	03.417 HOSE; CONN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> (E)	8-98281-176-0	01	1	1407-	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	0911-1108	●
232	03.417 HOSE; CONN (B)	8-98082-535-0	01	1	1109-1309	●	●
232	03.417 HOSE; CONN (B)	8-98231-785-0	01	1	1310-	●	●
242	03.417 BRACKET; AIR DUCT (F)	8-98070-942-2	01	1	1109-		●
242	03.417 BRACKET; AIR DUCT (G)	8-98070-943-0	01	1	1109-		●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	0911-1108	●
242	03.417 BRACKET; AIR DUCT (A)	8-98004-416-0	01	1	1109-1510	●	●
242	03.417 BRACKET; AIR DUCT (A)	8-98145-112-1	01	1	1511-	●	●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-142-1	01	1	0911-	●
242	03.417 BRACKET; AIR DUCT (B)	8-98032-143-1	01	1	0911-	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	0911-1108	●
242	03.417 BRACKET; AIR DUCT (C)	8-98036-646-2	01	1	1109-	●	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	0911-1108	●
242	03.417 BRACKET; AIR DUCT (D)	8-98036-647-2	01	1	1109-	●	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	0911-1108	●
242	03.417 BRACKET; AIR DUCT (E)	8-98036-649-2	01	1	1109-	●	●
248	03.417 CLIP; RUBBER HOSE 08.846 ID=21.7	8-97203-074-0	02	1	1109-		●
281	03.417 DUCT; AIR,VERTICAL INT	8-98080-929-1	01	1	0911-1108	●
281	03.417 DUCT; AIR,VERTICAL INT	8-98080-929-2	01	1	1109-	●	●
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=77-99	1-09707-141-0	01	1	1212-1406	●
287	03.417 CLIP; AIR DUCT 03.407 (D) ID=117	9-09915-075-1	01	1	1109-		●
287	03.417 CLIP; AIR DUCT EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=77-99	1-09707-141-0	01	1	1105-1108	●
287	03.417 CLIP; AIR DUCT 03.407 (C) ID=65-85	8-98133-350-0	01	1	1109-		●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=75-95	8-98133-357-0	01	1	0911-1104	●
287	03.417 CLIP; AIR DUCT IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=75-95	8-98133-357-0	01	1	1105-1108	●
287	03.417 CLIP; AIR DUCT 03.407 (A) ID=75-95	8-98133-357-0	01	1	1109-1211	●
287	03.417 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=75-95	8-98133-357-0	01	1	1212-1406	●
287	03.417 CLIP; AIR DUCT 03.407 (B) ID=112	9-09915-074-1	01	1	0911-	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	0911-1108	●
314	03.417 WASHER; PL,AIR INT DUCT 00.002 ID=10.5 OD=32	0-91614-810-0	03	1	1109-	●	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	0911-1108	●
317	03.417 NUT; CUSHION RUBBER M8 W/LK WASHER	8-97581-234-0	03	1	1109-	●	●
379	03.675 HOSE; RUBBER	8-98156-950-0	01	1	1109-		●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	0911-1108	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	02	1	1109-	●	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	0911-1108	●
381	03.417 NUT; BRKT,AIR DUCT M8 W/LK WASHER	8-97581-234-0	03	1	1109-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	0911-1108	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR (A)	8-98036-825-0	01	1	1109-	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	0911-1108	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 03.417 (B)	8-98036-826-0	02	1	1109-	●	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0911-1108	●
409	03.417 WASHER; PL,BRKT 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1109-	●	●
530	03.407 CLAMP; AIR DUCT ID=77-99	1-09707-141-0	01	1	1407-	●
554	04.439 FLANGE; PIPE,PCV FRIGID ZONE(YL3)	8-98038-208-0	01	1	1508-	●
557	03.403 BOLT; HOSE CLIP 03.671 (B) M6X10 FLANGE	0-28050-610-0	01	1	1109-		●
557	03.403 BOLT; HOSE CLIP 00.386 (A) M6X20 FLANGE	0-28050-620-0	03	1	0911-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
