Isuzu WW
▶
TRUCKS
▶
NPR
▶
51244 - NPR(LHD) EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

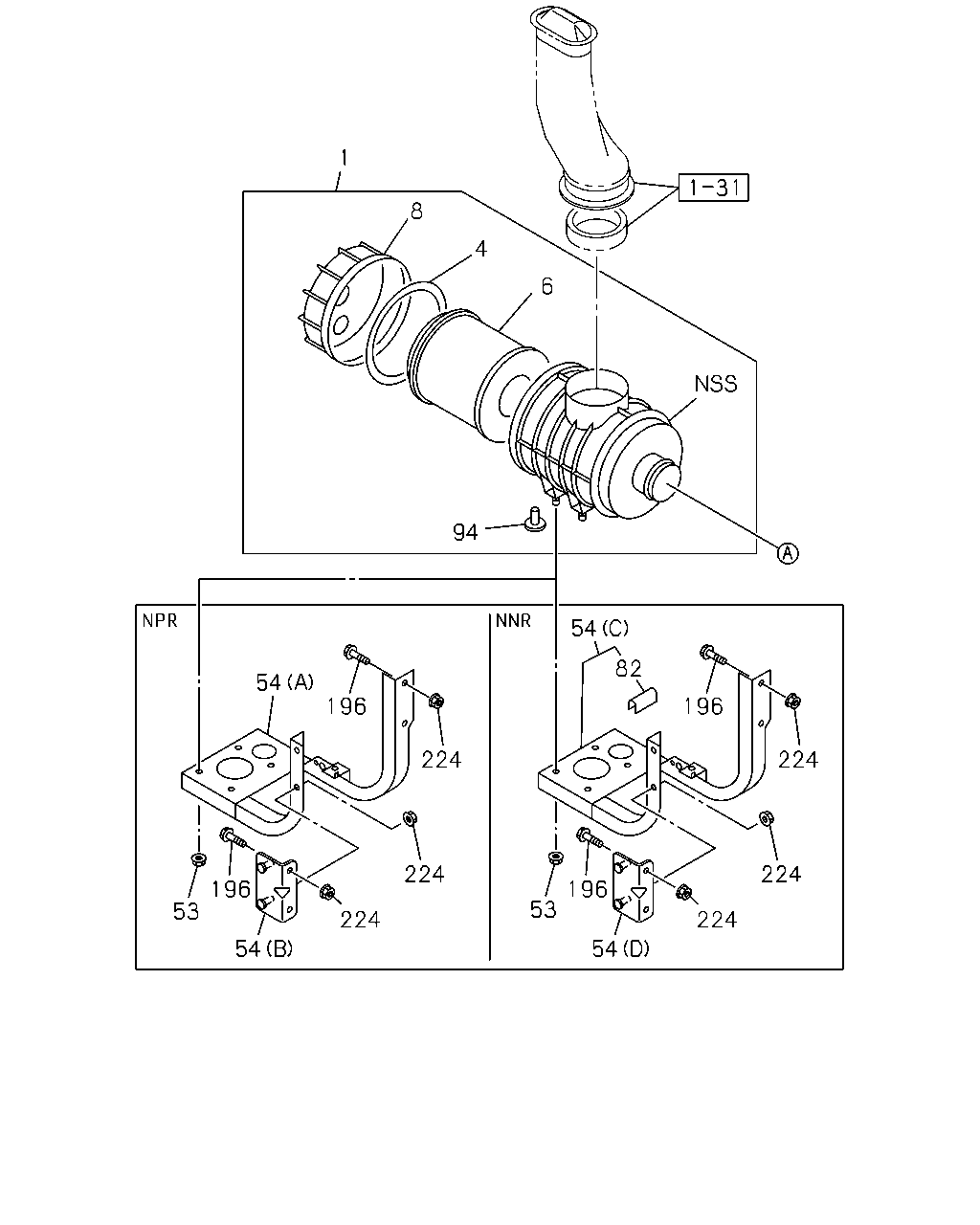

1-30 - AIR CLEANER
▶
1-30 — AIR CLEANER
(#50187) — 28 parça
Tümü
A - NPR6SN
B - NPR6SE
◀
[130A] NO.1 (27 parça)
[130A] NO.2 (1 parça)
▶
1
8
6
4
94
196
54
82
224
224
224
196
53
224
224
224
196
54
196
53
54
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
03.402 CLEANER ASM; AIR
8-98050-415-2
01
1
0911-1108
●
1
03.402 CLEANER ASM; AIR
8-98050-415-2
01
1
1109-
●
●
4
03.403 GASKET; COVER TO BODY
8-97352-113-0
01
1
0911-1108
●
4
03.403 GASKET; COVER TO BODY
8-97352-113-0
01
1
1109-
●
●
6
03.410 FILTER; ACL
8-97062-294-0
01
1
0911-1108
●
6
03.410 FILTER; ACL
8-97062-294-0
01
1
1109-
●
●
6
03.410 FILTER; ACL
BEST VALUE PARTS
5-87610-020-0
01
1
0911-1108
●
6
03.410 FILTER; ACL
BEST VALUE PARTS
5-87610-020-0
01
1
1109-
●
●
8
03.410 COVER ASM; ACL
8-98050-434-1
01
1
0911-1108
●
8
03.410 COVER ASM; ACL
8-98050-434-1
01
1
1109-
●
●
53
03.403 NUT; ACL
01.062 M8 FLANGE
0-91180-108-0
04
1
0911-1108
●
53
03.403 NUT; ACL
01.062 M8 FLANGE
0-91180-108-0
04
1
1109-
●
●
54
03.405 BRACKET; ACL
IDENTIFICATION LABEL FOR KD<6UT> (A)
8-98251-988-0
01
1
1401-
●
54
03.405 BRACKET; ACL
(C)
8-98026-092-3
01
1
1109-
●
54
03.405 BRACKET; ACL
(D)
8-98070-835-3
01
1
1109-
●
54
03.405 BRACKET; ACL
(B)
8-98032-125-1
01
1
0911-
●
54
03.405 BRACKET; ACL
(A)
8-98047-140-3
01
1
0911-1312
●
54
03.405 BRACKET; ACL
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A)
8-98047-140-3
01
1
1401-
●
82
03.403 PROTECTOR
03.671
8-97327-172-0
01
1
1109-
●
94
03.415 VALVE; VACUATOR
8-97093-694-0
01
1
0911-1108
●
94
03.415 VALVE; VACUATOR
8-97093-694-0
01
1
1109-
●
●
196
03.417 BOLT; BRKT,ACL
00.029 M10X30 FLANGE
0-28651-030-0
02
1
0911-1108
●
196
03.417 BOLT; BRKT,ACL
00.029 M10X30 FLANGE
0-28651-030-0
02
1
1109-
●
●
196
03.417 BOLT; BRKT,ACL
02.277 M10X35 FLANGE
0-28651-035-0
02
1
0911-1108
●
196
03.417 BOLT; BRKT,ACL
02.277 M10X35 FLANGE
0-28651-035-0
02
1
1109-
●
●
224
03.407 NUT; BRKT
03.162 M10 FLANGE
0-91180-110-0
06
1
1109-
●
224
03.407 NUT; BRKT
03.162 M10 FLANGE
0-91180-110-0
05
1
0911-
●
256
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
256
03.405 SENSOR; AIRFLOW
MULTI INFORMATION DISPLAY<7NY>
8-98156-478-1
01
1
1212-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
