1-11 — RADIATOR HOSE AND SUB TANK (#50186) — 31 parça

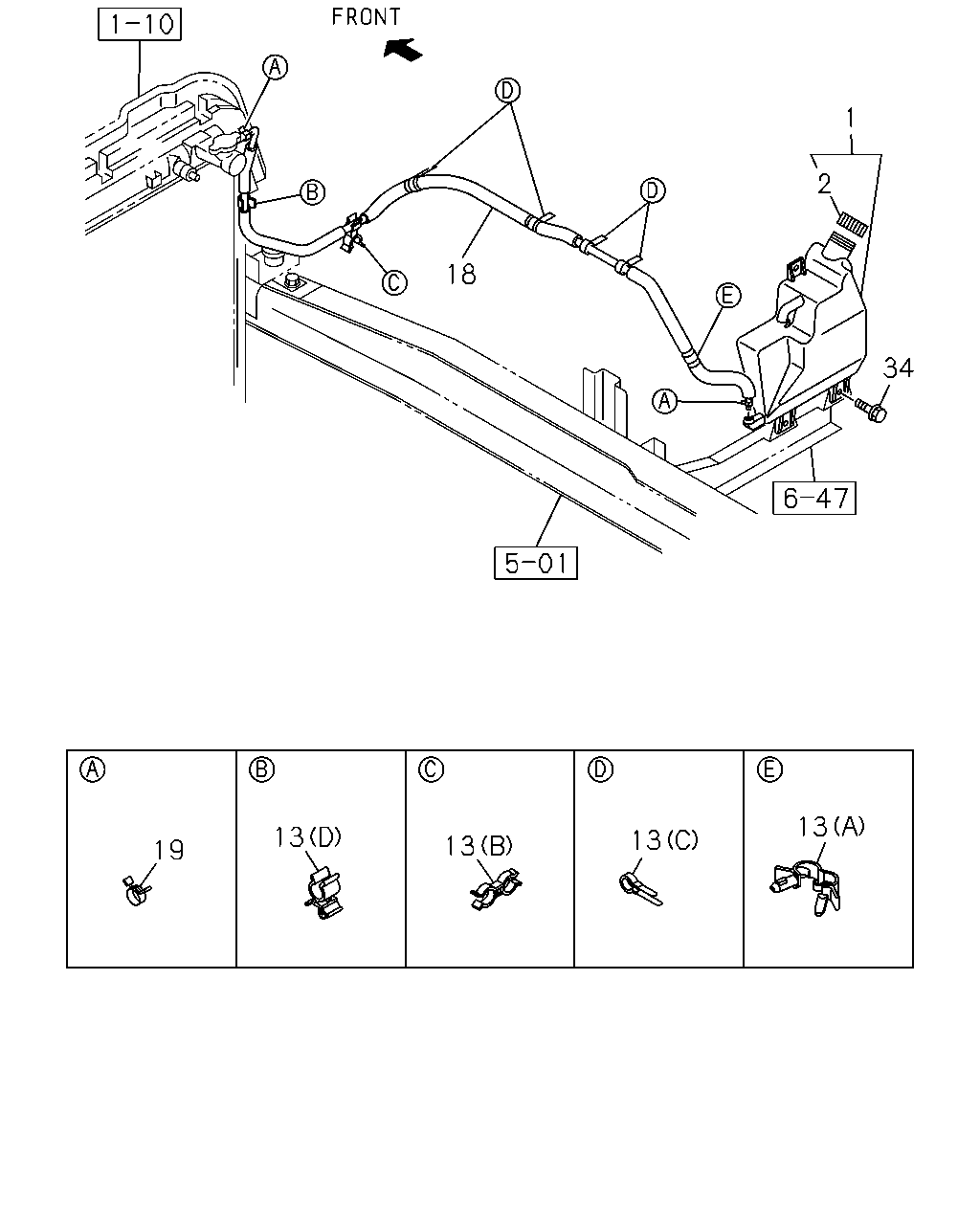

çizim 159246
1 2 18 34 13 13 13 13 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.219 TANK; SURGE,RAD 8-97387-632-1 01 1 0911-1010 ●
1 01.219 TANK; SURGE,RAD 8-98178-179-0 01 1 1011-1108 ●
1 01.219 TANK; SURGE,RAD 8-98178-179-0 01 1 1109- ● ●
2 01.203 CAP; SURGE TANK 8-97217-796-0 01 1 0911-1010 ●
2 01.203 CAP; SURGE TANK 8-98178-074-0 01 1 1011-1108 ●
2 01.203 CAP; SURGE TANK 8-98178-074-0 01 1 1109- ● ●
13 01.240 CLIP; HOSE,SURGE TANK
03.162 (A) ID=13-18 L=14.5 		1-09709-290-0 01 1 0911-1108 ●
13 01.240 CLIP; HOSE,SURGE TANK
03.162 (A) ID=13-18 L=14.5 		1-09709-290-0 01 1 1109- ● ●
13 01.240 CLIP; HOSE,SURGE TANK
(C) ID=14 L=47 		5-09700-319-0 04 1 0911-1108 ●
13 01.240 CLIP; HOSE,SURGE TANK
(C) ID=14 L=47 		5-09700-319-0 04 1 1109-1204 ● ●
13 01.240 CLIP; HOSE,SURGE TANK
(C) ID=14 L=47 		5-09700-319-0 04 1 1205- ● ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 (B) ID=10 & 11 		8-94438-996-0 01 1 0911-1108 ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 (B) ID=10 & 11 		8-94438-996-0 01 1 1109- ● ●
13 01.240 CLIP; HOSE,SURGE TANK
(D) ID=12 		8-98029-256-0 01 1 0911-1108 ●
13 01.240 CLIP; HOSE,SURGE TANK
(D) ID=12 		8-98029-256-0 01 1 1109- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1380 		8-98025-398-0 01 1 1109- ●
18 01.240 HOSE; RAD TO SURGE TANK
L=1450 		8-98006-531-3 01 1 0911- ●
19 01.240 CLIP; HOSE,SURGE TANK
01.219 ID=12 		8-94238-610-0 02 1 0911-0911 ●
19 01.240 CLIP; HOSE,SURGE TANK
ID=12 		8-98150-358-0 02 1 0912-1108 ●
19 01.240 CLIP; HOSE,SURGE TANK
ID=12 		8-98150-358-0 02 1 1109- ● ●
34 01.203 BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER 		1-09030-042-0 03 1 0911-1108 ●
34 01.203 BOLT; RESERVE TANK
M8X22 W/LK&PL WASHER 		1-09030-042-0 03 1 1109- ● ●

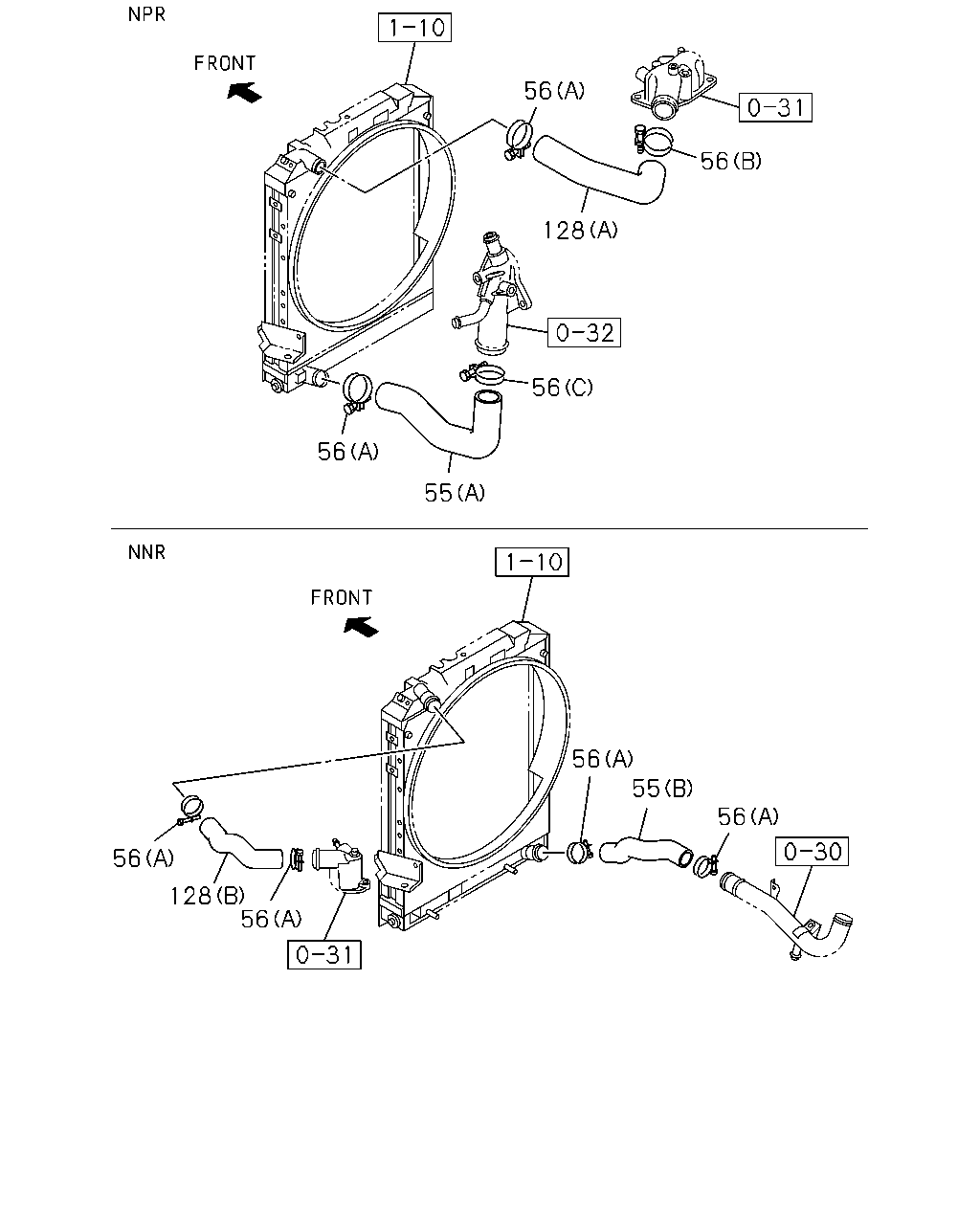

çizim 159247
56 56 128 56 56 55 56 55 56 56 128 56
BalonParca AdiParca NoAdetTipApplied Date A B
55 01.173 HOSE; WATER,RAD OUTLET
(B) 		8-97383-814-1 01 1 1109- ●
55 01.173 HOSE; WATER,RAD OUTLET
(A) 		8-98006-453-0 01 1 0911- ●
56 01.166 CLIP; WATER HOSE,RAD
00.413 (B) ID=52 		1-09704-057-0 01 1 0911- ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=48 		8-98133-956-0 02 1 0911-1108 ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=48 		8-98133-956-0 02 1 1109- ● ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=48 		8-98133-956-0 02 1 1109- ●
56 01.166 CLIP; WATER HOSE,RAD
(C) ID=62 		8-98133-957-0 01 1 0911- ●
128 01.159 HOSE; WATER,RAD INL
(B) 		8-97383-812-1 01 1 1109- ●
128 01.159 HOSE; WATER,RAD INL
(A) 		8-98006-452-0 01 1 0911- ●
