Sayfa 0-86 - Isuzu EPC

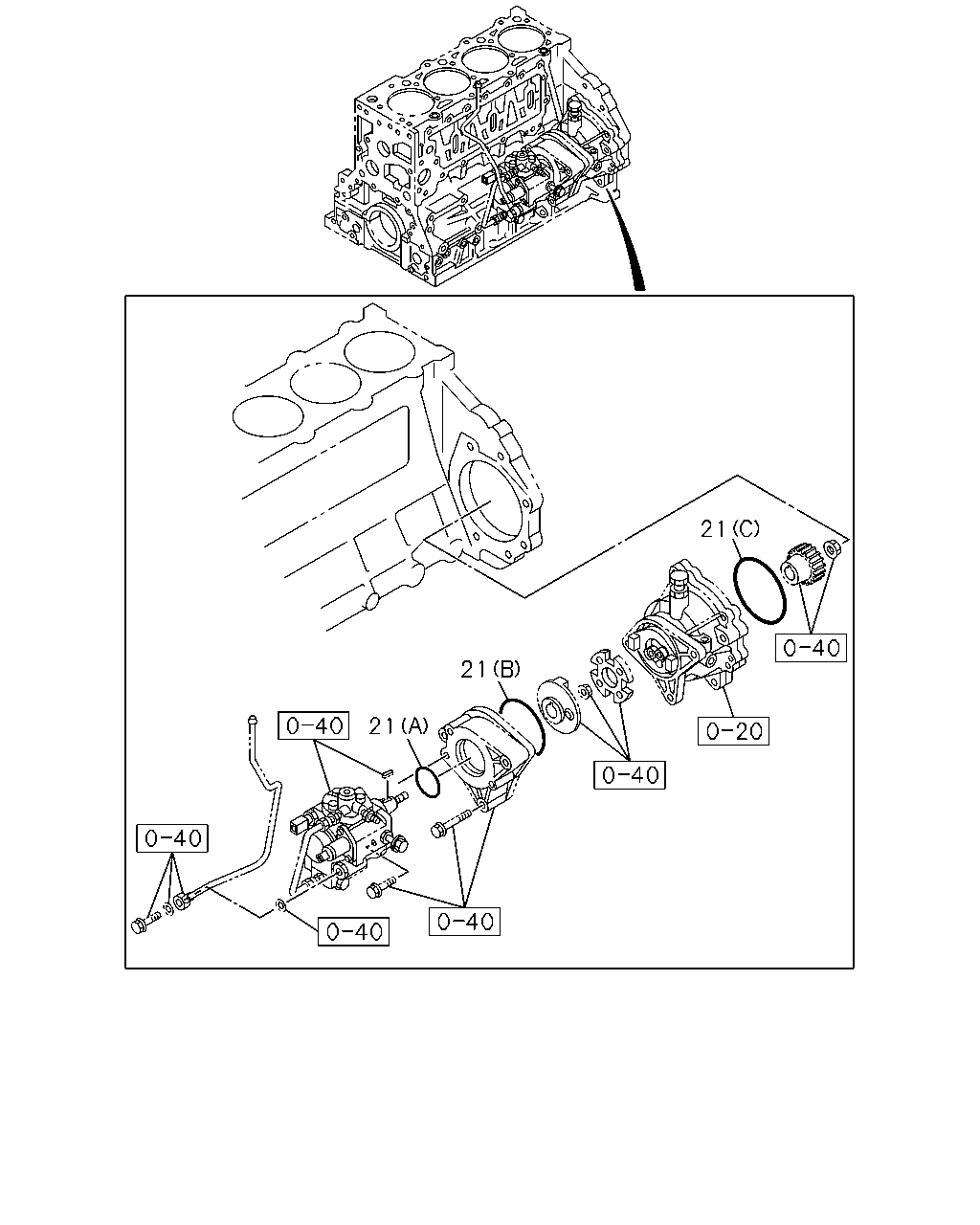

0-86 — MISCELLANEOUS PARTS; INJECTION PUMP (#50182) — 6 parça

21 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 04.854 (C) ID=139.6	1-09623-464-0	01	1	0911-1108	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 04.854 (C) ID=139.6	1-09623-464-0	01	1	1109-	●	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=94.6	1-09623-593-0	01	1	0911-1108	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=94.6	1-09623-593-0	01	1	1109-	●	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=52	8-98031-844-0	01	1	0911-1108	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=52	8-98031-844-0	01	1	1109-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
