0-66 — GENERATOR (#50181) — 24 parça

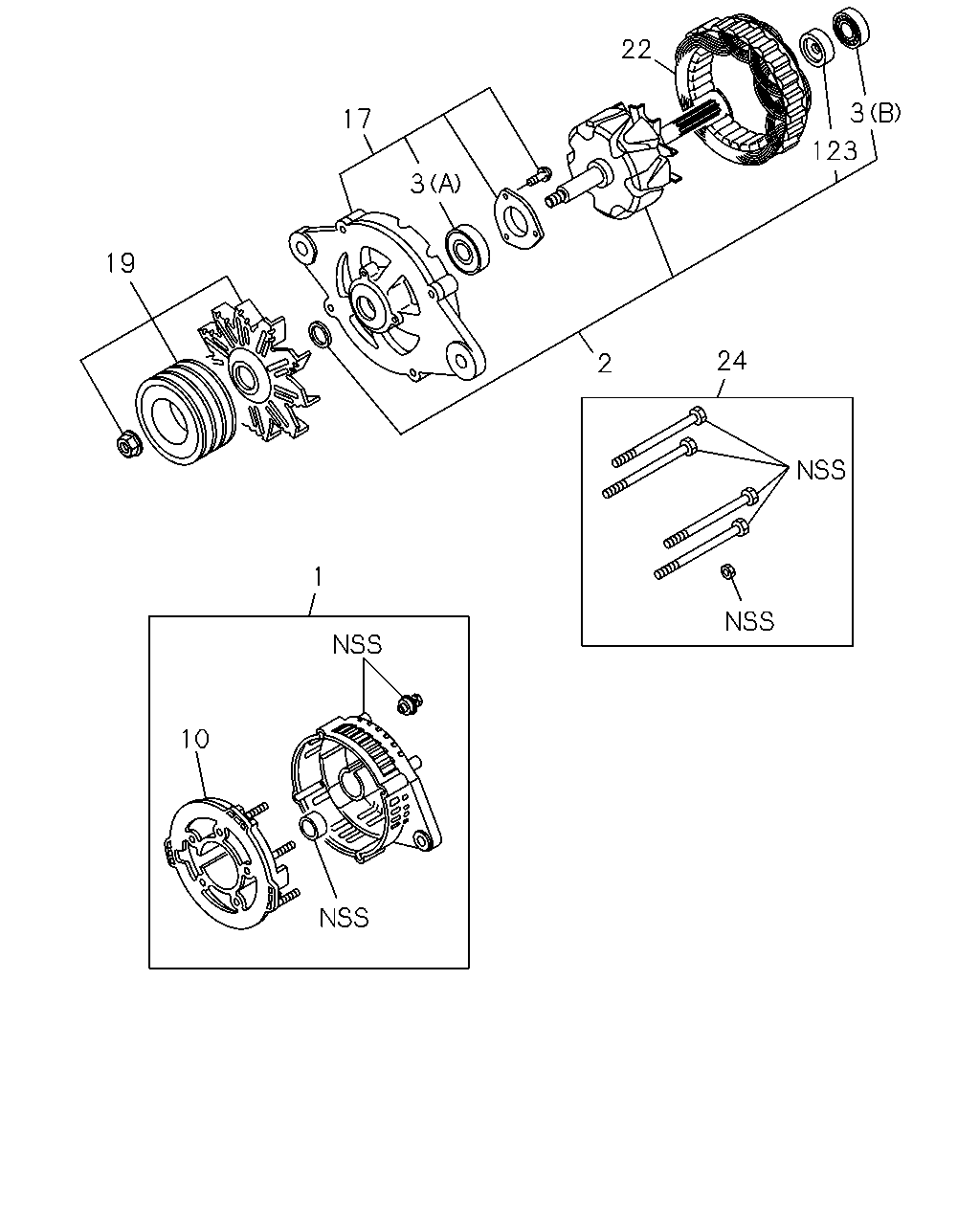

çizim 159239
22 3 17 123 3 19 24 2 1 10
BalonParca AdiParca NoAdetTipApplied Date
1 02.297 COVER ASM; RR,GEN
ASM PART: A = 8-98029-887-2, 98029887, D = 8-98075-026-0, 98075026 		8-98046-185-0 01 1 -1208
1 02.297 COVER ASM; RR,GEN
ASM PART: B = 8-98029-889-2, 98029889, C = 8-98029-892-2, 98029892 		8-98046-187-0 01 1 -1208
1 02.297 COVER ASM; RR,GEN
ASM PART: A = 8-98029-887-2, 98029887, D = 8-98075-026-0, 98075026 		8-98230-316-0 01 1 1209-
1 02.297 COVER ASM; RR,GEN
ASM PART: B = 8-98029-889-2, 98029889, C = 8-98029-892-2, 98029892 		8-98230-317-0 01 1 1209-
2 02.279 ROTOR; GEN
ASM PART: A = 8-98029-887-2, 98029887, D = 8-98075-026-0, 98075026 		8-98038-914-0 01 1 -
2 02.279 ROTOR; GEN
ASM PART: B = 8-98029-889-2, 98029889, C = 8-98029-892-2, 98029892 		8-98038-916-1 01 1 -
3 02.306 BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98029-887-2, 98029887, B = 8-98029-889-2, 98029889, C = 8-98029-892-2, 98029892, D = 8-98075-026-0, 98075026 		8-97062-744-0 01 1 -
3 02.306 BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98029-887-2, 98029887, B = 8-98029-889-2, 98029889, C = 8-98029-892-2, 98029892, D = 8-98075-026-0, 98075026 		8-97161-473-0 01 1 -
10 02.319 RECTIFIER; GEN
ASM PART: A = 8-98029-887-2, 98029887, D = 8-98075-026-0, 98075026 		8-98046-188-0 01 1 -1208
10 02.319 RECTIFIER; GEN
ASM PART: B = 8-98029-889-2, 98029889, C = 8-98029-892-2, 98029892 		8-98046-190-0 01 1 -1208
10 02.319 RECTIFIER; GEN
ASM PART: A = 8-98029-887-2, 98029887, D = 8-98075-026-0, 98075026 		8-98230-326-0 01 1 1209-
10 02.319 RECTIFIER; GEN
ASM PART: B = 8-98029-889-2, 98029889, C = 8-98029-892-2, 98029892 		8-98230-327-0 01 1 1209-
17 02.305 COVER ASM; FRT,GEN
ASM PART: A = 8-98029-887-2, 98029887 		8-98038-922-0 01 1 -
17 02.305 COVER ASM; FRT,GEN
ASM PART: B = 8-98029-889-2, 98029889, C = 8-98029-892-2, 98029892 		8-98038-924-0 01 1 -
17 02.305 COVER ASM; FRT,GEN
ASM PART: D = 8-98075-026-0, 98075026 		8-98076-329-0 01 1 -
19 02.274 PULLEY; GEN
ASM PART: A = 8-98029-887-2, 98029887 		8-98038-925-0 01 1 -
19 02.274 PULLEY; GEN
ASM PART: D = 8-98075-026-0, 98075026 		8-98038-926-1 01 1 -
19 02.274 PULLEY; GEN
ASM PART: B = 8-98029-889-2, 98029889 		8-98040-132-0 01 1 -
19 02.274 PULLEY; GEN
ASM PART: C = 8-98029-892-2, 98029892 		8-98040-133-0 01 1 -
22 02.310 STATOR; GEN
ASM PART: A = 8-98029-887-2, 98029887, D = 8-98075-026-0, 98075026 		8-97192-850-0 01 1 -
22 02.310 STATOR; GEN
ASM PART: B = 8-98029-889-2, 98029889, C = 8-98029-892-2, 98029892 		8-97249-331-1 01 1 -
24 02.307 SCREW; RECTIFIER,GEN
ASM PART: A = 8-98029-887-2, 98029887, D = 8-98075-026-0, 98075026 		8-98038-927-0 01 1 -
24 02.307 SCREW; RECTIFIER,GEN
ASM PART: B = 8-98029-889-2, 98029889, C = 8-98029-892-2, 98029892 		8-98038-928-0 01 1 -
123 02.291 GUIDE; BRUSH
ASM PART: A = 8-98029-887-2, 98029887, B = 8-98029-889-2, 98029889, C = 8-98029-892-2, 98029892, D = 8-98075-026-0, 98075026 		8-97062-644-0 01 1 -
