0-60 — ENGINE ELECTRICAL CONTROL PARTS (#50178) — 145 parça

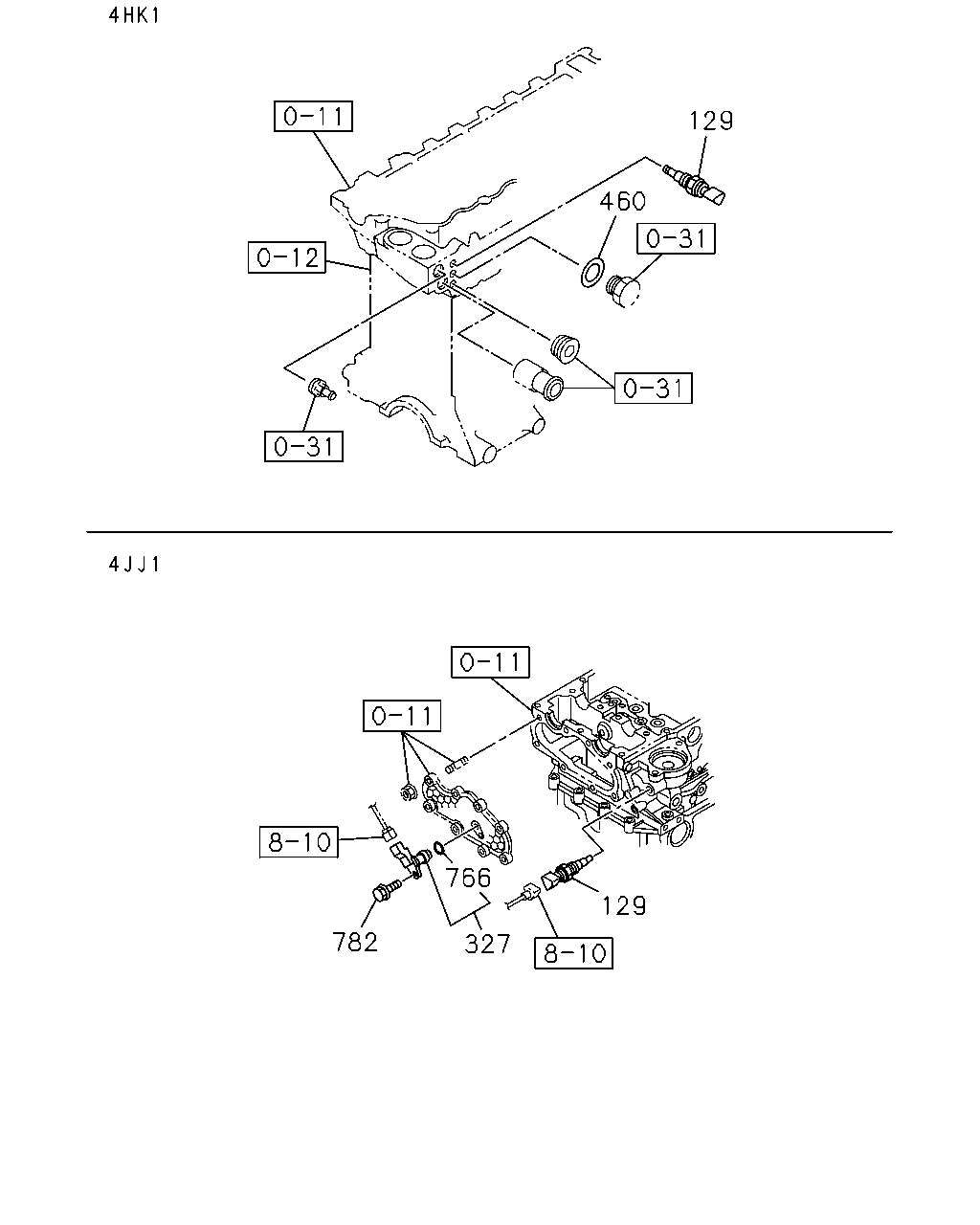

çizim 159230
129 460 766 129 782 327
BalonParca AdiParca NoAdetTipApplied Date A B C
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 1109- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 0911-1108 ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 1109-1503 ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NISHIDA 		8-98260-257-0 01 1 1504- ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 1109- ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 0911-1108 ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 1109- ● ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1109- ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1109- ●

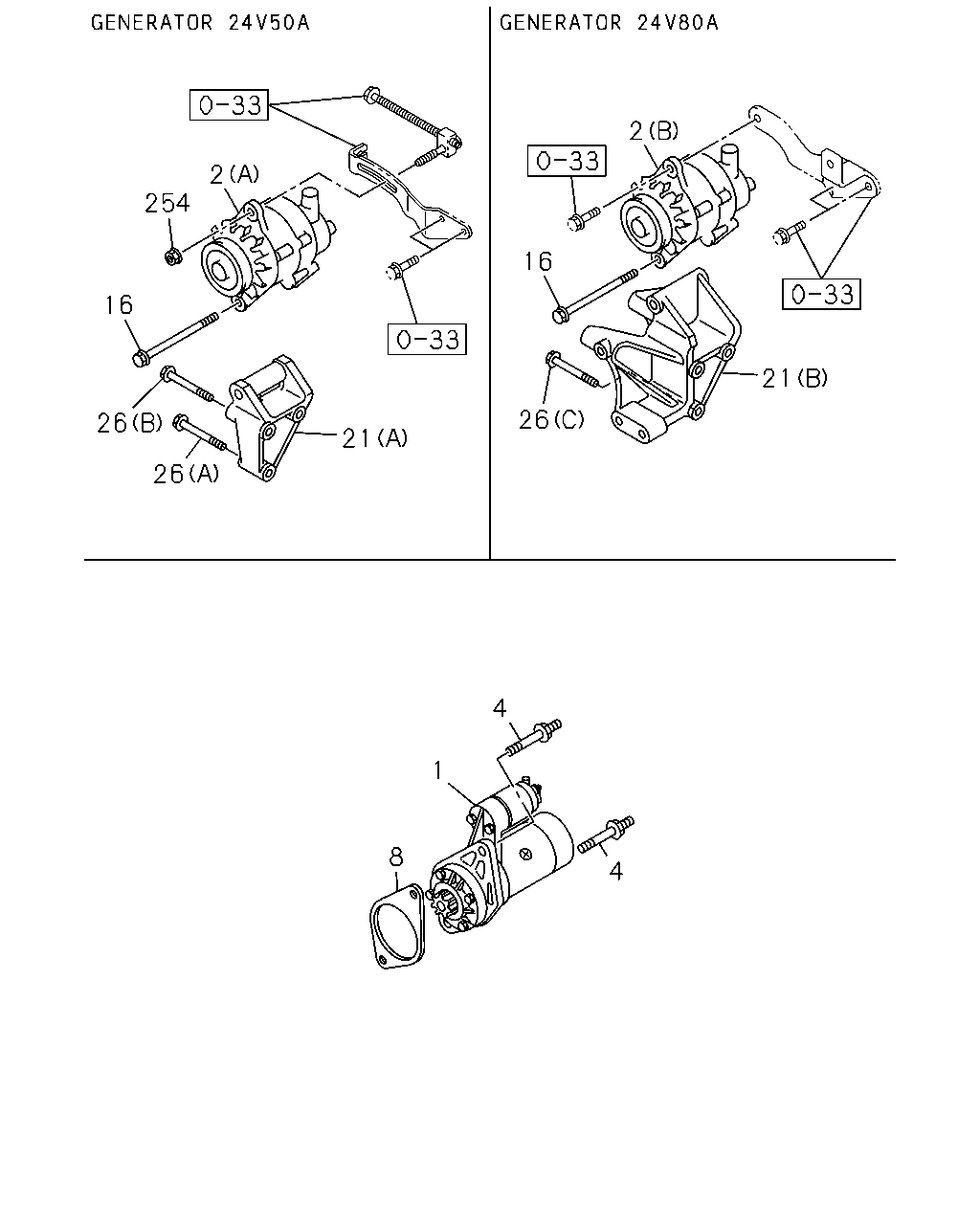

çizim 159231
2 2 254 16 16 21 26 26 21 26 4 1 8 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1212-1310 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0911-1006 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1108 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1109-1207 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208-1211 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1212- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1212- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98029-887-2 01 1 1109- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (B) 24V 80A 		8-98029-889-2 01 1 1109- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98075-026-0 01 1 0911-1108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98075-026-0 01 1 1109- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (B) 24V 80A 		8-98029-892-2 01 1 0911-1108 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (B) 24V 80A 		8-98029-892-2 01 1 1109- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0911-1108 ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 1109- ● ● ●
8 02.042 SPACER; STARTER 8-97350-947-0 01 1 0911- ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 0911-1108 ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 1109- ● ● ●
21 02.277 BRACKET; GEN
GENERATOR 24V50A(6QN) (A) 		8-97075-884-2 01 1 0911-1108 ●
21 02.277 BRACKET; GEN
GENERATOR 24V50A(6QN) (A) 		8-97075-884-2 01 1 1109- ● ●
21 02.277 BRACKET; GEN
GENERATOR 24V80A(7YN) (B) 		8-98036-551-0 01 1 0911-1108 ●
21 02.277 BRACKET; GEN
GENERATOR 24V80A(7YN) (B) 		8-98036-551-0 01 1 1109- ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) 02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 0911-1108 ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) 02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 1109- ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) (B) M10X70 FLANGE 		0-28151-070-0 02 1 0911-1108 ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) (B) M10X70 FLANGE 		0-28151-070-0 02 1 1109- ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V80A(7YN) 01.062 (C) M10X90 FLANGE 		0-28151-090-0 03 1 0911-1108 ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V80A(7YN) 01.062 (C) M10X90 FLANGE 		0-28151-090-0 03 1 1109- ● ●
254 02.277 NUT; GEN BRKT
EXC. GENERATOR 24V80A(7YN) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0911-1108 ●
254 02.277 NUT; GEN BRKT
EXC. GENERATOR 24V80A(7YN) 01.540 M8 FLANGE 		0-91180-208-0 01 1 1109- ● ●

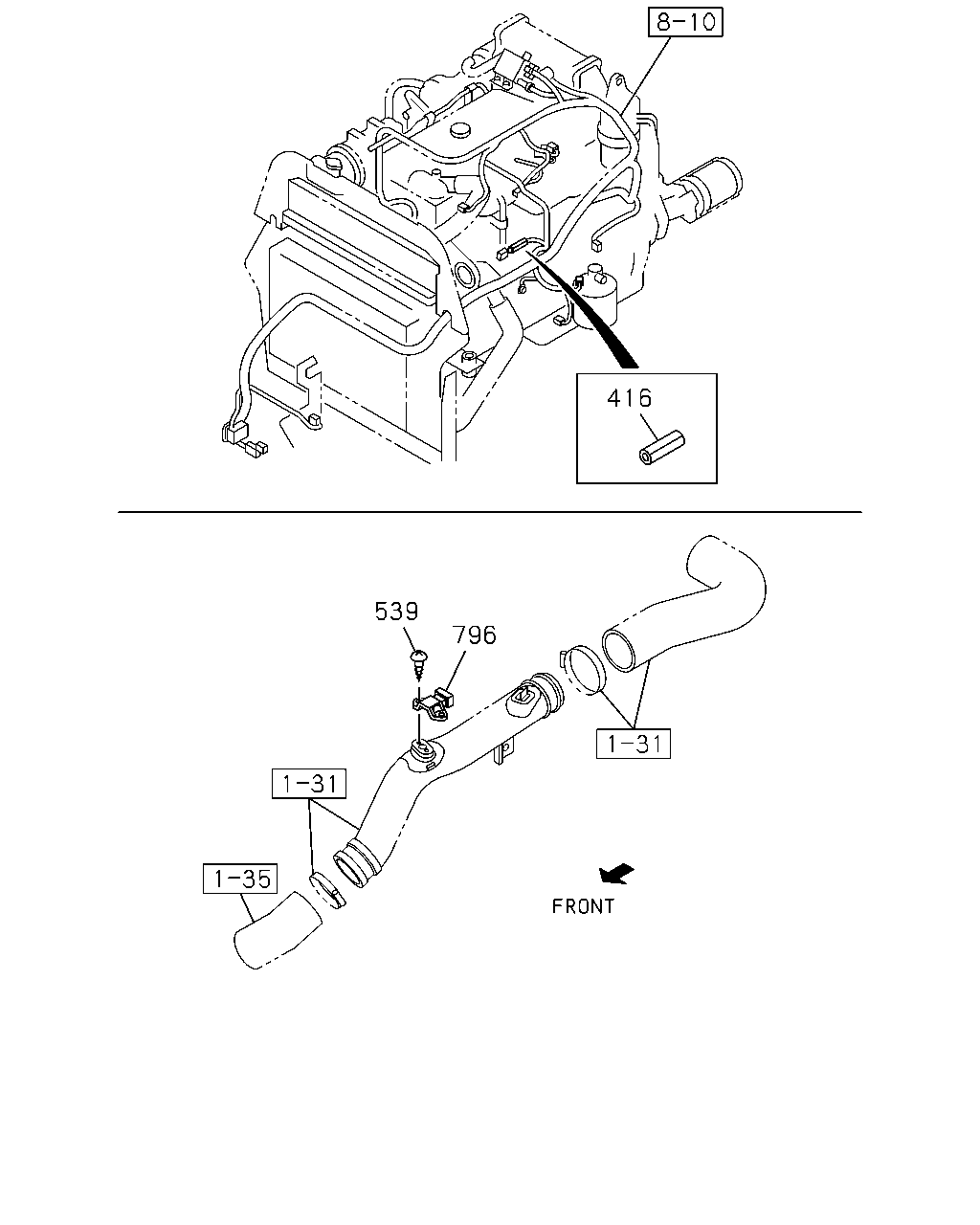

çizim 159232
416 539 796
BalonParca AdiParca NoAdetTipApplied Date A B C
416 02.530 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 01 1 1010-1108 ●
416 02.530 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 01 1 1109- ● ●
416 02.530 SLEEVE; RUBBER
04.342 ID=17 OD=21 L=40 		1-09337-012-0 01 1 0911-1108 ●
416 02.530 SLEEVE; RUBBER
04.342 ID=17 OD=21 L=40 		1-09337-012-0 01 1 1109- ● ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0911-1108 ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1109- ● ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0911-1108 ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1109- ● ● ●

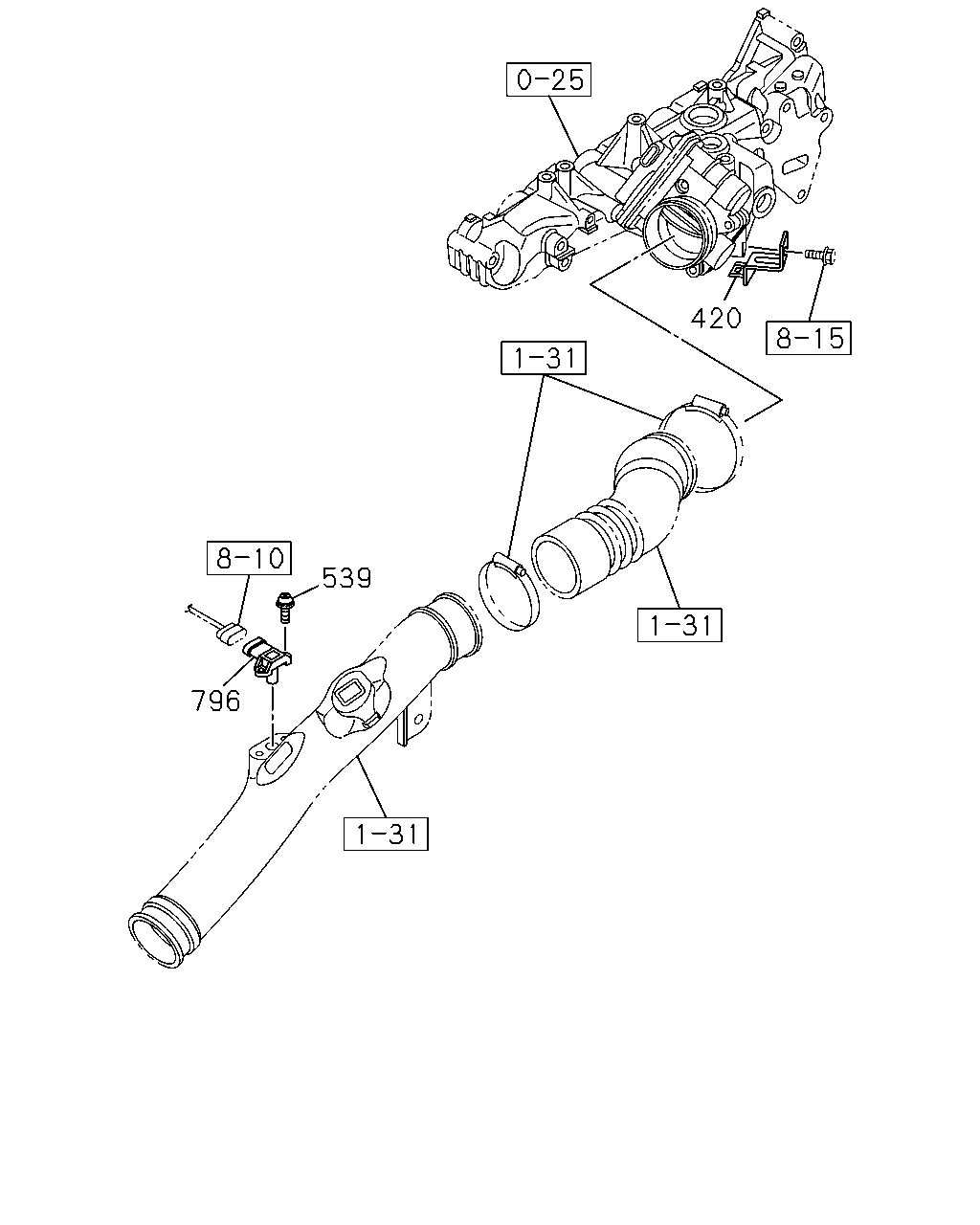

çizim 159233
420 539 796
BalonParca AdiParca NoAdetTipApplied Date A B C
420 02.183 BRACKET; HARNESS 8-98064-159-0 01 1 1109- ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0911-1108 ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1109- ● ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0911-1108 ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 1109- ● ● ●

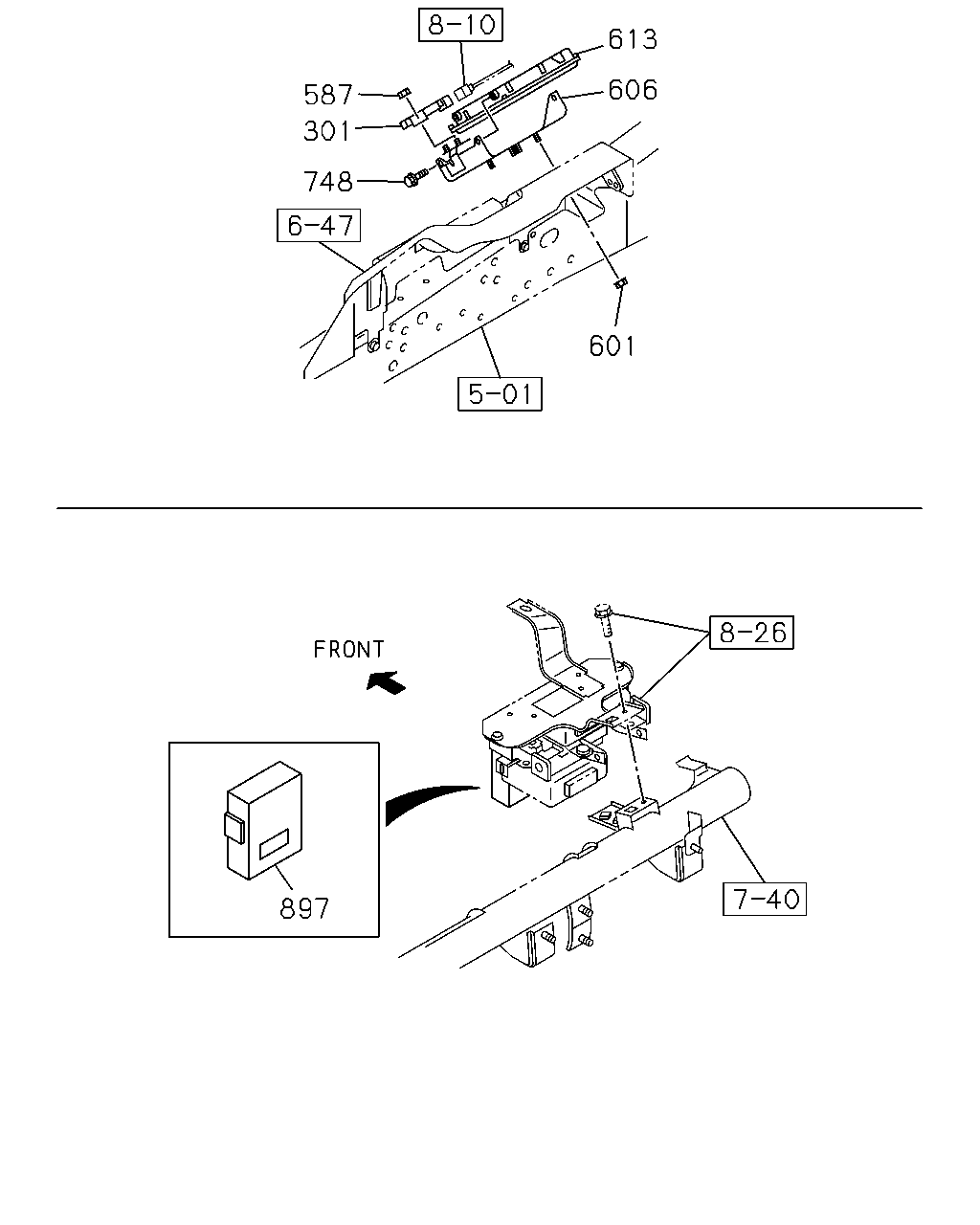

çizim 159234
613 606 587 301 748 601 897
BalonParca AdiParca NoAdetTipApplied Date A B C
301 02.510 RESISTOR; DROPPING 8-97357-613-0 01 1 0911-1108 ●
301 02.510 RESISTOR; DROPPING 8-97357-613-0 01 1 1109- ● ● ●
587 03.671 NUT; RESISTOR & RELAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0911-1108 ●
587 03.671 NUT; RESISTOR & RELAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1109- ● ● ●
601 03.670 NUT; UNIT
04.115 M6 W/DISHED WASHER 		8-98029-921-0 04 1 0911-1108 ●
601 03.670 NUT; UNIT
04.115 M6 W/DISHED WASHER 		8-98029-921-0 04 1 1109-1204 ● ● ●
601 03.670 NUT; UNIT
04.115 M6 W/DISHED WASHER 		8-98029-921-0 04 1 1205- ● ● ●
606 03.680 BRACKET; CONT UNIT 8-98114-583-2 01 1 1109- ●
606 03.680 BRACKET; CONT UNIT 8-98145-011-2 01 1 0911-1108 ●
606 03.680 BRACKET; CONT UNIT 8-98145-011-2 01 1 1109- ● ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) IMMOBILIZER SYSTEM(7KC) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ) 		8-98167-096-2 01 1 1212-1503 ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) IMMOBILIZER SYSTEM(7KC) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ) 		8-98307-805-0 01 1 1504- ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ),MULTI INFORMATION DISPLAY<7NY> 		8-98167-097-2 01 1 1212-1503 ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ),MULTI INFORMATION DISPLAY<7NY> 		8-98307-806-0 01 1 1504- ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ), IMMOBILIZERSYSTEM(7KC) 		8-98121-285-6 01 1 1212-1503 ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ), IMMOBILIZERSYSTEM(7KC) 		8-98307-800-0 01 1 1504- ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ), IMMOBILIZERSYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98121-284-6 01 1 1212-1503 ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ), IMMOBILIZERSYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98307-799-0 01 1 1504- ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 90KM(NMJ), IMMOBILIZERSYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98121-282-6 01 1 1212-1505 ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 90KM(NMJ), IMMOBILIZERSYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98307-754-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ), IMMOBILIZERSYSTEM(7KC) 		8-98121-293-6 01 1 1212-1505 ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ), IMMOBILIZERSYSTEM(7KC) 		8-98307-733-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ), IMMOBILIZERSYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98121-292-6 01 1 1212-1505 ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ), IMMOBILIZERSYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98307-732-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 90KM(NMJ), IMMOBILIZERSYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98121-291-6 01 1 1212-1505 ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 90KM(NMJ), IMMOBILIZERSYSTEM(7KC),MULTI INFORMATION DISPLAY<7NY> 		8-98307-721-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
TURKEY EQUIPMENT(B11) SPEED LIMITER 90KM(NMJ) IMMOBILIZER SYSTEM(7KC) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98121-303-6 01 1 1212-1312 ●
613 03.670 CONTROL UNIT; ENG
TURKEY EQUIPMENT(B11) SPEED LIMITER 90KM(NMJ) IMMOBILIZER SYSTEM(7KC) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. EGR COOLER LH POSITION<KCC> 		8-98121-303-6 01 1 1401-1505 ●
613 03.670 CONTROL UNIT; ENG
TURKEY EQUIPMENT(B11) SPEED LIMITER 90KM(NMJ) IMMOBILIZER SYSTEM(7KC) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. EGR COOLER LH POSITION<KCC> 		8-98307-750-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
TURKEY EQUIPMENT(B11) SPEED LIMITER 90KM(NMJ) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98121-302-6 01 1 1212-1505 ●
613 03.670 CONTROL UNIT; ENG
TURKEY EQUIPMENT(B11) SPEED LIMITER 90KM(NMJ) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-749-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
TURKEY EQUIPMENT(B11) IMMOBILIZER SYSTEM(7KC) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ) 		8-98121-299-6 01 1 1212-1505 ●
613 03.670 CONTROL UNIT; ENG
TURKEY EQUIPMENT(B11) IMMOBILIZER SYSTEM(7KC) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ) 		8-98307-735-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
TURKEY EQUIPMENT(B11) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ),MULTI INFORMATION DISPLAY<7NY> 		8-98121-298-6 01 1 1212-1505 ●
613 03.670 CONTROL UNIT; ENG
TURKEY EQUIPMENT(B11) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 90KM(NMJ),MULTI INFORMATION DISPLAY<7NY> 		8-98307-734-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM(NMJ) IMMOBILIZER SYSTEM(7KC) 		8-98132-256-0 01 1 1106-1108 ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM(NMJ) 		8-98132-256-0 01 1 1109-1211 ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPEED LIMITER 90KM(NMJ) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98132-256-0 01 1 1212-1503 ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) SPEED LIMITER 90KM(NMJ) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-798-0 01 1 1504- ●
613 03.670 CONTROL UNIT; ENG
SPEED LIMITER 90KM(NMJ) 		8-98121-295-6 01 1 1109-1211 ●
613 03.670 CONTROL UNIT; ENG
TURKEY EQUIPMENT(B11) SPEED LIMITER 90KM(NMJ) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98121-295-6 01 1 1212-1505 ●
613 03.670 CONTROL UNIT; ENG
TURKEY EQUIPMENT(B11) SPEED LIMITER 90KM(NMJ) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98307-730-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
EXC. SPEED LIMITER 90KM(NMJ) 		8-98121-294-6 01 1 1109-1211 ●
613 03.670 CONTROL UNIT; ENG
TURKEY EQUIPMENT(B11) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 90KM(NMJ),MULTI INFORMATION DISPLAY<7NY> 		8-98121-294-6 01 1 1212-1505 ●
613 03.670 CONTROL UNIT; ENG
TURKEY EQUIPMENT(B11) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 90KM(NMJ),MULTI INFORMATION DISPLAY<7NY> 		8-98307-722-0 01 1 1506- ●
613 03.670 CONTROL UNIT; ENG
EXC. SPEED LIMITER 90KM(NMJ), IMMOBILIZERSYSTEM(7KC) 		8-98121-282-6 01 1 1106-1108 ●
613 03.670 CONTROL UNIT; ENG 8-98122-102-4 01 1 1109- ●
613 03.670 CONTROL UNIT; ENG
EXC. SPEED LIMITER 90KM(NMJ) 		8-98159-984-1 01 1 0911-1104 ●
613 03.670 CONTROL UNIT; ENG
IMMOBILIZER SYSTEM(7KC) EXC. SPEED LIMITER 90KM(NMJ) 		8-98159-984-1 01 1 1105-1105 ●
613 03.670 CONTROL UNIT; ENG
IMMOBILIZER SYSTEM(7KC) EXC. SPEED LIMITER 90KM(NMJ) 		8-98167-033-2 01 1 1106-1108 ●
613 03.670 CONTROL UNIT; ENG
EXC. SPEED LIMITER 90KM(NMJ) 		8-98167-033-2 01 1 1109-1211 ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 90KM(NMJ),MULTI INFORMATION DISPLAY<7NY> 		8-98167-033-2 01 1 1212-1503 ●
613 03.670 CONTROL UNIT; ENG
TAIWAN EQUIPMENT(B04),TURKEY EQUIPMENT(B11) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 90KM(NMJ),MULTI INFORMATION DISPLAY<7NY> 		8-98307-796-0 01 1 1504- ●
748 02.500 BOLT; CONT UNIT
03.162 M6X12 FLANGE 		0-28050-612-0 03 1 0911-1108 ●
748 02.500 BOLT; CONT UNIT
03.162 M6X12 FLANGE 		0-28050-612-0 03 1 1109-1204 ● ● ●
748 02.500 BOLT; CONT UNIT
03.162 M6X12 FLANGE 		0-28050-612-0 03 1 1205- ● ● ●
897 02.510 DRM 8-98082-814-3 01 1 0911-1108 ●
897 02.510 DRM 8-98082-814-7 01 1 1109-1211 ● ● ●
897 02.510 DRM
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98082-814-7 01 1 1212- ● ● ●
çizim 159490
10 46
BalonParca AdiParca NoAdetTipApplied Date A B C
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0911-1108 ●
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 1109- ● ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0911-1108 ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 1109- ● ● ●

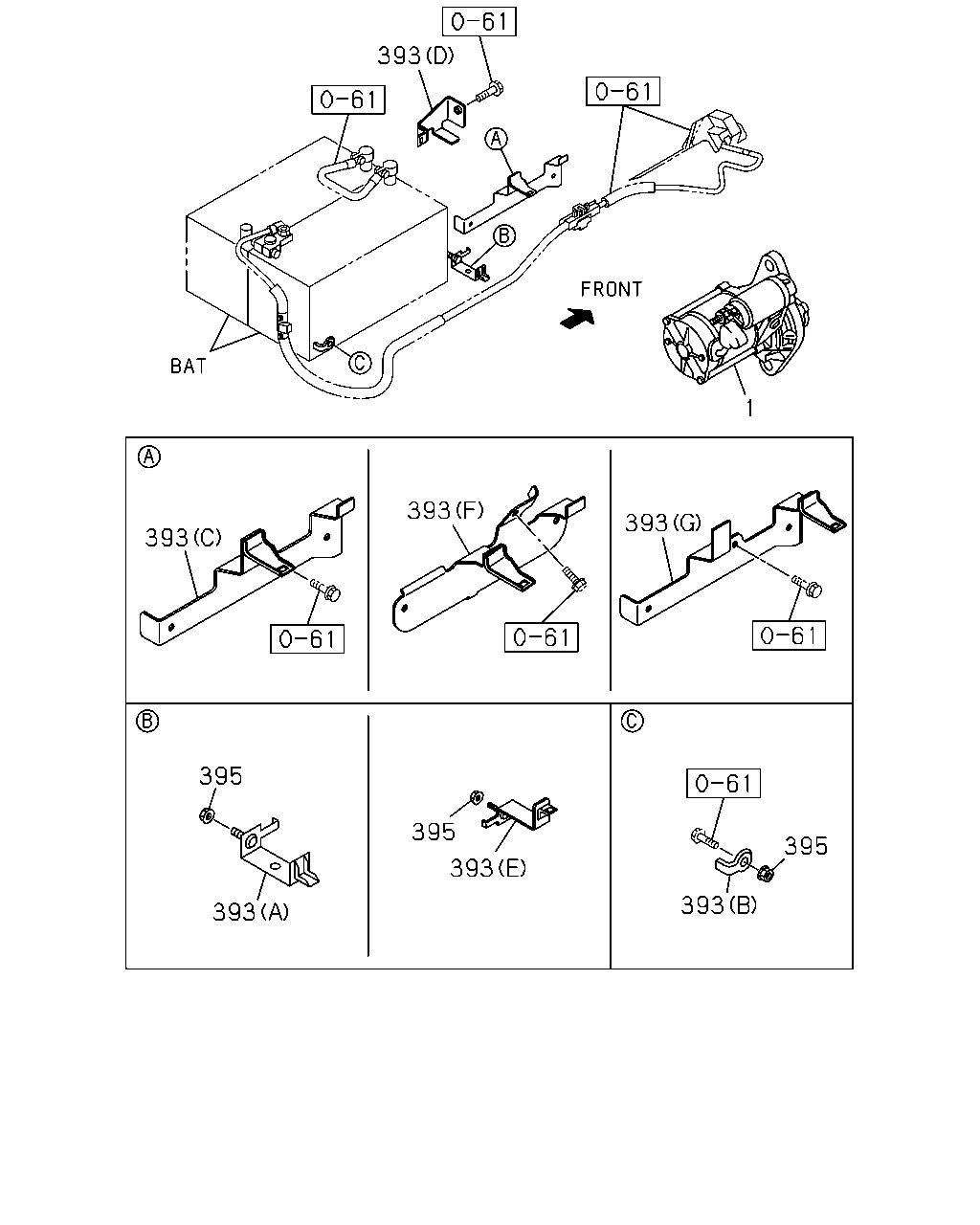

çizim 159521
393 393 393 393 395 393 395 393 395 393 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98222-021-0 01 1 1212-1310 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98245-258-0 01 1 1311- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0911-1006 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007-1108 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1109-1207 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1208-1211 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1212- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI 		8-98222-018-2 01 1 1212- ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF) (G) 		8-98041-947-1 01 1 1212- ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) (D) 		8-98123-872-0 01 1 1109- ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W) (E) 		8-98136-192-0 02 1 1109-1308 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W) (E) 		8-98245-494-0 02 1 1309- ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98030-138-2 01 1 1109- ●
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 115E41L<8MA> 02.483 (A) 		8-98018-251-1 02 1 0911-1108 ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 02.483 (A) 		8-98018-251-1 01 1 1109-1211 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 02.483 (A) 		8-98018-251-1 01 1 1212- ● ●
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 115E41L<8MA> (B) 		8-98018-894-1 01 1 0911-1108 ●
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 115E41L<8MA> (B) 		8-98018-894-1 01 1 1109- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98041-946-1 01 1 0911-1108 ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98041-946-1 01 1 1109-1211 ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98041-946-1 01 1 1212- ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-98041-946-1 01 1 1212- ●
393 02.343 BRACKET; HARNESS TO BODY
EXC. BATTERY 115E41L<8MA> 02.483 (A) 		8-98018-251-1 01 1 0911-1108 ●
393 02.343 BRACKET; HARNESS TO BODY
BATTERY 115E41L<8MA> 02.483 (A) 		8-98018-251-1 02 1 1109- ● ●
395 02.343 NUT; BRKT FIX
BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0911-1108 ●
395 02.343 NUT; BRKT FIX
BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1109- ● ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1109- ●
395 02.343 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 0911-1108 ●
395 02.343 NUT; BRKT FIX
01.062 M8 FLANGE 		0-91180-108-0 01 1 1109- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
