Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#50171) — 392 parça

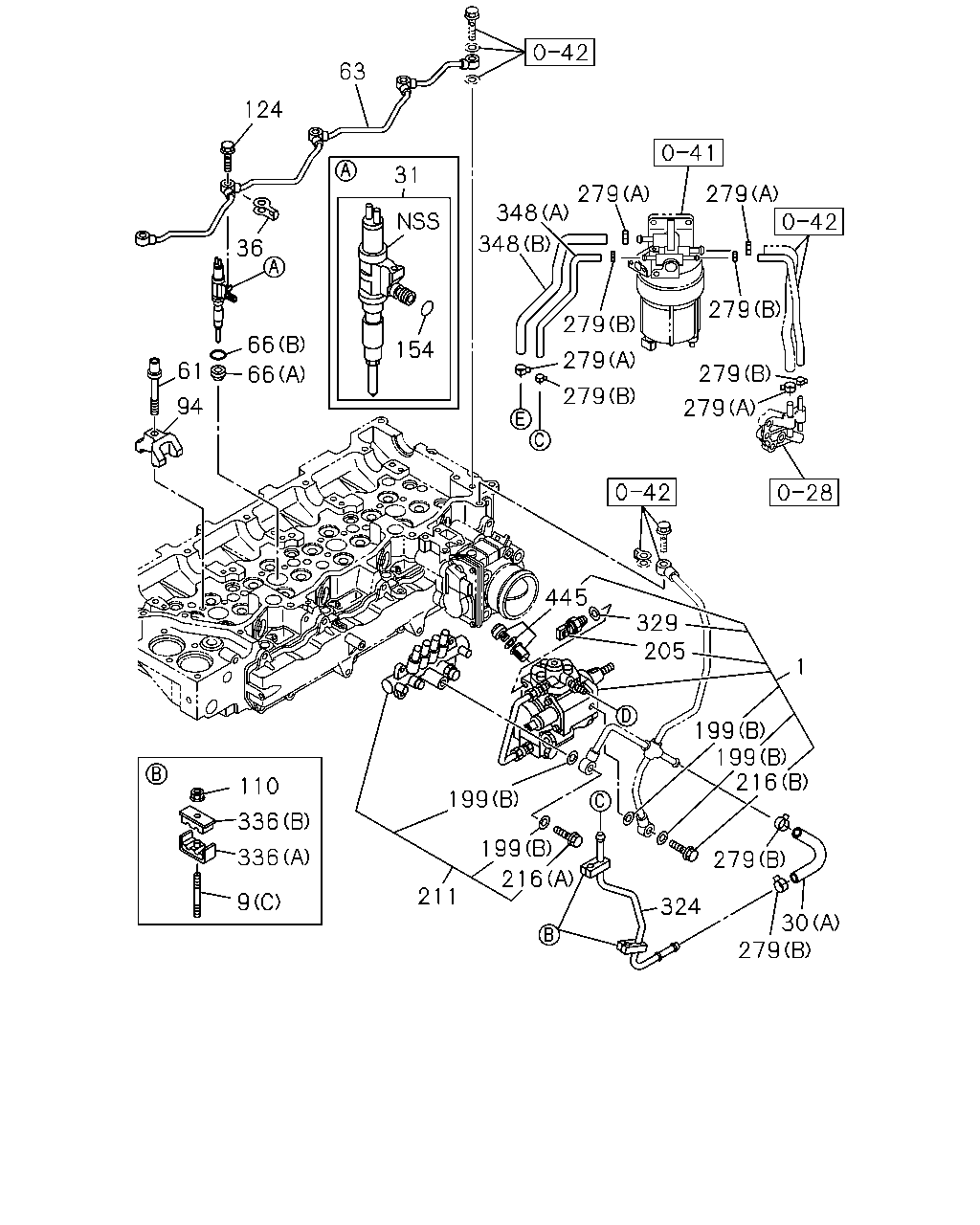

124 63 36 61 94 66 66 31 154 110 336 336 9 348 348 279 279 279 279 279 279 279 279 279 279 445 329 205 199 199 211 216 199 199 216 324 30 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.306 PUMP ASM; INJ	8-97386-557-4	01	1	0911-1108	●
1	03.306 PUMP ASM; INJ	8-97386-557-5	01	1	1109-	●	●
9	03.340 STUD; CLIP 03.162 (D) M6X25 L=36	8-97214-234-1	02	1	1109-1201			●
9	03.340 STUD; CLIP 00.413 (D) M6X30 L=38	0-41010-630-0	02	1	1202-			●
9	03.340 STUD; CLIP 00.413 (A) M6X30 L=38	0-41010-630-0	04	1	0911-1108	●
9	03.340 STUD; CLIP 00.413 (A) M6X30 L=38	0-41010-630-0	04	1	1109-	●	●
9	03.340 STUD; CLIP 03.278 (C) M6X40 L=50	0-41010-640-0	02	1	0911-1108	●
9	03.340 STUD; CLIP 03.278 (C) M6X40 L=50	0-41010-640-0	02	1	1109-	●	●
9	03.340 STUD; CLIP 00.413 (B) M6X35 L=43	8-97203-278-0	01	1	0911-1108	●
9	03.340 STUD; CLIP 00.413 (B) M6X35 L=43	8-97203-278-0	01	1	1109-	●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=130	0-01804-130-0	01	1	1109-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=98	8-97354-652-0	03	1	1109-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=150	8-97362-306-2	01	1	1109-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=110	8-97377-894-0	01	1	1109-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98169-863-0	01	1	1109-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (A)	8-98025-994-2	01	1	0911-1108	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A)	8-98025-994-2	01	1	1109-	●	●
31	03.332 NOZZLE ASM; INJ	8-98074-909-2	04	1	1109-			●
31	03.332 NOZZLE ASM; INJ	8-97609-788-5	04	1	0911-1108	●
31	03.332 NOZZLE ASM; INJ	8-97609-788-6	04	1	1109-	●	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0	8-98065-992-0	04	1	0911-1108	●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0	8-98065-992-0	04	1	1109-	●	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	04	1	0911-1108	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	04	1	1109-	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	0911-1108	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	1109-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-98181-540-0	04	1	1109-			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3	8-94173-412-0	04	1	0911-1108	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3	8-94173-412-0	04	1	1109-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	0911-1108	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	1109-	●	●
94	03.330 BRACKET; INJ NOZZLE	8-98028-999-1	04	1	0911-1108	●
94	03.330 BRACKET; INJ NOZZLE	8-98028-999-1	04	1	1109-	●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	1109-			●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	08	1	0911-1108	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	08	1	1109-	●	●
124	03.162 BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	04	1	0911-1108	●
124	03.162 BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	04	1	1109-	●	●
154	03.332 GASKET; CONNECTOR 06.609 ID=11.0	9-09561-111-0	04	1	0911-1106	●
154	03.332 GASKET; CONNECTOR ID=11.0	0-95690-111-0	04	1	1107-1108	●
154	03.332 GASKET; CONNECTOR ID=11.0	0-95690-111-0	04	1	1109-	●	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	02	1	1109-			●
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	0911-1108	●
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	1109-	●	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	0911-1108	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	1109-	●	●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	0911-1108	●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	1109-	●	●	●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	0911-1108	●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1109-	●	●	●
216	03.162 BOLT; EYE 03.280 (D)	9-88130-088-0	01	1	1109-			●
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	0911-1108	●
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	1109-	●	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	0911-1108	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1109-	●	●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	0911-1108	●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1109-	●	●	●
279	03.162 CLIP; FUEL HOSE 01.097 (A) ID=16	8-97329-628-0	04	1	0911-1108	●
279	03.162 CLIP; FUEL HOSE 01.097 (A) ID=16	8-97329-628-0	04	1	1109-	●	●
279	03.162 CLIP; FUEL HOSE 01.153 (B) ID=11.5	8-97375-638-0	06	1	0911-1108	●
279	03.162 CLIP; FUEL HOSE 01.153 (B) ID=11.5	8-97375-638-0	06	1	1109-	●	●
324	03.330 PIPE; FUEL RETURN	8-98025-858-0	01	1	0911-1108	●
324	03.330 PIPE; FUEL RETURN	8-98025-858-0	01	1	1109-	●	●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	0911-1108	●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	1109-1201	●	●
336	03.163 CLIP; FUEL PIPE 01.531 (A) ID=8 & 9 L=25	8-97603-522-0	02	1	0911-1108	●
336	03.163 CLIP; FUEL PIPE 01.531 (A) ID=8 & 9 L=25	8-97603-522-0	02	1	1109-	●	●
336	03.163 CLIP; FUEL PIPE 01.531 (B) ID=8 & 9 L=25	8-97603-523-0	02	1	0911-1108	●
336	03.163 CLIP; FUEL PIPE 01.531 (B) ID=8 & 9 L=25	8-97603-523-0	02	1	1109-	●	●
348	03.163 HOSE; FUEL (A)	8-98087-960-0	01	1	0911-1108	●
348	03.163 HOSE; FUEL (A)	8-98087-960-0	01	1	1109-	●	●
348	03.163 HOSE; FUEL (B)	8-98126-629-0	01	1	0911-1108	●
348	03.163 HOSE; FUEL (B)	8-98126-629-0	01	1	1109-	●	●
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	0911-1108	●
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	1109-	●	●	●

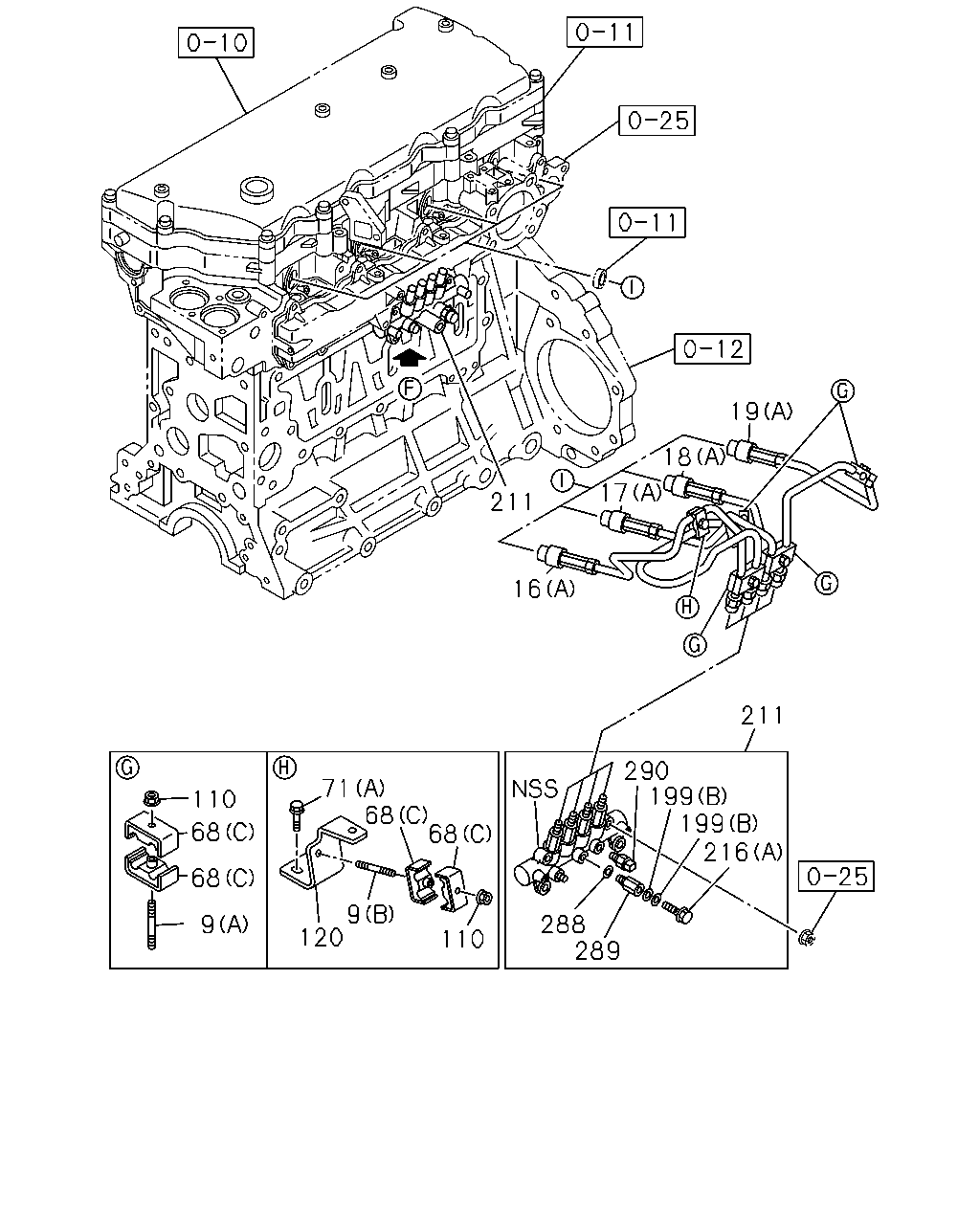

19 211 18 17 16 211 290 199 199 216 71 68 68 110 68 68 9 120 288 289 9 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	03.340 STUD; CLIP 03.162 (D) M6X25 L=36	8-97214-234-1	02	1	1109-1201			●
9	03.340 STUD; CLIP 00.413 (D) M6X30 L=38	0-41010-630-0	02	1	1202-			●
9	03.340 STUD; CLIP 00.413 (A) M6X30 L=38	0-41010-630-0	04	1	0911-1108	●
9	03.340 STUD; CLIP 00.413 (A) M6X30 L=38	0-41010-630-0	04	1	1109-	●	●
9	03.340 STUD; CLIP 03.278 (C) M6X40 L=50	0-41010-640-0	02	1	0911-1108	●
9	03.340 STUD; CLIP 03.278 (C) M6X40 L=50	0-41010-640-0	02	1	1109-	●	●
9	03.340 STUD; CLIP 00.413 (B) M6X35 L=43	8-97203-278-0	01	1	0911-1108	●
9	03.340 STUD; CLIP 00.413 (B) M6X35 L=43	8-97203-278-0	01	1	1109-	●	●
16	03.330 PIPE; INJ NO.1 (B)	8-98011-606-0	01	1	1109-1201			●
16	03.330 PIPE; INJ NO.1 (B)	8-98203-719-0	01	1	1202-			●
16	03.330 PIPE; INJ NO.1 (A)	8-98086-354-0	01	1	0911-1102	●
16	03.330 PIPE; INJ NO.1 (A)	8-98185-352-0	01	1	1103-1108	●
16	03.330 PIPE; INJ NO.1 (A)	8-98185-352-0	01	1	1109-1404	●	●
16	03.330 PIPE; INJ NO.1 (A)	8-98271-218-0	01	1	1405-1502	●	●
16	03.330 PIPE; INJ NO.1 (A)	8-98298-628-0	01	1	1503-	●	●
17	03.330 PIPE; INJ NO.2 (B)	8-98043-684-0	01	1	1109-1201			●
17	03.330 PIPE; INJ NO.2 (B)	8-98203-720-0	01	1	1202-			●
17	03.330 PIPE; INJ NO.2 (A)	8-98086-355-0	01	1	0911-1102	●
17	03.330 PIPE; INJ NO.2 (A)	8-98185-353-0	01	1	1103-1108	●
17	03.330 PIPE; INJ NO.2 (A)	8-98185-353-0	01	1	1109-1404	●	●
17	03.330 PIPE; INJ NO.2 (A)	8-98271-219-0	01	1	1405-1502	●	●
17	03.330 PIPE; INJ NO.2 (A)	8-98298-629-0	01	1	1503-	●	●
18	03.330 PIPE; INJ NO.3 (B)	8-98011-608-0	01	1	1109-1201			●
18	03.330 PIPE; INJ NO.3 (B)	8-98203-721-0	01	1	1202-			●
18	03.330 PIPE; INJ NO.3 (A)	8-98086-356-0	01	1	0911-1102	●
18	03.330 PIPE; INJ NO.3 (A)	8-98185-354-0	01	1	1103-1108	●
18	03.330 PIPE; INJ NO.3 (A)	8-98185-354-0	01	1	1109-1404	●	●
18	03.330 PIPE; INJ NO.3 (A)	8-98271-220-0	01	1	1405-1502	●	●
18	03.330 PIPE; INJ NO.3 (A)	8-98298-630-0	01	1	1503-	●	●
19	03.330 PIPE; INJ NO.4 (B)	8-98011-609-0	01	1	1109-1201			●
19	03.330 PIPE; INJ NO.4 (B)	8-98203-722-0	01	1	1202-			●
19	03.330 PIPE; INJ NO.4 (A)	8-98086-357-0	01	1	0911-1102	●
19	03.330 PIPE; INJ NO.4 (A)	8-98185-355-0	01	1	1103-1108	●
19	03.330 PIPE; INJ NO.4 (A)	8-98185-355-0	01	1	1109-1404	●	●
19	03.330 PIPE; INJ NO.4 (A)	8-98271-221-0	01	1	1405-1502	●	●
19	03.330 PIPE; INJ NO.4 (A)	8-98298-631-0	01	1	1503-	●	●
68	03.162 CLIP; INJ PIPE (D)	8-97213-481-0	04	1	1109-1201			●
68	03.162 CLIP; INJ PIPE (D) ID=11 & 11 L=19	8-98039-293-0	04	1	1202-1405			●
68	03.162 CLIP; INJ PIPE (D) ID=11 & 11 L=19	8-98148-996-2	04	1	1406-			●
68	03.162 CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-118-1	01	1	0911-1108	●
68	03.162 CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-118-3	01	1	1109-	●	●
68	03.162 CLIP; INJ PIPE (A) ID=7 & 7 L=22	8-97330-119-1	01	1	0911-1108	●
68	03.162 CLIP; INJ PIPE (A) ID=7 & 7 L=22	8-97330-119-3	01	1	1109-	●	●
68	03.162 CLIP; INJ PIPE (C) ID=11 & 11 L=19	8-98039-293-0	10	1	0911-1108	●
68	03.162 CLIP; INJ PIPE (C) ID=11 & 11 L=19	8-98039-293-0	10	1	1109-1405	●	●
68	03.162 CLIP; INJ PIPE (C) ID=11 & 11 L=19	8-98148-996-2	10	1	1406-	●	●
71	03.162 BOLT; BRKT 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0911-1108	●
71	03.162 BOLT; BRKT 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1109-	●	●
71	03.162 BOLT; BRKT 09.242 (C) M6X16 FLANGE	0-28050-616-0	02	1	0911-1108	●
71	03.162 BOLT; BRKT 09.242 (C) M6X16 FLANGE	0-28050-616-0	02	1	1109-	●	●
71	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0911-1108	●
71	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1109-	●	●
71	03.162 BOLT; BRKT 04.686 (D) M8X60 FLANGE	0-28050-860-0	02	1	0911-1108	●
71	03.162 BOLT; BRKT 04.686 (D) M8X60 FLANGE	0-28050-860-0	02	1	1109-	●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	1109-			●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	08	1	0911-1108	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	08	1	1109-	●	●
120	03.330 BRACKET; INJ PIPE	8-98041-601-0	01	1	0911-1108	●
120	03.330 BRACKET; INJ PIPE	8-98041-601-0	01	1	1109-	●	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	02	1	1109-			●
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	0911-1108	●
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	1109-	●	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	0911-1108	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	1109-	●	●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	0911-1108	●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1109-	●	●	●
216	03.162 BOLT; EYE 03.280 (D)	9-88130-088-0	01	1	1109-			●
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	0911-1108	●
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	1109-	●	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	0911-1108	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1109-	●	●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	0911-1108	●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1109-	●	●	●
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0911-1108	●
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1109-	●	●	●
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	0911-1108	●
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	1109-	●	●	●
290	03.331 SENSOR; PRESS	8-98119-790-0	01	1	0911-1108	●
290	03.331 SENSOR; PRESS	8-98119-790-0	01	1	1109-	●	●	●

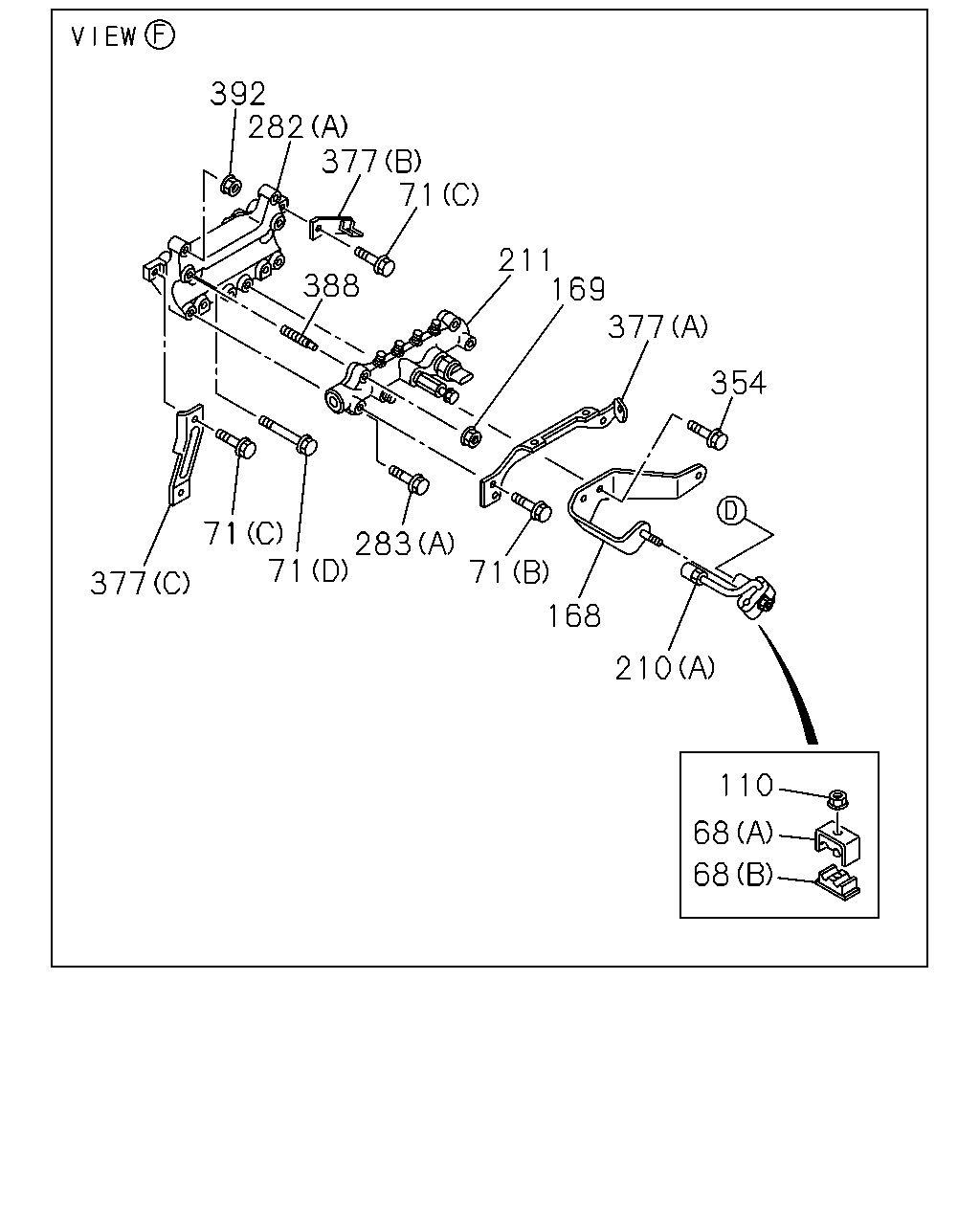

392 282 377 71 211 169 377 388 354 71 283 71 71 377 168 210 110 68 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
68	03.162 CLIP; INJ PIPE (D)	8-97213-481-0	04	1	1109-1201			●
68	03.162 CLIP; INJ PIPE (D) ID=11 & 11 L=19	8-98039-293-0	04	1	1202-1405			●
68	03.162 CLIP; INJ PIPE (D) ID=11 & 11 L=19	8-98148-996-2	04	1	1406-			●
68	03.162 CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-118-1	01	1	0911-1108	●
68	03.162 CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-118-3	01	1	1109-	●	●
68	03.162 CLIP; INJ PIPE (A) ID=7 & 7 L=22	8-97330-119-1	01	1	0911-1108	●
68	03.162 CLIP; INJ PIPE (A) ID=7 & 7 L=22	8-97330-119-3	01	1	1109-	●	●
68	03.162 CLIP; INJ PIPE (C) ID=11 & 11 L=19	8-98039-293-0	10	1	0911-1108	●
68	03.162 CLIP; INJ PIPE (C) ID=11 & 11 L=19	8-98039-293-0	10	1	1109-1405	●	●
68	03.162 CLIP; INJ PIPE (C) ID=11 & 11 L=19	8-98148-996-2	10	1	1406-	●	●
71	03.162 BOLT; BRKT 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0911-1108	●
71	03.162 BOLT; BRKT 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1109-	●	●
71	03.162 BOLT; BRKT 09.242 (C) M6X16 FLANGE	0-28050-616-0	02	1	0911-1108	●
71	03.162 BOLT; BRKT 09.242 (C) M6X16 FLANGE	0-28050-616-0	02	1	1109-	●	●
71	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0911-1108	●
71	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1109-	●	●
71	03.162 BOLT; BRKT 04.686 (D) M8X60 FLANGE	0-28050-860-0	02	1	0911-1108	●
71	03.162 BOLT; BRKT 04.686 (D) M8X60 FLANGE	0-28050-860-0	02	1	1109-	●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	1109-			●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	08	1	0911-1108	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	08	1	1109-	●	●
168	03.890 BRACKET; FUEL PIPE	8-98096-204-0	01	1	0911-1108	●
168	03.890 BRACKET; FUEL PIPE	8-98096-204-0	01	1	1109-	●	●
169	03.890 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0911-1108	●
169	03.890 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-	●	●
210	03.330 PIPE; INJ,C/R (B)	8-97388-902-0	01	1	1109-			●
210	03.330 PIPE; INJ,C/R (A)	8-98096-496-0	01	1	0911-1108	●
210	03.330 PIPE; INJ,C/R (A)	8-98096-496-0	01	1	1109-	●	●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	0911-1108	●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1109-	●	●	●
282	03.163 BRACKET; COMMON RAIL (B)	8-98147-694-0	01	1	1109-			●
282	03.163 BRACKET; COMMON RAIL (A)	8-98106-661-1	01	1	0911-1108	●
282	03.163 BRACKET; COMMON RAIL (A)	8-98106-661-1	01	1	1109-	●	●
283	03.330 BOLT; COMMON RAIL 00.206 (B) M8X70 FLANGE	0-28050-870-0	02	1	1109-			●
283	03.330 BOLT; COMMON RAIL (C) M8X81 FLANGE	8-97354-584-0	02	1	1109-			●
283	03.330 BOLT; COMMON RAIL 04.338 (A) M8X20 FLANGE	0-28050-820-0	02	1	0911-1108	●
283	03.330 BOLT; COMMON RAIL 04.338 (A) M8X20 FLANGE	0-28050-820-0	02	1	1109-	●	●
354	03.163 BOLT; FUEL PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0911-1108	●
354	03.163 BOLT; FUEL PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1109-	●	●
377	03.332 BRACKET; HARNESS (A)	8-98113-835-0	01	1	0911-1108	●
377	03.332 BRACKET; HARNESS (A)	8-98113-835-0	01	1	1109-	●	●
377	03.332 BRACKET; HARNESS (B)	8-98114-440-0	01	1	0911-1108	●
377	03.332 BRACKET; HARNESS (B)	8-98114-440-0	01	1	1109-	●	●
377	03.332 BRACKET; HARNESS (C)	8-98114-730-0	01	1	0911-1108	●
377	03.332 BRACKET; HARNESS (C)	8-98114-730-0	01	1	1109-	●	●
388	03.332 STUD; RAIL 03.278 M8X35 L=53	0-49140-835-0	02	1	0911-1108	●
388	03.332 STUD; RAIL 03.278 M8X35 L=53	0-49140-835-0	02	1	1109-	●	●
392	03.330 NUT; RAIL ASM 01.062 M8 FLANGE	0-91180-108-0	02	1	0911-1108	●
392	03.330 NUT; RAIL ASM 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-	●	●

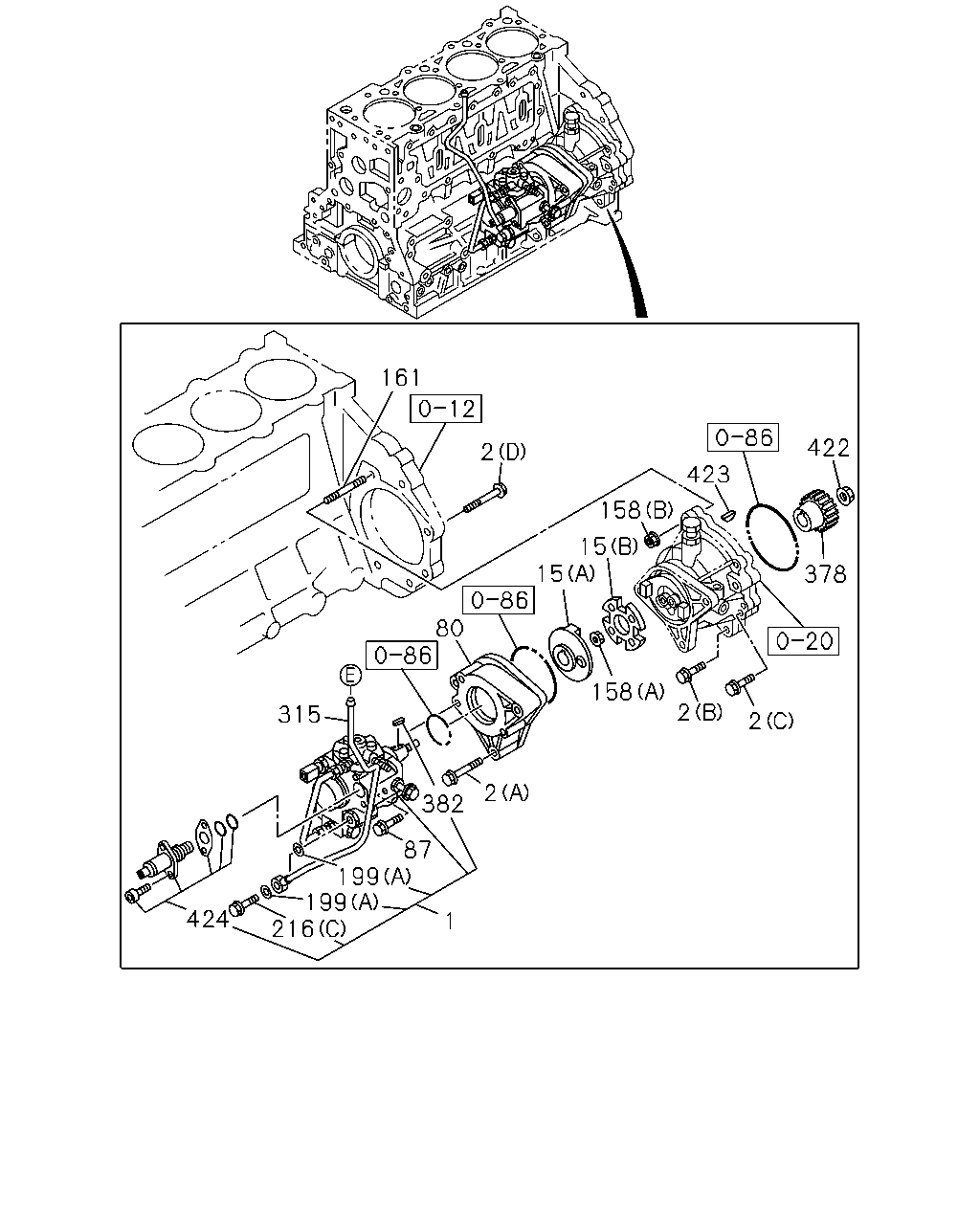

161 422 2 423 158 15 15 378 80 158 2 315 2 2 382 87 199 199 216 424 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.306 PUMP ASM; INJ	8-97386-557-4	01	1	0911-1108	●
1	03.306 PUMP ASM; INJ	8-97386-557-5	01	1	1109-	●	●
2	03.330 BOLT; INJ PUMP 00.685 (A) M10X60 FLANGE	0-28051-060-0	03	1	0911-1108	●
2	03.330 BOLT; INJ PUMP 00.685 (A) M10X60 FLANGE	0-28051-060-0	03	1	1109-	●	●
2	03.330 BOLT; INJ PUMP 02.277 (B) M10X70 FLANGE	0-28151-070-0	01	1	0911-1108	●
2	03.330 BOLT; INJ PUMP 02.277 (B) M10X70 FLANGE	0-28151-070-0	01	1	1109-	●	●
2	03.330 BOLT; INJ PUMP 00.206 (C) M12X70 FLANGE	0-28151-270-0	01	1	0911-1108	●
2	03.330 BOLT; INJ PUMP 00.206 (C) M12X70 FLANGE	0-28151-270-0	01	1	1109-	●	●
2	03.330 BOLT; INJ PUMP (D) M12X95 FLANGE	8-94396-485-1	01	1	0911-1108	●
2	03.330 BOLT; INJ PUMP (D) M12X95 FLANGE	8-94396-485-1	01	1	1109-	●	●
15	03.340 COUPLING ASM; INJ PUMP (A)	8-97306-054-0	01	1	0911-1108	●
15	03.340 COUPLING ASM; INJ PUMP (A)	8-97306-054-0	01	1	1109-	●	●
15	03.340 COUPLING ASM; INJ PUMP (B) SEE FIG-NO 0-87 FOR COMPONENT.	8-97306-059-1	01	1	0911-1108	●
15	03.340 COUPLING ASM; INJ PUMP (B) SEE FIG-NO 0-87 FOR COMPONENT.	8-97306-059-1	01	1	1109-	●	●
80	03.306 BRACKET; PUMP	8-98061-699-0	01	1	0911-1108	●
80	03.306 BRACKET; PUMP	8-98061-699-0	01	1	1109-	●	●
87	03.330 BOLT; PUMP 03.403 M8X30 FLANGE	0-28650-830-0	03	1	0911-1108	●
87	03.330 BOLT; PUMP 03.403 M8X30 FLANGE	0-28650-830-0	03	1	1109-	●	●
158	03.330 NUT; INJ PUMP 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0911-1108	●
158	03.330 NUT; INJ PUMP 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	1109-	●	●
158	03.330 NUT; INJ PUMP 07.529 (A) M14 FLANGE	0-91180-114-0	01	1	0911-1108	●
158	03.330 NUT; INJ PUMP 07.529 (A) M14 FLANGE	0-91180-114-0	01	1	1109-	●	●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0911-0911	●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0911-1108	●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	1109-	●	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	02	1	1109-			●
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	0911-1108	●
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	1109-	●	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	0911-1108	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	1109-	●	●
216	03.162 BOLT; EYE 03.280 (D)	9-88130-088-0	01	1	1109-			●
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	0911-1108	●
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	1109-	●	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	0911-1108	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1109-	●	●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	0911-1108	●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1109-	●	●	●
315	03.163 PIPE; FUEL,SUCTION	8-98126-334-0	01	1	0911-1108	●
315	03.163 PIPE; FUEL,SUCTION	8-98126-334-0	01	1	1109-	●	●
378	03.330 GEAR; PUMP Z=35	8-98017-915-0	01	1	0911-1108	●
378	03.330 GEAR; PUMP Z=35	8-98017-915-0	01	1	1109-	●	●
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1109-1201			●
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1202-	●	●	●
382	03.162 KEY; DRIVE SHAFT	8-97375-384-0	01	1	0911-1108	●
382	03.162 KEY; DRIVE SHAFT	8-97375-384-0	01	1	1109-1201	●	●
422	03.330 NUT; GEAR 06.172 M18	8-97141-154-0	01	1	0911-1108	●
422	03.330 NUT; GEAR 06.172 M18	8-97141-154-0	01	1	1109-	●	●
423	03.162 KEY; GEAR 08.960	9-08055-519-0	01	1	0911-1108	●
423	03.162 KEY; GEAR 08.960	9-08055-519-0	01	1	1109-	●	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-501-0	01	1	0911-1108	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1109-	●	●	●

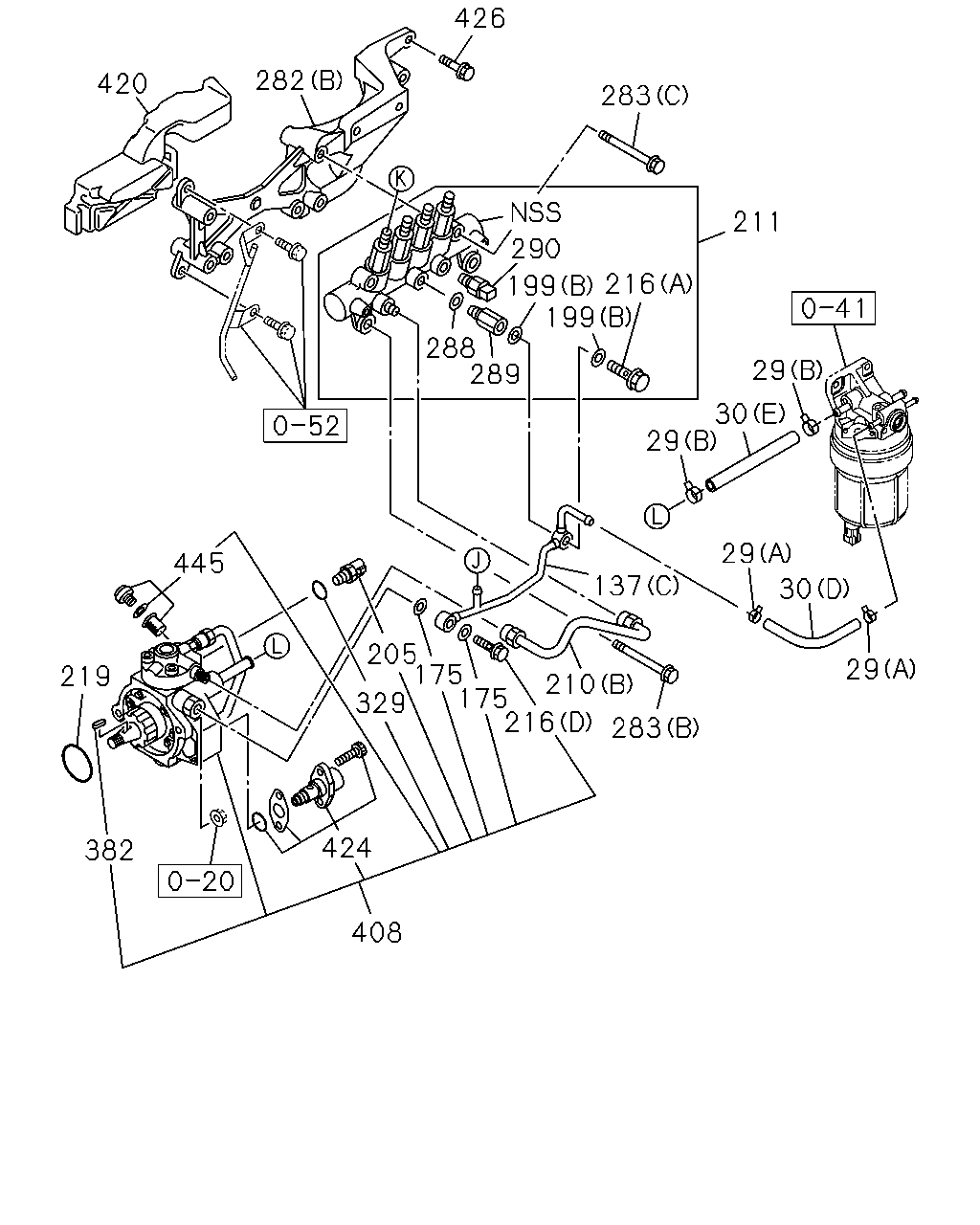

283 211 426 282 420 290 199 199 216 289 288 29 30 29 29 30 29 137 210 283 216 175 175 329 205 424 408 382 219 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	03.162 CLIP; HOSE 00.034 (A) ID=12 WO/PVC COATING	8-94123-526-1	02	1	1109-			●
29	03.162 CLIP; HOSE 01.240 (B) ID=16	8-94392-924-0	02	1	1109-			●
29	03.162 CLIP; HOSE 03.374 (C) ID=10.5	8-97019-473-0	10	1	1109-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=130	0-01804-130-0	01	1	1109-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=98	8-97354-652-0	03	1	1109-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=150	8-97362-306-2	01	1	1109-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=110	8-97377-894-0	01	1	1109-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98169-863-0	01	1	1109-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (A)	8-98025-994-2	01	1	0911-1108	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A)	8-98025-994-2	01	1	1109-	●	●
137	03.163 PIPE ASM; LEAK OFF (C)	8-98009-699-0	01	1	1109-			●
137	03.163 PIPE ASM; LEAK OFF (D)	8-98036-510-0	01	1	1109-			●
137	03.163 PIPE ASM; LEAK OFF (B)	8-98161-061-0	03	1	1109-			●
137	03.163 PIPE ASM; LEAK OFF (A)	8-98161-062-0	01	1	1109-			●
175	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 01.531 ID=10.2 OD=15.2	1-09630-083-0	02	1	1109-			●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	02	1	1109-			●
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	0911-1108	●
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	1109-	●	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	0911-1108	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	1109-	●	●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	0911-1108	●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	1109-	●	●	●
210	03.330 PIPE; INJ,C/R (B)	8-97388-902-0	01	1	1109-			●
210	03.330 PIPE; INJ,C/R (A)	8-98096-496-0	01	1	0911-1108	●
210	03.330 PIPE; INJ,C/R (A)	8-98096-496-0	01	1	1109-	●	●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	0911-1108	●
211	03.331 RAIL ASM; COMMON	8-98011-888-2	01	1	1109-	●	●	●
216	03.162 BOLT; EYE 03.280 (D)	9-88130-088-0	01	1	1109-			●
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	0911-1108	●
216	03.162 BOLT; EYE (C)	5-15759-003-0	01	1	1109-	●	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	0911-1108	●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	1109-	●	●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	0911-1108	●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	1109-	●	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7	1-09623-541-0	01	1	1109-			●
282	03.163 BRACKET; COMMON RAIL (B)	8-98147-694-0	01	1	1109-			●
282	03.163 BRACKET; COMMON RAIL (A)	8-98106-661-1	01	1	0911-1108	●
282	03.163 BRACKET; COMMON RAIL (A)	8-98106-661-1	01	1	1109-	●	●
283	03.330 BOLT; COMMON RAIL 00.206 (B) M8X70 FLANGE	0-28050-870-0	02	1	1109-			●
283	03.330 BOLT; COMMON RAIL (C) M8X81 FLANGE	8-97354-584-0	02	1	1109-			●
283	03.330 BOLT; COMMON RAIL 04.338 (A) M8X20 FLANGE	0-28050-820-0	02	1	0911-1108	●
283	03.330 BOLT; COMMON RAIL 04.338 (A) M8X20 FLANGE	0-28050-820-0	02	1	1109-	●	●
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0911-1108	●
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1109-	●	●	●
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	0911-1108	●
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	1109-	●	●	●
290	03.331 SENSOR; PRESS	8-98119-790-0	01	1	0911-1108	●
290	03.331 SENSOR; PRESS	8-98119-790-0	01	1	1109-	●	●	●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	0911-1108	●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	1109-1201	●	●
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1109-1201			●
382	03.162 KEY; DRIVE SHAFT	8-98161-995-0	01	1	1202-	●	●	●
382	03.162 KEY; DRIVE SHAFT	8-97375-384-0	01	1	0911-1108	●
382	03.162 KEY; DRIVE SHAFT	8-97375-384-0	01	1	1109-1201	●	●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-97381-555-5	01	1	1109-			●
420	03.340 RUBBER; SPACE,COMMON RAIL	8-98037-444-1	01	1	1109-			●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-501-0	01	1	0911-1108	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1109-	●	●	●
426	03.330 BOLT; BRACKET 04.686 M8X60 FLANGE	0-28050-860-0	01	1	1109-			●
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	0911-1108	●
445	03.330 SCREW; FILTER,INLET	8-98204-986-0	01	1	1109-	●	●	●

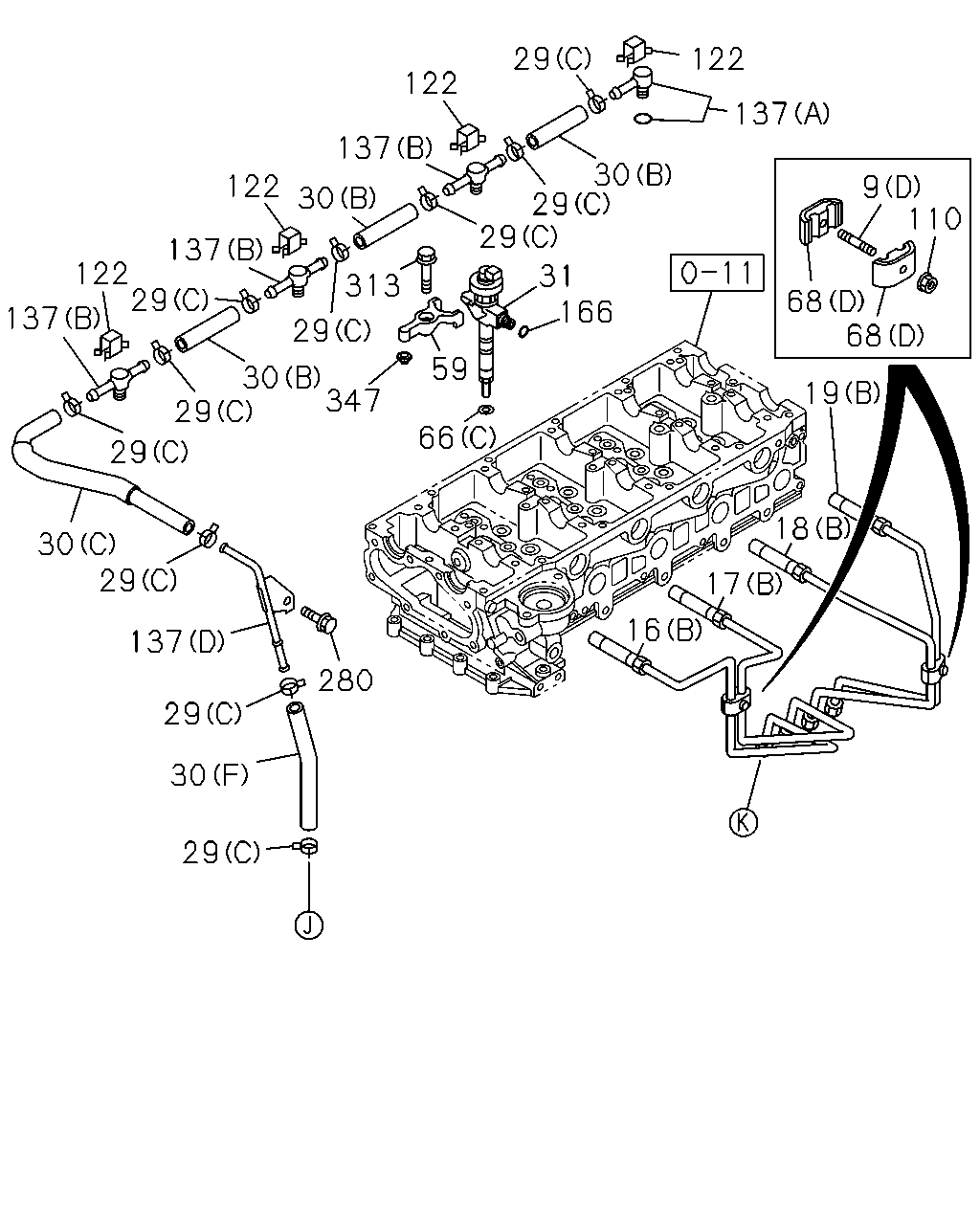

29 30 29 280 137 29 30 137 122 137 29 29 29 30 29 313 30 122 137 122 29 122 137 30 29 29 59 347 66 166 31 16 17 18 19 68 68 9 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	03.340 STUD; CLIP 03.162 (D) M6X25 L=36	8-97214-234-1	02	1	1109-1201			●
9	03.340 STUD; CLIP 00.413 (D) M6X30 L=38	0-41010-630-0	02	1	1202-			●
9	03.340 STUD; CLIP 00.413 (A) M6X30 L=38	0-41010-630-0	04	1	0911-1108	●
9	03.340 STUD; CLIP 00.413 (A) M6X30 L=38	0-41010-630-0	04	1	1109-	●	●
9	03.340 STUD; CLIP 03.278 (C) M6X40 L=50	0-41010-640-0	02	1	0911-1108	●
9	03.340 STUD; CLIP 03.278 (C) M6X40 L=50	0-41010-640-0	02	1	1109-	●	●
9	03.340 STUD; CLIP 00.413 (B) M6X35 L=43	8-97203-278-0	01	1	0911-1108	●
9	03.340 STUD; CLIP 00.413 (B) M6X35 L=43	8-97203-278-0	01	1	1109-	●	●
16	03.330 PIPE; INJ NO.1 (B)	8-98011-606-0	01	1	1109-1201			●
16	03.330 PIPE; INJ NO.1 (B)	8-98203-719-0	01	1	1202-			●
16	03.330 PIPE; INJ NO.1 (A)	8-98086-354-0	01	1	0911-1102	●
16	03.330 PIPE; INJ NO.1 (A)	8-98185-352-0	01	1	1103-1108	●
16	03.330 PIPE; INJ NO.1 (A)	8-98185-352-0	01	1	1109-1404	●	●
16	03.330 PIPE; INJ NO.1 (A)	8-98271-218-0	01	1	1405-1502	●	●
16	03.330 PIPE; INJ NO.1 (A)	8-98298-628-0	01	1	1503-	●	●
17	03.330 PIPE; INJ NO.2 (B)	8-98043-684-0	01	1	1109-1201			●
17	03.330 PIPE; INJ NO.2 (B)	8-98203-720-0	01	1	1202-			●
17	03.330 PIPE; INJ NO.2 (A)	8-98086-355-0	01	1	0911-1102	●
17	03.330 PIPE; INJ NO.2 (A)	8-98185-353-0	01	1	1103-1108	●
17	03.330 PIPE; INJ NO.2 (A)	8-98185-353-0	01	1	1109-1404	●	●
17	03.330 PIPE; INJ NO.2 (A)	8-98271-219-0	01	1	1405-1502	●	●
17	03.330 PIPE; INJ NO.2 (A)	8-98298-629-0	01	1	1503-	●	●
18	03.330 PIPE; INJ NO.3 (B)	8-98011-608-0	01	1	1109-1201			●
18	03.330 PIPE; INJ NO.3 (B)	8-98203-721-0	01	1	1202-			●
18	03.330 PIPE; INJ NO.3 (A)	8-98086-356-0	01	1	0911-1102	●
18	03.330 PIPE; INJ NO.3 (A)	8-98185-354-0	01	1	1103-1108	●
18	03.330 PIPE; INJ NO.3 (A)	8-98185-354-0	01	1	1109-1404	●	●
18	03.330 PIPE; INJ NO.3 (A)	8-98271-220-0	01	1	1405-1502	●	●
18	03.330 PIPE; INJ NO.3 (A)	8-98298-630-0	01	1	1503-	●	●
19	03.330 PIPE; INJ NO.4 (B)	8-98011-609-0	01	1	1109-1201			●
19	03.330 PIPE; INJ NO.4 (B)	8-98203-722-0	01	1	1202-			●
19	03.330 PIPE; INJ NO.4 (A)	8-98086-357-0	01	1	0911-1102	●
19	03.330 PIPE; INJ NO.4 (A)	8-98185-355-0	01	1	1103-1108	●
19	03.330 PIPE; INJ NO.4 (A)	8-98185-355-0	01	1	1109-1404	●	●
19	03.330 PIPE; INJ NO.4 (A)	8-98271-221-0	01	1	1405-1502	●	●
19	03.330 PIPE; INJ NO.4 (A)	8-98298-631-0	01	1	1503-	●	●
29	03.162 CLIP; HOSE 00.034 (A) ID=12 WO/PVC COATING	8-94123-526-1	02	1	1109-			●
29	03.162 CLIP; HOSE 01.240 (B) ID=16	8-94392-924-0	02	1	1109-			●
29	03.162 CLIP; HOSE 03.374 (C) ID=10.5	8-97019-473-0	10	1	1109-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=130	0-01804-130-0	01	1	1109-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=98	8-97354-652-0	03	1	1109-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=150	8-97362-306-2	01	1	1109-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=110	8-97377-894-0	01	1	1109-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98169-863-0	01	1	1109-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (A)	8-98025-994-2	01	1	0911-1108	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A)	8-98025-994-2	01	1	1109-	●	●
31	03.332 NOZZLE ASM; INJ	8-98074-909-2	04	1	1109-			●
31	03.332 NOZZLE ASM; INJ	8-97609-788-5	04	1	0911-1108	●
31	03.332 NOZZLE ASM; INJ	8-97609-788-6	04	1	1109-	●	●
59	03.332 CLAMP; NOZZLE HOLDER	8-98092-539-0	04	1	1109-			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C)	8-98181-540-0	04	1	1109-			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3	8-94173-412-0	04	1	0911-1108	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 01.609 (B) ID=23.3	8-94173-412-0	04	1	1109-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	0911-1108	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	1109-	●	●
68	03.162 CLIP; INJ PIPE (D)	8-97213-481-0	04	1	1109-1201			●
68	03.162 CLIP; INJ PIPE (D) ID=11 & 11 L=19	8-98039-293-0	04	1	1202-1405			●
68	03.162 CLIP; INJ PIPE (D) ID=11 & 11 L=19	8-98148-996-2	04	1	1406-			●
68	03.162 CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-118-1	01	1	0911-1108	●
68	03.162 CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-118-3	01	1	1109-	●	●
68	03.162 CLIP; INJ PIPE (A) ID=7 & 7 L=22	8-97330-119-1	01	1	0911-1108	●
68	03.162 CLIP; INJ PIPE (A) ID=7 & 7 L=22	8-97330-119-3	01	1	1109-	●	●
68	03.162 CLIP; INJ PIPE (C) ID=11 & 11 L=19	8-98039-293-0	10	1	0911-1108	●
68	03.162 CLIP; INJ PIPE (C) ID=11 & 11 L=19	8-98039-293-0	10	1	1109-1405	●	●
68	03.162 CLIP; INJ PIPE (C) ID=11 & 11 L=19	8-98148-996-2	10	1	1406-	●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	1109-			●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	08	1	0911-1108	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	08	1	1109-	●	●
122	03.162 CLIP; LEAK OFF PIPE	8-97315-286-0	04	1	1109-			●
137	03.163 PIPE ASM; LEAK OFF (C)	8-98009-699-0	01	1	1109-			●
137	03.163 PIPE ASM; LEAK OFF (D)	8-98036-510-0	01	1	1109-			●
137	03.163 PIPE ASM; LEAK OFF (B)	8-98161-061-0	03	1	1109-			●
137	03.163 PIPE ASM; LEAK OFF (A)	8-98161-062-0	01	1	1109-			●
166	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8	9-09566-111-0	04	1	1109-			●
280	03.330 BOLT; CLIP,FUEL HOSE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1109-			●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X50 W/WASHER	8-97372-144-0	04	1	1109-			●
347	03.332 PIN	8-98165-035-0	04	1	1109-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
