Isuzu WW
▶
TRUCKS
▶
NPR
▶
51244 - NPR(LHD) EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#50167) — 75 parça
Tümü
A - 4JJ1-TCS ENG
B - 4HK1-TCN ENG
C - 4HK1-TCS ENG
◀
[032A] 4HK1(NO.2) (24 parça)
[032A] 4HK1(NO.1) (9 parça)
[032A] 4HK1(NO.3) (24 parça)
[032A] 4JJ1 (18 parça)
▶

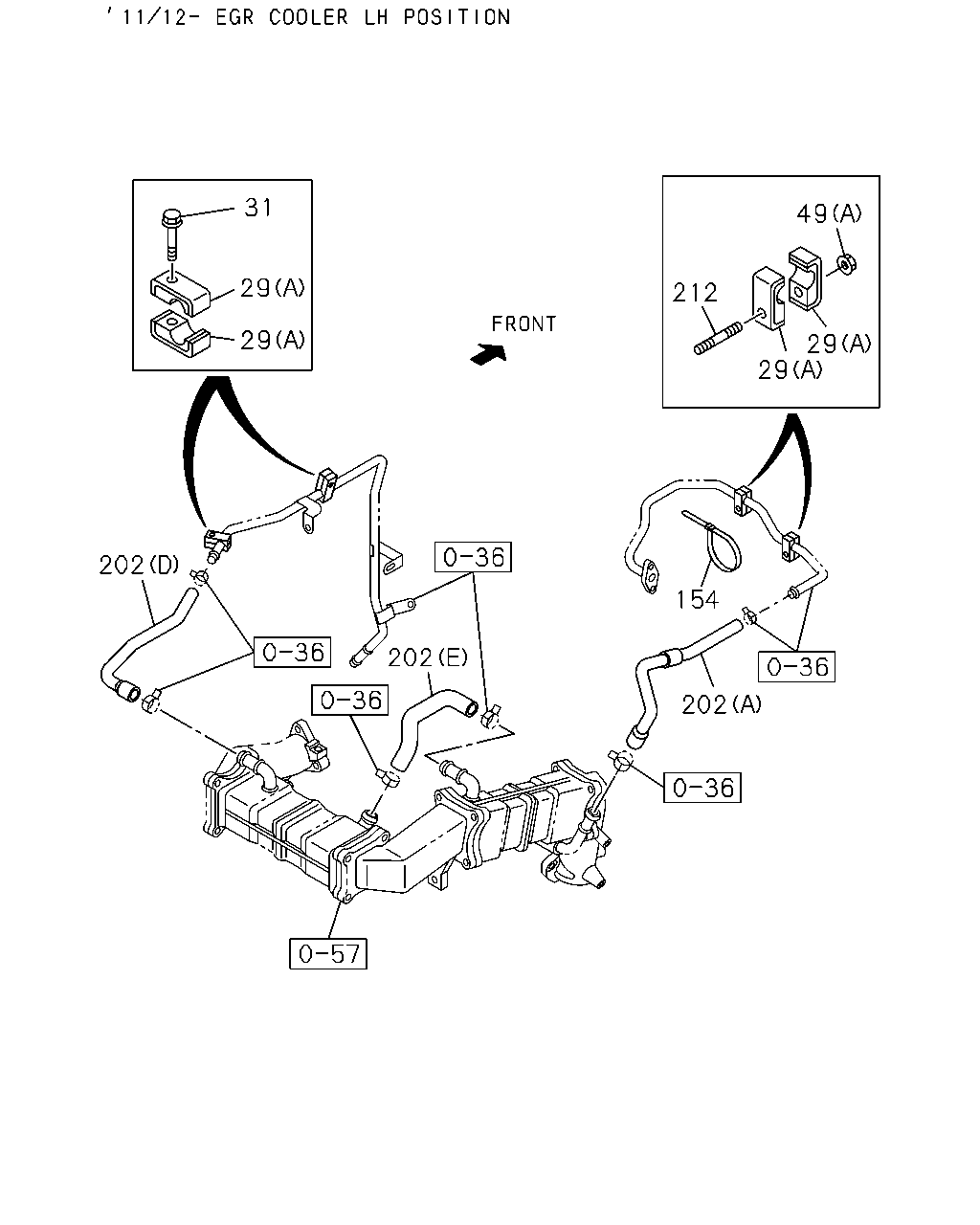

31
29
29
202
202
212
49
29
29
154
202
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
29
01.166 CLIP; PIPE
01.251 (B)
8-98120-917-0
03
1
1109-
●
29
01.166 CLIP; PIPE
(A) ID=17 L=17
1-09701-284-0
08
1
0911-1108
●
29
01.166 CLIP; PIPE
(A) ID=17 L=17
1-09701-284-0
08
1
1109-
●
●
31
01.159 BOLT; CLIP
02.277 M8X40 FLANGE
0-28050-840-0
02
1
0911-1108
●
31
01.159 BOLT; CLIP
02.277 M8X40 FLANGE
0-28050-840-0
02
1
1109-
●
●
49
01.153 NUT; WATER PIPE
01.540 (C) M6 FLANGE
0-91180-206-0
01
1
1109-
●
49
01.153 NUT; WATER PIPE
03.613 (B) M8 FLANGE
8-97161-607-0
01
1
1109-
●
49
01.153 NUT; WATER PIPE
01.062 (A) M8 FLANGE
0-91180-108-0
02
1
0911-1108
●
49
01.153 NUT; WATER PIPE
01.062 (A) M8 FLANGE
0-91180-108-0
02
1
1109-
●
●
154
01.153 CLIP; WATER HOSE
02.559 L=170.3
1-09987-182-0
01
1
0911-1108
●
154
01.153 CLIP; WATER HOSE
02.559 L=170.3
1-09987-182-0
01
1
1109-
●
●
202
01.240 HOSE; RUBBER,EGR COOLER
EGR COOLER LH POSITION<KCC> (E)
8-98186-581-0
01
1
1112-
●
●
202
01.240 HOSE; RUBBER,EGR COOLER
EGR COOLER LH POSITION<KCC> (D)
8-98186-582-0
01
1
1112-
●
●
202
01.240 HOSE; RUBBER,EGR COOLER
(A)
8-98028-169-1
01
1
0911-1108
●
202
01.240 HOSE; RUBBER,EGR COOLER
(A)
8-98028-169-2
01
1
1109-
●
●
202
01.240 HOSE; RUBBER,EGR COOLER
(B)
8-98028-170-0
01
1
0911-1108
●
202
01.240 HOSE; RUBBER,EGR COOLER
(B)
8-98028-170-0
01
1
1109-1111
●
●
202
01.240 HOSE; RUBBER,EGR COOLER
EXC. EGR COOLER LH POSITION<KCC> (B)
8-98028-170-0
01
1
1112-
●
●
202
01.240 HOSE; RUBBER,EGR COOLER
(C)
8-98028-171-0
01
1
0911-1108
●
202
01.240 HOSE; RUBBER,EGR COOLER
(C)
8-98028-171-0
01
1
1109-1111
●
●
202
01.240 HOSE; RUBBER,EGR COOLER
EXC. EGR COOLER LH POSITION<KCC> (C)
8-98028-171-0
01
1
1112-
●
●
212
01.153 STUD; PIPE
03.601 M8X25 L=36
8-97378-062-0
01
1
1109-
●
212
01.153 STUD; PIPE
00.413 M8X45 L=55
8-94217-227-0
02
1
0911-1108
●
212
01.153 STUD; PIPE
00.413 M8X45 L=55
8-94217-227-0
02
1
1109-
●
●

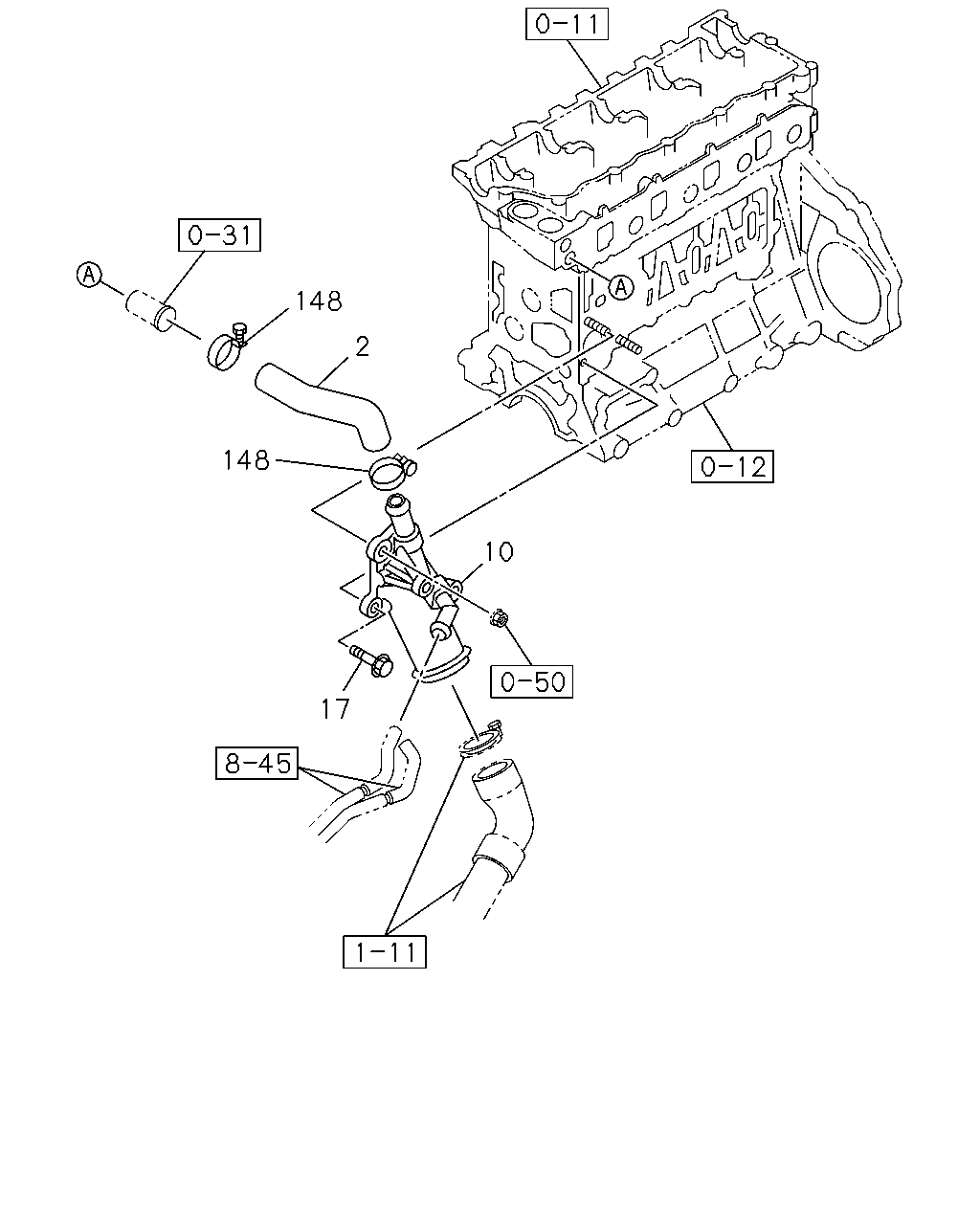

148
2
148
10
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
01.097 HOSE; WATER,BY-PASS
8-97379-228-1
01
1
0911-1108
●
2
01.097 HOSE; WATER,BY-PASS
8-97379-228-1
01
1
1109-
●
●
10
01.153 PIPE; SUCTION
8-97371-775-1
01
1
0911-1010
●
10
01.153 PIPE; SUCTION
8-98166-991-0
01
1
1011-1108
●
10
01.153 PIPE; SUCTION
8-98166-991-0
01
1
1109-
●
●
17
01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE
8-94458-473-1
01
1
0911-1108
●
17
01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE
8-94458-473-1
01
1
1109-
●
●
148
01.097 CLIP; BYPASS HOSE
03.417 ID=30
9-09915-315-1
02
1
0911-1108
●
148
01.097 CLIP; BYPASS HOSE
03.417 ID=30
9-09915-315-1
02
1
1109-
●
●

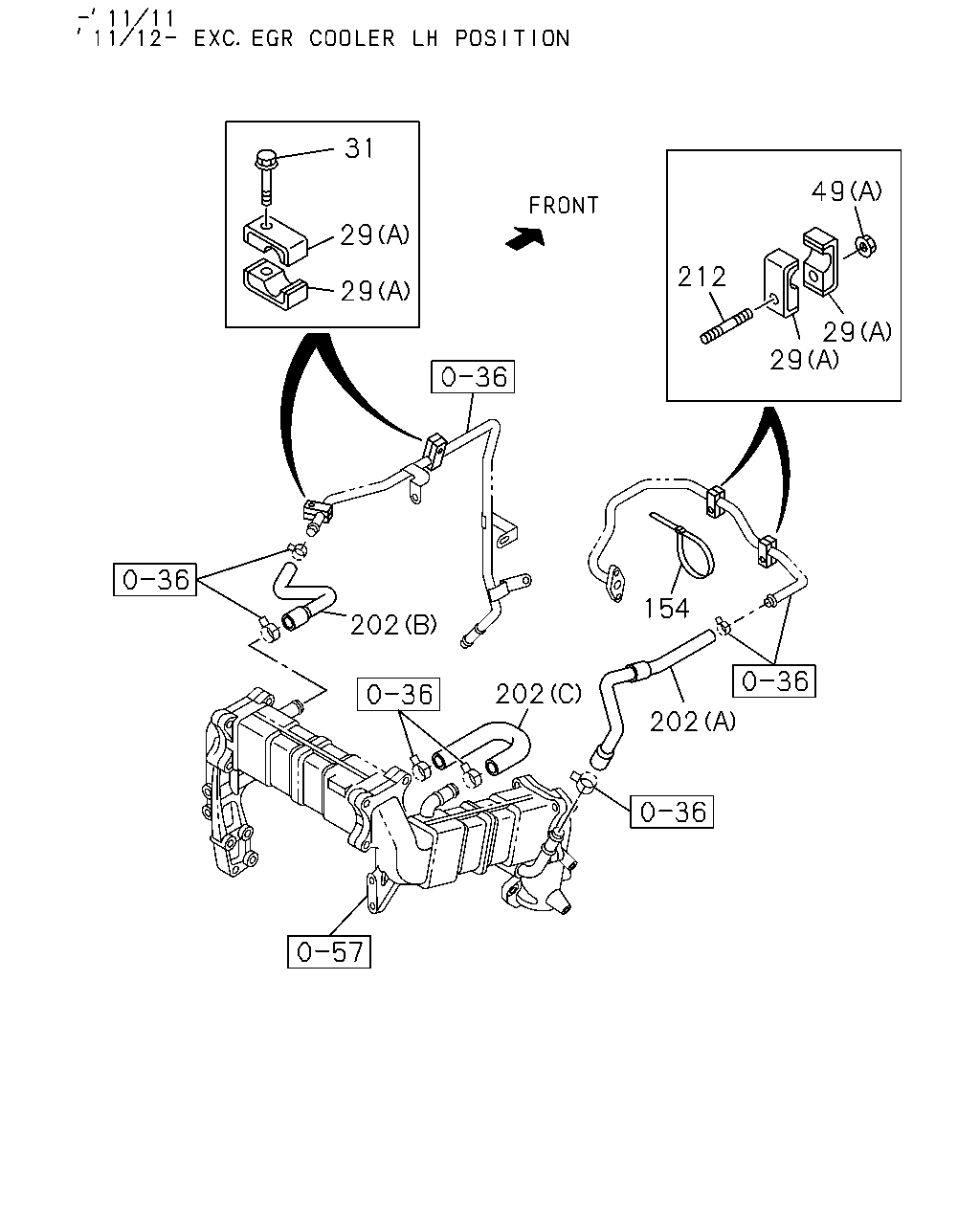

31
29
29
202
202
212
49
29
29
154
202
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
29
01.166 CLIP; PIPE
01.251 (B)
8-98120-917-0
03
1
1109-
●
29
01.166 CLIP; PIPE
(A) ID=17 L=17
1-09701-284-0
08
1
0911-1108
●
29
01.166 CLIP; PIPE
(A) ID=17 L=17
1-09701-284-0
08
1
1109-
●
●
31
01.159 BOLT; CLIP
02.277 M8X40 FLANGE
0-28050-840-0
02
1
0911-1108
●
31
01.159 BOLT; CLIP
02.277 M8X40 FLANGE
0-28050-840-0
02
1
1109-
●
●
49
01.153 NUT; WATER PIPE
01.540 (C) M6 FLANGE
0-91180-206-0
01
1
1109-
●
49
01.153 NUT; WATER PIPE
03.613 (B) M8 FLANGE
8-97161-607-0
01
1
1109-
●
49
01.153 NUT; WATER PIPE
01.062 (A) M8 FLANGE
0-91180-108-0
02
1
0911-1108
●
49
01.153 NUT; WATER PIPE
01.062 (A) M8 FLANGE
0-91180-108-0
02
1
1109-
●
●
154
01.153 CLIP; WATER HOSE
02.559 L=170.3
1-09987-182-0
01
1
0911-1108
●
154
01.153 CLIP; WATER HOSE
02.559 L=170.3
1-09987-182-0
01
1
1109-
●
●
202
01.240 HOSE; RUBBER,EGR COOLER
EGR COOLER LH POSITION<KCC> (E)
8-98186-581-0
01
1
1112-
●
●
202
01.240 HOSE; RUBBER,EGR COOLER
EGR COOLER LH POSITION<KCC> (D)
8-98186-582-0
01
1
1112-
●
●
202
01.240 HOSE; RUBBER,EGR COOLER
(A)
8-98028-169-1
01
1
0911-1108
●
202
01.240 HOSE; RUBBER,EGR COOLER
(A)
8-98028-169-2
01
1
1109-
●
●
202
01.240 HOSE; RUBBER,EGR COOLER
(B)
8-98028-170-0
01
1
0911-1108
●
202
01.240 HOSE; RUBBER,EGR COOLER
(B)
8-98028-170-0
01
1
1109-1111
●
●
202
01.240 HOSE; RUBBER,EGR COOLER
EXC. EGR COOLER LH POSITION<KCC> (B)
8-98028-170-0
01
1
1112-
●
●
202
01.240 HOSE; RUBBER,EGR COOLER
(C)
8-98028-171-0
01
1
0911-1108
●
202
01.240 HOSE; RUBBER,EGR COOLER
(C)
8-98028-171-0
01
1
1109-1111
●
●
202
01.240 HOSE; RUBBER,EGR COOLER
EXC. EGR COOLER LH POSITION<KCC> (C)
8-98028-171-0
01
1
1112-
●
●
212
01.153 STUD; PIPE
03.601 M8X25 L=36
8-97378-062-0
01
1
1109-
●
212
01.153 STUD; PIPE
00.413 M8X45 L=55
8-94217-227-0
02
1
0911-1108
●
212
01.153 STUD; PIPE
00.413 M8X45 L=55
8-94217-227-0
02
1
1109-
●
●

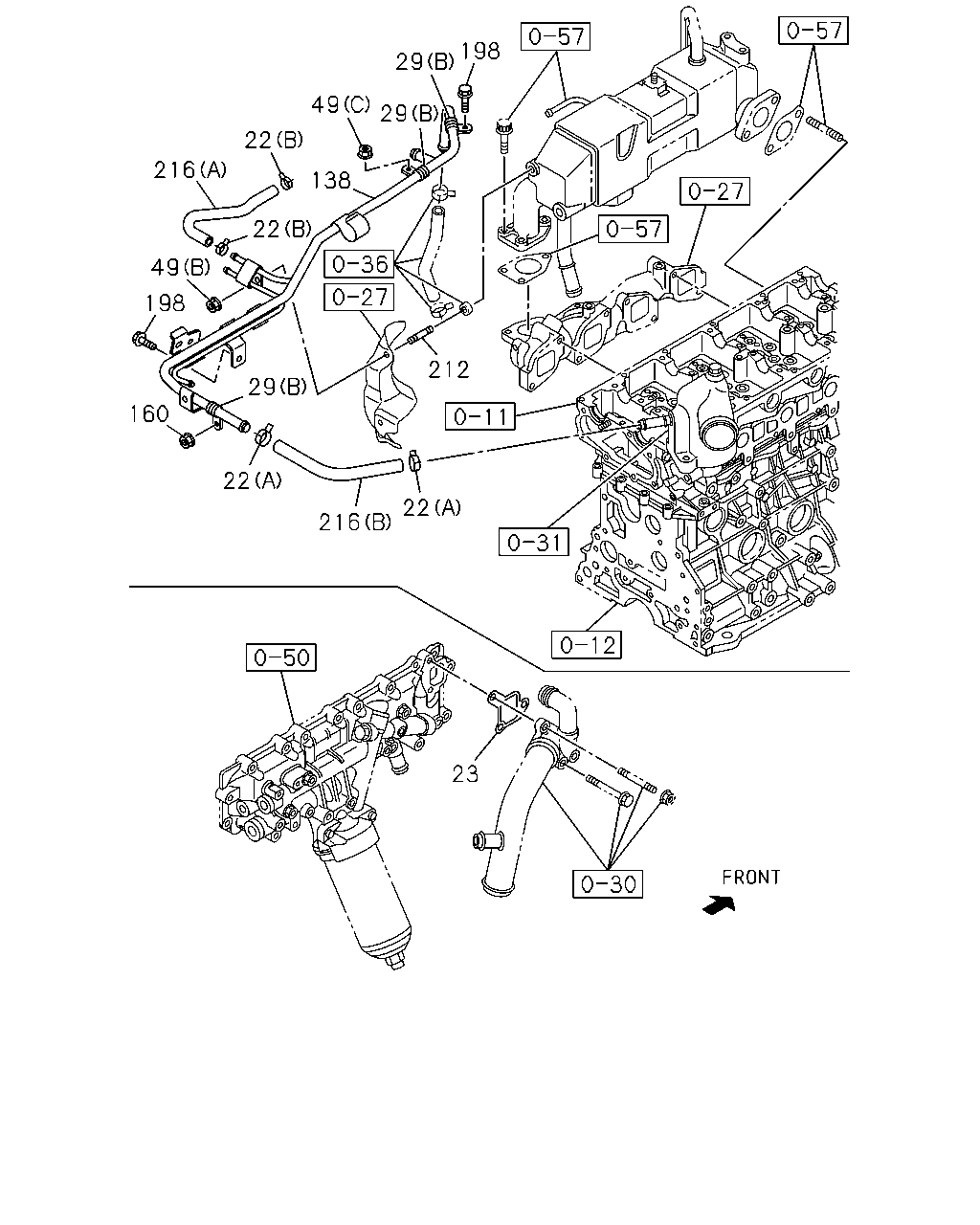

198
29
49
29
22
216
138
22
49
198
212
29
160
22
22
216
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
22
01.153 CLIP; WATER HOSE
(A) ID=12.8
8-94367-943-0
02
1
1109-
●
22
01.153 CLIP; WATER HOSE
(B) ID=11
8-97375-639-0
02
1
1109-
●
23
01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE).
8-98075-127-0
01
1
1109-
●
29
01.166 CLIP; PIPE
01.251 (B)
8-98120-917-0
03
1
1109-
●
29
01.166 CLIP; PIPE
(A) ID=17 L=17
1-09701-284-0
08
1
0911-1108
●
29
01.166 CLIP; PIPE
(A) ID=17 L=17
1-09701-284-0
08
1
1109-
●
●
49
01.153 NUT; WATER PIPE
01.540 (C) M6 FLANGE
0-91180-206-0
01
1
1109-
●
49
01.153 NUT; WATER PIPE
03.613 (B) M8 FLANGE
8-97161-607-0
01
1
1109-
●
49
01.153 NUT; WATER PIPE
01.062 (A) M8 FLANGE
0-91180-108-0
02
1
0911-1108
●
49
01.153 NUT; WATER PIPE
01.062 (A) M8 FLANGE
0-91180-108-0
02
1
1109-
●
●
138
01.251 PIPE; WATER
8-98131-462-4
01
1
1109-
●
160
01.153 NUT; WATER PIPE
01.540 M6 FLANGE
0-91180-206-0
01
1
1109-
●
198
01.242 BOLT; PIPE
03.162 M6X12 FLANGE
0-28050-612-0
02
1
1109-
●
212
01.153 STUD; PIPE
03.601 M8X25 L=36
8-97378-062-0
01
1
1109-
●
212
01.153 STUD; PIPE
00.413 M8X45 L=55
8-94217-227-0
02
1
0911-1108
●
212
01.153 STUD; PIPE
00.413 M8X45 L=55
8-94217-227-0
02
1
1109-
●
●
216
01.240 HOSE; WATER
(A)
8-98074-982-0
01
1
1109-
●
216
01.240 HOSE; WATER
03.342 (B)
8-98113-336-0
01
1
1109-
●
