Sayfa 9-01 - Isuzu EPC

9-01 — TOOLS (#50151) — 172 parça

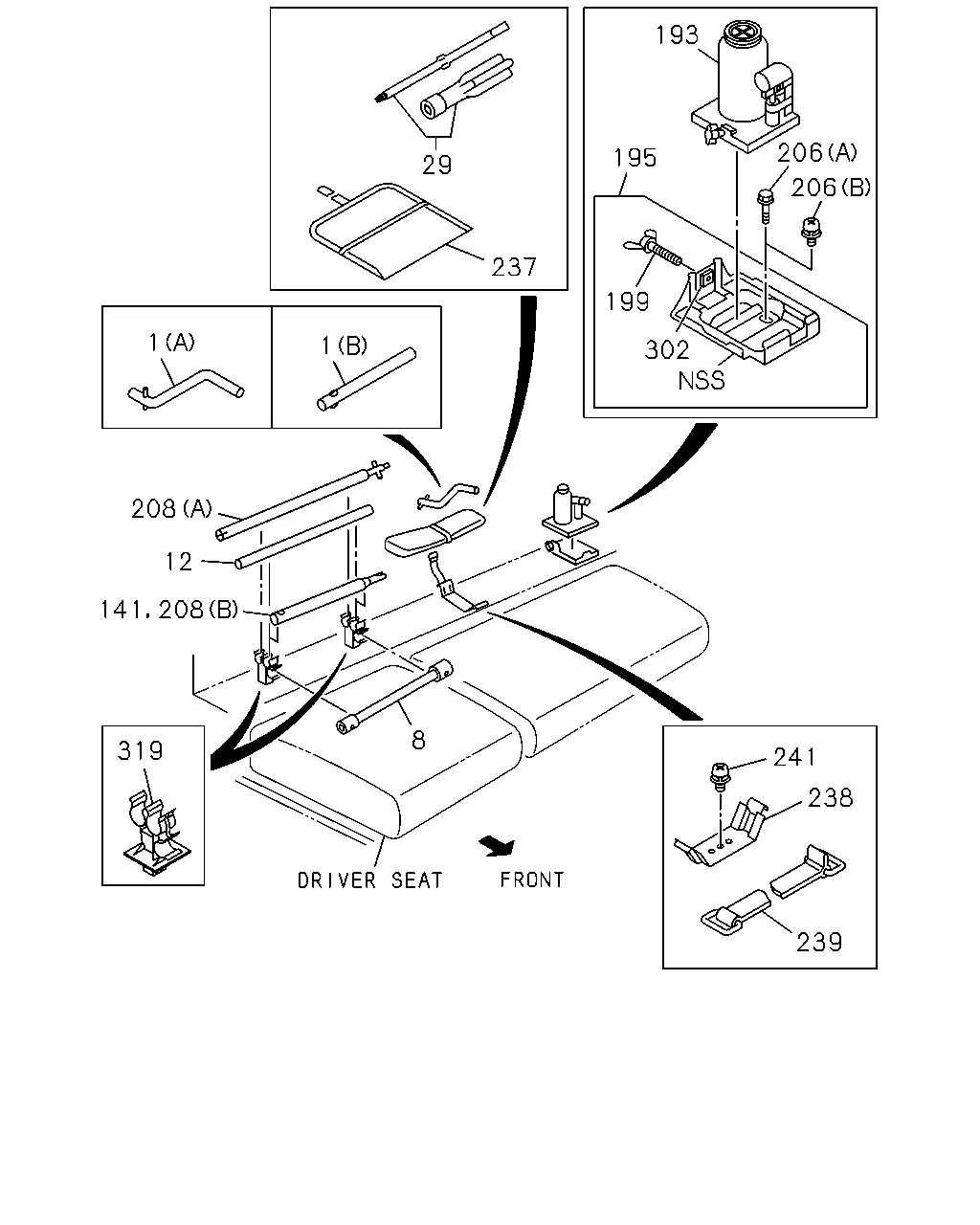

193 206 195 29 206 237 199 1 1 302 208 12 8 319 241 238 239 141 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> 08.821 (B) L=280	1-85515-007-0	01	1	0905-0906	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W) EXC. SPARE WHEEL CARRIER<P10> 08.821 (B) L=280	1-85515-007-0	01	1	0905-0906	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3800MM(38W) 08.821 (B) L=280	1-85515-007-0	01	1	0905-0906		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 08.821 (B) L=280	1-85515-007-0	01	1	0905-0906			●
1	07.629 HANDLE; SPARE TIRE CARRIER 08.821 (B) L=280	1-85515-007-0	01	1	0905-0906				●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280	1-85515-007-0	01	1	0907-1007	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. SPARE WHEEL CARRIER<P10> 08.821 (B) L=280	1-85515-007-0	01	1	0907-1007	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280	1-85515-007-0	01	1	0907-1007	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3800MM(38W) 08.821 (B) L=280	1-85515-007-0	01	1	0907-1007		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 08.821 (B) L=280	1-85515-007-0	01	1	0907-1007			●
1	07.629 HANDLE; SPARE TIRE CARRIER 08.821 (B) L=280	1-85515-007-0	01	1	0907-1007				●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. SPARE WHEEL CARRIER<P10> 08.821 (B) L=280	1-85515-007-0	01	1	1008-1104	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> 08.821 (B) L=280	1-85515-007-0	01	1	1008-1104	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3800MM(38W) 08.821 (B) L=280	1-85515-007-0	01	1	1008-1104		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 08.821 (B) L=280	1-85515-007-0	01	1	1008-1104			●
1	07.629 HANDLE; SPARE TIRE CARRIER 08.821 (B) L=280	1-85515-007-0	01	1	1008-1104				●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W) EXC. SPARE WHEEL CARRIER<P10> 08.821 (B) L=280	1-85515-007-0	01	1	1105-1108	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> 08.821 (B) L=280	1-85515-007-0	01	1	1105-1108	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3800MM(38W) 08.821 (B) L=280	1-85515-007-0	01	1	1105-1108		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 08.821 (B) L=280	1-85515-007-0	01	1	1105-1108			●
1	07.629 HANDLE; SPARE TIRE CARRIER 08.821 (B) L=280	1-85515-007-0	01	1	1105-1108				●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W) EXC. SPARE WHEEL CARRIER<P10> (B) L=280	8-98181-251-0	01	1	1109-	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> (B) L=280	8-98181-251-0	01	1	1109-	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3800MM(38W) (B) L=280	8-98181-251-0	01	1	1109-		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=280	8-98181-251-0	01	1	1109-			●
1	07.629 HANDLE; SPARE TIRE CARRIER (B) L=280	8-98181-251-0	01	1	1109-				●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 4100MM(41W) (A)	8-97218-985-0	01	1	0905-0906		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	0907-1011	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 4100MM(41W) (A)	8-97218-985-0	01	1	0907-1011		●
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97218-985-0	01	1	0907-1011					●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	1012-1101	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 4100MM(41W) (A)	8-97218-985-0	01	1	1012-1101		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	1012-1101			●
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97218-985-0	01	1	1012-1101					●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> (A)	8-97218-985-0	01	1	1102-	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 4100MM(41W) (A)	8-97218-985-0	01	1	1102-		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	1102-			●
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97218-985-0	01	1	1102-					●
8	08.821 WRENCH; WHEEL FRT&RR TIRE 195/85R16 DISC 16-5.5J-116 .5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 7R-16-10 16X5.5 F-115(07H) B=41X19 L=330	8-94386-490-1	01	1	0907-	●
8	08.821 WRENCH; WHEEL B=41X19 L=330	8-94386-490-1	01	1	0907-					●
8	08.821 WRENCH; WHEEL FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU),FRT&RR 215/85R16 16X6K-128(CSC) B=41X21 L=440	1-85113-015-1	01	1	0905-	●		●
8	08.821 WRENCH; WHEEL B=41X21 L=440	1-85113-015-1	01	1	0905-		●		●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4100MM(41W) OD=25 L=590	8-97332-988-0	01	1	0905-0906		●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590	8-97332-988-0	01	1	0907-1001	●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4100MM(41W) OD=25 L=590	8-97332-988-0	01	1	0907-1001		●
12	08.821 HANDLE; WRENCH,WHEEL PIN OD=25 L=590	8-97332-988-0	01	1	0907-1001					●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480	1-85116-011-0	01	1	1002-1011	●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4100MM(41W) 08.820 OD=25 L=480	1-85116-011-0	01	1	1002-1011		●
12	08.821 HANDLE; WRENCH,WHEEL PIN 08.820 OD=25 L=480	1-85116-011-0	01	1	1002-1011					●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480	1-85116-011-0	01	1	1012-1101	●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4100MM(41W) 08.820 OD=25 L=480	1-85116-011-0	01	1	1012-1101		●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480	1-85116-011-0	01	1	1012-1101			●
12	08.821 HANDLE; WRENCH,WHEEL PIN 08.820 OD=25 L=480	1-85116-011-0	01	1	1012-1101					●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> 08.820 OD=25 L=480	1-85116-011-0	01	1	1102-1407	●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4100MM(41W) 08.820 OD=25 L=480	1-85116-011-0	01	1	1102-1407		●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480	1-85116-011-0	01	1	1102-1407			●
12	08.821 HANDLE; WRENCH,WHEEL PIN 08.820 OD=25 L=480	1-85116-011-0	01	1	1102-1407					●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> OD=25 L=480	8-98257-407-0	01	1	1408-	●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4100MM(41W) OD=25 L=480	8-98257-407-0	01	1	1408-		●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> OD=25 L=480	8-98257-407-0	01	1	1408-			●
12	08.821 HANDLE; WRENCH,WHEEL PIN OD=25 L=480	8-98257-407-0	01	1	1408-					●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	0905-0906	●	●	●	●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	0907-	●	●	●	●	●
141	08.821 HANDLE; WRENCH WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 08.820 L=580	1-85515-005-1	01	1	0905-1108			●
141	08.821 HANDLE; WRENCH 08.820 L=580	1-85515-005-1	01	1	0905-1108				●
141	08.821 HANDLE; WRENCH WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 08.820 L=580	8-98181-249-0	01	1	1109-			●
141	08.821 HANDLE; WRENCH 08.820 L=580	8-98181-249-0	01	1	1109-				●
193	08.820 JACK ASM FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU),FRT&RR 215/85R16 16X6K-128(CSC) 4TON	8-98012-285-0	01	1	0905-0906	●		●
193	08.820 JACK ASM 4TON	8-98012-285-0	01	1	0905-0906		●		●
193	08.820 JACK ASM 4TON	8-98012-285-0	01	1	0907-	●	●	●	●	●
195	08.820 BRACKET; JACK FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU),FRT&RR 215/85R16 16X6K-128(CSC)	8-98033-737-2	01	1	0905-0906	●
195	08.820 BRACKET; JACK	8-98033-737-2	01	1	0905-0906		●
195	08.820 BRACKET; JACK	8-98033-737-2	01	1	0907-	●	●			●
195	08.820 BRACKET; JACK FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU),FRT&RR 215/85R16 16X6K-128(CSC)	8-94262-068-3	01	1	0905-			●
195	08.820 BRACKET; JACK	8-94262-068-3	01	1	0905-				●
199	08.820 BOLT; JACK FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU),FRT&RR 215/85R16 16X6K-128(CSC) M8X50 WING	8-98005-537-0	01	1	0905-0906	●
199	08.820 BOLT; JACK M8X50 WING	8-98005-537-0	01	1	0905-0906		●
199	08.820 BOLT; JACK M8X50 WING	8-98005-537-0	01	1	0907-	●	●			●
199	08.820 BOLT; JACK FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU),FRT&RR 215/85R16 16X6K-128(CSC) M8X50 WING	8-94279-136-0	01	1	0905-			●
199	08.820 BOLT; JACK M8X50 WING	8-94279-136-0	01	1	0905-				●
206	08.820 SCREW; OIL JACK BRKT 06.216 (A) BOLT M8X25 FLANGE	0-28650-825-0	01	1	0905-0906	●	●
206	08.820 SCREW; OIL JACK BRKT 06.216 (A) BOLT M8X25 FLANGE	0-28650-825-0	01	1	0907-	●	●			●
206	08.820 SCREW; OIL JACK BRKT 16.570 (B) M6X16	0-38050-616-0	01	1	0905-			●	●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> (B) L=580	1-85515-005-1	01	1	0905-0906	●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) EXC. SPARE WHEEL CARRIER<P10> (B) L=580	1-85515-005-1	01	1	0905-0906	●
208	08.820 HANDLE; JACK WHEEL BASE 3800MM(38W) (B) L=580	1-85515-005-1	01	1	0905-0906		●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> (B) L=580	1-85515-005-1	01	1	0907-1007	●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. SPARE WHEEL CARRIER<P10> (B) L=580	1-85515-005-1	01	1	0907-1007	●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=580	1-85515-005-1	01	1	0907-1007	●
208	08.820 HANDLE; JACK WHEEL BASE 3800MM(38W) (B) L=580	1-85515-005-1	01	1	0907-1007		●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. SPARE WHEEL CARRIER<P10> (B) L=580	1-85515-005-1	01	1	1008-1104	●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> (B) L=580	1-85515-005-1	01	1	1008-1104	●
208	08.820 HANDLE; JACK WHEEL BASE 3800MM(38W) (B) L=580	1-85515-005-1	01	1	1008-1104		●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) EXC. SPARE WHEEL CARRIER<P10> (B) L=580	1-85515-005-1	01	1	1105-1108	●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> (B) L=580	1-85515-005-1	01	1	1105-1108	●
208	08.820 HANDLE; JACK WHEEL BASE 3800MM(38W) (B) L=580	1-85515-005-1	01	1	1105-1108		●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) EXC. SPARE WHEEL CARRIER<P10> (B) L=580	8-98181-249-0	01	1	1109-	●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> (B) L=580	8-98181-249-0	01	1	1109-	●
208	08.820 HANDLE; JACK WHEEL BASE 3800MM(38W) (B) L=580	8-98181-249-0	01	1	1109-		●
208	08.820 HANDLE; JACK WHEEL BASE 4100MM(41W) (A) L=642	8-97217-800-0	01	1	0905-0906		●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-97217-800-0	01	1	0907-1011	●
208	08.820 HANDLE; JACK WHEEL BASE 4100MM(41W) (A) L=642	8-97217-800-0	01	1	0907-1011		●
208	08.820 HANDLE; JACK (A) L=642	8-97217-800-0	01	1	0907-1011					●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-97217-800-0	01	1	1012-1101	●
208	08.820 HANDLE; JACK WHEEL BASE 4100MM(41W) (A) L=642	8-97217-800-0	01	1	1012-1101		●
208	08.820 HANDLE; JACK WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-97217-800-0	01	1	1012-1101			●
208	08.820 HANDLE; JACK (A) L=642	8-97217-800-0	01	1	1012-1101					●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> (A) L=642	8-97217-800-0	01	1	1102-1108	●
208	08.820 HANDLE; JACK WHEEL BASE 4100MM(41W) (A) L=642	8-97217-800-0	01	1	1102-1108		●
208	08.820 HANDLE; JACK WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-97217-800-0	01	1	1102-1108			●
208	08.820 HANDLE; JACK (A) L=642	8-97217-800-0	01	1	1102-1108					●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> (A) L=642	8-98181-477-0	01	1	1109-	●
208	08.820 HANDLE; JACK WHEEL BASE 4100MM(41W) (A) L=642	8-98181-477-0	01	1	1109-		●
208	08.820 HANDLE; JACK WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-98181-477-0	01	1	1109-			●
208	08.820 HANDLE; JACK (A) L=642	8-98181-477-0	01	1	1109-					●
237	08.821 BAG; TOOL	8-97130-903-0	01	1	0905-0906	●	●	●	●
237	08.821 BAG; TOOL	8-97130-903-1	01	1	0907-	●	●	●	●	●
238	08.820 SUPPORT; TOOL BAG	8-97994-977-0	01	1	0905-0906	●	●
238	08.820 SUPPORT; TOOL BAG	8-97994-977-0	01	1	0907-	●	●			●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	0905-0906	●	●	●	●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	0907-	●	●	●	●	●
241	08.820 SCREW; TOOL BAG SUPPORT 16.570 M6X16	0-38050-616-0	01	1	0905-0906	●	●
241	08.820 SCREW; TOOL BAG SUPPORT 16.570 M6X16	0-38050-616-0	01	1	0907-	●	●			●
302	08.820 NUT; JACK BRKT FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU),FRT&RR 215/85R16 16X6K-128(CSC)	8-98021-556-0	01	1	0905-0906	●
302	08.820 NUT; JACK BRKT	8-98021-556-0	01	1	0905-0906		●
302	08.820 NUT; JACK BRKT	8-98021-556-0	01	1	0907-	●	●			●
302	08.820 NUT; JACK BRKT FRT&RR 215/75R17.5 17.5X6.00-127 SILVE R(CQU),FRT&RR 215/85R16 16X6K-128(CSC)	8-94279-522-0	01	1	0905-			●
302	08.820 NUT; JACK BRKT	8-94279-522-0	01	1	0905-				●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	0905-0906	●	●	●	●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	0907-	●	●	●	●	●

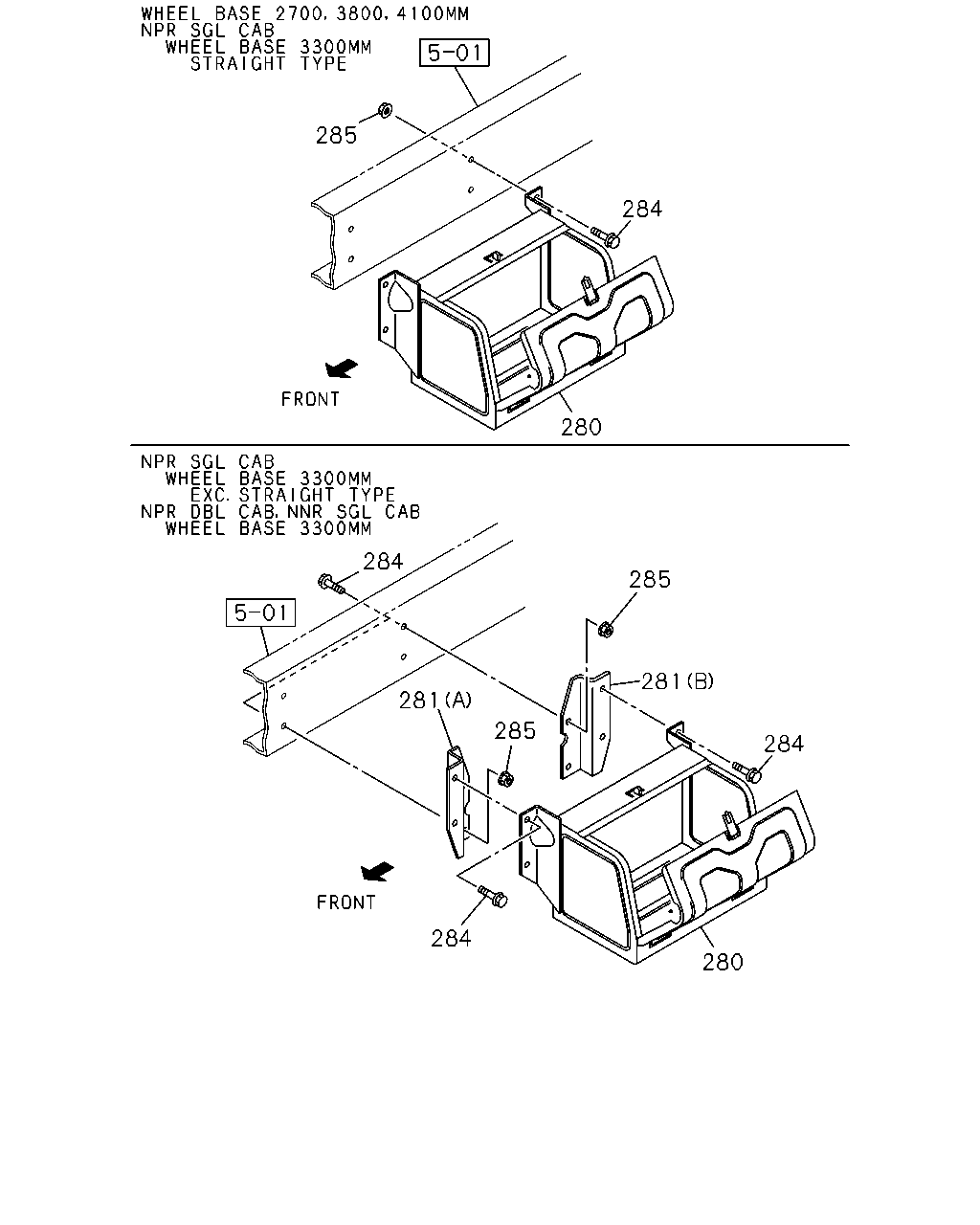

285 284 280 284 285 281 281 285 284 284 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2>	8-97384-079-0	01	1	0905-0906	●	●	●	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2>	8-97384-079-0	01	1	0907-	●	●	●	●	●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B)	8-98045-642-1	01	1	0905-0906			●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98045-642-1	01	1	0907-1011	●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B)	8-98045-642-1	01	1	0907-1011			●
281	08.821 BRACKET; TOOL BOX TOOL & STORAGE BOX<VK2> (B)	8-98045-642-1	01	1	0907-1011					●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98045-642-1	01	1	1012-	●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (B)	8-98045-642-1	01	1	1012-			●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B)	8-98045-642-1	01	1	1012-			●
281	08.821 BRACKET; TOOL BOX TOOL & STORAGE BOX<VK2> (B)	8-98045-642-1	01	1	1012-					●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A)	8-98130-709-0	01	1	0905-0906			●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98130-709-0	01	1	0907-1011	●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A)	8-98130-709-0	01	1	0907-1011			●
281	08.821 BRACKET; TOOL BOX TOOL & STORAGE BOX<VK2> (A)	8-98130-709-0	01	1	0907-1011					●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98130-709-0	01	1	1012-	●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A)	8-98130-709-0	01	1	1012-			●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A)	8-98130-709-0	01	1	1012-			●
281	08.821 BRACKET; TOOL BOX TOOL & STORAGE BOX<VK2> (A)	8-98130-709-0	01	1	1012-					●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0905-0906	●	●	●	●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0905-0906			●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0907-1011	●	●	●	●	●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0907-1011	●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0907-1011			●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0907-1011					●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1012-	●	●	●	●	●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1012-	●		●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1012-			●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1012-					●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	0905-0906	●		●
285	08.821 NUT; TOOL BOX WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	0905-0906		●
285	08.821 NUT; TOOL BOX TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	0905-0906				●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	0907-1011	●		●
285	08.821 NUT; TOOL BOX WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	0907-1011		●
285	08.821 NUT; TOOL BOX TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	0907-1011				●	●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-	●
285	08.821 NUT; TOOL BOX WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-		●
285	08.821 NUT; TOOL BOX WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-			●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-			●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-			●
285	08.821 NUT; TOOL BOX TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-				●	●

450 450

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
	450	16.064 SEAL; HOLE 02.580 (A) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0905-			●	●
	450	16.064 SEAL; HOLE 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	03	1	0905-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
