Sayfa 0-81 - Isuzu EPC

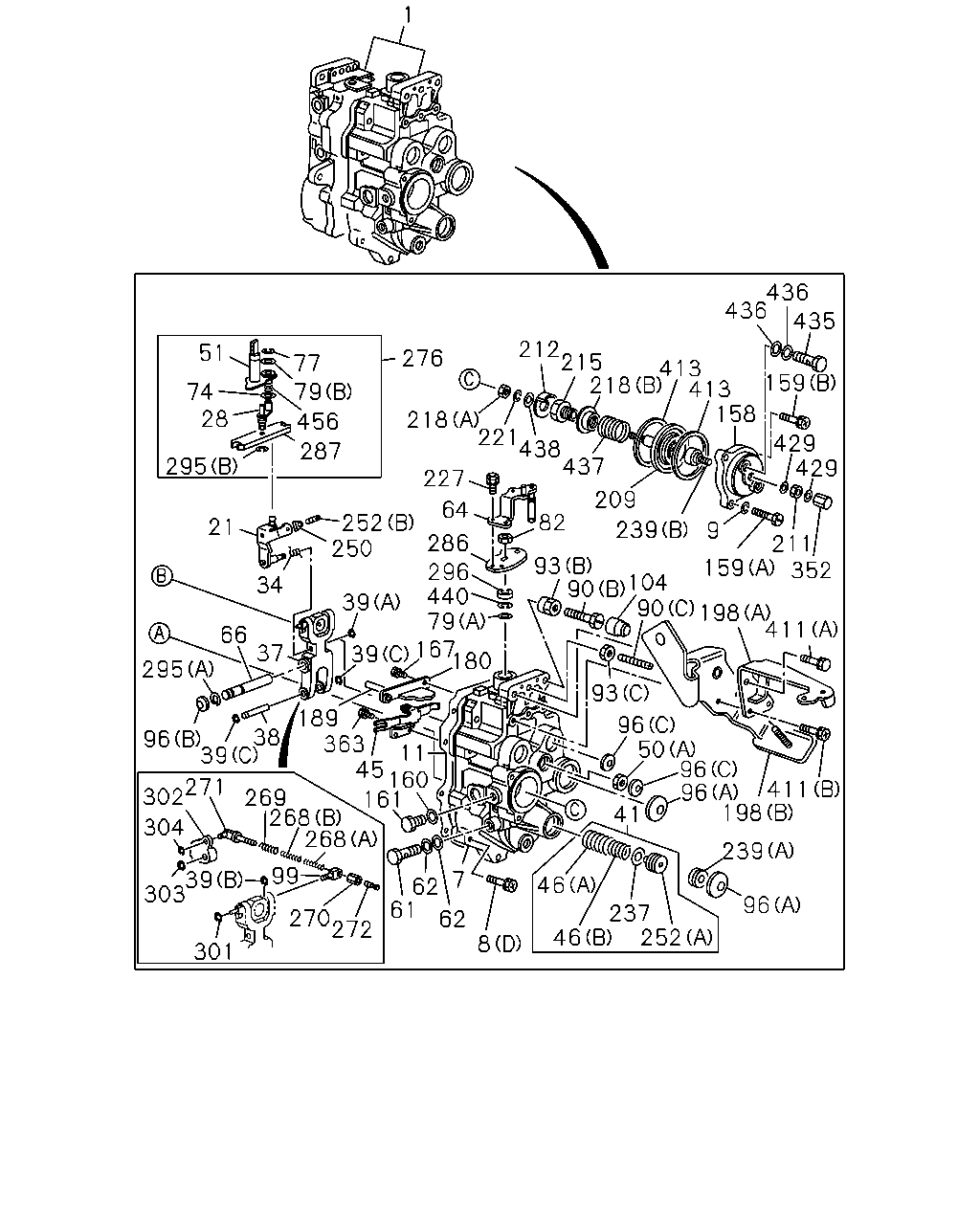

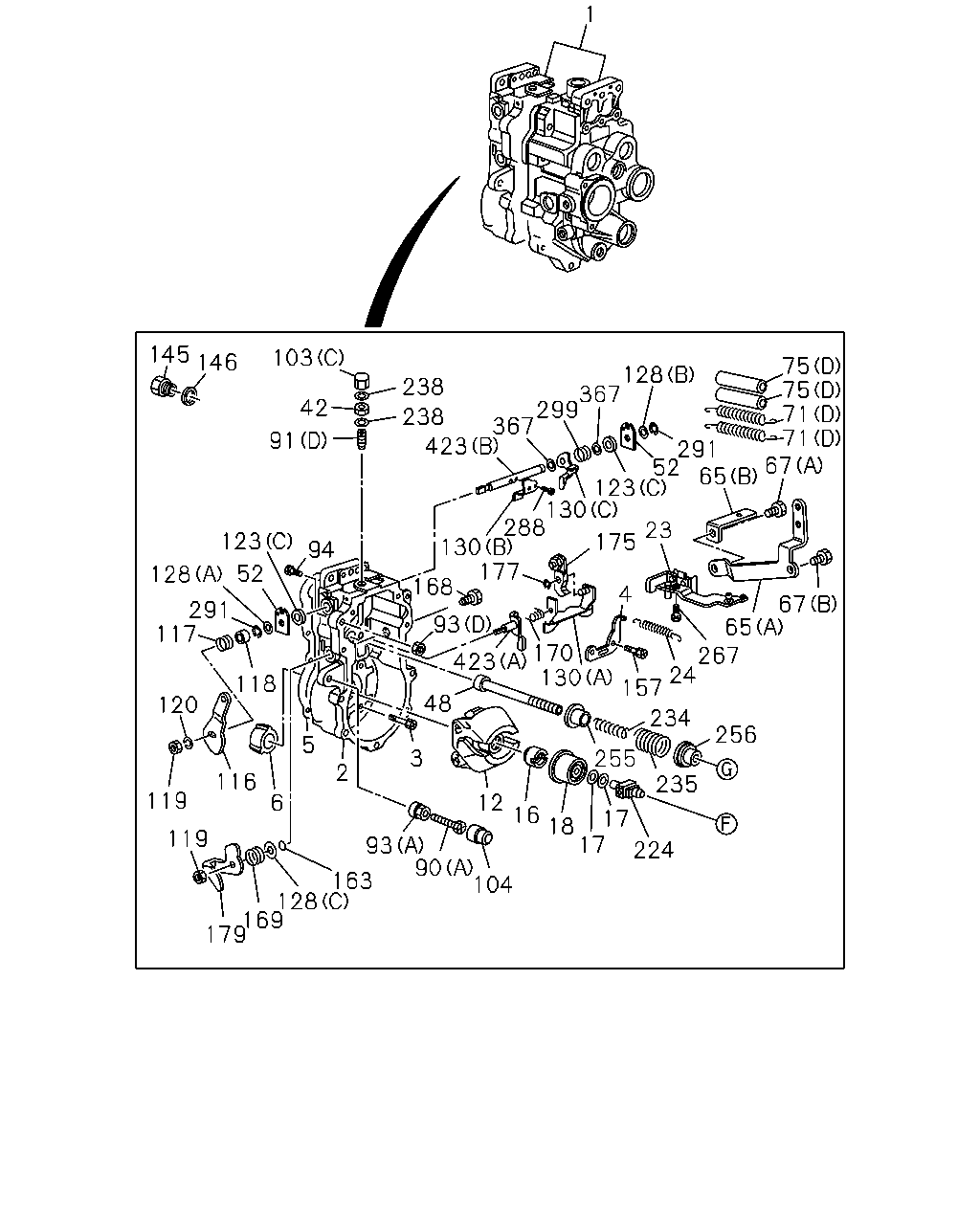

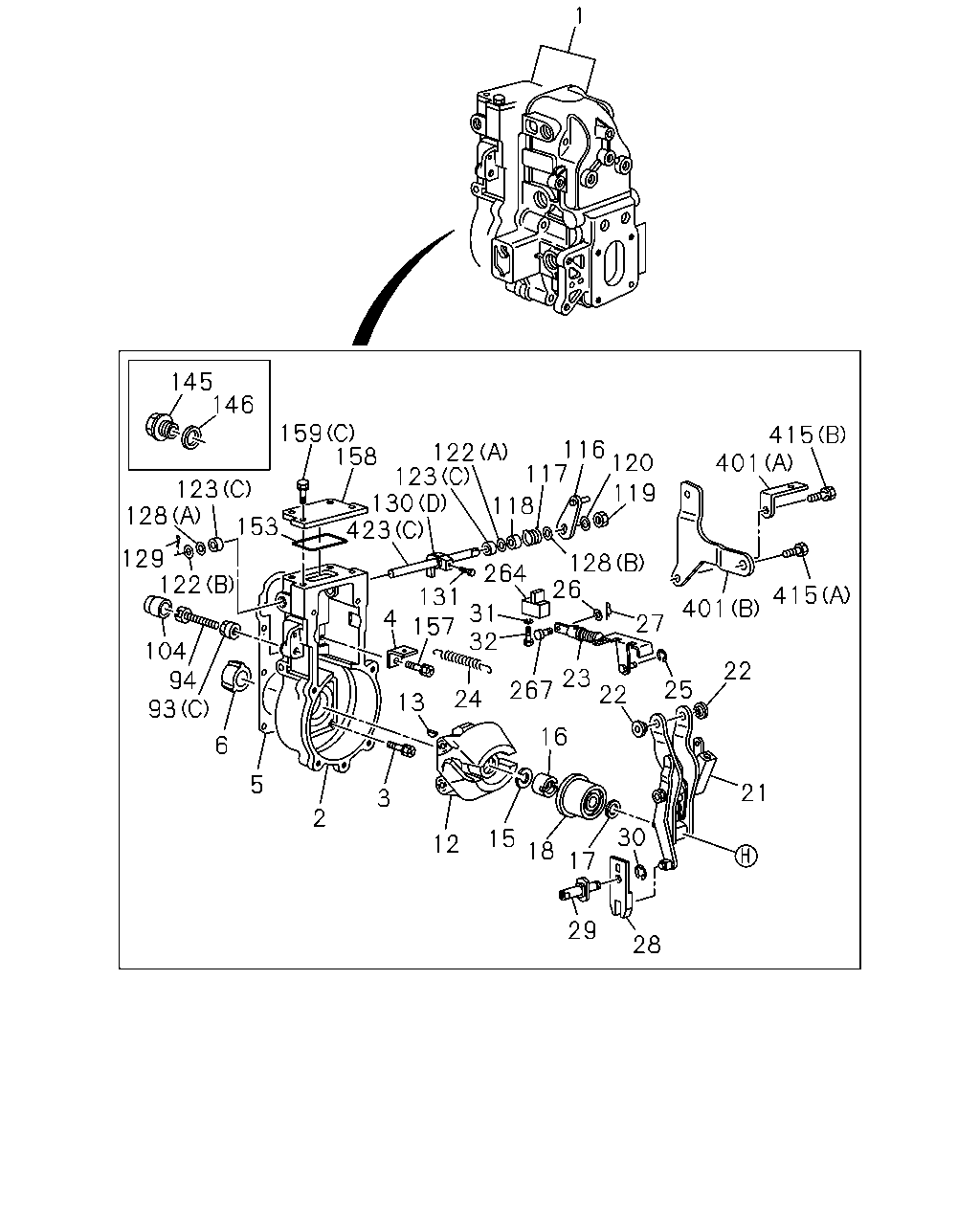

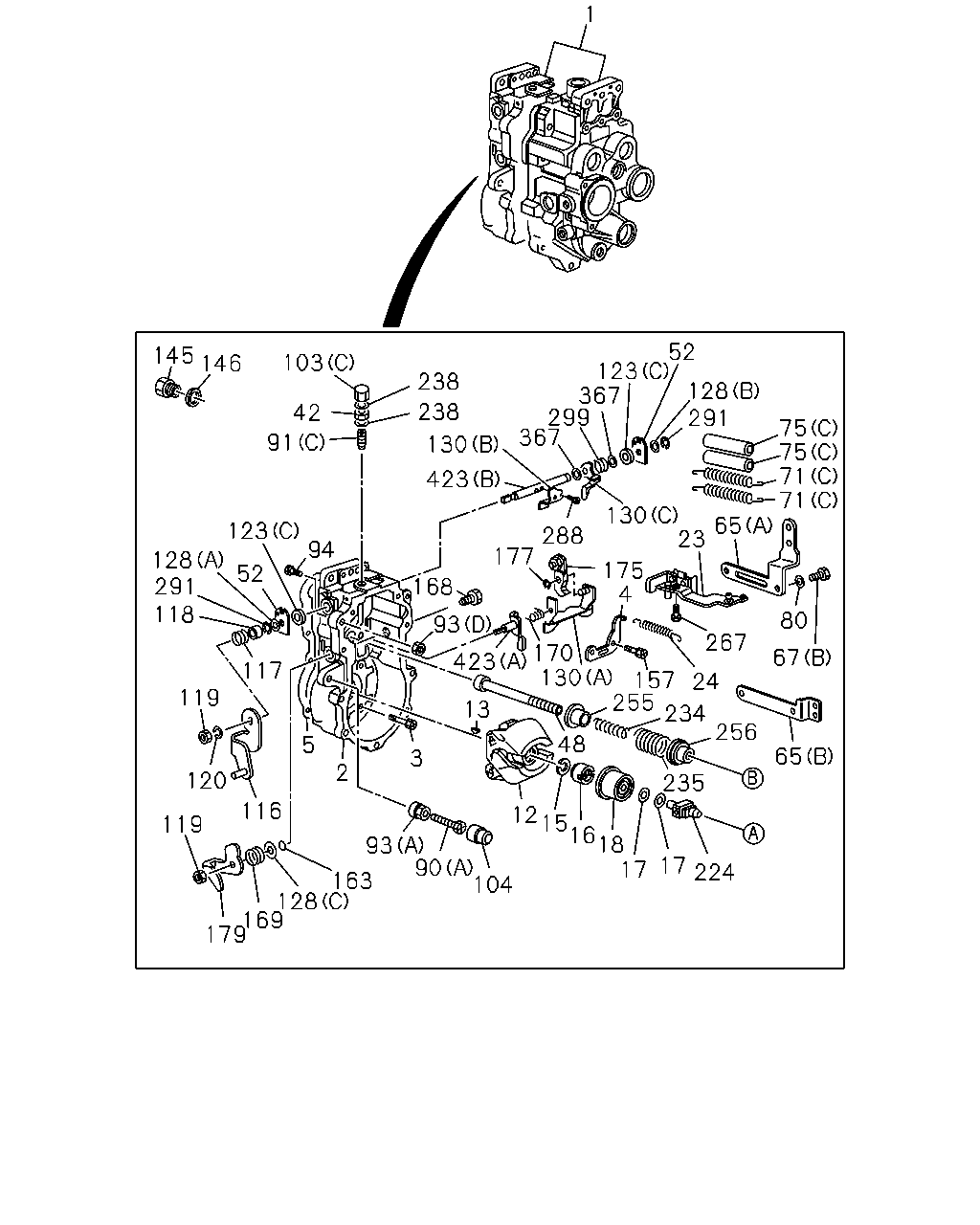

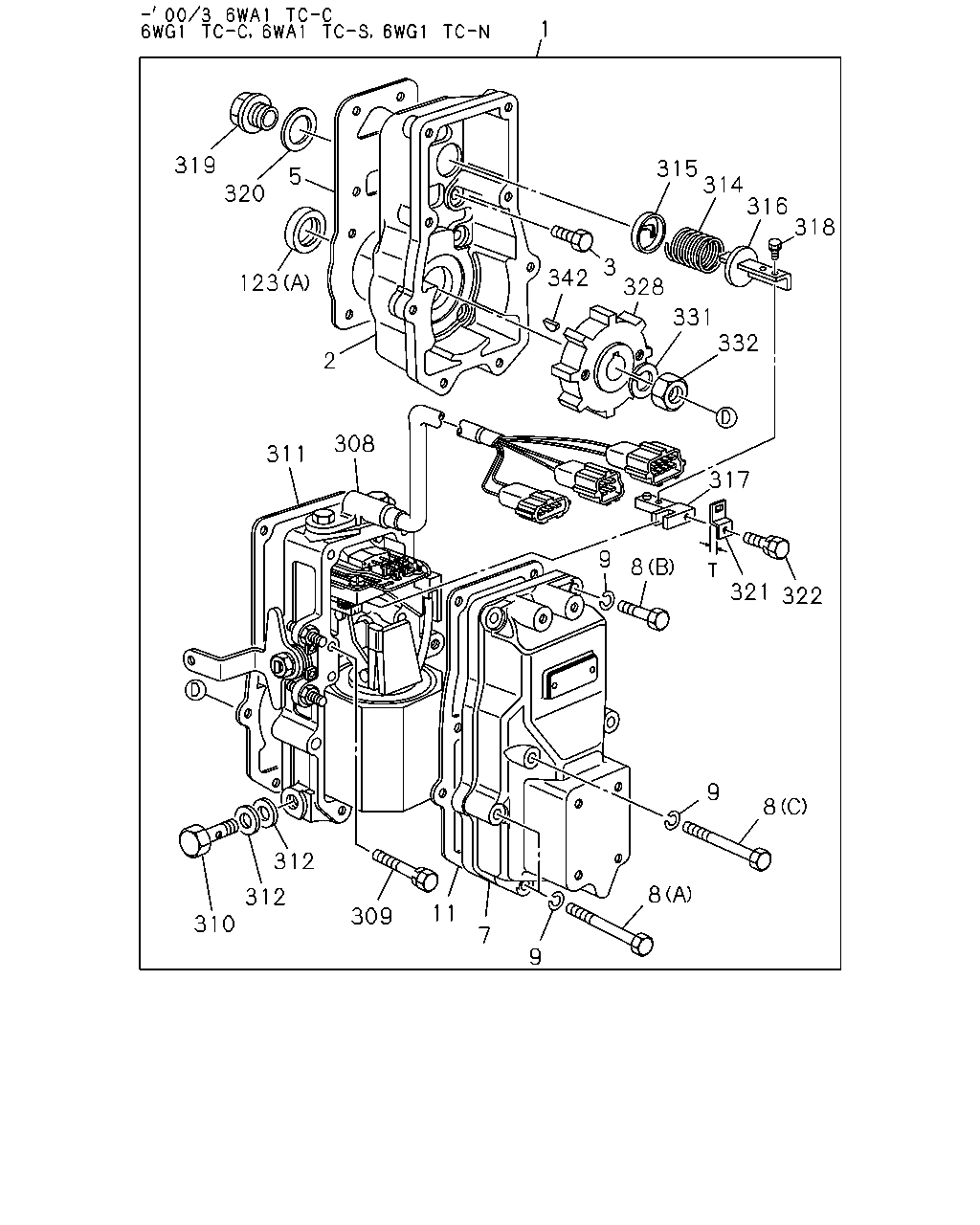

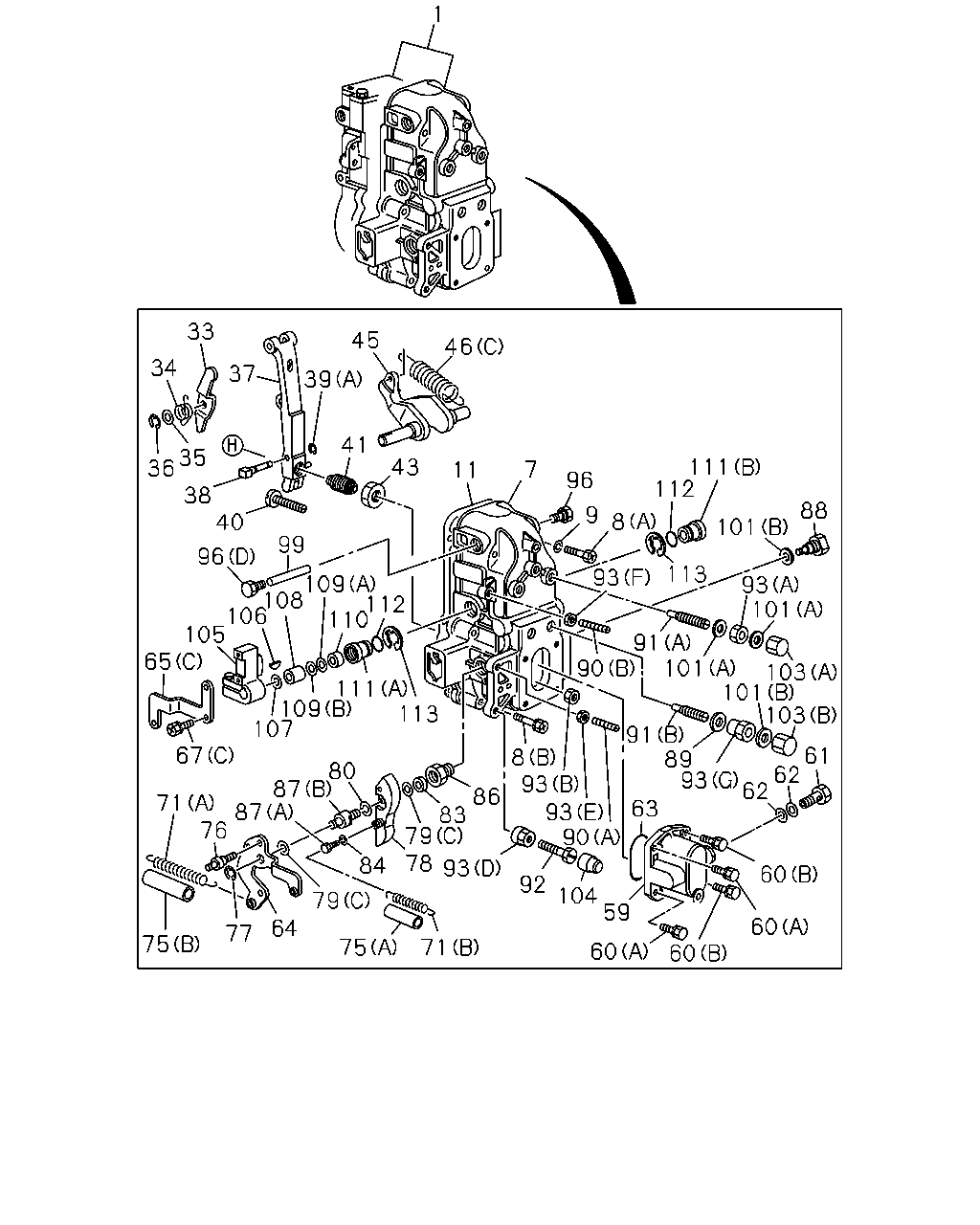

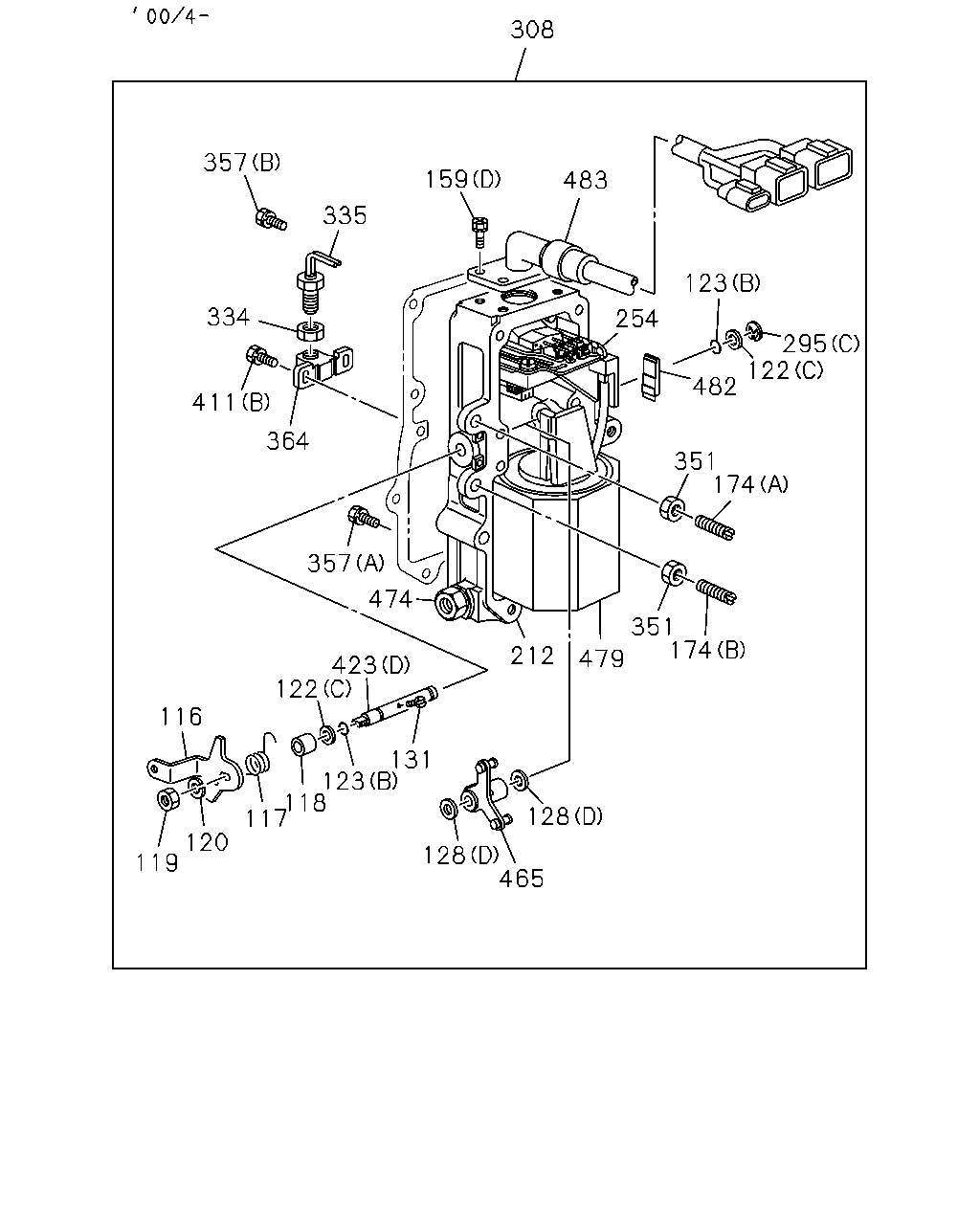

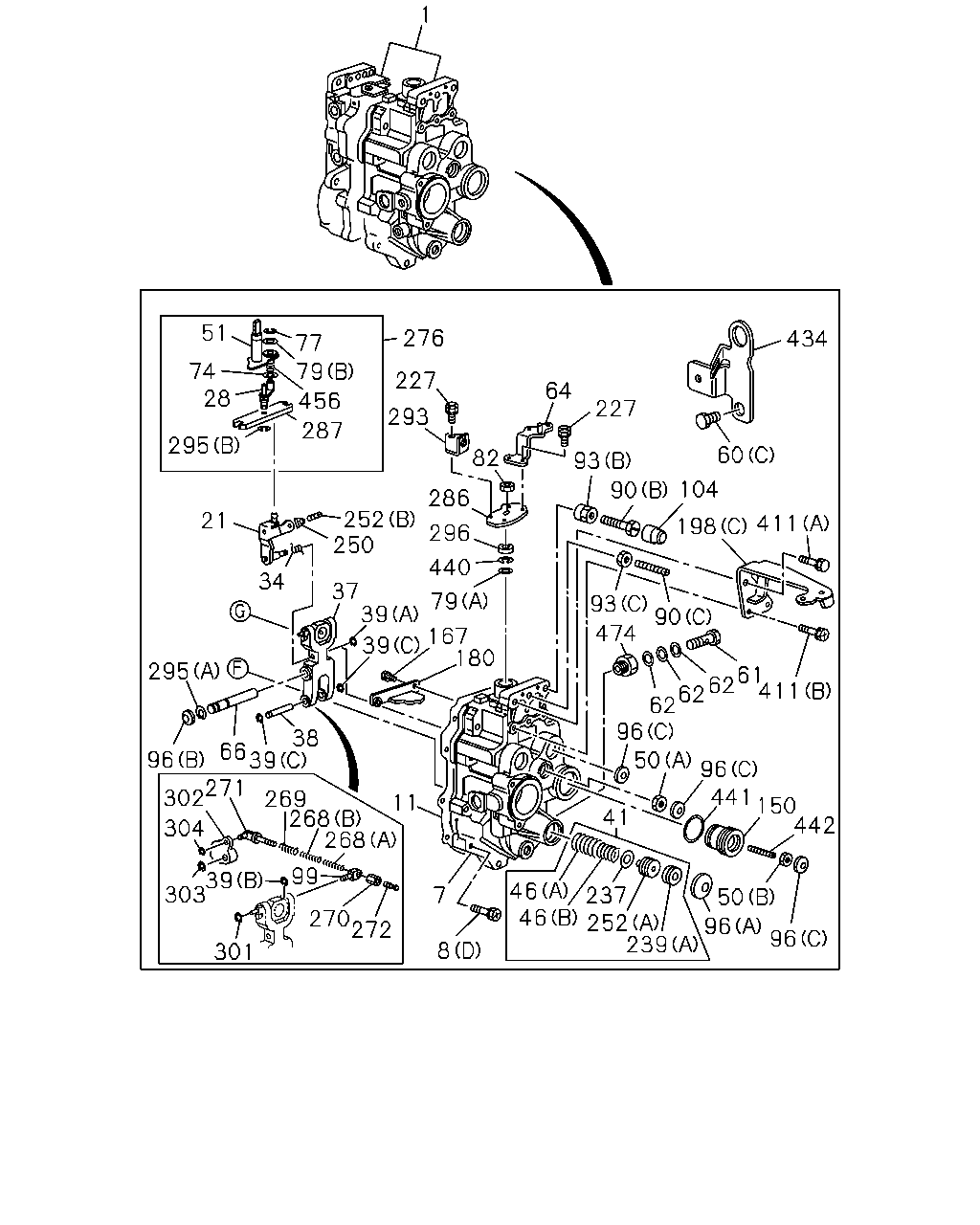

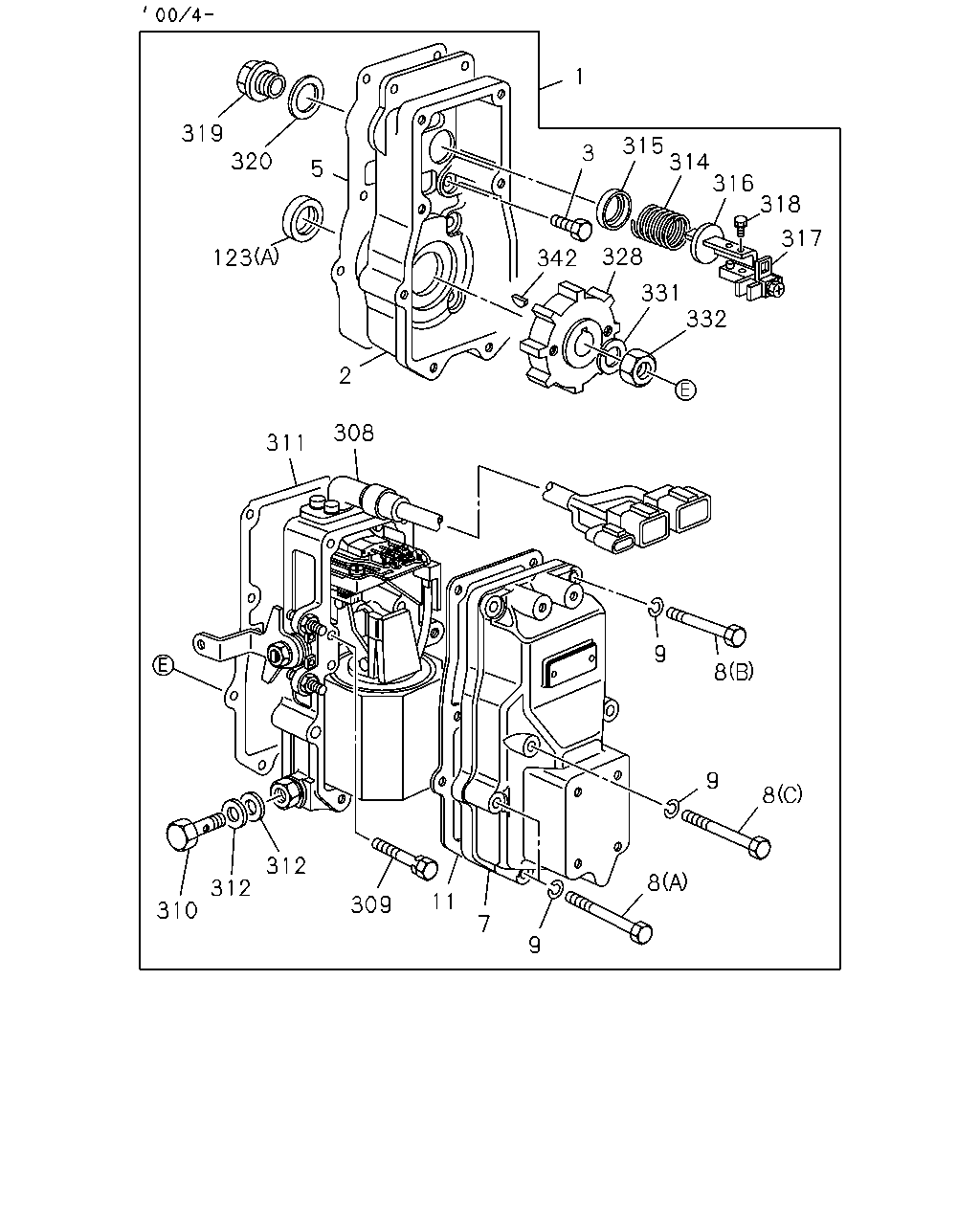

0-81 — GOVERNOR; INJECTION PUMP (#5015) — 1329 parça

1 145 146 103 75 75 1 71 291 52 67 65 123 130 288 130 177 128 367 299 367 423 238 42 238 91 23 175 123 94 52 128 168 4 67 291 117 93 423 65 267 24 157 170 130 118 48 120 234 256 5 3 255 2 116 235 119 12 6 16 17 18 17 119 93 90 224 104 163 128 169 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: E = 1-15603-156-1, I = 1-15603-265-3	1-15770-756-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15770-866-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 1-15603-114-4	1-15770-902-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: D = 1-15603-123-2	1-15770-910-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15770-966-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: G = 1-15603-209-1	1-15770-978-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: J = 1-15603-290-5	1-15790-025-2	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15721-121-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	1-15721-307-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15721-309-1	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: J = 1-15603-290-5	1-15721-345-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15729-846-0	10	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: J = 1-15603-290-5	1-15779-226-0	08	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	1-15779-226-0	06	1	-
3	BOLT; GOV HSG,INJ PUMP M6X20 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81325-187-0	04	1	-
4	PLATE; START SPRING,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-302-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-294-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15779-086-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15779-266-1	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	1-15779-297-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: J = 1-15603-290-5	1-15779-529-0	01	1	-
6	IMPELLER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81315-202-0	01	1	-
6	IMPELLER; GOV HSG,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	9-81315-207-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, F = 1-15603-201-0, J = 1-15603-290-5	1-15722-018-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: D = 1-15603-123-2	1-15722-028-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: G = 1-15603-209-1	1-15722-029-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-396-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	5-15729-429-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	9-81325-086-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-372-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15725-315-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-795-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: C = 1-15603-114-4	1-15725-795-0	01	1	-9610
23	LINK; LEVER TO CONT RACK,GOV ASM PART: C = 1-15603-114-4	1-15725-936-0	01	1	9611-
24	SPRING; START,GOV,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15723-162-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15723-450-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15723-524-0	01	1	-
42	NUT; SPRING CAPSULE,IDLE CONT,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	9-81393-204-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-240-0	01	1	-
52	WASHER; CONT SHAFT,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-269-0	02	1	-
65	BRACKET; RETURN SPRING,GOV (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-698-0	01	1	-
65	BRACKET; RETURN SPRING,GOV (A) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-253-0	01	1	-
65	BRACKET; RETURN SPRING,GOV (B) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-254-0	01	1	-
65	BRACKET; RETURN SPRING,GOV (A) ASM PART: C = 1-15603-114-4	1-15779-332-0	01	1	-
65	BRACKET; RETURN SPRING,GOV (B) ASM PART: J = 1-15603-290-5	1-15779-535-0	01	1	-
67	BOLT; SPRING BRKT,GOV (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15619-221-0	02	1	-
67	BOLT; SPRING BRKT,GOV (A) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15729-555-0	01	1	-
67	BOLT; SPRING BRKT,GOV (B) ASM PART: C = 1-15603-114-4	1-15729-818-0	02	1	-
67	BOLT; SPRING BRKT,GOV (B) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15729-818-0	01	1	-
71	SPRING; CONT LEVER,GOV (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15723-166-0	01	1	-
71	SPRING; CONT LEVER,GOV (B) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15723-205-0	01	1	-
71	SPRING; CONT LEVER,GOV (D) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15723-457-0	02	1	-
71	SPRING; CONT LEVER,GOV (C) ASM PART: J = 1-15603-290-5	1-15723-482-0	02	1	-
71	SPRING; CONT LEVER,GOV (C) ASM PART: C = 1-15603-114-4	1-15723-521-0	02	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-405-0	01	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV (B) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-467-0	01	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV (D) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-284-0	02	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV (C) ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	5-15729-013-0	02	1	-
90	SCREW; FULL LOAD ADJ,GOV (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-427-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X45 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-244-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X49 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-245-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X53 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-246-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-247-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M10X70 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-248-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), L=53 ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-296-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), L=62 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	5-15729-123-0	01	1	-
91	SPRING CAPSULE; ADJ,GOV (B) ASM PART: A = 1-15603-059-2	1-15723-182-0	01	1	-9606
91	SPRING CAPSULE; ADJ,GOV (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15723-356-0	01	1	-
91	SPRING CAPSULE; ADJ,GOV (D) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15723-455-0	01	1	-
91	SPRING CAPSULE; ADJ,GOV (C) ASM PART: C = 1-15603-114-4	1-15723-522-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (E) ASM PART: F = 1-15603-201-0	1-15729-006-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (E) ASM PART: A = 1-15603-059-2	1-15729-006-0	01	1	9607-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-055-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-425-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (G) ASM PART: A = 1-15603-059-2	1-15729-501-0	01	1	-9606
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-756-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-278-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (E), M6 ASM PART: A = 1-15603-059-2	9-09110-406-0	01	1	-9606
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C), M10 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-09111-410-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (F) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-84410-027-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-88410-525-0	01	1	-
94	SCREW; ADJ,CONT LEVER,GOV M8X62 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-642-0	01	1	-
94	SCREW; ADJ,CONT LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-233-0	01	1	-
103	NUT; CAP,ADJ SPRING CAPSULE,GOV (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-092-0	01	1	-
103	NUT; CAP,ADJ SPRING CAPSULE,GOV (B) ASM PART: A = 1-15603-059-2	1-15729-502-0	01	1	-9606
103	NUT; CAP,ADJ SPRING CAPSULE,GOV (C) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	1-15779-249-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	8-97085-022-0	02	1	-
116	LEVER; ENG STOP,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15725-776-1	01	1	-
116	LEVER; ENG STOP,GOV ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15725-871-1	01	1	-
116	LEVER; ENG STOP,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15725-873-0	01	1	-
116	LEVER; ENG STOP,GOV ASM PART: I = 1-15603-265-3	1-15725-972-0	01	1	0004-
117	SPRING; STOP LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15723-260-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15723-443-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: I = 1-15603-265-3	1-15723-612-0	01	1	0004-
118	COLLAR; CONT SHAFT,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-464-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-389-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: I = 1-15603-265-3	1-15779-738-0	01	1	0004-
119	NUT; ENG STOP LEVER,GOV ASM PART: I = 1-15603-265-3	1-15629-117-0	01	1	0004-
119	NUT; ENG STOP LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-236-0	02	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-236-0	01	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	1-83579-492-0	01	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV ASM PART: I = 1-15603-265-3	1-83579-492-0	01	1	0004-
123	SEAL; OIL,CONT SHAFT,GOV (A) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15639-012-0	01	1	-
123	SEAL; OIL,CONT SHAFT,GOV (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-975-0	02	1	-
123	SEAL; OIL,CONT SHAFT,GOV (C) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-282-0	02	1	-
123	SEAL; OIL,CONT SHAFT,GOV (B) ASM PART: I = 1-15603-265-3	5-15759-050-0	02	1	0004-
128	SHIM; CONT SHAFT,GOV (C), T=0.60 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-897-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.80 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-898-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.90 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-899-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.50 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-230-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.20 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-231-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-388-0	01	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.5 ASM PART: A = 1-15603-059-2	1-15779-459-0	AR	1	9607-
128	SHIM; CONT SHAFT,GOV (B), T=0.5 ASM PART: F = 1-15603-201-0	1-15779-459-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.2 ASM PART: F = 1-15603-201-0	1-15779-460-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.2 ASM PART: A = 1-15603-059-2	1-15779-460-0	AR	1	9607-
128	SHIM; CONT SHAFT,GOV (D) ASM PART: I = 1-15603-265-3	1-15779-730-0	02	1	0004-
128	SHIM; CONT SHAFT,GOV (C), T=0.50 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-556-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.30 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-557-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.40 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-558-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.25 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-559-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.35 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-560-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.5 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-88410-122-0	01	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.20 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-88410-421-0	AR	1	-
130	LEVER; CONT,GOV (D) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15725-569-0	01	1	-
130	LEVER; CONT,GOV (A) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-774-0	01	1	-
130	LEVER; CONT,GOV (A) ASM PART: C = 1-15603-114-4	1-15725-774-0	01	1	-9610
130	LEVER; CONT,GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-775-0	01	1	-
130	LEVER; CONT,GOV (C) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	1-15725-801-0	01	1	-
130	LEVER; CONT,GOV (A) ASM PART: C = 1-15603-114-4	1-15725-877-0	01	1	9611-
145	CAP; GOV COVER,INJ PUMP ASM PART: D = 1-15603-123-2	1-15729-041-0	01	1	-
145	CAP; GOV COVER,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15729-465-0	01	1	-
145	CAP; GOV COVER,INJ PUMP ASM PART: C = 1-15603-114-4	9-81325-525-0	01	1	-
146	GASKET; COVER CAP,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15629-056-0	01	1	-
146	GASKET; COVER CAP,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	9-81325-528-0	01	1	-
157	BOLT; START SPRING PLATE,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-226-0	02	1	-
157	BOLT; START SPRING PLATE,GOV M8X18 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81325-186-0	04	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-227-0	01	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-285-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15723-458-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15723-132-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: C = 1-15603-114-4	1-15725-793-0	01	1	-9610
175	LEVER; GOV,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-793-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: C = 1-15603-114-4	1-15725-854-0	01	1	9611-
177	RING; SNAP,GOV LEVER,INJ PUMP ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	8-94324-735-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-773-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: C = 1-15603-114-4	1-15725-773-0	01	1	-9610
179	LEVER; SPD ADJ,GOV ASM PART: C = 1-15603-114-4	1-15725-876-0	01	1	9611-
224	SHIFTER; TENSION LEVER,GOV ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-334-0	01	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-390-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15723-500-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15723-520-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15723-523-0	01	1	-
238	GASKET; SPRING CAPSULE CAP,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	8-94144-588-0	02	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-241-0	01	1	-
256	SEAT; GOV SPRING ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-242-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: A = 1-15603-059-2	1-15729-315-0	01	1	-9606
267	BOLT; CONN,CONT RACK,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15749-747-0	01	1	-
288	BOLT; LEVER ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-197-0	02	1	-
291	RING; SNAP,CONT SHAFT,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-196-0	02	1	-
299	SPRING; LEVER ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	1-15723-463-1	01	1	-
367	SHIM; SHAFT T=0.5 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	9-88410-122-0	02	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-463-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-228-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-387-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: C = 1-15603-114-4	1-15779-387-0	01	1	-9610
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: C = 1-15603-114-4	1-15779-607-0	01	1	9611-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: J = 1-15603-290-5	1-15779-607-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (D) ASM PART: I = 1-15603-265-3	1-15779-729-0	01	1	0004-

1 51 276 434 77 79 74 28 227 64 456 227 293 287 295 60 82 93 104 90 286 252 250 21 198 411 296 440 34 37 39 79 93 90 474 167 180 39 295 61 62 62 411 62 96 38 66 96 39 271 302 50 96 441 269 268 304 268 39 99 303 11 150 442 41 46 237 46 252 239 50 7 270 272 96 96 8 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: E = 1-15603-156-1, I = 1-15603-265-3	1-15770-756-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15770-866-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 1-15603-114-4	1-15770-902-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: D = 1-15603-123-2	1-15770-910-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15770-966-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: G = 1-15603-209-1	1-15770-978-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: J = 1-15603-290-5	1-15790-025-2	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15721-191-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-059-2	1-15721-246-0	01	1	-9606
7	COVER; GOV HSG,INJ PUMP ASM PART: F = 1-15603-201-0	1-15721-257-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-059-2	1-15721-257-0	01	1	9607-
7	COVER; GOV HSG,INJ PUMP ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15721-325-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15721-340-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3	1-15729-251-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: I = 1-15603-265-3	1-15729-251-0	02	1	-0003
8	BOLT; GOV COVER,INJ PUMP (A), WO/WASHER ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-284-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: I = 1-15603-265-3	1-15729-312-0	04	1	-0003
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3	1-15729-312-0	04	1	-
8	BOLT; GOV COVER,INJ PUMP (C) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15729-683-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (D) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-033-0	09	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	5-15729-253-0	05	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15779-087-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15779-146-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-251-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15725-395-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-779-1	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-798-1	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81322-131-0	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: A = 1-15603-059-2	1-15723-165-0	01	1	-9606
34	SPRING; SPD CONT LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15723-444-1	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: A = 1-15603-059-2	1-15725-390-1	01	1	-9606
37	LEVER ASM; TENSION,GOV ASM PART: A = 1-15603-059-2	1-15725-430-0	01	1	9607-
37	LEVER ASM; TENSION,GOV ASM PART: F = 1-15603-201-0	1-15725-430-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: C = 1-15603-114-4	1-15725-778-0	01	1	-9610
37	LEVER ASM; TENSION,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-874-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: C = 1-15603-114-4	1-15725-874-0	01	1	9611-
38	PIN; TENSION LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-692-0	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-271-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-09588-170-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (C) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	8-94244-599-0	02	1	-
39	RING; SNAP,LEVER PIN,GOV (A), ID=4 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	9-09185-404-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 1-15603-059-2	1-15723-337-0	01	1	-9606
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15723-451-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: F = 1-15603-201-0	1-15723-528-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 1-15603-059-2	1-15723-528-0	01	1	9607-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: C = 1-15603-114-4	1-15723-537-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: J = 1-15603-290-5	1-15723-574-0	01	1	-
46	SPRING; GOV,INJ PUMP (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15723-171-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15723-460-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15723-461-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15723-506-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: C = 1-15603-114-4	1-15723-513-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	8-94171-147-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP (B), M5 ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	9-99110-405-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-295-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-369-0	01	1	-
60	BOLT; COVER FIX,GOV COVER (C) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-039-0	01	1	-
60	BOLT; COVER FIX,GOV COVER (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	5-15729-063-0	02	1	-
60	BOLT; COVER FIX,GOV COVER (B), M6X16 W/LK WASHER ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-01900-616-0	02	1	-
61	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, F = 1-15603-201-0, J = 1-15603-290-5	1-15619-091-0	01	1	-
61	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-421-0	01	1	-
62	GASKET; EYE BOLT,OIL RETURN,INJ PUMP L=96 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, F = 1-15603-201-0, J = 1-15603-290-5	1-15729-066-0	02	1	-
62	GASKET; EYE BOLT,OIL RETURN,INJ PUMP L=96 ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15729-066-0	03	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 1-15603-059-2	1-15725-391-0	01	1	-9606
64	LEVER; LOAD CONT,GOV ASM PART: F = 1-15603-201-0	1-15725-404-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 1-15603-059-2	1-15725-404-0	01	1	9607-
64	LEVER; LOAD CONT,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15725-799-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15725-872-1	01	1	-
66	SHAFT; LEVER ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-234-0	01	1	-
74	WASHER; LEVER SPR ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-232-0	01	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-023-0	01	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	8-94324-735-0	01	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.95 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-076-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.20 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-077-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.25 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-078-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.30 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-079-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.35 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-080-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.40 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-081-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.50 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-082-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.10 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-407-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.15 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-408-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.20 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-409-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.50 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-410-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.70 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-617-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.90 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-618-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.80 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-619-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.60 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-896-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-988-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-232-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-236-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-427-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X45 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-244-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X49 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-245-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X53 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-246-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-247-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M10X70 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-248-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), L=53 ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-296-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), L=62 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	5-15729-123-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (E) ASM PART: F = 1-15603-201-0	1-15729-006-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (E) ASM PART: A = 1-15603-059-2	1-15729-006-0	01	1	9607-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-055-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-425-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (G) ASM PART: A = 1-15603-059-2	1-15729-501-0	01	1	-9606
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-756-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-278-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (E), M6 ASM PART: A = 1-15603-059-2	9-09110-406-0	01	1	-9606
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C), M10 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-09111-410-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (F) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-84410-027-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-88410-525-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (D) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-426-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-293-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-293-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-076-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	8-94171-148-0	04	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	8-94171-148-0	03	1	-
99	PIN; TENSION LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-448-0	01	1	-
99	PIN; TENSION LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-286-1	01	1	-
104	CAP; LOCK NUT,ADJ SCREW ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	8-97085-022-0	02	1	-
150	ADAPTER; GOV HSG,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-370-0	01	1	-
167	BOLT; PLATE M6X16 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-071-0	02	1	-
180	PLATE; GOV COVER ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-257-0	01	1	-
180	PLATE; GOV COVER ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-488-0	01	1	-
198	BRACKET; COVER (C) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-315-0	01	1	-
198	BRACKET; COVER (B) ASM PART: C = 1-15603-114-4	1-15779-444-0	01	1	-9610
198	BRACKET; COVER (A) ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-445-0	01	1	-
198	BRACKET; COVER (B) ASM PART: J = 1-15603-290-5	1-89963-688-3	01	1	-
198	BRACKET; COVER (B) ASM PART: C = 1-15603-114-4	1-89963-688-3	01	1	9611-
227	BOLT; GOV LEVER ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15719-005-0	04	1	-
227	BOLT; GOV LEVER ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15719-005-0	02	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=2.00 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-891-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=3.00 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-892-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=4.00 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-893-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-286-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.50 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-287-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-088-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-551-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.40 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-552-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-553-0	AR	1	-
239	SCREW; GOV (B) ASM PART: C = 1-15603-114-4	1-15729-386-0	01	1	-
239	SCREW; GOV (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-239-0	01	1	-
239	SCREW; GOV (B) ASM PART: J = 1-15603-290-5	8-97037-287-0	01	1	-
250	NUT; GUIDE SCREW,GOV SHAFT ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-287-0	01	1	-
252	SCREW; GUIDE (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-238-0	01	1	-
252	SCREW; GUIDE (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-288-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15723-445-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15723-446-0	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15723-459-0	01	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-272-0	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-235-1	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-289-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15725-797-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15725-825-0	01	1	-
286	LEVER; GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-782-0	01	1	-
287	LEVER; GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-781-0	01	1	-
293	LEVER; CONT ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15725-803-0	01	1	-
295	RING; SNAP (C) ASM PART: I = 1-15603-265-3	1-15729-723-0	01	1	0004-
295	RING; SNAP (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-273-0	02	1	-
295	RING; SNAP (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-023-0	01	1	-
296	SEAL; OIL,CONT SHAFT,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	8-97024-879-0	01	1	-
301	RING; SNAP ID=4 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-09185-404-0	01	1	-
302	PLATE; CAM,GOV ASM PART: C = 1-15603-114-4	1-15779-489-0	01	1	-9610
302	PLATE; CAM,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-498-0	01	1	-
302	PLATE; CAM,GOV ASM PART: J = 1-15603-290-5	1-15779-622-0	01	1	-
302	PLATE; CAM,GOV ASM PART: C = 1-15603-114-4	1-15779-767-0	01	1	9611-
303	RING; SNAP,CAM PLATE,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-023-0	01	1	-
304	RING; SNAP,LINK TO CAM PLATE,GOV ID=4 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-09185-404-0	01	1	-
411	BOLT; BRKT (B) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-187-0	02	1	-
411	BOLT; BRKT (A) ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-415-0	01	1	-
411	BOLT; BRKT (B), M6X16 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	5-15729-071-0	02	1	-
411	BOLT; BRKT (A) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	5-15729-208-0	01	1	-
434	HANGER; GOV ASM PART: D = 1-15603-123-2	1-15779-318-1	01	1	-
434	HANGER; GOV ASM PART: G = 1-15603-209-1	1-15779-545-0	01	1	-
440	RING; SNAP,LEVER ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-989-0	01	1	-
441	GASKET; ADAPTER ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	8-97037-290-0	01	1	-
442	SCREW; ADJ ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-371-0	01	1	-
456	SPRING; LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15723-462-0	01	1	-
474	ADAPTER; GOVERNOR,INJ PUMP ASM PART: G = 1-15603-209-1	1-15779-558-0	01	1	-

1 145 146 159 158 415 401 116 120 117 122 123 130 423 123 128 119 118 153 264 129 122 128 26 415 131 157 401 31 32 4 27 104 94 93 22 23 267 22 25 24 13 16 6 5 21 3 30 2 15 12 18 17 29 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: E = 1-15603-156-1, I = 1-15603-265-3	1-15770-756-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15770-866-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 1-15603-114-4	1-15770-902-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: D = 1-15603-123-2	1-15770-910-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15770-966-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: G = 1-15603-209-1	1-15770-978-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: J = 1-15603-290-5	1-15790-025-2	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15721-121-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	1-15721-307-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15721-309-1	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: J = 1-15603-290-5	1-15721-345-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15729-846-0	10	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: J = 1-15603-290-5	1-15779-226-0	08	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	1-15779-226-0	06	1	-
3	BOLT; GOV HSG,INJ PUMP M6X20 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81325-187-0	04	1	-
4	PLATE; START SPRING,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-302-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-294-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15779-086-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15779-266-1	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	1-15779-297-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: J = 1-15603-290-5	1-15779-529-0	01	1	-
6	IMPELLER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81315-202-0	01	1	-
6	IMPELLER; GOV HSG,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	9-81315-207-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, F = 1-15603-201-0, J = 1-15603-290-5	1-15722-018-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: D = 1-15603-123-2	1-15722-028-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: G = 1-15603-209-1	1-15722-029-0	01	1	-
13	KEY; FLYWEIGHT,GOV 16MM ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	5-19619-049-0	01	1	-
13	KEY; FLYWEIGHT,GOV 13MM ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, F = 1-15603-201-0, J = 1-15603-290-5	9-81325-030-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, F = 1-15603-201-0, J = 1-15603-290-5	5-15729-034-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-396-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	5-15729-429-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	9-81325-086-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-372-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15725-395-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-779-1	01	1	-
22	COLLAR; LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-449-0	02	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15725-315-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-795-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: C = 1-15603-114-4	1-15725-795-0	01	1	-9610
23	LINK; LEVER TO CONT RACK,GOV ASM PART: C = 1-15603-114-4	1-15725-936-0	01	1	9611-
24	SPRING; START,GOV,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15723-162-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15723-450-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15723-524-0	01	1	-
25	RING; SNAP ID=4 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-09185-404-0	01	1	-
26	SHIM; CONN PIN,CONT RACK,GOV ASM PART: A = 1-15603-059-2	9-81325-181-0	01	1	-9606
27	PIN; SNAP,CONN PIN,CONT RACK ASM PART: A = 1-15603-059-2	1-15729-316-0	01	1	-9606
28	LEVER; SUPPORTING,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-798-1	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81322-131-0	01	1	-
29	SHAFT; SUPPORTING LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-696-0	01	1	-
30	RING; SNAP,SUPPORTING LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	5-15729-023-0	01	1	-
31	WASHER; LK,CONT RACK,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-475-0	01	1	-
32	SCREW; CONT RACK,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-476-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (E) ASM PART: F = 1-15603-201-0	1-15729-006-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (E) ASM PART: A = 1-15603-059-2	1-15729-006-0	01	1	9607-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-055-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-425-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (G) ASM PART: A = 1-15603-059-2	1-15729-501-0	01	1	-9606
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-756-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-278-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (E), M6 ASM PART: A = 1-15603-059-2	9-09110-406-0	01	1	-9606
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C), M10 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-09111-410-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (F) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-84410-027-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-88410-525-0	01	1	-
94	SCREW; ADJ,CONT LEVER,GOV M8X62 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-642-0	01	1	-
94	SCREW; ADJ,CONT LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-233-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	8-97085-022-0	02	1	-
116	LEVER; ENG STOP,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15725-776-1	01	1	-
116	LEVER; ENG STOP,GOV ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15725-871-1	01	1	-
116	LEVER; ENG STOP,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15725-873-0	01	1	-
116	LEVER; ENG STOP,GOV ASM PART: I = 1-15603-265-3	1-15725-972-0	01	1	0004-
117	SPRING; STOP LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15723-260-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15723-443-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: I = 1-15603-265-3	1-15723-612-0	01	1	0004-
118	COLLAR; CONT SHAFT,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-464-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-389-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: I = 1-15603-265-3	1-15779-738-0	01	1	0004-
119	NUT; ENG STOP LEVER,GOV ASM PART: I = 1-15603-265-3	1-15629-117-0	01	1	0004-
119	NUT; ENG STOP LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-236-0	02	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-236-0	01	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	1-83579-492-0	01	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV ASM PART: I = 1-15603-265-3	1-83579-492-0	01	1	0004-
122	WASHER; CONT SHAFT,GOV (A), T=1 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-693-0	01	1	-
122	WASHER; CONT SHAFT,GOV (B), T=1.5 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-694-0	01	1	-
122	WASHER; CONT SHAFT,GOV (C), ID=10.5 ASM PART: I = 1-15603-265-3	9-09164-510-0	02	1	0004-
123	SEAL; OIL,CONT SHAFT,GOV (A) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15639-012-0	01	1	-
123	SEAL; OIL,CONT SHAFT,GOV (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-975-0	02	1	-
123	SEAL; OIL,CONT SHAFT,GOV (C) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-282-0	02	1	-
123	SEAL; OIL,CONT SHAFT,GOV (B) ASM PART: I = 1-15603-265-3	5-15759-050-0	02	1	0004-
128	SHIM; CONT SHAFT,GOV (C), T=0.60 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-897-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.80 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-898-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.90 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-899-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.50 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-230-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.20 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-231-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-388-0	01	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.5 ASM PART: A = 1-15603-059-2	1-15779-459-0	AR	1	9607-
128	SHIM; CONT SHAFT,GOV (B), T=0.5 ASM PART: F = 1-15603-201-0	1-15779-459-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.2 ASM PART: F = 1-15603-201-0	1-15779-460-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.2 ASM PART: A = 1-15603-059-2	1-15779-460-0	AR	1	9607-
128	SHIM; CONT SHAFT,GOV (D) ASM PART: I = 1-15603-265-3	1-15779-730-0	02	1	0004-
128	SHIM; CONT SHAFT,GOV (C), T=0.50 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-556-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.30 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-557-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.40 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-558-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.25 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-559-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.35 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-560-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.5 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-88410-122-0	01	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.20 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-88410-421-0	AR	1	-
129	PIN; SPLIT,CONT SHAFT,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81315-191-0	01	1	-
130	LEVER; CONT,GOV (D) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15725-569-0	01	1	-
130	LEVER; CONT,GOV (A) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-774-0	01	1	-
130	LEVER; CONT,GOV (A) ASM PART: C = 1-15603-114-4	1-15725-774-0	01	1	-9610
130	LEVER; CONT,GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-775-0	01	1	-
130	LEVER; CONT,GOV (C) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	1-15725-801-0	01	1	-
130	LEVER; CONT,GOV (A) ASM PART: C = 1-15603-114-4	1-15725-877-0	01	1	9611-
131	SCREW; LEVER TO SHAFT,GOV ASM PART: F = 1-15603-201-0	1-15779-497-0	01	1	-
131	SCREW; LEVER TO SHAFT,GOV ASM PART: A = 1-15603-059-2	1-15779-497-0	01	1	9607-
131	SCREW; LEVER TO SHAFT,GOV ASM PART: I = 1-15603-265-3	1-15779-739-0	01	1	0004-
131	SCREW; LEVER TO SHAFT,GOV ASM PART: A = 1-15603-059-2	9-81315-069-0	01	1	-9606
145	CAP; GOV COVER,INJ PUMP ASM PART: D = 1-15603-123-2	1-15729-041-0	01	1	-
145	CAP; GOV COVER,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15729-465-0	01	1	-
145	CAP; GOV COVER,INJ PUMP ASM PART: C = 1-15603-114-4	9-81325-525-0	01	1	-
146	GASKET; COVER CAP,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15629-056-0	01	1	-
146	GASKET; COVER CAP,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	9-81325-528-0	01	1	-
153	GASKET; GOV HSG,INJ PUMP ASM PART: F = 1-15603-201-0	1-15729-569-0	01	1	-
153	GASKET; GOV HSG,INJ PUMP ASM PART: A = 1-15603-059-2	1-15729-569-0	01	1	9607-
157	BOLT; START SPRING PLATE,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-226-0	02	1	-
157	BOLT; START SPRING PLATE,GOV M8X18 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81325-186-0	04	1	-
158	COVER; GOV HSG ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15619-283-0	01	1	-
158	COVER; GOV HSG ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15721-195-0	01	1	-
159	BOLT; COVER (A) ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-202-0	02	1	-
159	BOLT; COVER (C), M6X16 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	5-15729-071-0	04	1	-
159	BOLT; COVER (B), M6X20 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	9-81325-187-0	01	1	-
264	CONNECTOR; CONT RACK,GOV ASM PART: A = 1-15603-059-2	1-15729-574-0	01	1	-9606
264	CONNECTOR; CONT RACK,GOV ASM PART: F = 1-15603-201-0	1-15779-523-0	01	1	-
264	CONNECTOR; CONT RACK,GOV ASM PART: A = 1-15603-059-2	1-15779-523-0	01	1	9607-
267	BOLT; CONN,CONT RACK,GOV ASM PART: A = 1-15603-059-2	1-15729-315-0	01	1	-9606
267	BOLT; CONN,CONT RACK,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15749-747-0	01	1	-
401	BRACKET; HOUSING (B) ASM PART: A = 1-15603-059-2	1-15779-450-0	01	1	-9606
401	BRACKET; HOUSING (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15779-451-0	01	1	-
401	BRACKET; HOUSING (B) ASM PART: F = 1-15603-201-0	1-15779-465-0	01	1	-
401	BRACKET; HOUSING (B) ASM PART: A = 1-15603-059-2	1-15779-465-0	01	1	9607-
415	BOLT; BRKT TO HOUSING (A) ASM PART: A = 1-15603-059-2	1-15779-452-0	01	1	-9606
415	BOLT; BRKT TO HOUSING (A) ASM PART: F = 1-15603-201-0	1-15779-467-0	01	1	-
415	BOLT; BRKT TO HOUSING (A) ASM PART: A = 1-15603-059-2	1-15779-467-0	01	1	9607-
415	BOLT; BRKT TO HOUSING (B), M8X18 W/LK WASHER ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-01900-818-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-463-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-228-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-387-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: C = 1-15603-114-4	1-15779-387-0	01	1	-9610
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: C = 1-15603-114-4	1-15779-607-0	01	1	9611-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: J = 1-15603-290-5	1-15779-607-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (D) ASM PART: I = 1-15603-265-3	1-15779-729-0	01	1	0004-

1 33 45 46 34 37 39 41 35 36 38 40 43 111 112 7 11 96 88 9 8 101 99 96 93 113 93 101 109 108 106 105 65 112 110 91 90 101 103 101 103 111 109 107 113 91 89 93 67 61 62 62 8 93 93 90 80 87 71 87 76 86 83 79 78 63 84 93 60 92 104 59 71 79 60 64 77 75 75 60 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: E = 1-15603-156-1, I = 1-15603-265-3	1-15770-756-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15770-866-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 1-15603-114-4	1-15770-902-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: D = 1-15603-123-2	1-15770-910-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15770-966-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: G = 1-15603-209-1	1-15770-978-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: J = 1-15603-290-5	1-15790-025-2	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15721-191-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-059-2	1-15721-246-0	01	1	-9606
7	COVER; GOV HSG,INJ PUMP ASM PART: F = 1-15603-201-0	1-15721-257-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-059-2	1-15721-257-0	01	1	9607-
7	COVER; GOV HSG,INJ PUMP ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15721-325-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15721-340-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3	1-15729-251-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: I = 1-15603-265-3	1-15729-251-0	02	1	-0003
8	BOLT; GOV COVER,INJ PUMP (A), WO/WASHER ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-284-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: I = 1-15603-265-3	1-15729-312-0	04	1	-0003
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3	1-15729-312-0	04	1	-
8	BOLT; GOV COVER,INJ PUMP (C) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15729-683-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (D) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-033-0	09	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	5-15729-253-0	05	1	-
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3	9-09150-506-0	08	1	-
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: I = 1-15603-265-3	9-09150-506-0	02	1	0004-
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: I = 1-15603-265-3	9-09150-506-0	08	1	-0003
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, F = 1-15603-201-0, J = 1-15603-290-5	9-09150-506-0	02	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15779-087-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15779-146-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-251-0	01	1	-
33	LEVER; SPD CONT,GOV ASM PART: A = 1-15603-059-2	1-15725-258-0	01	1	-9606
34	SPRING; SPD CONT LEVER,GOV ASM PART: A = 1-15603-059-2	1-15723-165-0	01	1	-9606
34	SPRING; SPD CONT LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15723-444-1	01	1	-
35	SHIM; SPD CONT LEVER,GOV T=0.20 ASM PART: A = 1-15603-059-2	9-81325-419-0	01	1	-9606
36	RING; SNAP,SPD CONT LEVER,GOV ASM PART: A = 1-15603-059-2	1-15729-446-0	01	1	-9606
37	LEVER ASM; TENSION,GOV ASM PART: A = 1-15603-059-2	1-15725-390-1	01	1	-9606
37	LEVER ASM; TENSION,GOV ASM PART: A = 1-15603-059-2	1-15725-430-0	01	1	9607-
37	LEVER ASM; TENSION,GOV ASM PART: F = 1-15603-201-0	1-15725-430-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: C = 1-15603-114-4	1-15725-778-0	01	1	-9610
37	LEVER ASM; TENSION,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-874-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: C = 1-15603-114-4	1-15725-874-0	01	1	9611-
38	PIN; TENSION LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-692-0	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-271-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-09588-170-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (C) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	8-94244-599-0	02	1	-
39	RING; SNAP,LEVER PIN,GOV (A), ID=4 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	9-09185-404-0	01	1	-
40	SCREW; LEVER ADJ,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-573-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 1-15603-059-2	1-15723-337-0	01	1	-9606
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15723-451-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: F = 1-15603-201-0	1-15723-528-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 1-15603-059-2	1-15723-528-0	01	1	9607-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: C = 1-15603-114-4	1-15723-537-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: J = 1-15603-290-5	1-15723-574-0	01	1	-
43	NUT; IDLING CONT SPRING,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-430-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15725-257-1	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15725-860-0	01	1	-
46	SPRING; GOV,INJ PUMP (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15723-171-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15723-460-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15723-461-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15723-506-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: C = 1-15603-114-4	1-15723-513-0	01	1	-
59	COVER; GOV COVER ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15721-110-0	01	1	-
60	BOLT; COVER FIX,GOV COVER (C) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-039-0	01	1	-
60	BOLT; COVER FIX,GOV COVER (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	5-15729-063-0	02	1	-
60	BOLT; COVER FIX,GOV COVER (B), M6X16 W/LK WASHER ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-01900-616-0	02	1	-
61	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, F = 1-15603-201-0, J = 1-15603-290-5	1-15619-091-0	01	1	-
61	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-421-0	01	1	-
62	GASKET; EYE BOLT,OIL RETURN,INJ PUMP L=96 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, F = 1-15603-201-0, J = 1-15603-290-5	1-15729-066-0	02	1	-
62	GASKET; EYE BOLT,OIL RETURN,INJ PUMP L=96 ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15729-066-0	03	1	-
63	GASKET; COVER TO GOV COVER ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-978-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 1-15603-059-2	1-15725-391-0	01	1	-9606
64	LEVER; LOAD CONT,GOV ASM PART: F = 1-15603-201-0	1-15725-404-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 1-15603-059-2	1-15725-404-0	01	1	9607-
64	LEVER; LOAD CONT,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15725-799-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15725-872-1	01	1	-
65	BRACKET; RETURN SPRING,GOV (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-698-0	01	1	-
65	BRACKET; RETURN SPRING,GOV (A) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-253-0	01	1	-
65	BRACKET; RETURN SPRING,GOV (B) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-254-0	01	1	-
65	BRACKET; RETURN SPRING,GOV (A) ASM PART: C = 1-15603-114-4	1-15779-332-0	01	1	-
65	BRACKET; RETURN SPRING,GOV (B) ASM PART: J = 1-15603-290-5	1-15779-535-0	01	1	-
67	BOLT; SPRING BRKT,GOV (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15619-221-0	02	1	-
67	BOLT; SPRING BRKT,GOV (A) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15729-555-0	01	1	-
67	BOLT; SPRING BRKT,GOV (B) ASM PART: C = 1-15603-114-4	1-15729-818-0	02	1	-
67	BOLT; SPRING BRKT,GOV (B) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15729-818-0	01	1	-
71	SPRING; CONT LEVER,GOV (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15723-166-0	01	1	-
71	SPRING; CONT LEVER,GOV (B) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15723-205-0	01	1	-
71	SPRING; CONT LEVER,GOV (D) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15723-457-0	02	1	-
71	SPRING; CONT LEVER,GOV (C) ASM PART: J = 1-15603-290-5	1-15723-482-0	02	1	-
71	SPRING; CONT LEVER,GOV (C) ASM PART: C = 1-15603-114-4	1-15723-521-0	02	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-405-0	01	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV (B) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-467-0	01	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV (D) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-284-0	02	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV (C) ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	5-15729-013-0	02	1	-
76	PIN; LOAD CONT LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-518-0	01	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-023-0	01	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	8-94324-735-0	01	1	-
78	LEVER; STOPPER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15725-165-0	01	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.95 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-076-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.20 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-077-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.25 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-078-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.30 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-079-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.35 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-080-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.40 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-081-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.50 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-082-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.10 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-407-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.15 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-408-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.20 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-409-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.50 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-410-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.70 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-617-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.90 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-618-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.80 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-619-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.60 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-896-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-988-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-232-0	01	1	-
80	WASHER; LK,CONT LEVER,GOV ASM PART: C = 1-15603-114-4	1-15779-199-0	02	1	-
80	WASHER; LK,CONT LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-83579-492-0	01	1	-
83	SEAL; OIL,CONT SHAFT,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-855-0	01	1	-
84	WASHER; LK,RETURN SPR BOLT,GOV ID=6.1 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-09150-506-0	01	1	-
86	BUSHING; CONT SHAFT,GOV COVER ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-422-0	01	1	-
87	BOLT; RETURN SPRING,GOV (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-503-0	01	1	-
87	BOLT; RETURN SPRING,GOV (B) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-889-0	01	1	-
88	BOLT; LEVER PIVOT,GOV ASM PART: A = 1-15603-059-2	1-15729-445-1	01	1	-9606
89	GASKET; LEVER PIVOT BOLT,GOV ASM PART: A = 1-15603-059-2	1-15729-787-0	01	1	-9606
90	SCREW; FULL LOAD ADJ,GOV (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-427-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X45 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-244-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X49 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-245-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X53 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-246-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-247-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M10X70 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-248-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), L=53 ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-296-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), L=62 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	5-15729-123-0	01	1	-
91	SPRING CAPSULE; ADJ,GOV (B) ASM PART: A = 1-15603-059-2	1-15723-182-0	01	1	-9606
91	SPRING CAPSULE; ADJ,GOV (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15723-356-0	01	1	-
91	SPRING CAPSULE; ADJ,GOV (D) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15723-455-0	01	1	-
91	SPRING CAPSULE; ADJ,GOV (C) ASM PART: C = 1-15603-114-4	1-15723-522-0	01	1	-
92	BOLT; FULL LOAD STOPPER,GOV L=47 ASM PART: A = 1-15603-059-2	1-15729-754-0	01	1	-9606
92	BOLT; FULL LOAD STOPPER,GOV L=51 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-755-0	01	1	-
92	BOLT; FULL LOAD STOPPER,GOV L=55 ASM PART: A = 1-15603-059-2	1-15729-815-0	01	1	9607-
92	BOLT; FULL LOAD STOPPER,GOV L=55 ASM PART: F = 1-15603-201-0	1-15729-815-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (E) ASM PART: F = 1-15603-201-0	1-15729-006-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (E) ASM PART: A = 1-15603-059-2	1-15729-006-0	01	1	9607-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-055-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-425-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (G) ASM PART: A = 1-15603-059-2	1-15729-501-0	01	1	-9606
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-756-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-278-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (E), M6 ASM PART: A = 1-15603-059-2	9-09110-406-0	01	1	-9606
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C), M10 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-09111-410-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (F) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-84410-027-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-88410-525-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (D) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-426-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-293-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-293-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-076-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	8-94171-148-0	04	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	8-94171-148-0	03	1	-
99	PIN; TENSION LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-448-0	01	1	-
99	PIN; TENSION LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-286-1	01	1	-
101	GASKET; ADJ SPRING CAPSULE,GOV (A), L=96 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-066-0	02	1	-
101	GASKET; ADJ SPRING CAPSULE,GOV (B) ASM PART: A = 1-15603-059-2	1-15729-787-0	02	1	-9606
103	NUT; CAP,ADJ SPRING CAPSULE,GOV (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-092-0	01	1	-
103	NUT; CAP,ADJ SPRING CAPSULE,GOV (B) ASM PART: A = 1-15603-059-2	1-15729-502-0	01	1	-9606
103	NUT; CAP,ADJ SPRING CAPSULE,GOV (C) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	1-15779-249-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	8-97085-022-0	02	1	-
105	LEVER; SPD CONT,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15725-250-0	01	1	-
106	KEY; SWIVEL LEVER,GOV 13MM ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81325-030-0	01	1	-
107	WASHER; SWIVEL LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-444-0	01	1	-
108	COLLAR; SWIVEL LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-443-0	01	1	-
109	SHIM; SWIVEL LEVER,GOV (A), T=0.40 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-438-0	01	1	-
109	SHIM; SWIVEL LEVER,GOV (B), T=0.10 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-439-0	AR	1	-
109	SHIM; SWIVEL LEVER,GOV (B), T=0.20 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-440-0	AR	1	-
109	SHIM; SWIVEL LEVER,GOV (B), T=0.30 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-441-0	AR	1	-
110	SEAL; OIL,SWIVEL LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-980-0	01	1	-
111	BUSHING; SWIVEL LEVER,GOV (A), ID=12 L=19.2 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-435-1	01	1	-
111	BUSHING; SWIVEL LEVER,GOV (B) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15779-067-0	01	1	-
112	GASKET; SWIVEL LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-977-0	02	1	-
113	RING; SNAP,SWIVEL LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-217-0	02	1	-

1 52 123 367 299 367 145 146 103 238 128 291 238 42 75 75 71 71 91 130 423 130 23 65 123 94 288 177 128 291 118 175 4 52 168 80 93 423 267 170 130 67 117 157 255 48 24 119 13 234 256 5 65 3 2 120 235 116 12 15 16 18 17 119 93 90 17 224 104 163 128 169 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: E = 1-15603-156-1, I = 1-15603-265-3	1-15770-756-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15770-866-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 1-15603-114-4	1-15770-902-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: D = 1-15603-123-2	1-15770-910-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15770-966-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: G = 1-15603-209-1	1-15770-978-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: J = 1-15603-290-5	1-15790-025-2	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15721-121-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	1-15721-307-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15721-309-1	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: J = 1-15603-290-5	1-15721-345-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15729-846-0	10	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: J = 1-15603-290-5	1-15779-226-0	08	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	1-15779-226-0	06	1	-
3	BOLT; GOV HSG,INJ PUMP M6X20 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81325-187-0	04	1	-
4	PLATE; START SPRING,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-302-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-294-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15779-086-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15779-266-1	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	1-15779-297-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: J = 1-15603-290-5	1-15779-529-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, F = 1-15603-201-0, J = 1-15603-290-5	1-15722-018-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: D = 1-15603-123-2	1-15722-028-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: G = 1-15603-209-1	1-15722-029-0	01	1	-
13	KEY; FLYWEIGHT,GOV 16MM ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	5-19619-049-0	01	1	-
13	KEY; FLYWEIGHT,GOV 13MM ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, F = 1-15603-201-0, J = 1-15603-290-5	9-81325-030-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, F = 1-15603-201-0, J = 1-15603-290-5	5-15729-034-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-396-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	5-15729-429-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	9-81325-086-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-372-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15725-315-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-795-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: C = 1-15603-114-4	1-15725-795-0	01	1	-9610
23	LINK; LEVER TO CONT RACK,GOV ASM PART: C = 1-15603-114-4	1-15725-936-0	01	1	9611-
24	SPRING; START,GOV,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15723-162-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15723-450-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15723-524-0	01	1	-
42	NUT; SPRING CAPSULE,IDLE CONT,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	9-81393-204-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-240-0	01	1	-
52	WASHER; CONT SHAFT,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-269-0	02	1	-
65	BRACKET; RETURN SPRING,GOV (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-698-0	01	1	-
65	BRACKET; RETURN SPRING,GOV (A) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-253-0	01	1	-
65	BRACKET; RETURN SPRING,GOV (B) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-254-0	01	1	-
65	BRACKET; RETURN SPRING,GOV (A) ASM PART: C = 1-15603-114-4	1-15779-332-0	01	1	-
65	BRACKET; RETURN SPRING,GOV (B) ASM PART: J = 1-15603-290-5	1-15779-535-0	01	1	-
67	BOLT; SPRING BRKT,GOV (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15619-221-0	02	1	-
67	BOLT; SPRING BRKT,GOV (A) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15729-555-0	01	1	-
67	BOLT; SPRING BRKT,GOV (B) ASM PART: C = 1-15603-114-4	1-15729-818-0	02	1	-
67	BOLT; SPRING BRKT,GOV (B) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15729-818-0	01	1	-
71	SPRING; CONT LEVER,GOV (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15723-166-0	01	1	-
71	SPRING; CONT LEVER,GOV (B) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15723-205-0	01	1	-
71	SPRING; CONT LEVER,GOV (D) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15723-457-0	02	1	-
71	SPRING; CONT LEVER,GOV (C) ASM PART: J = 1-15603-290-5	1-15723-482-0	02	1	-
71	SPRING; CONT LEVER,GOV (C) ASM PART: C = 1-15603-114-4	1-15723-521-0	02	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-405-0	01	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV (B) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-467-0	01	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV (D) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-284-0	02	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV (C) ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	5-15729-013-0	02	1	-
80	WASHER; LK,CONT LEVER,GOV ASM PART: C = 1-15603-114-4	1-15779-199-0	02	1	-
80	WASHER; LK,CONT LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-83579-492-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-427-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X45 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-244-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X49 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-245-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X53 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-246-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-247-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M10X70 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-248-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), L=53 ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-296-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), L=62 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	5-15729-123-0	01	1	-
91	SPRING CAPSULE; ADJ,GOV (B) ASM PART: A = 1-15603-059-2	1-15723-182-0	01	1	-9606
91	SPRING CAPSULE; ADJ,GOV (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15723-356-0	01	1	-
91	SPRING CAPSULE; ADJ,GOV (D) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15723-455-0	01	1	-
91	SPRING CAPSULE; ADJ,GOV (C) ASM PART: C = 1-15603-114-4	1-15723-522-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (E) ASM PART: F = 1-15603-201-0	1-15729-006-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (E) ASM PART: A = 1-15603-059-2	1-15729-006-0	01	1	9607-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-055-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-425-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (G) ASM PART: A = 1-15603-059-2	1-15729-501-0	01	1	-9606
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-756-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-278-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (E), M6 ASM PART: A = 1-15603-059-2	9-09110-406-0	01	1	-9606
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C), M10 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-09111-410-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (F) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-84410-027-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-88410-525-0	01	1	-
94	SCREW; ADJ,CONT LEVER,GOV M8X62 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-642-0	01	1	-
94	SCREW; ADJ,CONT LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-233-0	01	1	-
103	NUT; CAP,ADJ SPRING CAPSULE,GOV (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-092-0	01	1	-
103	NUT; CAP,ADJ SPRING CAPSULE,GOV (B) ASM PART: A = 1-15603-059-2	1-15729-502-0	01	1	-9606
103	NUT; CAP,ADJ SPRING CAPSULE,GOV (C) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	1-15779-249-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	8-97085-022-0	02	1	-
116	LEVER; ENG STOP,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15725-776-1	01	1	-
116	LEVER; ENG STOP,GOV ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15725-871-1	01	1	-
116	LEVER; ENG STOP,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15725-873-0	01	1	-
116	LEVER; ENG STOP,GOV ASM PART: I = 1-15603-265-3	1-15725-972-0	01	1	0004-
117	SPRING; STOP LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15723-260-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15723-443-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: I = 1-15603-265-3	1-15723-612-0	01	1	0004-
118	COLLAR; CONT SHAFT,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-464-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-389-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: I = 1-15603-265-3	1-15779-738-0	01	1	0004-
119	NUT; ENG STOP LEVER,GOV ASM PART: I = 1-15603-265-3	1-15629-117-0	01	1	0004-
119	NUT; ENG STOP LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-236-0	02	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-236-0	01	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	1-83579-492-0	01	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV ASM PART: I = 1-15603-265-3	1-83579-492-0	01	1	0004-
123	SEAL; OIL,CONT SHAFT,GOV (A) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15639-012-0	01	1	-
123	SEAL; OIL,CONT SHAFT,GOV (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-975-0	02	1	-
123	SEAL; OIL,CONT SHAFT,GOV (C) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-282-0	02	1	-
123	SEAL; OIL,CONT SHAFT,GOV (B) ASM PART: I = 1-15603-265-3	5-15759-050-0	02	1	0004-
128	SHIM; CONT SHAFT,GOV (C), T=0.60 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-897-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.80 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-898-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.90 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-899-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.50 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-230-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.20 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-231-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-388-0	01	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.5 ASM PART: A = 1-15603-059-2	1-15779-459-0	AR	1	9607-
128	SHIM; CONT SHAFT,GOV (B), T=0.5 ASM PART: F = 1-15603-201-0	1-15779-459-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.2 ASM PART: F = 1-15603-201-0	1-15779-460-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.2 ASM PART: A = 1-15603-059-2	1-15779-460-0	AR	1	9607-
128	SHIM; CONT SHAFT,GOV (D) ASM PART: I = 1-15603-265-3	1-15779-730-0	02	1	0004-
128	SHIM; CONT SHAFT,GOV (C), T=0.50 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-556-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.30 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-557-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.40 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-558-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.25 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-559-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.35 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-560-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.5 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-88410-122-0	01	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.20 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-88410-421-0	AR	1	-
130	LEVER; CONT,GOV (D) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15725-569-0	01	1	-
130	LEVER; CONT,GOV (A) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-774-0	01	1	-
130	LEVER; CONT,GOV (A) ASM PART: C = 1-15603-114-4	1-15725-774-0	01	1	-9610
130	LEVER; CONT,GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-775-0	01	1	-
130	LEVER; CONT,GOV (C) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	1-15725-801-0	01	1	-
130	LEVER; CONT,GOV (A) ASM PART: C = 1-15603-114-4	1-15725-877-0	01	1	9611-
145	CAP; GOV COVER,INJ PUMP ASM PART: D = 1-15603-123-2	1-15729-041-0	01	1	-
145	CAP; GOV COVER,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15729-465-0	01	1	-
145	CAP; GOV COVER,INJ PUMP ASM PART: C = 1-15603-114-4	9-81325-525-0	01	1	-
146	GASKET; COVER CAP,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15629-056-0	01	1	-
146	GASKET; COVER CAP,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	9-81325-528-0	01	1	-
157	BOLT; START SPRING PLATE,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-226-0	02	1	-
157	BOLT; START SPRING PLATE,GOV M8X18 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81325-186-0	04	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-227-0	01	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-285-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15723-458-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15723-132-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: C = 1-15603-114-4	1-15725-793-0	01	1	-9610
175	LEVER; GOV,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-793-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: C = 1-15603-114-4	1-15725-854-0	01	1	9611-
177	RING; SNAP,GOV LEVER,INJ PUMP ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	8-94324-735-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-773-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: C = 1-15603-114-4	1-15725-773-0	01	1	-9610
179	LEVER; SPD ADJ,GOV ASM PART: C = 1-15603-114-4	1-15725-876-0	01	1	9611-
224	SHIFTER; TENSION LEVER,GOV ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-334-0	01	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-390-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15723-500-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15723-520-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15723-523-0	01	1	-
238	GASKET; SPRING CAPSULE CAP,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	8-94144-588-0	02	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-241-0	01	1	-
256	SEAT; GOV SPRING ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-242-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: A = 1-15603-059-2	1-15729-315-0	01	1	-9606
267	BOLT; CONN,CONT RACK,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15749-747-0	01	1	-
288	BOLT; LEVER ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-197-0	02	1	-
291	RING; SNAP,CONT SHAFT,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-196-0	02	1	-
299	SPRING; LEVER ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	1-15723-463-1	01	1	-
367	SHIM; SHAFT T=0.5 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	9-88410-122-0	02	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-463-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-228-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-387-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: C = 1-15603-114-4	1-15779-387-0	01	1	-9610
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: C = 1-15603-114-4	1-15779-607-0	01	1	9611-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: J = 1-15603-290-5	1-15779-607-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (D) ASM PART: I = 1-15603-265-3	1-15779-729-0	01	1	0004-

308 357 159 483 335 123 334 254 295 122 482 411 364 351 174 357 474 351 174 212 479 423 122 116 131 123 118 117 128 120 119 128 465

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
116	LEVER; ENG STOP,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15725-776-1	01	1	-
116	LEVER; ENG STOP,GOV ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15725-871-1	01	1	-
116	LEVER; ENG STOP,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15725-873-0	01	1	-
116	LEVER; ENG STOP,GOV ASM PART: I = 1-15603-265-3	1-15725-972-0	01	1	0004-
117	SPRING; STOP LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15723-260-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15723-443-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: I = 1-15603-265-3	1-15723-612-0	01	1	0004-
118	COLLAR; CONT SHAFT,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-464-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-389-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: I = 1-15603-265-3	1-15779-738-0	01	1	0004-
119	NUT; ENG STOP LEVER,GOV ASM PART: I = 1-15603-265-3	1-15629-117-0	01	1	0004-
119	NUT; ENG STOP LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-236-0	02	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-236-0	01	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	1-83579-492-0	01	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV ASM PART: I = 1-15603-265-3	1-83579-492-0	01	1	0004-
122	WASHER; CONT SHAFT,GOV (A), T=1 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-693-0	01	1	-
122	WASHER; CONT SHAFT,GOV (B), T=1.5 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-694-0	01	1	-
122	WASHER; CONT SHAFT,GOV (C), ID=10.5 ASM PART: I = 1-15603-265-3	9-09164-510-0	02	1	0004-
123	SEAL; OIL,CONT SHAFT,GOV (A) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15639-012-0	01	1	-
123	SEAL; OIL,CONT SHAFT,GOV (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-975-0	02	1	-
123	SEAL; OIL,CONT SHAFT,GOV (C) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-282-0	02	1	-
123	SEAL; OIL,CONT SHAFT,GOV (B) ASM PART: I = 1-15603-265-3	5-15759-050-0	02	1	0004-
128	SHIM; CONT SHAFT,GOV (C), T=0.60 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-897-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.80 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-898-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.90 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-899-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.50 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-230-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.20 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-231-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-388-0	01	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.5 ASM PART: A = 1-15603-059-2	1-15779-459-0	AR	1	9607-
128	SHIM; CONT SHAFT,GOV (B), T=0.5 ASM PART: F = 1-15603-201-0	1-15779-459-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.2 ASM PART: F = 1-15603-201-0	1-15779-460-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.2 ASM PART: A = 1-15603-059-2	1-15779-460-0	AR	1	9607-
128	SHIM; CONT SHAFT,GOV (D) ASM PART: I = 1-15603-265-3	1-15779-730-0	02	1	0004-
128	SHIM; CONT SHAFT,GOV (C), T=0.50 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-556-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.30 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-557-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.40 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-558-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.25 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-559-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.35 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-560-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.5 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-88410-122-0	01	1	-
128	SHIM; CONT SHAFT,GOV (C), T=0.20 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-88410-421-0	AR	1	-
131	SCREW; LEVER TO SHAFT,GOV ASM PART: F = 1-15603-201-0	1-15779-497-0	01	1	-
131	SCREW; LEVER TO SHAFT,GOV ASM PART: A = 1-15603-059-2	1-15779-497-0	01	1	9607-
131	SCREW; LEVER TO SHAFT,GOV ASM PART: I = 1-15603-265-3	1-15779-739-0	01	1	0004-
131	SCREW; LEVER TO SHAFT,GOV ASM PART: A = 1-15603-059-2	9-81315-069-0	01	1	-9606
159	BOLT; COVER (A) ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-202-0	02	1	-
159	BOLT; COVER (C), M6X16 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	5-15729-071-0	04	1	-
159	BOLT; COVER (B), M6X20 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	9-81325-187-0	01	1	-
174	SCREW; PLATE (A) ASM PART: I = 1-15603-265-3	1-15779-740-0	01	1	0004-
174	SCREW; PLATE (B) ASM PART: I = 1-15603-265-3	1-15779-750-0	01	1	0004-
212	PLATE; GOV ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	8-94122-719-0	01	1	-
295	RING; SNAP (C) ASM PART: I = 1-15603-265-3	1-15729-723-0	01	1	0004-
295	RING; SNAP (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-273-0	02	1	-
295	RING; SNAP (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-023-0	01	1	-
308	ACTUATOR; GOV,ELEC ASM PART: E = 1-15603-156-1, I = 1-15603-265-3	1-15779-447-0	01	1	-
308	ACTUATOR; GOV,ELEC ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15779-554-0	01	1	-
351	NUT; SCREW ASM PART: I = 1-15603-265-3	9-81325-081-0	02	1	0004-
411	BOLT; BRKT (B) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-187-0	02	1	-
411	BOLT; BRKT (A) ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-415-0	01	1	-
411	BOLT; BRKT (B), M6X16 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	5-15729-071-0	02	1	-
411	BOLT; BRKT (A) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	5-15729-208-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-463-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-228-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-387-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: C = 1-15603-114-4	1-15779-387-0	01	1	-9610
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: C = 1-15603-114-4	1-15779-607-0	01	1	9611-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: J = 1-15603-290-5	1-15779-607-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (D) ASM PART: I = 1-15603-265-3	1-15779-729-0	01	1	0004-
465	LINK; GOVERNOR ASM PART: I = 1-15603-265-3	1-15725-968-0	01	1	0004-
474	ADAPTER; GOVERNOR,INJ PUMP ASM PART: G = 1-15603-209-1	1-15779-558-0	01	1	-

1 436 436 435 212 215 413 218 413 158 51 276 77 159 74 28 79 218 221 438 437 429 429 456 287 295 227 209 64 82 252 250 21 239 9 286 211 352 93 104 90 90 198 159 296 440 79 167 39 180 34 39 411 66 37 295 93 189 363 11 45 160 161 96 50 96 96 411 198 96 38 39 271 302 41 269 268 304 268 39 303 239 7 46 62 61 96 237 46 252 270 272 62 8 301 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: E = 1-15603-156-1, I = 1-15603-265-3	1-15770-756-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15770-866-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 1-15603-114-4	1-15770-902-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: D = 1-15603-123-2	1-15770-910-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15770-966-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: G = 1-15603-209-1	1-15770-978-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: J = 1-15603-290-5	1-15790-025-2	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15721-191-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-059-2	1-15721-246-0	01	1	-9606
7	COVER; GOV HSG,INJ PUMP ASM PART: F = 1-15603-201-0	1-15721-257-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-059-2	1-15721-257-0	01	1	9607-
7	COVER; GOV HSG,INJ PUMP ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15721-325-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15721-340-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3	1-15729-251-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: I = 1-15603-265-3	1-15729-251-0	02	1	-0003
8	BOLT; GOV COVER,INJ PUMP (A), WO/WASHER ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-284-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: I = 1-15603-265-3	1-15729-312-0	04	1	-0003
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3	1-15729-312-0	04	1	-
8	BOLT; GOV COVER,INJ PUMP (C) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15729-683-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (D) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-033-0	09	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	5-15729-253-0	05	1	-
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3	9-09150-506-0	08	1	-
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: I = 1-15603-265-3	9-09150-506-0	02	1	0004-
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: I = 1-15603-265-3	9-09150-506-0	08	1	-0003
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, F = 1-15603-201-0, J = 1-15603-290-5	9-09150-506-0	02	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15779-087-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15779-146-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-251-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15725-395-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-779-1	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-798-1	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81322-131-0	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: A = 1-15603-059-2	1-15723-165-0	01	1	-9606
34	SPRING; SPD CONT LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15723-444-1	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: A = 1-15603-059-2	1-15725-390-1	01	1	-9606
37	LEVER ASM; TENSION,GOV ASM PART: A = 1-15603-059-2	1-15725-430-0	01	1	9607-
37	LEVER ASM; TENSION,GOV ASM PART: F = 1-15603-201-0	1-15725-430-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: C = 1-15603-114-4	1-15725-778-0	01	1	-9610
37	LEVER ASM; TENSION,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-874-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: C = 1-15603-114-4	1-15725-874-0	01	1	9611-
38	PIN; TENSION LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-692-0	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-271-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-09588-170-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (C) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	8-94244-599-0	02	1	-
39	RING; SNAP,LEVER PIN,GOV (A), ID=4 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	9-09185-404-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 1-15603-059-2	1-15723-337-0	01	1	-9606
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15723-451-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: F = 1-15603-201-0	1-15723-528-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 1-15603-059-2	1-15723-528-0	01	1	9607-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: C = 1-15603-114-4	1-15723-537-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: J = 1-15603-290-5	1-15723-574-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15725-257-1	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15725-860-0	01	1	-
46	SPRING; GOV,INJ PUMP (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15723-171-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15723-460-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15723-461-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15723-506-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: C = 1-15603-114-4	1-15723-513-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	8-94171-147-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP (B), M5 ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	9-99110-405-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-295-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-369-0	01	1	-
61	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, F = 1-15603-201-0, J = 1-15603-290-5	1-15619-091-0	01	1	-
61	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-421-0	01	1	-
62	GASKET; EYE BOLT,OIL RETURN,INJ PUMP L=96 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, F = 1-15603-201-0, J = 1-15603-290-5	1-15729-066-0	02	1	-
62	GASKET; EYE BOLT,OIL RETURN,INJ PUMP L=96 ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15729-066-0	03	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 1-15603-059-2	1-15725-391-0	01	1	-9606
64	LEVER; LOAD CONT,GOV ASM PART: F = 1-15603-201-0	1-15725-404-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 1-15603-059-2	1-15725-404-0	01	1	9607-
64	LEVER; LOAD CONT,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15725-799-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15725-872-1	01	1	-
66	SHAFT; LEVER ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-234-0	01	1	-
74	WASHER; LEVER SPR ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-232-0	01	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-023-0	01	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	8-94324-735-0	01	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.95 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-076-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.20 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-077-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.25 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-078-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.30 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-079-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.35 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-080-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.40 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-081-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.50 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-082-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.10 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-407-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.15 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-408-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.20 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-409-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.50 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-410-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.70 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-617-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.90 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-618-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.80 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-619-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (C), T=0.60 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-896-0	AR	1	-
79	SHIM; LEVER SETTING,GOV (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-988-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-232-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-236-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-427-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X45 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-244-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X49 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-245-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X53 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-246-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-247-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), M10X70 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-248-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), L=53 ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-296-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), L=62 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	5-15729-123-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (E) ASM PART: F = 1-15603-201-0	1-15729-006-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (E) ASM PART: A = 1-15603-059-2	1-15729-006-0	01	1	9607-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-055-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-425-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (G) ASM PART: A = 1-15603-059-2	1-15729-501-0	01	1	-9606
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-756-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-278-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (E), M6 ASM PART: A = 1-15603-059-2	9-09110-406-0	01	1	-9606
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C), M10 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-09111-410-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (F) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-84410-027-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-88410-525-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (D) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-426-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-293-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-293-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-076-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	8-94171-148-0	04	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	8-94171-148-0	03	1	-
99	PIN; TENSION LEVER,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-448-0	01	1	-
99	PIN; TENSION LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-286-1	01	1	-
104	CAP; LOCK NUT,ADJ SCREW ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1, J = 1-15603-290-5	8-97085-022-0	02	1	-
158	COVER; GOV HSG ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15619-283-0	01	1	-
158	COVER; GOV HSG ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15721-195-0	01	1	-
159	BOLT; COVER (A) ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-202-0	02	1	-
159	BOLT; COVER (C), M6X16 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	5-15729-071-0	04	1	-
159	BOLT; COVER (B), M6X20 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	9-81325-187-0	01	1	-
160	GASKET; PLUG TO HSG L=96 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15729-066-0	01	1	-
161	PLUG; HSG ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	8-97037-288-0	01	1	-
167	BOLT; PLATE M6X16 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-071-0	02	1	-
180	PLATE; GOV COVER ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-257-0	01	1	-
180	PLATE; GOV COVER ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-488-0	01	1	-
189	ROD; PUSH,GOV L=72.5 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-336-0	01	1	-
189	ROD; PUSH,GOV L=73.0 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-337-0	01	1	-
189	ROD; PUSH,GOV L=73.5 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-338-0	01	1	-
189	ROD; PUSH,GOV L=74.0 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-339-0	01	1	-
189	ROD; PUSH,GOV L=74.5 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-340-0	01	1	-
189	ROD; PUSH,GOV L=75.0 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-341-0	01	1	-
189	ROD; PUSH,GOV L=75.5 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-342-0	01	1	-
189	ROD; PUSH,GOV L=76.0 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-343-0	01	1	-
189	ROD; PUSH,GOV L=76.5 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-344-0	01	1	-
189	ROD; PUSH,GOV L=77.0 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-345-0	01	1	-
189	ROD; PUSH,GOV L=77.5 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-346-0	01	1	-
189	ROD; PUSH,GOV L=78.0 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-347-0	01	1	-
189	ROD; PUSH,GOV L=78.5 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-348-0	01	1	-
189	ROD; PUSH,GOV L=79.0 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-349-0	01	1	-
189	ROD; PUSH,GOV L=79.5 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-350-0	01	1	-
189	ROD; PUSH,GOV L=80.0 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-351-0	01	1	-
189	ROD; PUSH,GOV L=80.5 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-352-0	01	1	-
189	ROD; PUSH,GOV L=81.0 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-353-0	01	1	-
189	ROD; PUSH,GOV L=81.5 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-354-0	01	1	-
189	ROD; PUSH,GOV L=82.0 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-355-0	01	1	-
189	ROD; PUSH,GOV L=82.5 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-356-0	01	1	-
189	ROD; PUSH,GOV L=83.0 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-426-0	01	1	-
189	ROD; PUSH,GOV L=83.5 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-427-0	01	1	-
189	ROD; PUSH,GOV L=84.0 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-428-0	01	1	-
189	ROD; PUSH,GOV L=84.5 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-429-0	01	1	-
189	ROD; PUSH,GOV L=85.0 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-430-0	01	1	-
189	ROD; PUSH,GOV L=85.5 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-431-0	01	1	-
189	ROD; PUSH,GOV L=86.0 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-432-0	01	1	-
189	ROD; PUSH,GOV L=86.5 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-433-0	01	1	-
189	ROD; PUSH,GOV L=87.0 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-434-0	01	1	-
189	ROD; PUSH,GOV L=87.5 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-435-0	01	1	-
189	ROD; PUSH,GOV L=88.0 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-436-0	01	1	-
189	ROD; PUSH,GOV L=88.5 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-437-0	01	1	-
189	ROD; PUSH,GOV L=89.0 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-438-0	01	1	-
189	ROD; PUSH,GOV L=89.5 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-439-0	01	1	-
189	ROD; PUSH,GOV L=90.0 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-440-0	01	1	-
198	BRACKET; COVER (C) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-315-0	01	1	-
198	BRACKET; COVER (B) ASM PART: C = 1-15603-114-4	1-15779-444-0	01	1	-9610
198	BRACKET; COVER (A) ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-445-0	01	1	-
198	BRACKET; COVER (B) ASM PART: J = 1-15603-290-5	1-89963-688-3	01	1	-
198	BRACKET; COVER (B) ASM PART: C = 1-15603-114-4	1-89963-688-3	01	1	9611-
209	DIAPHRAGM; GOV ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15713-005-0	01	1	-
211	NUT; LOCK,GOV ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	9-88410-525-0	01	1	-
212	PLATE; GOV ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	8-94122-719-0	01	1	-
215	BOLT; DIAPH ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	8-97037-284-0	01	1	-
218	NUT; DIAPH (A) ASM PART: C = 1-15603-114-4	1-15729-249-0	01	1	-9610
218	NUT; DIAPH (B) ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	8-94122-726-0	01	1	-
218	NUT; DIAPH (A) ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	9-88410-525-0	01	1	-
221	WASHER; LK,DIAPH ID=6.1 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	9-09150-506-0	01	1	-
227	BOLT; GOV LEVER ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15719-005-0	04	1	-
227	BOLT; GOV LEVER ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15719-005-0	02	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=2.00 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-891-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=3.00 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-892-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=4.00 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-893-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-286-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.50 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-287-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-088-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-551-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.40 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-552-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-81325-553-0	AR	1	-
239	SCREW; GOV (B) ASM PART: C = 1-15603-114-4	1-15729-386-0	01	1	-
239	SCREW; GOV (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-239-0	01	1	-
239	SCREW; GOV (B) ASM PART: J = 1-15603-290-5	8-97037-287-0	01	1	-
250	NUT; GUIDE SCREW,GOV SHAFT ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-287-0	01	1	-
252	SCREW; GUIDE (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-238-0	01	1	-
252	SCREW; GUIDE (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-288-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15723-445-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15723-446-0	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15723-459-0	01	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-272-0	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-235-1	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-289-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15725-797-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15725-825-0	01	1	-
286	LEVER; GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-782-0	01	1	-
287	LEVER; GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15725-781-0	01	1	-
295	RING; SNAP (C) ASM PART: I = 1-15603-265-3	1-15729-723-0	01	1	0004-
295	RING; SNAP (A) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-273-0	02	1	-
295	RING; SNAP (B) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-023-0	01	1	-
296	SEAL; OIL,CONT SHAFT,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	8-97024-879-0	01	1	-
301	RING; SNAP ID=4 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-09185-404-0	01	1	-
302	PLATE; CAM,GOV ASM PART: C = 1-15603-114-4	1-15779-489-0	01	1	-9610
302	PLATE; CAM,GOV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15779-498-0	01	1	-
302	PLATE; CAM,GOV ASM PART: J = 1-15603-290-5	1-15779-622-0	01	1	-
302	PLATE; CAM,GOV ASM PART: C = 1-15603-114-4	1-15779-767-0	01	1	9611-
303	RING; SNAP,CAM PLATE,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-023-0	01	1	-
304	RING; SNAP,LINK TO CAM PLATE,GOV ID=4 ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	9-09185-404-0	01	1	-
352	NUT; CAP CAP NUT ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15729-093-0	01	1	-
363	BOLT; LEVER FIX ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	8-94247-029-0	02	1	-
411	BOLT; BRKT (B) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-187-0	02	1	-
411	BOLT; BRKT (A) ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-415-0	01	1	-
411	BOLT; BRKT (B), M6X16 ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	5-15729-071-0	02	1	-
411	BOLT; BRKT (A) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	5-15729-208-0	01	1	-
413	GASKET; GOV COVER ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-129-0	02	1	-
429	GASKET; CAP NUT ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15729-868-0	02	1	-
435	BOLT; EYE,GOV COVER ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15729-325-0	01	1	-
436	GASKET; EYE BOLT ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15729-849-0	02	1	-
437	SPRING; DIAPHRAGM ASM PART: C = 1-15603-114-4	1-15723-367-0	01	1	-
437	SPRING; DIAPHRAGM ASM PART: J = 1-15603-290-5	1-15723-573-0	01	1	-
438	DISK; DIAPHRAGM ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15779-333-0	01	1	-
440	RING; SNAP,LEVER ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15729-989-0	01	1	-
456	SPRING; LEVER,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15723-462-0	01	1	-

1 319 320 315 314 316 318 5 3 328 342 123 331 332 2 308 311 317 9 8 321 322 9 8 312 8 312 310 11 309 7 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: E = 1-15603-156-1, I = 1-15603-265-3	1-15770-756-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15770-866-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 1-15603-114-4	1-15770-902-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: D = 1-15603-123-2	1-15770-910-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15770-966-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: G = 1-15603-209-1	1-15770-978-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: J = 1-15603-290-5	1-15790-025-2	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15721-121-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	1-15721-307-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15721-309-1	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: J = 1-15603-290-5	1-15721-345-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15729-846-0	10	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: J = 1-15603-290-5	1-15779-226-0	08	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	1-15779-226-0	06	1	-
3	BOLT; GOV HSG,INJ PUMP M6X20 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81325-187-0	04	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15779-086-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15779-266-1	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	1-15779-297-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: J = 1-15603-290-5	1-15779-529-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15721-191-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-059-2	1-15721-246-0	01	1	-9606
7	COVER; GOV HSG,INJ PUMP ASM PART: F = 1-15603-201-0	1-15721-257-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-059-2	1-15721-257-0	01	1	9607-
7	COVER; GOV HSG,INJ PUMP ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15721-325-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15721-340-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3	1-15729-251-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: I = 1-15603-265-3	1-15729-251-0	02	1	-0003
8	BOLT; GOV COVER,INJ PUMP (A), WO/WASHER ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-284-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: I = 1-15603-265-3	1-15729-312-0	04	1	-0003
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3	1-15729-312-0	04	1	-
8	BOLT; GOV COVER,INJ PUMP (C) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15729-683-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (D) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-033-0	09	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	5-15729-253-0	05	1	-
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3	9-09150-506-0	08	1	-
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: I = 1-15603-265-3	9-09150-506-0	02	1	0004-
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: I = 1-15603-265-3	9-09150-506-0	08	1	-0003
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, F = 1-15603-201-0, J = 1-15603-290-5	9-09150-506-0	02	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15779-087-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15779-146-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-251-0	01	1	-
123	SEAL; OIL,CONT SHAFT,GOV (A) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15639-012-0	01	1	-
123	SEAL; OIL,CONT SHAFT,GOV (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-975-0	02	1	-
123	SEAL; OIL,CONT SHAFT,GOV (C) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-282-0	02	1	-
123	SEAL; OIL,CONT SHAFT,GOV (B) ASM PART: I = 1-15603-265-3	5-15759-050-0	02	1	0004-
308	ACTUATOR; GOV,ELEC ASM PART: E = 1-15603-156-1, I = 1-15603-265-3	1-15779-447-0	01	1	-
308	ACTUATOR; GOV,ELEC ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15779-554-0	01	1	-
309	BOLT; ACTUATOR FIX,ELEC GOV ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15729-535-0	02	1	-
310	BOLT; EYE,ACTUATOR,ELEC GOV ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15729-538-0	01	1	-
311	GASKET; ACTUATOR,ELEC GOV ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15779-147-0	01	1	-
312	GASKET; EYE BOLT,ACTUATOR,GOV ID=14.2 OD=19.2 ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-09630-085-0	02	1	-
314	SPRING; CONT RACK,GOV ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15723-306-0	01	1	-
315	SEAT; SPRING,CONT RACK,HSG SIDE ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15723-307-0	01	1	-
316	SEAT; SPRING,CONT RACK,CONNECTOR SIDE ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15723-308-0	01	1	-
317	CONNECTOR; CONT RACK,GOV,ELEC ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3	1-15779-291-1	01	1	-
317	CONNECTOR; CONT RACK,GOV,ELEC ASM PART: I = 1-15603-265-3	1-15779-291-1	01	1	-0003
317	CONNECTOR; CONT RACK,GOV,ELEC OFFSET=3.5 ASM PART: I = 1-15603-265-3	1-15779-685-1	01	1	0004-
317	CONNECTOR; CONT RACK,GOV,ELEC OFFSET=4.0 ASM PART: I = 1-15603-265-3	1-15779-686-1	01	1	0004-
317	CONNECTOR; CONT RACK,GOV,ELEC OFFSET=4.5 ASM PART: I = 1-15603-265-3	1-15779-687-1	01	1	0004-
318	BOLT; CONT RACK,GOV,ELEC ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-83569-079-0	01	1	-
319	CAP; CONT RACK,GOV,ELEC ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15779-152-0	01	1	-
320	GASKET; CAP,CONT RACK,GOV ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15629-056-0	01	1	-
321	PLATE; CONNECTOR,CONT RACK,GOV T=4.0 ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3	1-15729-742-0	01	1	-
321	PLATE; CONNECTOR,CONT RACK,GOV T=4.0 ASM PART: I = 1-15603-265-3	1-15729-742-0	01	1	-0003
321	PLATE; CONNECTOR,CONT RACK,GOV T=4.5 ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15779-148-0	01	1	-
321	PLATE; CONNECTOR,CONT RACK,GOV T=3.5 ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15779-549-0	01	1	-
322	BOLT; CONNECTOR PLATE,GOV,ELEC ASM PART: I = 1-15603-265-3	1-83569-079-0	01	1	-0003
322	BOLT; CONNECTOR PLATE,GOV,ELEC ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3	1-83569-079-0	01	1	-
328	GEAR; HSG TO MAGNET ASM PART: I = 1-15603-265-3	1-15779-153-0	01	1	-0003
328	GEAR; HSG TO MAGNET ASM PART: E = 1-15603-156-1	1-15779-153-0	01	1	-
328	GEAR; HSG TO MAGNET ASM PART: I = 1-15603-265-3	1-15779-496-0	01	1	0004-
328	GEAR; HSG TO MAGNET ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15779-550-0	01	1	-
331	WASHER; LK,GEAR ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15749-007-0	01	1	-
332	NUT; GEAR ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15779-012-0	01	1	-
342	KEY; WOODRUFF,SHAFT 16MM ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	5-19619-049-0	01	1	-
342	KEY; WOODRUFF,SHAFT 13MM ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	9-81325-030-0	01	1	-

1 319 320 315 314 316 318 3 5 317 328 123 342 331 332 2 308 311 9 8 9 8 312 8 312 11 309 310 7 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: E = 1-15603-156-1, I = 1-15603-265-3	1-15770-756-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15770-866-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: C = 1-15603-114-4	1-15770-902-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: D = 1-15603-123-2	1-15770-910-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15770-966-1	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: G = 1-15603-209-1	1-15770-978-0	01	1	-
1	GOVERNOR ASM; INJ PUMP ASM PART: J = 1-15603-290-5	1-15790-025-2	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15721-121-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	1-15721-307-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15721-309-1	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: J = 1-15603-290-5	1-15721-345-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15729-846-0	10	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: J = 1-15603-290-5	1-15779-226-0	08	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	1-15779-226-0	06	1	-
3	BOLT; GOV HSG,INJ PUMP M6X20 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81325-187-0	04	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15779-086-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15779-266-1	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1	1-15779-297-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: J = 1-15603-290-5	1-15779-529-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15721-191-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-059-2	1-15721-246-0	01	1	-9606
7	COVER; GOV HSG,INJ PUMP ASM PART: F = 1-15603-201-0	1-15721-257-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 1-15603-059-2	1-15721-257-0	01	1	9607-
7	COVER; GOV HSG,INJ PUMP ASM PART: C = 1-15603-114-4, J = 1-15603-290-5	1-15721-325-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15721-340-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3	1-15729-251-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: I = 1-15603-265-3	1-15729-251-0	02	1	-0003
8	BOLT; GOV COVER,INJ PUMP (A), WO/WASHER ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-284-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: I = 1-15603-265-3	1-15729-312-0	04	1	-0003
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3	1-15729-312-0	04	1	-
8	BOLT; GOV COVER,INJ PUMP (C) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15729-683-0	02	1	-
8	BOLT; GOV COVER,INJ PUMP (D) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	5-15729-033-0	09	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	5-15729-253-0	05	1	-
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3	9-09150-506-0	08	1	-
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: I = 1-15603-265-3	9-09150-506-0	02	1	0004-
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: I = 1-15603-265-3	9-09150-506-0	08	1	-0003
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, F = 1-15603-201-0, J = 1-15603-290-5	9-09150-506-0	02	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15779-087-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15779-146-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-251-0	01	1	-
123	SEAL; OIL,CONT SHAFT,GOV (A) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15639-012-0	01	1	-
123	SEAL; OIL,CONT SHAFT,GOV (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15729-975-0	02	1	-
123	SEAL; OIL,CONT SHAFT,GOV (C) ASM PART: C = 1-15603-114-4, D = 1-15603-123-2, G = 1-15603-209-1, J = 1-15603-290-5	1-15779-282-0	02	1	-
123	SEAL; OIL,CONT SHAFT,GOV (B) ASM PART: I = 1-15603-265-3	5-15759-050-0	02	1	0004-
308	ACTUATOR; GOV,ELEC ASM PART: E = 1-15603-156-1, I = 1-15603-265-3	1-15779-447-0	01	1	-
308	ACTUATOR; GOV,ELEC ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15779-554-0	01	1	-
309	BOLT; ACTUATOR FIX,ELEC GOV ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15729-535-0	02	1	-
310	BOLT; EYE,ACTUATOR,ELEC GOV ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15729-538-0	01	1	-
311	GASKET; ACTUATOR,ELEC GOV ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15779-147-0	01	1	-
312	GASKET; EYE BOLT,ACTUATOR,GOV ID=14.2 OD=19.2 ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-09630-085-0	02	1	-
314	SPRING; CONT RACK,GOV ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15723-306-0	01	1	-
315	SEAT; SPRING,CONT RACK,HSG SIDE ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15723-307-0	01	1	-
316	SEAT; SPRING,CONT RACK,CONNECTOR SIDE ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15723-308-0	01	1	-
317	CONNECTOR; CONT RACK,GOV,ELEC ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3	1-15779-291-1	01	1	-
317	CONNECTOR; CONT RACK,GOV,ELEC ASM PART: I = 1-15603-265-3	1-15779-291-1	01	1	-0003
317	CONNECTOR; CONT RACK,GOV,ELEC OFFSET=3.5 ASM PART: I = 1-15603-265-3	1-15779-685-1	01	1	0004-
317	CONNECTOR; CONT RACK,GOV,ELEC OFFSET=4.0 ASM PART: I = 1-15603-265-3	1-15779-686-1	01	1	0004-
317	CONNECTOR; CONT RACK,GOV,ELEC OFFSET=4.5 ASM PART: I = 1-15603-265-3	1-15779-687-1	01	1	0004-
318	BOLT; CONT RACK,GOV,ELEC ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-83569-079-0	01	1	-
319	CAP; CONT RACK,GOV,ELEC ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15779-152-0	01	1	-
320	GASKET; CAP,CONT RACK,GOV ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15629-056-0	01	1	-
328	GEAR; HSG TO MAGNET ASM PART: I = 1-15603-265-3	1-15779-153-0	01	1	-0003
328	GEAR; HSG TO MAGNET ASM PART: E = 1-15603-156-1	1-15779-153-0	01	1	-
328	GEAR; HSG TO MAGNET ASM PART: I = 1-15603-265-3	1-15779-496-0	01	1	0004-
328	GEAR; HSG TO MAGNET ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15779-550-0	01	1	-
331	WASHER; LK,GEAR ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15749-007-0	01	1	-
332	NUT; GEAR ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15779-012-0	01	1	-
342	KEY; WOODRUFF,SHAFT 16MM ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	5-19619-049-0	01	1	-
342	KEY; WOODRUFF,SHAFT 13MM ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	9-81325-030-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
