8-65 — CONTROL LEVER; HEATER AND AIR CON (#50145) — 188 parça

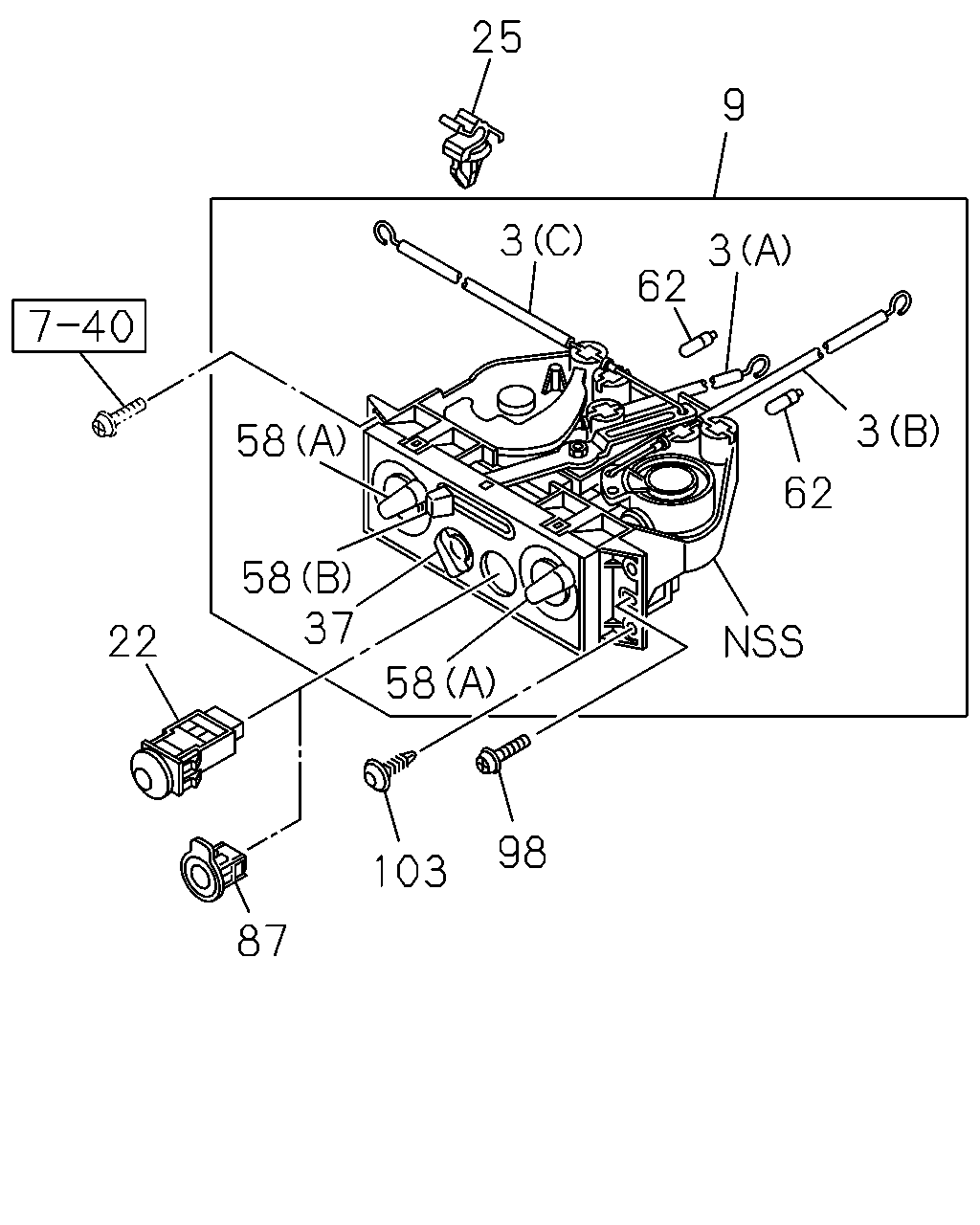

çizim 158923
25 9 3 3 62 3 58 62 58 37 58 22 98 103 87
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MODE 		8-98039-250-0 01 1 0905-0906 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MODE 		8-98039-250-0 01 1 0907-1007 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(A) MODE 		8-98039-250-0 01 1 0907-1007 ●
3 09.787 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MODE 		8-98039-250-0 01 1 1008-1111 ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MODE 		8-98039-250-0 01 1 1008-1111 ● ● ●
3 09.787 CABLE; HTR CONT LVR
(A) MODE 		8-98039-250-0 01 1 1008-1111 ●
3 09.787 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MODE 		8-98039-250-0 01 1 1112- ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MODE 		8-98039-250-0 01 1 1112- ● ● ●
3 09.787 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A) MODE 		8-98039-250-0 01 1 1112- ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) MIX 		8-98039-251-0 01 1 0905-0906 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) MIX 		8-98039-251-0 01 1 0907-1111 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) MIX 		8-98039-251-0 01 1 0907-1111 ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) MIX 		8-98039-251-0 01 1 1112- ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) (B) MIX 		8-98039-251-0 01 1 1112- ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) FRESH 		8-98039-253-2 01 1 0905-0906 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) FRESH 		8-98039-253-2 01 1 0907-1007 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(C) FRESH 		8-98039-253-2 01 1 0907-1007 ●
3 09.787 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) FRESH 		8-98039-253-2 01 1 1008-1111 ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) FRESH 		8-98039-253-2 01 1 1008-1111 ● ● ●
3 09.787 CABLE; HTR CONT LVR
(C) FRESH 		8-98039-253-2 01 1 1008-1111 ●
3 09.787 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) FRESH 		8-98039-253-2 01 1 1112- ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) FRESH 		8-98039-253-2 01 1 1112- ● ● ●
3 09.787 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (C) FRESH 		8-98039-253-2 01 1 1112- ●
9 08.852 LEVER ASM; HTR & A/C CONT
FORGED AIR VENTILATION(C39) 		8-98066-001-1 01 1 1008-1111 ●
9 08.852 LEVER ASM; HTR & A/C CONT
FORGED AIR VENTILATION(C39) 		8-98066-001-1 01 1 1112- ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-363-2 01 1 0905-0906 ● ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-363-2 01 1 0907-1111 ● ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT 8-98037-363-2 01 1 0907-1111 ●
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-363-2 01 1 1112- ● ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
AIR CONDITIONER MANUAL CONT(C60) 		8-98037-363-2 01 1 1112- ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) 		8-98021-982-0 01 1 0905-0906 ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) 		8-98021-982-0 01 1 0907-1111 ● ● ● ●
22 08.852 SWITCH; A/C,MAIN 8-98021-982-0 01 1 0907-1111 ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) 		8-98021-982-0 01 1 1112- ● ● ● ● ●
25 08.854 CLIP; CABLE,CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 ID=4.8 		8-94128-483-0 01 1 0905-0906 ● ● ● ●
25 08.854 CLIP; CABLE,CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 ID=4.8 		8-94128-483-0 01 1 0907-1111 ● ● ● ●
25 08.854 CLIP; CABLE,CONT LEVER
09.647 ID=4.8 		8-94128-483-0 01 1 0907-1111 ●
25 08.854 CLIP; CABLE,CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 ID=4.8 		8-94128-483-0 01 1 1112-1302 ● ● ● ●
25 08.854 CLIP; CABLE,CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) 09.647 ID=4.8 		8-94128-483-0 01 1 1112-1302 ●
25 08.854 CLIP; CABLE,CONT LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 ID=4.8 		8-94128-483-0 01 1 1303- ●
25 08.854 CLIP; CABLE,CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 ID=4.8 		8-94128-483-0 01 1 1303- ● ● ●
25 08.854 CLIP; CABLE,CONT LEVER
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 09.647 ID=4.8 		8-94128-483-0 01 1 1303- ●
37 08.852 KNOB; SW,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-368-0 01 1 0905-0906 ● ● ● ●
37 08.852 KNOB; SW,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-368-0 01 1 0907-1007 ● ● ● ●
37 08.852 KNOB; SW,HTR CONT LVR 8-98037-368-0 01 1 0907-1007 ●
37 08.852 KNOB; SW,HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-368-0 01 1 1008-1111 ●
37 08.852 KNOB; SW,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-368-0 01 1 1008-1111 ● ● ●
37 08.852 KNOB; SW,HTR CONT LVR 8-98037-368-0 01 1 1008-1111 ●
37 08.852 KNOB; SW,HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-368-0 01 1 1112- ●
37 08.852 KNOB; SW,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-368-0 01 1 1112- ● ● ●
37 08.852 KNOB; SW,HTR CONT LVR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-368-0 01 1 1112- ●
58 09.787 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C39) (A) 		8-98037-369-0 01 1 1008-1111 ●
58 09.787 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C39) (A) 		8-98037-369-0 01 1 1112- ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98037-369-0 02 1 0905-0906 ● ● ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98037-369-0 02 1 0907-1111 ● ● ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
(A) 		8-98037-369-0 02 1 0907-1111 ●
58 09.787 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98037-369-0 02 1 1112- ● ● ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98037-369-0 02 1 1112- ●
58 09.787 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98037-370-0 01 1 0905-0906 ● ● ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98037-370-0 01 1 0907-1007 ● ● ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
(B) 		8-98037-370-0 01 1 0907-1007 ●
58 09.787 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98037-370-0 01 1 1008-1111 ●
58 09.787 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98037-370-0 01 1 1008-1111 ● ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
(B) 		8-98037-370-0 01 1 1008-1111 ●
58 09.787 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98037-370-0 01 1 1112- ●
58 09.787 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98037-370-0 01 1 1112- ● ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98037-370-0 01 1 1112- ●
62 08.991 BULB; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 1.1W 		8-98037-371-0 02 1 0905-0906 ● ● ● ●
62 08.991 BULB; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 1.1W 		8-98037-371-0 02 1 0907-1007 ● ● ● ●
62 08.991 BULB; HTR CONT LVR
24V 1.1W 		8-98037-371-0 02 1 0907-1007 ●
62 08.991 BULB; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 1.1W 		8-98037-371-0 02 1 1008-1111 ●
62 08.991 BULB; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 1.1W 		8-98037-371-0 02 1 1008-1111 ● ● ●
62 08.991 BULB; HTR CONT LVR
24V 1.1W 		8-98037-371-0 02 1 1008-1111 ●
62 08.991 BULB; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 1.1W 		8-98037-371-0 02 1 1112- ●
62 08.991 BULB; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 1.1W 		8-98037-371-0 02 1 1112- ● ● ●
62 08.991 BULB; HTR CONT LVR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 24V 1.1W 		8-98037-371-0 02 1 1112- ●
87 08.849 CAP; A/C SWITCH
HEATER & DEFROSTER(C41) 		8-98006-089-0 01 1 0905-1212 ● ● ● ●
87 08.849 CAP; A/C SWITCH
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-98006-089-0 01 1 1301- ●
87 08.849 CAP; A/C SWITCH
HEATER & DEFROSTER(C41) 		8-98006-089-0 01 1 1301- ● ● ●
87 08.849 CAP; A/C SWITCH
FORGED AIR VENTILATION(C39) 		8-98006-089-0 01 1 1301- ●
98 08.852 SCREW; CONT PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0905-0906 ● ● ● ●
98 08.852 SCREW; CONT PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0907-1007 ● ● ● ●
98 08.852 SCREW; CONT PANEL
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0907-1007 ●
98 08.852 SCREW; CONT PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1008-1101 ● ● ● ●
98 08.852 SCREW; CONT PANEL
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1008-1101 ●
98 08.852 SCREW; CONT PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.100 M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1102-1212 ● ● ● ●
98 08.852 SCREW; CONT PANEL
16.100 M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1102-1212 ●
98 08.852 SCREW; CONT PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ● ● ● ●
98 08.852 SCREW; CONT PANEL
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ●
103 08.854 CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 0905-0906 ● ● ● ●
103 08.854 CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 0907-1007 ● ● ● ●
103 08.854 CLIP
16.742 DARK GRAY 		8-97098-326-0 01 1 0907-1007 ●
103 08.854 CLIP
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 1008- ● ● ● ●
103 08.854 CLIP
16.742 DARK GRAY 		8-97098-326-0 01 1 1008- ●

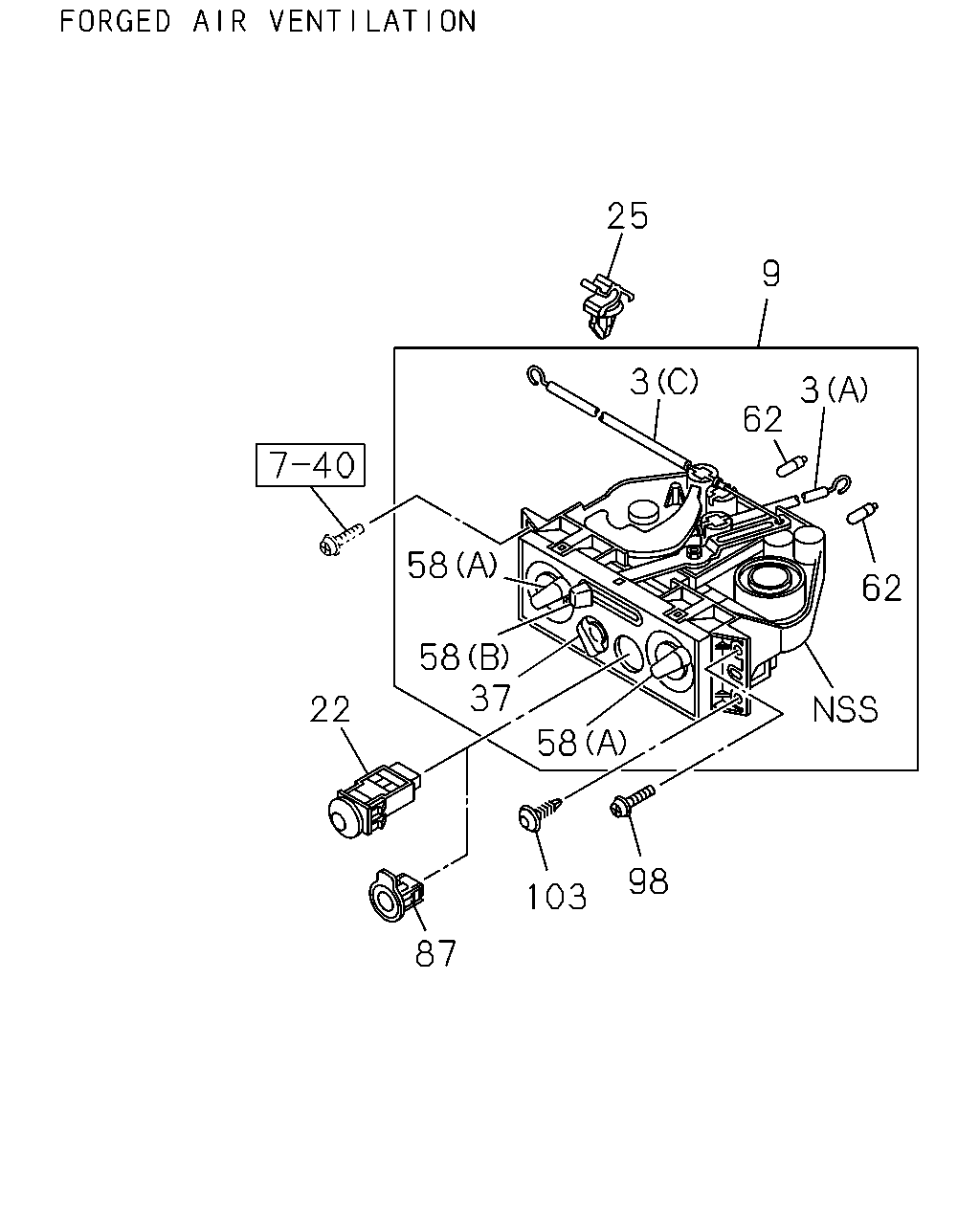

çizim 159176
25 9 3 3 62 58 62 58 37 58 22 98 103 87
BalonParca AdiParca NoAdetTipApplied Date A B C D E
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MODE 		8-98039-250-0 01 1 0905-0906 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MODE 		8-98039-250-0 01 1 0907-1007 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(A) MODE 		8-98039-250-0 01 1 0907-1007 ●
3 09.787 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MODE 		8-98039-250-0 01 1 1008-1111 ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MODE 		8-98039-250-0 01 1 1008-1111 ● ● ●
3 09.787 CABLE; HTR CONT LVR
(A) MODE 		8-98039-250-0 01 1 1008-1111 ●
3 09.787 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MODE 		8-98039-250-0 01 1 1112- ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MODE 		8-98039-250-0 01 1 1112- ● ● ●
3 09.787 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A) MODE 		8-98039-250-0 01 1 1112- ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) MIX 		8-98039-251-0 01 1 0905-0906 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) MIX 		8-98039-251-0 01 1 0907-1111 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) MIX 		8-98039-251-0 01 1 0907-1111 ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) MIX 		8-98039-251-0 01 1 1112- ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) (B) MIX 		8-98039-251-0 01 1 1112- ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) FRESH 		8-98039-253-2 01 1 0905-0906 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) FRESH 		8-98039-253-2 01 1 0907-1007 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(C) FRESH 		8-98039-253-2 01 1 0907-1007 ●
3 09.787 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) FRESH 		8-98039-253-2 01 1 1008-1111 ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) FRESH 		8-98039-253-2 01 1 1008-1111 ● ● ●
3 09.787 CABLE; HTR CONT LVR
(C) FRESH 		8-98039-253-2 01 1 1008-1111 ●
3 09.787 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) FRESH 		8-98039-253-2 01 1 1112- ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) FRESH 		8-98039-253-2 01 1 1112- ● ● ●
3 09.787 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (C) FRESH 		8-98039-253-2 01 1 1112- ●
9 08.852 LEVER ASM; HTR & A/C CONT
FORGED AIR VENTILATION(C39) 		8-98066-001-1 01 1 1008-1111 ●
9 08.852 LEVER ASM; HTR & A/C CONT
FORGED AIR VENTILATION(C39) 		8-98066-001-1 01 1 1112- ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-363-2 01 1 0905-0906 ● ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-363-2 01 1 0907-1111 ● ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT 8-98037-363-2 01 1 0907-1111 ●
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-363-2 01 1 1112- ● ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
AIR CONDITIONER MANUAL CONT(C60) 		8-98037-363-2 01 1 1112- ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) 		8-98021-982-0 01 1 0905-0906 ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) 		8-98021-982-0 01 1 0907-1111 ● ● ● ●
22 08.852 SWITCH; A/C,MAIN 8-98021-982-0 01 1 0907-1111 ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) 		8-98021-982-0 01 1 1112- ● ● ● ● ●
25 08.854 CLIP; CABLE,CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 ID=4.8 		8-94128-483-0 01 1 0905-0906 ● ● ● ●
25 08.854 CLIP; CABLE,CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 ID=4.8 		8-94128-483-0 01 1 0907-1111 ● ● ● ●
25 08.854 CLIP; CABLE,CONT LEVER
09.647 ID=4.8 		8-94128-483-0 01 1 0907-1111 ●
25 08.854 CLIP; CABLE,CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 ID=4.8 		8-94128-483-0 01 1 1112-1302 ● ● ● ●
25 08.854 CLIP; CABLE,CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) 09.647 ID=4.8 		8-94128-483-0 01 1 1112-1302 ●
25 08.854 CLIP; CABLE,CONT LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 ID=4.8 		8-94128-483-0 01 1 1303- ●
25 08.854 CLIP; CABLE,CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 ID=4.8 		8-94128-483-0 01 1 1303- ● ● ●
25 08.854 CLIP; CABLE,CONT LEVER
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 09.647 ID=4.8 		8-94128-483-0 01 1 1303- ●
37 08.852 KNOB; SW,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-368-0 01 1 0905-0906 ● ● ● ●
37 08.852 KNOB; SW,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-368-0 01 1 0907-1007 ● ● ● ●
37 08.852 KNOB; SW,HTR CONT LVR 8-98037-368-0 01 1 0907-1007 ●
37 08.852 KNOB; SW,HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-368-0 01 1 1008-1111 ●
37 08.852 KNOB; SW,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-368-0 01 1 1008-1111 ● ● ●
37 08.852 KNOB; SW,HTR CONT LVR 8-98037-368-0 01 1 1008-1111 ●
37 08.852 KNOB; SW,HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-368-0 01 1 1112- ●
37 08.852 KNOB; SW,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-368-0 01 1 1112- ● ● ●
37 08.852 KNOB; SW,HTR CONT LVR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-368-0 01 1 1112- ●
58 09.787 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C39) (A) 		8-98037-369-0 01 1 1008-1111 ●
58 09.787 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C39) (A) 		8-98037-369-0 01 1 1112- ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98037-369-0 02 1 0905-0906 ● ● ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98037-369-0 02 1 0907-1111 ● ● ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
(A) 		8-98037-369-0 02 1 0907-1111 ●
58 09.787 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98037-369-0 02 1 1112- ● ● ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98037-369-0 02 1 1112- ●
58 09.787 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98037-370-0 01 1 0905-0906 ● ● ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98037-370-0 01 1 0907-1007 ● ● ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
(B) 		8-98037-370-0 01 1 0907-1007 ●
58 09.787 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98037-370-0 01 1 1008-1111 ●
58 09.787 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98037-370-0 01 1 1008-1111 ● ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
(B) 		8-98037-370-0 01 1 1008-1111 ●
58 09.787 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98037-370-0 01 1 1112- ●
58 09.787 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98037-370-0 01 1 1112- ● ● ●
58 09.787 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98037-370-0 01 1 1112- ●
62 08.991 BULB; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 1.1W 		8-98037-371-0 02 1 0905-0906 ● ● ● ●
62 08.991 BULB; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 1.1W 		8-98037-371-0 02 1 0907-1007 ● ● ● ●
62 08.991 BULB; HTR CONT LVR
24V 1.1W 		8-98037-371-0 02 1 0907-1007 ●
62 08.991 BULB; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 1.1W 		8-98037-371-0 02 1 1008-1111 ●
62 08.991 BULB; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 1.1W 		8-98037-371-0 02 1 1008-1111 ● ● ●
62 08.991 BULB; HTR CONT LVR
24V 1.1W 		8-98037-371-0 02 1 1008-1111 ●
62 08.991 BULB; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 1.1W 		8-98037-371-0 02 1 1112- ●
62 08.991 BULB; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 1.1W 		8-98037-371-0 02 1 1112- ● ● ●
62 08.991 BULB; HTR CONT LVR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 24V 1.1W 		8-98037-371-0 02 1 1112- ●
87 08.849 CAP; A/C SWITCH
HEATER & DEFROSTER(C41) 		8-98006-089-0 01 1 0905-1212 ● ● ● ●
87 08.849 CAP; A/C SWITCH
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-98006-089-0 01 1 1301- ●
87 08.849 CAP; A/C SWITCH
HEATER & DEFROSTER(C41) 		8-98006-089-0 01 1 1301- ● ● ●
87 08.849 CAP; A/C SWITCH
FORGED AIR VENTILATION(C39) 		8-98006-089-0 01 1 1301- ●
98 08.852 SCREW; CONT PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0905-0906 ● ● ● ●
98 08.852 SCREW; CONT PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0907-1007 ● ● ● ●
98 08.852 SCREW; CONT PANEL
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0907-1007 ●
98 08.852 SCREW; CONT PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1008-1101 ● ● ● ●
98 08.852 SCREW; CONT PANEL
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1008-1101 ●
98 08.852 SCREW; CONT PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.100 M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1102-1212 ● ● ● ●
98 08.852 SCREW; CONT PANEL
16.100 M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1102-1212 ●
98 08.852 SCREW; CONT PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ● ● ● ●
98 08.852 SCREW; CONT PANEL
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ●
103 08.854 CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 0905-0906 ● ● ● ●
103 08.854 CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 0907-1007 ● ● ● ●
103 08.854 CLIP
16.742 DARK GRAY 		8-97098-326-0 01 1 0907-1007 ●
103 08.854 CLIP
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 1008- ● ● ● ●
103 08.854 CLIP
16.742 DARK GRAY 		8-97098-326-0 01 1 1008- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
