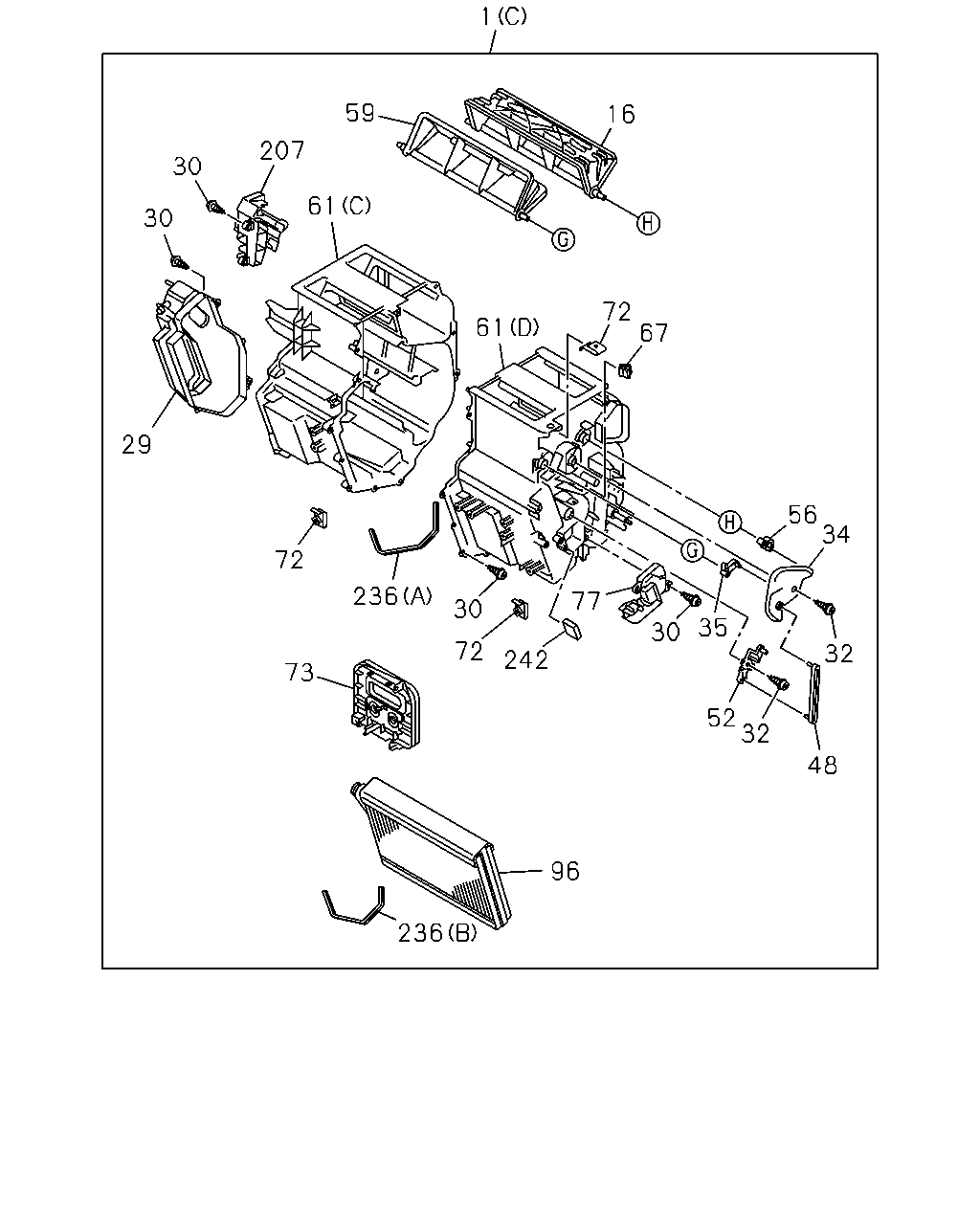

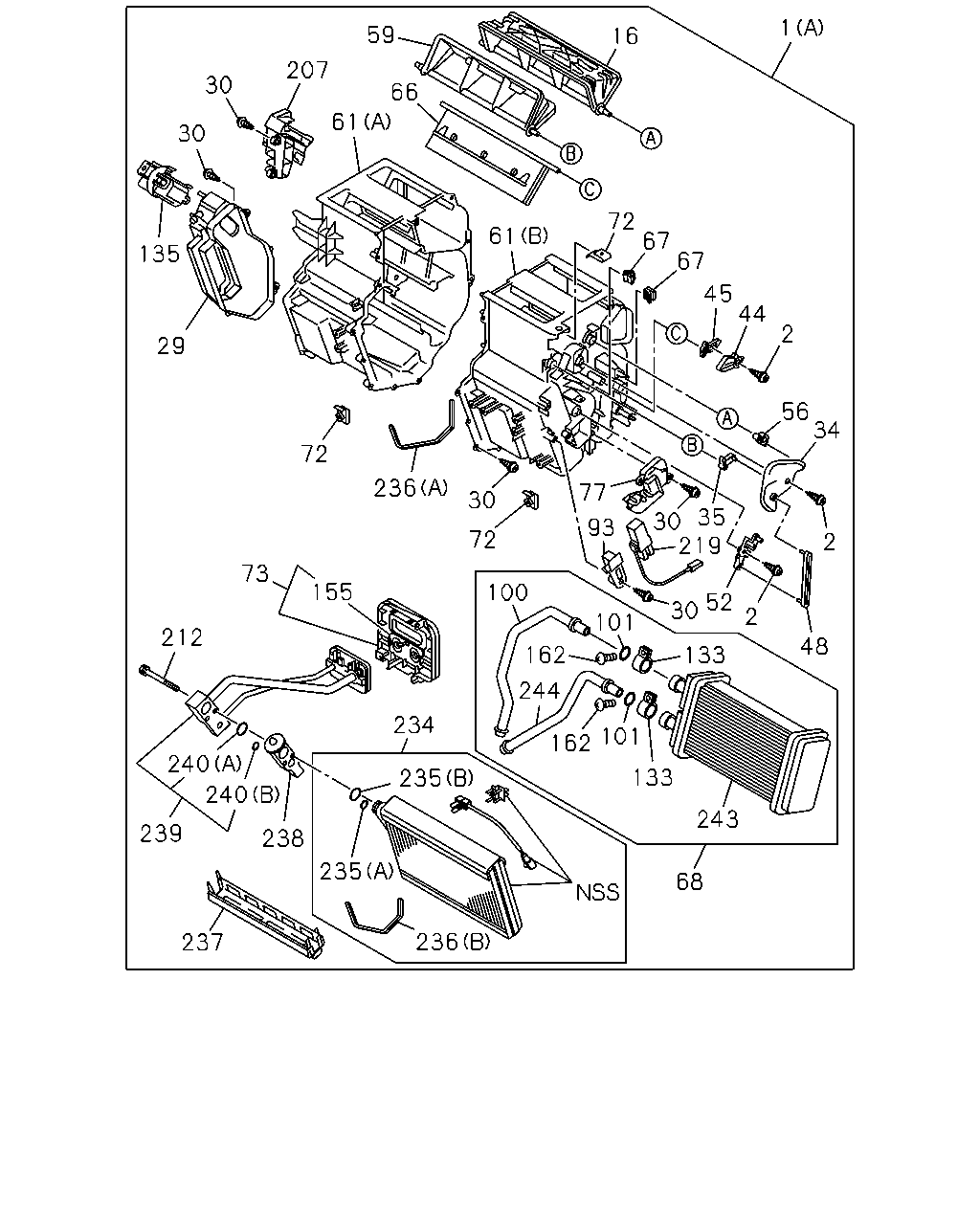

8-60 — HEATER UNIT; FRONT (#50144) — 700 parça

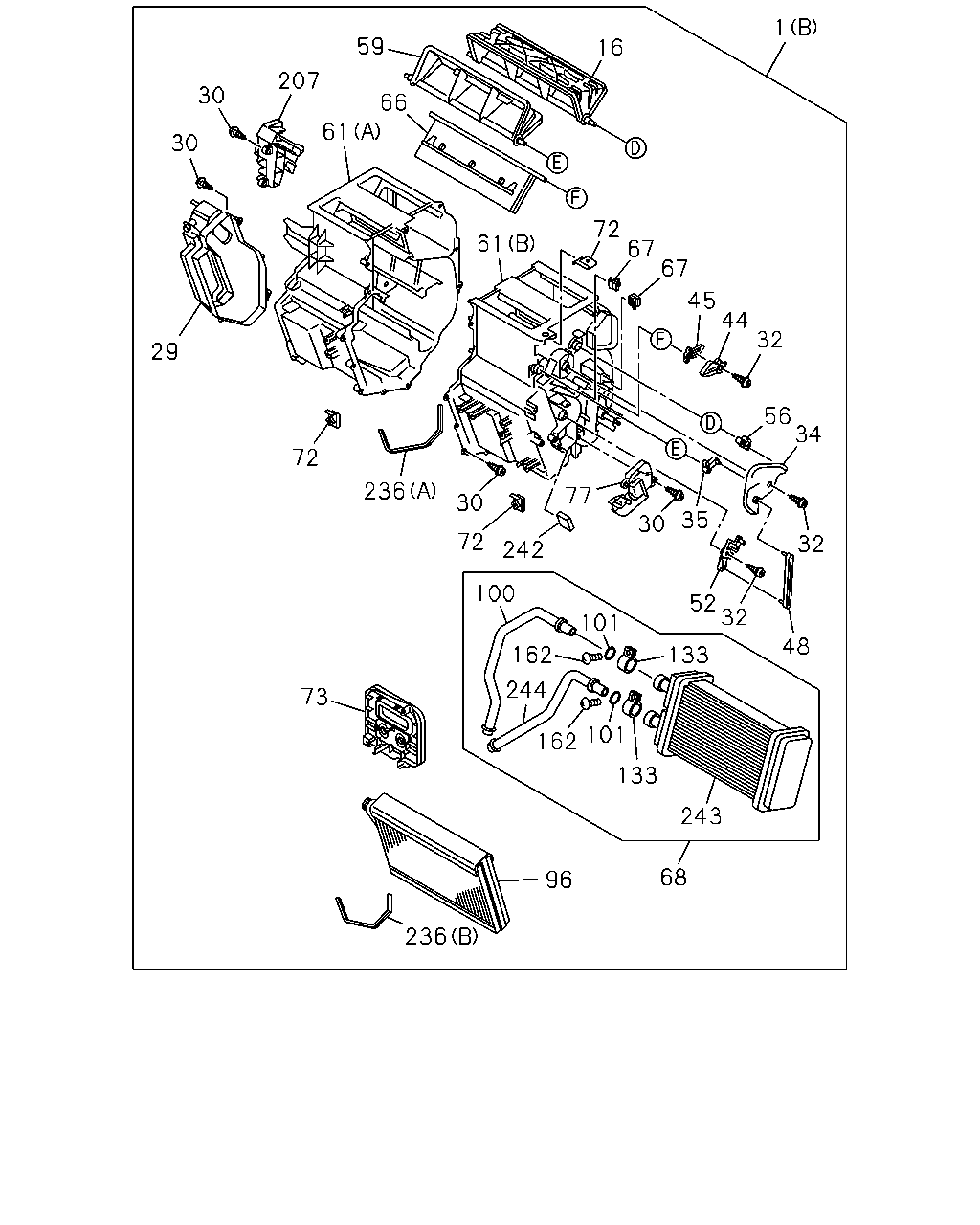

çizim 158929
1 59 16 207 30 66 61 30 72 67 67 61 45 44 32 29 56 34 72 77 236 30 35 30 72 32 242 100 52 32 101 48 162 133 244 73 101 162 133 243 68 96 236
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98062-757-1 01 1 1008-1111 ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98062-757-1 01 1 1112-1301 ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98214-400-1 01 1 1302- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (B) 		8-98062-756-1 01 1 0905- ● ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 0905-0906 ● ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 0907-1111 ● ● ● ●
1 08.845 HEATER UNIT
(A) 		8-98021-972-4 01 1 0907-1111 ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 1112- ● ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 0905-0906 ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 0907-1007 ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 0907-1007 ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1008-1111 ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1008-1111 ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 1008-1111 ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1112- ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1112- ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1112- ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98231-367-0 01 1 1302- ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 0905-0906 ● ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 0907-1007 ● ● ● ●
29 08.857 COVER; HTR UNIT 8-98074-119-0 01 1 0907-1007 ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 1008-1111 ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 1008-1111 ● ● ●
29 08.857 COVER; HTR UNIT 8-98074-119-0 01 1 1008-1111 ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 1112-1301 ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 1112-1301 ● ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 1112-1301 ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 1302- ● ● ● ●
29 08.857 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 1302- ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1302- ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 0905-1007 ● ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1008-1111 ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1008-1111 ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1112-1301 ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1112-1301 ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1112-1301 ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 20 1 1302- ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0905-0906 ● ● ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0907-1111 ● ● ● ●
30 08.845 SCREW; HTR UNIT
08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0907-1111 ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 1112- ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 		8-98047-416-0 02 1 1008-1111 ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 		8-98047-416-0 02 1 1112- ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 0905- ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 0905-0906 ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 0907-1007 ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-98047-389-0 01 1 0907-1007 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 1008-1111 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 1008-1111 ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-98047-389-0 01 1 1008-1111 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 1112- ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 1112- ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 1112- ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-392-0 01 1 0905-0906 ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-392-0 01 1 0907-1007 ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-98047-392-0 01 1 0907-1007 ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-392-0 01 1 1008-1111 ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-392-0 01 1 1008-1111 ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-98047-392-0 01 1 1008-1111 ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-392-0 01 1 1112- ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-392-0 01 1 1112- ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-392-0 01 1 1112- ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-394-0 01 1 0905-0906 ● ● ● ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-394-0 01 1 0907-1111 ● ● ● ●
44 08.852 LEVER; SHUTTER,HTR UNIT 8-98047-394-0 01 1 0907-1111 ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-394-0 01 1 1112- ● ● ● ●
44 08.852 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-394-0 01 1 1112- ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-395-0 01 1 0905-0906 ● ● ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-395-0 01 1 0907-1111 ● ● ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT 8-98047-395-0 01 1 0907-1111 ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-395-0 01 1 1112- ● ● ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-395-0 01 1 1112- ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 0905-0906 ● ● ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 0907-1007 ● ● ● ●
48 09.786 LEVER; HTR UNIT 8-98047-391-0 01 1 0907-1007 ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1008-1111 ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1008-1111 ● ● ●
48 09.786 LEVER; HTR UNIT 8-98047-391-0 01 1 1008-1111 ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1112- ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1112- ● ● ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1112- ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 0905-0906 ● ● ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 0907-1007 ● ● ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT 8-98047-390-0 01 1 0907-1007 ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 1008-1111 ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 1008-1111 ● ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT 8-98047-390-0 01 1 1008-1111 ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 1112- ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 1112- ● ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 1112- ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-393-0 01 1 0905-0906 ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-393-0 01 1 0907-1007 ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-98047-393-0 01 1 0907-1007 ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-393-0 01 1 1008-1111 ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-393-0 01 1 1008-1111 ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-98047-393-0 01 1 1008-1111 ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-393-0 01 1 1112- ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-393-0 01 1 1112- ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-393-0 01 1 1112- ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 0905-0906 ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 0907-1007 ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 0907-1007 ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1008-1111 ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1008-1111 ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 1008-1111 ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1112- ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1112- ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1112- ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-422-0 01 1 1008-1111 ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-422-0 01 1 1112- ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-423-0 01 1 1008-1111 ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-423-0 01 1 1112- ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 0905-0906 ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 0907-1111 ● ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-98047-375-0 01 1 0907-1111 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 1112- ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 1112- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 0905-0906 ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 0907-1111 ● ● ● ●
61 08.854 CASE; HTR UNIT
(A) 		8-98047-376-0 01 1 0907-1111 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 1112- ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 1112- ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 0905-0906 ● ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 0907-1111 ● ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-98047-385-0 01 1 0907-1111 ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 1112- ● ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 1112- ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-417-0 01 1 1008-1111 ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-417-0 01 1 1112- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 0905-0906 ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 0907-1111 ● ● ● ●
67 08.854 CLIP; HTR UNIT 8-98047-417-0 02 1 0907-1111 ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 1112- ● ● ● ●
67 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 1112- ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-380-0 01 1 0905-0906 ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-380-0 01 1 0907-1111 ● ● ● ●
68 08.854 CORE; HTR UNIT 8-98047-380-0 01 1 0907-1111 ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-380-0 01 1 1112- ● ● ● ●
68 08.854 CORE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-380-0 01 1 1112- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 0905-0906 ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 0907-1007 ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 0907-1007 ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1008-1111 ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1008-1111 ● ● ●
72 08.845 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 1008-1111 ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1112- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1112- ● ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1112- ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98077-419-0 01 1 1008-1111 ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98077-419-0 01 1 1112-1301 ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 0905- ● ● ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-118-0 01 1 0905-0906 ● ● ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-118-0 01 1 0907-1111 ● ● ● ●
73 08.845 PLATE; HTR UNIT 8-98074-118-0 01 1 0907-1111 ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-118-0 01 1 1112- ● ● ● ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-414-0 01 1 0905-0906 ● ● ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-414-0 01 1 0907-1007 ● ● ● ●
77 08.857 COVER; HTR CASE 8-98047-414-0 01 1 0907-1007 ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-414-0 01 1 1008-1111 ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-414-0 01 1 1008-1111 ● ● ●
77 08.857 COVER; HTR CASE 8-98047-414-0 01 1 1008-1111 ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-414-0 01 1 1112- ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-414-0 01 1 1112- ● ● ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-414-0 01 1 1112- ●
96 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 0905-1007 ● ● ● ●
96 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1008-1111 ●
96 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1008-1111 ● ● ●
96 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1112-1301 ●
96 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1112-1301 ● ● ●
96 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98048-815-0 01 1 1112-1301 ●
96 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1302- ● ● ● ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-528-0 01 1 0905-0906 ● ● ● ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-528-0 01 1 0907-1111 ● ● ● ●
100 08.854 PIPE; CORE,HTR UNIT 8-98072-528-0 01 1 0907-1111 ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-528-0 01 1 1112- ● ● ● ●
100 08.854 PIPE; CORE,HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98072-528-0 01 1 1112- ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 0905-0906 ● ● ● ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 0907-1111 ● ● ● ●
101 08.845 GASKET; CORE,HTR UNIT 8-98072-531-0 02 1 0907-1111 ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 1112- ● ● ● ●
101 08.845 GASKET; CORE,HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 1112- ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 0905-0906 ● ● ● ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 0907-1111 ● ● ● ●
133 08.845 CLIP; PIPE 8-98072-530-0 02 1 0907-1111 ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 1112- ● ● ● ●
133 08.845 CLIP; PIPE
AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 1112- ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 0905-0906 ● ● ● ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 0907-1111 ● ● ● ●
162 08.845 SCREW; CLIP FIX 8-98072-529-0 02 1 0907-1111 ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 1112- ● ● ● ●
162 08.845 SCREW; CLIP FIX
AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 1112- ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 0905-0906 ● ● ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 0907-1007 ● ● ● ●
207 08.845 CLAMP; HTR UNIT 8-98047-379-0 01 1 0907-1007 ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 1008-1111 ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 1008-1111 ● ● ●
207 08.845 CLAMP; HTR UNIT 8-98047-379-0 01 1 1008-1111 ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 1112-1301 ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 1112-1301 ● ● ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 1112-1301 ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 1302- ● ● ● ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 1302- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0905-0906 ● ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0907-1007 ● ● ● ●
236 08.855 GASKET; HEATER
(A) 		8-98047-420-0 01 1 0907-1007 ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1008-1111 ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1008-1111 ● ● ●
236 08.855 GASKET; HEATER
(A) 		8-98047-420-0 01 1 1008-1111 ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1112- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1112- ● ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1112- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0905-0906 ● ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0907-1007 ● ● ● ●
236 08.855 GASKET; HEATER
(B) 		8-98047-421-0 01 1 0907-1007 ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1008-1111 ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1008-1111 ● ● ●
236 08.855 GASKET; HEATER
(B) 		8-98047-421-0 01 1 1008-1111 ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1112- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1112- ● ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1112- ●
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 0905-1007 ● ● ● ●
242 08.855 GASKET; CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 1008-1111 ●
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 1008-1111 ● ● ●
242 08.855 GASKET; CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 1112-1411 ●
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 1112-1411 ● ● ●
242 08.855 GASKET; CASE
FORGED AIR VENTILATION(C39) 08.845 		8-98048-816-0 01 1 1112-1411 ●
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 1412- ● ● ● ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 0905-0906 ● ● ● ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 0907-1111 ● ● ● ●
243 08.854 CORE
01.656 		8-98048-508-0 01 1 0907-1111 ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 1112- ● ● ● ●
243 08.854 CORE
AIR CONDITIONER MANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 1112- ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-510-0 01 1 0905-0906 ● ● ● ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-510-0 01 1 0907-1111 ● ● ● ●
244 08.854 PIPE; INLET 8-98048-510-0 01 1 0907-1111 ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-510-0 01 1 1112- ● ● ● ●
244 08.854 PIPE; INLET
AIR CONDITIONER MANUAL CONT(C60) 		8-98048-510-0 01 1 1112- ●
çizim 158931
1 59 16 207 30 66 61 30 72 67 67 61 135 45 44 2 29 56 34 72 236 77 30 30 35 219 93 72 2 73 155 100 52 30 2 101 212 48 162 133 244 234 101 162 240 133 235 240 243 239 238 235 68 236 237
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98062-757-1 01 1 1008-1111 ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98062-757-1 01 1 1112-1301 ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98214-400-1 01 1 1302- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (B) 		8-98062-756-1 01 1 0905- ● ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 0905-0906 ● ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 0907-1111 ● ● ● ●
1 08.845 HEATER UNIT
(A) 		8-98021-972-4 01 1 0907-1111 ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 1112- ● ● ● ● ●
2 08.854 SCREW; LEVER
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-98047-416-0 03 1 0905-0906 ● ● ● ●
2 08.854 SCREW; LEVER
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-98047-416-0 03 1 0907-1111 ● ● ● ●
2 08.854 SCREW; LEVER
08.852 M4X16 		8-98047-416-0 03 1 0907-1111 ●
2 08.854 SCREW; LEVER
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-98047-416-0 03 1 1112- ● ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 0905-0906 ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 0907-1007 ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 0907-1007 ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1008-1111 ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1008-1111 ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 1008-1111 ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1112- ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1112- ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1112- ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98231-367-0 01 1 1302- ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 0905-0906 ● ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 0907-1007 ● ● ● ●
29 08.857 COVER; HTR UNIT 8-98074-119-0 01 1 0907-1007 ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 1008-1111 ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 1008-1111 ● ● ●
29 08.857 COVER; HTR UNIT 8-98074-119-0 01 1 1008-1111 ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 1112-1301 ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 1112-1301 ● ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 1112-1301 ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 1302- ● ● ● ●
29 08.857 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 1302- ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1302- ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 0905-1007 ● ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1008-1111 ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1008-1111 ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1112-1301 ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1112-1301 ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1112-1301 ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 20 1 1302- ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0905-0906 ● ● ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0907-1111 ● ● ● ●
30 08.845 SCREW; HTR UNIT
08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0907-1111 ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 1112- ● ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 0905-0906 ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 0907-1007 ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-98047-389-0 01 1 0907-1007 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 1008-1111 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 1008-1111 ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-98047-389-0 01 1 1008-1111 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 1112- ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 1112- ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 1112- ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-392-0 01 1 0905-0906 ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-392-0 01 1 0907-1007 ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-98047-392-0 01 1 0907-1007 ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-392-0 01 1 1008-1111 ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-392-0 01 1 1008-1111 ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-98047-392-0 01 1 1008-1111 ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-392-0 01 1 1112- ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-392-0 01 1 1112- ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-392-0 01 1 1112- ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-394-0 01 1 0905-0906 ● ● ● ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-394-0 01 1 0907-1111 ● ● ● ●
44 08.852 LEVER; SHUTTER,HTR UNIT 8-98047-394-0 01 1 0907-1111 ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-394-0 01 1 1112- ● ● ● ●
44 08.852 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-394-0 01 1 1112- ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-395-0 01 1 0905-0906 ● ● ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-395-0 01 1 0907-1111 ● ● ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT 8-98047-395-0 01 1 0907-1111 ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-395-0 01 1 1112- ● ● ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-395-0 01 1 1112- ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 0905-0906 ● ● ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 0907-1007 ● ● ● ●
48 09.786 LEVER; HTR UNIT 8-98047-391-0 01 1 0907-1007 ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1008-1111 ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1008-1111 ● ● ●
48 09.786 LEVER; HTR UNIT 8-98047-391-0 01 1 1008-1111 ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1112- ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1112- ● ● ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1112- ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 0905-0906 ● ● ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 0907-1007 ● ● ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT 8-98047-390-0 01 1 0907-1007 ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 1008-1111 ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 1008-1111 ● ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT 8-98047-390-0 01 1 1008-1111 ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 1112- ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 1112- ● ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 1112- ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-393-0 01 1 0905-0906 ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-393-0 01 1 0907-1007 ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-98047-393-0 01 1 0907-1007 ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-393-0 01 1 1008-1111 ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-393-0 01 1 1008-1111 ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-98047-393-0 01 1 1008-1111 ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-393-0 01 1 1112- ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-393-0 01 1 1112- ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-393-0 01 1 1112- ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 0905-0906 ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 0907-1007 ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 0907-1007 ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1008-1111 ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1008-1111 ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 1008-1111 ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1112- ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1112- ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1112- ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-422-0 01 1 1008-1111 ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-422-0 01 1 1112- ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-423-0 01 1 1008-1111 ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-423-0 01 1 1112- ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 0905-0906 ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 0907-1111 ● ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-98047-375-0 01 1 0907-1111 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 1112- ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 1112- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 0905-0906 ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 0907-1111 ● ● ● ●
61 08.854 CASE; HTR UNIT
(A) 		8-98047-376-0 01 1 0907-1111 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 1112- ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 1112- ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 0905-0906 ● ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 0907-1111 ● ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR 8-98047-385-0 01 1 0907-1111 ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 1112- ● ● ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 1112- ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-417-0 01 1 1008-1111 ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-417-0 01 1 1112- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 0905-0906 ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 0907-1111 ● ● ● ●
67 08.854 CLIP; HTR UNIT 8-98047-417-0 02 1 0907-1111 ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 1112- ● ● ● ●
67 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 1112- ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-380-0 01 1 0905-0906 ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-380-0 01 1 0907-1111 ● ● ● ●
68 08.854 CORE; HTR UNIT 8-98047-380-0 01 1 0907-1111 ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-380-0 01 1 1112- ● ● ● ●
68 08.854 CORE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-380-0 01 1 1112- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 0905-0906 ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 0907-1007 ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 0907-1007 ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1008-1111 ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1008-1111 ● ● ●
72 08.845 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 1008-1111 ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1112- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1112- ● ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1112- ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98077-419-0 01 1 1008-1111 ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98077-419-0 01 1 1112-1301 ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 0905- ● ● ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-118-0 01 1 0905-0906 ● ● ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-118-0 01 1 0907-1111 ● ● ● ●
73 08.845 PLATE; HTR UNIT 8-98074-118-0 01 1 0907-1111 ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-118-0 01 1 1112- ● ● ● ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-414-0 01 1 0905-0906 ● ● ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-414-0 01 1 0907-1007 ● ● ● ●
77 08.857 COVER; HTR CASE 8-98047-414-0 01 1 0907-1007 ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-414-0 01 1 1008-1111 ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-414-0 01 1 1008-1111 ● ● ●
77 08.857 COVER; HTR CASE 8-98047-414-0 01 1 1008-1111 ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-414-0 01 1 1112- ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-414-0 01 1 1112- ● ● ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-414-0 01 1 1112- ●
93 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-427-0 01 1 0905-0906 ● ● ● ●
93 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-427-0 01 1 0907-1111 ● ● ● ●
93 08.845 PLATE; HTR UNIT 8-98047-427-0 01 1 0907-1111 ●
93 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-427-0 01 1 1112- ● ● ● ● ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-528-0 01 1 0905-0906 ● ● ● ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-528-0 01 1 0907-1111 ● ● ● ●
100 08.854 PIPE; CORE,HTR UNIT 8-98072-528-0 01 1 0907-1111 ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-528-0 01 1 1112- ● ● ● ●
100 08.854 PIPE; CORE,HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98072-528-0 01 1 1112- ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 0905-0906 ● ● ● ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 0907-1111 ● ● ● ●
101 08.845 GASKET; CORE,HTR UNIT 8-98072-531-0 02 1 0907-1111 ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 1112- ● ● ● ●
101 08.845 GASKET; CORE,HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 1112- ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 0905-0906 ● ● ● ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 0907-1111 ● ● ● ●
133 08.845 CLIP; PIPE 8-98072-530-0 02 1 0907-1111 ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 1112- ● ● ● ●
133 08.845 CLIP; PIPE
AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 1112- ●
135 08.854 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-384-0 01 1 0905-0906 ● ● ● ●
135 08.854 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-384-0 01 1 0907-1111 ● ● ● ●
135 08.854 COVER; HTR 8-98047-384-0 01 1 0907-1111 ●
135 08.854 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-384-0 01 1 1112- ● ● ● ● ●
155 09.260 GROMMET; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-431-0 01 1 0905-0906 ● ● ● ●
155 09.260 GROMMET; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-431-0 01 1 0907-1111 ● ● ● ●
155 09.260 GROMMET; HTR UNIT 8-98047-431-0 01 1 0907-1111 ●
155 09.260 GROMMET; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-431-0 01 1 1112- ● ● ● ● ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 0905-0906 ● ● ● ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 0907-1111 ● ● ● ●
162 08.845 SCREW; CLIP FIX 8-98072-529-0 02 1 0907-1111 ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 1112- ● ● ● ●
162 08.845 SCREW; CLIP FIX
AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 1112- ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 0905-0906 ● ● ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 0907-1007 ● ● ● ●
207 08.845 CLAMP; HTR UNIT 8-98047-379-0 01 1 0907-1007 ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 1008-1111 ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 1008-1111 ● ● ●
207 08.845 CLAMP; HTR UNIT 8-98047-379-0 01 1 1008-1111 ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 1112-1301 ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 1112-1301 ● ● ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 1112-1301 ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 1302- ● ● ● ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 1302- ●
212 09.262 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) M5X61 		8-98047-415-0 02 1 0905-0906 ● ● ● ●
212 09.262 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) M5X61 		8-98047-415-0 02 1 0907-1111 ● ● ● ●
212 09.262 BOLT; HTR UNIT
M5X61 		8-98047-415-0 02 1 0907-1111 ●
212 09.262 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) M5X61 		8-98047-415-0 02 1 1112- ● ● ● ● ●
219 08.854 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-429-0 01 1 0905-0906 ● ● ● ●
219 08.854 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-429-0 01 1 0907-1111 ● ● ● ●
219 08.854 AMPLIFIER; HEATER UNIT 8-98047-429-0 01 1 0907-1111 ●
219 08.854 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-429-0 01 1 1112- ● ● ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-116-1 01 1 0905-0906 ● ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-116-1 01 1 0907-1111 ● ● ● ●
234 08.854 EVAPORATOR ASM; HEATER 8-98074-116-1 01 1 0907-1111 ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-116-1 01 1 1112- ● ● ● ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7 		8-97095-907-0 01 1 0905-0906 ● ● ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7 		8-97095-907-0 01 1 0907-1111 ● ● ● ●
235 08.845 GASKET; EVAPORATOR
09.260 (A) ID=11.7 		8-97095-907-0 01 1 0907-1111 ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7 		8-97095-907-0 01 1 1112- ● ● ● ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5 		8-97095-908-0 01 1 0905-0906 ● ● ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5 		8-97095-908-0 01 1 0907-1111 ● ● ● ●
235 08.845 GASKET; EVAPORATOR
09.225 (B) ID=14.5 		8-97095-908-0 01 1 0907-1111 ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5 		8-97095-908-0 01 1 1112- ● ● ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0905-0906 ● ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0907-1007 ● ● ● ●
236 08.855 GASKET; HEATER
(A) 		8-98047-420-0 01 1 0907-1007 ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1008-1111 ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1008-1111 ● ● ●
236 08.855 GASKET; HEATER
(A) 		8-98047-420-0 01 1 1008-1111 ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1112- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1112- ● ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1112- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0905-0906 ● ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0907-1007 ● ● ● ●
236 08.855 GASKET; HEATER
(B) 		8-98047-421-0 01 1 0907-1007 ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1008-1111 ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1008-1111 ● ● ●
236 08.855 GASKET; HEATER
(B) 		8-98047-421-0 01 1 1008-1111 ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1112- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1112- ● ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1112- ●
237 08.855 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-382-0 01 1 0905-0906 ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-382-0 01 1 0907-1111 ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98047-382-0 01 1 0907-1111 ●
237 08.855 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-382-0 01 1 1112- ● ● ● ● ●
238 08.845 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-383-0 01 1 0905-0906 ● ● ● ●
238 08.845 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-383-0 01 1 0907-1111 ● ● ● ●
238 08.845 VALVE; EXPANSION 8-98047-383-0 01 1 0907-1111 ●
238 08.845 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-383-0 01 1 1112- ● ● ● ● ●
239 08.846 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-115-0 01 1 0905-0906 ● ● ● ●
239 08.846 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-115-0 01 1 0907-1111 ● ● ● ●
239 08.846 TUBE ASM; HEATER 8-98074-115-0 01 1 0907-1111 ●
239 08.846 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-115-0 01 1 1112- ● ● ● ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4 		8-97095-906-0 01 1 0905-0906 ● ● ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4 		8-97095-906-0 01 1 0907-1111 ● ● ● ●
240 08.845 GASKET; HEATER
09.225 (B) ID=7.4 		8-97095-906-0 01 1 0907-1111 ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4 		8-97095-906-0 01 1 1112- ● ● ● ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5 		8-97095-908-0 01 1 0905-0906 ● ● ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5 		8-97095-908-0 01 1 0907-1111 ● ● ● ●
240 08.845 GASKET; HEATER
09.225 (A) ID=14.5 		8-97095-908-0 01 1 0907-1111 ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5 		8-97095-908-0 01 1 1112- ● ● ● ● ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 0905-0906 ● ● ● ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 0907-1111 ● ● ● ●
243 08.854 CORE
01.656 		8-98048-508-0 01 1 0907-1111 ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 1112- ● ● ● ●
243 08.854 CORE
AIR CONDITIONER MANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 1112- ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-510-0 01 1 0905-0906 ● ● ● ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-510-0 01 1 0907-1111 ● ● ● ●
244 08.854 PIPE; INLET 8-98048-510-0 01 1 0907-1111 ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-510-0 01 1 1112- ● ● ● ●
244 08.854 PIPE; INLET
AIR CONDITIONER MANUAL CONT(C60) 		8-98048-510-0 01 1 1112- ●
çizim 159183
72 67 61 61 59 1 16 207 30 30 29 72 73 236 96 242 72 30 236 77 30 35 56 34 32 48 32 52
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98062-757-1 01 1 1008-1111 ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98062-757-1 01 1 1112-1301 ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98214-400-1 01 1 1302- ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (B) 		8-98062-756-1 01 1 0905- ● ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 0905-0906 ● ● ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 0907-1111 ● ● ● ●
1 08.845 HEATER UNIT
(A) 		8-98021-972-4 01 1 0907-1111 ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 1112- ● ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 0905-0906 ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 0907-1007 ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 0907-1007 ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1008-1111 ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1008-1111 ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 1008-1111 ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1112- ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1112- ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1112- ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98231-367-0 01 1 1302- ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 0905-0906 ● ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 0907-1007 ● ● ● ●
29 08.857 COVER; HTR UNIT 8-98074-119-0 01 1 0907-1007 ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 1008-1111 ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 1008-1111 ● ● ●
29 08.857 COVER; HTR UNIT 8-98074-119-0 01 1 1008-1111 ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 1112-1301 ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 1112-1301 ● ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 1112-1301 ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 1302- ● ● ● ●
29 08.857 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-119-0 01 1 1302- ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1302- ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 0905-1007 ● ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1008-1111 ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1008-1111 ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1112-1301 ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1112-1301 ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1112-1301 ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 20 1 1302- ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0905-0906 ● ● ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0907-1111 ● ● ● ●
30 08.845 SCREW; HTR UNIT
08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0907-1111 ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 1112- ● ● ● ● ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 		8-98047-416-0 02 1 1008-1111 ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 		8-98047-416-0 02 1 1112- ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 0905- ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 0905-0906 ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 0907-1007 ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-98047-389-0 01 1 0907-1007 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 1008-1111 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 1008-1111 ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT 8-98047-389-0 01 1 1008-1111 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 1112- ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 1112- ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 1112- ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-392-0 01 1 0905-0906 ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-392-0 01 1 0907-1007 ● ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-98047-392-0 01 1 0907-1007 ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-392-0 01 1 1008-1111 ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-392-0 01 1 1008-1111 ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT 8-98047-392-0 01 1 1008-1111 ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-392-0 01 1 1112- ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-392-0 01 1 1112- ● ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-392-0 01 1 1112- ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 0905-0906 ● ● ● ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 0907-1007 ● ● ● ●
48 09.786 LEVER; HTR UNIT 8-98047-391-0 01 1 0907-1007 ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1008-1111 ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1008-1111 ● ● ●
48 09.786 LEVER; HTR UNIT 8-98047-391-0 01 1 1008-1111 ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1112- ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1112- ● ● ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1112- ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 0905-0906 ● ● ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 0907-1007 ● ● ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT 8-98047-390-0 01 1 0907-1007 ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 1008-1111 ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 1008-1111 ● ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT 8-98047-390-0 01 1 1008-1111 ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 1112- ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 1112- ● ● ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 1112- ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-393-0 01 1 0905-0906 ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-393-0 01 1 0907-1007 ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-98047-393-0 01 1 0907-1007 ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-393-0 01 1 1008-1111 ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-393-0 01 1 1008-1111 ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT 8-98047-393-0 01 1 1008-1111 ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-393-0 01 1 1112- ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-393-0 01 1 1112- ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-393-0 01 1 1112- ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 0905-0906 ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 0907-1007 ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 0907-1007 ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1008-1111 ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1008-1111 ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 1008-1111 ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1112- ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1112- ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1112- ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-422-0 01 1 1008-1111 ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-422-0 01 1 1112- ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-423-0 01 1 1008-1111 ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-423-0 01 1 1112- ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 0905-0906 ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 0907-1111 ● ● ● ●
61 08.854 CASE; HTR UNIT
(B) 		8-98047-375-0 01 1 0907-1111 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 1112- ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 1112- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 0905-0906 ● ● ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 0907-1111 ● ● ● ●
61 08.854 CASE; HTR UNIT
(A) 		8-98047-376-0 01 1 0907-1111 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 1112- ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 1112- ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-417-0 01 1 1008-1111 ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-417-0 01 1 1112- ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 0905-0906 ● ● ● ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 0907-1111 ● ● ● ●
67 08.854 CLIP; HTR UNIT 8-98047-417-0 02 1 0907-1111 ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 1112- ● ● ● ●
67 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 1112- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 0905-0906 ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 0907-1007 ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 0907-1007 ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1008-1111 ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1008-1111 ● ● ●
72 08.845 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 1008-1111 ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1112- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1112- ● ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1112- ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98077-419-0 01 1 1008-1111 ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98077-419-0 01 1 1112-1301 ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 0905- ● ● ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-118-0 01 1 0905-0906 ● ● ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-118-0 01 1 0907-1111 ● ● ● ●
73 08.845 PLATE; HTR UNIT 8-98074-118-0 01 1 0907-1111 ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-118-0 01 1 1112- ● ● ● ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-414-0 01 1 0905-0906 ● ● ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-414-0 01 1 0907-1007 ● ● ● ●
77 08.857 COVER; HTR CASE 8-98047-414-0 01 1 0907-1007 ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-414-0 01 1 1008-1111 ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-414-0 01 1 1008-1111 ● ● ●
77 08.857 COVER; HTR CASE 8-98047-414-0 01 1 1008-1111 ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-414-0 01 1 1112- ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-414-0 01 1 1112- ● ● ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-414-0 01 1 1112- ●
96 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 0905-1007 ● ● ● ●
96 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1008-1111 ●
96 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1008-1111 ● ● ●
96 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1112-1301 ●
96 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1112-1301 ● ● ●
96 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98048-815-0 01 1 1112-1301 ●
96 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1302- ● ● ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 0905-0906 ● ● ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 0907-1007 ● ● ● ●
207 08.845 CLAMP; HTR UNIT 8-98047-379-0 01 1 0907-1007 ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 1008-1111 ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 1008-1111 ● ● ●
207 08.845 CLAMP; HTR UNIT 8-98047-379-0 01 1 1008-1111 ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 1112-1301 ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 1112-1301 ● ● ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 1112-1301 ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 1302- ● ● ● ●
207 08.845 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-379-0 01 1 1302- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0905-0906 ● ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 0907-1007 ● ● ● ●
236 08.855 GASKET; HEATER
(A) 		8-98047-420-0 01 1 0907-1007 ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1008-1111 ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1008-1111 ● ● ●
236 08.855 GASKET; HEATER
(A) 		8-98047-420-0 01 1 1008-1111 ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1112- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1112- ● ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1112- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0905-0906 ● ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 0907-1007 ● ● ● ●
236 08.855 GASKET; HEATER
(B) 		8-98047-421-0 01 1 0907-1007 ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1008-1111 ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1008-1111 ● ● ●
236 08.855 GASKET; HEATER
(B) 		8-98047-421-0 01 1 1008-1111 ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1112- ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1112- ● ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1112- ●
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 0905-1007 ● ● ● ●
242 08.855 GASKET; CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 1008-1111 ●
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 1008-1111 ● ● ●
242 08.855 GASKET; CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 1112-1411 ●
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 1112-1411 ● ● ●
242 08.855 GASKET; CASE
FORGED AIR VENTILATION(C39) 08.845 		8-98048-816-0 01 1 1112-1411 ●
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 1412- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
