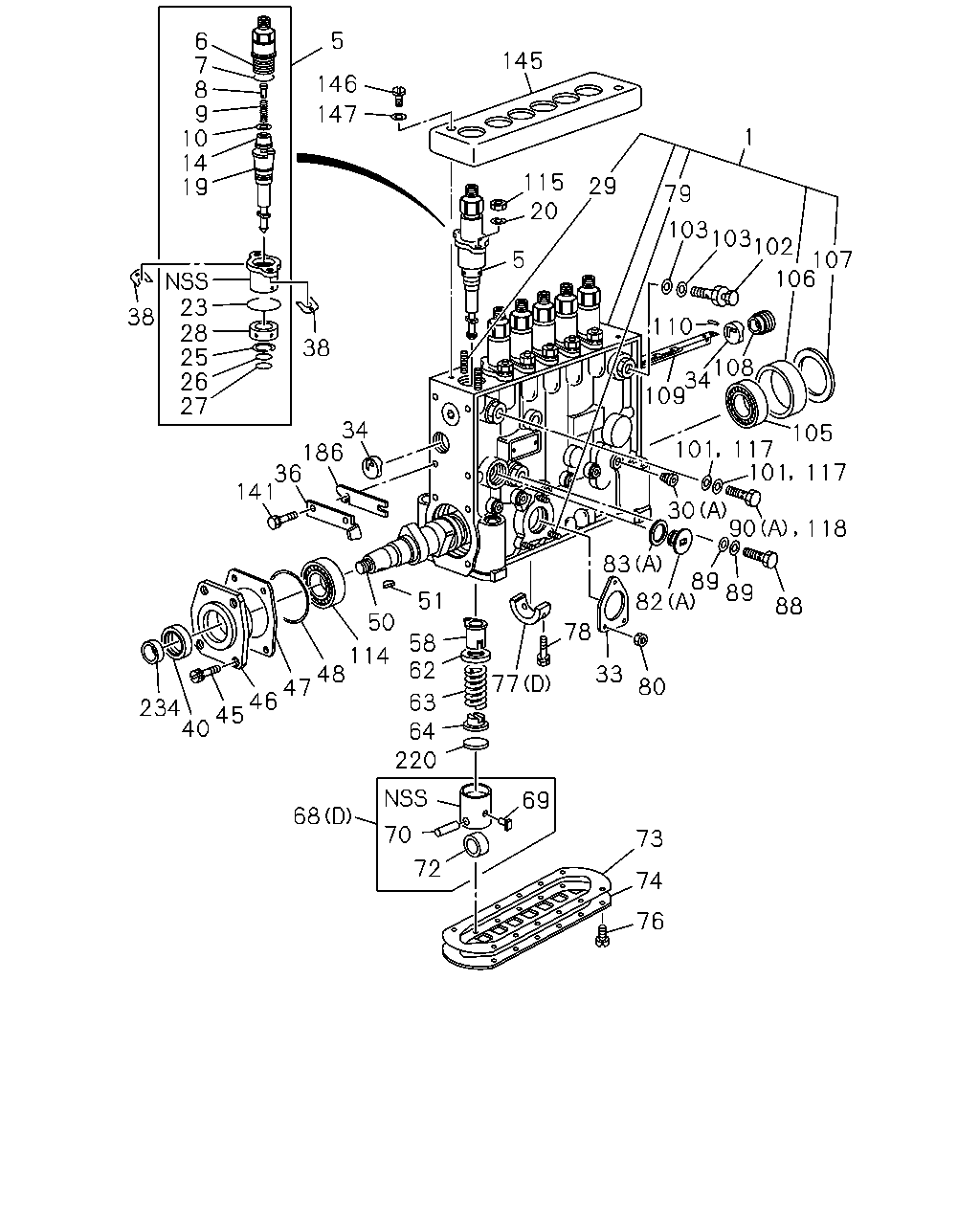

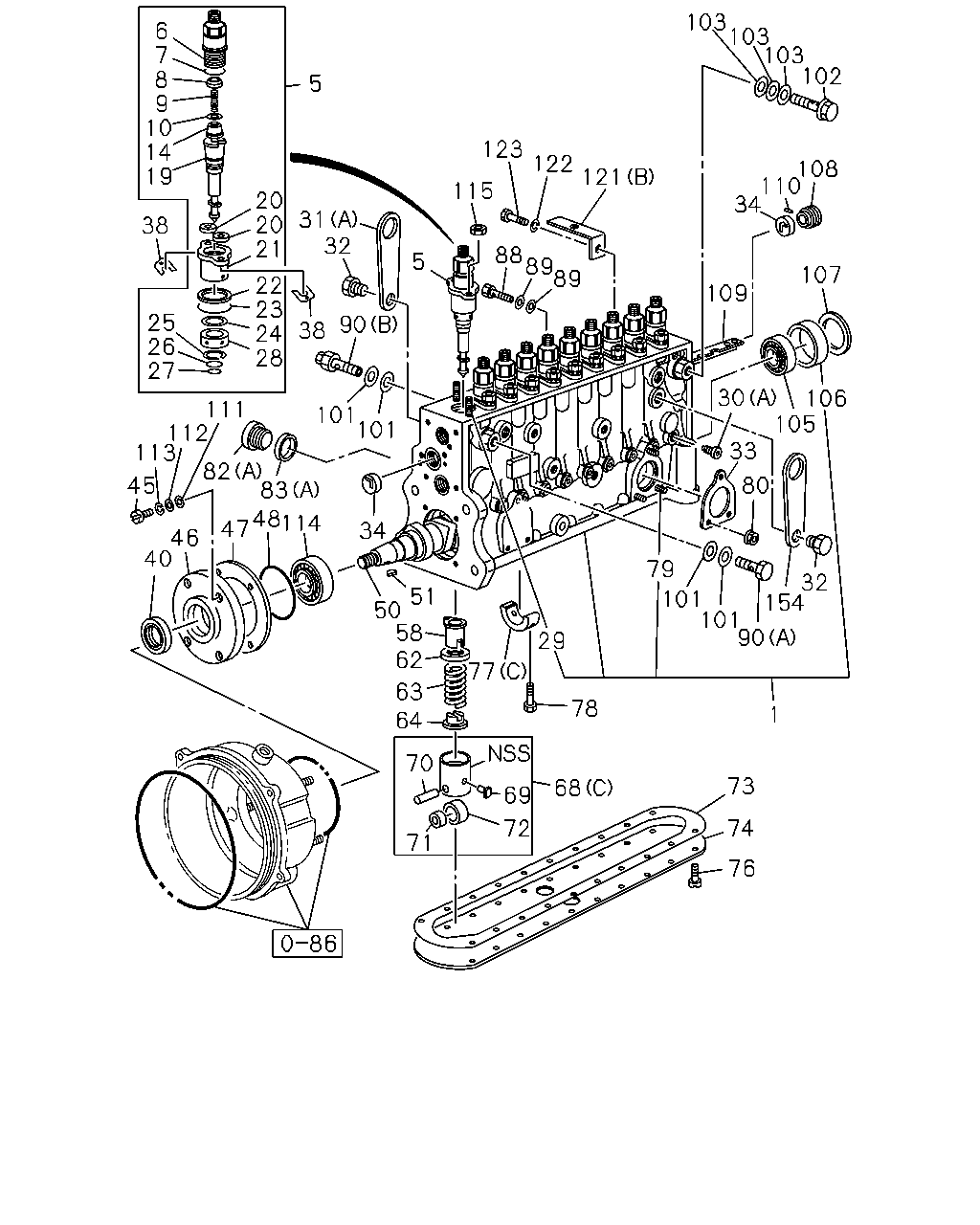

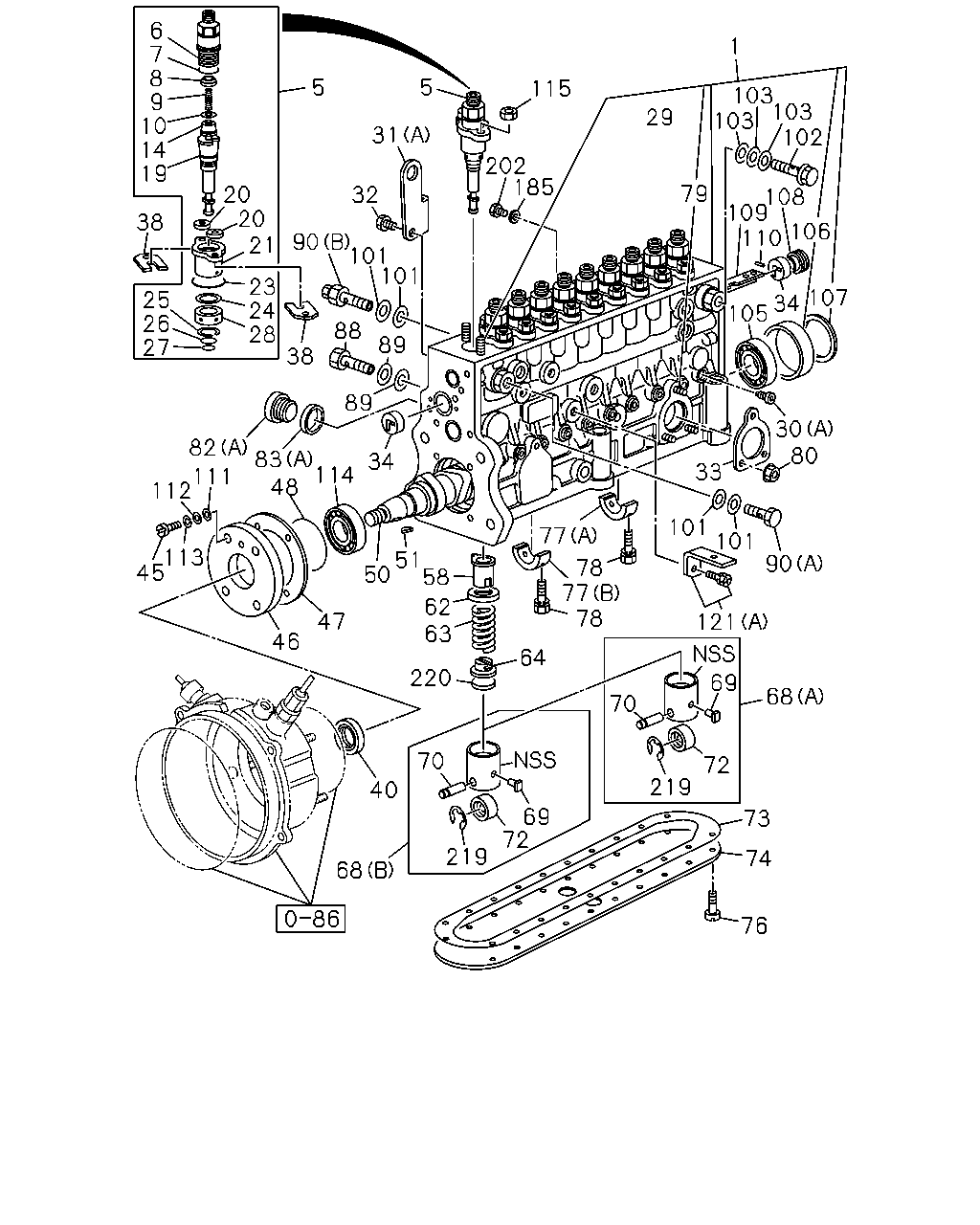

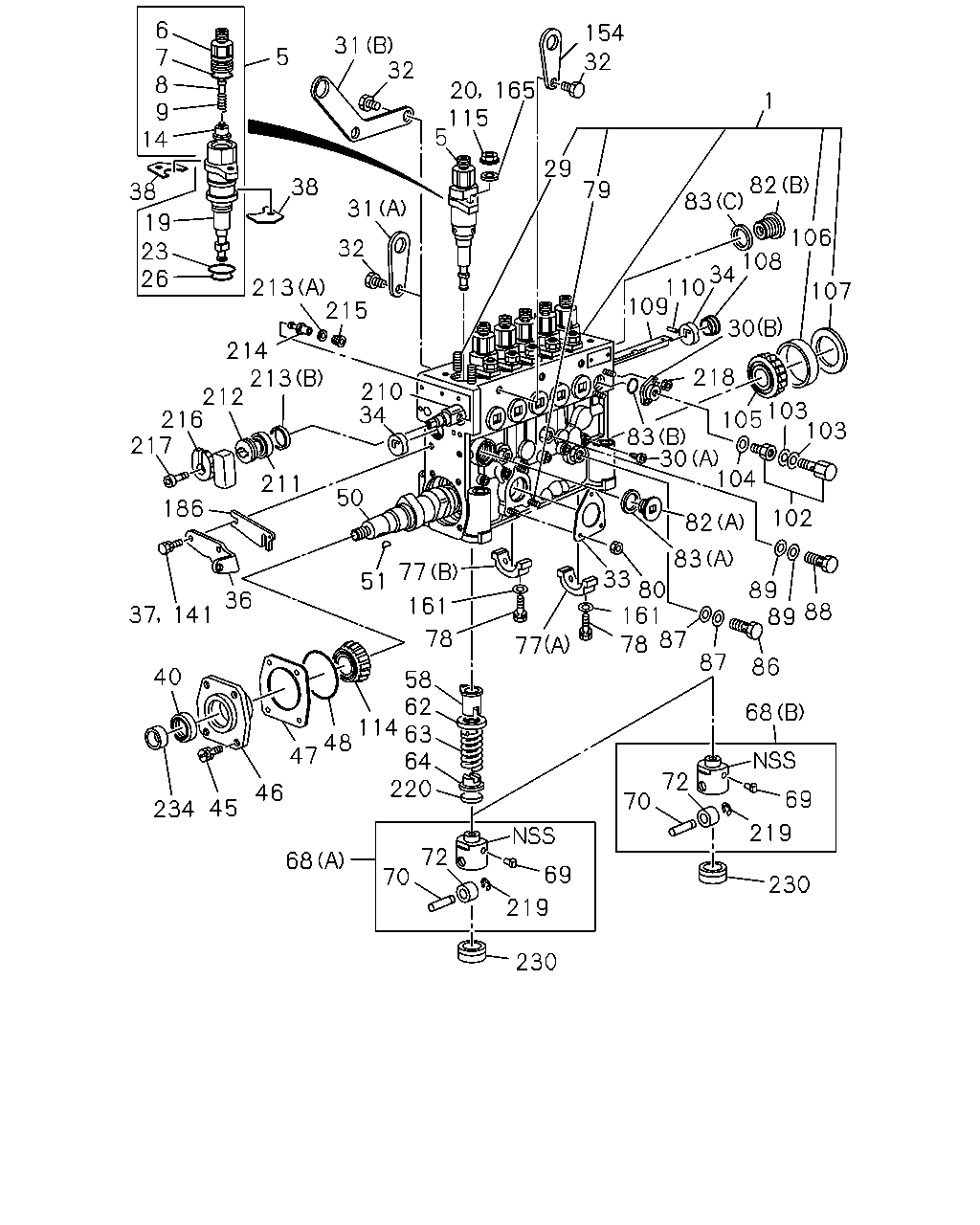

0-80 — INJECTION PUMP (#5014) — 1128 parça

6 7 8 9 14 154 31 32 5 32 115 5 1 29 82 83 38 79 38 31 19 106 32 23 26 108 34 110 109 213 215 107 30 214 213 212 216 217 218 210 34 103 105 103 83 30 104 211 50 186 102 82 83 77 33 80 161 87 51 89 88 89 36 161 37 141 78 78 77 87 86 40 58 62 114 63 48 47 64 220 68 72 46 69 70 45 234 219 72 68 69 70 230 219 230 20 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15611-168-1	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15611-170-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15603-059-2	1-15611-182-0	01	1	-9606
1	HOUSING; PUMP,FUEL INJ ASM PART: F = 1-15603-201-0	1-15611-187-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15603-059-2	1-15611-187-0	01	1	9607-
1	HOUSING; PUMP,FUEL INJ ASM PART: C = 1-15603-114-4	1-15611-189-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: J = 1-15603-290-5	1-15611-206-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15631-179-1	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15631-187-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15631-193-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: C = 1-15603-114-4	1-15631-195-1	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: E = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15631-201-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-412-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15644-007-0	10	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15644-016-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15644-017-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: C = 1-15603-114-4	1-15619-413-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15629-088-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-095-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-104-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15649-005-0	10	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	8-97084-987-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15643-010-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15643-130-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15662-001-0	10	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-411-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15641-028-0	10	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15641-041-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15641-042-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: E = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15632-017-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15632-018-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15632-031-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15632-037-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: C = 1-15603-114-4	1-15632-039-0	06	1	-
20	WASHER; PLUNGER BARREL ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15639-020-0	20	1	-
20	WASHER; PLUNGER BARREL ASM PART: C = 1-15603-114-4, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-020-0	12	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15629-089-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-096-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15629-106-0	10	1	-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15603-059-2	1-15619-424-0	10	1	9607-
26	GASKET; PLUNGER UPR ASM PART: C = 1-15603-114-4	1-15619-424-0	06	1	9703-
26	GASKET; PLUNGER UPR ASM PART: D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-424-0	10	1	-
26	GASKET; PLUNGER UPR ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-097-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: C = 1-15603-114-4	1-15629-113-0	06	1	-9702
26	GASKET; PLUNGER UPR ASM PART: A = 1-15603-059-2	1-15629-113-0	10	1	-9606
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-328-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: C = 1-15603-114-4	1-15619-357-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-432-0	20	1	-
30	PLUG; SCREW,INJ PUMP HSG (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-345-0	01	1	-
30	PLUG; SCREW,INJ PUMP HSG (A) ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81215-130-0	10	1	-
30	PLUG; SCREW,INJ PUMP HSG (A) ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-130-0	06	1	-
31	HANGER; FRT,INJ PUMP (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15619-163-0	01	1	-
31	HANGER; FRT,INJ PUMP (A) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15619-347-0	01	1	-
31	HANGER; FRT,INJ PUMP (A) ASM PART: D = 1-15603-123-2	1-15619-403-0	01	1	-
31	HANGER; FRT,INJ PUMP (A) ASM PART: G = 1-15603-209-1	1-15619-444-0	01	1	-
31	HANGER; FRT,INJ PUMP (B) ASM PART: J = 1-15603-290-5	1-15619-464-0	01	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-039-0	01	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15619-039-0	02	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15789-098-0	02	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: J = 1-15603-290-5	1-15789-098-0	03	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-320-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: J = 1-15603-290-5	1-15619-461-0	02	1	-9910
34	BUSHING; CONT RACK,INJ PUMP ASM PART: J = 1-15603-290-5	1-15619-493-0	02	1	9911-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3	9-81215-123-0	02	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-408-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-409-0	01	1	-
37	BOLT; POINTER FIX,INJ PUMP ASM PART: J = 1-15603-290-5	5-15729-063-0	02	1	-9910
37	BOLT; POINTER FIX,INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	5-15729-063-0	02	1	-
37	BOLT; POINTER FIX,INJ PUMP ASM PART: I = 1-15603-265-3	5-15729-063-0	02	1	-0003
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.500 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-024-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.525 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-025-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.550 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-026-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.575 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-027-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.600 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-028-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.625 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-029-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.650 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-030-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.675 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-031-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.700 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-032-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.725 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-033-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.750 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-034-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.775 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-035-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.800 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-036-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.825 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-037-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.850 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-038-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.875 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-039-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.900 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-040-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.925 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-041-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.950 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-042-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.975 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-043-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.000 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-044-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.025 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-045-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.050 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-046-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.075 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-047-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.100 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-048-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.125 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-049-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.150 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-050-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.175 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-051-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.200 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-052-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.225 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-053-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.250 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-054-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.275 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-055-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.300 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-056-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.325 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-057-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.350 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-058-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.375 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-059-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.400 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-060-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.425 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-061-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.450 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-062-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.475 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-063-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.500 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-064-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.525 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-065-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.550 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-066-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.575 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-067-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.600 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-068-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.625 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-069-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.650 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-070-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.675 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-071-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.700 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-072-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.725 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-073-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.750 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-074-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.775 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-075-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.800 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-076-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.825 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-077-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.850 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-078-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.875 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-079-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.900 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-080-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.925 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-081-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.950 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-082-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.975 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-083-0	AR	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-317-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-100-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-308-0	04	1	-
45	BOLT; FRT COVER TO HSG ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-338-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15612-042-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15629-037-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15629-120-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-097-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-098-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-099-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-100-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-101-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-102-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-103-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-445-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-446-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-447-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-448-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-449-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-450-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-451-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-318-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: C = 1-15603-114-4	1-15619-415-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-101-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15621-083-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15621-099-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15621-112-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: C = 1-15603-114-4	1-15621-113-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: E = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15621-114-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09735-041-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15629-009-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15629-085-0	10	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15635-001-0	10	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15635-003-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: C = 1-15603-114-4	1-15635-005-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15634-017-1	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: C = 1-15603-114-4	9-81215-136-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81215-136-0	10	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15634-008-0	10	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: E = 1-15603-156-1	1-15634-018-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15634-019-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: C = 1-15603-114-4	1-15643-008-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15643-008-0	10	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: C = 1-15603-114-4	1-15629-127-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15643-004-0	10	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15643-009-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15643-009-0	10	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: J = 1-15603-290-5	1-15612-126-0	04	1	9911-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: I = 1-15603-265-3	1-15612-126-0	04	1	0004-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: I = 1-15603-265-3	1-15612-127-0	02	1	0004-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: J = 1-15603-290-5	1-15612-127-0	02	1	9911-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: B = 1-15603-065-3, D = 1-15603-123-2, E = 1-15603-156-1, G = 1-15603-209-1, H = 1-15603-240-3	1-15622-009-0	02	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: J = 1-15603-290-5	1-15622-009-0	02	1	-9910
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: I = 1-15603-265-3	1-15622-009-0	02	1	-0003
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15622-010-0	08	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: I = 1-15603-265-3	1-15622-010-0	04	1	-0003
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: J = 1-15603-290-5	1-15622-010-0	04	1	-9910
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3	1-15622-010-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP 1,4,5,6 CYLINDER ASM PART: C = 1-15603-114-4	1-15622-012-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP 2,3 CYLINDER ASM PART: C = 1-15603-114-4	1-15622-013-0	02	1	-
68	TAPPET; CM/SHF,INJ PUMP (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81221-240-0	10	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-063-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15629-063-0	10	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-313-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-313-0	10	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81225-062-0	10	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: C = 1-15603-114-4	9-81225-062-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-312-0	10	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-312-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: C = 1-15603-114-4	1-15629-129-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81225-060-0	10	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (D) B=15 ASM PART: C = 1-15603-114-4	1-15619-315-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (D) B=12 ASM PART: C = 1-15603-114-4	1-15619-316-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (A) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-392-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-393-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (A) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-396-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-397-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81225-066-0	02	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09054-022-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X25 ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15729-242-0	08	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81325-187-0	04	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: C = 1-15603-114-4	9-81325-187-0	06	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-329-0	01	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG (A) ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-067-0	01	1	-
83	GASKET; HSG PLUG (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-102-0	01	1	-
83	GASKET; HSG PLUG (C) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	5-15729-022-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15759-011-0	01	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-09630-085-0	02	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, F = 1-15603-201-0, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-092-0	01	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15759-011-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-09630-085-0	02	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, F = 1-15603-201-0, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15719-093-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-321-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-367-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15719-346-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09630-085-0	02	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-09630-085-0	03	1	-
104	GASKET; OVERFLOW VLV ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15729-850-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.60 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-105-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15637-015-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15603-114-4	1-15637-017-0	01	1	-9702
109	RACK; CONT,INJ PUMP ASM PART: E = 1-15603-156-1	1-15637-017-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15603-114-4	1-15637-037-0	01	1	9703-
109	RACK; CONT,INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3, I = 1-15603-265-3	1-15637-037-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: J = 1-15603-290-5	1-15637-053-0	01	1	-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-88410-440-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-099-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-337-0	12	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-456-0	20	1	-
141	BOLT; POINTER ASM PART: C = 1-15603-114-4, E = 1-15603-156-1	5-15729-063-0	02	1	-
154	HANGER; RR,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15619-163-0	01	1	-
154	HANGER; RR,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-347-0	01	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	5-15729-099-0	06	1	-
165	WASHER; LK,PLUNGER FIX ASM PART: B = 1-15603-065-3, E = 1-15603-156-1	1-15639-020-0	12	1	-
186	SHIM; POINTER T=0.20 ASM PART: C = 1-15603-114-4, E = 1-15603-156-1	1-15619-302-0	AR	1	-
186	SHIM; POINTER T=0.30 ASM PART: C = 1-15603-114-4, E = 1-15603-156-1	1-15639-089-0	AR	1	-
186	SHIM; POINTER T=0.50 ASM PART: C = 1-15603-114-4, E = 1-15603-156-1	1-15639-090-0	AR	1	-
186	SHIM; POINTER T=1.00 ASM PART: C = 1-15603-114-4, E = 1-15603-156-1	1-15639-091-0	AR	1	-
186	SHIM; POINTER T=1.10 ASM PART: C = 1-15603-114-4, E = 1-15603-156-1	1-15639-092-0	AR	1	-
210	ROD; CONT ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15637-019-0	01	1	-
211	BEARING; CONT ROD ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-098-0	01	1	-
212	BUSHING; CONT ROD ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-330-0	01	1	-
213	WASHER; CONT ROD (A) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-331-0	06	1	-
213	WASHER; CONT ROD (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-336-0	01	1	-
214	PIN; CONT ROD ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-332-0	06	1	-
215	SCREW; CONT ROD ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-333-0	06	1	-
216	CONNECTOR; CONT ROD ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-334-0	01	1	-
217	BOLT; CONT ROD ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-335-0	01	1	-
218	NUT; PLUG ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-344-0	02	1	-
219	RING; SNAP,ROLLER ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-314-0	10	1	-
219	RING; SNAP,ROLLER ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-314-0	06	1	-
220	SEAT; TAPPET ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-311-0	06	1	-
220	SEAT; TAPPET ASM PART: C = 1-15603-114-4	1-15629-128-0	06	1	-
220	SEAT; TAPPET ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15749-884-0	10	1	-
230	PLUG; TAPPET ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-388-0	06	1	-
234	SLEEVE; FRT COVER ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15635-004-0	01	1	-

6 7 8 9 10 14 19 1 5 5 115 103 103 103 102 29 31 202 185 79 20 20 21 32 108 109 110 38 106 90 101 101 23 24 28 107 25 26 27 34 105 88 89 38 89 30 80 82 83 114 48 34 33 111 112 77 78 77 78 101 101 113 45 51 50 58 90 62 63 47 121 46 64 220 69 68 70 70 72 219 40 69 72 73 219 74 68 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15611-168-1	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15611-170-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15603-059-2	1-15611-182-0	01	1	-9606
1	HOUSING; PUMP,FUEL INJ ASM PART: F = 1-15603-201-0	1-15611-187-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15603-059-2	1-15611-187-0	01	1	9607-
1	HOUSING; PUMP,FUEL INJ ASM PART: C = 1-15603-114-4	1-15611-189-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: J = 1-15603-290-5	1-15611-206-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15631-179-1	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15631-187-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15631-193-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: C = 1-15603-114-4	1-15631-195-1	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: E = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15631-201-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-412-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15644-007-0	10	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15644-016-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15644-017-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: C = 1-15603-114-4	1-15619-413-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15629-088-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-095-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-104-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15649-005-0	10	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	8-97084-987-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15643-010-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15643-130-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15662-001-0	10	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-414-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81215-174-0	10	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-411-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15641-028-0	10	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15641-041-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15641-042-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: E = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15632-017-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15632-018-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15632-031-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15632-037-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: C = 1-15603-114-4	1-15632-039-0	06	1	-
20	WASHER; PLUNGER BARREL ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15639-020-0	20	1	-
20	WASHER; PLUNGER BARREL ASM PART: C = 1-15603-114-4, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-020-0	12	1	-
21	FLANGE; PLUNGER ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15742-082-0	10	1	-
21	FLANGE; PLUNGER ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15742-141-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15629-089-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-096-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15629-106-0	10	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-430-0	10	1	-
25	RING; SNAP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-431-0	10	1	-
25	RING; SNAP ASM PART: C = 1-15603-114-4	9-88410-431-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15603-059-2	1-15619-424-0	10	1	9607-
26	GASKET; PLUNGER UPR ASM PART: C = 1-15603-114-4	1-15619-424-0	06	1	9703-
26	GASKET; PLUNGER UPR ASM PART: D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-424-0	10	1	-
26	GASKET; PLUNGER UPR ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-097-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: C = 1-15603-114-4	1-15629-113-0	06	1	-9702
26	GASKET; PLUNGER UPR ASM PART: A = 1-15603-059-2	1-15629-113-0	10	1	-9606
27	GASKET; PLUNGER LWR ASM PART: A = 1-15603-059-2	1-15619-424-0	10	1	9607-
27	GASKET; PLUNGER LWR ASM PART: C = 1-15603-114-4	1-15619-424-0	06	1	9703-
27	GASKET; PLUNGER LWR ASM PART: D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-424-0	10	1	-
27	GASKET; PLUNGER LWR ASM PART: C = 1-15603-114-4	1-15629-113-0	06	1	-9702
27	GASKET; PLUNGER LWR ASM PART: A = 1-15603-059-2	1-15629-113-0	10	1	-9606
28	DEFLECTOR; PLUNGER ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15629-093-0	10	1	-
28	DEFLECTOR; PLUNGER ASM PART: C = 1-15603-114-4	1-15629-126-0	06	1	-
28	DEFLECTOR; PLUNGER ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15639-086-0	10	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-328-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: C = 1-15603-114-4	1-15619-357-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-432-0	20	1	-
30	PLUG; SCREW,INJ PUMP HSG (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-345-0	01	1	-
30	PLUG; SCREW,INJ PUMP HSG (A) ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81215-130-0	10	1	-
30	PLUG; SCREW,INJ PUMP HSG (A) ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-130-0	06	1	-
31	HANGER; FRT,INJ PUMP (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15619-163-0	01	1	-
31	HANGER; FRT,INJ PUMP (A) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15619-347-0	01	1	-
31	HANGER; FRT,INJ PUMP (A) ASM PART: D = 1-15603-123-2	1-15619-403-0	01	1	-
31	HANGER; FRT,INJ PUMP (A) ASM PART: G = 1-15603-209-1	1-15619-444-0	01	1	-
31	HANGER; FRT,INJ PUMP (B) ASM PART: J = 1-15603-290-5	1-15619-464-0	01	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-039-0	01	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15619-039-0	02	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15789-098-0	02	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: J = 1-15603-290-5	1-15789-098-0	03	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-320-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: J = 1-15603-290-5	1-15619-461-0	02	1	-9910
34	BUSHING; CONT RACK,INJ PUMP ASM PART: J = 1-15603-290-5	1-15619-493-0	02	1	9911-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3	9-81215-123-0	02	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.500 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-024-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.525 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-025-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.550 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-026-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.575 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-027-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.600 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-028-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.625 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-029-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.650 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-030-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.675 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-031-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.700 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-032-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.725 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-033-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.750 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-034-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.775 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-035-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.800 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-036-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.825 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-037-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.850 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-038-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.875 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-039-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.900 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-040-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.925 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-041-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.950 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-042-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.975 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-043-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.000 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-044-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.025 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-045-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.050 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-046-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.075 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-047-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.100 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-048-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.125 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-049-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.150 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-050-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.175 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-051-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.200 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-052-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.225 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-053-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.250 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-054-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.275 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-055-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.300 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-056-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.325 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-057-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.350 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-058-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.375 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-059-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.400 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-060-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.425 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-061-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.450 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-062-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.475 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-063-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.500 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-064-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.525 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-065-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.550 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-066-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.575 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-067-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.600 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-068-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.625 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-069-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.650 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-070-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.675 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-071-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.700 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-072-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.725 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-073-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.750 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-074-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.775 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-075-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.800 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-076-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.825 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-077-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.850 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-078-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.875 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-079-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.900 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-080-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.925 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-081-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.950 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-082-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.975 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-083-0	AR	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-317-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-100-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-308-0	04	1	-
45	BOLT; FRT COVER TO HSG ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-338-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15612-042-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15629-037-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15629-120-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-097-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-098-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-099-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-100-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-101-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-102-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-103-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-445-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-446-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-447-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-448-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-449-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-450-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-451-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-318-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: C = 1-15603-114-4	1-15619-415-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-101-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15621-083-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15621-099-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15621-112-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: C = 1-15603-114-4	1-15621-113-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: E = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15621-114-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09735-041-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15629-009-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15629-085-0	10	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15635-001-0	10	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15635-003-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: C = 1-15603-114-4	1-15635-005-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15634-017-1	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: C = 1-15603-114-4	9-81215-136-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81215-136-0	10	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15634-008-0	10	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: E = 1-15603-156-1	1-15634-018-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15634-019-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: C = 1-15603-114-4	1-15643-008-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15643-008-0	10	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: C = 1-15603-114-4	1-15629-127-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15643-004-0	10	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15643-009-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15643-009-0	10	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: J = 1-15603-290-5	1-15612-126-0	04	1	9911-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: I = 1-15603-265-3	1-15612-126-0	04	1	0004-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: I = 1-15603-265-3	1-15612-127-0	02	1	0004-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: J = 1-15603-290-5	1-15612-127-0	02	1	9911-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: B = 1-15603-065-3, D = 1-15603-123-2, E = 1-15603-156-1, G = 1-15603-209-1, H = 1-15603-240-3	1-15622-009-0	02	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: J = 1-15603-290-5	1-15622-009-0	02	1	-9910
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: I = 1-15603-265-3	1-15622-009-0	02	1	-0003
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15622-010-0	08	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: I = 1-15603-265-3	1-15622-010-0	04	1	-0003
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: J = 1-15603-290-5	1-15622-010-0	04	1	-9910
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3	1-15622-010-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP 1,4,5,6 CYLINDER ASM PART: C = 1-15603-114-4	1-15622-012-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP 2,3 CYLINDER ASM PART: C = 1-15603-114-4	1-15622-013-0	02	1	-
68	TAPPET; CM/SHF,INJ PUMP (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81221-240-0	10	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-063-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15629-063-0	10	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-313-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-313-0	10	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81225-062-0	10	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: C = 1-15603-114-4	9-81225-062-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-312-0	10	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-312-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: C = 1-15603-114-4	1-15629-129-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81225-060-0	10	1	-
73	GASKET; COVER TO HSG ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15629-091-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: C = 1-15603-114-4	1-15629-094-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: C = 1-15603-114-4	1-15612-012-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15629-051-0	01	1	-
76	BOLT; COVER TO HSG ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-066-0	16	1	-
76	BOLT; COVER TO HSG ASM PART: C = 1-15603-114-4	1-15619-066-0	12	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (D) B=15 ASM PART: C = 1-15603-114-4	1-15619-315-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (D) B=12 ASM PART: C = 1-15603-114-4	1-15619-316-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (A) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-392-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-393-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (A) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-396-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-397-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81225-066-0	02	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09054-022-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X25 ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15729-242-0	08	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81325-187-0	04	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: C = 1-15603-114-4	9-81325-187-0	06	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-329-0	01	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG (A) ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-067-0	01	1	-
83	GASKET; HSG PLUG (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-102-0	01	1	-
83	GASKET; HSG PLUG (C) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	5-15729-022-0	01	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, F = 1-15603-201-0, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-092-0	01	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15759-011-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-09630-085-0	02	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, F = 1-15603-201-0, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15719-093-0	02	1	-
90	VALVE; OVERFLOW,INJ PUMP (B) ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-321-0	01	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-09630-085-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-321-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-367-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15719-346-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09630-085-0	02	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-09630-085-0	03	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.60 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-105-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15637-015-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15603-114-4	1-15637-017-0	01	1	-9702
109	RACK; CONT,INJ PUMP ASM PART: E = 1-15603-156-1	1-15637-017-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15603-114-4	1-15637-037-0	01	1	9703-
109	RACK; CONT,INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3, I = 1-15603-265-3	1-15637-037-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: J = 1-15603-290-5	1-15637-053-0	01	1	-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-88410-440-0	01	1	-
111	GASKET; FRT COVER FIX ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15629-024-0	04	1	-
112	SHIM; FRT COVER FIX ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81315-216-0	04	1	-
113	WASHER; LK,FRT COVER TO HSG ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	8-94128-928-0	04	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-099-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-337-0	12	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-456-0	20	1	-
121	BRACKET; INJ PUMP HSG (A) ASM PART: A = 1-15603-059-2, D = 1-15603-123-2	1-15619-375-0	01	1	-
121	BRACKET; INJ PUMP HSG (B) ASM PART: A = 1-15603-059-2	1-15779-254-0	01	1	-9606
185	GASKET; PLUG ID=14.2 OD=19.2 ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09630-085-0	02	1	-
185	GASKET; PLUG ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15719-093-0	01	1	-
202	PLUG; PUMP,SIDE ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-399-0	01	1	-
219	RING; SNAP,ROLLER ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-314-0	10	1	-
219	RING; SNAP,ROLLER ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-314-0	06	1	-
220	SEAT; TAPPET ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-311-0	06	1	-
220	SEAT; TAPPET ASM PART: C = 1-15603-114-4	1-15629-128-0	06	1	-
220	SEAT; TAPPET ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15749-884-0	10	1	-

103 103 103 102 6 7 8 9 10 14 19 5 123 122 108 110 34 121 115 20 20 21 31 32 38 88 89 89 5 107 22 23 24 28 109 90 25 26 27 38 30 106 105 111 112 113 101 101 33 82 83 80 45 48 114 47 34 46 40 79 32 154 51 50 58 62 101 101 90 29 77 63 78 1 64 70 73 68 69 71 74 72 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15611-168-1	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15611-170-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15603-059-2	1-15611-182-0	01	1	-9606
1	HOUSING; PUMP,FUEL INJ ASM PART: F = 1-15603-201-0	1-15611-187-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15603-059-2	1-15611-187-0	01	1	9607-
1	HOUSING; PUMP,FUEL INJ ASM PART: C = 1-15603-114-4	1-15611-189-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: J = 1-15603-290-5	1-15611-206-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15631-179-1	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15631-187-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15631-193-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: C = 1-15603-114-4	1-15631-195-1	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: E = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15631-201-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-412-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15644-007-0	10	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15644-016-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15644-017-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: C = 1-15603-114-4	1-15619-413-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15629-088-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-095-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-104-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15649-005-0	10	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	8-97084-987-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15643-010-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15643-130-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15662-001-0	10	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-414-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81215-174-0	10	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-411-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15641-028-0	10	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15641-041-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15641-042-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: E = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15632-017-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15632-018-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15632-031-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15632-037-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: C = 1-15603-114-4	1-15632-039-0	06	1	-
20	WASHER; PLUNGER BARREL ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15639-020-0	20	1	-
20	WASHER; PLUNGER BARREL ASM PART: C = 1-15603-114-4, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-020-0	12	1	-
21	FLANGE; PLUNGER ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15742-082-0	10	1	-
21	FLANGE; PLUNGER ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15742-141-0	10	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15649-008-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15629-089-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-096-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15629-106-0	10	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-430-0	10	1	-
25	RING; SNAP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-431-0	10	1	-
25	RING; SNAP ASM PART: C = 1-15603-114-4	9-88410-431-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15603-059-2	1-15619-424-0	10	1	9607-
26	GASKET; PLUNGER UPR ASM PART: C = 1-15603-114-4	1-15619-424-0	06	1	9703-
26	GASKET; PLUNGER UPR ASM PART: D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-424-0	10	1	-
26	GASKET; PLUNGER UPR ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-097-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: C = 1-15603-114-4	1-15629-113-0	06	1	-9702
26	GASKET; PLUNGER UPR ASM PART: A = 1-15603-059-2	1-15629-113-0	10	1	-9606
27	GASKET; PLUNGER LWR ASM PART: A = 1-15603-059-2	1-15619-424-0	10	1	9607-
27	GASKET; PLUNGER LWR ASM PART: C = 1-15603-114-4	1-15619-424-0	06	1	9703-
27	GASKET; PLUNGER LWR ASM PART: D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-424-0	10	1	-
27	GASKET; PLUNGER LWR ASM PART: C = 1-15603-114-4	1-15629-113-0	06	1	-9702
27	GASKET; PLUNGER LWR ASM PART: A = 1-15603-059-2	1-15629-113-0	10	1	-9606
28	DEFLECTOR; PLUNGER ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15629-093-0	10	1	-
28	DEFLECTOR; PLUNGER ASM PART: C = 1-15603-114-4	1-15629-126-0	06	1	-
28	DEFLECTOR; PLUNGER ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15639-086-0	10	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-328-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: C = 1-15603-114-4	1-15619-357-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-432-0	20	1	-
30	PLUG; SCREW,INJ PUMP HSG (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-345-0	01	1	-
30	PLUG; SCREW,INJ PUMP HSG (A) ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81215-130-0	10	1	-
30	PLUG; SCREW,INJ PUMP HSG (A) ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-130-0	06	1	-
31	HANGER; FRT,INJ PUMP (A) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15619-163-0	01	1	-
31	HANGER; FRT,INJ PUMP (A) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15619-347-0	01	1	-
31	HANGER; FRT,INJ PUMP (A) ASM PART: D = 1-15603-123-2	1-15619-403-0	01	1	-
31	HANGER; FRT,INJ PUMP (A) ASM PART: G = 1-15603-209-1	1-15619-444-0	01	1	-
31	HANGER; FRT,INJ PUMP (B) ASM PART: J = 1-15603-290-5	1-15619-464-0	01	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-039-0	01	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15619-039-0	02	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15789-098-0	02	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: J = 1-15603-290-5	1-15789-098-0	03	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-320-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: J = 1-15603-290-5	1-15619-461-0	02	1	-9910
34	BUSHING; CONT RACK,INJ PUMP ASM PART: J = 1-15603-290-5	1-15619-493-0	02	1	9911-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3	9-81215-123-0	02	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.500 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-024-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.525 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-025-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.550 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-026-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.575 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-027-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.600 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-028-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.625 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-029-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.650 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-030-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.675 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-031-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.700 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-032-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.725 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-033-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.750 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-034-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.775 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-035-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.800 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-036-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.825 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-037-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.850 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-038-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.875 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-039-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.900 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-040-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.925 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-041-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.950 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-042-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.975 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-043-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.000 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-044-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.025 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-045-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.050 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-046-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.075 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-047-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.100 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-048-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.125 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-049-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.150 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-050-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.175 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-051-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.200 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-052-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.225 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-053-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.250 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-054-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.275 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-055-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.300 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-056-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.325 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-057-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.350 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-058-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.375 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-059-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.400 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-060-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.425 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-061-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.450 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-062-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.475 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-063-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.500 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-064-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.525 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-065-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.550 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-066-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.575 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-067-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.600 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-068-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.625 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-069-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.650 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-070-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.675 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-071-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.700 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-072-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.725 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-073-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.750 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-074-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.775 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-075-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.800 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-076-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.825 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-077-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.850 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-078-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.875 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-079-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.900 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-080-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.925 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-081-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.950 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-082-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.975 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-083-0	AR	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-317-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-100-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-308-0	04	1	-
45	BOLT; FRT COVER TO HSG ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-338-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15612-042-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15629-037-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15629-120-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-097-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-098-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-099-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-100-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-101-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-102-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-103-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-445-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-446-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-447-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-448-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-449-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-450-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-451-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-318-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: C = 1-15603-114-4	1-15619-415-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-101-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15621-083-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15621-099-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15621-112-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: C = 1-15603-114-4	1-15621-113-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: E = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15621-114-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09735-041-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15629-009-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15629-085-0	10	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15635-001-0	10	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15635-003-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: C = 1-15603-114-4	1-15635-005-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15634-017-1	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: C = 1-15603-114-4	9-81215-136-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81215-136-0	10	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15634-008-0	10	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: E = 1-15603-156-1	1-15634-018-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15634-019-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: C = 1-15603-114-4	1-15643-008-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15643-008-0	10	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: C = 1-15603-114-4	1-15629-127-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15643-004-0	10	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15643-009-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15643-009-0	10	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: J = 1-15603-290-5	1-15612-126-0	04	1	9911-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: I = 1-15603-265-3	1-15612-126-0	04	1	0004-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: I = 1-15603-265-3	1-15612-127-0	02	1	0004-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: J = 1-15603-290-5	1-15612-127-0	02	1	9911-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: B = 1-15603-065-3, D = 1-15603-123-2, E = 1-15603-156-1, G = 1-15603-209-1, H = 1-15603-240-3	1-15622-009-0	02	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: J = 1-15603-290-5	1-15622-009-0	02	1	-9910
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: I = 1-15603-265-3	1-15622-009-0	02	1	-0003
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15622-010-0	08	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: I = 1-15603-265-3	1-15622-010-0	04	1	-0003
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: J = 1-15603-290-5	1-15622-010-0	04	1	-9910
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3	1-15622-010-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP 1,4,5,6 CYLINDER ASM PART: C = 1-15603-114-4	1-15622-012-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP 2,3 CYLINDER ASM PART: C = 1-15603-114-4	1-15622-013-0	02	1	-
68	TAPPET; CM/SHF,INJ PUMP (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81221-240-0	10	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-063-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15629-063-0	10	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-313-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-313-0	10	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81225-062-0	10	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: C = 1-15603-114-4	9-81225-062-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81225-061-0	10	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-312-0	10	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-312-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: C = 1-15603-114-4	1-15629-129-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81225-060-0	10	1	-
73	GASKET; COVER TO HSG ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15629-091-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: C = 1-15603-114-4	1-15629-094-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: C = 1-15603-114-4	1-15612-012-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15629-051-0	01	1	-
76	BOLT; COVER TO HSG ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-066-0	16	1	-
76	BOLT; COVER TO HSG ASM PART: C = 1-15603-114-4	1-15619-066-0	12	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (D) B=15 ASM PART: C = 1-15603-114-4	1-15619-315-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (D) B=12 ASM PART: C = 1-15603-114-4	1-15619-316-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (A) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-392-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-393-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (A) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-396-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-397-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81225-066-0	02	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09054-022-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X25 ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15729-242-0	08	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81325-187-0	04	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: C = 1-15603-114-4	9-81325-187-0	06	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-329-0	01	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG (A) ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-067-0	01	1	-
83	GASKET; HSG PLUG (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-102-0	01	1	-
83	GASKET; HSG PLUG (C) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	5-15729-022-0	01	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, F = 1-15603-201-0, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-092-0	01	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15759-011-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-09630-085-0	02	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, F = 1-15603-201-0, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15719-093-0	02	1	-
90	VALVE; OVERFLOW,INJ PUMP (B) ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-321-0	01	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-09630-085-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-321-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-367-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15719-346-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09630-085-0	02	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-09630-085-0	03	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.60 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-105-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15637-015-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15603-114-4	1-15637-017-0	01	1	-9702
109	RACK; CONT,INJ PUMP ASM PART: E = 1-15603-156-1	1-15637-017-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15603-114-4	1-15637-037-0	01	1	9703-
109	RACK; CONT,INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3, I = 1-15603-265-3	1-15637-037-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: J = 1-15603-290-5	1-15637-053-0	01	1	-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-88410-440-0	01	1	-
111	GASKET; FRT COVER FIX ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15629-024-0	04	1	-
112	SHIM; FRT COVER FIX ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81315-216-0	04	1	-
113	WASHER; LK,FRT COVER TO HSG ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	8-94128-928-0	04	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-099-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-337-0	12	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-456-0	20	1	-
121	BRACKET; INJ PUMP HSG (A) ASM PART: A = 1-15603-059-2, D = 1-15603-123-2	1-15619-375-0	01	1	-
121	BRACKET; INJ PUMP HSG (B) ASM PART: A = 1-15603-059-2	1-15779-254-0	01	1	-9606
122	WASHER; LK,BRKT ASM PART: A = 1-15603-059-2	1-83579-492-0	01	1	-9606
123	BOLT; BRKT TO HSG ASM PART: A = 1-15603-059-2	1-15729-555-0	01	1	-9606
154	HANGER; RR,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15619-163-0	01	1	-
154	HANGER; RR,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-347-0	01	1	-

5 6 7 8 9 10 14 19 145 146 147 1 115 29 79 20 103 103 102 5 107 106 23 28 25 26 27 38 110 38 108 34 109 34 186 36 141 105 101 117 101 117 30 90 118 83 89 89 51 82 88 78 50 58 62 114 48 47 46 234 45 40 33 77 80 63 64 220 69 68 70 73 72 74 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15611-168-1	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3	1-15611-170-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15603-059-2	1-15611-182-0	01	1	-9606
1	HOUSING; PUMP,FUEL INJ ASM PART: F = 1-15603-201-0	1-15611-187-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15603-059-2	1-15611-187-0	01	1	9607-
1	HOUSING; PUMP,FUEL INJ ASM PART: C = 1-15603-114-4	1-15611-189-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: J = 1-15603-290-5	1-15611-206-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15631-179-1	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15631-187-0	10	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15631-193-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: C = 1-15603-114-4	1-15631-195-1	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: E = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15631-201-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-412-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15644-007-0	10	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15644-016-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15644-017-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: C = 1-15603-114-4	1-15619-413-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15629-088-0	10	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-095-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-104-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15649-005-0	10	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	8-97084-987-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15643-010-0	10	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15643-130-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15662-001-0	10	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-414-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81215-174-0	10	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-411-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15641-028-0	10	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15641-041-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15641-042-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: E = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15632-017-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15632-018-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15632-031-0	10	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15632-037-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: C = 1-15603-114-4	1-15632-039-0	06	1	-
20	WASHER; PLUNGER BARREL ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15639-020-0	20	1	-
20	WASHER; PLUNGER BARREL ASM PART: C = 1-15603-114-4, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-020-0	12	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15629-089-0	10	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-096-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15629-106-0	10	1	-
25	RING; SNAP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-431-0	10	1	-
25	RING; SNAP ASM PART: C = 1-15603-114-4	9-88410-431-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15603-059-2	1-15619-424-0	10	1	9607-
26	GASKET; PLUNGER UPR ASM PART: C = 1-15603-114-4	1-15619-424-0	06	1	9703-
26	GASKET; PLUNGER UPR ASM PART: D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-424-0	10	1	-
26	GASKET; PLUNGER UPR ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-097-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: C = 1-15603-114-4	1-15629-113-0	06	1	-9702
26	GASKET; PLUNGER UPR ASM PART: A = 1-15603-059-2	1-15629-113-0	10	1	-9606
27	GASKET; PLUNGER LWR ASM PART: A = 1-15603-059-2	1-15619-424-0	10	1	9607-
27	GASKET; PLUNGER LWR ASM PART: C = 1-15603-114-4	1-15619-424-0	06	1	9703-
27	GASKET; PLUNGER LWR ASM PART: D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-424-0	10	1	-
27	GASKET; PLUNGER LWR ASM PART: C = 1-15603-114-4	1-15629-113-0	06	1	-9702
27	GASKET; PLUNGER LWR ASM PART: A = 1-15603-059-2	1-15629-113-0	10	1	-9606
28	DEFLECTOR; PLUNGER ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15629-093-0	10	1	-
28	DEFLECTOR; PLUNGER ASM PART: C = 1-15603-114-4	1-15629-126-0	06	1	-
28	DEFLECTOR; PLUNGER ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15639-086-0	10	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-328-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: C = 1-15603-114-4	1-15619-357-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-432-0	20	1	-
30	PLUG; SCREW,INJ PUMP HSG (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-345-0	01	1	-
30	PLUG; SCREW,INJ PUMP HSG (A) ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81215-130-0	10	1	-
30	PLUG; SCREW,INJ PUMP HSG (A) ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-130-0	06	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-320-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: J = 1-15603-290-5	1-15619-461-0	02	1	-9910
34	BUSHING; CONT RACK,INJ PUMP ASM PART: J = 1-15603-290-5	1-15619-493-0	02	1	9911-
34	BUSHING; CONT RACK,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3	9-81215-123-0	02	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-408-0	01	1	-
36	POINTER; TIMING,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-409-0	01	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.500 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-024-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.525 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-025-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.550 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-026-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.575 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-027-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.600 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-028-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.625 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-029-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.650 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-030-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.675 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-031-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.700 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-032-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.725 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-033-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.750 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-034-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.775 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-035-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.800 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-036-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.825 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-037-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.850 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-038-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.875 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-039-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.900 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-040-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.925 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-041-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.950 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-042-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.975 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-043-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.000 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-044-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.025 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-045-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.050 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-046-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.075 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-047-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.100 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-048-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.125 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-049-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.150 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-050-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.175 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-051-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.200 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-052-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.225 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-053-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.250 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-054-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.275 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-055-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.300 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-056-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.325 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-057-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.350 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-058-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.375 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-059-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.400 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-060-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.425 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-061-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.450 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-062-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.475 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-063-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.500 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-064-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.525 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-065-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.550 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-066-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.575 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-067-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.600 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-068-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.625 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-069-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.650 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-070-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.675 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-071-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.700 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-072-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.725 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-073-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.750 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-074-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.775 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-075-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.800 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-076-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.825 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-077-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.850 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-078-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.875 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-079-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.900 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-080-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.925 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-081-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.950 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-082-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.975 ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-083-0	AR	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-317-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-100-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-308-0	04	1	-
45	BOLT; FRT COVER TO HSG ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-338-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15612-042-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15629-037-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15629-120-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-097-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-098-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-099-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-100-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-101-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-102-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-103-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-445-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-446-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-447-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-448-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-449-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-450-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-451-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-318-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: C = 1-15603-114-4	1-15619-415-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-101-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15621-083-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15621-099-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15621-112-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: C = 1-15603-114-4	1-15621-113-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: E = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15621-114-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09735-041-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15629-009-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15629-085-0	10	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15635-001-0	10	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15635-003-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: C = 1-15603-114-4	1-15635-005-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15634-017-1	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: C = 1-15603-114-4	9-81215-136-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81215-136-0	10	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15634-008-0	10	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: E = 1-15603-156-1	1-15634-018-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15634-019-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: C = 1-15603-114-4	1-15643-008-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15643-008-0	10	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: C = 1-15603-114-4	1-15629-127-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	1-15643-004-0	10	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15643-009-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15643-009-0	10	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: J = 1-15603-290-5	1-15612-126-0	04	1	9911-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: I = 1-15603-265-3	1-15612-126-0	04	1	0004-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: I = 1-15603-265-3	1-15612-127-0	02	1	0004-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: J = 1-15603-290-5	1-15612-127-0	02	1	9911-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: B = 1-15603-065-3, D = 1-15603-123-2, E = 1-15603-156-1, G = 1-15603-209-1, H = 1-15603-240-3	1-15622-009-0	02	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: J = 1-15603-290-5	1-15622-009-0	02	1	-9910
68	TAPPET; CM/SHF,INJ PUMP (A) ASM PART: I = 1-15603-265-3	1-15622-009-0	02	1	-0003
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15622-010-0	08	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: I = 1-15603-265-3	1-15622-010-0	04	1	-0003
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: J = 1-15603-290-5	1-15622-010-0	04	1	-9910
68	TAPPET; CM/SHF,INJ PUMP (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3	1-15622-010-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP 1,4,5,6 CYLINDER ASM PART: C = 1-15603-114-4	1-15622-012-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP 2,3 CYLINDER ASM PART: C = 1-15603-114-4	1-15622-013-0	02	1	-
68	TAPPET; CM/SHF,INJ PUMP (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81221-240-0	10	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-063-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15629-063-0	10	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-313-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-313-0	10	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81225-062-0	10	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: C = 1-15603-114-4	9-81225-062-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-312-0	10	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-312-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: C = 1-15603-114-4	1-15629-129-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81225-060-0	10	1	-
73	GASKET; COVER TO HSG ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15629-091-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: C = 1-15603-114-4	1-15629-094-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: C = 1-15603-114-4	1-15612-012-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15629-051-0	01	1	-
76	BOLT; COVER TO HSG ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-066-0	16	1	-
76	BOLT; COVER TO HSG ASM PART: C = 1-15603-114-4	1-15619-066-0	12	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (D) B=15 ASM PART: C = 1-15603-114-4	1-15619-315-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (D) B=12 ASM PART: C = 1-15603-114-4	1-15619-316-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (A) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-392-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15619-393-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (A) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-396-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-397-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (C) ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81225-066-0	02	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09054-022-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X25 ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15729-242-0	08	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: A = 1-15603-059-2, F = 1-15603-201-0	9-81325-187-0	04	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: C = 1-15603-114-4	9-81325-187-0	06	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-329-0	01	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG (A) ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-067-0	01	1	-
83	GASKET; HSG PLUG (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-102-0	01	1	-
83	GASKET; HSG PLUG (C) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	5-15729-022-0	01	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, F = 1-15603-201-0, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-092-0	01	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15759-011-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-09630-085-0	02	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, F = 1-15603-201-0, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15719-093-0	02	1	-
90	VALVE; OVERFLOW,INJ PUMP (B) ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-321-0	01	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-09630-085-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: C = 1-15603-114-4	1-15619-321-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15619-367-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15719-346-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09630-085-0	02	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-09630-085-0	03	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.60 ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15639-105-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15637-015-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15603-114-4	1-15637-017-0	01	1	-9702
109	RACK; CONT,INJ PUMP ASM PART: E = 1-15603-156-1	1-15637-017-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15603-114-4	1-15637-037-0	01	1	9703-
109	RACK; CONT,INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3, I = 1-15603-265-3	1-15637-037-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: J = 1-15603-290-5	1-15637-053-0	01	1	-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15603-059-2, B = 1-15603-065-3, C = 1-15603-114-4, D = 1-15603-123-2, E = 1-15603-156-1, F = 1-15603-201-0, G = 1-15603-209-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-88410-440-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-099-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-337-0	12	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15603-059-2, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	9-88410-456-0	20	1	-
117	GASKET; EYE BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-09630-085-0	02	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	5-15729-099-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15759-011-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-148-0	01	1	-
141	BOLT; POINTER ASM PART: C = 1-15603-114-4, E = 1-15603-156-1	5-15729-063-0	02	1	-
145	COVER; UPR,HSG ASM PART: C = 1-15603-114-4	1-15612-071-0	01	1	9703-
146	SCREW; UPR COVER ASM PART: C = 1-15603-114-4	1-15619-446-0	02	1	9703-
147	WASHER; LK,UPR COVER ASM PART: C = 1-15603-114-4	9-88410-452-0	02	1	9703-
186	SHIM; POINTER T=0.20 ASM PART: C = 1-15603-114-4, E = 1-15603-156-1	1-15619-302-0	AR	1	-
186	SHIM; POINTER T=0.30 ASM PART: C = 1-15603-114-4, E = 1-15603-156-1	1-15639-089-0	AR	1	-
186	SHIM; POINTER T=0.50 ASM PART: C = 1-15603-114-4, E = 1-15603-156-1	1-15639-090-0	AR	1	-
186	SHIM; POINTER T=1.00 ASM PART: C = 1-15603-114-4, E = 1-15603-156-1	1-15639-091-0	AR	1	-
186	SHIM; POINTER T=1.10 ASM PART: C = 1-15603-114-4, E = 1-15603-156-1	1-15639-092-0	AR	1	-
220	SEAT; TAPPET ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-311-0	06	1	-
220	SEAT; TAPPET ASM PART: C = 1-15603-114-4	1-15629-128-0	06	1	-
220	SEAT; TAPPET ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15749-884-0	10	1	-
234	SLEEVE; FRT COVER ASM PART: B = 1-15603-065-3, C = 1-15603-114-4, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15635-004-0	01	1	-

221 203 185 185 118 205 117 206 231 209 208 206 205 207 206 245 233 232 204 209 208 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
117	GASKET; EYE BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-09630-085-0	02	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	5-15729-099-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 1-15603-059-2, C = 1-15603-114-4, D = 1-15603-123-2, F = 1-15603-201-0, G = 1-15603-209-1	1-15759-011-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	9-81215-148-0	01	1	-
185	GASKET; PLUG ID=14.2 OD=19.2 ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09630-085-0	02	1	-
185	GASKET; PLUG ASM PART: D = 1-15603-123-2, G = 1-15603-209-1	1-15719-093-0	01	1	-
203	BOLT; FUEL INL ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15759-011-0	01	1	-
204	ACTUATOR; INJ PUMP ASM PART: E = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15612-058-0	01	1	-
204	ACTUATOR; INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15612-068-1	01	1	-
205	BOLT; ACTUATOR (A) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09054-032-0	04	1	-
205	BOLT; ACTUATOR (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-348-0	06	1	-
206	GASKET; ACTUATOR (A) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-145-0	01	1	-
206	GASKET; ACTUATOR (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-146-0	01	1	-
206	GASKET; ACTUATOR (C) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15629-147-0	01	1	-
207	HOUSING; ACTUATOR ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15611-164-1	01	1	-
207	HOUSING; ACTUATOR ASM PART: E = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15611-177-1	01	1	-
208	WASHER; LK,ACTUATOR ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	8-94128-928-0	04	1	-
209	WASHER; PL,ACTUATOR (B) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-351-0	01	1	-
209	WASHER; PL,ACTUATOR (A) ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-352-0	03	1	-
221	ACTUATOR ASM; INJ PUMP ASM PART: E = 1-15603-156-1, I = 1-15603-265-3, J = 1-15603-290-5	1-15612-059-0	01	1	-
221	ACTUATOR ASM; INJ PUMP ASM PART: B = 1-15603-065-3, H = 1-15603-240-3	1-15612-067-0	01	1	-
231	COVER; ACTUATOR ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-378-0	01	1	-
232	BOLT; ACTUATOR COVER ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-09054-032-0	04	1	-
233	WASHER; ACTUATOR COVER ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	8-94128-928-0	04	1	-
245	HOUSING; SOCKET,INJ PUMP ASM PART: B = 1-15603-065-3, E = 1-15603-156-1, H = 1-15603-240-3, I = 1-15603-265-3, J = 1-15603-290-5	1-15619-416-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
