◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51239 - NN/NP/NQR-RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#50136) — 348 parça

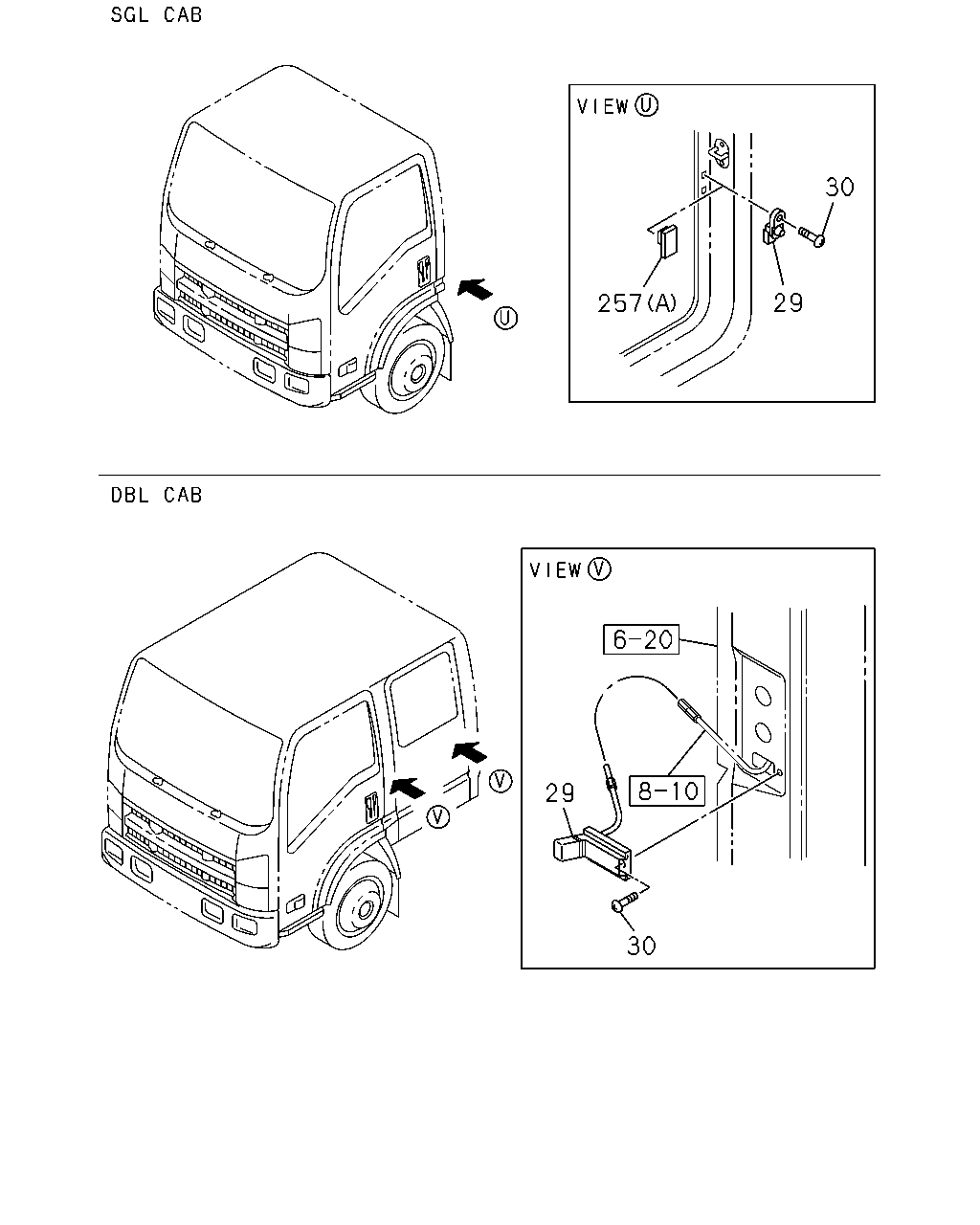

çizim 158894
30 29 257 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E
29 16.263 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0905-0906 ● ●
29 16.263 SWITCH; DOOR
H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 		8-98022-211-0 01 1 0905-0906 ● ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOT HER(8GF) BLACK 		8-98022-211-0 01 1 0905-0906 ● ●
29 16.263 SWITCH; DOOR
REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 		8-98022-211-0 01 1 0905-0906 ● ●
29 16.263 SWITCH; DOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 		8-98022-211-0 01 1 0905-0906 ● ●
29 16.263 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0907- ● ● ●
29 16.263 SWITCH; DOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 		8-98022-211-0 01 1 0907- ● ● ●
29 16.263 SWITCH; DOOR
H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 		8-98022-211-0 01 1 0907- ● ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOT HER(8GF) BLACK 		8-98022-211-0 01 1 0907- ● ●
29 16.263 SWITCH; DOOR
REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 		8-98022-211-0 01 1 0907- ● ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 		8-98022-211-0 01 1 0907- ●
29 16.263 SWITCH; DOOR
FRONT 		8-97855-032-3 01 1 0905- ● ●
29 16.263 SWITCH; DOOR
FRONT 		8-97855-032-3 01 1 0905- ● ●
29 16.263 SWITCH; DOOR
REAR 		8-98054-195-0 01 1 0905- ● ●
29 16.263 SWITCH; DOOR
REAR 		8-98054-195-0 01 1 0905- ● ●
30 16.263 SCREW; DOOR SW
H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18 		8-98047-201-0 02 1 0905-0906 ● ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOT HER(8GF) M5X18 		8-98047-201-0 02 1 0905-0906 ● ●
30 16.263 SCREW; DOOR SW
REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18 		8-98047-201-0 02 1 0905-0906 ● ●
30 16.263 SCREW; DOOR SW
TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18 		8-98047-201-0 02 1 0905-0906 ● ●
30 16.263 SCREW; DOOR SW
TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18 		8-98047-201-0 02 1 0907- ● ● ●
30 16.263 SCREW; DOOR SW
H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18 		8-98047-201-0 02 1 0907- ● ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOT HER(8GF) M5X18 		8-98047-201-0 02 1 0907- ● ●
30 16.263 SCREW; DOOR SW
REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18 		8-98047-201-0 02 1 0907- ● ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18 		8-98047-201-0 02 1 0907- ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18 		8-98047-201-0 01 1 0905-0906 ● ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18 		8-98047-201-0 01 1 0907- ● ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18 		8-98047-201-0 01 1 0907- ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 04 1 0905- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 0905-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 0907-0912 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1001-1211 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1001-1211 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1001-1211 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 1001-1211 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1001-1211 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1001-1211 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1001-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1001-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (C) 		8-98025-954-1 01 1 1001-1211 ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1001-1211 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1001-1211 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1001-1211 ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1212-1510 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1212-1510 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1212-1510 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1212-1510 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1212-1510 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1212-1510 ● ● ● ●
257 16.081 COVER; HOLE,SW
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1212-1510 ●
257 16.081 COVER; HOLE,SW
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (C) 		8-98025-954-1 01 1 1212-1510 ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (C) 		8-98025-954-1 01 1 1212-1510 ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1212-1510 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (C) 		8-98025-954-1 01 1 1212-1510 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1212-1510 ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1212-1510 ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1212-1510 ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1511- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1511- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1511- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1511- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1511- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1511- ● ● ● ●
257 16.081 COVER; HOLE,SW
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (C) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. THROTTLE CONTROL SYSTEM<6XH> (C) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1511- ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (C) 		8-98025-954-1 01 1 1511- ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1511- ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 0905-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 0907- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98029-917-0 01 1 0905-0906 ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98029-917-0 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98029-917-0 01 1 0907- ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0905-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0905-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0905-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 0905-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 0905-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 0905-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0905-0906 ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907-0912 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907-0912 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 0907-0912 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 0907-0912 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0907-0912 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 0907-0912 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (C) 		8-98025-954-1 01 1 0907-0912 ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907-0912 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 0907-0912 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 0907-0912 ●

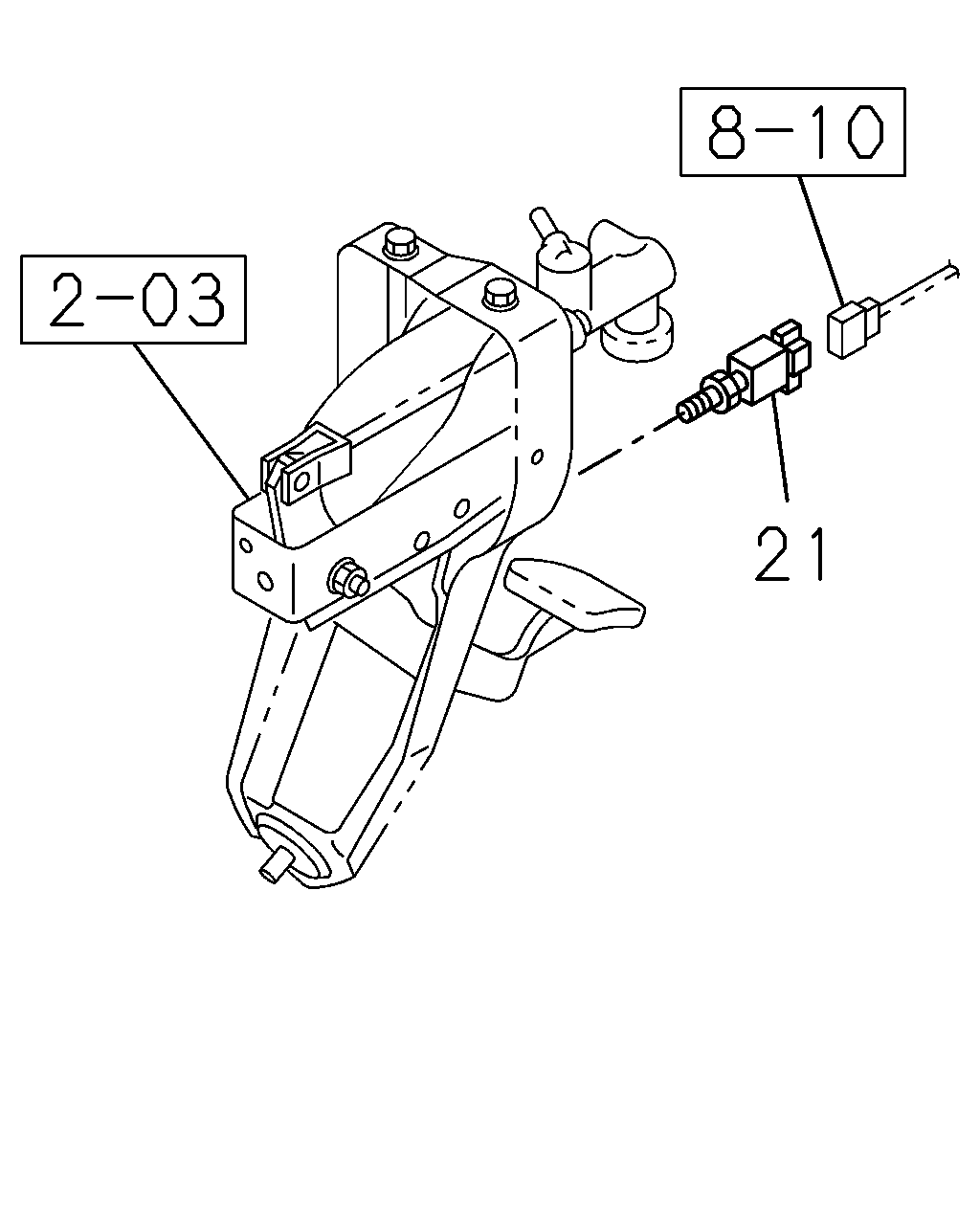

çizim 158896
21
BalonParca AdiParca NoAdetTipApplied Date A B C D E
21 02.575 SWITCH; CLU
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0905-0906 ● ● ● ●
21 02.575 SWITCH; CLU
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0907- ● ● ● ● ●

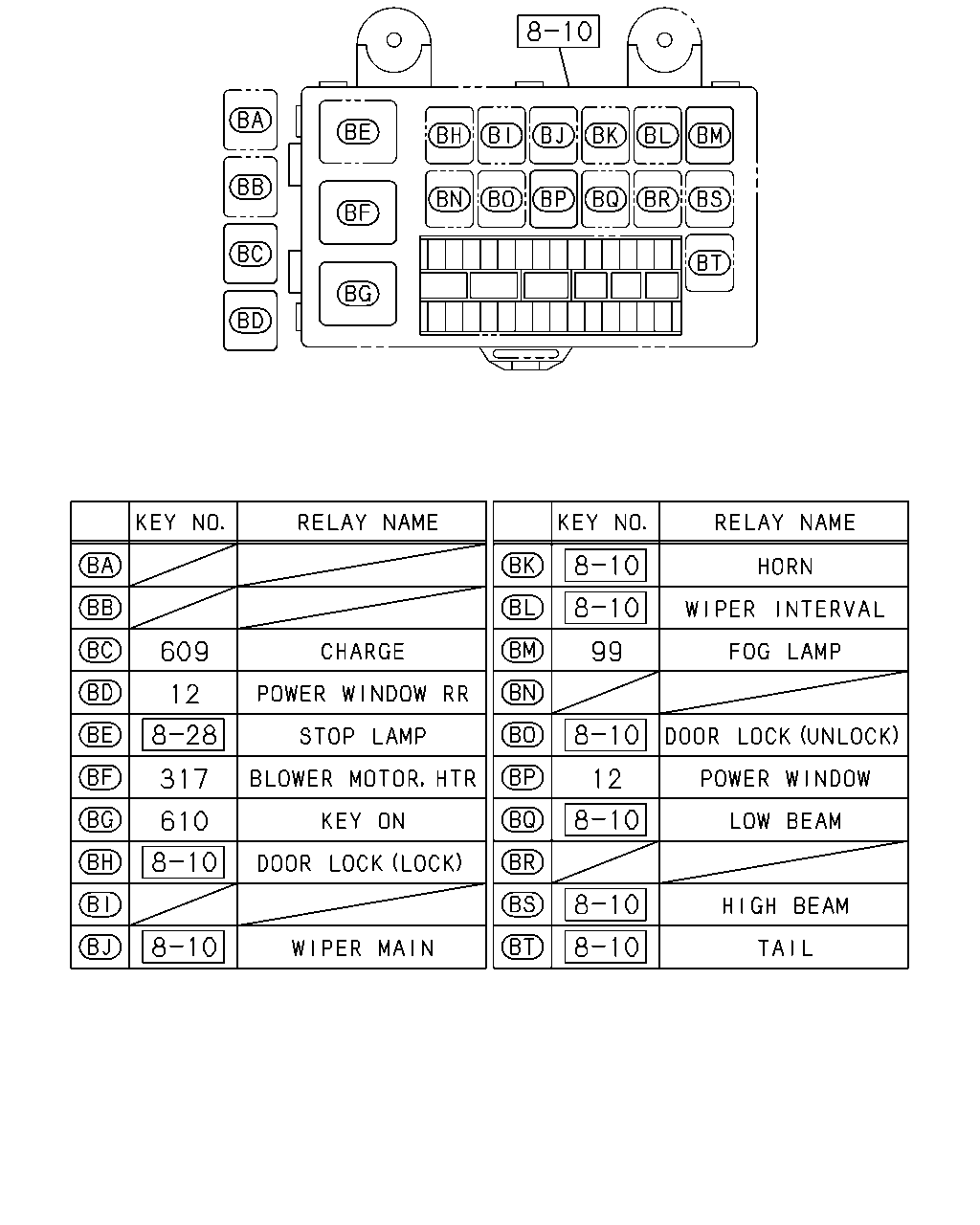

çizim 158898
609 99 12 317 12 610
BalonParca AdiParca NoAdetTipApplied Date A B C D E
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0905-0906 ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 0905-0906 ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 0905-0906 ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1112 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1112 ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1112 ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ● ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
12 08.852 RELAY; POWER WINDOW
4HK1-TCS ENG(RJS) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0905-0906 ● ● ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1111 ● ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1111 ● ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1112-1112 ● ● ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1112-1112 ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1204 ● ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1204 ● ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1205- ● ● ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1205- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0905-0906 ● ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0907-0908 ● ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0907-0908 ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0909-1111 ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0909-1111 ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0909-1111 ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1112- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1112- ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1112- ●
609 02.485 RELAY; CHARGE
H.S.A SYSTEM<6EP> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0905-1112 ● ● ● ●
609 02.485 RELAY; CHARGE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) H.S.A SYSTEM<6EP> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ● ●
609 02.485 RELAY; CHARGE
4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0905-0906 ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0907-1204 ● ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ● ● ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 02.510 RELAY; KEY ON
4HK1-TCS ENG(RJS) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ●

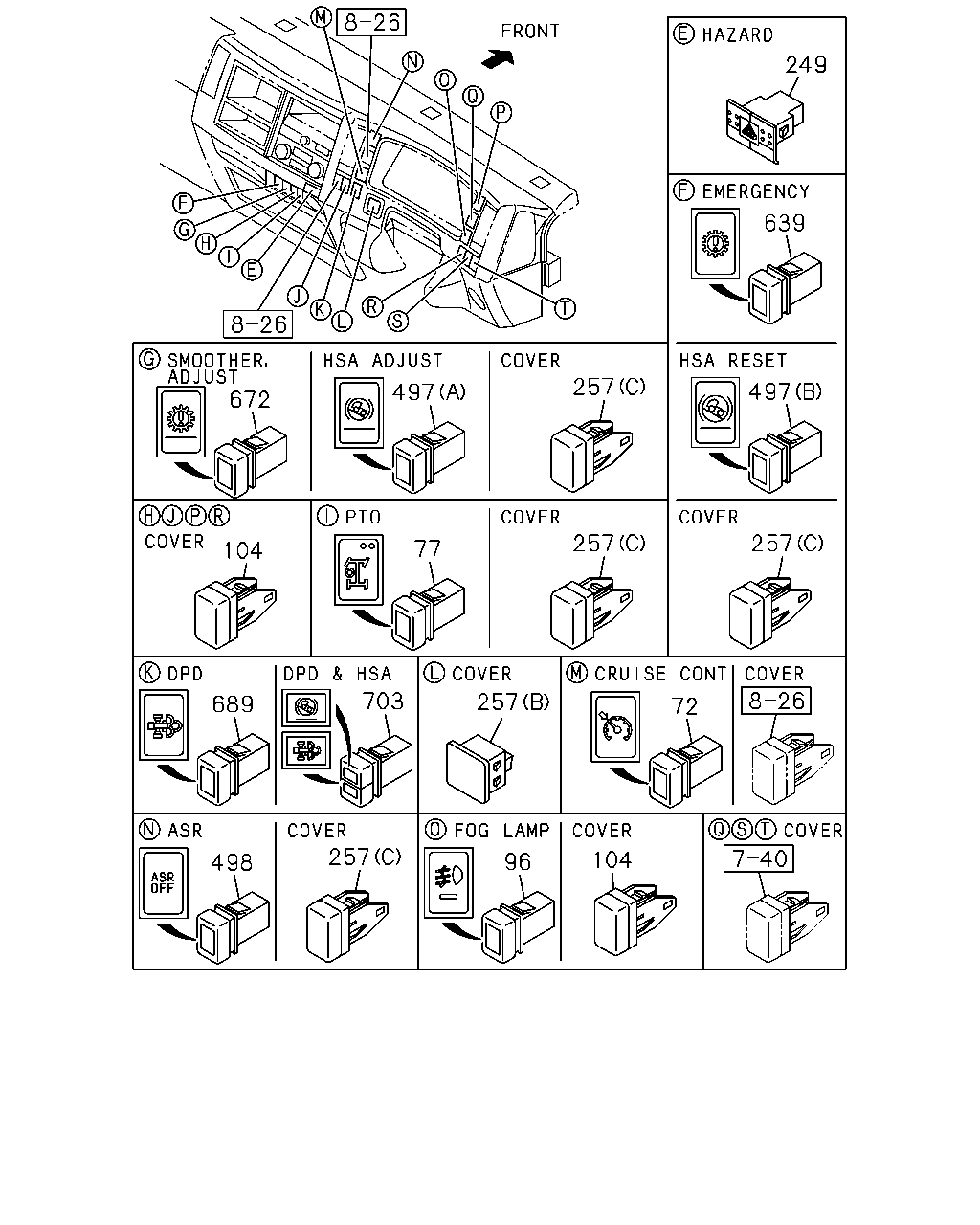

çizim 158900
249 639 672 257 497 497 257 257 77 104 703 257 689 72 257 104 96 498
BalonParca AdiParca NoAdetTipApplied Date A B C D E
72 02.485 SWITCH; CRUISE CONT
MULTI INFORMATION DISPLAY<7NY> 		8-98011-344-1 01 1 0905- ● ● ● ●
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-1 01 1 0905-0906 ● ● ● ●
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-1 01 1 0907-1211 ● ● ● ● ●
77 04.439 SWITCH; PTO
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-2 01 1 1212- ●
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-2 01 1 1212- ● ● ● ●
96 02.485 SWITCH; FOG LAMP 8-97387-031-3 01 1 0905-0906 ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-3 01 1 0907-1111 ● ●
96 02.485 SWITCH; FOG LAMP 8-97387-031-3 01 1 0907-1111 ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-3 01 1 1112-1112 ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-97387-031-3 01 1 1112-1112 ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-3 01 1 1112-1112 ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-3 01 1 1201-1204 ● ●
96 02.485 SWITCH; FOG LAMP 8-97387-031-3 01 1 1201-1204 ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-97387-031-3 01 1 1205-1211 ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-3 01 1 1205-1211 ●
96 02.485 SWITCH; FOG LAMP
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-97387-031-4 01 1 1212- ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-97387-031-4 01 1 1212- ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1212- ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 0907-1111 ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1112-1112 ● ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 16.081 		8-98025-954-1 01 1 1112-1112 ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1112-1112 ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1201-1204 ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 16.081 		8-98025-954-1 01 1 1205-1211 ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1205-1211 ●
104 09.778 COVER; SW HOLE,FOG LAMP
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 16.081 		8-98025-954-1 01 1 1212- ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 16.081 		8-98025-954-1 01 1 1212- ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1212- ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 0905-0906 ● ● ● ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 0907- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 0905-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 0907-0912 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1001-1211 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1001-1211 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1001-1211 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 1001-1211 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1001-1211 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1001-1211 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1001-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1001-1211 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (C) 		8-98025-954-1 01 1 1001-1211 ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1001-1211 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1001-1211 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1001-1211 ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1212-1510 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1212-1510 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1212-1510 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1212-1510 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1212-1510 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1212-1510 ● ● ● ●
257 16.081 COVER; HOLE,SW
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1212-1510 ●
257 16.081 COVER; HOLE,SW
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (C) 		8-98025-954-1 01 1 1212-1510 ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (C) 		8-98025-954-1 01 1 1212-1510 ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1212-1510 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (C) 		8-98025-954-1 01 1 1212-1510 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1212-1510 ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1212-1510 ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1212-1510 ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1511- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1511- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1511- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1511- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1511- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1511- ● ● ● ●
257 16.081 COVER; HOLE,SW
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (C) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. THROTTLE CONTROL SYSTEM<6XH> (C) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1511- ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) (C) 		8-98025-954-1 01 1 1511- ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1511- ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 1511- ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 0905-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 0907- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98029-917-0 01 1 0905-0906 ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98029-917-0 01 1 0907- ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98029-917-0 01 1 0907- ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0905-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0905-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0905-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 0905-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 0905-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 0905-0906 ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0905-0906 ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907-0912 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907-0912 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (C) 		8-98025-954-1 01 1 0907-0912 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 0907-0912 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0907-0912 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 0907-0912 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (C) 		8-98025-954-1 01 1 0907-0912 ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 0907-0912 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98025-954-1 01 1 0907-0912 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98025-954-1 01 1 0907-0912 ●
497 04.439 SWITCH; HSA
H.S.A SYSTEM<6EP> (B) RESET 		8-98119-946-0 01 1 0905- ● ● ● ●
497 04.439 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) ADJUST 		8-98119-947-1 01 1 0905- ● ● ● ●
498 03.883 SWITCH; ASR 8-97386-920-2 01 1 0905-0906 ● ●
498 03.883 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> 		8-97386-920-2 01 1 0907-1510 ●
498 03.883 SWITCH; ASR 8-97386-920-2 01 1 0907-1510 ●
498 03.883 SWITCH; ASR
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) THROTTLE CONTROL SYSTEM<6XH> 		8-97386-920-2 01 1 1511- ●
498 03.883 SWITCH; ASR 8-97386-920-2 01 1 1511- ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 0905-0906 ● ● ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 0907- ● ● ● ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-949-1 01 1 0905-0906 ● ● ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-949-1 01 1 0907- ● ● ● ● ●
689 02.780 SWITCH; DPD
EXC. H.S.A SYSTEM<6EP> 		8-97386-921-2 01 1 0905-0906 ● ● ● ●
689 02.780 SWITCH; DPD
EXC. H.S.A SYSTEM<6EP> 		8-97386-921-2 01 1 0907- ● ● ● ●
689 02.780 SWITCH; DPD 8-97386-921-2 01 1 0907- ●
703 02.780 SWITCH; DPD & HSA
H.S.A SYSTEM<6EP> 		8-98011-346-2 01 1 0905- ● ● ● ●

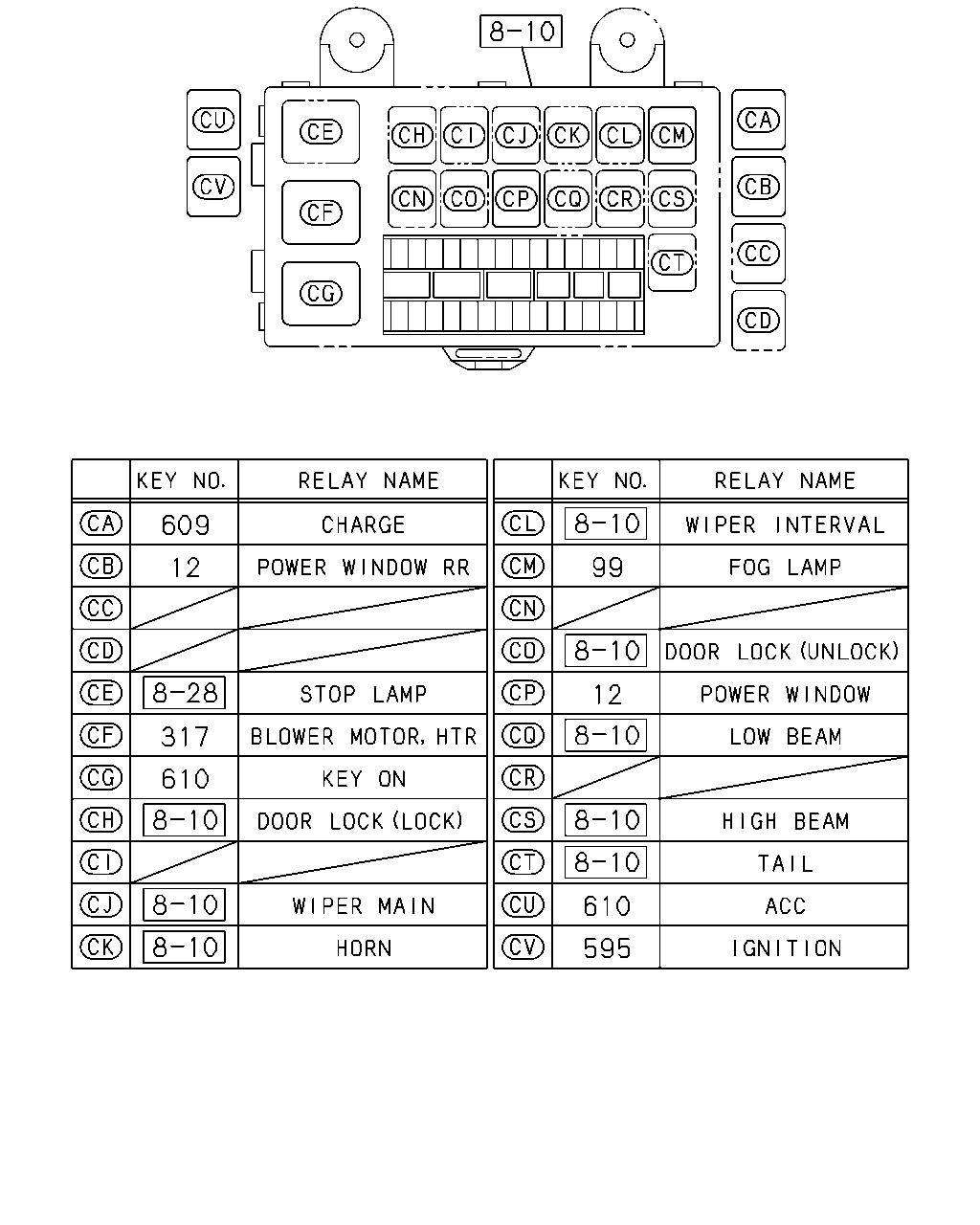

çizim 158909
609 99 12 12 317 610 610 595
BalonParca AdiParca NoAdetTipApplied Date A B C D E
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0905-0906 ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 0905-0906 ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 0905-0906 ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1112 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1112 ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1112 ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ● ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
12 08.852 RELAY; POWER WINDOW
4HK1-TCS ENG(RJS) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0905-0906 ● ● ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1111 ● ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1111 ● ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1112-1112 ● ● ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1112-1112 ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1204 ● ●
99 02.485 RELAY; FOG LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1204 ● ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1205- ● ● ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1205- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0905-0906 ● ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0907-0908 ● ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0907-0908 ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0909-1111 ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0909-1111 ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0909-1111 ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1112- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1112- ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1112- ●
595 02.510 RELAY; IGNITION
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
595 02.510 RELAY; IGNITION
4HK1-TCS ENG(RJS) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
595 02.510 RELAY; IGNITION
4JJ1-TCS ENG(LFB) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ●
609 02.485 RELAY; CHARGE
H.S.A SYSTEM<6EP> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0905-1112 ● ● ● ●
609 02.485 RELAY; CHARGE
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) H.S.A SYSTEM<6EP> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ● ●
609 02.485 RELAY; CHARGE
4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1201- ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0905-0906 ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0907-1204 ● ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ● ● ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 02.510 RELAY; KEY ON
4HK1-TCS ENG(RJS) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ●

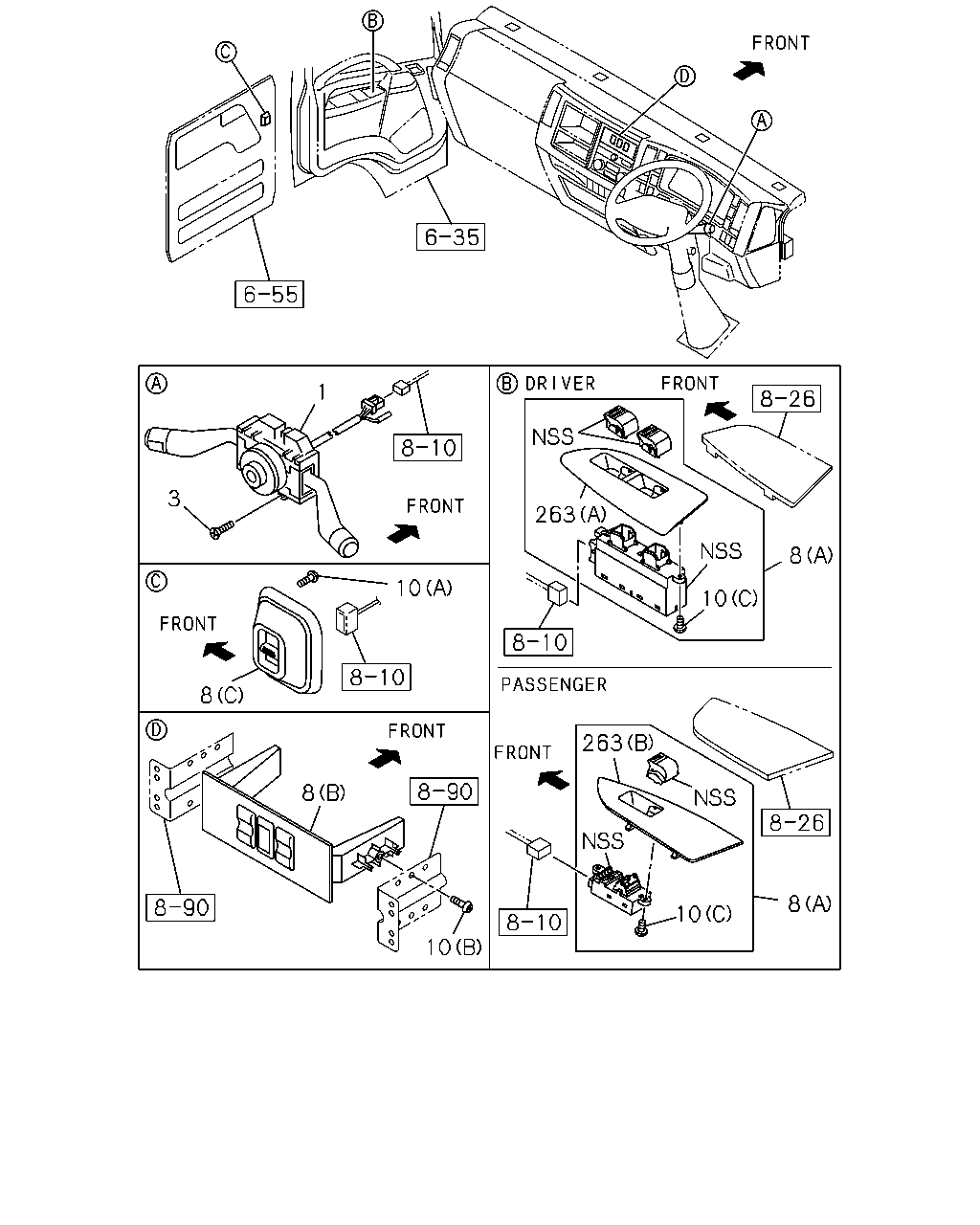

çizim 158910
1 3 263 8 10 10 8 263 8 8 10 10
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> 		8-98070-005-1 01 1 0905-0905 ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> 		8-98146-637-0 01 1 0906-1210 ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> 		8-98217-809-0 01 1 1211-1310 ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> 		8-98243-726-0 01 1 1311-1510 ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> 		8-98243-726-0 01 1 1511- ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> 		8-98243-726-0 01 1 1511- ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98070-001-1 01 1 0905-0905 ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98146-635-0 01 1 0906-1210 ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98217-808-0 01 1 1211-1310 ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98243-725-0 01 1 1311-1510 ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) INTERMITTENT WIPER<C13> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98243-725-0 01 1 1511- ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98243-725-0 01 1 1511- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98069-997-1 01 1 0905-1310 ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> MULTI INFORMATION DISPLAY<7NY> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98243-730-0 01 1 1311-1510 ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,MULTI INFORMATION D ISPLAY<7NY> 		8-98069-995-1 01 1 0905-0906 ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,MULTI INFORMATION D ISPLAY<7NY> 		8-98069-995-1 01 1 0907-1310 ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-98069-995-1 01 1 0907-1310 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,MULTI INFORMATION D ISPLAY<7NY> 		8-98243-729-0 01 1 1311-1510 ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-98243-729-0 01 1 1311-1510 ●
1 02.895 SWITCH; COMB
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,MULTI INFORMATION D ISPLAY<7NY> 		8-98243-729-0 01 1 1511- ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,MULTI INFORMATION D ISPLAY<7NY> 		8-98243-729-0 01 1 1511- ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-98243-729-0 01 1 1511- ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13>,MULTI INFORMATION DISPLAY<7NY> 		8-98069-993-2 01 1 0905-0906 ● ● ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13>,MULTI INFORMATION DISPLAY<7NY> 		8-98069-993-2 01 1 0907-1310 ● ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-98069-993-2 01 1 0907-1310 ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13>,MULTI INFORMATION DISPLAY<7NY> 		8-98243-728-0 01 1 1311-1510 ● ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-98243-728-0 01 1 1311-1510 ●
1 02.895 SWITCH; COMB
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13>,MULTI INFORMATION DISPLAY<7NY> 		8-98243-728-0 01 1 1511- ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,INTERMITTENT WIPER<C13>,MULTI INFORMATION DISPLAY<7NY> 		8-98243-728-0 01 1 1511- ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-98243-728-0 01 1 1511- ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0905-0906 ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0907- ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-97387-034-2 01 1 0905-0906 ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-97387-034-2 01 1 0907-1509 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-98316-415-0 01 1 1510- ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE 		8-98129-844-0 01 1 0905-0906 ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE 		8-98129-844-0 01 1 0907-1001 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE 		8-98159-543-0 01 1 1002-1509 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE 		8-98298-750-0 01 1 1510- ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-97386-987-2 01 1 0905- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (C) REAR SIDE 		8-97387-035-0 02 1 0905- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> (C) 		8-98153-865-0 03 1 0905-0906 ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> (C) 		8-98153-865-0 03 1 0907- ● ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.714 (A) M4X14 TAPPING 		0-74360-414-0 04 1 0905- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.100 (B) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0905- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> (A) 		8-98153-836-0 01 1 0905-0906 ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> (A) 		8-98153-836-0 01 1 0907- ● ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> (B) 		8-98153-841-0 01 1 0905-0906 ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> (B) 		8-98153-841-0 01 1 0907- ● ● ● ● ●

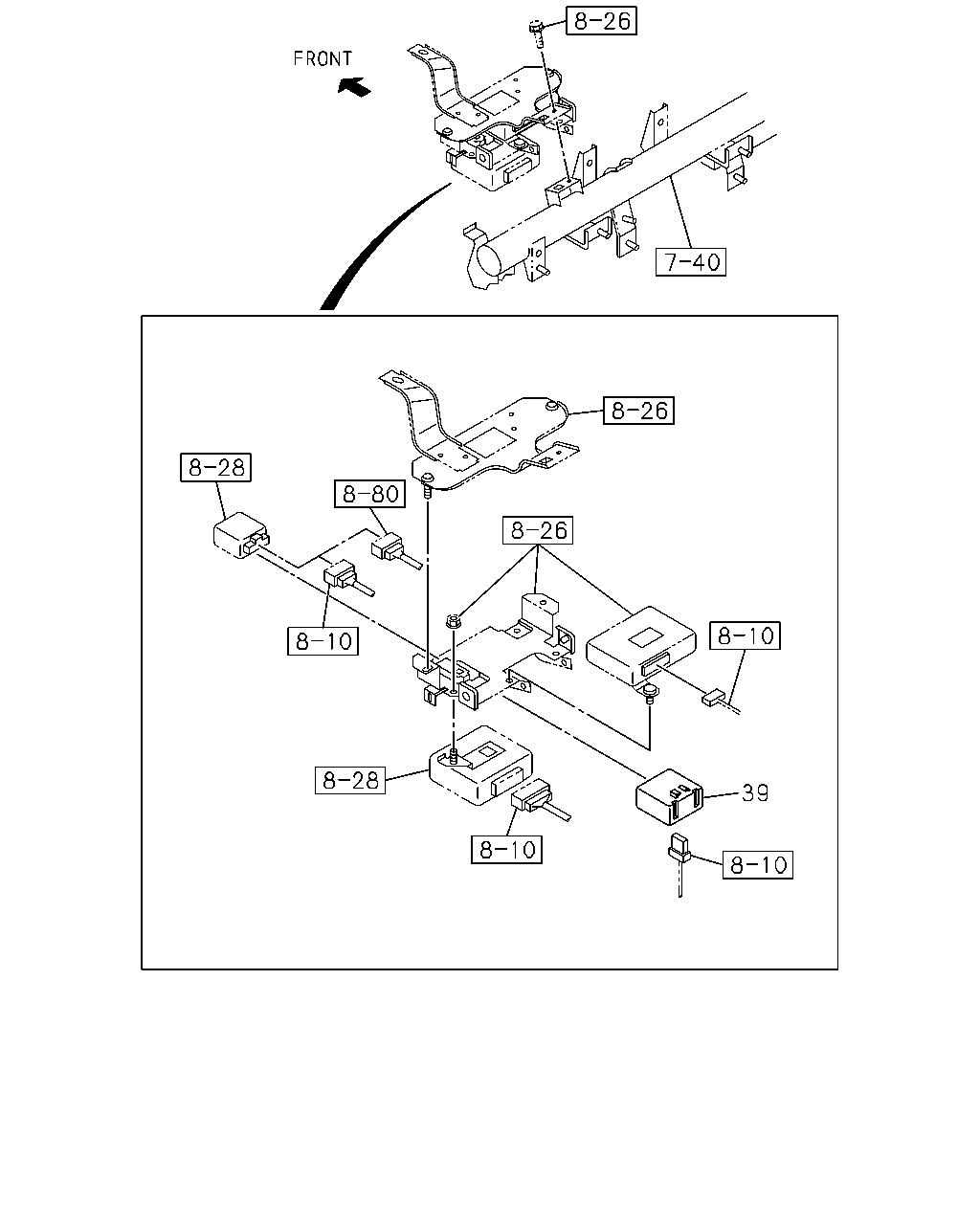

çizim 158924
39
BalonParca AdiParca NoAdetTipApplied Date A B C D E
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 0905-0906 ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 0907- ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-98060-789-0 01 1 0907- ●
çizim 159117
608 151 154
BalonParca AdiParca NoAdetTipApplied Date A B C D E
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0905-0906 ● ● ● ●
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0907-1111 ● ● ● ●
151 09.277 RELAY; HTR & A/C
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0907-1111 ●
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1112- ● ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0905-0906 ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1111 ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0907-1111 ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1112- ● ● ● ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 0905-0906 ● ● ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 0907-1402 ● ● ● ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ● ● ● ●

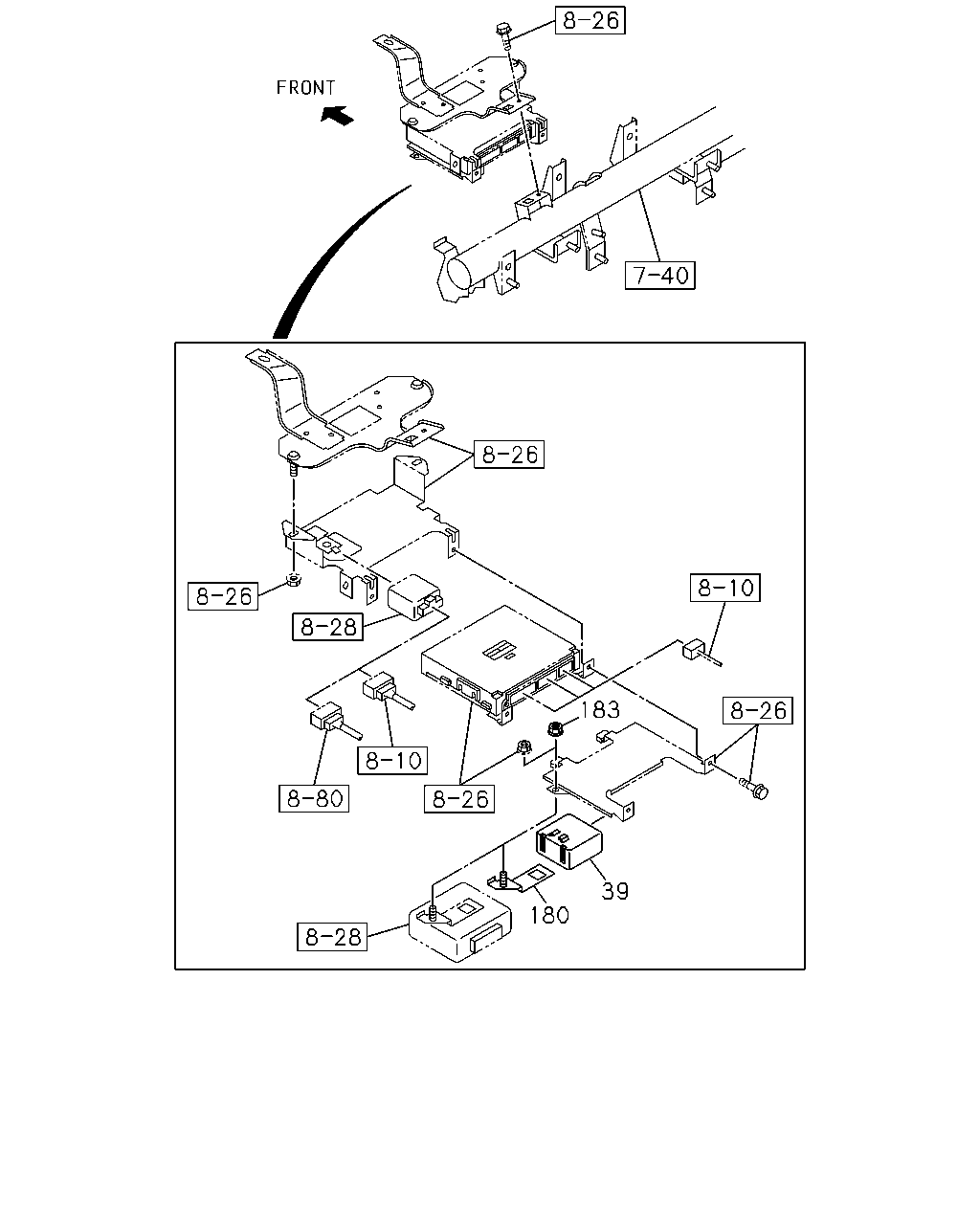

çizim 284354
39 180 183
BalonParca AdiParca NoAdetTipApplied Date A B C D E
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 0905-0906 ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 0907- ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-98060-789-0 01 1 0907- ●
180 02.510 BRACKET; RELAY
AUTO DOOR LOCK<AU4> MULTI INFORMATION DISPLAY<7NY> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98091-660-0 01 1 0905- ● ● ● ●
183 02.510 NUT; RELAY BRKT
AUTO DOOR LOCK<AU4> MULTI INFORMATION DISPLAY<7NY> EXC. REMOTE CONT DOOR LOCK<6NF> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0905- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
