8-15 — FIXING PARTS; WIRING HARNESS (#50134) — 703 parça
çizim 158887
14 22 48 22 22 22 102 617 22 488 16 22 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E
14 02.559 CLIP; BAND,HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 L=150 		8-97355-273-0 03 1 0905- ● ● ● ●
16 02.559 CLIP; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20 		8-94241-972-0 01 1 0907-1011 ●
16 02.559 CLIP; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20 		8-94241-972-0 01 1 1012- ●
16 02.559 CLIP; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20 		8-94241-972-0 01 1 1012- ●
16 02.559 CLIP; HARNESS
4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10 		8-94154-844-0 01 1 0907-1011 ●
16 02.559 CLIP; HARNESS
4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10 		8-94154-844-0 01 1 1012-1111 ● ●
16 02.559 CLIP; HARNESS
4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10 		8-94154-844-0 01 1 1112- ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (C) L=40.6 		8-97229-357-0 01 1 0905-0906 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6 		8-97229-357-0 01 1 0905-0906 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> (C) L=40.6 		8-97229-357-0 01 1 0907- ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (C) L=40.6 		8-97229-357-0 01 1 0907- ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6 		8-97229-357-0 01 1 0907- ● ●
16 02.559 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (E) 		8-97101-436-0 01 1 0905- ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 0905-0906 ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 0907- ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (B) ID=6 & 10-13 		8-97069-515-0 02 1 0905-0906 ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (B) ID=6 & 10-13 		8-97069-515-0 02 1 0907- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 14 1 0905-0906 ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 14 1 0907- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(F) 		8-98052-679-0 02 1 0905-0906 ● ● ● ●
16 02.559 CLIP; HARNESS
(F) 		8-98052-679-0 02 1 0907- ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (G) L=60 		8-94449-165-0 02 1 0905- ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (H) L=60 		8-97063-335-0 02 1 0905- ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6 		8-97229-357-0 02 1 0905-0906 ● ●
16 02.559 CLIP; HARNESS
EXC. CORNERING LAMP<T87> (C) L=40.6 		8-97229-357-0 02 1 0907- ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6 		8-97229-357-0 02 1 0907- ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 02.343 (H) L=119.5 		1-09707-197-0 01 1 0907-1011 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 02.343 (H) L=119.5 		1-09707-197-0 01 1 1012- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 04.594 (I) L=100 		5-09707-036-1 01 1 0907-1011 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 04.594 (I) L=100 		5-09707-036-1 01 1 1012- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.425 (E) ID=6 & 8.3 		8-94167-742-0 01 1 0907-1011 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.425 (E) ID=6 & 8.3 		8-94167-742-0 01 1 1012- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.162 (F) ID=13.2 & 14.5 		8-94475-649-0 01 1 0907-1011 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.162 (F) ID=13.2 & 14.5 		8-94475-649-0 01 1 1012- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 04.104 (G) ID=12 & 6.8 		8-97125-842-0 01 1 0907-1011 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 04.104 (G) ID=12 & 6.8 		8-97125-842-0 01 1 1012- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (J) L=170.3 		1-09987-182-0 01 1 0907- ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) (B) L=250 		5-09707-030-1 01 1 0905- ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (B) L=250 		5-09707-030-1 01 1 0905- ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) 08.852 (C) L=350 		8-94152-256-1 02 1 0905- ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) 08.852 (C) L=350 		8-94152-256-1 02 1 0905- ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) (D) ID=14-20 		8-97061-603-0 02 1 0905-1505 ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (D) ID=14-20 		8-97061-603-0 02 1 0905-1505 ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 0905-0906 ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.162 (A) L=140 		5-09707-031-1 01 1 0907-1011 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 0907-1011 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 0907-1011 ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 0907-1011 ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 0907-1011 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.162 (A) L=140 		5-09707-031-1 01 1 0907-1011 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.162 (A) L=140 		5-09707-031-1 01 1 1012-1311 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 1012-1311 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 1012-1311 ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 1012-1311 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.162 (A) L=140 		5-09707-031-1 01 1 1012-1311 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 1312- ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 1312- ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 1312- ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.162 (A) L=140 		5-09707-031-1 01 1 1312- ●

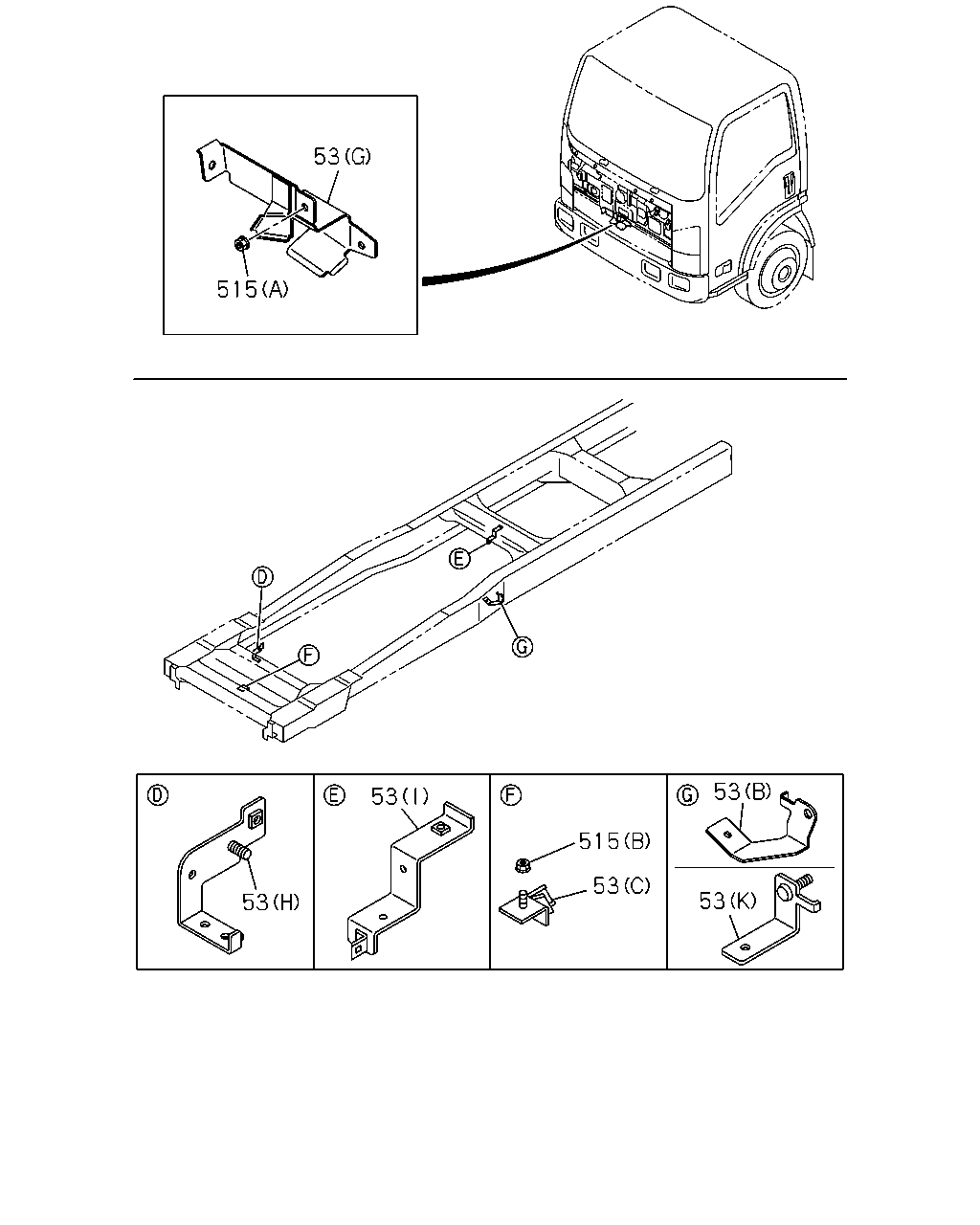

48 02.559 CLIP; FRAME HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 08.852 (G) L=350 		8-94152-256-1 01 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 11 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 11 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 11 1 1012-1510 ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 11 1 1012-1510 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 10 1 1511- ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 10 1 1511- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 02 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=20 		8-94241-972-0 02 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 02 1 1012- ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=20 		8-94241-972-0 02 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 10 1 0907-1510 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 09 1 1511- ●
48 02.559 CLIP; FRAME HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 0905-0906 ● ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 0905-0906 ●
48 02.559 CLIP; FRAME HARNESS
FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 0907-1011 ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) T=4.5 & 9 		8-97371-947-0 01 1 0905-0906 ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) T=4.5 & 9 		8-97371-947-0 01 1 0905-0906 ●
48 02.559 CLIP; FRAME HARNESS
(B) T=4.5 & 9 		8-97371-947-0 01 1 0905-0906 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9 		8-97371-947-0 01 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9 		8-97371-947-0 01 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9 		8-97371-947-0 01 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
(B) T=4.5 & 9 		8-97371-947-0 01 1 0907-1011 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(B) T=4.5 & 9 		8-97371-947-0 01 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9 		8-97371-947-0 01 1 1012- ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9 		8-97371-947-0 01 1 1012- ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9 		8-97371-947-0 01 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) T=4.5 & 9 		8-97371-947-0 01 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9 		8-97371-947-0 01 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
(B) T=4.5 & 9 		8-97371-947-0 01 1 1012- ● ●
48 02.559 CLIP; FRAME HARNESS
(B) T=4.5 & 9 		8-97371-947-0 01 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
MULTI INFORMATION DISPLAY<7NY> 03.483 (C) L=450 		1-09707-142-1 01 1 0905-0906 ● ●
48 02.559 CLIP; FRAME HARNESS
FRAME STRAIGHT TYPE<7KJ> MULTI INFORMATION DISPLAY<7NY> 03.483 (C) L=450 		1-09707-142-1 01 1 0907- ●
48 02.559 CLIP; FRAME HARNESS
MULTI INFORMATION DISPLAY<7NY> 03.483 (C) L=450 		1-09707-142-1 01 1 0907- ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 01 1 0905-0906 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 01 1 0905-0906 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 01 1 0907-0907 ●
48 02.559 CLIP; FRAME HARNESS
FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 01 1 0907-0907 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 01 1 0907-0907 ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 01 1 0907-0907 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 01 1 0907-0907 ● ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 01 1 0908-1011 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 01 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 01 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
03.430 (E) ID=10 & 16.5 		8-94424-440-0 01 1 0905-0906 ● ●
48 02.559 CLIP; FRAME HARNESS
FRAME STRAIGHT TYPE<7KJ> 03.430 (E) ID=10 & 16.5 		8-94424-440-0 01 1 0907- ●
48 02.559 CLIP; FRAME HARNESS
03.430 (E) ID=10 & 16.5 		8-94424-440-0 01 1 0907- ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=20 		8-94241-972-0 01 1 0905-0906 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=20 		8-94241-972-0 01 1 0907-1101 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 01 1 0907-1101 ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 01 1 1102- ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 01 1 1102- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 01 1 1102- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) ID=20 		8-94241-972-0 01 1 1102- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 01 1 1102- ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=20 		8-94241-972-0 01 1 1102- ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47 		5-09700-319-0 03 1 0905-1011 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47 		5-09700-319-0 03 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 03 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47 		5-09700-319-0 04 1 0905-1011 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47 		5-09700-319-0 04 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 04 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) (F) T=5.5 		8-97371-951-0 02 1 0905-0907 ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 02 1 0905-0907 ●
48 02.559 CLIP; FRAME HARNESS
FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 02 1 0908-1011 ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 02 1 0908-1011 ● ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) (F) T=5.5 		8-97371-951-0 02 1 0908-1011 ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 02 1 0908-1011 ●
48 02.559 CLIP; FRAME HARNESS
FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 02 1 1012- ● ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 02 1 1012- ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 02 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 02 1 1012- ●
102 02.559 CLIP; BAND
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 L=140 		5-09707-031-1 07 1 0905-1009 ● ● ● ●
102 02.559 CLIP; BAND
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 L=140 		5-09707-031-1 08 1 1010- ● ● ● ●
488 02.559 CLIP; CABLE,TRAILER
L=250 		5-09707-030-1 01 1 0905-0906 ● ● ● ●
488 02.559 CLIP; CABLE,TRAILER
L=250 		5-09707-030-1 01 1 0907- ● ● ● ● ●
617 02.559 STRAP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 L=140 		5-09707-031-1 01 1 1012-1106 ● ● ● ● ●
617 02.559 STRAP; BAND
M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 L=140 		5-09707-031-1 01 1 1107-1108 ● ●

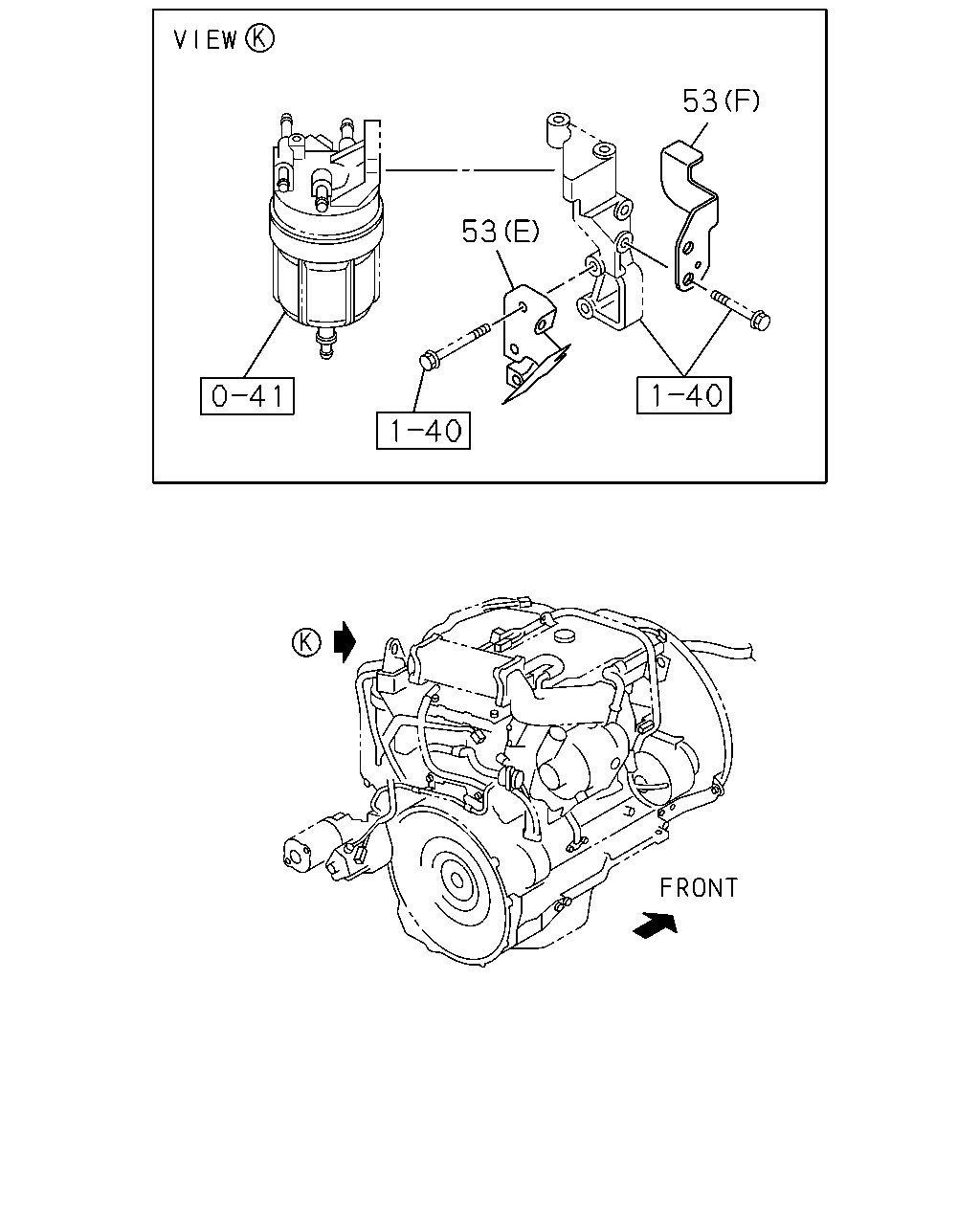

çizim 158889
53 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (K) 		8-98083-225-1 01 1 0907-1011 ●
53 02.483 BRACKET; HARNESS
(K) 		8-98083-225-1 01 1 0907-1011 ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (K) 		8-98083-225-1 01 1 1012- ● ●
53 02.483 BRACKET; HARNESS
(K) 		8-98083-225-1 01 1 1012- ●
53 02.483 BRACKET; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (F) 		8-98052-804-0 01 1 0905- ● ● ● ●
53 02.483 BRACKET; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (E) 		8-98055-636-0 01 1 0905- ● ● ● ●
53 02.483 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 0905-0906 ● ● ● ●
53 02.483 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 0907- ● ● ● ● ●
53 02.483 BRACKET; HARNESS
(G) 		8-98051-457-0 01 1 0905-0906 ● ● ● ●
53 02.483 BRACKET; HARNESS
(G) 		8-98051-457-0 01 1 0907- ● ● ● ● ●
53 02.483 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 0905-0906 ● ● ● ●
53 02.483 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 0907- ● ● ● ● ●
53 02.483 BRACKET; HARNESS
(D) 		8-98074-502-0 01 1 0905-0906 ● ● ● ●
53 02.483 BRACKET; HARNESS
(D) 		8-98074-502-0 01 1 0907- ● ● ● ● ●
53 02.483 BRACKET; HARNESS
(H) 		8-98077-503-1 01 1 0905-0906 ● ● ● ●
53 02.483 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98077-503-1 01 1 0907-1011 ●
53 02.483 BRACKET; HARNESS
(H) 		8-98077-503-1 01 1 0907-1011 ● ● ●
53 02.483 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98077-503-1 01 1 1012- ● ●
53 02.483 BRACKET; HARNESS
(H) 		8-98077-503-1 01 1 1012- ● ●
53 02.483 BRACKET; HARNESS
(I) 		8-98077-504-0 01 1 0905-0906 ● ● ● ●
53 02.483 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (I) 		8-98077-504-0 01 1 0907-1011 ● ● ● ●
53 02.483 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (I) 		8-98077-504-0 01 1 1012- ● ●
53 02.483 BRACKET; HARNESS
(I) 		8-98077-504-0 01 1 1012- ● ●
53 02.483 BRACKET; HARNESS
(B) 		8-98130-669-1 01 1 0905-0906 ● ● ● ●
53 02.483 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98130-669-1 01 1 0907-1011 ● ● ● ●
53 02.483 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98130-669-1 01 1 1012- ● ●
53 02.483 BRACKET; HARNESS
(B) 		8-98130-669-1 01 1 1012- ● ●
53 02.483 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J) 		8-98084-590-0 01 1 0905-1003 ● ● ● ●
53 02.483 BRACKET; HARNESS
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J) 		8-98084-590-0 01 1 1004-1111 ●
53 02.483 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J) 		8-98084-590-0 01 1 1004-1111 ● ● ●
53 02.483 BRACKET; HARNESS
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J) 		8-98084-590-0 01 1 1112- ●
53 02.483 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J) 		8-98084-590-0 01 1 1112- ● ● ●
53 02.483 BRACKET; HARNESS
EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (J) 		8-98084-590-0 01 1 1112- ●
çizim 158891
16 16 483 483 483 483 16 16 16 16 504 513 22 530 16 48
BalonParca AdiParca NoAdetTipApplied Date A B C D E
16 02.559 CLIP; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20 		8-94241-972-0 01 1 0907-1011 ●
16 02.559 CLIP; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20 		8-94241-972-0 01 1 1012- ●
16 02.559 CLIP; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20 		8-94241-972-0 01 1 1012- ●
16 02.559 CLIP; HARNESS
4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10 		8-94154-844-0 01 1 0907-1011 ●
16 02.559 CLIP; HARNESS
4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10 		8-94154-844-0 01 1 1012-1111 ● ●
16 02.559 CLIP; HARNESS
4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10 		8-94154-844-0 01 1 1112- ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (C) L=40.6 		8-97229-357-0 01 1 0905-0906 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6 		8-97229-357-0 01 1 0905-0906 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> (C) L=40.6 		8-97229-357-0 01 1 0907- ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (C) L=40.6 		8-97229-357-0 01 1 0907- ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6 		8-97229-357-0 01 1 0907- ● ●
16 02.559 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (E) 		8-97101-436-0 01 1 0905- ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 0905-0906 ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 0907- ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (B) ID=6 & 10-13 		8-97069-515-0 02 1 0905-0906 ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (B) ID=6 & 10-13 		8-97069-515-0 02 1 0907- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 14 1 0905-0906 ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 14 1 0907- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(F) 		8-98052-679-0 02 1 0905-0906 ● ● ● ●
16 02.559 CLIP; HARNESS
(F) 		8-98052-679-0 02 1 0907- ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (G) L=60 		8-94449-165-0 02 1 0905- ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (H) L=60 		8-97063-335-0 02 1 0905- ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6 		8-97229-357-0 02 1 0905-0906 ● ●
16 02.559 CLIP; HARNESS
EXC. CORNERING LAMP<T87> (C) L=40.6 		8-97229-357-0 02 1 0907- ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6 		8-97229-357-0 02 1 0907- ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 02.343 (H) L=119.5 		1-09707-197-0 01 1 0907-1011 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 02.343 (H) L=119.5 		1-09707-197-0 01 1 1012- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 04.594 (I) L=100 		5-09707-036-1 01 1 0907-1011 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 04.594 (I) L=100 		5-09707-036-1 01 1 1012- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.425 (E) ID=6 & 8.3 		8-94167-742-0 01 1 0907-1011 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.425 (E) ID=6 & 8.3 		8-94167-742-0 01 1 1012- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.162 (F) ID=13.2 & 14.5 		8-94475-649-0 01 1 0907-1011 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.162 (F) ID=13.2 & 14.5 		8-94475-649-0 01 1 1012- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 04.104 (G) ID=12 & 6.8 		8-97125-842-0 01 1 0907-1011 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 04.104 (G) ID=12 & 6.8 		8-97125-842-0 01 1 1012- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (J) L=170.3 		1-09987-182-0 01 1 0907- ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) (B) L=250 		5-09707-030-1 01 1 0905- ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (B) L=250 		5-09707-030-1 01 1 0905- ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) 08.852 (C) L=350 		8-94152-256-1 02 1 0905- ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) 08.852 (C) L=350 		8-94152-256-1 02 1 0905- ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) (D) ID=14-20 		8-97061-603-0 02 1 0905-1505 ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (D) ID=14-20 		8-97061-603-0 02 1 0905-1505 ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 0905-0906 ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.162 (A) L=140 		5-09707-031-1 01 1 0907-1011 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 0907-1011 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 0907-1011 ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 0907-1011 ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 0907-1011 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.162 (A) L=140 		5-09707-031-1 01 1 0907-1011 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.162 (A) L=140 		5-09707-031-1 01 1 1012-1311 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 1012-1311 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 1012-1311 ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 1012-1311 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.162 (A) L=140 		5-09707-031-1 01 1 1012-1311 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 1312- ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 1312- ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 1312- ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.162 (A) L=140 		5-09707-031-1 01 1 1312- ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 08.852 (G) L=350 		8-94152-256-1 01 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 11 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 11 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 11 1 1012-1510 ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 11 1 1012-1510 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 10 1 1511- ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 10 1 1511- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 02 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=20 		8-94241-972-0 02 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 02 1 1012- ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=20 		8-94241-972-0 02 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 10 1 0907-1510 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 09 1 1511- ●
48 02.559 CLIP; FRAME HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 0905-0906 ● ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 0905-0906 ●
48 02.559 CLIP; FRAME HARNESS
FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 0907-1011 ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) T=4.5 & 9 		8-97371-947-0 01 1 0905-0906 ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) T=4.5 & 9 		8-97371-947-0 01 1 0905-0906 ●
48 02.559 CLIP; FRAME HARNESS
(B) T=4.5 & 9 		8-97371-947-0 01 1 0905-0906 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9 		8-97371-947-0 01 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9 		8-97371-947-0 01 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9 		8-97371-947-0 01 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
(B) T=4.5 & 9 		8-97371-947-0 01 1 0907-1011 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(B) T=4.5 & 9 		8-97371-947-0 01 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9 		8-97371-947-0 01 1 1012- ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9 		8-97371-947-0 01 1 1012- ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9 		8-97371-947-0 01 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) T=4.5 & 9 		8-97371-947-0 01 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9 		8-97371-947-0 01 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
(B) T=4.5 & 9 		8-97371-947-0 01 1 1012- ● ●
48 02.559 CLIP; FRAME HARNESS
(B) T=4.5 & 9 		8-97371-947-0 01 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
MULTI INFORMATION DISPLAY<7NY> 03.483 (C) L=450 		1-09707-142-1 01 1 0905-0906 ● ●
48 02.559 CLIP; FRAME HARNESS
FRAME STRAIGHT TYPE<7KJ> MULTI INFORMATION DISPLAY<7NY> 03.483 (C) L=450 		1-09707-142-1 01 1 0907- ●
48 02.559 CLIP; FRAME HARNESS
MULTI INFORMATION DISPLAY<7NY> 03.483 (C) L=450 		1-09707-142-1 01 1 0907- ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 01 1 0905-0906 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 01 1 0905-0906 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 01 1 0907-0907 ●
48 02.559 CLIP; FRAME HARNESS
FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 01 1 0907-0907 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 01 1 0907-0907 ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 01 1 0907-0907 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 01 1 0907-0907 ● ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 01 1 0908-1011 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 01 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 01 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
03.430 (E) ID=10 & 16.5 		8-94424-440-0 01 1 0905-0906 ● ●
48 02.559 CLIP; FRAME HARNESS
FRAME STRAIGHT TYPE<7KJ> 03.430 (E) ID=10 & 16.5 		8-94424-440-0 01 1 0907- ●
48 02.559 CLIP; FRAME HARNESS
03.430 (E) ID=10 & 16.5 		8-94424-440-0 01 1 0907- ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=20 		8-94241-972-0 01 1 0905-0906 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=20 		8-94241-972-0 01 1 0907-1101 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 01 1 0907-1101 ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 01 1 1102- ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 01 1 1102- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 01 1 1102- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) ID=20 		8-94241-972-0 01 1 1102- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 01 1 1102- ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=20 		8-94241-972-0 01 1 1102- ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47 		5-09700-319-0 03 1 0905-1011 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47 		5-09700-319-0 03 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 03 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47 		5-09700-319-0 04 1 0905-1011 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47 		5-09700-319-0 04 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 04 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) (F) T=5.5 		8-97371-951-0 02 1 0905-0907 ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 02 1 0905-0907 ●
48 02.559 CLIP; FRAME HARNESS
FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 02 1 0908-1011 ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 02 1 0908-1011 ● ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) (F) T=5.5 		8-97371-951-0 02 1 0908-1011 ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 02 1 0908-1011 ●
48 02.559 CLIP; FRAME HARNESS
FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 02 1 1012- ● ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 02 1 1012- ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 02 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 02 1 1012- ●
483 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.602 (C) ID=15 H=24 L=20 		1-09700-606-0 01 1 0905- ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.785 (A) ID=14.5 L=40 		1-09701-014-0 01 1 0905- ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) ID=19 H=33 L=45 		1-09701-045-0 01 1 0905- ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.152 (E) L=36 		8-94224-891-1 01 1 0905- ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=12 		8-97329-630-0 01 1 0905- ● ● ● ●
504 02.559 PROTECTOR; HARNESS
4JJ1-TCS ENG(LFB) 		8-98208-886-0 01 1 1201- ● ● ●
513 02.559 TAPE; SOFT,HARNESS
70X45 		8-97304-372-0 01 1 0907-1309 ● ● ● ● ●
513 02.559 TAPE; SOFT,HARNESS
MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 130X80 		8-97304-373-0 01 1 0905-0908 ● ● ● ●
513 02.559 TAPE; SOFT,HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80 		8-97304-373-0 01 1 0909-0909 ● ● ● ●
513 02.559 TAPE; SOFT,HARNESS
MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 130X80 		8-97304-373-0 01 1 0909-0909 ● ● ● ●
513 02.559 TAPE; SOFT,HARNESS
MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 130X80 		8-97304-373-0 01 1 0909- ● ● ● ●
513 02.559 TAPE; SOFT,HARNESS
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80 		8-97304-373-0 01 1 0909- ● ● ● ●
530 02.559 SEAL; HARNESS
16.545 OD=32 BLACK 		8-98031-126-0 01 1 0905-0906 ● ● ● ●
530 02.559 SEAL; HARNESS
16.545 OD=32 BLACK 		8-98031-126-0 01 1 0907- ● ● ● ● ●

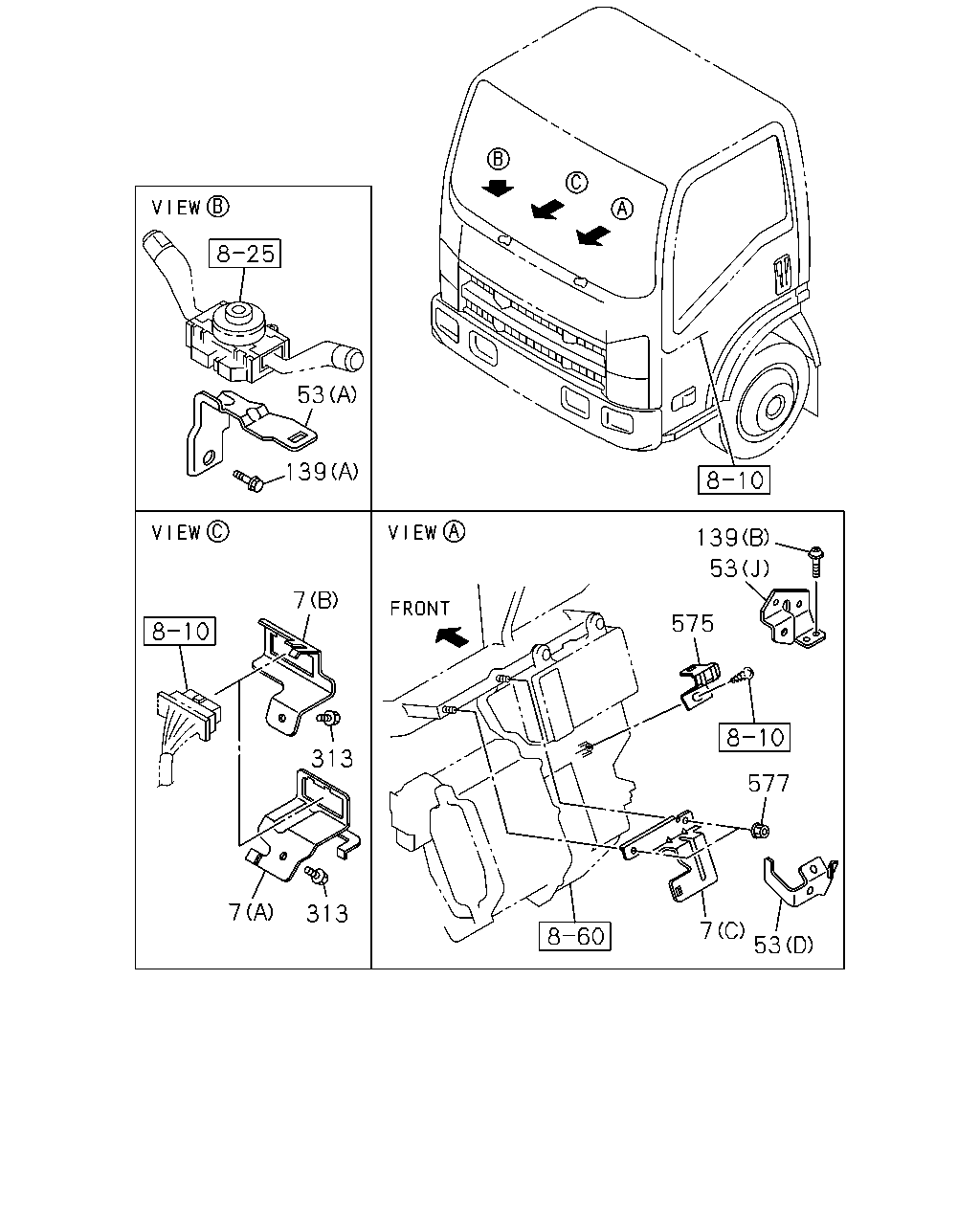

çizim 158892
53 139 139 53 7 575 313 577 7 313 7 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E
7 02.559 BRACKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98114-514-0 01 1 0905-0906 ● ● ● ●
7 02.559 BRACKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98114-514-0 01 1 0907- ● ● ● ● ●
7 02.559 BRACKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98043-070-1 01 1 0905-0906 ● ● ● ●
7 02.559 BRACKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98043-070-1 01 1 0907- ● ● ● ● ●
7 02.559 BRACKET; CONNECTOR
(C) 		8-98029-762-4 01 1 0905-0906 ● ● ● ●
7 02.559 BRACKET; CONNECTOR
(C) 		8-98029-762-4 01 1 0907-1204 ● ● ● ● ●
7 02.559 BRACKET; CONNECTOR
(C) 		8-98029-762-4 01 1 1205- ● ● ● ● ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (K) 		8-98083-225-1 01 1 0907-1011 ●
53 02.483 BRACKET; HARNESS
(K) 		8-98083-225-1 01 1 0907-1011 ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (K) 		8-98083-225-1 01 1 1012- ● ●
53 02.483 BRACKET; HARNESS
(K) 		8-98083-225-1 01 1 1012- ●
53 02.483 BRACKET; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (F) 		8-98052-804-0 01 1 0905- ● ● ● ●
53 02.483 BRACKET; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (E) 		8-98055-636-0 01 1 0905- ● ● ● ●
53 02.483 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 0905-0906 ● ● ● ●
53 02.483 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 0907- ● ● ● ● ●
53 02.483 BRACKET; HARNESS
(G) 		8-98051-457-0 01 1 0905-0906 ● ● ● ●
53 02.483 BRACKET; HARNESS
(G) 		8-98051-457-0 01 1 0907- ● ● ● ● ●
53 02.483 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 0905-0906 ● ● ● ●
53 02.483 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 0907- ● ● ● ● ●
53 02.483 BRACKET; HARNESS
(D) 		8-98074-502-0 01 1 0905-0906 ● ● ● ●
53 02.483 BRACKET; HARNESS
(D) 		8-98074-502-0 01 1 0907- ● ● ● ● ●
53 02.483 BRACKET; HARNESS
(H) 		8-98077-503-1 01 1 0905-0906 ● ● ● ●
53 02.483 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98077-503-1 01 1 0907-1011 ●
53 02.483 BRACKET; HARNESS
(H) 		8-98077-503-1 01 1 0907-1011 ● ● ●
53 02.483 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98077-503-1 01 1 1012- ● ●
53 02.483 BRACKET; HARNESS
(H) 		8-98077-503-1 01 1 1012- ● ●
53 02.483 BRACKET; HARNESS
(I) 		8-98077-504-0 01 1 0905-0906 ● ● ● ●
53 02.483 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (I) 		8-98077-504-0 01 1 0907-1011 ● ● ● ●
53 02.483 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (I) 		8-98077-504-0 01 1 1012- ● ●
53 02.483 BRACKET; HARNESS
(I) 		8-98077-504-0 01 1 1012- ● ●
53 02.483 BRACKET; HARNESS
(B) 		8-98130-669-1 01 1 0905-0906 ● ● ● ●
53 02.483 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98130-669-1 01 1 0907-1011 ● ● ● ●
53 02.483 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98130-669-1 01 1 1012- ● ●
53 02.483 BRACKET; HARNESS
(B) 		8-98130-669-1 01 1 1012- ● ●
53 02.483 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J) 		8-98084-590-0 01 1 0905-1003 ● ● ● ●
53 02.483 BRACKET; HARNESS
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J) 		8-98084-590-0 01 1 1004-1111 ●
53 02.483 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J) 		8-98084-590-0 01 1 1004-1111 ● ● ●
53 02.483 BRACKET; HARNESS
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J) 		8-98084-590-0 01 1 1112- ●
53 02.483 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J) 		8-98084-590-0 01 1 1112- ● ● ●
53 02.483 BRACKET; HARNESS
EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (J) 		8-98084-590-0 01 1 1112- ●
139 02.559 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0905-0906 ● ● ● ●
139 02.559 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0907- ● ● ● ● ●
139 02.559 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0905-1003 ● ● ● ●
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004-1101 ●
139 02.559 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004-1101 ● ● ●
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1111 ●
139 02.559 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1111 ● ● ●
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1112-1212 ●
139 02.559 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1112-1212 ● ● ●
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1112-1212 ●
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ●
139 02.559 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ●
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ●
313 02.559 BOLT; BRKT
09.171 M6X16 FLANGE 		0-28450-616-0 01 1 0905-0906 ● ● ● ●
313 02.559 BOLT; BRKT
09.171 M6X16 FLANGE 		0-28450-616-0 01 1 0907- ● ● ● ● ●
575 02.559 BRACKET; FUSE BOX 8-98042-656-2 01 1 0905-0906 ● ● ● ●
575 02.559 BRACKET; FUSE BOX 8-98042-656-2 01 1 0907- ● ● ● ● ●
577 02.559 NUT; FUSE BOX
01.062 M6 FLANGE 		0-91180-106-0 04 1 0905-0906 ● ● ● ●
577 02.559 NUT; FUSE BOX
01.062 M6 FLANGE 		0-91180-106-0 04 1 0907-1204 ● ● ● ● ●
577 02.559 NUT; FUSE BOX
01.062 M6 FLANGE 		0-91180-106-0 02 1 1205- ● ● ● ● ●
577 02.559 NUT; FUSE BOX
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1205- ● ●
577 02.559 NUT; FUSE BOX
4HK1-TCS ENG(RJS) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1205- ● ●
577 02.559 NUT; FUSE BOX
4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1205- ●
çizim 158895
313 481 38 139 150 516 480 242 529 304 480 377 377 386 377 386 386 386 516 139 24 515 577 219 294 515 524 24 515 552 552
BalonParca AdiParca NoAdetTipApplied Date A B C D E
24 02.559 NUT; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0905- ● ● ● ●
24 02.559 NUT; HARNESS
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0905-0906 ● ● ● ●
24 02.559 NUT; HARNESS
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0907-1409 ● ● ● ● ●
24 02.559 NUT; HARNESS
(A) M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1410- ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0907-1011 ● ●
38 02.559 BOLT; CLIP,HARNESS
4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1012- ● ● ●
139 02.559 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0905-0906 ● ● ● ●
139 02.559 BOLT; BRKT
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0907- ● ● ● ● ●
139 02.559 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0905-1003 ● ● ● ●
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004-1101 ●
139 02.559 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1004-1101 ● ● ●
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1111 ●
139 02.559 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1111 ● ● ●
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1112-1212 ●
139 02.559 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1112-1212 ● ● ●
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1112-1212 ●
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ●
139 02.559 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ●
139 02.559 BOLT; BRKT
EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ●
150 02.343 BOLT; CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M8X12 FLANGE 		0-28050-812-0 01 1 0905- ● ● ● ●
219 02.559 NUT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0905-0906 ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907-1011 ● ● ● ●
219 02.559 NUT
FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012-1402 ● ●
219 02.559 NUT
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012-1402 ● ●
242 02.483 BOLT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0905-0906 ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0907- ● ● ● ● ●
294 02.559 NUT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0905-0906 ● ● ● ●
294 02.559 NUT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0907- ● ● ● ● ●
304 02.483 BOLT; ENG HARNESS CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 M10X16 FLANGE 		0-28151-016-0 01 1 0905- ● ● ● ●
313 02.559 BOLT; BRKT
09.171 M6X16 FLANGE 		0-28450-616-0 01 1 0905-0906 ● ● ● ●
313 02.559 BOLT; BRKT
09.171 M6X16 FLANGE 		0-28450-616-0 01 1 0907- ● ● ● ● ●
377 02.559 BOLT; CAB EARTH
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0905-0906 ● ● ● ●
377 02.559 BOLT; CAB EARTH
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0907-1004 ● ● ● ● ●
377 02.559 BOLT; CAB EARTH
02.343 (C) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1005- ● ● ● ● ●
377 02.559 BOLT; CAB EARTH
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0905-0906 ● ● ● ●
377 02.559 BOLT; CAB EARTH
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0907-1004 ● ● ● ● ●
377 02.559 BOLT; CAB EARTH
(A) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1005- ● ● ● ● ●
386 02.559 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0905-0906 ● ● ● ●
386 02.559 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0907-1004 ● ● ● ● ●
386 02.559 BOLT; GRAND HARNESS
02.343 (C) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005- ● ● ● ● ●
386 02.559 BOLT; GRAND HARNESS
02.343 (B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0905-0906 ● ● ● ●
386 02.559 BOLT; GRAND HARNESS
02.343 (B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0907-1004 ● ● ● ● ●
386 02.559 BOLT; GRAND HARNESS
02.343 (D) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ● ● ● ●
480 02.483 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0905-0906 ● ● ● ●
480 02.483 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 0907-1011 ● ● ● ●
480 02.483 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
480 02.483 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
480 02.483 BOLT; BRKT
00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 0905-0906 ● ● ● ●
480 02.483 BOLT; BRKT
00.029 (B) M10X30 FLANGE 		0-28651-030-0 01 1 0907- ● ● ● ● ●
481 13.090 BOLT; CABLE HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 M8X10 W/LK WASHER 		8-98029-928-0 02 1 0907-1011 ●
481 13.090 BOLT; CABLE HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 M8X10 W/LK WASHER 		8-98029-928-0 02 1 1012- ●
481 13.090 BOLT; CABLE HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 04.665 M8X10 W/LK WASHER 		8-98029-928-0 02 1 1012- ●
515 02.559 NUT; BRKT
03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0905-0906 ● ● ● ●
515 02.559 NUT; BRKT
03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0905-0906 ● ● ● ●
515 02.559 NUT; BRKT
03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0907-0909 ● ● ● ● ●
515 02.559 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0907-0909 ●
515 02.559 NUT; BRKT
03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0907-0909 ● ● ●
515 02.559 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0910-1011 ● ● ● ●
515 02.559 NUT; BRKT
03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1012- ● ● ● ● ●
515 02.559 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1012- ●
515 02.559 NUT; BRKT
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1012- ●
515 02.559 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1012- ●
515 02.559 NUT; BRKT
03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1012- ●
515 02.559 NUT; BRKT
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0905-0906 ● ● ● ●
515 02.559 NUT; BRKT
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0907- ● ● ● ● ●
515 02.559 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 0905-0906 ● ● ● ●
515 02.559 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 0907- ● ● ● ● ●
516 02.559 BOLT; HARNESS
4JJ1-TCS ENG(LFB) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 0907-1011 ● ●
516 02.559 BOLT; HARNESS
4JJ1-TCS ENG(LFB) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 1012- ● ● ●
516 02.559 BOLT; HARNESS
09.650 (A) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 0905-0906 ● ● ● ●
516 02.559 BOLT; HARNESS
09.650 (A) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 0907- ● ● ● ● ●
524 02.559 NUT; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0907-1011 ●
524 02.559 NUT; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
524 02.559 NUT; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
529 02.559 BOLT; RELAY BOX
08.155 M8X35 W/LK&PL WASHER 		1-09030-094-0 03 1 0905-0906 ● ● ● ●
529 02.559 BOLT; RELAY BOX
08.155 M8X35 W/LK&PL WASHER 		1-09030-094-0 03 1 0907- ● ● ● ● ●
552 02.483 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0908-1011 ●
552 02.483 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0908-1011 ●
552 02.483 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
552 02.483 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1012- ●
552 02.483 NUT; BRKT,HARNESS
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0905-0906 ● ● ● ●
552 02.483 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0905-0906 ● ● ● ●
552 02.483 NUT; BRKT,HARNESS
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0907- ● ● ● ● ●
552 02.483 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0907- ● ● ● ● ●
552 02.483 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0905-0906 ● ● ● ●
552 02.483 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0907-0907 ● ● ● ● ●
552 02.483 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0905-0906 ● ● ● ●
552 02.483 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0907- ● ● ● ● ●
577 02.559 NUT; FUSE BOX
01.062 M6 FLANGE 		0-91180-106-0 04 1 0905-0906 ● ● ● ●
577 02.559 NUT; FUSE BOX
01.062 M6 FLANGE 		0-91180-106-0 04 1 0907-1204 ● ● ● ● ●
577 02.559 NUT; FUSE BOX
01.062 M6 FLANGE 		0-91180-106-0 02 1 1205- ● ● ● ● ●
577 02.559 NUT; FUSE BOX
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1205- ● ●
577 02.559 NUT; FUSE BOX
4HK1-TCS ENG(RJS) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1205- ● ●
577 02.559 NUT; FUSE BOX
4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1205- ●
çizim 158897
53 515 53 53 515 53 53 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (K) 		8-98083-225-1 01 1 0907-1011 ●
53 02.483 BRACKET; HARNESS
(K) 		8-98083-225-1 01 1 0907-1011 ●
53 02.483 BRACKET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (K) 		8-98083-225-1 01 1 1012- ● ●
53 02.483 BRACKET; HARNESS
(K) 		8-98083-225-1 01 1 1012- ●
53 02.483 BRACKET; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (F) 		8-98052-804-0 01 1 0905- ● ● ● ●
53 02.483 BRACKET; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (E) 		8-98055-636-0 01 1 0905- ● ● ● ●
53 02.483 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 0905-0906 ● ● ● ●
53 02.483 BRACKET; HARNESS
(C) 		8-98018-900-2 01 1 0907- ● ● ● ● ●
53 02.483 BRACKET; HARNESS
(G) 		8-98051-457-0 01 1 0905-0906 ● ● ● ●
53 02.483 BRACKET; HARNESS
(G) 		8-98051-457-0 01 1 0907- ● ● ● ● ●
53 02.483 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 0905-0906 ● ● ● ●
53 02.483 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 0907- ● ● ● ● ●
53 02.483 BRACKET; HARNESS
(D) 		8-98074-502-0 01 1 0905-0906 ● ● ● ●
53 02.483 BRACKET; HARNESS
(D) 		8-98074-502-0 01 1 0907- ● ● ● ● ●
53 02.483 BRACKET; HARNESS
(H) 		8-98077-503-1 01 1 0905-0906 ● ● ● ●
53 02.483 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98077-503-1 01 1 0907-1011 ●
53 02.483 BRACKET; HARNESS
(H) 		8-98077-503-1 01 1 0907-1011 ● ● ●
53 02.483 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (H) 		8-98077-503-1 01 1 1012- ● ●
53 02.483 BRACKET; HARNESS
(H) 		8-98077-503-1 01 1 1012- ● ●
53 02.483 BRACKET; HARNESS
(I) 		8-98077-504-0 01 1 0905-0906 ● ● ● ●
53 02.483 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (I) 		8-98077-504-0 01 1 0907-1011 ● ● ● ●
53 02.483 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (I) 		8-98077-504-0 01 1 1012- ● ●
53 02.483 BRACKET; HARNESS
(I) 		8-98077-504-0 01 1 1012- ● ●
53 02.483 BRACKET; HARNESS
(B) 		8-98130-669-1 01 1 0905-0906 ● ● ● ●
53 02.483 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98130-669-1 01 1 0907-1011 ● ● ● ●
53 02.483 BRACKET; HARNESS
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98130-669-1 01 1 1012- ● ●
53 02.483 BRACKET; HARNESS
(B) 		8-98130-669-1 01 1 1012- ● ●
53 02.483 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J) 		8-98084-590-0 01 1 0905-1003 ● ● ● ●
53 02.483 BRACKET; HARNESS
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J) 		8-98084-590-0 01 1 1004-1111 ●
53 02.483 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J) 		8-98084-590-0 01 1 1004-1111 ● ● ●
53 02.483 BRACKET; HARNESS
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J) 		8-98084-590-0 01 1 1112- ●
53 02.483 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J) 		8-98084-590-0 01 1 1112- ● ● ●
53 02.483 BRACKET; HARNESS
EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (J) 		8-98084-590-0 01 1 1112- ●
515 02.559 NUT; BRKT
03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0905-0906 ● ● ● ●
515 02.559 NUT; BRKT
03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0905-0906 ● ● ● ●
515 02.559 NUT; BRKT
03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0907-0909 ● ● ● ● ●
515 02.559 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0907-0909 ●
515 02.559 NUT; BRKT
03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0907-0909 ● ● ●
515 02.559 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0910-1011 ● ● ● ●
515 02.559 NUT; BRKT
03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1012- ● ● ● ● ●
515 02.559 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1012- ●
515 02.559 NUT; BRKT
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1012- ●
515 02.559 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1012- ●
515 02.559 NUT; BRKT
03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 1012- ●
515 02.559 NUT; BRKT
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0905-0906 ● ● ● ●
515 02.559 NUT; BRKT
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0907- ● ● ● ● ●
515 02.559 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 0905-0906 ● ● ● ●
515 02.559 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 0907- ● ● ● ● ●
çizim 158907
459 552 459 459 552 459 242 459 459 552 459 552 552
BalonParca AdiParca NoAdetTipApplied Date A B C D E
242 02.483 BOLT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0905-0906 ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0907- ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98044-758-2 01 1 0908-1011 ●
459 02.483 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98044-758-2 01 1 0908-1011 ●
459 02.483 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98044-758-2 01 1 1012- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98044-758-2 01 1 1012- ●
459 02.483 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98018-899-1 01 1 0905-0906 ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98018-899-1 01 1 0907- ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98030-988-2 01 1 0905-0906 ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98030-988-2 01 1 0907- ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98030-991-2 01 1 0905-0906 ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98030-991-2 01 1 0907- ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98044-758-2 01 1 0905-0906 ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98044-758-2 01 1 0907-0907 ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98020-227-3 01 1 0905-0906 ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) 		8-98020-227-3 01 1 0907- ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98030-990-2 01 1 0905-0906 ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) 		8-98030-990-2 01 1 0907-1109 ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) 		8-98196-974-0 01 1 1110- ● ● ● ● ●
552 02.483 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0908-1011 ●
552 02.483 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0908-1011 ●
552 02.483 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
552 02.483 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1012- ●
552 02.483 NUT; BRKT,HARNESS
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0905-0906 ● ● ● ●
552 02.483 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0905-0906 ● ● ● ●
552 02.483 NUT; BRKT,HARNESS
03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0907- ● ● ● ● ●
552 02.483 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0907- ● ● ● ● ●
552 02.483 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0905-0906 ● ● ● ●
552 02.483 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0907-0907 ● ● ● ● ●
552 02.483 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0905-0906 ● ● ● ●
552 02.483 NUT; BRKT,HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0907- ● ● ● ● ●
çizim 159115
48 22 22 48 483 48 48 16 22 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E
16 02.559 CLIP; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20 		8-94241-972-0 01 1 0907-1011 ●
16 02.559 CLIP; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20 		8-94241-972-0 01 1 1012- ●
16 02.559 CLIP; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20 		8-94241-972-0 01 1 1012- ●
16 02.559 CLIP; HARNESS
4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10 		8-94154-844-0 01 1 0907-1011 ●
16 02.559 CLIP; HARNESS
4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10 		8-94154-844-0 01 1 1012-1111 ● ●
16 02.559 CLIP; HARNESS
4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10 		8-94154-844-0 01 1 1112- ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (C) L=40.6 		8-97229-357-0 01 1 0905-0906 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6 		8-97229-357-0 01 1 0905-0906 ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> (C) L=40.6 		8-97229-357-0 01 1 0907- ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT DOOR<A32> (C) L=40.6 		8-97229-357-0 01 1 0907- ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6 		8-97229-357-0 01 1 0907- ● ●
16 02.559 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (E) 		8-97101-436-0 01 1 0905- ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 0905-0906 ● ● ● ●
16 02.559 CLIP; HARNESS
02.343 (D) ID=10 & 16 		8-94413-325-0 01 1 0907- ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (B) ID=6 & 10-13 		8-97069-515-0 02 1 0905-0906 ● ● ● ●
16 02.559 CLIP; HARNESS
02.694 (B) ID=6 & 10-13 		8-97069-515-0 02 1 0907- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 14 1 0905-0906 ● ● ● ●
16 02.559 CLIP; HARNESS
(A) L=155 		8-97173-307-0 14 1 0907- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(F) 		8-98052-679-0 02 1 0905-0906 ● ● ● ●
16 02.559 CLIP; HARNESS
(F) 		8-98052-679-0 02 1 0907- ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (G) L=60 		8-94449-165-0 02 1 0905- ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (H) L=60 		8-97063-335-0 02 1 0905- ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6 		8-97229-357-0 02 1 0905-0906 ● ●
16 02.559 CLIP; HARNESS
EXC. CORNERING LAMP<T87> (C) L=40.6 		8-97229-357-0 02 1 0907- ●
16 02.559 CLIP; HARNESS
POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6 		8-97229-357-0 02 1 0907- ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 02.343 (H) L=119.5 		1-09707-197-0 01 1 0907-1011 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 02.343 (H) L=119.5 		1-09707-197-0 01 1 1012- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 04.594 (I) L=100 		5-09707-036-1 01 1 0907-1011 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 04.594 (I) L=100 		5-09707-036-1 01 1 1012- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.425 (E) ID=6 & 8.3 		8-94167-742-0 01 1 0907-1011 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.425 (E) ID=6 & 8.3 		8-94167-742-0 01 1 1012- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.162 (F) ID=13.2 & 14.5 		8-94475-649-0 01 1 0907-1011 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.162 (F) ID=13.2 & 14.5 		8-94475-649-0 01 1 1012- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 04.104 (G) ID=12 & 6.8 		8-97125-842-0 01 1 0907-1011 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 04.104 (G) ID=12 & 6.8 		8-97125-842-0 01 1 1012- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (J) L=170.3 		1-09987-182-0 01 1 0907- ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) (B) L=250 		5-09707-030-1 01 1 0905- ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (B) L=250 		5-09707-030-1 01 1 0905- ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) 08.852 (C) L=350 		8-94152-256-1 02 1 0905- ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) 08.852 (C) L=350 		8-94152-256-1 02 1 0905- ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) (D) ID=14-20 		8-97061-603-0 02 1 0905-1505 ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (D) ID=14-20 		8-97061-603-0 02 1 0905-1505 ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 0905-0906 ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.162 (A) L=140 		5-09707-031-1 01 1 0907-1011 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 0907-1011 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 0907-1011 ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 0907-1011 ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 0907-1011 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.162 (A) L=140 		5-09707-031-1 01 1 0907-1011 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.162 (A) L=140 		5-09707-031-1 01 1 1012-1311 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 1012-1311 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 1012-1311 ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 1012-1311 ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.162 (A) L=140 		5-09707-031-1 01 1 1012-1311 ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 1312- ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 1312- ● ●
22 02.559 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140 		5-09707-031-1 01 1 1312- ● ●
22 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 03.162 (A) L=140 		5-09707-031-1 01 1 1312- ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 08.852 (G) L=350 		8-94152-256-1 01 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 11 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 11 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 11 1 1012-1510 ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 11 1 1012-1510 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 10 1 1511- ● ●
48 02.559 CLIP; FRAME HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 10 1 1511- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 02 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=20 		8-94241-972-0 02 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 02 1 1012- ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=20 		8-94241-972-0 02 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 10 1 0907-1510 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 09 1 1511- ●
48 02.559 CLIP; FRAME HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 0905-0906 ● ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 0905-0906 ●
48 02.559 CLIP; FRAME HARNESS
FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 0907-1011 ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) 01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
01.240 (D) ID=14 L=47 		5-09700-319-0 05 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) T=4.5 & 9 		8-97371-947-0 01 1 0905-0906 ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) T=4.5 & 9 		8-97371-947-0 01 1 0905-0906 ●
48 02.559 CLIP; FRAME HARNESS
(B) T=4.5 & 9 		8-97371-947-0 01 1 0905-0906 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9 		8-97371-947-0 01 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9 		8-97371-947-0 01 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9 		8-97371-947-0 01 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
(B) T=4.5 & 9 		8-97371-947-0 01 1 0907-1011 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(B) T=4.5 & 9 		8-97371-947-0 01 1 0907-1011 ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9 		8-97371-947-0 01 1 1012- ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9 		8-97371-947-0 01 1 1012- ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9 		8-97371-947-0 01 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) T=4.5 & 9 		8-97371-947-0 01 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9 		8-97371-947-0 01 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
(B) T=4.5 & 9 		8-97371-947-0 01 1 1012- ● ●
48 02.559 CLIP; FRAME HARNESS
(B) T=4.5 & 9 		8-97371-947-0 01 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
MULTI INFORMATION DISPLAY<7NY> 03.483 (C) L=450 		1-09707-142-1 01 1 0905-0906 ● ●
48 02.559 CLIP; FRAME HARNESS
FRAME STRAIGHT TYPE<7KJ> MULTI INFORMATION DISPLAY<7NY> 03.483 (C) L=450 		1-09707-142-1 01 1 0907- ●
48 02.559 CLIP; FRAME HARNESS
MULTI INFORMATION DISPLAY<7NY> 03.483 (C) L=450 		1-09707-142-1 01 1 0907- ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 01 1 0905-0906 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 01 1 0905-0906 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 01 1 0907-0907 ●
48 02.559 CLIP; FRAME HARNESS
FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 01 1 0907-0907 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 01 1 0907-0907 ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 01 1 0907-0907 ● ● ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 01 1 0907-0907 ● ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 01 1 0908-1011 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 01 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 01 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
03.430 (E) ID=10 & 16.5 		8-94424-440-0 01 1 0905-0906 ● ●
48 02.559 CLIP; FRAME HARNESS
FRAME STRAIGHT TYPE<7KJ> 03.430 (E) ID=10 & 16.5 		8-94424-440-0 01 1 0907- ●
48 02.559 CLIP; FRAME HARNESS
03.430 (E) ID=10 & 16.5 		8-94424-440-0 01 1 0907- ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=20 		8-94241-972-0 01 1 0905-0906 ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=20 		8-94241-972-0 01 1 0907-1101 ● ● ● ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 01 1 0907-1101 ●
48 02.559 CLIP; FRAME HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 01 1 1102- ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 01 1 1102- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 01 1 1102- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (A) ID=20 		8-94241-972-0 01 1 1102- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A) ID=20 		8-94241-972-0 01 1 1102- ●
48 02.559 CLIP; FRAME HARNESS
(A) ID=20 		8-94241-972-0 01 1 1102- ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47 		5-09700-319-0 03 1 0905-1011 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47 		5-09700-319-0 03 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 03 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47 		5-09700-319-0 04 1 0905-1011 ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47 		5-09700-319-0 04 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47 		5-09700-319-0 04 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) (F) T=5.5 		8-97371-951-0 02 1 0905-0907 ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 02 1 0905-0907 ●
48 02.559 CLIP; FRAME HARNESS
FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 02 1 0908-1011 ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 02 1 0908-1011 ● ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W) (F) T=5.5 		8-97371-951-0 02 1 0908-1011 ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 02 1 0908-1011 ●
48 02.559 CLIP; FRAME HARNESS
FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 02 1 1012- ● ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 02 1 1012- ● ●
48 02.559 CLIP; FRAME HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (F) T=5.5 		8-97371-951-0 02 1 1012- ●
48 02.559 CLIP; FRAME HARNESS
(F) T=5.5 		8-97371-951-0 02 1 1012- ●
483 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.602 (C) ID=15 H=24 L=20 		1-09700-606-0 01 1 0905- ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.785 (A) ID=14.5 L=40 		1-09701-014-0 01 1 0905- ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) ID=19 H=33 L=45 		1-09701-045-0 01 1 0905- ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.152 (E) L=36 		8-94224-891-1 01 1 0905- ● ● ● ●
483 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=12 		8-97329-630-0 01 1 0905- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
