◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51239 - NN/NP/NQR-RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#50133) — 751 parça

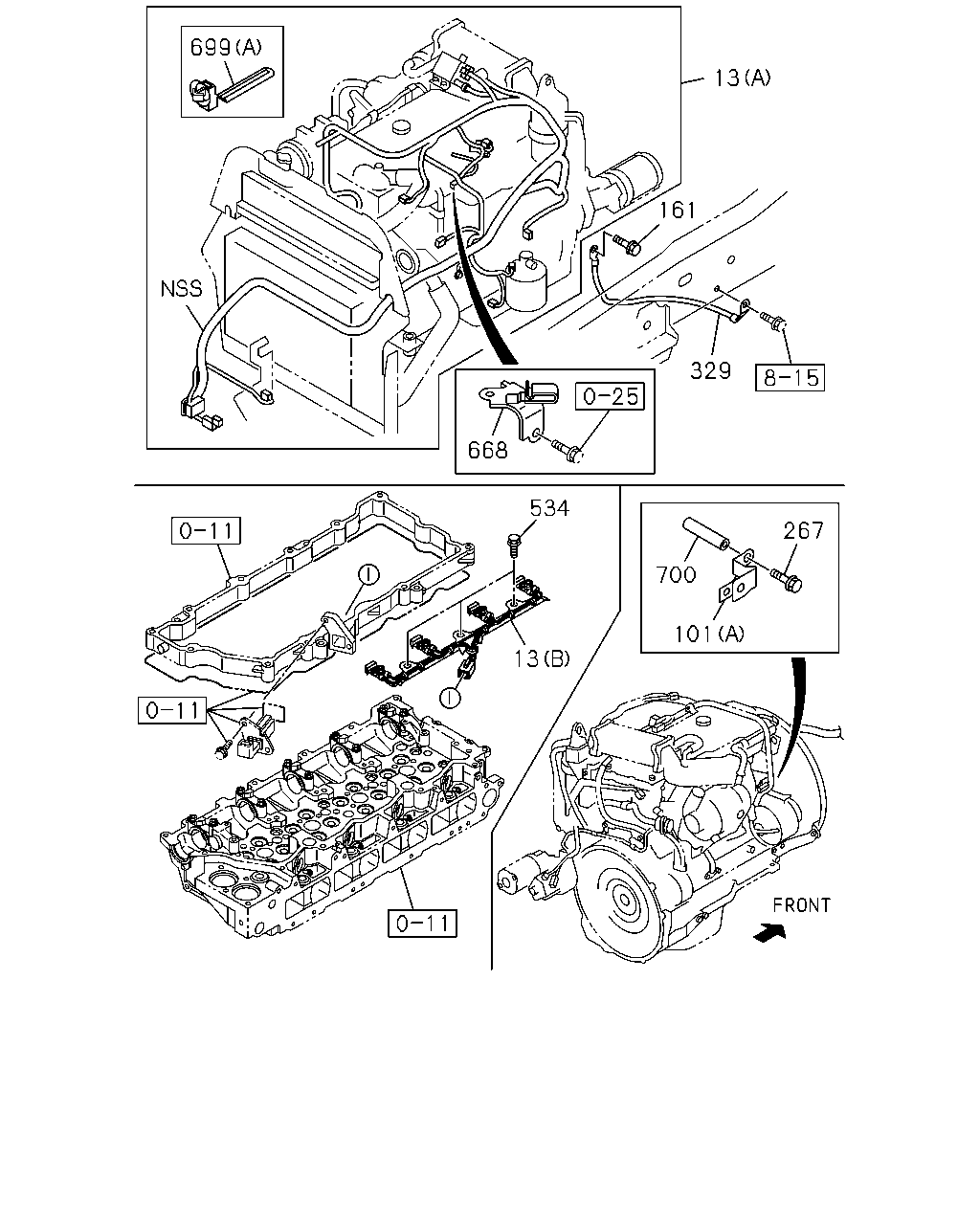

çizim 158888
13 161 699 329 668 534 700 267 101 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E

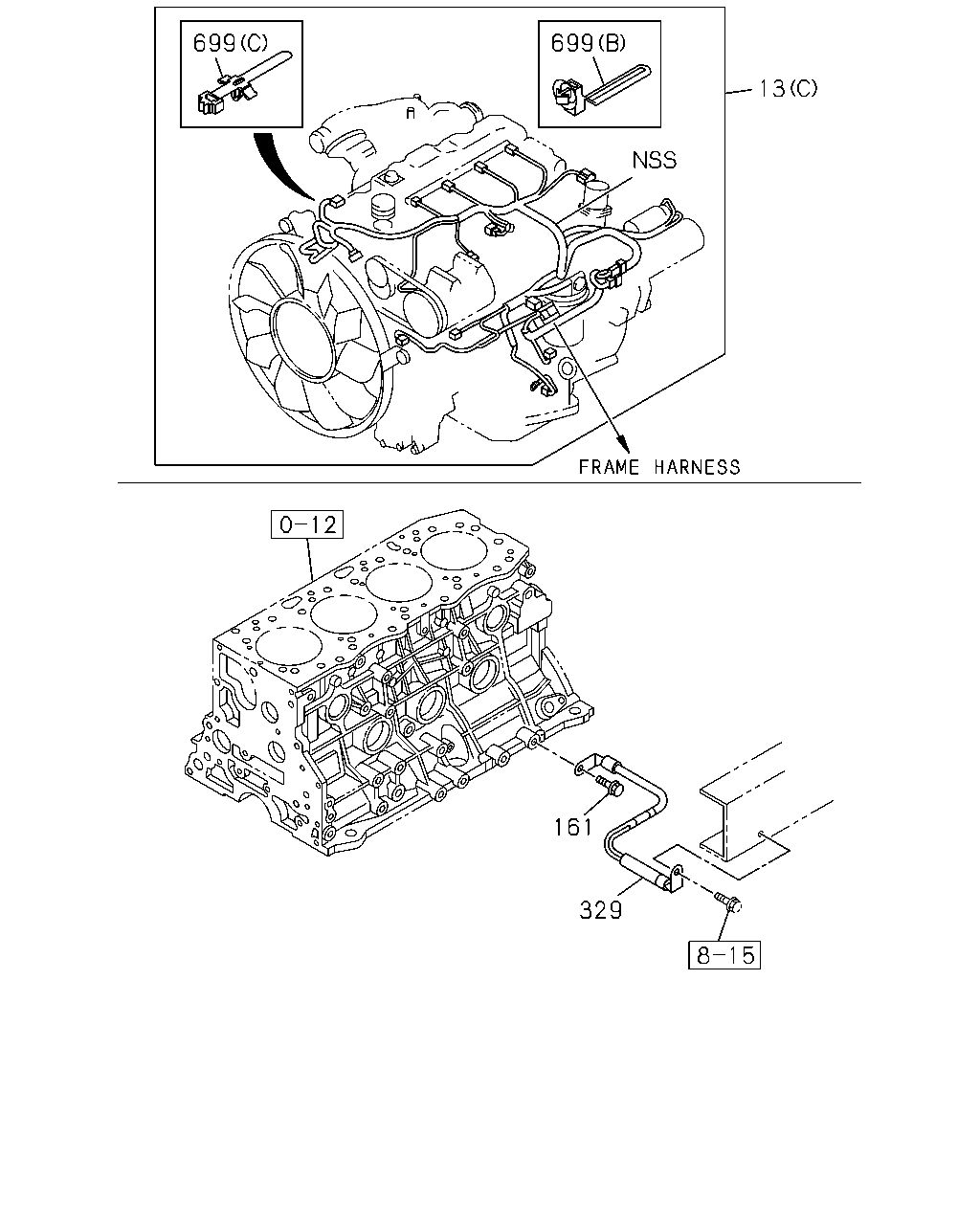

13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) (C) 		8-98094-802-4 01 1 0907-1006 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) (C) 		8-98147-725-0 01 1 1007-1011 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) (C) 		8-98147-725-0 01 1 1012-1310 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) (C) 		8-98244-734-0 01 1 1311- ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) (A) 		8-98135-316-2 01 1 0905- ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97332-133-3 01 1 0905-1007 ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98171-638-0 01 1 1008- ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (A) 		8-98135-317-1 01 1 0905-1312 ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (A) 		8-98186-702-2 01 1 1401-1401 ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (A) 		8-98135-317-2 01 1 1402- ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (C) 		8-98030-725-1 01 1 0907-1011 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (C) 		8-98030-725-1 01 1 1012- ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98032-447-1 01 1 0907-1011 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98032-447-1 01 1 0907-1011 ●
101 02.483 BRACKET; HARNESS CONNECTOR
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98032-447-1 01 1 1012- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98032-447-1 01 1 1012- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCN ENG(RDQ) (A) 		8-98052-805-0 01 1 0905- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) (A) 		8-98052-805-0 01 1 0905- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98133-387-1 01 1 0905-0906 ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98133-387-1 01 1 0907-1011 ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98133-387-1 01 1 1012- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98133-387-1 01 1 1012- ● ●
161 02.559 BOLT; GROUND,HARNESS
4JJ1-TCS ENG(LFB) 02.483 M10X16 FLANGE 		0-28051-016-0 01 1 0907-1011 ● ●
161 02.559 BOLT; GROUND,HARNESS
4JJ1-TCS ENG(LFB) 02.483 M10X16 FLANGE 		0-28051-016-0 01 1 1012- ● ● ●
161 02.559 BOLT; GROUND,HARNESS
4HK1-TCN ENG(RDQ) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0905- ● ●
161 02.559 BOLT; GROUND,HARNESS
4HK1-TCS ENG(RJS) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0905- ● ●
267 02.483 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 0905- ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JJ1-TCS ENG(LFB) 		8-98030-126-1 01 1 0907-1011 ● ●
329 02.480 CABLE; ENG TO FRAME
4JJ1-TCS ENG(LFB) 		8-98030-126-1 01 1 1012- ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCN ENG(RDQ) 		8-98102-465-0 01 1 0905- ● ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCS ENG(RJS) 		8-98102-465-0 01 1 0905- ● ●
534 02.483 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.683 M10X55 FLANGE 		8-97365-449-0 03 1 0905- ● ● ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98061-780-0 01 1 0905- ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) L=146.2 		8-98052-677-0 01 1 0905- ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 04.105 (B) L=140 		8-97122-360-0 03 1 0907-1011 ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 04.105 (B) L=140 		8-97122-360-0 03 1 1012-1310 ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) (C) 		8-98088-438-0 01 1 0907-1011 ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) (C) 		8-98088-438-0 01 1 1012-1310 ● ● ●
700 02.483 TUBE; DISTANCE
EXC. AIR CONDITIONER MANUAL CONT(C60) L=105 		8-98084-726-0 01 1 0905- ● ● ● ●

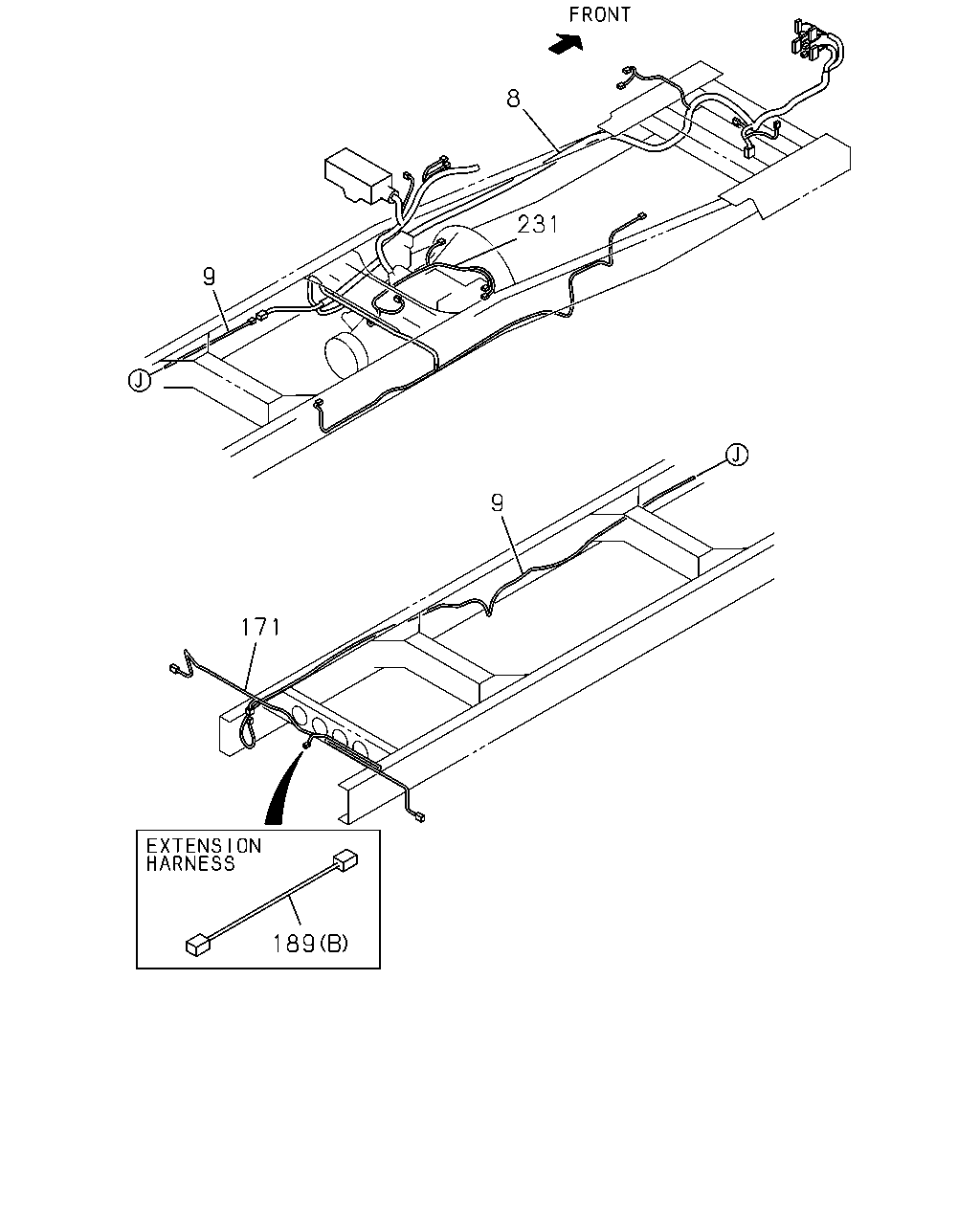

çizim 158890
8 9 231 9 171 189
BalonParca AdiParca NoAdetTipApplied Date A B C D E

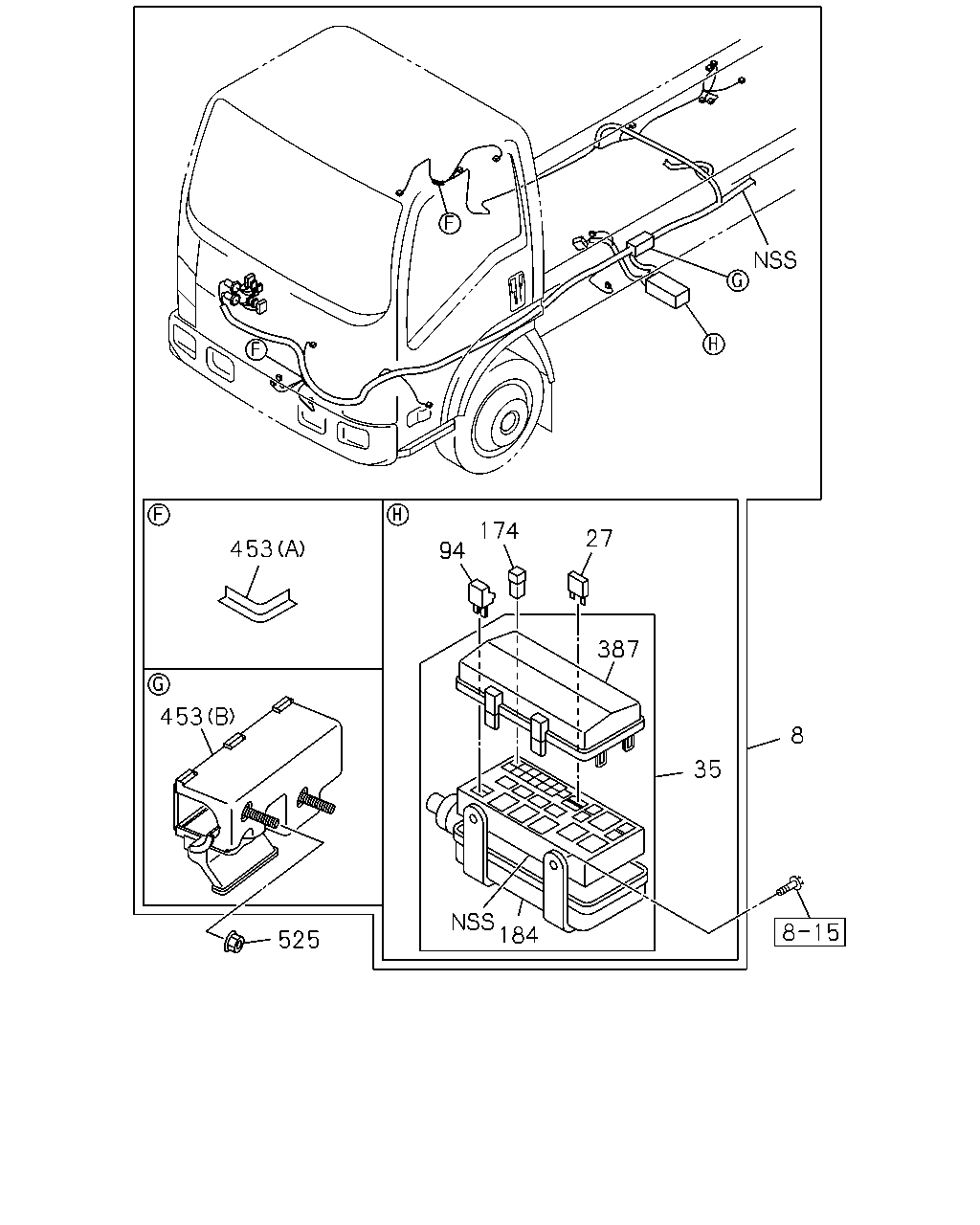

8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98173-437-2 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98294-372-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98173-433-2 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98294-368-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE <7KJ> 		8-98173-435-2 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE <7KJ> 		8-98294-370-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE <7KJ> 		8-98173-431-2 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE <7KJ> 		8-98294-366-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98173-436-2 01 1 1008-1409 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98294-371-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98173-432-2 01 1 1008-1409 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98294-367-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE <7KJ> 		8-98173-434-2 01 1 1008-1409 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE <7KJ> 		8-98294-369-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE <7KJ> 		8-98173-430-2 01 1 1008-1409 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE <7KJ> 		8-98294-365-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98147-452-1 01 1 0905-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98294-315-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98147-453-2 01 1 0905-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98294-316-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-98140-062-3 01 1 0907-1409 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98140-062-3 01 1 0907-1409 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-98294-360-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98294-360-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-98140-055-3 01 1 0907-1409 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98140-055-3 01 1 0907-1409 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-98294-354-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98294-354-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98125-278-6 01 1 0905-0906 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98125-278-6 01 1 0907-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98294-314-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98125-277-7 01 1 0905-0906 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98125-277-7 01 1 0907-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98294-313-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98120-500-5 01 1 0905-0906 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98120-500-5 01 1 0907-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98294-301-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98120-507-6 01 1 0905-0906 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98120-507-6 01 1 0907-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98294-308-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98120-504-4 01 1 0905-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98294-305-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98120-511-5 01 1 0905-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98294-312-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98120-501-5 01 1 0905-1011 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98120-501-5 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98294-302-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98120-508-6 01 1 0905-1011 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98120-508-6 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98294-309-0 01 1 1410- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 		8-98117-258-0 01 1 1012- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 		8-98117-259-0 01 1 1012- ●
9 02.480 HARNESS; FRAME,RR 8-98147-455-0 01 1 0905- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-98047-001-1 01 1 0907-1005 ●
9 02.480 HARNESS; FRAME,RR 8-98047-001-1 01 1 0907-1005 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-98047-001-2 01 1 1006- ●
9 02.480 HARNESS; FRAME,RR 8-98047-001-2 01 1 1006- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98046-995-1 01 1 0907- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98117-247-0 01 1 0907- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-98046-994-2 01 1 0907- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98047-002-1 01 1 0907-1011 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98047-002-1 01 1 1012- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98047-002-1 01 1 1012- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98117-248-0 01 1 0907- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98047-010-1 01 1 0907-1011 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98047-010-1 01 1 1012- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98047-010-1 01 1 1012- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-98047-009-1 01 1 0907-1001 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-98047-009-2 01 1 1002- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2700MM(27W) 		8-98117-252-0 01 1 0905-0906 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-98117-252-0 01 1 0907- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) 		8-98117-253-0 01 1 0905-0906 ● ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-98117-253-0 01 1 0907-1011 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) 		8-98117-253-0 01 1 0907-1011 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-98117-253-0 01 1 1012- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 		8-98117-253-0 01 1 1012- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) 		8-98117-254-0 01 1 0905-0906 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-98117-254-0 01 1 0907- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) 		8-98117-249-0 01 1 0905-0905 ●
9 02.480 HARNESS; FRAME,RR 8-98117-249-0 01 1 0905-0905 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) 		8-98117-249-0 01 1 0905-0906 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98117-249-0 01 1 0907- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) 		8-98117-249-0 01 1 0907- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) 		8-98117-250-0 01 1 0905- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) 		8-98117-257-0 01 1 0905-1011 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 		8-98117-257-0 01 1 1012- ●
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. HONG KONG EQUIPMENT(B14) 		8-98008-095-2 01 1 0907-0911 ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98008-095-2 01 1 0907-0911 ●
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. HONG KONG EQUIPMENT(B14) 		8-98156-028-0 01 1 0912- ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-028-0 01 1 0912- ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98070-319-1 01 1 0905-0906 ● ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
HONG KONG EQUIPMENT(B14) 		8-98070-319-1 01 1 0907-1006 ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98070-319-1 01 1 0907-1006 ● ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
HONG KONG EQUIPMENT(B14) 		8-98156-027-0 01 1 1007- ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-027-0 01 1 1007- ● ● ●
189 02.480 HARNESS; EXT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) HONG KONG EQUIPMENT(B14) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98224-296-0 01 1 1209- ●
189 02.480 HARNESS; EXT
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) 		8-98224-296-0 01 1 1209- ●
189 02.480 HARNESS; EXT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98224-296-0 01 1 1209- ●
189 02.480 HARNESS; EXT
(B) 		8-98224-296-0 01 1 1209- ●
189 02.480 HARNESS; EXT

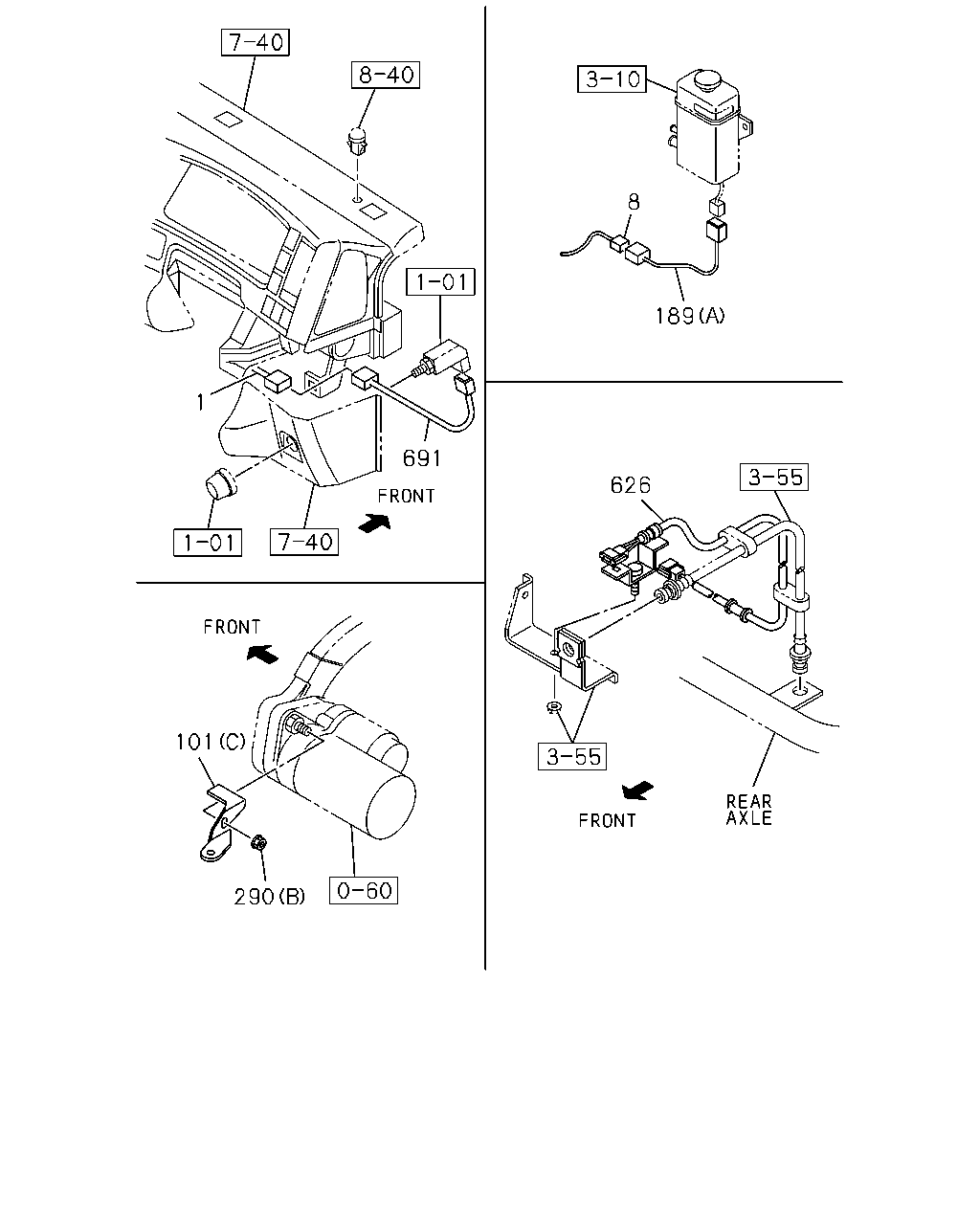

HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98095-676-0 01 1 0905-1006 ●
189 02.480 HARNESS; EXT
(A) 		8-98095-676-0 01 1 0905-1006 ●
189 02.480 HARNESS; EXT
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98095-676-0 01 1 1007-1108 ●
189 02.480 HARNESS; EXT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98095-676-0 01 1 1007-1108 ●
189 02.480 HARNESS; EXT
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98095-676-0 01 1 1109- ●
189 02.480 HARNESS; EXT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98095-676-0 01 1 1109- ●
231 02.480 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98029-598-1 01 1 0907-1011 ●
231 02.480 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98029-598-1 01 1 0907-1011 ●
231 02.480 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98029-598-1 01 1 1012- ● ●
231 02.480 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98029-598-1 01 1 1012- ●
231 02.480 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98080-121-1 01 1 0905-0906 ● ● ● ●
231 02.480 HARNESS; TRANS
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98080-121-2 01 1 0907-1011 ●
231 02.480 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98080-121-2 01 1 0907-1011 ● ● ●
231 02.480 HARNESS; TRANS
FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98080-121-2 01 1 1012- ● ●
231 02.480 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98080-121-2 01 1 1012- ● ●
çizim 158899
174 27 453 94 387 453 8 35 184 525
BalonParca AdiParca NoAdetTipApplied Date A B C D E
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98173-437-2 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98294-372-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98173-433-2 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98294-368-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE <7KJ> 		8-98173-435-2 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE <7KJ> 		8-98294-370-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE <7KJ> 		8-98173-431-2 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE <7KJ> 		8-98294-366-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98173-436-2 01 1 1008-1409 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98294-371-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98173-432-2 01 1 1008-1409 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98294-367-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE <7KJ> 		8-98173-434-2 01 1 1008-1409 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE <7KJ> 		8-98294-369-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE <7KJ> 		8-98173-430-2 01 1 1008-1409 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE <7KJ> 		8-98294-365-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98147-452-1 01 1 0905-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98294-315-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98147-453-2 01 1 0905-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98294-316-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-98140-062-3 01 1 0907-1409 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98140-062-3 01 1 0907-1409 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-98294-360-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98294-360-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-98140-055-3 01 1 0907-1409 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98140-055-3 01 1 0907-1409 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-98294-354-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98294-354-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98125-278-6 01 1 0905-0906 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98125-278-6 01 1 0907-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98294-314-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98125-277-7 01 1 0905-0906 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98125-277-7 01 1 0907-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98294-313-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98120-500-5 01 1 0905-0906 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98120-500-5 01 1 0907-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98294-301-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98120-507-6 01 1 0905-0906 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98120-507-6 01 1 0907-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98294-308-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98120-504-4 01 1 0905-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98294-305-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98120-511-5 01 1 0905-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98294-312-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98120-501-5 01 1 0905-1011 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98120-501-5 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98294-302-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98120-508-6 01 1 0905-1011 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98120-508-6 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98294-309-0 01 1 1410- ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 0905-0906 ● ● ● ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 0907- ● ● ● ● ●

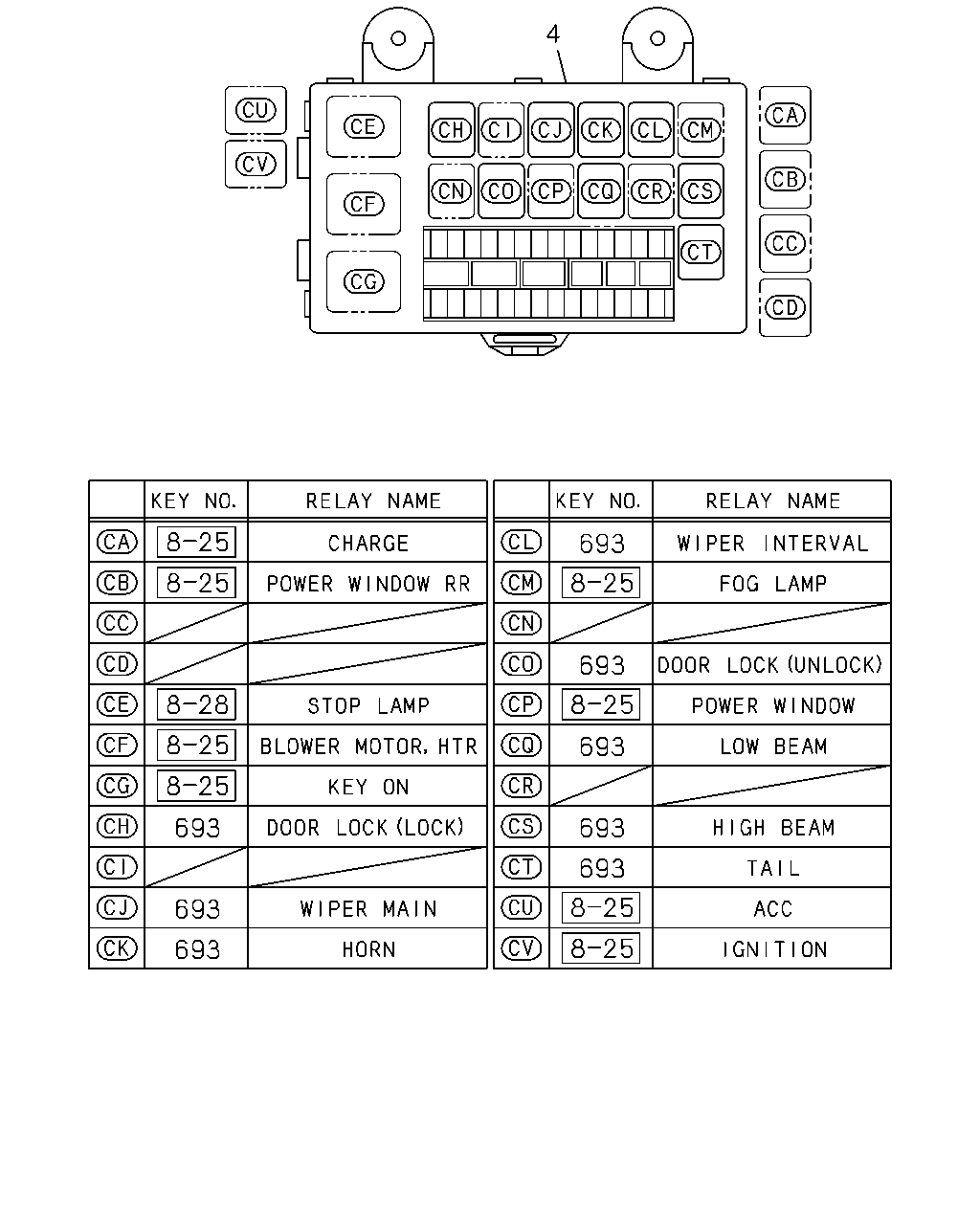

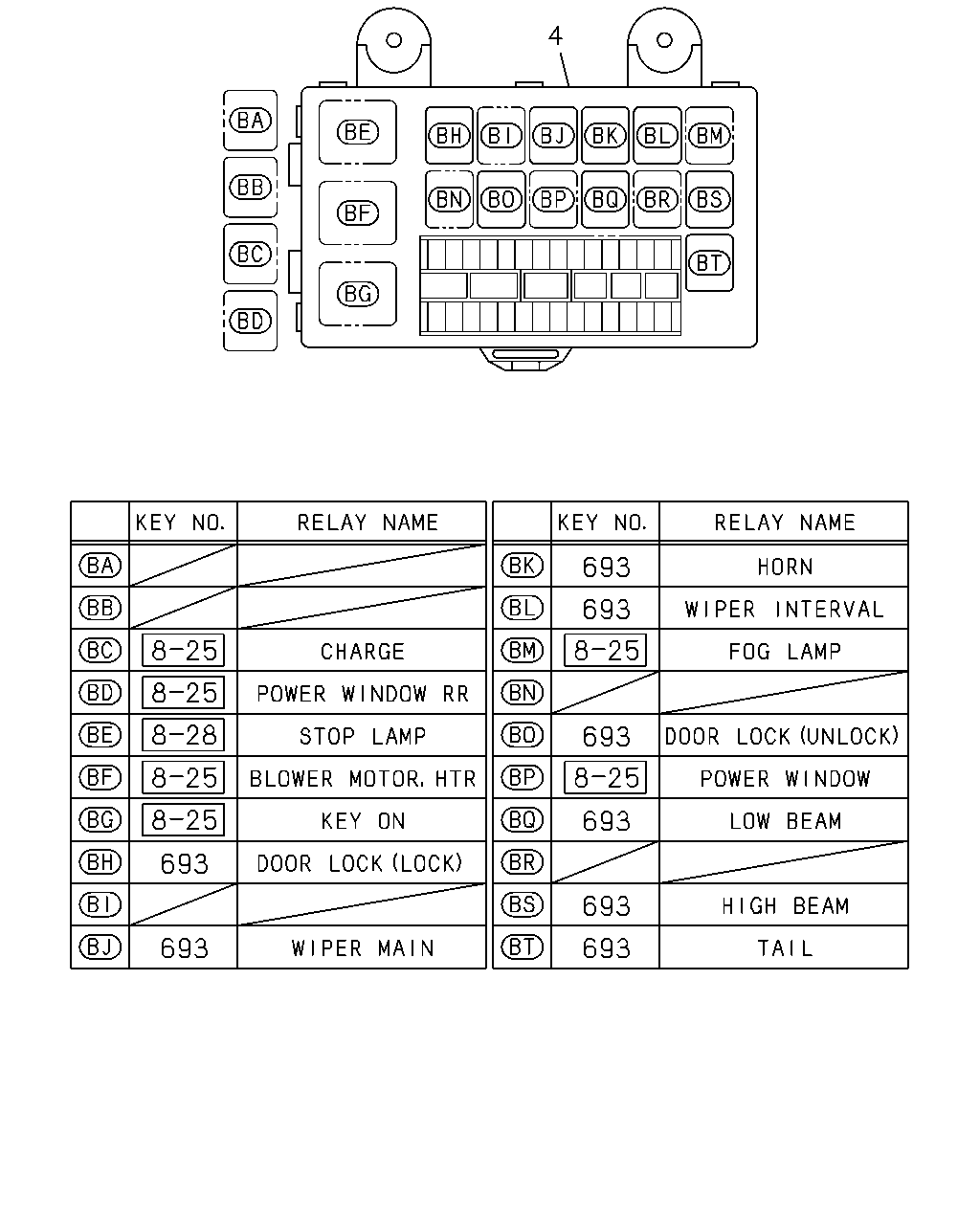

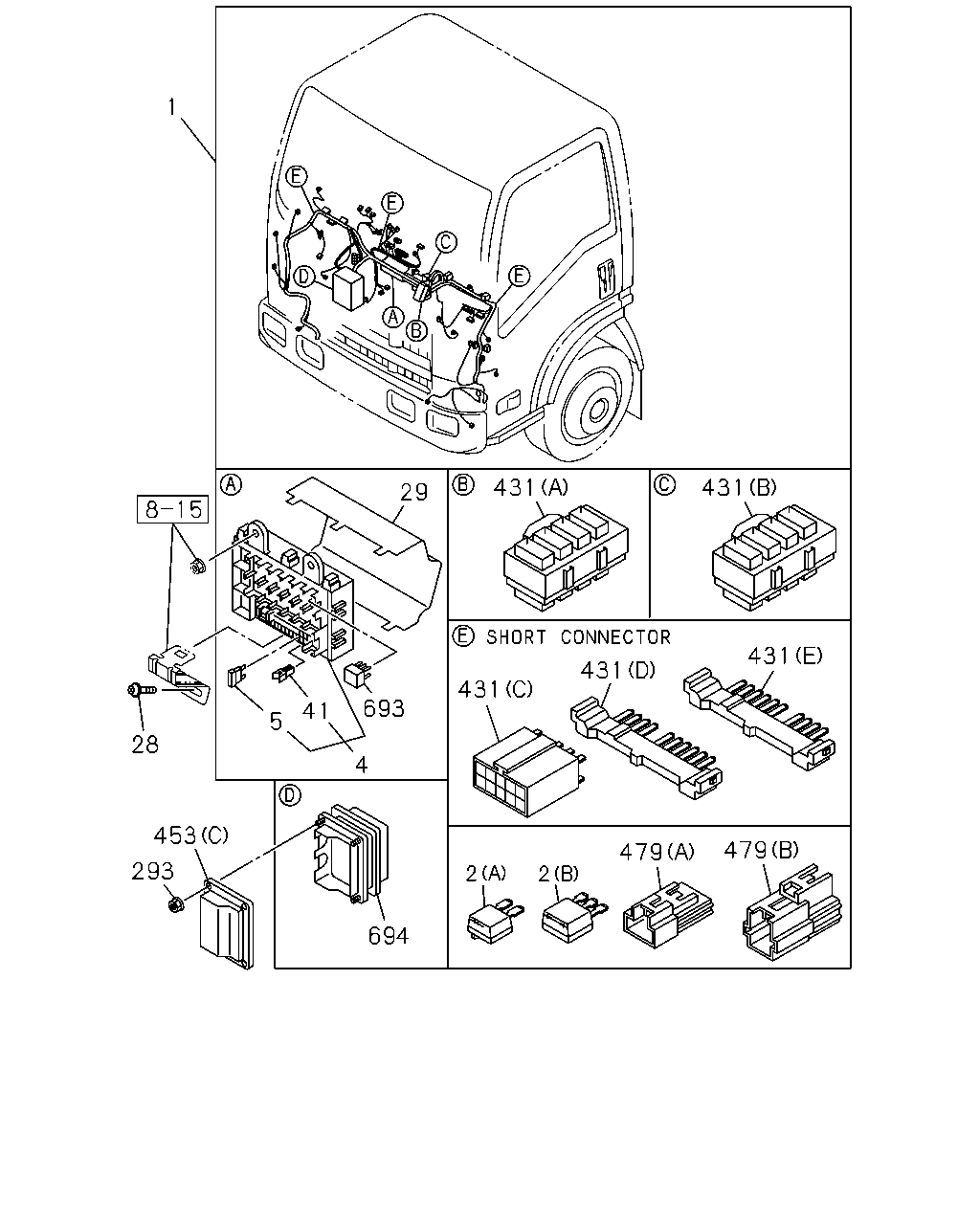

35 02.530 BOX; RELAY & FUSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98030-763-0 01 1 0905-0905 ● ● ●
35 02.530 BOX; RELAY & FUSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98030-763-0 01 1 0905-0906 ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-98030-763-0 01 1 0907- ● ● ● ● ●
94 02.483 DIODE; FRAME HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) BLACK 2P-1.5A 		8-94422-639-1 01 1 0905-0905 ● ● ●
94 02.483 DIODE; FRAME HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) BLACK 2P-1.5A 		8-94422-639-1 01 1 0905-0906 ● ● ● ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 01 1 0907- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 0905-0906 ● ● ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 0907- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 0905-0906 ● ● ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 0907- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 0905-0906 ● ● ● ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 0907- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 0905-0906 ● ● ● ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 0907- ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98030-766-0 01 1 0905-0905 ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98030-766-0 01 1 0905-0906 ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX 8-98030-766-0 01 1 0907- ● ● ● ● ●
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 0905-0906 ● ● ● ●
387 02.483 COVER; RELAY BOX 8-98081-367-0 01 1 0907- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (A) 		8-94417-716-0 01 1 0907-1007 ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-94417-716-0 01 1 0907-1007 ●
453 02.483 PROTECTOR; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94417-716-0 01 1 1008-1011 ●
453 02.483 PROTECTOR; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-94417-716-0 01 1 1008-1011 ●
453 02.483 PROTECTOR; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94417-716-0 01 1 1012-1301 ● ●
453 02.483 PROTECTOR; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-94417-716-0 01 1 1012-1301 ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-94417-716-0 02 1 1302- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-94417-716-0 02 1 0905-0905 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-94417-716-0 02 1 0905-1301 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98031-620-1 01 1 0905-0905 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98031-620-1 01 1 0905-0906 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 0907- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98034-039-1 01 1 0905-0906 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98034-039-1 01 1 0907- ● ● ● ● ●
525 08.919 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0905-0906 ● ● ● ●
525 08.919 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ● ● ● ● ●

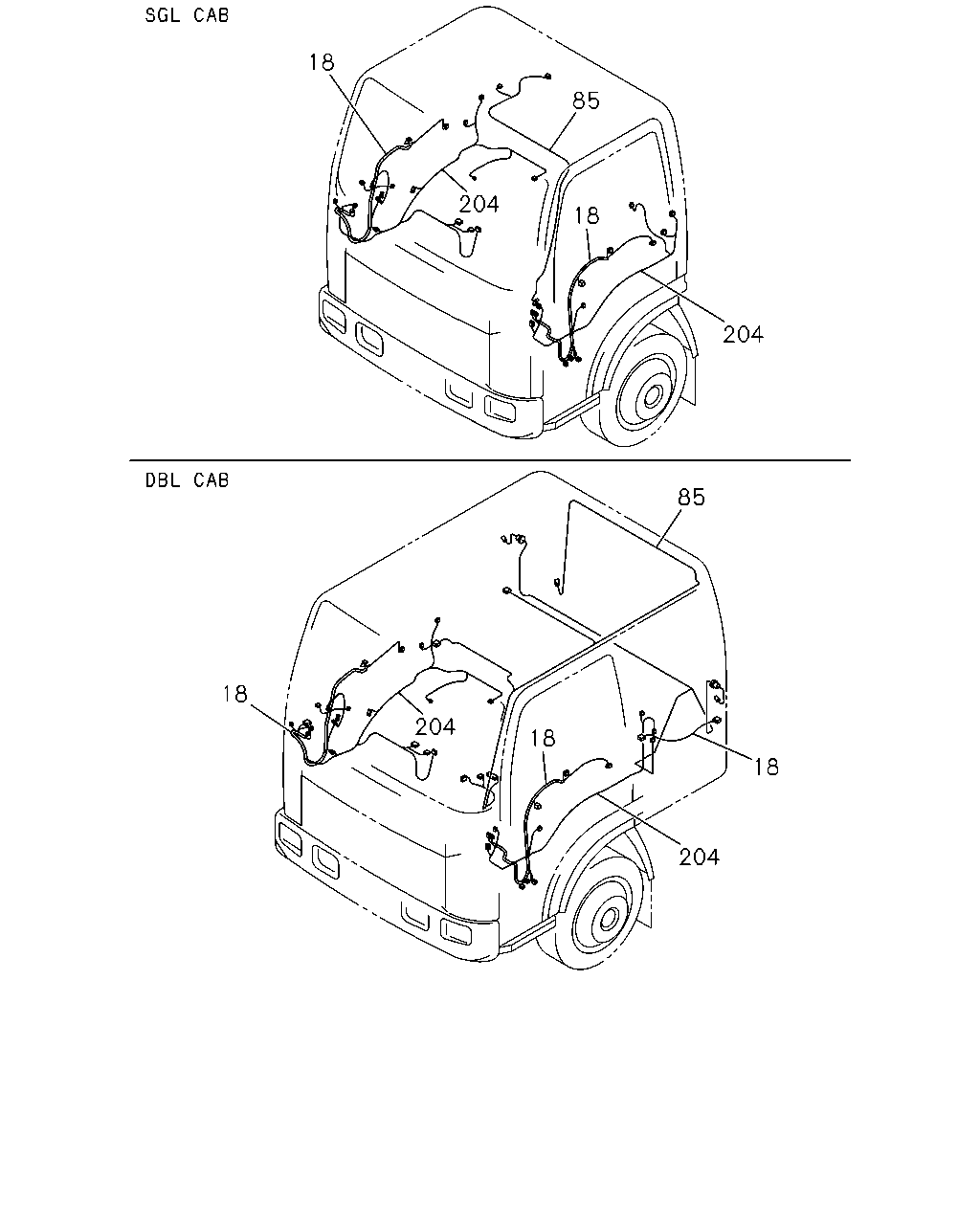

çizim 158911
18 85 204 18 204 85 18 204 18 18 204
BalonParca AdiParca NoAdetTipApplied Date A B C D E
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> 		8-98071-076-2 01 1 0907- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> 		8-98071-084-3 01 1 0907- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>, CORNERING LAMP<T87> 		8-98071-075-2 01 1 0907- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32>, CORNERING LAMP<T87> 		8-98071-083-2 01 1 0907- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-98046-746-5 01 1 0905-0906 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98046-746-5 01 1 0905-0906 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> FRONT 		8-98046-746-5 01 1 0907- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-98046-746-5 01 1 0907- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98046-746-5 01 1 0907- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-98077-596-3 01 1 0905-0906 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98077-596-3 01 1 0905-0906 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> FRONT 		8-98077-596-3 01 1 0907- ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> FRONT 		8-98077-596-3 01 1 0907- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98077-596-3 01 1 0907- ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98046-744-2 01 1 0905-0906 ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98046-744-2 01 1 0905-0906 ● ●
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98046-744-2 01 1 0907- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98046-744-2 01 1 0907- ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98046-744-2 01 1 0907- ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98046-749-2 01 1 0905-0906 ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98046-749-2 01 1 0905-0906 ● ●
18 02.480 HARNESS; DOOR
CORNERING LAMP<T87> EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98046-749-2 01 1 0907- ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> FRONT 		8-98046-749-2 01 1 0907- ● ●
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> FRONT 		8-98046-749-2 01 1 0907- ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REAR 		8-98056-047-1 02 1 0905-1203 ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW FRT&REAR DOOR<A31> REAR 		8-98202-555-0 02 1 1204- ● ●
85 06.495 HARNESS; ROOM LAMP 8-98047-149-2 01 1 0905-0906 ● ●
85 06.495 HARNESS; ROOM LAMP 8-98047-149-3 01 1 0907- ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-98029-741-4 01 1 0905- ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98047-156-6 01 1 0905- ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98047-157-6 01 1 0905- ● ●
204 02.559 HARNESS; CABLE,FLOOR
H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER<AK5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98074-592-3 01 1 0905-1211 ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> ROOM LAMP W/ALL DOORS SW(SDF) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOT HER(8GF) 		8-98074-592-3 01 1 0905-1211 ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98074-592-3 01 1 0905-1211 ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98074-592-3 01 1 0905-1211 ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> ROOM LAMP W/ALL DOORS SW(SDF) 		8-98074-592-3 01 1 1212- ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> EXC. ROOM LAMP W/ALL DOORS SW(SDF), H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98075-612-3 01 1 0905- ● ●
204 02.559 HARNESS; CABLE,FLOOR
H.S.A SYSTEM<6EP> EXC. AIR BAG DRIVER & PASSENGER<AK5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-807-3 01 1 0905-0906 ● ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. AIR BAG DRIVER & PASSENGER<AK5>, H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK <6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-807-3 01 1 0905-0906 ● ●
204 02.559 HARNESS; CABLE,FLOOR
REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER<AK5>, H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL- SMOOTHER(8GF) 		8-98070-807-3 01 1 0905-0906 ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-807-3 01 1 0905-0906 ● ●
204 02.559 HARNESS; CABLE,FLOOR
H.S.A SYSTEM<6EP> EXC. AIR BAG DRIVER & PASSENGER<AK5>, TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-807-3 01 1 0907-1211 ● ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. AIR BAG DRIVER & PASSENGER<AK5>, H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK <6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-807-3 01 1 0907-1211 ● ●
204 02.559 HARNESS; CABLE,FLOOR
REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER<AK5>, H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL- SMOOTHER(8GF) 		8-98070-807-3 01 1 0907-1211 ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-807-3 01 1 0907-1211 ● ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-807-3 01 1 0907-1211 ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-807-3 01 1 0907-1211 ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-807-3 01 1 1212- ● ●
204 02.559 HARNESS; CABLE,FLOOR
ROOM LAMP W/ALL DOORS SW(SDF) 		8-98070-807-3 01 1 1212- ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-789-4 01 1 0905-0906 ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-789-4 01 1 0907- ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98070-789-4 01 1 0907- ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-787-4 01 1 0905-0906 ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-787-4 01 1 0907- ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98070-787-4 01 1 0907- ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98029-727-6 01 1 0905- ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98029-726-6 01 1 0905- ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98070-797-3 01 1 0905- ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98070-793-3 01 1 0905- ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> 		8-98074-594-3 01 1 0905- ● ●
204 02.559 HARNESS; CABLE,FLOOR
AIR BAG DRIVER & PASSENGER<AK5> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98074-593-3 01 1 0905- ● ●
204 02.559 HARNESS; CABLE,FLOOR
POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-796-3 01 1 0905- ● ●
204 02.559 HARNESS; CABLE,FLOOR
POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-792-3 01 1 0905- ● ●
204 02.559 HARNESS; CABLE,FLOOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98070-810-3 01 1 0905- ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31> 		8-98070-795-3 01 1 0905- ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31> 		8-98070-791-3 01 1 0905- ● ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER & PASSENGER<AK5>, POWER WINDOW FRT&REAR DOOR<A31> 		8-98070-809-3 01 1 0905- ● ●
çizim 158925
4 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B C D E
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-0 01 1 0905-0906 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 0907- ● ● ● ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 0905-0906 ● ● ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 0907- ● ● ● ● ●
çizim 158932
1 29 431 431 431 431 431 693 4 41 5 28 453 293 694 2 479 479
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98121-568-3 01 1 0905-1204 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-564-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-564-1 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-564-1 01 1 1206- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98087-874-4 01 1 0905-0912 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98154-790-1 01 1 1001-1204 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-555-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-555-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-555-0 01 1 1206- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98121-567-3 01 1 0905-1204 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98207-684-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98207-684-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98207-684-0 01 1 1206- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98087-872-5 01 1 0905-1005 ● ●
1 02.480 HARNESS; CAB
H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98158-587-1 01 1 1006-1204 ● ●
1 02.480 HARNESS; CAB
H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>, REMOTE CONT DOOR LOCK<6NF> 		8-98158-587-1 01 1 1006-1204 ● ●
1 02.480 HARNESS; CAB
H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98207-658-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>, REMOTE CONT DOOR LOCK<6NF> 		8-98207-658-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98207-658-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98207-658-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>, REMOTE CONT DOOR LOCK<6NF> 		8-98207-658-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>, REMOTE CONT DOOR LOCK<6NF> 		8-98207-658-0 01 1 1206- ●
1 02.480 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98121-560-3 01 1 0905-1204 ● ●
1 02.480 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98204-563-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98204-563-1 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98204-563-1 01 1 1206- ●
1 02.480 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98087-869-6 01 1 0905-1204 ● ●
1 02.480 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-659-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-659-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-659-0 01 1 1206- ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98121-559-3 01 1 0905-0906 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98121-559-3 01 1 0907-1204 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98121-559-3 01 1 0907-1204 ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98207-683-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98207-683-0 01 1 1205-1205 ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98207-683-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98207-683-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98207-683-0 01 1 1206- ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98087-867-5 01 1 0905-0906 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98087-867-5 01 1 0907-1005 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98087-867-5 01 1 0907-1005 ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO DOOR LOCK<AU4> ,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98158-584-0 01 1 1006-1006 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO DOOR LOCK<AU4> ,POWER WINDOW FRT&REAR DOOR<A31>, H.S.ASYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98158-584-0 01 1 1006-1006 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO DOOR LOCK<AU4> 		8-98158-584-0 01 1 1006-1006 ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,H.S.A SYSTEM<6EP>,R EMOTE CONT DOOR LOCK<6NF> 		8-98158-584-1 01 1 1006-1204 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98158-584-1 01 1 1006-1204 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98158-584-1 01 1 1006-1204 ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,H.S.A SYSTEM<6EP>,R EMOTE CONT DOOR LOCK<6NF> 		8-98207-655-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98207-655-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98207-655-0 01 1 1205-1205 ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,H.S.A SYSTEM<6EP>,R EMOTE CONT DOOR LOCK<6NF> 		8-98207-655-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,H.S.A SYSTEM<6EP>,R EMOTE CONT DOOR LOCK<6NF> 		8-98207-655-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98207-655-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98207-655-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98207-655-0 01 1 1206- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98121-583-2 01 1 0905-1010 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98121-583-3 01 1 1011-1204 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98207-691-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98207-691-1 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98207-691-1 01 1 1206- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98087-891-5 01 1 0905-1010 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98087-891-6 01 1 1011-1204 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98207-663-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98207-663-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98207-663-0 01 1 1206- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98121-584-3 01 1 0905-1204 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-567-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-567-1 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-567-1 01 1 1206- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98087-892-6 01 1 0905-1204 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-559-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-559-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-559-0 01 1 1206- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31>,REMOTE CONT DOOR LOCK<6NF> 		8-98121-579-3 01 1 0905-1010 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER WINDOW FRT&REAR DOOR<A31>, REMOTE CONT DOOR LOCK<6NF> 		8-98121-579-4 01 1 1011-1204 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER WINDOW FRT&REAR DOOR<A31>, REMOTE CONT DOOR LOCK<6NF> 		8-98207-689-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER WINDOW FRT&REAR DOOR<A31>, REMOTE CONT DOOR LOCK<6NF> 		8-98207-689-1 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER WINDOW FRT&REAR DOOR<A31>, REMOTE CONT DOOR LOCK<6NF> 		8-98207-689-1 01 1 1206- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31>,REMOTE CONT DOOR LOCK<6NF> 		8-98087-887-4 01 1 0905-1005 ● ●
1 02.480 HARNESS; CAB
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98158-585-1 01 1 1006-1204 ● ●
1 02.480 HARNESS; CAB
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31>,REMOTE CONT DOOR LOCK<6NF> 		8-98158-585-1 01 1 1006-1204 ● ●
1 02.480 HARNESS; CAB
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98207-657-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31>,REMOTE CONT DOOR LOCK<6NF> 		8-98207-657-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98207-657-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98207-657-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31>,REMOTE CONT DOOR LOCK<6NF> 		8-98207-657-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31>,REMOTE CONT DOOR LOCK<6NF> 		8-98207-657-0 01 1 1206- ●
1 02.480 HARNESS; CAB
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98121-574-2 01 1 0905-1010 ● ●
1 02.480 HARNESS; CAB
POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98121-574-3 01 1 1011-1204 ● ●
1 02.480 HARNESS; CAB
POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98207-690-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98207-690-1 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98207-690-1 01 1 1206- ●
1 02.480 HARNESS; CAB
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98087-883-5 01 1 0905-1010 ● ●
1 02.480 HARNESS; CAB
POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98087-883-6 01 1 1011-1204 ● ●
1 02.480 HARNESS; CAB
POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98207-662-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98207-662-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98207-662-0 01 1 1206- ●
1 02.480 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98121-575-3 01 1 0905-1204 ● ●
1 02.480 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98204-566-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98204-566-1 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98204-566-1 01 1 1206- ●
1 02.480 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98087-884-6 01 1 0905-1204 ● ●
1 02.480 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-664-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-664-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-664-0 01 1 1206- ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO DOOR LOCK<AU4> ,POWER WINDOW FRT&REAR DOOR<A31>, REMOTE CONT DOOR LOCK<6NF> 		8-98121-571-3 01 1 0905-1010 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31>,REMOTE CONT DOOR LOCK<6NF> 		8-98121-571-4 01 1 1011-1204 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31>,REMOTE CONT DOOR LOCK<6NF> 		8-98207-688-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31>,REMOTE CONT DOOR LOCK<6NF> 		8-98207-688-1 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31>,REMOTE CONT DOOR LOCK<6NF> 		8-98207-688-1 01 1 1206- ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO DOOR LOCK<AU4> ,POWER WINDOW FRT&REAR DOOR<A31>, REMOTE CONT DOOR LOCK<6NF> 		8-98087-881-4 01 1 0905-1005 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO DOOR LOCK<AU4>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98158-586-0 01 1 1006-1006 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31>,H.S.A SYSTEM<6EP>, REMOTE CONT DOOR LOCK<6NF> 		8-98158-586-0 01 1 1006-1006 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98158-586-1 01 1 1006-1204 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>, H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK <6NF> 		8-98158-586-1 01 1 1006-1204 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98207-656-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>, H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK <6NF> 		8-98207-656-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98207-656-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98207-656-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>, H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK <6NF> 		8-98207-656-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>, H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK <6NF> 		8-98207-656-0 01 1 1206- ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0905-0906 ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0907- ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0905-0906 ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0907- ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-0 01 1 0905-0906 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 0907- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 0905-0906 ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 0907- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 0905-0906 ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 0907- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 0905-0906 ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 0907- ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0905-0906 ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0907-1101 ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ● ● ●
29 02.483 COVER; FUSE BOX 8-98056-968-0 01 1 0905-0906 ● ● ● ●
29 02.483 COVER; FUSE BOX 8-98056-968-0 01 1 0907- ● ● ● ● ●
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 0905-0906 ● ● ● ●
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 0907- ● ● ● ● ●
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 0905-0906 ● ● ● ●
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 0907- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
(D) 10P BLUE 		1-82699-598-0 02 1 1001-1005 ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
(D) 10P BLUE 		1-82699-598-0 02 1 0905-0906 ● ● ● ●
431 02.530 CONNECTOR; JOINT
(D) 10P BLUE 		1-82699-598-0 02 1 0907-0912 ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
(D) 10P BLUE 		1-82699-598-0 01 1 1001-1204 ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
(E) 10P GREEN 		1-82699-599-0 01 1 0905-0906 ● ● ● ●
431 02.530 CONNECTOR; JOINT
(E) 10P GREEN 		1-82699-599-0 01 1 0907-1204 ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
(C) 10P 		8-97077-943-0 02 1 0905-0906 ● ● ● ●
431 02.530 CONNECTOR; JOINT
(C) 10P 		8-97077-943-0 02 1 0907-1204 ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
(A) 		8-98046-205-0 01 1 0905-0906 ● ● ● ●
431 02.530 CONNECTOR; JOINT
(A) 		8-98046-205-0 01 1 0907- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 0905-0906 ● ● ● ●
431 02.530 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 0907- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> (A) 		8-94417-716-0 01 1 0907-1007 ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-94417-716-0 01 1 0907-1007 ●
453 02.483 PROTECTOR; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94417-716-0 01 1 1008-1011 ●
453 02.483 PROTECTOR; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-94417-716-0 01 1 1008-1011 ●
453 02.483 PROTECTOR; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-94417-716-0 01 1 1012-1301 ● ●
453 02.483 PROTECTOR; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-94417-716-0 01 1 1012-1301 ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-94417-716-0 02 1 1302- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-94417-716-0 02 1 0905-0905 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-94417-716-0 02 1 0905-1301 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98031-620-1 01 1 0905-0905 ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98031-620-1 01 1 0905-0906 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-98031-620-1 01 1 0907- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98034-039-1 01 1 0905-0906 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98034-039-1 01 1 0907- ● ● ● ● ●
479 02.530 CAP; CONNECTOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98108-678-0 01 1 0909-0909 ● ● ● ●
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98108-678-0 01 1 0909-1111 ● ● ● ●
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98108-678-0 01 1 1112- ●
479 02.530 CAP; CONNECTOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98108-678-0 01 1 1112- ● ● ●
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98108-678-0 01 1 1112- ●
479 02.530 CAP; CONNECTOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98108-679-0 01 1 0909-0909 ● ● ● ●
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98108-679-0 01 1 0909-1111 ● ● ● ●
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39), HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98108-679-0 01 1 1112- ●
479 02.530 CAP; CONNECTOR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98108-679-0 01 1 1112- ● ● ●
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98108-679-0 01 1 1112- ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 0905-0906 ● ● ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 0907- ● ● ● ● ●
694 02.483 BOX ASM; CONNECTOR 8-98057-772-0 01 1 0905-0906 ● ● ● ●
694 02.483 BOX ASM; CONNECTOR 8-98057-772-0 01 1 0907- ● ● ● ● ●
çizim 159103
4 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B C D E
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-0 01 1 0905-0906 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98067-619-1 01 1 0907- ● ● ● ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 0905-0906 ● ● ● ●
693 02.694 RELAY; FUSE BOX
08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 0907- ● ● ● ● ●
çizim 159119
13 699 699 161 329
BalonParca AdiParca NoAdetTipApplied Date A B C D E
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) (C) 		8-98094-802-4 01 1 0907-1006 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) (C) 		8-98147-725-0 01 1 1007-1011 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) (C) 		8-98147-725-0 01 1 1012-1310 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCS ENG(LFB) (C) 		8-98244-734-0 01 1 1311- ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) (A) 		8-98135-316-2 01 1 0905- ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97332-133-3 01 1 0905-1007 ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98171-638-0 01 1 1008- ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (A) 		8-98135-317-1 01 1 0905-1312 ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (A) 		8-98186-702-2 01 1 1401-1401 ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (A) 		8-98135-317-2 01 1 1402- ● ● ● ●
161 02.559 BOLT; GROUND,HARNESS
4JJ1-TCS ENG(LFB) 02.483 M10X16 FLANGE 		0-28051-016-0 01 1 0907-1011 ● ●
161 02.559 BOLT; GROUND,HARNESS
4JJ1-TCS ENG(LFB) 02.483 M10X16 FLANGE 		0-28051-016-0 01 1 1012- ● ● ●
161 02.559 BOLT; GROUND,HARNESS
4HK1-TCN ENG(RDQ) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0905- ● ●
161 02.559 BOLT; GROUND,HARNESS
4HK1-TCS ENG(RJS) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0905- ● ●
329 02.480 CABLE; ENG TO FRAME
4JJ1-TCS ENG(LFB) 		8-98030-126-1 01 1 0907-1011 ● ●
329 02.480 CABLE; ENG TO FRAME
4JJ1-TCS ENG(LFB) 		8-98030-126-1 01 1 1012- ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCN ENG(RDQ) 		8-98102-465-0 01 1 0905- ● ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCS ENG(RJS) 		8-98102-465-0 01 1 0905- ● ●
699 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) L=146.2 		8-98052-677-0 01 1 0905- ● ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 04.105 (B) L=140 		8-97122-360-0 03 1 0907-1011 ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) 04.105 (B) L=140 		8-97122-360-0 03 1 1012-1310 ● ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) (C) 		8-98088-438-0 01 1 0907-1011 ● ●
699 02.559 CLIP; ENG HARNESS
4JJ1-TCS ENG(LFB) (C) 		8-98088-438-0 01 1 1012-1310 ● ● ●
çizim 159160
1 691 101 290 626 189 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98121-568-3 01 1 0905-1204 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-564-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-564-1 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-564-1 01 1 1206- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98087-874-4 01 1 0905-0912 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98154-790-1 01 1 1001-1204 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-555-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-555-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-555-0 01 1 1206- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98121-567-3 01 1 0905-1204 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98207-684-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98207-684-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98207-684-0 01 1 1206- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98087-872-5 01 1 0905-1005 ● ●
1 02.480 HARNESS; CAB
H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98158-587-1 01 1 1006-1204 ● ●
1 02.480 HARNESS; CAB
H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>, REMOTE CONT DOOR LOCK<6NF> 		8-98158-587-1 01 1 1006-1204 ● ●
1 02.480 HARNESS; CAB
H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98207-658-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>, REMOTE CONT DOOR LOCK<6NF> 		8-98207-658-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98207-658-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98207-658-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>, REMOTE CONT DOOR LOCK<6NF> 		8-98207-658-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>, REMOTE CONT DOOR LOCK<6NF> 		8-98207-658-0 01 1 1206- ●
1 02.480 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98121-560-3 01 1 0905-1204 ● ●
1 02.480 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98204-563-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98204-563-1 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98204-563-1 01 1 1206- ●
1 02.480 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98087-869-6 01 1 0905-1204 ● ●
1 02.480 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-659-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-659-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-659-0 01 1 1206- ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98121-559-3 01 1 0905-0906 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98121-559-3 01 1 0907-1204 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98121-559-3 01 1 0907-1204 ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98207-683-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98207-683-0 01 1 1205-1205 ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98207-683-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98207-683-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98207-683-0 01 1 1206- ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98087-867-5 01 1 0905-0906 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98087-867-5 01 1 0907-1005 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98087-867-5 01 1 0907-1005 ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO DOOR LOCK<AU4> ,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98158-584-0 01 1 1006-1006 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO DOOR LOCK<AU4> ,POWER WINDOW FRT&REAR DOOR<A31>, H.S.ASYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98158-584-0 01 1 1006-1006 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO DOOR LOCK<AU4> 		8-98158-584-0 01 1 1006-1006 ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,H.S.A SYSTEM<6EP>,R EMOTE CONT DOOR LOCK<6NF> 		8-98158-584-1 01 1 1006-1204 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98158-584-1 01 1 1006-1204 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98158-584-1 01 1 1006-1204 ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,H.S.A SYSTEM<6EP>,R EMOTE CONT DOOR LOCK<6NF> 		8-98207-655-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98207-655-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98207-655-0 01 1 1205-1205 ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,H.S.A SYSTEM<6EP>,R EMOTE CONT DOOR LOCK<6NF> 		8-98207-655-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,H.S.A SYSTEM<6EP>,R EMOTE CONT DOOR LOCK<6NF> 		8-98207-655-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98207-655-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98207-655-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98207-655-0 01 1 1206- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98121-583-2 01 1 0905-1010 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98121-583-3 01 1 1011-1204 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98207-691-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98207-691-1 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98207-691-1 01 1 1206- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98087-891-5 01 1 0905-1010 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98087-891-6 01 1 1011-1204 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98207-663-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98207-663-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98207-663-0 01 1 1206- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98121-584-3 01 1 0905-1204 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-567-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-567-1 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98204-567-1 01 1 1206- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98087-892-6 01 1 0905-1204 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-559-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-559-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98204-559-0 01 1 1206- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31>,REMOTE CONT DOOR LOCK<6NF> 		8-98121-579-3 01 1 0905-1010 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER WINDOW FRT&REAR DOOR<A31>, REMOTE CONT DOOR LOCK<6NF> 		8-98121-579-4 01 1 1011-1204 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER WINDOW FRT&REAR DOOR<A31>, REMOTE CONT DOOR LOCK<6NF> 		8-98207-689-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER WINDOW FRT&REAR DOOR<A31>, REMOTE CONT DOOR LOCK<6NF> 		8-98207-689-1 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER WINDOW FRT&REAR DOOR<A31>, REMOTE CONT DOOR LOCK<6NF> 		8-98207-689-1 01 1 1206- ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31>,REMOTE CONT DOOR LOCK<6NF> 		8-98087-887-4 01 1 0905-1005 ● ●
1 02.480 HARNESS; CAB
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98158-585-1 01 1 1006-1204 ● ●
1 02.480 HARNESS; CAB
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31>,REMOTE CONT DOOR LOCK<6NF> 		8-98158-585-1 01 1 1006-1204 ● ●
1 02.480 HARNESS; CAB
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98207-657-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31>,REMOTE CONT DOOR LOCK<6NF> 		8-98207-657-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98207-657-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98207-657-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31>,REMOTE CONT DOOR LOCK<6NF> 		8-98207-657-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31>,REMOTE CONT DOOR LOCK<6NF> 		8-98207-657-0 01 1 1206- ●
1 02.480 HARNESS; CAB
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98121-574-2 01 1 0905-1010 ● ●
1 02.480 HARNESS; CAB
POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98121-574-3 01 1 1011-1204 ● ●
1 02.480 HARNESS; CAB
POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98207-690-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98207-690-1 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98207-690-1 01 1 1206- ●
1 02.480 HARNESS; CAB
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98087-883-5 01 1 0905-1010 ● ●
1 02.480 HARNESS; CAB
POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98087-883-6 01 1 1011-1204 ● ●
1 02.480 HARNESS; CAB
POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98207-662-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98207-662-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) POWER WINDOW FRT&REAR DOOR<A31> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,REMOTE CONT DOOR LO CK<6NF> 		8-98207-662-0 01 1 1206- ●
1 02.480 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98121-575-3 01 1 0905-1204 ● ●
1 02.480 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98204-566-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98204-566-1 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98204-566-1 01 1 1206- ●
1 02.480 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98087-884-6 01 1 0905-1204 ● ●
1 02.480 HARNESS; CAB
REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-664-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-664-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98207-664-0 01 1 1206- ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO DOOR LOCK<AU4> ,POWER WINDOW FRT&REAR DOOR<A31>, REMOTE CONT DOOR LOCK<6NF> 		8-98121-571-3 01 1 0905-1010 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31>,REMOTE CONT DOOR LOCK<6NF> 		8-98121-571-4 01 1 1011-1204 ● ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31>,REMOTE CONT DOOR LOCK<6NF> 		8-98207-688-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31>,REMOTE CONT DOOR LOCK<6NF> 		8-98207-688-1 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,POWER WINDOW FRT&RE AR DOOR<A31>,REMOTE CONT DOOR LOCK<6NF> 		8-98207-688-1 01 1 1206- ●
1 02.480 HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,AUTO DOOR LOCK<AU4> ,POWER WINDOW FRT&REAR DOOR<A31>, REMOTE CONT DOOR LOCK<6NF> 		8-98087-881-4 01 1 0905-1005 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO DOOR LOCK<AU4>,H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98158-586-0 01 1 1006-1006 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31>,H.S.A SYSTEM<6EP>, REMOTE CONT DOOR LOCK<6NF> 		8-98158-586-0 01 1 1006-1006 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98158-586-1 01 1 1006-1204 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>, H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK <6NF> 		8-98158-586-1 01 1 1006-1204 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98207-656-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>, H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK <6NF> 		8-98207-656-0 01 1 1205-1205 ● ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98207-656-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 		8-98207-656-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>, H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK <6NF> 		8-98207-656-0 01 1 1206- ●
1 02.480 HARNESS; CAB
4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER WINDOW FRT&REAR DOOR<A31>, H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK <6NF> 		8-98207-656-0 01 1 1206- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98173-437-2 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98294-372-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98173-433-2 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98294-368-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE <7KJ> 		8-98173-435-2 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE <7KJ> 		8-98294-370-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE <7KJ> 		8-98173-431-2 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE <7KJ> 		8-98294-366-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98173-436-2 01 1 1008-1409 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98294-371-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98173-432-2 01 1 1008-1409 ●
8 02.480 HARNESS; FRAME,FRT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98294-367-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE <7KJ> 		8-98173-434-2 01 1 1008-1409 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE <7KJ> 		8-98294-369-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE <7KJ> 		8-98173-430-2 01 1 1008-1409 ●
8 02.480 HARNESS; FRAME,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE <7KJ> 		8-98294-365-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98147-452-1 01 1 0905-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98294-315-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98147-453-2 01 1 0905-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98294-316-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-98140-062-3 01 1 0907-1409 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98140-062-3 01 1 0907-1409 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-98294-360-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98294-360-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-98140-055-3 01 1 0907-1409 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98140-055-3 01 1 0907-1409 ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, FRAME STRAIGHT TYPE<7KJ> 		8-98294-354-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98294-354-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98125-278-6 01 1 0905-0906 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98125-278-6 01 1 0907-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98294-314-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98125-277-7 01 1 0905-0906 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98125-277-7 01 1 0907-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 2700MM(27W) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98294-313-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98120-500-5 01 1 0905-0906 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98120-500-5 01 1 0907-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98294-301-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98120-507-6 01 1 0905-0906 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98120-507-6 01 1 0907-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) HONG KONG EQUIPMENT(B14) 4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98294-308-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98120-504-4 01 1 0905-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98294-305-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98120-511-5 01 1 0905-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCS ENG(RJS) M/T MZZ6U(RSF) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98294-312-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98120-501-5 01 1 0905-1011 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98120-501-5 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98294-302-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98120-508-6 01 1 0905-1011 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98120-508-6 01 1 1012-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98294-309-0 01 1 1410- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (C) 		8-98030-725-1 01 1 0907-1011 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (C) 		8-98030-725-1 01 1 1012- ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98032-447-1 01 1 0907-1011 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98032-447-1 01 1 0907-1011 ●
101 02.483 BRACKET; HARNESS CONNECTOR
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98032-447-1 01 1 1012- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98032-447-1 01 1 1012- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCN ENG(RDQ) (A) 		8-98052-805-0 01 1 0905- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) (A) 		8-98052-805-0 01 1 0905- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98133-387-1 01 1 0905-0906 ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98133-387-1 01 1 0907-1011 ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98133-387-1 01 1 1012- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98133-387-1 01 1 1012- ● ●
189 02.480 HARNESS; EXT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) HONG KONG EQUIPMENT(B14) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98224-296-0 01 1 1209- ●
189 02.480 HARNESS; EXT
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) (B) 		8-98224-296-0 01 1 1209- ●
189 02.480 HARNESS; EXT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98224-296-0 01 1 1209- ●
189 02.480 HARNESS; EXT
(B) 		8-98224-296-0 01 1 1209- ●
189 02.480 HARNESS; EXT
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-98095-676-0 01 1 0905-1006 ●
189 02.480 HARNESS; EXT
(A) 		8-98095-676-0 01 1 0905-1006 ●
189 02.480 HARNESS; EXT
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98095-676-0 01 1 1007-1108 ●
189 02.480 HARNESS; EXT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98095-676-0 01 1 1007-1108 ●
189 02.480 HARNESS; EXT
4HK1-TCN ENG(RDQ) HYDRO BRAKE BOOSTER(7QQ) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98095-676-0 01 1 1109- ●
189 02.480 HARNESS; EXT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98095-676-0 01 1 1109- ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0907-1011 ● ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1012- ● ● ●
290 02.483 NUT; BRKT
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0905-0906 ● ● ● ●
290 02.483 NUT; BRKT
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0907- ● ● ● ● ●
626 02.480 HARNESS; FLEX HOSE 8-97253-968-1 01 1 0905-0906 ● ●
626 02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97253-968-1 01 1 0907-1011 ●
626 02.480 HARNESS; FLEX HOSE 8-97253-968-1 01 1 0907-1011 ●
626 02.480 HARNESS; FLEX HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97253-968-1 01 1 1012- ● ● ● ●
626 02.480 HARNESS; FLEX HOSE 8-97253-969-1 01 1 0905-0906 ● ●
626 02.480 HARNESS; FLEX HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> FRAME STRAIGHT TYPE<7KJ> 		8-97253-969-1 01 1 0907-1011 ●
626 02.480 HARNESS; FLEX HOSE 8-97253-969-1 01 1 0907-1011 ●
626 02.480 HARNESS; FLEX HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97253-969-1 01 1 1012- ● ● ● ●
691 02.480 HARNESS; IDLE CONT 8-98049-014-2 01 1 0905-0906 ● ● ● ●
691 02.480 HARNESS; IDLE CONT 8-98049-014-2 01 1 0907- ● ● ● ● ●
çizim 159167
441
BalonParca AdiParca NoAdetTipApplied Date A B C D E
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97308-225-4 01 1 0907-1011 ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97308-225-4 01 1 1012- ●
441 02.480 HARNESS; CABLE,SPEED SENSOR
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97308-225-4 01 1 1012- ●
çizim 284243
101 101 290 290 374 374
BalonParca AdiParca NoAdetTipApplied Date A B C D E
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (C) 		8-98030-725-1 01 1 0907-1011 ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (C) 		8-98030-725-1 01 1 1012- ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98032-447-1 01 1 0907-1011 ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98032-447-1 01 1 0907-1011 ●
101 02.483 BRACKET; HARNESS CONNECTOR
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98032-447-1 01 1 1012- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(D) 		8-98032-447-1 01 1 1012- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCN ENG(RDQ) (A) 		8-98052-805-0 01 1 0905- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCS ENG(RJS) (A) 		8-98052-805-0 01 1 0905- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98133-387-1 01 1 0905-0906 ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98133-387-1 01 1 0907-1011 ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98133-387-1 01 1 1012- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-98133-387-1 01 1 1012- ● ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0907-1011 ● ●
290 02.483 NUT; BRKT
4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1012- ● ● ●
290 02.483 NUT; BRKT
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0905-0906 ● ● ● ●
290 02.483 NUT; BRKT
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0907- ● ● ● ● ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. AIR BAG DRIVER & PASSENGER<AK5>, ROOM LAMP W/ALL DOORS SW(SDF),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TR ANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) OD=32 BLACK 		8-98031-126-0 01 1 0905-0906 ● ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. AIR BAG DRIVER & PASSENGER<AK5>, ROOM LAMP W/ALL DOORS SW(SDF),H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TR ANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) OD=32 BLACK 		8-98031-126-0 01 1 0907- ● ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. ROOM LAMP W/ALL DOORS SW(SDF), TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) OD=32 BLACK 		8-98031-126-0 01 1 0907- ●
374 02.530 PLUG; HARNESS CONNECTOR
16.545 (B) OD=24.5 T=7.5 		8-97224-683-0 01 1 0905- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
