Sayfa 8-01 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51239 - NN/NP/NQR-RHD EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶

8-01 — LAMP; FRONT AND FRONT SIDE (#50130) — 161 parça

32 49 47 44 36 15 421 448 32 36 15 448 44 47 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
15	08.991 BULB; FOG LAMP 24V 70W	1-82194-106-0	02	1	0905-0906	●	●	●	●
15	08.991 BULB; FOG LAMP FOG LAMP<T96> 24V 70W	1-82194-106-0	02	1	0907-1111	●	●	●	●	●
15	08.991 BULB; FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 24V 70W	1-82194-106-0	02	1	1112-	●	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP FRONT VAR2<X99> (B)	8-98186-094-1	01	1	1205-1301	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP FRONT VAR2<X99> (B)	8-98232-070-1	01	1	1302-	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP FRONT VAR2<X99> (B)	8-98186-095-1	01	1	1205-1301	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP FRONT VAR2<X99> (B)	8-98232-071-1	01	1	1302-	●	●	●	●
32	02.725 LAMP ASM; FOG (A)	8-97378-908-1	01	1	0905-0906	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> (A)	8-97378-908-1	01	1	0907-0909	●	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> (A)	8-98149-143-0	01	1	0910-1111	●	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> (A)	8-98149-143-1	01	1	1112-1301	●	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> (A)	8-98232-058-1	01	1	1302-	●	●	●	●	●
32	02.725 LAMP ASM; FOG (A)	8-97378-909-1	01	1	0905-0906	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> (A)	8-97378-909-1	01	1	0907-0909	●	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> (A)	8-98149-144-0	01	1	0910-1111	●	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> (A)	8-98149-144-1	01	1	1112-1301	●	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> (A)	8-98232-059-1	01	1	1302-	●	●	●	●	●
36	02.727 CORD; FOG LAMP	1-82118-015-0	01	1	0905-0906	●	●	●	●
36	02.727 CORD; FOG LAMP FOG LAMP<T96>	1-82118-015-0	01	1	0907-1111	●	●	●	●	●
36	02.727 CORD; FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99>	1-82118-015-0	01	1	1112-	●	●	●	●	●
36	02.727 CORD; FOG LAMP	1-82118-016-0	01	1	0905-0906	●	●	●	●
36	02.727 CORD; FOG LAMP FOG LAMP<T96>	1-82118-016-0	01	1	0907-1111	●	●	●	●	●
36	02.727 CORD; FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99>	1-82118-016-0	01	1	1112-	●	●	●	●	●
44	02.737 NUT; FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> M6	8-98217-430-0	02	1	0910-	●	●	●	●	●
47	02.737 WASHER; PL,FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99>	8-98217-429-0	02	1	0910-	●	●	●	●	●
49	02.726 BRACKET; LAMP	8-98051-435-0	01	1	0905-0906	●	●	●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>	8-98051-435-0	01	1	0907-1111	●	●	●	●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99>	8-98051-435-0	01	1	1112-	●	●	●	●	●
49	02.726 BRACKET; LAMP	8-98051-436-0	01	1	0905-0906	●	●	●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>	8-98051-436-0	01	1	0907-1111	●	●	●	●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99>	8-98051-436-0	01	1	1112-	●	●	●	●	●
421	02.593 TUBE; BREATHER,FOG LAMP 02.596	8-97025-128-0	02	1	0905-0906	●	●	●	●
421	02.593 TUBE; BREATHER,FOG LAMP FOG LAMP<T96> 02.596	8-97025-128-0	02	1	0907-0909	●	●	●	●	●
448	02.727 CAP ASM; LAMP FOG LAMP<T96>	8-97378-874-0	02	1	0910-1111	●	●	●	●	●
448	02.727 CAP ASM; LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99>	8-97378-874-0	02	1	1112-	●	●	●	●	●

1 4 20 20 23 420 420 408 5 5 382 457 331 357 431 399 355 432

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	02.725 LAMP ASM; HEAD	8-98098-479-1	01	1	0905-0906	●	●	●	●
1	02.725 LAMP ASM; HEAD	8-98098-479-1	01	1	0907-1208	●	●	●	●	●
1	02.725 LAMP ASM; HEAD	8-98225-599-0	01	1	1209-1301	●	●	●	●	●
1	02.725 LAMP ASM; HEAD	8-98225-640-0	01	1	1302-1305	●	●	●	●	●
1	02.725 LAMP ASM; HEAD	8-98241-325-0	01	1	1306-	●	●	●	●	●
1	02.725 LAMP ASM; HEAD	8-98098-480-1	01	1	0905-0906	●	●	●	●
1	02.725 LAMP ASM; HEAD	8-98098-480-1	01	1	0907-1208	●	●	●	●	●
1	02.725 LAMP ASM; HEAD	8-98225-600-0	01	1	1209-1301	●	●	●	●	●
1	02.725 LAMP ASM; HEAD	8-98225-641-0	01	1	1302-1305	●	●	●	●	●
1	02.725 LAMP ASM; HEAD	8-98241-326-0	01	1	1306-	●	●	●	●	●
4	02.727 HEADLAMP UNIT	8-98051-400-0	01	1	0905-0906	●	●	●	●
4	02.727 HEADLAMP UNIT	8-98051-400-0	01	1	0907-1301	●	●	●	●	●
4	02.727 HEADLAMP UNIT	8-98226-182-0	01	1	1302-	●	●	●	●	●
4	02.727 HEADLAMP UNIT	8-98051-401-0	01	1	0905-0906	●	●	●	●
4	02.727 HEADLAMP UNIT	8-98051-401-0	01	1	0907-1301	●	●	●	●	●
4	02.727 HEADLAMP UNIT	8-98226-183-0	01	1	1302-	●	●	●	●	●
5	02.727 BULB; HEADLAMP (B) 24V 5W	1-82194-042-0	02	1	0905-0906	●	●	●	●
5	02.727 BULB; HEADLAMP (B) 24V 5W	1-82194-042-0	02	1	0907-	●	●	●	●	●
5	02.727 BULB; HEADLAMP (A) 24V 75/70W	1-82194-063-0	02	1	0905-0906	●	●	●	●
5	02.727 BULB; HEADLAMP (A) 24V 75/70W	1-82194-063-0	02	1	0907-	●	●	●	●	●
20	02.736 SCREW; HEADLAMP	8-97378-871-0	06	1	0905-0906	●	●	●	●
20	02.736 SCREW; HEADLAMP	8-97378-871-0	06	1	0907-	●	●	●	●	●
23	02.727 COVER; BULB,HEADLAMP	8-97232-491-0	02	1	0905-0906	●	●	●	●
23	02.727 COVER; BULB,HEADLAMP	8-97232-491-0	02	1	0907-	●	●	●	●	●
331	02.585 LAMP; TURN SIGNAL	8-97585-172-2	01	1	0905-0906	●	●	●	●
331	02.585 LAMP; TURN SIGNAL	8-97585-172-2	01	1	0907-0911	●	●	●	●	●
331	02.585 LAMP; TURN SIGNAL	8-98155-458-0	01	1	0912-	●	●	●	●	●
331	02.585 LAMP; TURN SIGNAL	8-97585-173-2	01	1	0905-0906	●	●	●	●
331	02.585 LAMP; TURN SIGNAL	8-97585-173-2	01	1	0907-0911	●	●	●	●	●
331	02.585 LAMP; TURN SIGNAL	8-98155-459-0	01	1	0912-	●	●	●	●	●
355	02.726 SCREW; TURN SIGNAL	8-98051-428-0	04	1	0905-0906	●	●	●	●
355	02.726 SCREW; TURN SIGNAL	8-98051-428-0	04	1	0907-	●	●	●	●	●
357	08.991 BULB; TURN SIGNAL 24V 21W AMBER	8-97323-806-0	02	1	0905-0906	●	●	●	●
357	08.991 BULB; TURN SIGNAL 24V 21W AMBER	8-97323-806-0	02	1	0907-	●	●	●	●	●
382	02.575 PLUG; SOCKET,HEADLAMP	8-98069-364-0	02	1	0905-0906	●	●	●	●
382	02.575 PLUG; SOCKET,HEADLAMP	8-98069-364-0	02	1	0907-1208	●	●	●	●	●
382	02.575 PLUG; SOCKET,HEADLAMP	8-98225-685-0	02	1	1209-	●	●	●	●	●
399	02.596 SOCKET; TURN SIGNAL	8-98051-387-0	02	1	0905-0906	●	●	●	●
399	02.596 SOCKET; TURN SIGNAL	8-98051-387-0	02	1	0907-	●	●	●	●	●
408	02.727 CAP; BREATHER,HEADLAMP	8-97378-874-0	02	1	0905-0906	●	●	●	●
408	02.727 CAP; BREATHER,HEADLAMP	8-97378-874-0	02	1	0907-	●	●	●	●	●
420	02.737 SPRING; BULB,HEADLAMP (A)	8-97378-875-0	02	1	0905-0906	●	●	●	●
420	02.737 SPRING; BULB,HEADLAMP (A)	8-97378-875-0	02	1	0907-1301	●	●	●	●	●
420	02.737 SPRING; BULB,HEADLAMP (B)	8-98218-601-0	02	1	1302-	●	●	●	●	●
431	02.727 CAP; TURN SIGNAL,LAMP	8-97378-874-0	02	1	0905-0906	●	●	●	●
431	02.727 CAP; TURN SIGNAL,LAMP	8-97378-874-0	02	1	0907-	●	●	●	●	●
432	02.726 FASTENER; TURN SIGNAL,LAMP	8-98051-431-0	04	1	0905-0906	●	●	●	●
432	02.726 FASTENER; TURN SIGNAL,LAMP	8-98051-431-0	04	1	0907-	●	●	●	●	●
457	16.450 GRIP; HEADLAMP	8-98241-354-0	02	1	1306-	●	●	●	●	●

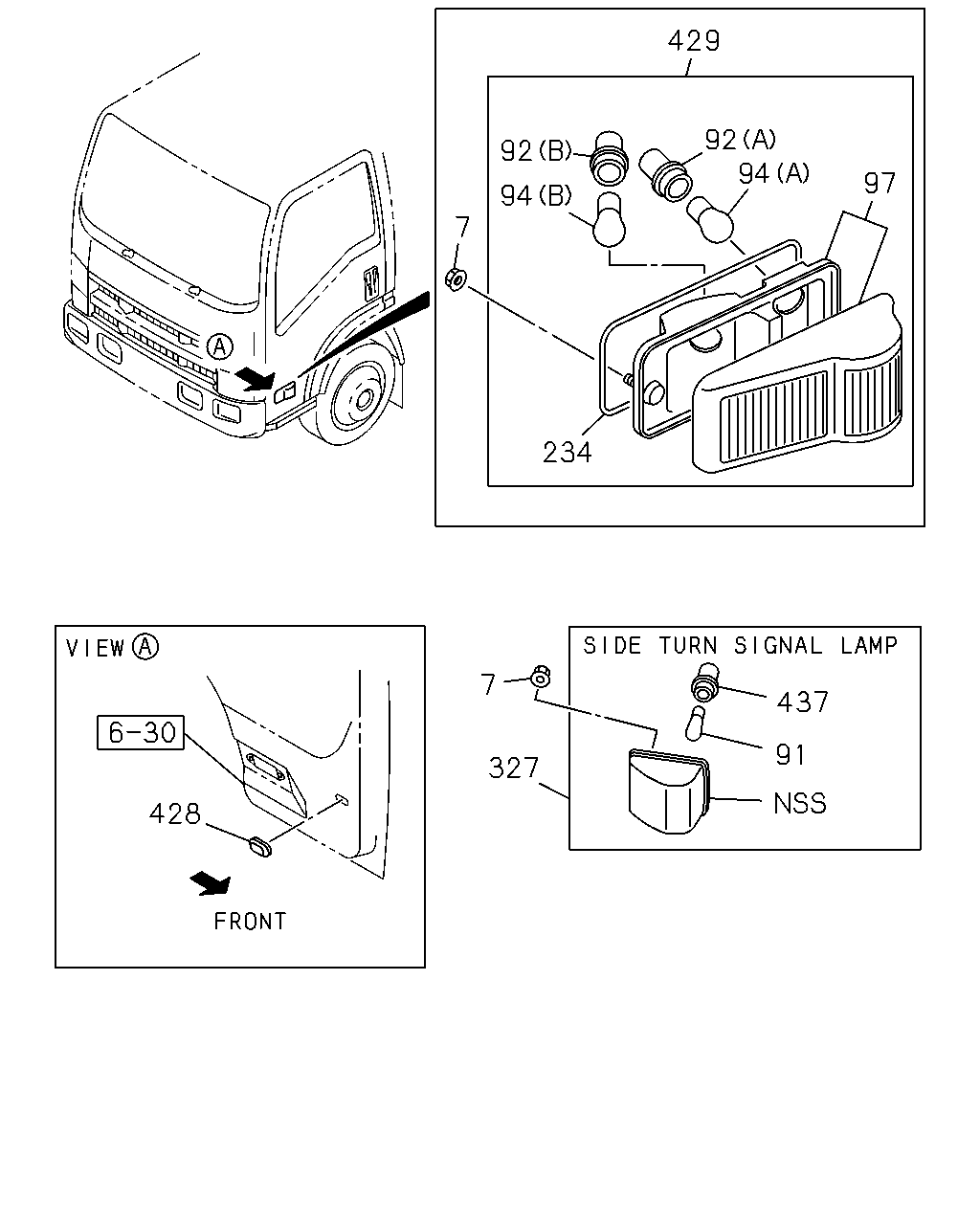

429 92 94 92 97 94 7 234 7 437 91 327 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
7	02.587 NUT; FRT COMB LAMP 01.062 M6 FLANGE	0-91180-106-0	02	1	0905-0906	●	●	●	●
7	02.587 NUT; FRT COMB LAMP 01.062 M6 FLANGE	0-91180-106-0	02	1	0907-	●	●	●	●	●
91	08.991 BULB; SIDE TURN SIGNAL EXC. CORNERING LAMP<T87> 24V 21W	8-98051-495-0	02	1	0907-	●
92	02.596 SOCKET ASM; SIDE COMB LAMP 02.575 (B)	8-97172-959-0	02	1	0905-0906	●	●	●	●
92	02.596 SOCKET ASM; SIDE COMB LAMP CORNERING LAMP<T87> 02.575 (B)	8-97172-959-0	02	1	0907-	●
92	02.596 SOCKET ASM; SIDE COMB LAMP 02.575 (B)	8-97172-959-0	02	1	0907-		●	●	●	●
92	02.596 SOCKET ASM; SIDE COMB LAMP (A)	8-98051-390-0	02	1	0905-0906	●	●	●	●
92	02.596 SOCKET ASM; SIDE COMB LAMP CORNERING LAMP<T87> (A)	8-98051-390-0	02	1	0907-	●
92	02.596 SOCKET ASM; SIDE COMB LAMP (A)	8-98051-390-0	02	1	0907-		●	●	●	●
94	08.991 BULB; SIDE COMB LAMP (A) 24V 21W	8-98051-495-0	02	1	0905-0906	●	●	●	●
94	08.991 BULB; SIDE COMB LAMP CORNERING LAMP<T87> (A) 24V 21W	8-98051-495-0	02	1	0907-	●
94	08.991 BULB; SIDE COMB LAMP (A) 24V 21W	8-98051-495-0	02	1	0907-		●	●	●	●
94	08.991 BULB; SIDE COMB LAMP (B) 24V 21W	8-98051-496-0	02	1	0905-0906	●	●	●	●
94	08.991 BULB; SIDE COMB LAMP CORNERING LAMP<T87> (B) 24V 21W	8-98051-496-0	02	1	0907-	●
94	08.991 BULB; SIDE COMB LAMP (B) 24V 21W	8-98051-496-0	02	1	0907-		●	●	●	●
97	02.895 LAMP UNIT; COMB	8-98051-419-0	01	1	0905-0906	●	●	●	●
97	02.895 LAMP UNIT; COMB CORNERING LAMP<T87>	8-98051-419-0	01	1	0907-	●
97	02.895 LAMP UNIT; COMB	8-98051-419-0	01	1	0907-		●	●	●	●
97	02.895 LAMP UNIT; COMB	8-98051-420-0	01	1	0905-0906	●	●	●	●
97	02.895 LAMP UNIT; COMB CORNERING LAMP<T87>	8-98051-420-0	01	1	0907-	●
97	02.895 LAMP UNIT; COMB	8-98051-420-0	01	1	0907-		●	●	●	●
234	02.590 GASKET; SIDE COMB LAMP	8-98051-432-0	02	1	0905-0906	●	●	●	●
234	02.590 GASKET; SIDE COMB LAMP CORNERING LAMP<T87>	8-98051-432-0	02	1	0907-	●
234	02.590 GASKET; SIDE COMB LAMP	8-98051-432-0	02	1	0907-		●	●	●	●
327	02.585 LAMP ASM; SIDE TURN SIGNAL EXC. CORNERING LAMP<T87>	8-97410-180-4	01	1	0907-	●
327	02.585 LAMP ASM; SIDE TURN SIGNAL EXC. CORNERING LAMP<T87>	8-97410-181-3	01	1	0907-	●
428	02.587 GROMMET; SIDE COMB LAMP 17.447	8-94430-184-1	02	1	0905-0906	●	●	●	●
428	02.587 GROMMET; SIDE COMB LAMP 17.447	8-94430-184-1	02	1	0907-	●	●	●	●	●
429	02.585 LAMP ASM; SIDE COMB	8-98039-776-2	01	1	0905-0906	●	●	●	●
429	02.585 LAMP ASM; SIDE COMB CORNERING LAMP<T87>	8-98039-776-2	01	1	0907-	●
429	02.585 LAMP ASM; SIDE COMB	8-98039-776-2	01	1	0907-		●	●	●	●
429	02.585 LAMP ASM; SIDE COMB	8-98039-777-2	01	1	0905-0906	●	●	●	●
429	02.585 LAMP ASM; SIDE COMB CORNERING LAMP<T87>	8-98039-777-2	01	1	0907-	●
429	02.585 LAMP ASM; SIDE COMB	8-98039-777-2	01	1	0907-		●	●	●	●
437	02.596 SOCKET; SIDE,TURN EXC. CORNERING LAMP<T87>	8-98051-390-0	02	1	0907-	●

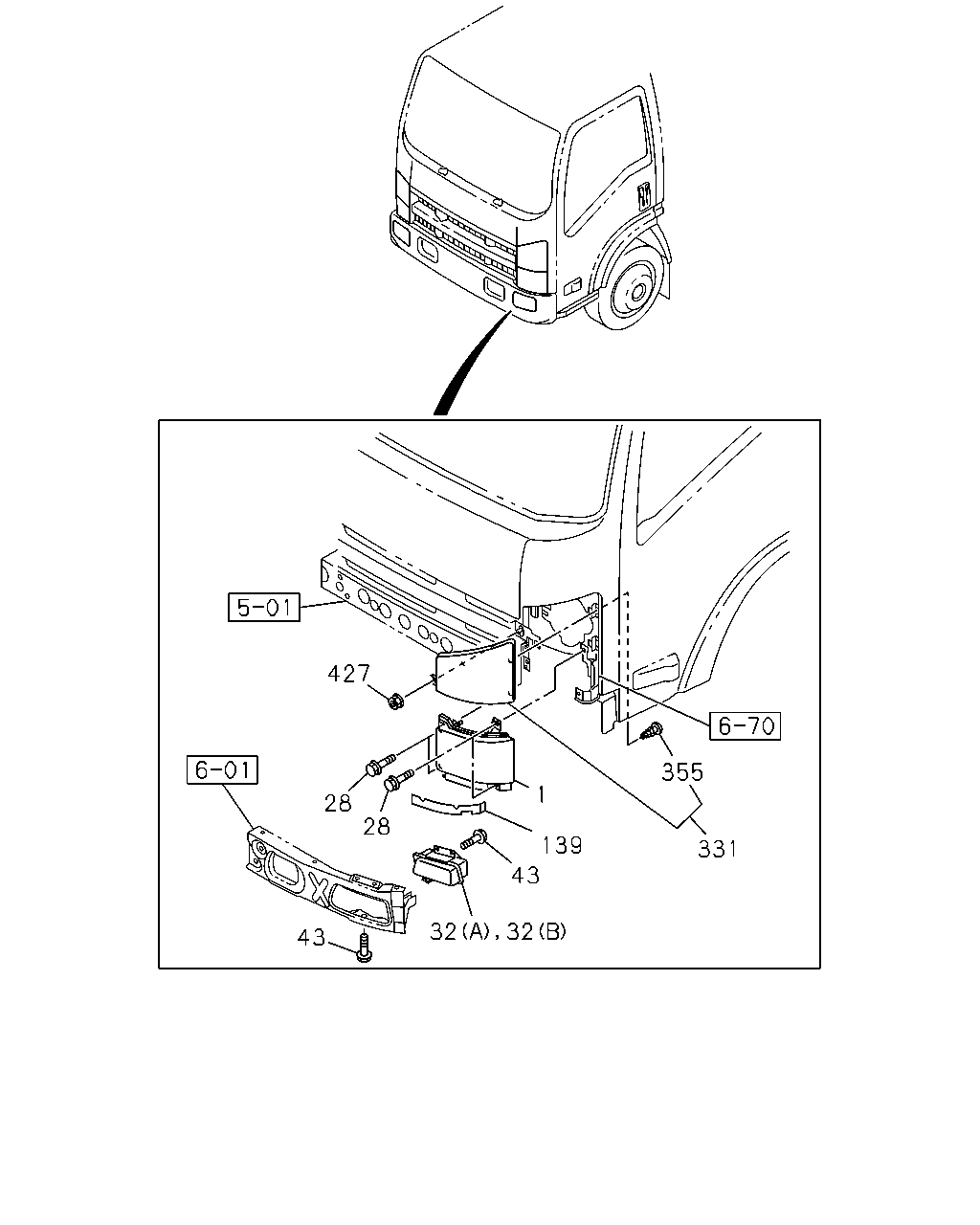

427 28 28 43 32 32 43 139 1 331 355

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	02.725 LAMP ASM; HEAD	8-98098-479-1	01	1	0905-0906	●	●	●	●
1	02.725 LAMP ASM; HEAD	8-98098-479-1	01	1	0907-1208	●	●	●	●	●
1	02.725 LAMP ASM; HEAD	8-98225-599-0	01	1	1209-1301	●	●	●	●	●
1	02.725 LAMP ASM; HEAD	8-98225-640-0	01	1	1302-1305	●	●	●	●	●
1	02.725 LAMP ASM; HEAD	8-98241-325-0	01	1	1306-	●	●	●	●	●
1	02.725 LAMP ASM; HEAD	8-98098-480-1	01	1	0905-0906	●	●	●	●
1	02.725 LAMP ASM; HEAD	8-98098-480-1	01	1	0907-1208	●	●	●	●	●
1	02.725 LAMP ASM; HEAD	8-98225-600-0	01	1	1209-1301	●	●	●	●	●
1	02.725 LAMP ASM; HEAD	8-98225-641-0	01	1	1302-1305	●	●	●	●	●
1	02.725 LAMP ASM; HEAD	8-98241-326-0	01	1	1306-	●	●	●	●	●
28	02.762 BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-98031-842-0	08	1	0905-0906	●	●	●	●
28	02.762 BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-98031-842-0	08	1	0907-1005	●	●	●	●	●
28	02.762 BOLT; HEADLAMP M6X23.5 W/LK&PL WASHER	8-98164-723-0	08	1	1006-	●	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP FRONT VAR2<X99> (B)	8-98186-094-1	01	1	1205-1301	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP FRONT VAR2<X99> (B)	8-98232-070-1	01	1	1302-	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP FRONT VAR2<X99> (B)	8-98186-095-1	01	1	1205-1301	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP FRONT VAR2<X99> (B)	8-98232-071-1	01	1	1302-	●	●	●	●
32	02.725 LAMP ASM; FOG (A)	8-97378-908-1	01	1	0905-0906	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> (A)	8-97378-908-1	01	1	0907-0909	●	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> (A)	8-98149-143-0	01	1	0910-1111	●	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> (A)	8-98149-143-1	01	1	1112-1301	●	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> (A)	8-98232-058-1	01	1	1302-	●	●	●	●	●
32	02.725 LAMP ASM; FOG (A)	8-97378-909-1	01	1	0905-0906	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> (A)	8-97378-909-1	01	1	0907-0909	●	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96> (A)	8-98149-144-0	01	1	0910-1111	●	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> (A)	8-98149-144-1	01	1	1112-1301	●	●	●	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> (A)	8-98232-059-1	01	1	1302-	●	●	●	●	●
43	02.736 BOLT; FOG LAMP 01.531 M6X20 W/LK&PL WASHER	0-50640-620-0	06	1	0905-0906	●	●	●	●
43	02.736 BOLT; FOG LAMP FOG LAMP<T96> 01.531 M6X20 W/LK&PL WASHER	0-50640-620-0	06	1	0907-1111	●	●	●	●	●
43	02.736 BOLT; FOG LAMP FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 01.531 M6X20 W/LK&PL WASHER	0-50640-620-0	06	1	1112-	●	●	●	●	●
139	02.726 COVER; HEADLAMP	8-98034-056-1	02	1	0905-0906	●	●	●	●
139	02.726 COVER; HEADLAMP	8-98034-056-1	02	1	0907-	●	●	●	●	●
331	02.585 LAMP; TURN SIGNAL	8-97585-172-2	01	1	0905-0906	●	●	●	●
331	02.585 LAMP; TURN SIGNAL	8-97585-172-2	01	1	0907-0911	●	●	●	●	●
331	02.585 LAMP; TURN SIGNAL	8-98155-458-0	01	1	0912-	●	●	●	●	●
331	02.585 LAMP; TURN SIGNAL	8-97585-173-2	01	1	0905-0906	●	●	●	●
331	02.585 LAMP; TURN SIGNAL	8-97585-173-2	01	1	0907-0911	●	●	●	●	●
331	02.585 LAMP; TURN SIGNAL	8-98155-459-0	01	1	0912-	●	●	●	●	●
355	02.726 SCREW; TURN SIGNAL	8-98051-428-0	04	1	0905-0906	●	●	●	●
355	02.726 SCREW; TURN SIGNAL	8-98051-428-0	04	1	0907-	●	●	●	●	●
427	02.587 NUT; TURN SIGNAL LAMP 01.062 M6 FLANGE	0-91180-106-0	02	1	0905-0906	●	●	●	●
427	02.587 NUT; TURN SIGNAL LAMP 01.062 M6 FLANGE	0-91180-106-0	02	1	0907-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
