7-43 — SUN VISOR AND ASSIST GRIP (#50125) — 123 parça

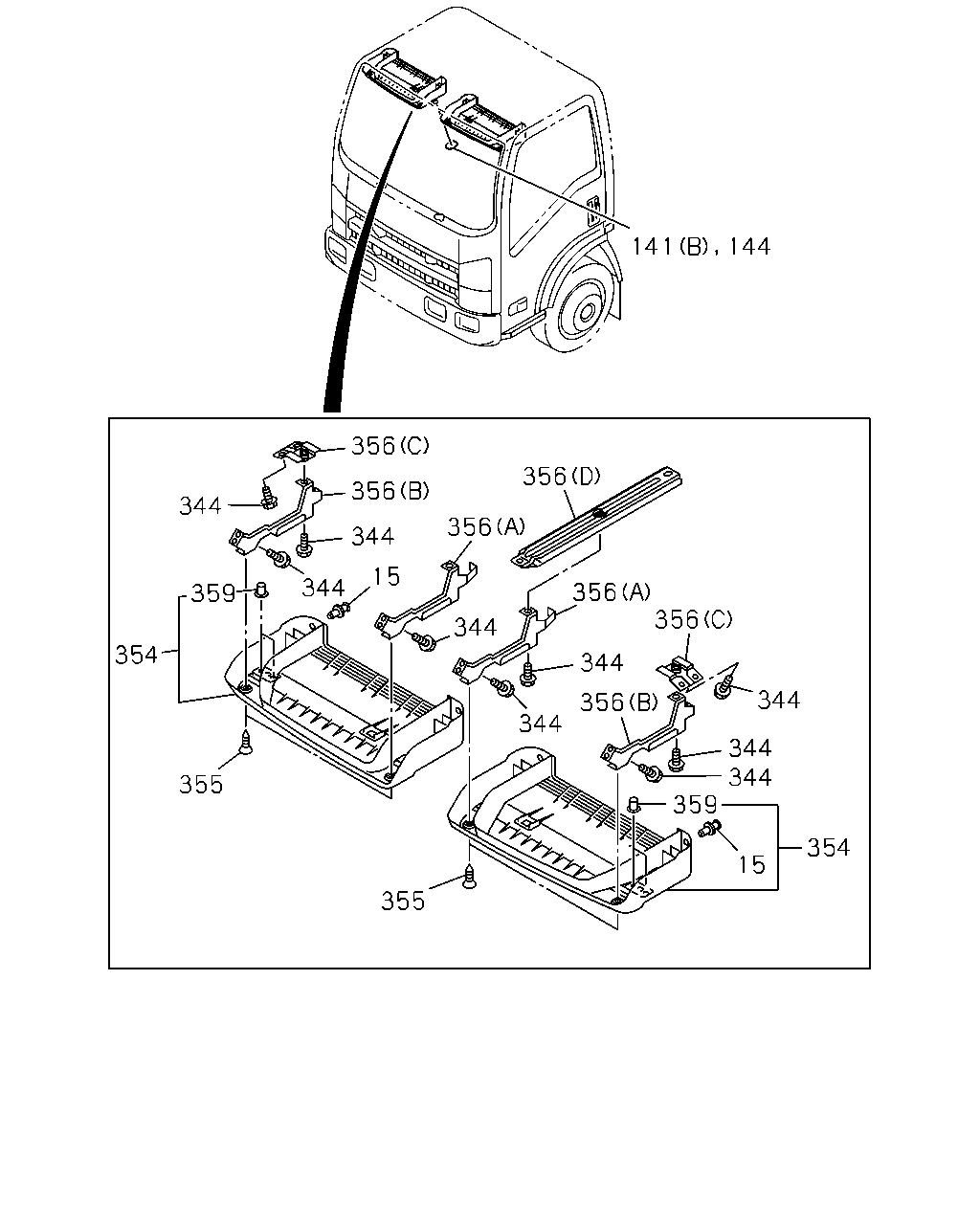

çizim 159096
141 144 356 356 356 344 356 344 15 356 344 356 359 344 354 344 344 356 344 344 344 355 359 354 15 355
BalonParca AdiParca NoAdetTipApplied Date A B C D E
15 16.742 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-299-0 02 1 0905-0906 ● ● ● ●
15 16.742 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-299-0 02 1 0905-0906 ● ● ● ●
15 16.742 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-299-0 02 1 0907- ● ● ● ● ●
15 16.742 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-299-0 02 1 0907- ● ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0905-0906 ● ● ● ●
141 16.070 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0905-0906 ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0905-0906 ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0907- ● ● ● ● ●
141 16.070 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0907- ● ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0907- ● ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 0905-0906 ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 0907- ● ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 0905-0906 ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 0907- ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLORAL GRAY(517),BODY COLOR PURPLISH BLUE (668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARD INAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWA Y ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998) ,BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1504- ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLORAL GRAY(517),BODY COLOR PURPLISH BLUE (668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARD INAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWA Y ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998) ,BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1504- ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLORARC WHITE(729) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1504- ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLORARC WHITE(729) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1504- ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 0905-0906 ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 0905-0906 ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 0905-0906 ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 0907-1007 ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 0907-1007 ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 0907-1007 ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLORARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1008-1503 ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLORARC WHITE(729) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1008-1503 ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLORARC WHITE(729) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1008-1503 ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLORARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1504- ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLORQUICK SILVER MET(998),BODY COLOR TRAN S BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0905-0906 ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLORQUICK SILVER MET(998),BODY COLOR TRAN S BLUE(999) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0905-0906 ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLORQUICK SILVER MET(998),BODY COLOR TRAN S BLUE(999) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0905-0906 ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLORQUICK SILVER MET(998),BODY COLOR TRAN S BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0907-1007 ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLORQUICK SILVER MET(998),BODY COLOR TRAN S BLUE(999) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0907-1007 ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR MARINE BLUE(890),BODY COLORQUICK SILVER MET(998),BODY COLOR TRAN S BLUE(999) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0907-1007 ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLORAL GRAY(517),BODY COLOR PURPLISH BLUE (668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARD INAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWA Y ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998) ,BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1008-1503 ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLORAL GRAY(517),BODY COLOR PURPLISH BLUE (668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARD INAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWA Y ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998) ,BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1008-1503 ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLORAL GRAY(517),BODY COLOR PURPLISH BLUE (668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARD INAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWA Y ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998) ,BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1008-1503 ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLORAL GRAY(517),BODY COLOR PURPLISH BLUE (668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARD INAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWA Y ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998) ,BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1504- ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLORAL GRAY(517),BODY COLOR PURPLISH BLUE (668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARD INAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWA Y ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1504- ● ●
344 16.450 BOLT; BRKT,FRT
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 03.604 M6X12 FLANGE 		8-97108-669-0 08 1 0905-0906 ● ● ● ●
344 16.450 BOLT; BRKT,FRT
HEADER TRAY DRIVER & PASSENGER<8LY> 03.604 M6X12 FLANGE 		8-97108-669-0 08 1 0905-0906 ● ● ● ●
344 16.450 BOLT; BRKT,FRT
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 03.604 M6X12 FLANGE 		8-97108-669-0 08 1 0907- ● ● ● ● ●
344 16.450 BOLT; BRKT,FRT
HEADER TRAY DRIVER & PASSENGER<8LY> 03.604 M6X12 FLANGE 		8-97108-669-0 08 1 0907- ● ● ● ● ●
354 16.120 TRAY; HEADER ROOF
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-064-2 01 1 0905-0906 ● ● ● ●
354 16.120 TRAY; HEADER ROOF
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-064-2 01 1 0907- ● ● ● ● ●
354 16.120 TRAY; HEADER ROOF
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-065-2 01 1 0905-0906 ● ● ● ●
354 16.120 TRAY; HEADER ROOF
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-065-2 01 1 0907- ● ● ● ● ●
355 16.742 SCREW; TRAY
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0905-0906 ● ● ● ●
355 16.742 SCREW; TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0905-0906 ● ● ● ●
355 16.742 SCREW; TRAY
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0907- ● ● ● ● ●
355 16.742 SCREW; TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0907- ● ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (C) 		8-97386-874-1 01 1 0905-0906 ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (C) 		8-97386-874-1 01 1 0905-0906 ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (C) 		8-97386-874-1 01 1 0907- ● ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (C) 		8-97386-874-1 01 1 0907- ● ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) 		8-97585-576-4 01 1 0905-0906 ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (B) 		8-97585-576-4 01 1 0905-0906 ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) 		8-97585-576-4 01 1 0907- ● ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (B) 		8-97585-576-4 01 1 0907- ● ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (D) 		8-97585-577-1 01 1 0905-0906 ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (D) 		8-97585-577-1 01 1 0905-0906 ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (D) 		8-97585-577-1 01 1 0907- ● ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (D) 		8-97585-577-1 01 1 0907- ● ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) 		8-98036-022-4 01 1 0905-0906 ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) 		8-98036-022-4 01 1 0907- ● ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (A) 		8-98036-023-4 01 1 0905-0906 ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (A) 		8-98036-023-4 01 1 0907- ● ● ● ● ●
359 16.070 HOLDER; HEADER TRAY
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 		8-98041-754-0 02 1 0905-0906 ● ● ● ●
359 16.070 HOLDER; HEADER TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 		8-98041-754-0 02 1 0905-0906 ● ● ● ●
359 16.070 HOLDER; HEADER TRAY
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 		8-98041-754-0 02 1 0907- ● ● ● ● ●
359 16.070 HOLDER; HEADER TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 		8-98041-754-0 02 1 0907- ● ● ● ● ●

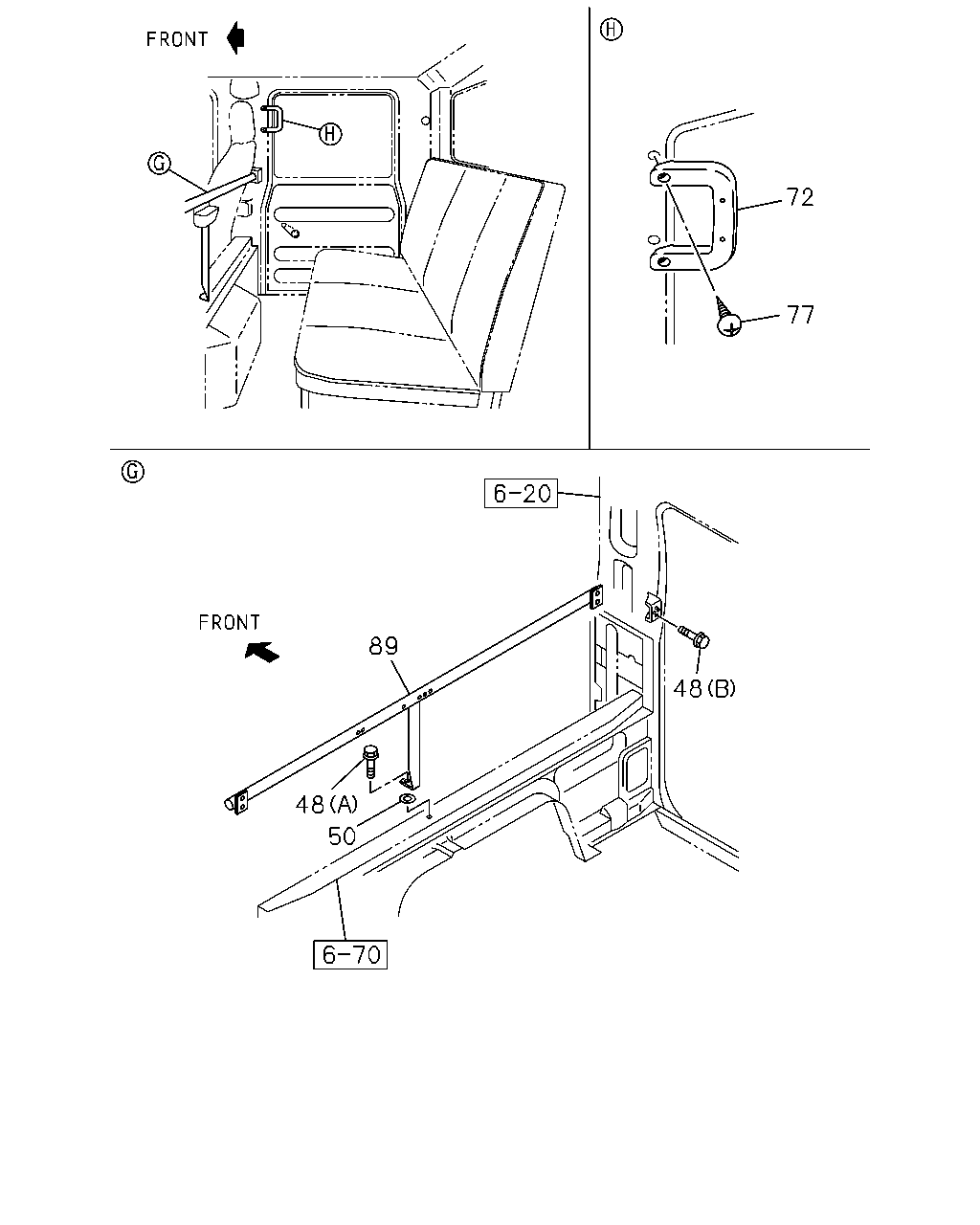

çizim 159099
72 77 89 48 48 50
BalonParca AdiParca NoAdetTipApplied Date A B C D E
48 16.450 BOLT; ASSIST GRIP
03.671 (B) M6X10 FLANGE 		0-28050-610-0 04 1 0905- ● ●
48 16.450 BOLT; ASSIST GRIP
03.162 (A) M6X20 FLANGE 		0-28650-620-0 01 1 0905- ● ●
50 16.450 WASHER; PL,ASSIST GRIP
03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 0905- ● ●
72 16.450 GRIP; ASSIST,CAB ENTRY,BACK
DARK GRAY 		8-97418-752-0 02 1 1104- ●
72 16.450 GRIP; ASSIST,CAB ENTRY,BACK
DARK GRAY 		8-97405-249-2 02 1 0905-1103 ● ●
72 16.450 GRIP; ASSIST,CAB ENTRY,BACK
DARK GRAY 		8-97405-249-2 02 1 1104- ●
77 16.450 SCREW; ASSIST GRIP
M6X28 		8-98004-344-0 04 1 0905- ● ●
89 16.560 HANDLE; ASSIST 8-97583-743-3 01 1 0905- ● ●

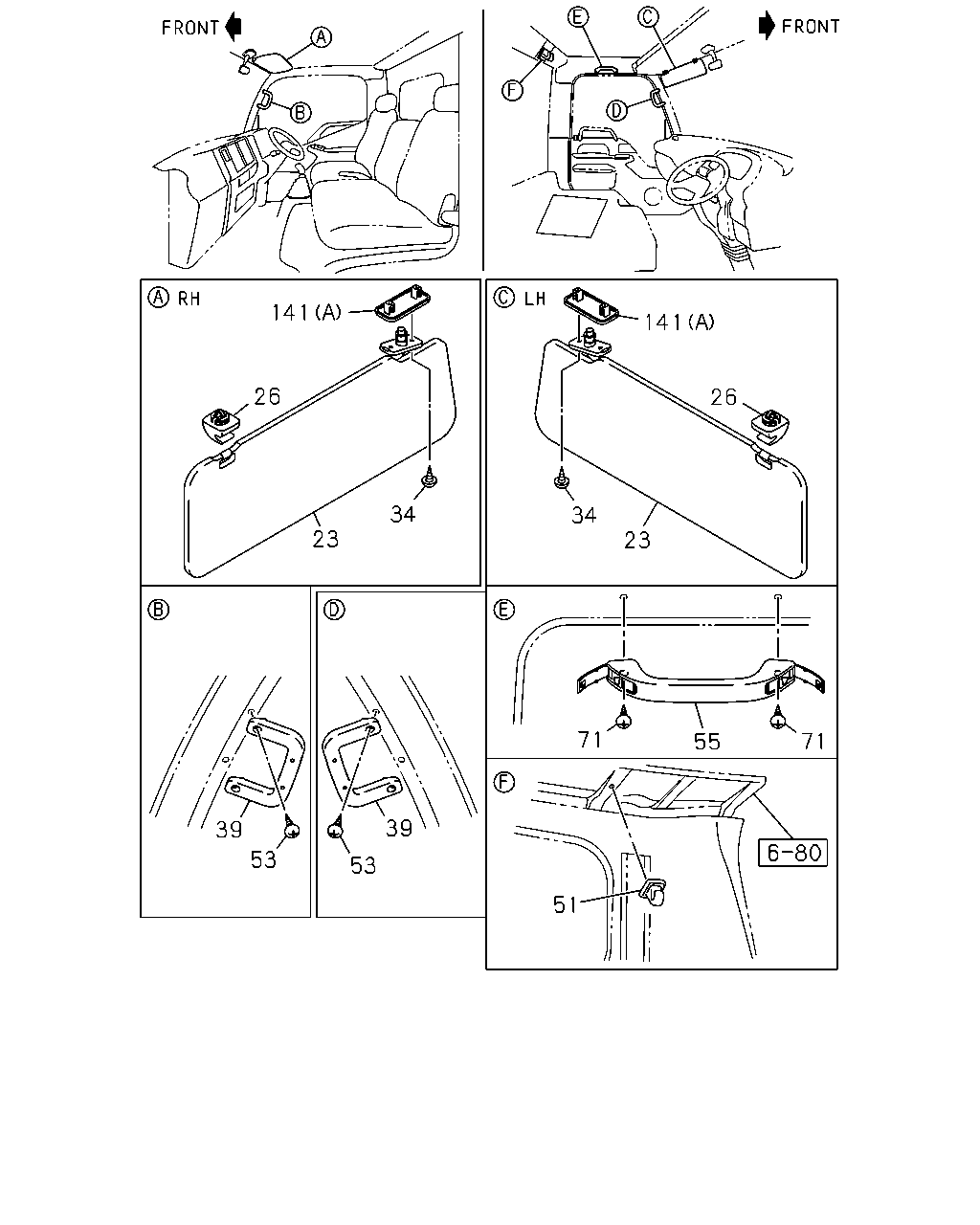

çizim 159106
141 141 26 26 34 34 23 23 71 71 55 39 39 53 53 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-170-3 01 1 0905-0906 ● ● ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-170-3 01 1 0907- ● ● ● ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-169-1 01 1 0905-0906 ● ● ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-169-1 01 1 0907- ● ● ● ● ●
23 16.070 SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97413-097-1 01 1 0905-0906 ● ● ● ●
23 16.070 SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97413-097-1 01 1 0907- ● ● ● ● ●
23 16.070 SUN VISOR
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97413-095-1 01 1 0905-0906 ● ● ● ●
23 16.070 SUN VISOR
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97413-095-1 01 1 0907- ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-171-0 01 1 0905-0906 ● ● ● ●
26 16.070 HOLDER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-171-0 01 1 0907- ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-171-0 01 1 0905-0906 ● ● ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-171-0 01 1 0907- ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-200-0 01 1 0905-0906 ● ● ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-200-0 01 1 0907- ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-200-0 01 1 0905-0906 ● ● ● ●
26 16.070 HOLDER; SUN VISOR
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-200-0 01 1 0907- ● ● ● ● ●
34 16.070 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> M6X26 		8-98033-674-0 02 1 0905-0906 ● ● ● ●
34 16.070 SCREW; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> M6X26 		8-98033-674-0 02 1 0905-0906 ● ● ● ●
34 16.070 SCREW; SUN VISOR
M6X26 		8-98033-674-0 02 1 0905-0906 ● ● ● ●
34 16.070 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> M6X26 		8-98033-674-0 02 1 0907- ● ● ● ● ●
34 16.070 SCREW; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> M6X26 		8-98033-674-0 02 1 0907- ● ● ● ● ●
34 16.070 SCREW; SUN VISOR
M6X26 		8-98033-674-0 02 1 0907- ● ● ● ● ●
39 16.450 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97418-752-0 02 1 1104- ● ●
39 16.450 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97405-249-2 02 1 0905-0906 ● ● ● ●
39 16.450 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97405-249-2 02 1 0907-1103 ● ● ● ● ●
39 16.450 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97405-249-2 02 1 1104- ● ● ●
51 16.570 HOOK; COAT HANGER
COAT HOOK<S9M> 16.070 DARK GRAY 		8-97406-200-0 01 1 0905-0906 ● ●
51 16.570 HOOK; COAT HANGER
COAT HOOK<S9M> 16.070 DARK GRAY 		8-97406-200-0 01 1 0907- ● ● ●
53 16.450 SCREW; ASSIST HANDLE
M6X28 		8-98004-344-0 04 1 0905-0906 ● ● ● ●
53 16.450 SCREW; ASSIST HANDLE
M6X28 		8-98004-344-0 04 1 0907- ● ● ● ● ●
55 16.450 GRIP; ASSIST,CAB SIDE UPR
ASSIST GRIP PASSENGER<EG5> DARK GRAY 		8-97405-285-2 01 1 0905-0906 ● ● ● ●
55 16.450 GRIP; ASSIST,CAB SIDE UPR
ASSIST GRIP PASSENGER<EG5> DARK GRAY 		8-97405-285-2 01 1 0907- ● ● ● ● ●
71 16.450 SCREW
ASSIST GRIP PASSENGER<EG5> M6X28 		8-98004-344-0 02 1 0905-0906 ● ● ● ●
71 16.450 SCREW
ASSIST GRIP PASSENGER<EG5> M6X28 		8-98004-344-0 02 1 0907- ● ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0905-0906 ● ● ● ●
141 16.070 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0905-0906 ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0905-0906 ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0907- ● ● ● ● ●
141 16.070 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0907- ● ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 0907- ● ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 0905-0906 ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 0907- ● ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 0905-0906 ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 0907- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
