◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51239 - NN/NP/NQR-RHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#50122) — 108 parça
çizim 159074
1 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. ISUZU BRAND<7WL> 		8-98146-009-0 01 1 0909-1203 ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. ISUZU BRAND<7WL> 		8-98201-230-0 01 1 1204-1408 ●
1 02.188 CYLINDER SET; CAR LOCK
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) FUEL TANK CAP W/LOCK<N05> EXC. ISUZU BRAND<7WL> 		8-98201-230-0 01 1 1409-1510 ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> EXC. ISUZU BRAND<7WL> 		8-98201-230-0 01 1 1511- ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>,ISUZU BRAND<7WL> 		8-98031-807-1 01 1 0909-1203 ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>,ISUZU BRAND<7WL> 		8-98201-158-0 01 1 1204-1408 ●
1 02.188 CYLINDER SET; CAR LOCK
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. FUEL TANK CAP W/LOCK<N05>,ISUZU BRAND<7WL> 		8-98201-158-0 01 1 1409-1510 ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>,ISUZU BRAND<7WL> 		8-98201-158-0 01 1 1511- ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> 		8-98088-954-0 01 1 0905-0906 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> 		8-98145-979-0 01 1 0907-0908 ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> 		8-98145-979-0 01 1 0909-1203 ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> 		8-98145-979-0 01 1 0909-1203 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> 		8-98201-216-0 01 1 1204-1408 ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> 		8-98201-216-0 01 1 1204-1408 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> 		8-98201-216-0 01 1 1409-1510 ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> 		8-98201-216-0 01 1 1409-1510 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> 		8-98201-216-0 01 1 1511- ●
1 02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> 		8-98201-216-0 01 1 1511- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-98056-003-0 01 1 0905-0906 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-98056-003-0 01 1 0907-0908 ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98056-003-0 01 1 0909-1203 ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-98056-003-0 01 1 0909-1203 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98201-161-0 01 1 1204-1408 ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-98201-161-0 01 1 1204-1408 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98201-161-0 01 1 1409-1510 ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-98201-161-0 01 1 1409-1510 ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
ISUZU BRAND<7WL> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98201-161-0 01 1 1511- ●
1 02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-98201-161-0 01 1 1511- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0905-0906 ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0907-1408 ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98055-181-0 01 1 1409-1510 ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1409-1510 ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1511- ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0905-0906 ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0907-1408 ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98055-182-0 01 1 1409-1510 ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1409-1510 ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1511- ● ● ● ● ●

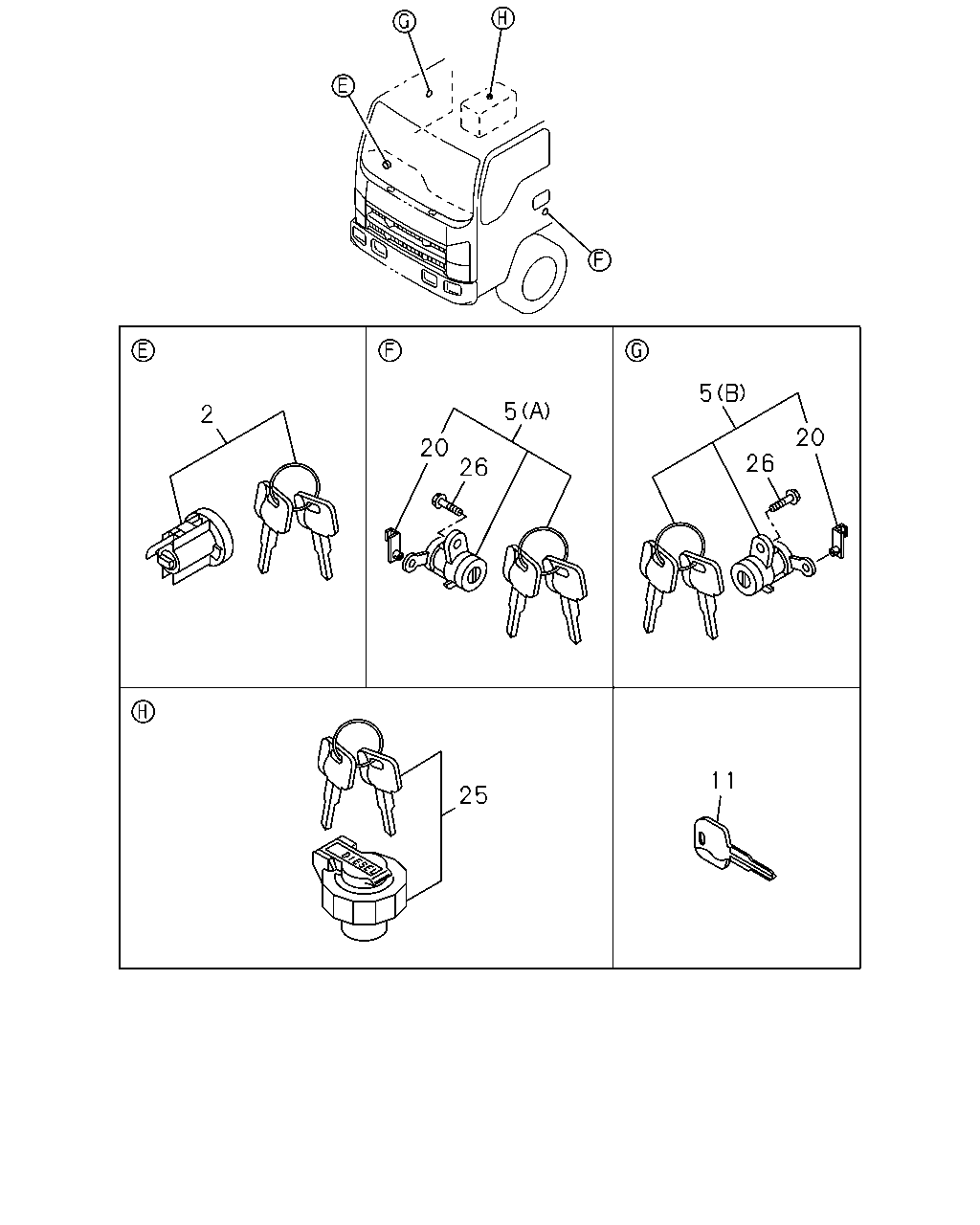

çizim 159093
5 5 2 20 20 26 26 11 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 02.188 BARREL ASM; W/KEY,STRG LOCK
EXC. ISUZU BRAND<7WL> 		8-98055-160-0 01 1 0909-1203 ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
EXC. ISUZU BRAND<7WL> 		8-98201-352-0 01 1 1204-1408 ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. ISUZU BRAND<7WL> 		8-98201-352-0 01 1 1409-1510 ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
EXC. ISUZU BRAND<7WL> 		8-98201-352-0 01 1 1511- ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98055-148-0 01 1 0905-0906 ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98055-148-0 01 1 0907-0908 ● ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> 		8-98055-148-0 01 1 0909-1203 ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98055-148-0 01 1 0909-1203 ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> 		8-98201-342-0 01 1 1204-1408 ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98201-342-0 01 1 1204-1408 ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ISUZU BRAND<7WL> 		8-98201-342-0 01 1 1409-1510 ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98201-342-0 01 1 1409-1510 ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
ISUZU BRAND<7WL> 		8-98201-342-0 01 1 1511- ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98201-342-0 01 1 1511- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. ISUZU BRAND<7WL> (B) 		8-98055-161-0 01 1 0909-1408 ●
5 16.328 CYLINDER ASM; DOOR LOCK
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. ISUZU BRAND<7WL> (B) 		8-98055-161-0 01 1 1409-1510 ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. ISUZU BRAND<7WL> (B) 		8-98055-161-0 01 1 1511- ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. ISUZU BRAND<7WL> (A) 		8-98055-162-0 01 1 0909-1408 ●
5 16.328 CYLINDER ASM; DOOR LOCK
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. ISUZU BRAND<7WL> (A) 		8-98055-162-0 01 1 1409-1510 ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. ISUZU BRAND<7WL> (A) 		8-98055-162-0 01 1 1511- ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 0905-0906 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 0907-0908 ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> (B) 		8-98055-149-0 01 1 0909-1408 ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 0909-1408 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ISUZU BRAND<7WL> (B) 		8-98055-149-0 01 1 1409-1510 ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 1409-1510 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> (B) 		8-98055-149-0 01 1 1511- ●
5 16.328 CYLINDER ASM; DOOR LOCK
(B) 		8-98055-149-0 01 1 1511- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 0905-0906 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 0907-0908 ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> (A) 		8-98055-150-0 01 1 0909-1408 ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 0909-1408 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ISUZU BRAND<7WL> (A) 		8-98055-150-0 01 1 1409-1510 ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 1409-1510 ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
ISUZU BRAND<7WL> (A) 		8-98055-150-0 01 1 1511- ●
5 16.328 CYLINDER ASM; DOOR LOCK
(A) 		8-98055-150-0 01 1 1511- ● ● ● ●
11 02.187 KEY; BLANK
EXC. ISUZU BRAND<7WL> 		8-98055-171-0 AR 1 0909-1408 ●
11 02.187 KEY; BLANK
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) EXC. ISUZU BRAND<7WL> 		8-98055-171-0 AR 1 1409-1510 ●
11 02.187 KEY; BLANK
EXC. ISUZU BRAND<7WL> 		8-98055-171-0 AR 1 1511- ●
11 02.187 KEY; BLANK 8-98055-170-0 AR 1 0905-0906 ● ● ● ●
11 02.187 KEY; BLANK 8-98055-170-0 AR 1 0907-0908 ● ● ● ● ●
11 02.187 KEY; BLANK
ISUZU BRAND<7WL> 		8-98055-170-0 AR 1 0909-1408 ●
11 02.187 KEY; BLANK 8-98055-170-0 AR 1 0909-1408 ● ● ● ●
11 02.187 KEY; BLANK
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) ISUZU BRAND<7WL> 		8-98055-170-0 AR 1 1409-1510 ●
11 02.187 KEY; BLANK 8-98055-170-0 AR 1 1409-1510 ● ● ● ●
11 02.187 KEY; BLANK
ISUZU BRAND<7WL> 		8-98055-170-0 AR 1 1511- ●
11 02.187 KEY; BLANK 8-98055-170-0 AR 1 1511- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0905-0906 ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 0907-1408 ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98055-181-0 01 1 1409-1510 ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1409-1510 ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1511- ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0905-0906 ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 0907-1408 ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) 		8-98055-182-0 01 1 1409-1510 ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1409-1510 ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1511- ● ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> EXC. ISUZU BRAND<7WL> 		8-98146-014-0 01 1 0909-1408 ●
25 03.028 CAP; FUEL TANK,W/KEY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) FUEL TANK CAP W/LOCK<N05> EXC. ISUZU BRAND<7WL> 		8-98146-014-0 01 1 1409-1510 ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> EXC. ISUZU BRAND<7WL> 		8-98146-014-0 01 1 1511- ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> 		8-98088-982-0 01 1 0905-0906 ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> 		8-98146-010-0 01 1 0907-0908 ● ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> 		8-98146-010-0 01 1 0909-1408 ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> 		8-98146-010-0 01 1 0909-1408 ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
HONG KONG EQUIPMENT(B14),SINGAPORE EQUIPMENT(2G0) FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> 		8-98146-010-0 01 1 1409-1510 ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> 		8-98146-010-0 01 1 1409-1510 ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> ISUZU BRAND<7WL> 		8-98146-010-0 01 1 1511- ●
25 03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> 		8-98146-010-0 01 1 1511- ● ● ● ●
26 16.328 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 0905-0906 ● ● ● ●
26 16.328 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 0907- ● ● ● ● ●
