◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51239 - NN/NP/NQR-RHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#50121) — 77 parça
çizim 159087
2 1 64
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.068 MIRROR; ROOM
WINDOW RR<8LF> DARK GRAY 		8-98097-534-1 01 1 0905-0906 ● ●
1 16.068 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 0905-0906 ● ●
1 16.068 MIRROR; ROOM
WINDOW RR<8LF> DARK GRAY 		8-98097-534-1 01 1 0907- ● ● ●
1 16.068 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 0907- ● ●
2 16.069 SCREW; MIRROR TO BODY
WINDOW RR<8LF> 16.070 M6X26 		8-98033-674-0 02 1 0905-0906 ● ●
2 16.069 SCREW; MIRROR TO BODY
16.070 M6X26 		8-98033-674-0 02 1 0905-0906 ● ●
2 16.069 SCREW; MIRROR TO BODY
WINDOW RR<8LF> 16.070 M6X26 		8-98033-674-0 02 1 0907- ● ● ●
2 16.069 SCREW; MIRROR TO BODY
16.070 M6X26 		8-98033-674-0 02 1 0907- ● ●
64 16.069 SEAL; MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDOW RR<8LF> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0905-0906 ● ●
64 16.069 SEAL; MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDOW RR<8LF> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0907-1007 ● ● ●
64 16.069 SEAL; MIRROR
BODY COLOR POLAR WHITE(534),BODY COLORARC WHITE(729) EXC. WINDOW RR<8LF> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 1008- ● ● ●
64 16.069 SEAL; MIRROR
BODY COLOR MARINE BLUE(890),BODY COLORQUICK SILVER MET(998),BODY COLOR TRAN S BLUE(999) EXC. WINDOW RR<8LF> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0905-0906 ● ●
64 16.069 SEAL; MIRROR
BODY COLOR MARINE BLUE(890),BODY COLORQUICK SILVER MET(998),BODY COLOR TRAN S BLUE(999) EXC. WINDOW RR<8LF> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0907-1007 ● ● ●
64 16.069 SEAL; MIRROR
BODY COLOR EBONY BLACK(508),BODY COLORAL GRAY(517),BODY COLOR PURPLISH BLUE (668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARD INAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWA Y ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998) ,BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1008- ● ● ●

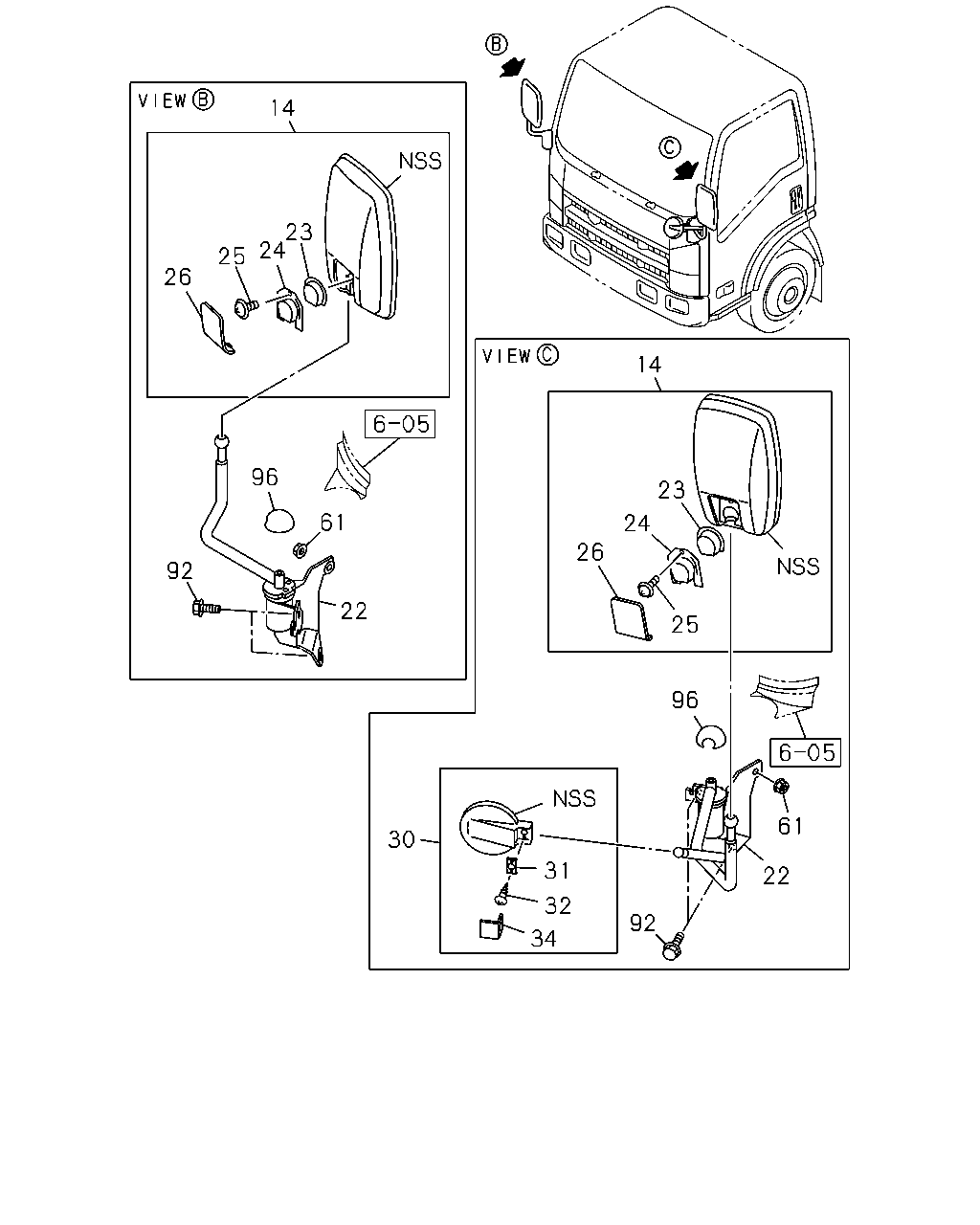

çizim 159090
14 23 24 25 26 14 96 23 61 24 26 92 22 25 96 61 30 31 22 32 92 34
BalonParca AdiParca NoAdetTipApplied Date A B C D E
14 16.068 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 0905-0906 ● ● ● ●
14 16.068 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 0905-0906 ● ● ● ●
14 16.068 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 0907- ● ● ● ● ●
14 16.068 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 0907- ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-98147-079-0 01 1 0906- ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-98147-082-0 01 1 0906- ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> EXC. UNDER MIRROR<RR9> 		8-98147-080-0 01 1 0906- ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> 		8-98027-519-0 01 1 0905-0905 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-98027-519-0 01 1 0906-0906 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-98027-519-0 01 1 0907- ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> 		8-98027-519-0 01 1 0907- ●
22 16.069 STAY; OUTSIDE MIRROR 8-98038-224-1 01 1 0905-0905 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-98038-224-1 01 1 0906-0906 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-98038-224-1 01 1 0907- ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR 8-98038-224-1 01 1 0907- ●
22 16.069 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> 		8-98070-509-0 01 1 0905-0905 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> 		8-98070-509-0 01 1 0906-0906 ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> 		8-98070-509-0 01 1 0907- ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> 		8-98070-509-0 01 1 0907- ●
23 16.069 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 0905-0906 ● ● ● ●
23 16.069 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 0905-0906 ● ● ● ●
23 16.069 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 0907- ● ● ● ● ●
23 16.069 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 0907- ● ● ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 0905-0906 ● ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 0905-0906 ● ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 0907- ● ● ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 0907- ● ● ● ● ●
25 16.069 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 0905-0906 ● ● ● ●
25 16.069 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 0905-0906 ● ● ● ●
25 16.069 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 0907- ● ● ● ● ●
25 16.069 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 0907- ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
T=2.3 		8-94262-547-2 01 1 0905-0906 ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
T=2.3 		8-94262-547-2 01 1 0905-0906 ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
T=2.3 		8-94262-547-2 01 1 0907- ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
T=2.3 		8-94262-547-2 01 1 0907- ● ● ● ● ●
30 16.068 MIRROR; UNDER
UNDER MIRROR<RR9> 		8-94262-625-2 01 1 0905-0905 ● ● ● ●
30 16.068 MIRROR; UNDER
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-625-2 01 1 0906-0906 ● ● ● ●
30 16.068 MIRROR; UNDER
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-625-2 01 1 0907- ● ● ● ●
30 16.068 MIRROR; UNDER
UNDER MIRROR<RR9> 		8-94262-625-2 01 1 0907- ●
31 16.069 PLATE; MIRROR
UNDER MIRROR<RR9> 		8-94262-631-0 01 1 0905-0905 ● ● ● ●
31 16.069 PLATE; MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-631-0 01 1 0906-0906 ● ● ● ●
31 16.069 PLATE; MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-631-0 01 1 0907- ● ● ● ●
31 16.069 PLATE; MIRROR
UNDER MIRROR<RR9> 		8-94262-631-0 01 1 0907- ●
32 16.069 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> M5X18 		8-94279-372-0 02 1 0905-0905 ● ● ● ●
32 16.069 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> M5X18 		8-94279-372-0 02 1 0906-0906 ● ● ● ●
32 16.069 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> M5X18 		8-94279-372-0 02 1 0907- ● ● ● ●
32 16.069 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> M5X18 		8-94279-372-0 02 1 0907- ●
34 16.069 CAP; MIRROR
UNDER MIRROR<RR9> 		8-94262-629-0 01 1 0905-0905 ● ● ● ●
34 16.069 CAP; MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-629-0 01 1 0906-0906 ● ● ● ●
34 16.069 CAP; MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-94262-629-0 01 1 0907- ● ● ● ●
34 16.069 CAP; MIRROR
UNDER MIRROR<RR9> 		8-94262-629-0 01 1 0907- ●
61 16.069 NUT; STAY,OUTSIDE MIRROR
01.062 M8 FLANGE 		0-91180-108-0 02 1 0905-0905 ● ● ● ●
61 16.069 NUT; STAY,OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0906-0906 ● ● ● ●
61 16.069 NUT; STAY,OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ● ● ● ●
61 16.069 NUT; STAY,OUTSIDE MIRROR
01.062 M8 FLANGE 		0-91180-108-0 02 1 0907- ●
92 16.069 BOLT; STAY BRKT,MIRROR
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0905-0905 ● ● ● ●
92 16.069 BOLT; STAY BRKT,MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0906-0906 ● ● ● ●
92 16.069 BOLT; STAY BRKT,MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0907- ● ● ● ●
92 16.069 BOLT; STAY BRKT,MIRROR
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0907- ●
96 16.069 CAP; MIRROR STAY 8-98027-552-2 02 1 0905-0905 ● ● ● ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-98027-552-2 02 1 0906-0906 ● ● ● ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,O/SIDE MIRROR ASSIST SIDE EXTEND LONG STAY<8EB> 		8-98027-552-2 02 1 0907- ● ● ● ●
96 16.069 CAP; MIRROR STAY 8-98027-552-2 02 1 0907- ●
