6-80 — BACK PANEL (#50115) — 126 parça

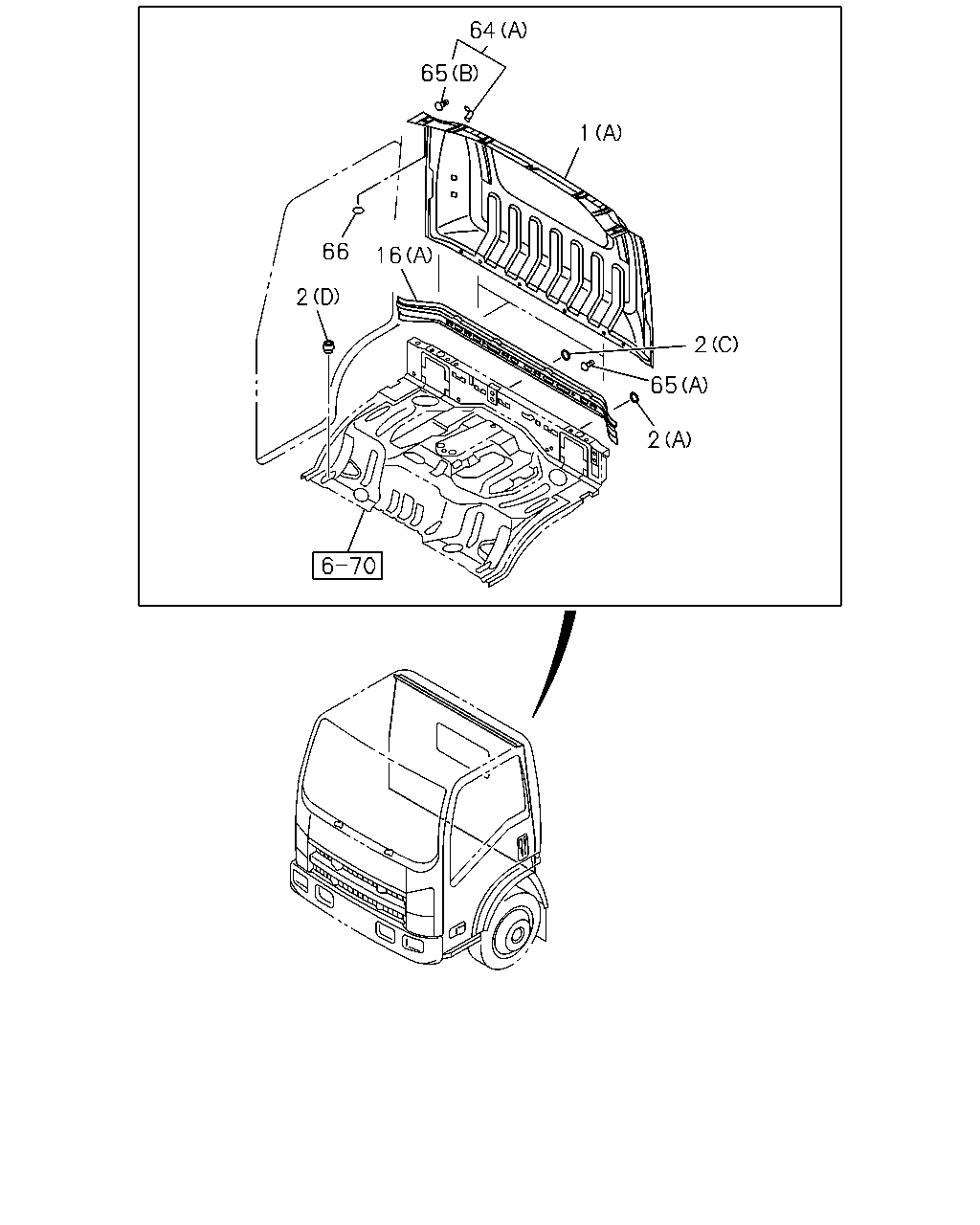

çizim 159076
64 65 1 66 16 2 2 65 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.587 PANEL; BACK OUTER
WINDOW RR<8LF> (A) 		8-97584-304-3 01 1 0905-0906 ● ●
1 16.587 PANEL; BACK OUTER
WINDOW RR<8LF> (A) 		8-97584-304-3 01 1 0907- ● ● ●
1 16.587 PANEL; BACK OUTER
EXC. WINDOW RR<8LF> (A) 		8-97584-311-4 01 1 0905-0906 ● ●
1 16.587 PANEL; BACK OUTER
EXC. WINDOW RR<8LF> (A) 		8-97584-311-4 01 1 0907- ● ● ●
1 16.587 PANEL; BACK OUTER
(B) 		8-97583-749-5 01 1 0905- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 10 1 0905-0906 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 10 1 0907- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 0905-0906 ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 0907- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0905-0906 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0907-1110 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1111- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0905-0906 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0907-1110 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1111- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 0905-0906 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 0907- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 0905- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 0905-0908 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=15.0 		8-94279-040-0 02 1 0909- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-608-2 01 1 0905-0906 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-608-2 01 1 0907- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97583-754-0 01 1 0905- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(C) 		8-98006-213-0 01 1 0905- ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 (A) 		8-97584-611-1 01 1 0905-0906 ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 (A) 		8-97584-611-1 01 1 0907- ● ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 0905- ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 0905- ● ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 0905-0906 ● ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 0907- ● ● ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 04 1 0905-0906 ● ● ● ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 04 1 0907-1001 ● ● ● ● ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 04 1 1002- ● ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 02 1 0905- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0905-0906 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0905-0906 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0907-1007 ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0907-1007 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLORARC WHITE(729) COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1008-1008 ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1008-1008 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLORARC WHITE(729) COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1009- ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLORARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1009- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 05 1 0905-0906 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 05 1 0907-1007 ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLORARC WHITE(729) EXC. COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 05 1 1008- ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLORQUICK SILVER MET(998),BODY COLOR TRAN S BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0905-0906 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLORTRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0905-0906 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLORQUICK SILVER MET(998),BODY COLOR TRAN S BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0907-1007 ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLORTRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0907-1007 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLORAL GRAY(517),BODY COLOR PURPLISH BLUE (668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARD INAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWA Y ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998) ,BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1008-1008 ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLORTRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1008-1008 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLORAL GRAY(517),BODY COLOR PURPLISH BLUE (668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARD INAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWA Y ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998) ,BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1009- ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLORAL GRAY(517),BODY COLOR PURPLISH BLUE (668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARD INAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWA Y ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1009- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLORQUICK SILVER MET(998),BODY COLOR TRAN S BLUE(999) EXC. COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 0905-0906 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLORQUICK SILVER MET(998),BODY COLOR TRAN S BLUE(999) EXC. COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 0907-1007 ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLORAL GRAY(517),BODY COLOR PURPLISH BLUE (668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARD INAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWA Y ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998) ,BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 1008- ● ● ●

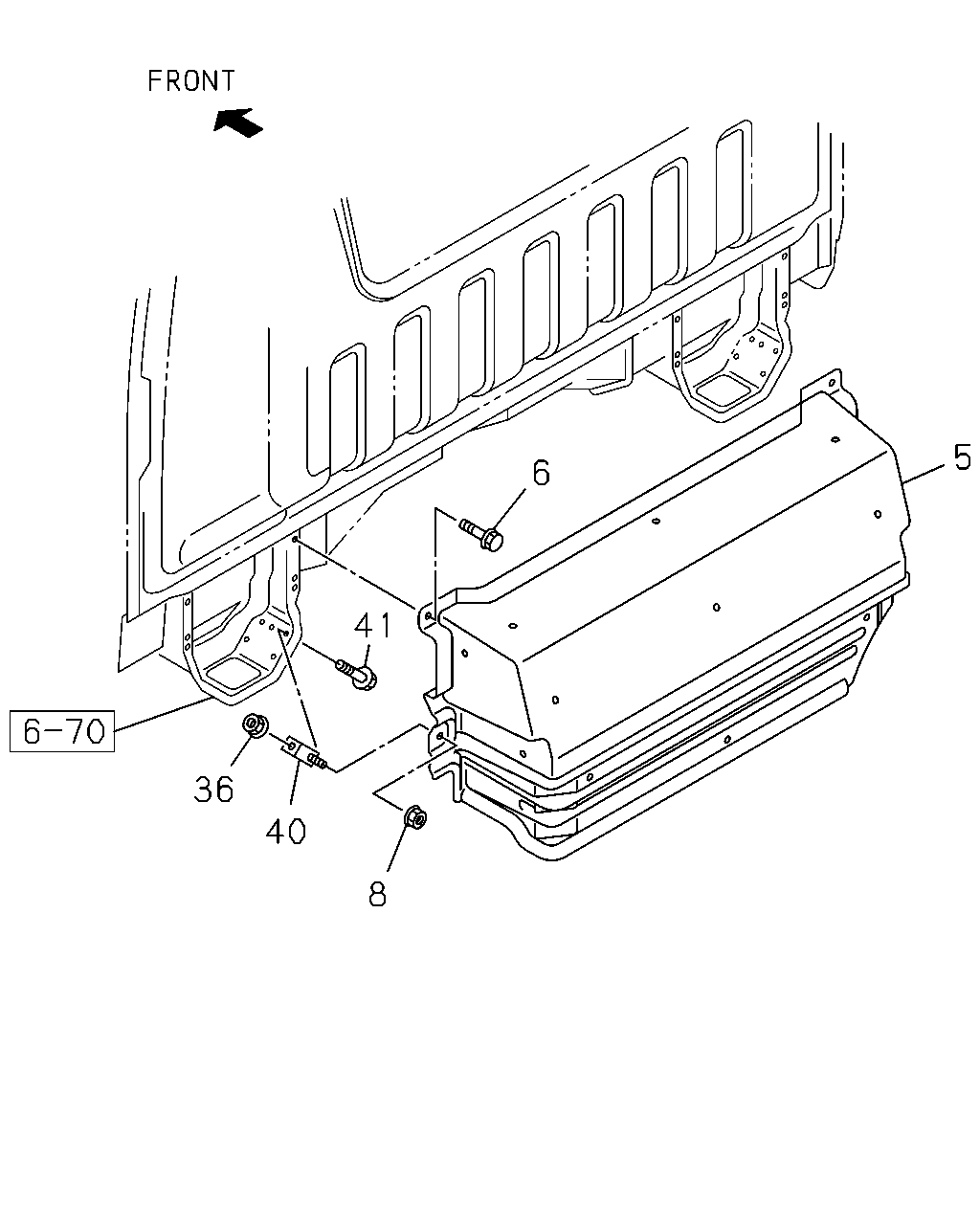

çizim 159079
5 6 41 36 40 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E
5 16.587 PANEL; CAB BACK
4HK1-TCN ENG(RDQ) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98011-595-0 01 1 0907-1406 ●
5 16.587 PANEL; CAB BACK
4HK1-TCN ENG(RDQ) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HONG KONG EQUIPMENT(B14) 		8-98011-595-0 01 1 1407- ●
6 16.587 BOLT; BACK PANEL
4HK1-TCN ENG(RDQ) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) 08.155 M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 0907-1406 ●
6 16.587 BOLT; BACK PANEL
4HK1-TCN ENG(RDQ) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HONG KONG EQUIPMENT(B14) 08.155 M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 1407- ●
8 16.587 NUT; BACK PANEL
4HK1-TCN ENG(RDQ) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 0907-1406 ●
8 16.587 NUT; BACK PANEL
4HK1-TCN ENG(RDQ) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HONG KONG EQUIPMENT(B14) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1407- ●
36 16.587 NUT; BRKT
4HK1-TCN ENG(RDQ) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0907-1406 ●
36 16.587 NUT; BRKT
4HK1-TCN ENG(RDQ) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HONG KONG EQUIPMENT(B14) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1407- ●
40 16.587 BRACKET; BACK PANEL
4HK1-TCN ENG(RDQ) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97322-264-0 02 1 0907-1406 ●
40 16.587 BRACKET; BACK PANEL
4HK1-TCN ENG(RDQ) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HONG KONG EQUIPMENT(B14) 		8-97322-264-0 02 1 1407- ●
41 16.587 BOLT
4HK1-TCN ENG(RDQ) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(B14), TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0907-1406 ●
41 16.587 BOLT
4HK1-TCN ENG(RDQ) NOISE PACK FOR REGULATION VAR.2<7TF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HONG KONG EQUIPMENT(B14) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1407- ●

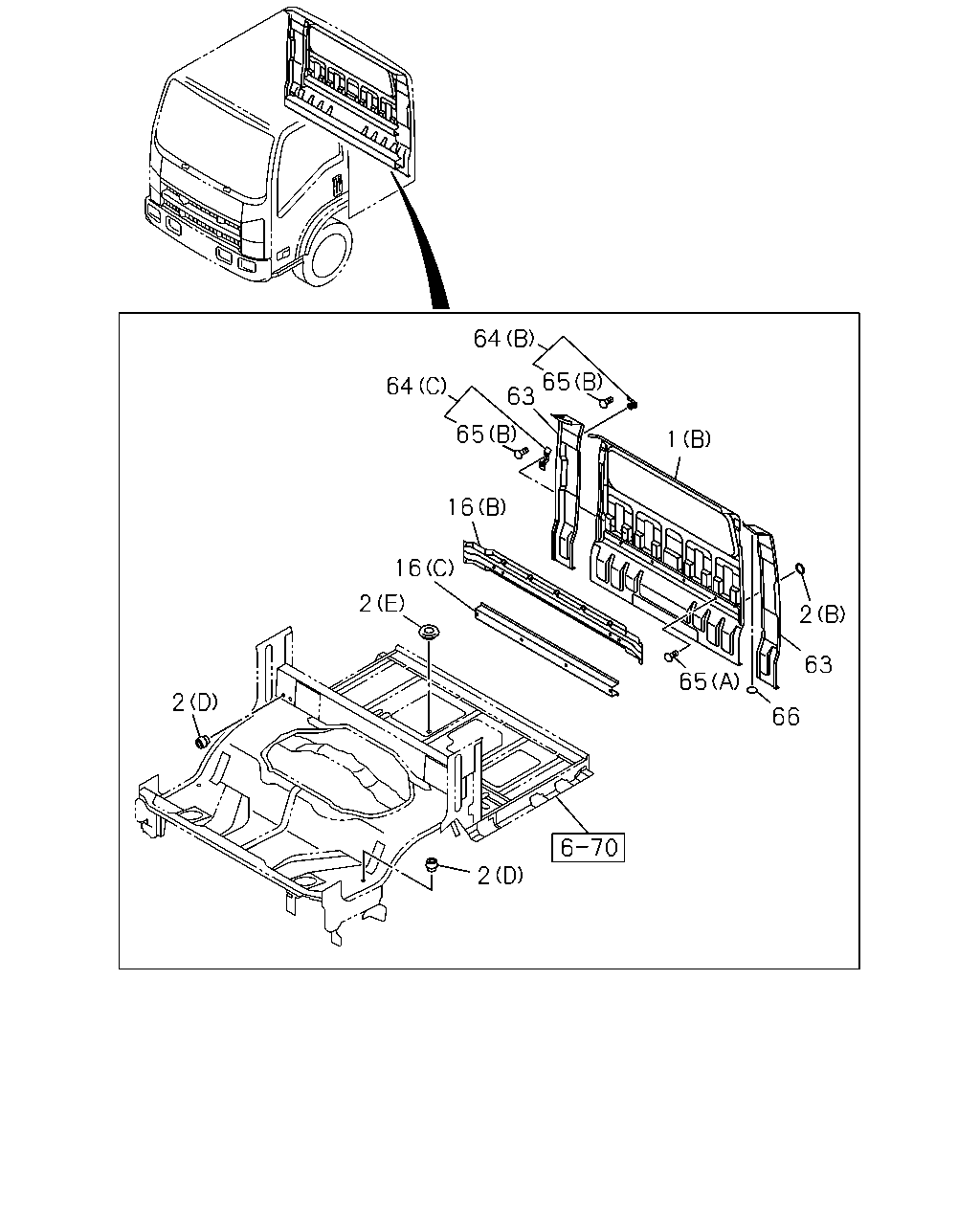

çizim 159158
64 65 63 64 65 1 16 16 2 2 63 65 2 66 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.587 PANEL; BACK OUTER
WINDOW RR<8LF> (A) 		8-97584-304-3 01 1 0905-0906 ● ●
1 16.587 PANEL; BACK OUTER
WINDOW RR<8LF> (A) 		8-97584-304-3 01 1 0907- ● ● ●
1 16.587 PANEL; BACK OUTER
EXC. WINDOW RR<8LF> (A) 		8-97584-311-4 01 1 0905-0906 ● ●
1 16.587 PANEL; BACK OUTER
EXC. WINDOW RR<8LF> (A) 		8-97584-311-4 01 1 0907- ● ● ●
1 16.587 PANEL; BACK OUTER
(B) 		8-97583-749-5 01 1 0905- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 10 1 0905-0906 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 10 1 0907- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 0905-0906 ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 0907- ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0905-0906 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0907-1110 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1111- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0905-0906 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0907-1110 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1111- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 0905-0906 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 0907- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 0905- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (B) OD=16.2 		8-94492-493-0 02 1 0905-0908 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=15.0 		8-94279-040-0 02 1 0909- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-608-2 01 1 0905-0906 ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-608-2 01 1 0907- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97583-754-0 01 1 0905- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(C) 		8-98006-213-0 01 1 0905- ● ●
63 16.575 PANEL; BACK,SIDE 8-97583-750-6 01 1 0905- ● ●
63 16.575 PANEL; BACK,SIDE 8-97583-751-5 01 1 0905- ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 (A) 		8-97584-611-1 01 1 0905-0906 ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 (A) 		8-97584-611-1 01 1 0907- ● ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 0905- ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 0905- ● ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 0905-0906 ● ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 0907- ● ● ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 04 1 0905-0906 ● ● ● ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 04 1 0907-1001 ● ● ● ● ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 04 1 1002- ● ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 02 1 0905- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0905-0906 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0905-0906 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0907-1007 ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0907-1007 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLORARC WHITE(729) COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1008-1008 ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1008-1008 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLORARC WHITE(729) COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1009- ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLORARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1009- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 05 1 0905-0906 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 05 1 0907-1007 ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLORARC WHITE(729) EXC. COAT HOOK<S9M> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 05 1 1008- ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLORQUICK SILVER MET(998),BODY COLOR TRAN S BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0905-0906 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLORTRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0905-0906 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLORQUICK SILVER MET(998),BODY COLOR TRAN S BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0907-1007 ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLORTRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0907-1007 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLORAL GRAY(517),BODY COLOR PURPLISH BLUE (668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARD INAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWA Y ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998) ,BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1008-1008 ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLORTRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1008-1008 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLORAL GRAY(517),BODY COLOR PURPLISH BLUE (668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARD INAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWA Y ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998) ,BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1009- ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLORAL GRAY(517),BODY COLOR PURPLISH BLUE (668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARD INAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWA Y ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1009- ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLORQUICK SILVER MET(998),BODY COLOR TRAN S BLUE(999) EXC. COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 0905-0906 ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLORQUICK SILVER MET(998),BODY COLOR TRAN S BLUE(999) EXC. COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 0907-1007 ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLORAL GRAY(517),BODY COLOR PURPLISH BLUE (668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARD INAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWA Y ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998) ,BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 05 1 1008- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
