◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51239 - NN/NP/NQR-RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#50112) — 109 parça

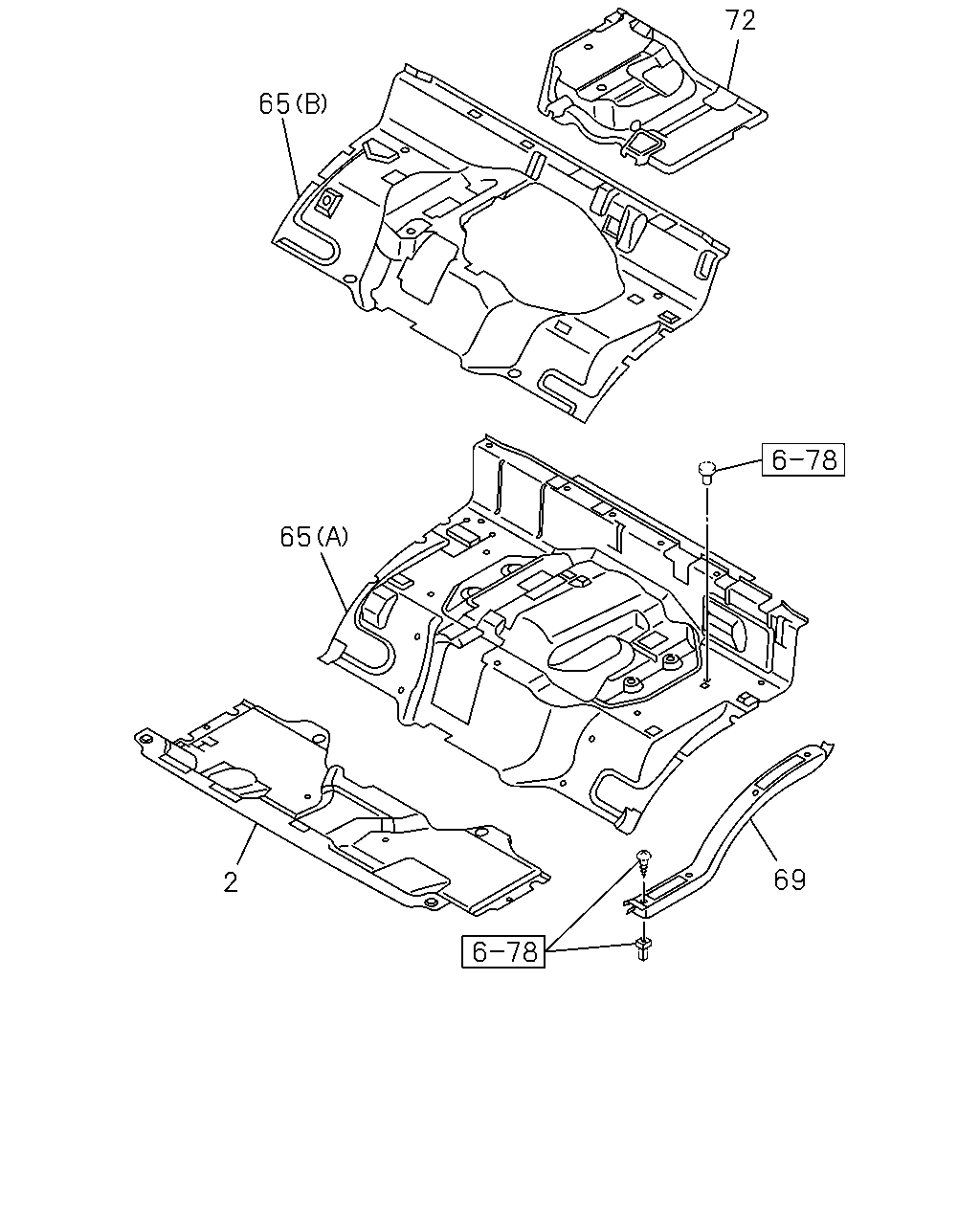

çizim 159073
72 65 65 69 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97419-307-1 01 1 1104- ● ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97419-306-1 01 1 1104- ● ●
2 16.800 MAT; FLOOR
HONG KONG EQUIPMENT(B14) G.V.W. 7.5-8.0TON(RPY) TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97419-307-0 01 1 1004-1004 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97419-307-0 01 1 1004-1004 ● ●
2 16.800 MAT; FLOOR
G.V.W. 7.5-8.0TON(RPY) TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97419-307-0 01 1 1004-1004 ●
2 16.800 MAT; FLOOR
HONG KONG EQUIPMENT(B14) G.V.W. 7.5-8.0TON(RPY) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97419-306-0 01 1 1004-1004 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97419-306-0 01 1 1004-1004 ● ●
2 16.800 MAT; FLOOR
G.V.W. 7.5-8.0TON(RPY) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97419-306-0 01 1 1004-1004 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97405-148-6 01 1 0905-0906 ● ● ● ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97405-148-6 01 1 0907-1003 ● ● ● ● ●
2 16.800 MAT; FLOOR
HONG KONG EQUIPMENT(B14) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97405-148-6 01 1 1004-1004 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HONG KONG EQUIPMENT(B14) GRAY 		8-97405-148-6 01 1 1004-1004 ●
2 16.800 MAT; FLOOR
G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97405-148-6 01 1 1004-1004 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97405-148-6 01 1 1004-1004 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97405-148-6 01 1 1004-1103 ● ● ● ● ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97405-148-6 01 1 1104- ● ● ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97405-147-6 01 1 0905-0906 ● ● ● ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97405-147-6 01 1 0907-1003 ● ● ● ● ●
2 16.800 MAT; FLOOR
HONG KONG EQUIPMENT(B14) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97405-147-6 01 1 1004-1004 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HONG KONG EQUIPMENT(B14) GRAY 		8-97405-147-6 01 1 1004-1004 ●
2 16.800 MAT; FLOOR
G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97405-147-6 01 1 1004-1004 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97405-147-6 01 1 1004-1004 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97405-147-6 01 1 1004-1103 ● ● ● ● ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97405-147-6 01 1 1104- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY 		8-97405-200-6 01 1 0905-0906 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY 		8-97405-200-6 01 1 0907-1303 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY 		8-97425-110-1 01 1 1304- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97405-198-6 01 1 0905-0906 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97405-198-6 01 1 0907-1303 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-119-1 01 1 1304- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
(C) GRAY 		8-97405-201-5 01 1 0905-1303 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
(C) GRAY 		8-97425-111-1 01 1 1304- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97418-676-0 01 1 1104- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97418-677-0 01 1 1104- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-388-1 01 1 0905-0906 ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-388-1 01 1 0907-1103 ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-388-1 01 1 1104- ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-389-1 01 1 0905-0906 ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-389-1 01 1 0907-1103 ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-389-1 01 1 1104- ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY 		8-97406-252-3 01 1 0905-0906 ● ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97406-252-3 01 1 0905-0906 ● ●
72 16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY 		8-97406-252-3 01 1 0907- ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97406-252-3 01 1 0907- ● ●

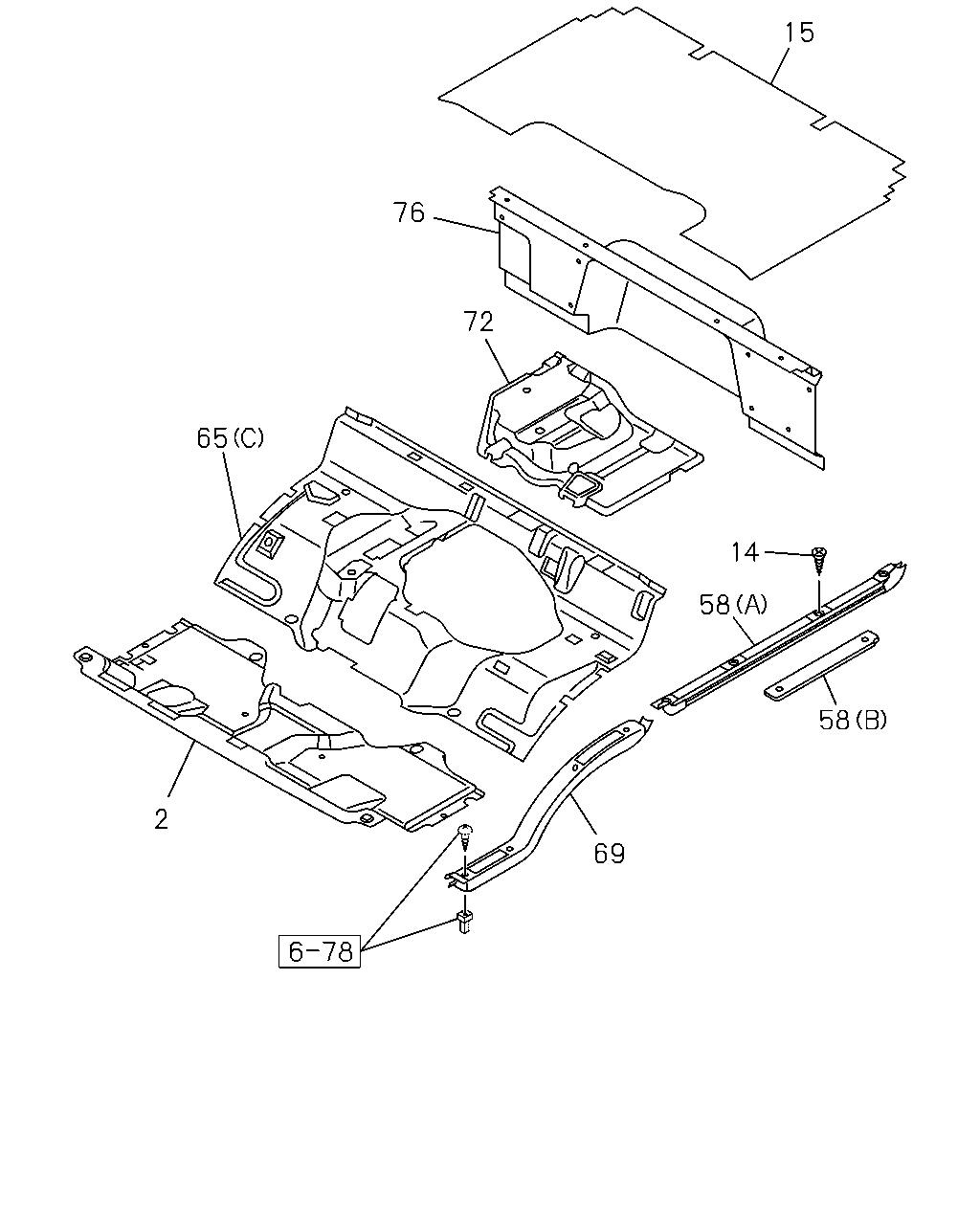

çizim 159082
15 76 72 65 14 58 58 2 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97419-307-1 01 1 1104- ● ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97419-306-1 01 1 1104- ● ●
2 16.800 MAT; FLOOR
HONG KONG EQUIPMENT(B14) G.V.W. 7.5-8.0TON(RPY) TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97419-307-0 01 1 1004-1004 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97419-307-0 01 1 1004-1004 ● ●
2 16.800 MAT; FLOOR
G.V.W. 7.5-8.0TON(RPY) TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97419-307-0 01 1 1004-1004 ●
2 16.800 MAT; FLOOR
HONG KONG EQUIPMENT(B14) G.V.W. 7.5-8.0TON(RPY) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97419-306-0 01 1 1004-1004 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97419-306-0 01 1 1004-1004 ● ●
2 16.800 MAT; FLOOR
G.V.W. 7.5-8.0TON(RPY) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97419-306-0 01 1 1004-1004 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97405-148-6 01 1 0905-0906 ● ● ● ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97405-148-6 01 1 0907-1003 ● ● ● ● ●
2 16.800 MAT; FLOOR
HONG KONG EQUIPMENT(B14) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97405-148-6 01 1 1004-1004 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. HONG KONG EQUIPMENT(B14) GRAY 		8-97405-148-6 01 1 1004-1004 ●
2 16.800 MAT; FLOOR
G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97405-148-6 01 1 1004-1004 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97405-148-6 01 1 1004-1004 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97405-148-6 01 1 1004-1103 ● ● ● ● ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97405-148-6 01 1 1104- ● ● ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97405-147-6 01 1 0905-0906 ● ● ● ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97405-147-6 01 1 0907-1003 ● ● ● ● ●
2 16.800 MAT; FLOOR
HONG KONG EQUIPMENT(B14) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97405-147-6 01 1 1004-1004 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HONG KONG EQUIPMENT(B14) GRAY 		8-97405-147-6 01 1 1004-1004 ●
2 16.800 MAT; FLOOR
G.V.W. 6.0-6.5TON(RPV) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97405-147-6 01 1 1004-1004 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97405-147-6 01 1 1004-1004 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97405-147-6 01 1 1004-1103 ● ● ● ● ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97405-147-6 01 1 1104- ● ● ●
14 16.870 SCREW; PLATE
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 04 1 1104- ●
14 16.870 SCREW; PLATE
G.V.W. 7.5-8.0TON(RPY) 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 12 1 1004-1004 ●
14 16.870 SCREW; PLATE
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 12 1 1004-1004 ●
14 16.870 SCREW; PLATE
G.V.W. 6.0-6.5TON(RPV) 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 08 1 1004-1004 ●
14 16.870 SCREW; PLATE
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 08 1 1004- ● ●
14 16.870 SCREW; PLATE
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 08 1 0905-0910 ● ●
15 16.800 MAT; FLOOR REAR
GRAY 		8-97418-996-0 01 1 1104- ●
15 16.800 MAT; FLOOR REAR
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97412-603-2 01 1 1012- ●
15 16.800 MAT; FLOOR REAR
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97412-601-2 01 1 1012- ●
15 16.800 MAT; FLOOR REAR
4HK1-TCN ENG(RDQ) GRAY 		8-97412-602-1 01 1 0905-1103 ●
15 16.800 MAT; FLOOR REAR
4HK1-TCS ENG(RJS) GRAY 		8-97412-602-1 01 1 0905-1103 ●
15 16.800 MAT; FLOOR REAR
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) GRAY 		8-97412-602-1 01 1 1104- ●
58 08.153 PLATE; GUARD,RR FLOOR MAT
(B) GRAY 		8-97418-675-0 02 1 1104- ●
58 08.153 PLATE; GUARD,RR FLOOR MAT
G.V.W. 7.5-8.0TON(RPY) (B) GRAY 		8-97418-675-0 02 1 1004-1004 ●
58 08.153 PLATE; GUARD,RR FLOOR MAT
(B) GRAY 		8-97418-675-0 02 1 1004-1004 ●
58 08.153 PLATE; GUARD,RR FLOOR MAT
(A) GRAY 		8-97405-981-1 02 1 0905- ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY 		8-97405-200-6 01 1 0905-0906 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY 		8-97405-200-6 01 1 0907-1303 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY 		8-97425-110-1 01 1 1304- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97405-198-6 01 1 0905-0906 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97405-198-6 01 1 0907-1303 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-119-1 01 1 1304- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
(C) GRAY 		8-97405-201-5 01 1 0905-1303 ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
(C) GRAY 		8-97425-111-1 01 1 1304- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97418-676-0 01 1 1104- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97418-677-0 01 1 1104- ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-388-1 01 1 0905-0906 ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-388-1 01 1 0907-1103 ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-388-1 01 1 1104- ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-389-1 01 1 0905-0906 ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-389-1 01 1 0907-1103 ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-389-1 01 1 1104- ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY 		8-97406-252-3 01 1 0905-0906 ● ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97406-252-3 01 1 0905-0906 ● ●
72 16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY 		8-97406-252-3 01 1 0907- ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97406-252-3 01 1 0907- ● ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4JJ1-TCS ENG(LFB) GRAY 		8-97405-204-4 01 1 1012- ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HK1-TCN ENG(RDQ) GRAY 		8-97412-600-1 01 1 0905-1511 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HK1-TCS ENG(RJS) GRAY 		8-97412-600-1 01 1 0905-1511 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HK1-TCN ENG(RDQ) GRAY 		8-97467-183-0 01 1 1512- ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HK1-TCS ENG(RJS) GRAY 		8-97467-183-0 01 1 1512- ●
