◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51239 - NN/NP/NQR-RHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#50110) — 85 parça

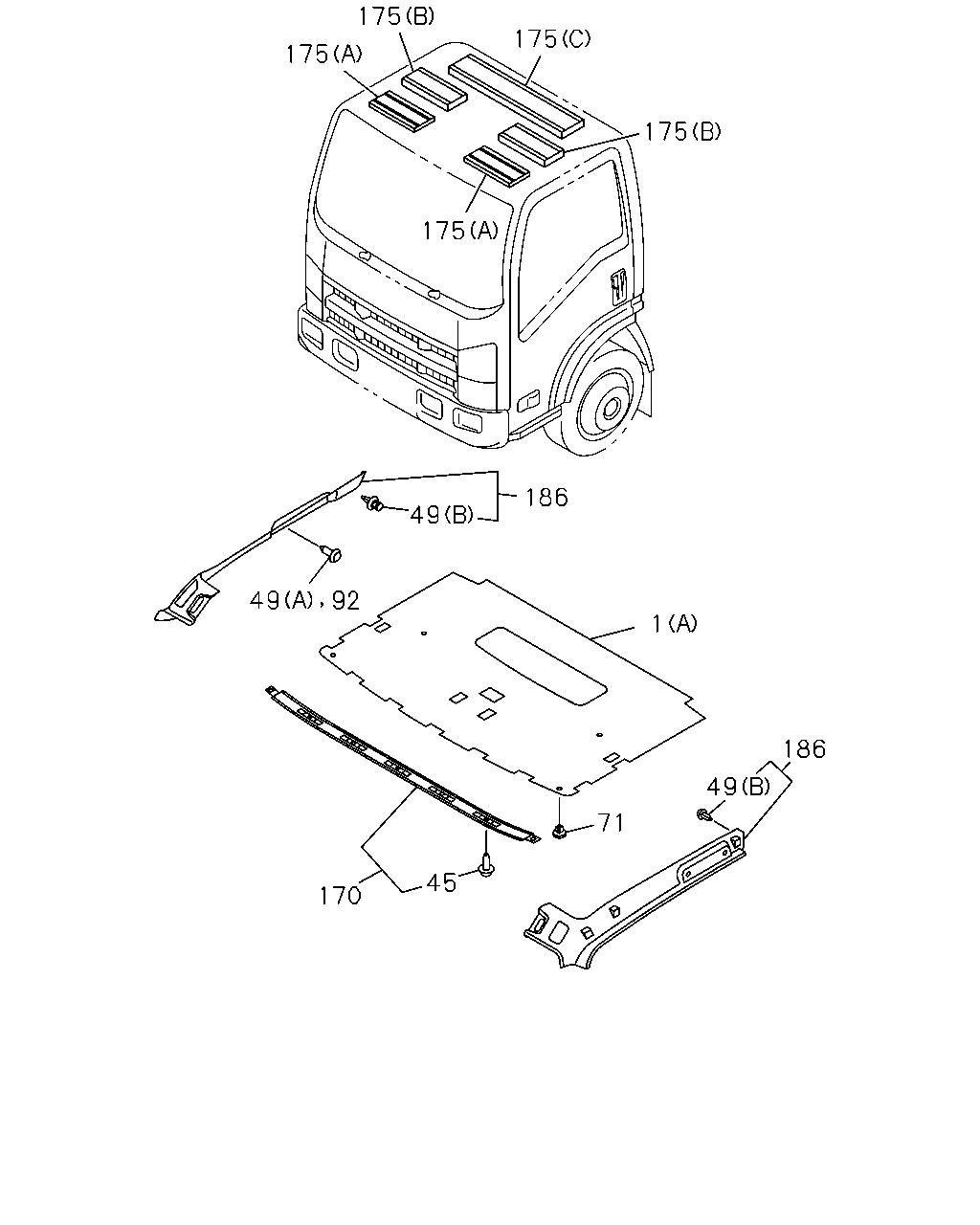

çizim 159061
175 175 175 175 175 186 49 49 92 1 186 49 71 45 170
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.742 LINING; HD
HEADER TRAY DRIVER<W56> (A) DARK GRAY 		8-97405-272-8 01 1 0905-0906 ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER<W56> (A) DARK GRAY 		8-97405-272-8 01 1 0907- ● ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97405-270-7 01 1 0905-0906 ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97405-270-8 01 1 0907- ● ● ●
1 16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97405-269-7 01 1 0905-0906 ● ●
1 16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97405-269-7 01 1 0907- ● ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER<W56> (B) DARK GRAY 		8-97405-277-3 01 1 0905- ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97405-279-3 01 1 0905- ● ●
1 16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97405-278-2 01 1 0905- ● ●
45 16.742 CLIP; FINISHER 8-98035-592-1 05 1 0905-0906 ● ● ● ●
45 16.742 CLIP; FINISHER 8-98035-592-1 05 1 0907-0911 ● ● ● ● ●
45 16.742 CLIP; FINISHER 8-98035-592-1 03 1 0912- ● ● ● ● ●
49 16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY 		8-97407-768-0 02 1 0905-0906 ● ● ● ●
49 16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY 		8-97407-768-0 02 1 0907- ● ● ● ● ●
49 16.742 CLIP; TRIM COVER
16.578 (B) 		8-98059-610-0 03 1 0905-0906 ● ● ● ●
49 16.742 CLIP; TRIM COVER
16.578 (B) 		8-98059-610-0 03 1 0907-1410 ● ● ● ● ●
49 16.742 CLIP; TRIM COVER
16.578 (B) 		8-98059-610-0 02 1 1411- ● ● ● ● ●
71 16.742 FASTENER; HD LINING
D=8.7X16.5 DARK GRAY 		8-97405-282-0 06 1 0905-0906 ● ●
71 16.742 FASTENER; HD LINING
D=8.7X16.5 DARK GRAY 		8-97405-282-0 06 1 0907- ● ● ●
71 16.742 FASTENER; HD LINING
D=8.7X16.5 DARK GRAY 		8-97405-282-0 20 1 0905- ● ●
92 16.742 RETAINER; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5> DARK GRAY 		8-97407-768-0 04 1 0905-0906 ● ● ● ●
92 16.742 RETAINER; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5> DARK GRAY 		8-97407-768-0 04 1 0907- ● ● ● ● ●
170 16.742 FINISHER; HEAD LINING
DARK GRAY 		8-97405-281-5 01 1 0905-0906 ● ● ● ●
170 16.742 FINISHER; HEAD LINING
DARK GRAY 		8-97405-281-5 01 1 0907- ● ● ● ● ●
175 16.742 CUSHION; HEAD LINING
(B) 		8-98037-299-3 02 1 0905-0906 ● ●
175 16.742 CUSHION; HEAD LINING
(B) 		8-98037-299-3 02 1 0907- ● ● ●
175 16.742 CUSHION; HEAD LINING
(C) 		8-98037-300-3 01 1 0905-0906 ● ●
175 16.742 CUSHION; HEAD LINING
(C) 		8-98037-300-3 01 1 0907- ● ● ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 0905-0906 ● ● ● ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 0907- ● ● ● ● ●
175 16.742 CUSHION; HEAD LINING
(D) 		8-98037-298-3 03 1 0905- ● ●
175 16.742 CUSHION; HEAD LINING
(E) 		8-98054-171-3 02 1 0905- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-250-3 01 1 0905-0906 ● ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-250-3 01 1 0907- ● ● ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-252-3 01 1 0905-0906 ● ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-252-3 01 1 0907- ● ● ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 0905-0906 ● ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 0907- ● ● ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 0905-0906 ● ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 0907- ● ● ● ● ●

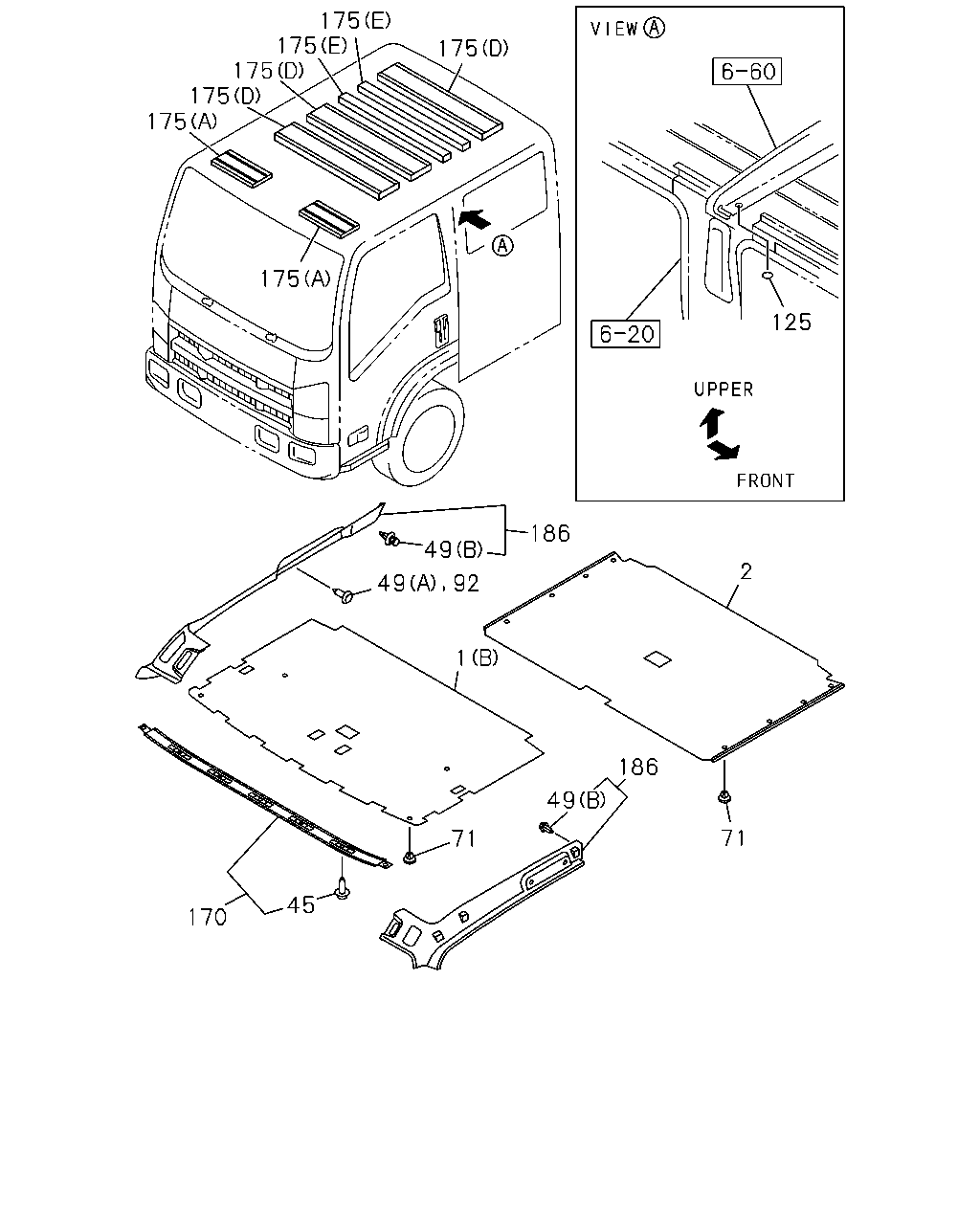

çizim 159071
175 175 175 175 175 175 175 125 186 49 2 49 92 1 186 49 71 71 45 170
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.742 LINING; HD
HEADER TRAY DRIVER<W56> (A) DARK GRAY 		8-97405-272-8 01 1 0905-0906 ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER<W56> (A) DARK GRAY 		8-97405-272-8 01 1 0907- ● ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97405-270-7 01 1 0905-0906 ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97405-270-8 01 1 0907- ● ● ●
1 16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97405-269-7 01 1 0905-0906 ● ●
1 16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) DARK GRAY 		8-97405-269-7 01 1 0907- ● ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER<W56> (B) DARK GRAY 		8-97405-277-3 01 1 0905- ● ●
1 16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97405-279-3 01 1 0905- ● ●
1 16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) DARK GRAY 		8-97405-278-2 01 1 0905- ● ●
2 16.742 LINING; HD,ROOF RR
DARK GRAY 		8-97405-280-3 01 1 0905- ● ●
45 16.742 CLIP; FINISHER 8-98035-592-1 05 1 0905-0906 ● ● ● ●
45 16.742 CLIP; FINISHER 8-98035-592-1 05 1 0907-0911 ● ● ● ● ●
45 16.742 CLIP; FINISHER 8-98035-592-1 03 1 0912- ● ● ● ● ●
49 16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY 		8-97407-768-0 02 1 0905-0906 ● ● ● ●
49 16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY 		8-97407-768-0 02 1 0907- ● ● ● ● ●
49 16.742 CLIP; TRIM COVER
16.578 (B) 		8-98059-610-0 03 1 0905-0906 ● ● ● ●
49 16.742 CLIP; TRIM COVER
16.578 (B) 		8-98059-610-0 03 1 0907-1410 ● ● ● ● ●
49 16.742 CLIP; TRIM COVER
16.578 (B) 		8-98059-610-0 02 1 1411- ● ● ● ● ●
71 16.742 FASTENER; HD LINING
D=8.7X16.5 DARK GRAY 		8-97405-282-0 06 1 0905-0906 ● ●
71 16.742 FASTENER; HD LINING
D=8.7X16.5 DARK GRAY 		8-97405-282-0 06 1 0907- ● ● ●
71 16.742 FASTENER; HD LINING
D=8.7X16.5 DARK GRAY 		8-97405-282-0 20 1 0905- ● ●
92 16.742 RETAINER; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5> DARK GRAY 		8-97407-768-0 04 1 0905-0906 ● ● ● ●
92 16.742 RETAINER; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5> DARK GRAY 		8-97407-768-0 04 1 0907- ● ● ● ● ●
125 16.570 SEAL; HOLE
BODY COLOR ARC WHITE(729) 16.592 OD=36 WHITE 		1-76778-007-0 02 1 0905-1007 ● ●
125 16.570 SEAL; HOLE
BODY COLOR POLAR WHITE(534),BODY COLORARC WHITE(729) 16.592 OD=36 WHITE 		1-76778-007-0 02 1 1008- ● ●
125 16.570 SEAL; HOLE
BODY COLOR MARINE BLUE(890),BODY COLORTRANS BLUE(999) 02.580 OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0905-1007 ● ●
125 16.570 SEAL; HOLE
BODY COLOR EBONY BLACK(508),BODY COLORAL GRAY(517),BODY COLOR PURPLISH BLUE (668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARD INAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWA Y ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) 02.580 OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1008- ● ●
170 16.742 FINISHER; HEAD LINING
DARK GRAY 		8-97405-281-5 01 1 0905-0906 ● ● ● ●
170 16.742 FINISHER; HEAD LINING
DARK GRAY 		8-97405-281-5 01 1 0907- ● ● ● ● ●
175 16.742 CUSHION; HEAD LINING
(B) 		8-98037-299-3 02 1 0905-0906 ● ●
175 16.742 CUSHION; HEAD LINING
(B) 		8-98037-299-3 02 1 0907- ● ● ●
175 16.742 CUSHION; HEAD LINING
(C) 		8-98037-300-3 01 1 0905-0906 ● ●
175 16.742 CUSHION; HEAD LINING
(C) 		8-98037-300-3 01 1 0907- ● ● ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 0905-0906 ● ● ● ●
175 16.742 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 0907- ● ● ● ● ●
175 16.742 CUSHION; HEAD LINING
(D) 		8-98037-298-3 03 1 0905- ● ●
175 16.742 CUSHION; HEAD LINING
(E) 		8-98054-171-3 02 1 0905- ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-250-3 01 1 0905-0906 ● ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-250-3 01 1 0907- ● ● ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-252-3 01 1 0905-0906 ● ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-252-3 01 1 0907- ● ● ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 0905-0906 ● ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 0907- ● ● ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 0905-0906 ● ● ● ●
186 16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 0907- ● ● ● ● ●
