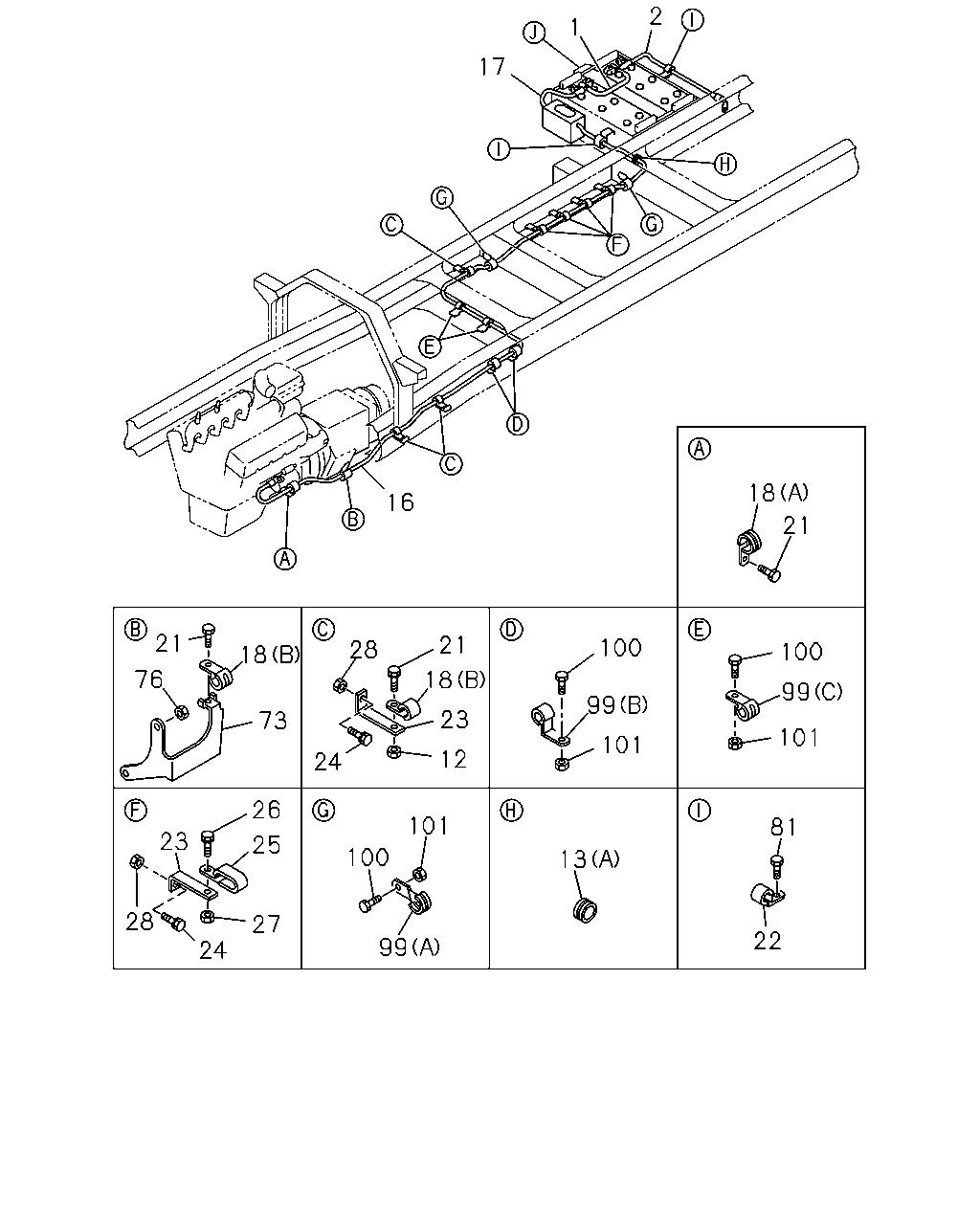

0-61B — BATTERY AND ENGINE ELECTRICAL PARTS (#5011) — 137 parça

2 1 17 18 16 21 21 21 100 28 100 18 76 18 99 99 23 73 101 101 12 24 26 101 81 23 25 100 13 28 27 22 99 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450	1-82650-281-2	01	1	9606-	●	●
1	CABLE; BATTERY EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180	1-82650-280-2	01	1	9606-	●	●
2	CABLE; BATTERY L=690	1-82650-147-0	01	1	9606-9905	●
2	CABLE; BATTERY L=690	1-82650-147-0	01	1	9906-		●
12	NUT; BATTERY CABLE CLIP M8	9-09110-408-0	03	1	9606-9606	●
12	NUT; BATTERY CABLE CLIP M10 FLANGE	0-91150-210-0	03	1	9607-9708	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	03	1	9709-9905	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	03	1	9906-		●
13	GROMMET; BATTERY CABLE (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	9606-9905	●
13	GROMMET; BATTERY CABLE (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	9906-		●
13	GROMMET; BATTERY CABLE (B) ID=26	1-09333-140-0	01	1	9606-9905	●
13	GROMMET; BATTERY CABLE (B) ID=26	1-09333-140-0	01	1	9906-		●
16	CABLE; STARTER TO RELAY WHEEL BASE 6300MM(63W) L=5150	1-82652-490-5	01	1	9606-9608	●
16	CABLE; STARTER TO RELAY WHEEL BASE 6300MM(63W) L=5100	1-82652-608-0	01	1	9609-9609	●
16	CABLE; STARTER TO RELAY WHEEL BASE 6300MM(63W) L=5100	1-82652-641-0	01	1	9609-9905	●
16	CABLE; STARTER TO RELAY WHEEL BASE 6300MM(63W) L=5100	1-82652-641-0	01	1	9906-		●
16	CABLE; STARTER TO RELAY WHEEL BASE 6600MM(66W) L=5400	1-82652-594-0	01	1	9606-9608	●
16	CABLE; STARTER TO RELAY WHEEL BASE 6600MM(66W) L=5400	1-82652-629-0	01	1	9609-9905	●
16	CABLE; STARTER TO RELAY WHEEL BASE 6600MM(66W) L=5400	1-82652-629-0	01	1	9906-		●
17	CABLE; BATTERY (+) TO RELAY L=390	1-82652-531-0	01	1	9606-9905	●
17	CABLE; BATTERY (+) TO RELAY L=390	1-82652-531-0	01	1	9906-		●
18	CLIP; BATTERY CABLE (B) ID=18 L=28	1-09701-067-0	03	1	9606-9905	●
18	CLIP; BATTERY CABLE (B) ID=18 L=28	1-09701-067-0	03	1	9906-		●
18	CLIP; BATTERY CABLE (A) ID=19 L=28	9-09525-856-0	01	1	9606-9905	●
18	CLIP; BATTERY CABLE (A) ID=19 L=28	9-09525-856-0	01	1	9906-		●
18	CLIP; BATTERY CABLE ISUZU M/T<X9A>,FULLER M/T<X9B> (B) ID=18 L=28	1-09701-067-0	01	1	9606-	●	●
18	CLIP; BATTERY CABLE ZF M/T<X9E> (B) ID=20 H=23 L=27	1-09700-861-0	01	1	9606-	●	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28080-820-0	05	1	9606-9606	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28680-820-0	05	1	9607-9905	●
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28680-820-0	05	1	9906-		●
22	CLIP; BATTERY CABLE ID=20 H=23 L=27	1-09700-861-0	01	1	9606-9905	●
22	CLIP; BATTERY CABLE ID=20 H=23 L=27	1-09700-861-0	01	1	9906-		●
22	CLIP; BATTERY CABLE ID=18 H=23 L=28	1-09701-070-0	01	1	9606-9905	●
22	CLIP; BATTERY CABLE ID=18 H=23 L=28	1-09701-070-0	01	1	9906-		●
23	BRACKET; CABLE CLIP TO FRAME L=95	1-82699-085-0	07	1	9606-9905	●
23	BRACKET; CABLE CLIP TO FRAME L=95	1-82699-085-0	07	1	9906-		●
24	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28080-825-0	07	1	9606-9606	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28680-830-0	07	1	9607-9905	●
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28680-830-0	07	1	9906-		●
25	CLIP; BATTERY CABLE TO BRKT WHEEL BASE 6600MM(66W) ID=18 L=50	1-09701-072-0	04	1	9606-	●	●
25	CLIP; BATTERY CABLE TO BRKT WHEEL BASE 6300MM(63W) ID=18 L=28	1-09701-067-0	04	1	9606-	●
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X20 FLANGE	0-28080-820-0	04	1	9606-9606	●
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X20 FLANGE	0-28680-820-0	04	1	9607-9905	●
26	BOLT; BATTERY CABLE CLIP TO BRKT M8X20 FLANGE	0-28680-820-0	04	1	9906-		●
27	NUT; BATTERY CABLE CLIP TO BRKT M8	9-09110-408-0	04	1	9606-9606	●
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91150-108-0	04	1	9607-9905	●
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91150-108-0	04	1	9906-		●
28	NUT; BRKT TO FRAME M8	9-09110-408-0	07	1	9606-9606	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	07	1	9607-9905	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91150-108-0	07	1	9906-		●
73	BRACKET; BATTERY CABLE	1-82699-822-0	01	1	9606-9903	●
73	BRACKET; BATTERY CABLE	1-82698-139-0	01	1	9904-9905	●
73	BRACKET; BATTERY CABLE	1-82698-139-0	01	1	9906-		●
76	NUT; BATTERY CABLE M10 FLANGE	0-91150-110-0	02	1	9606-9606	●
76	NUT; BATTERY CABLE M10 FLANGE	0-91150-210-0	02	1	9607-9608	●
76	NUT; BATTERY CABLE ISUZU M/T<X9A>,FULLER M/T<X9B> M10 FLANGE	0-91150-210-0	02	1	9609-9706	●
76	NUT; BATTERY CABLE ISUZU M/T<X9A>,FULLER M/T<X9B> M10 FLANGE	0-91150-210-0	02	1	9707-9905	●
76	NUT; BATTERY CABLE M10 FLANGE	0-91150-210-0	02	1	9906-		●
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28080-820-0	02	1	9606-9606	●
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28680-820-0	02	1	9607-9905	●
81	BOLT; BATTERY CABLE M8X20 FLANGE	0-28680-820-0	02	1	9906-		●
99	CLIP; BATTERY CABLE WHEEL BASE 6300MM(63W) (A) ID=18 L=54	1-09701-068-0	01	1	9606-9608	●
99	CLIP; BATTERY CABLE WHEEL BASE 6300MM(63W) (A) ID=18 L=54	1-09701-068-0	01	1	9609-9706	●
99	CLIP; BATTERY CABLE WHEEL BASE 6300MM(63W) (A) ID=18 L=54	1-09701-068-0	01	1	9707-9905	●
99	CLIP; BATTERY CABLE (A) ID=18 L=54	1-09701-068-0	01	1	0004-		●
99	CLIP; BATTERY CABLE (B) ID=18 H=23 L=28	1-09701-070-0	02	1	9606-9905	●
99	CLIP; BATTERY CABLE (B) ID=18 H=23 L=28	1-09701-070-0	02	1	9906-		●
99	CLIP; BATTERY CABLE WHEEL BASE 6600MM(66W) (C) ID=18 L=50	1-09701-072-0	02	1	9606-	●	●
99	CLIP; BATTERY CABLE WHEEL BASE 6600MM(66W) (A) ID=18 L=80	1-09701-069-0	02	1	9606-9608	●
99	CLIP; BATTERY CABLE WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) (A) ID=18 L=80	1-09701-069-0	02	1	9609-9701	●	●
99	CLIP; BATTERY CABLE WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=18 L=80	1-09701-069-0	02	1	9702-0003	●
99	CLIP; BATTERY CABLE WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=18 L=80	1-09701-069-0	01	1	0004-	●
100	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28080-820-0	03	1	9606-9606	●
100	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28680-820-0	03	1	9607-9905	●
100	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28680-820-0	03	1	9906-		●
100	BOLT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) M8X20 FLANGE	0-28080-820-0	02	1	9606-9606	●	●
100	BOLT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) M8X20 FLANGE	0-28080-820-0	01	1	9606-9606	●
100	BOLT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) M8X20 FLANGE	0-28680-820-0	01	1	9607-9608	●
100	BOLT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) M8X20 FLANGE	0-28680-820-0	02	1	9609-0003	●	●
100	BOLT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) M8X20 FLANGE	0-28680-820-0	02	1	0004-		●
100	BOLT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) M8X20 FLANGE	0-28680-820-0	02	1	9608-9608	●
100	BOLT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28680-820-0	01	1	9609-9701	●	●
100	BOLT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X20 FLANGE	0-28680-820-0	01	1	9702-	●
101	NUT; BATTERY CABLE CLIP M8	9-09110-408-0	03	1	9606-9606	●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	03	1	9607-9905	●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91150-108-0	03	1	9906-		●
101	NUT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) M8	9-09110-408-0	02	1	9606-9606	●	●
101	NUT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) M8 FLANGE	0-91150-108-0	02	1	9607-	●	●
101	NUT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) M8	9-09110-408-0	01	1	9606-9606	●
101	NUT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) M8 FLANGE	0-91150-108-0	01	1	9607-9608	●
101	NUT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91150-108-0	01	1	9609-9701	●	●
101	NUT; BATTERY CABLE CLIP WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91150-108-0	01	1	9702-	●

11 109 2 1 108 17 110 65 69 162 68 65 13 64 63 66 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=450	1-82650-281-2	01	1	9606-	●	●
1	CABLE; BATTERY EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> L=180	1-82650-280-2	01	1	9606-	●	●
2	CABLE; BATTERY L=690	1-82650-147-0	01	1	9606-9905	●
2	CABLE; BATTERY L=690	1-82650-147-0	01	1	9906-		●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	9606-9905	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	9-09164-708-0	01	1	9906-		●
13	GROMMET; BATTERY CABLE (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	9606-9905	●
13	GROMMET; BATTERY CABLE (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	9906-		●
13	GROMMET; BATTERY CABLE (B) ID=26	1-09333-140-0	01	1	9606-9905	●
13	GROMMET; BATTERY CABLE (B) ID=26	1-09333-140-0	01	1	9906-		●
16	CABLE; STARTER TO RELAY WHEEL BASE 6300MM(63W) L=5150	1-82652-490-5	01	1	9606-9608	●
16	CABLE; STARTER TO RELAY WHEEL BASE 6300MM(63W) L=5100	1-82652-608-0	01	1	9609-9609	●
16	CABLE; STARTER TO RELAY WHEEL BASE 6300MM(63W) L=5100	1-82652-641-0	01	1	9609-9905	●
16	CABLE; STARTER TO RELAY WHEEL BASE 6300MM(63W) L=5100	1-82652-641-0	01	1	9906-		●
16	CABLE; STARTER TO RELAY WHEEL BASE 6600MM(66W) L=5400	1-82652-594-0	01	1	9606-9608	●
16	CABLE; STARTER TO RELAY WHEEL BASE 6600MM(66W) L=5400	1-82652-629-0	01	1	9609-9905	●
16	CABLE; STARTER TO RELAY WHEEL BASE 6600MM(66W) L=5400	1-82652-629-0	01	1	9906-		●
17	CABLE; BATTERY (+) TO RELAY L=390	1-82652-531-0	01	1	9606-9905	●
17	CABLE; BATTERY (+) TO RELAY L=390	1-82652-531-0	01	1	9906-		●
63	BOLT; RELAY BATTERY M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	9606-9905	●
63	BOLT; RELAY BATTERY M8X35 W/LK&PL WASHER	1-09030-025-0	02	1	9906-		●
64	BOX; BATTERY RELAY	1-82699-352-2	01	1	9606-9611	●
64	BOX; BATTERY RELAY	1-82699-947-0	01	1	9612-9905	●
64	BOX; BATTERY RELAY	1-82699-947-0	01	1	9906-		●
65	COVER; BATTERY RELAY (A)	1-82699-353-1	01	1	9606-9905	●
65	COVER; BATTERY RELAY (A)	1-82699-353-1	01	1	9906-		●
65	COVER; BATTERY RELAY (B)	1-82699-354-2	01	1	9606-9611	●
65	COVER; BATTERY RELAY (B)	1-82699-980-0	01	1	9612-9905	●
65	COVER; BATTERY RELAY (B)	1-82699-980-0	01	1	9906-		●
66	BOLT; COVER,BATTERY RELAY M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9606-9905	●
66	BOLT; COVER,BATTERY RELAY M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9906-		●
68	RELAY; BATTERY	1-82550-228-2	01	1	9606-9711	●
68	RELAY; BATTERY	1-82550-282-0	01	1	9712-9905	●
68	RELAY; BATTERY	1-82550-282-0	01	1	9906-		●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9606-9905	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9906-		●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	9606-9905	●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	9906-		●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-508-0	01	1	9606-9810	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	9811-9905	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	9-09150-808-0	01	1	9906-		●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	9606-9905	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	9906-		●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	9606-9905	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	9-09164-608-0	02	1	9906-		●
